SINOLIFT BFS Manual Stainless Steel Hydraulic Pallet Truck

BFS
The SINOLIFT BFS Manual Stainless Steel Hydraulic Pallet Truck is specially designed for hygienic, corrosive, and demanding working environments such as food processing, pharmaceuticals, cold storage, aquatic products, chemical industries, and clean rooms.
Quantity:
Contact Now
add to cart
All Products

Product Name

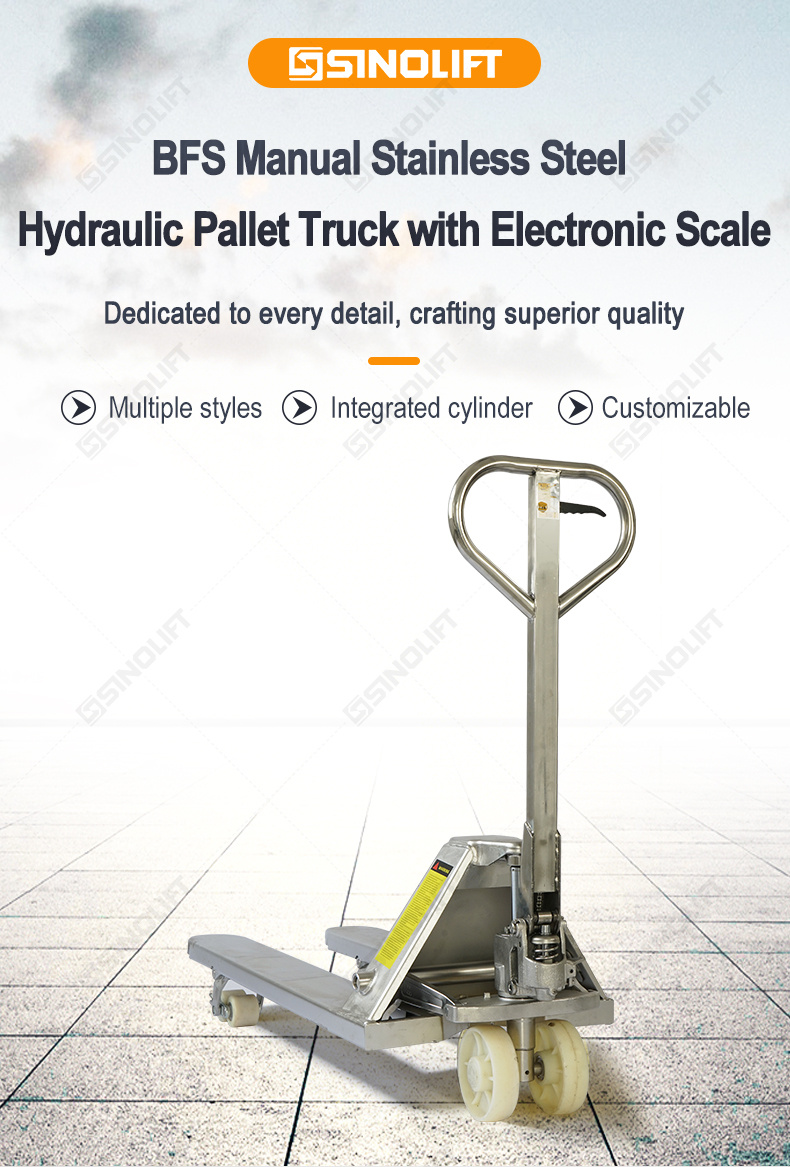

SINOLIFT BFS Manual Stainless Steel Hydraulic Pallet Truck

Product Description

The SINOLIFT BFS Manual Stainless Steel Hydraulic Pallet Truck is specially designed for hygienic, corrosive, and demanding working environments such as food processing, pharmaceuticals, cold storage, aquatic products, chemical industries, and clean rooms.

Constructed with a full 304 stainless steel frame, the BFS pallet truck provides excellent corrosion resistance, long service life, and easy cleaning performance. Its sealed hydraulic system and waterproof structure ensure reliable operation in wet, humid, or sanitary environments.

Equipped with reinforced 4 mm stainless steel forks, ergonomic three-position control handle, and smooth hydraulic lifting system, the BFS delivers stable load handling, comfortable operation, and dependable durability under daily industrial use.

Designed for both hygiene and strength, the BFS series is an ideal manual material handling solution for industries with strict cleanliness and anti-corrosion requirements.

Key Features

  • Full 304 stainless steel construction
  • Excellent corrosion resistance for wet and hygienic environments

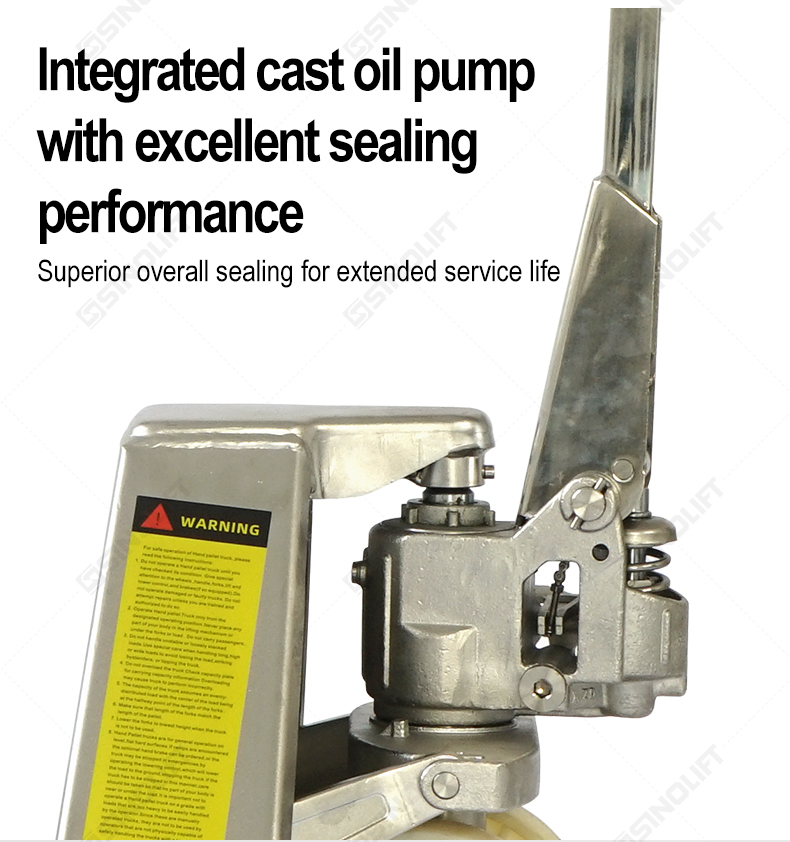

  • Integrated sealed hydraulic oil pump

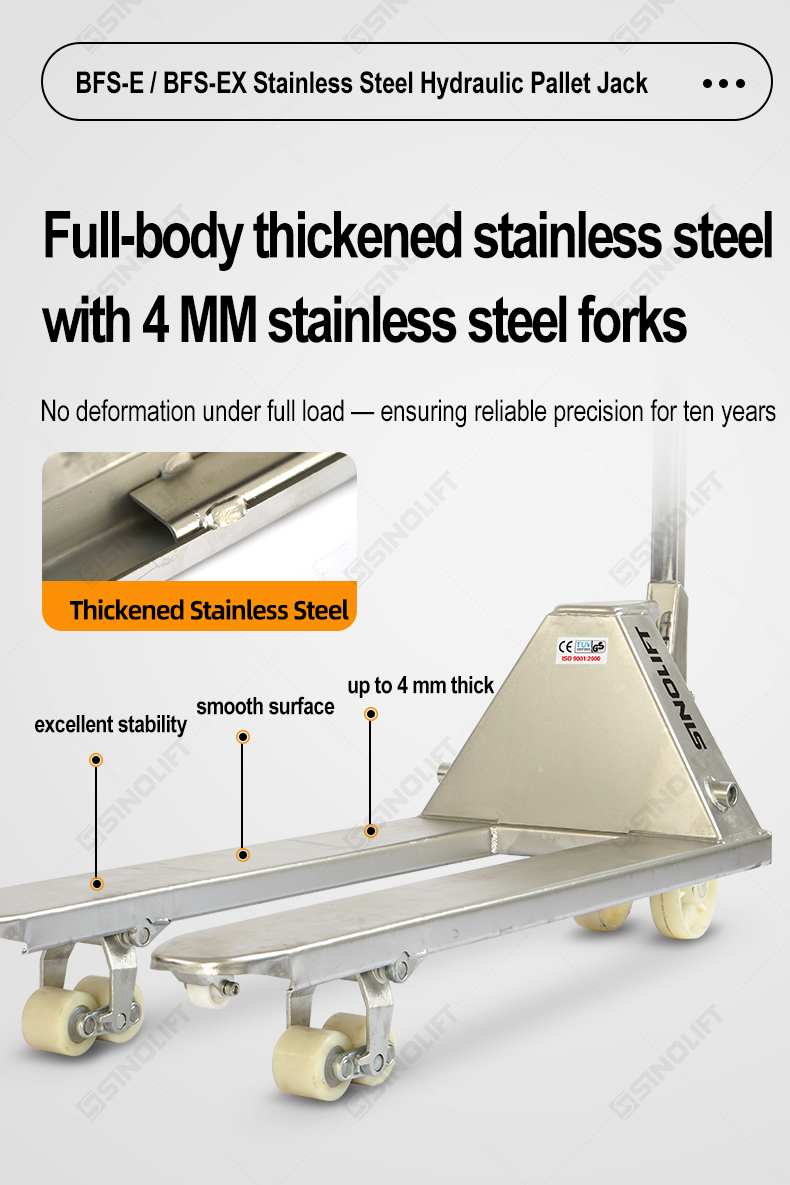

  • Reinforced 4 mm thick stainless steel forks
  • Waterproof, dustproof, and easy-to-clean design

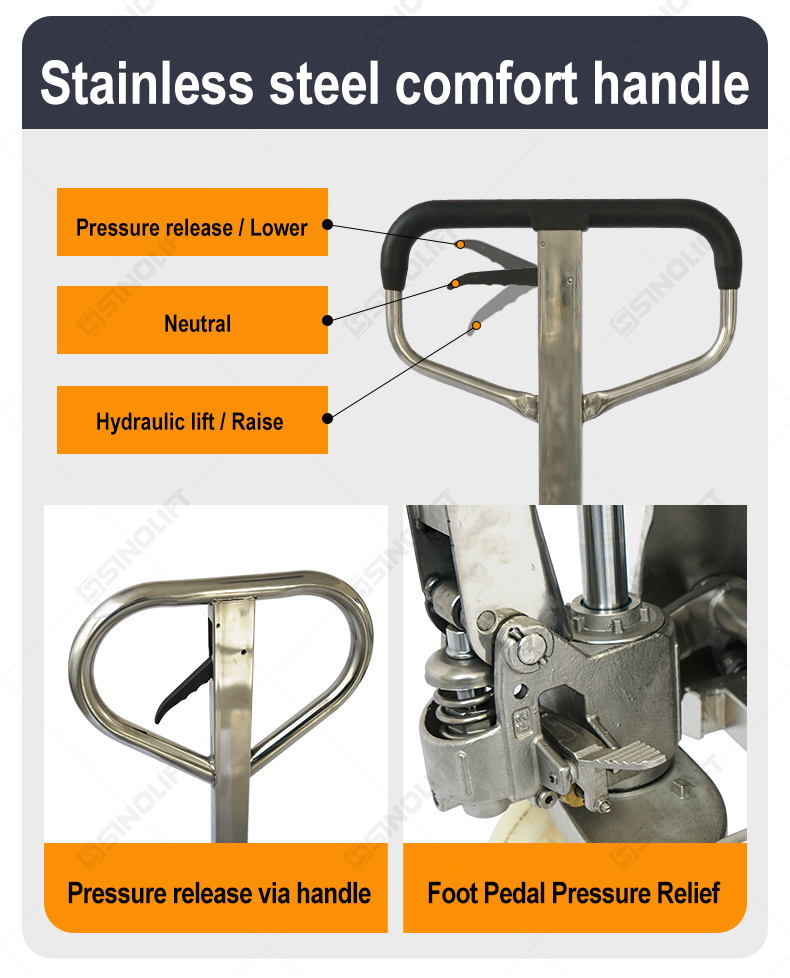

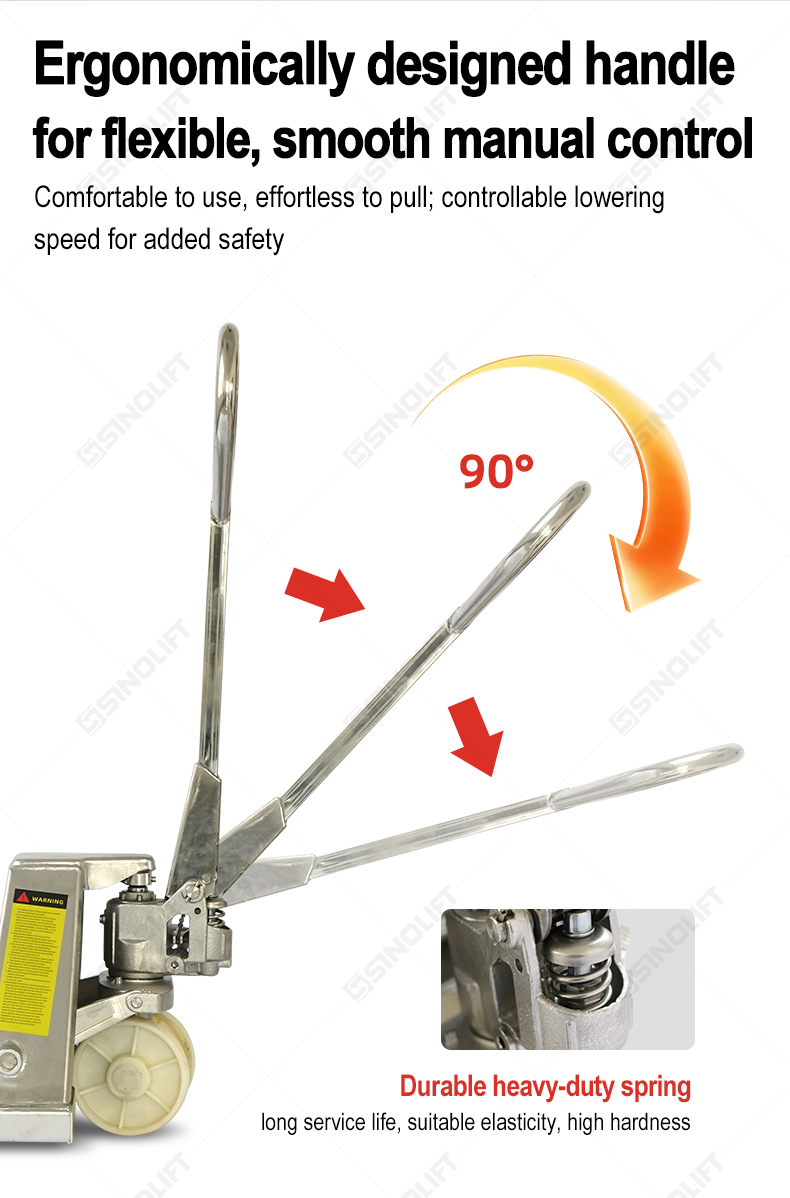

  • Ergonomic stainless steel handle with three-position control
  • Smooth and controllable lowering speed

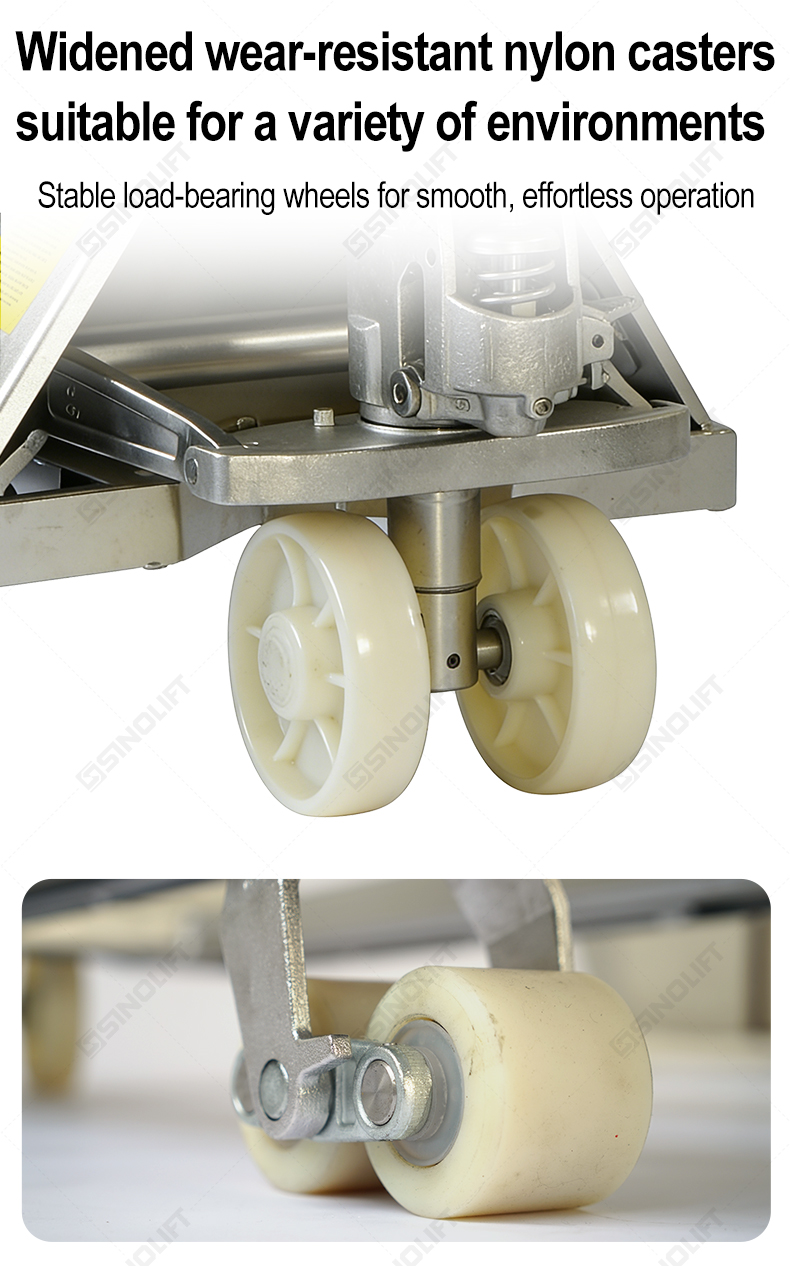

  • Wear-resistant nylon wheels for multiple floor conditions

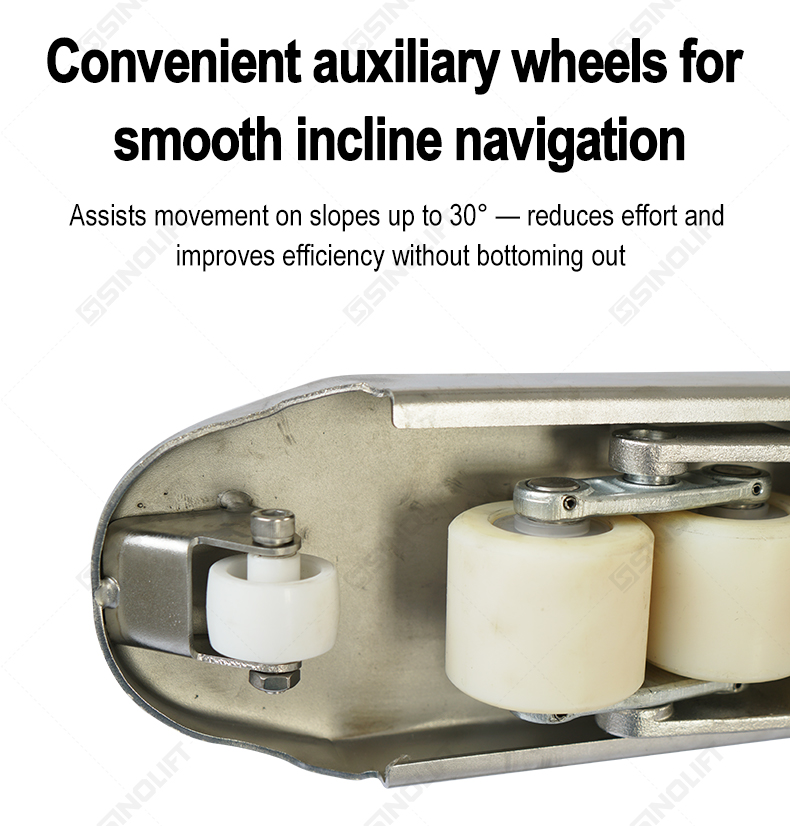

  • Auxiliary wheels for easier movement on slopes and uneven surfaces

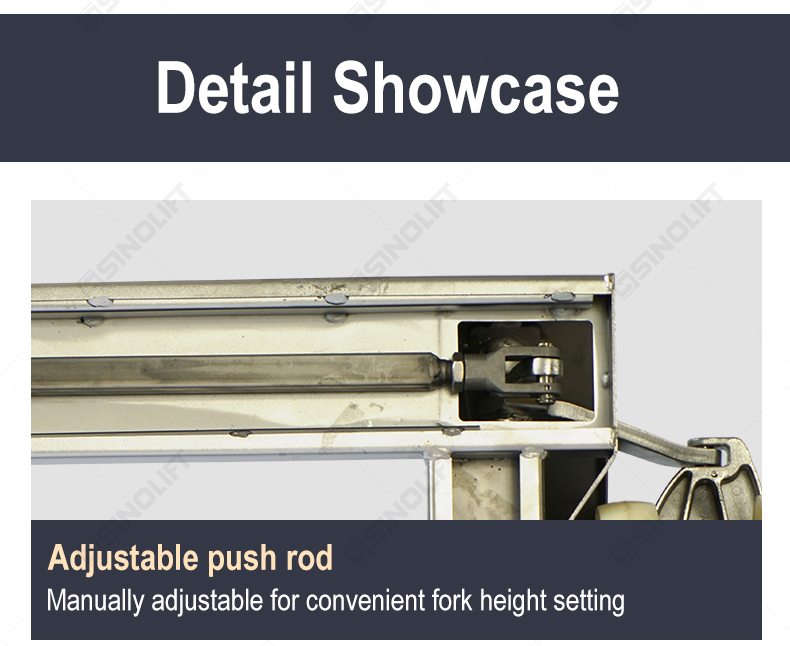

  • Adjustable push rod for convenient fork height adjustment

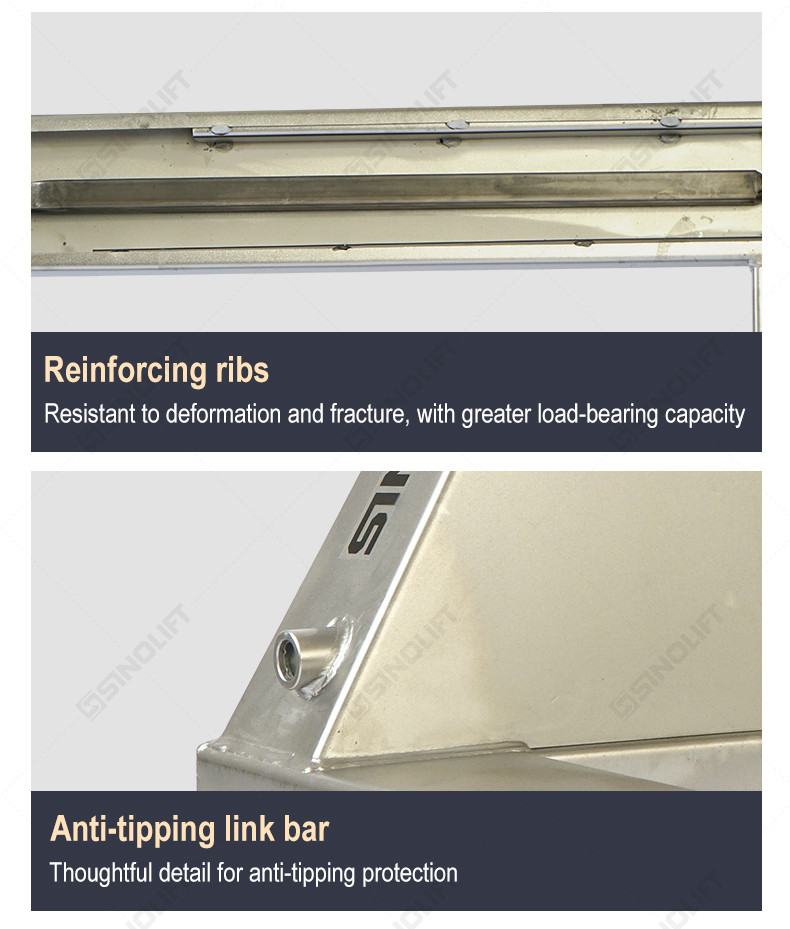

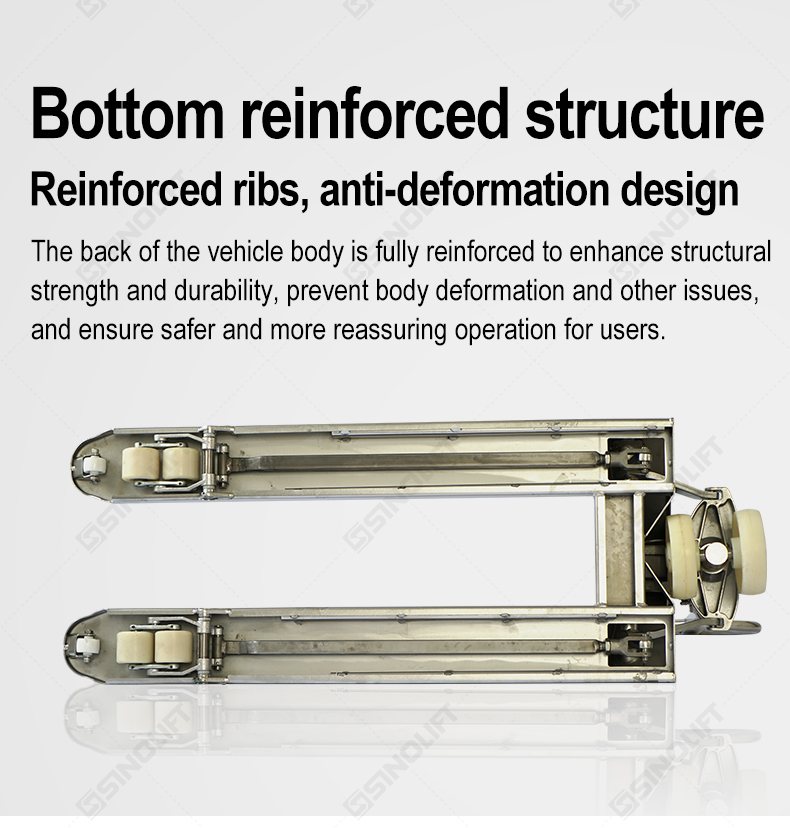

  • Reinforced structure for improved load-bearing performance
  • Anti-tipping protection design
  • Stable and reliable manual hydraulic lifting system
  • Suitable for harsh, humid, and sanitary operating conditions

Applications

  • Food processing plants
  • Pharmaceutical manufacturing facilities
  • Cold storage warehouses
  • Aquatic product handling environments
  • Chemical production workshops
  • Electronics manufacturing plants
  • Medical and healthcare facilities
  • Clean room material handling
  • Hygienic warehouse logistics
  • Wet and corrosive industrial environments

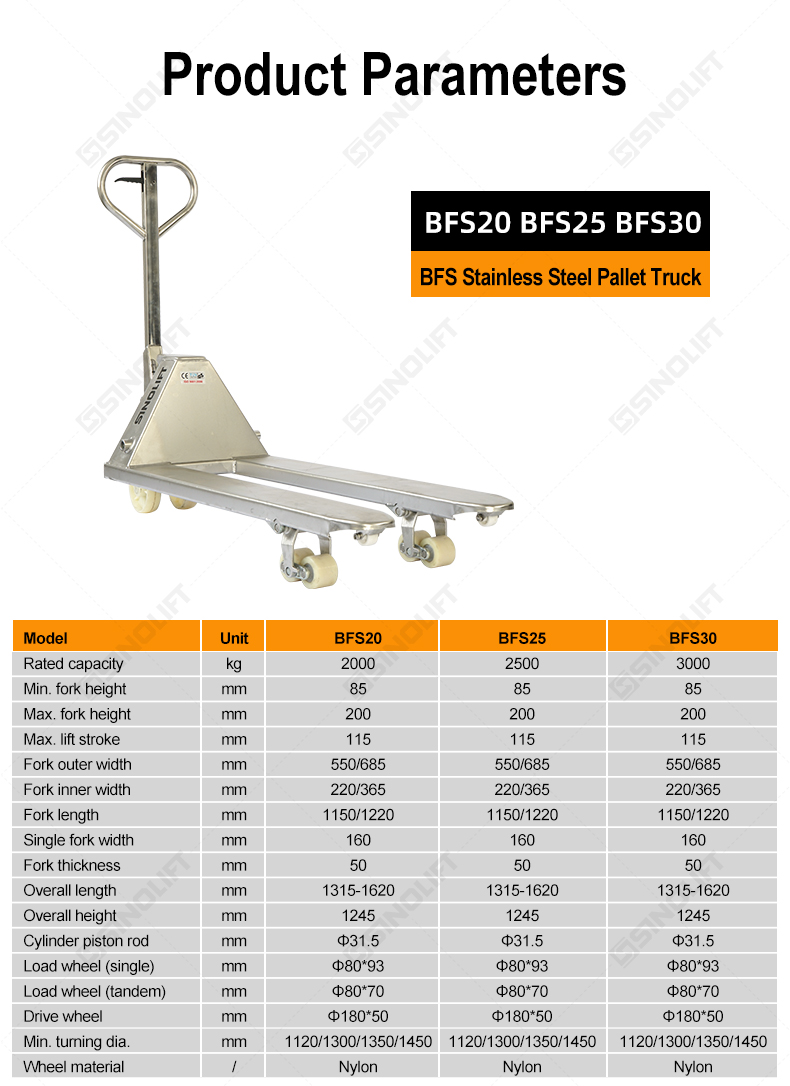

Product Specifications

ModelUnitBFS20BFS25BFS30
Rated capacitykg200025003000

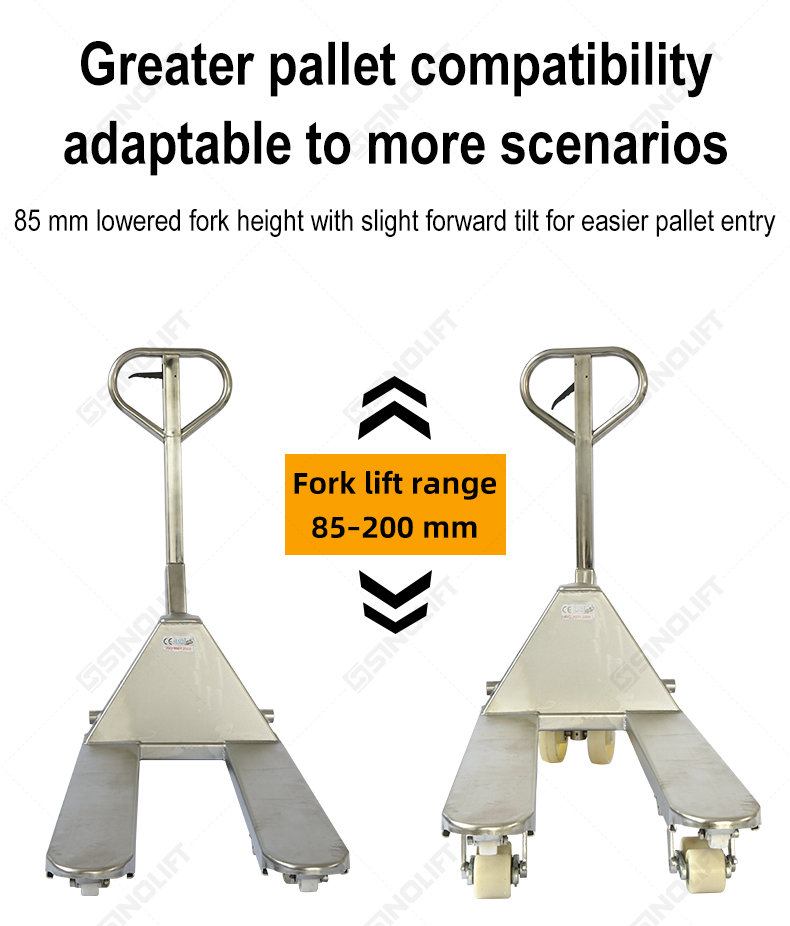

Min. fork heightmm858585

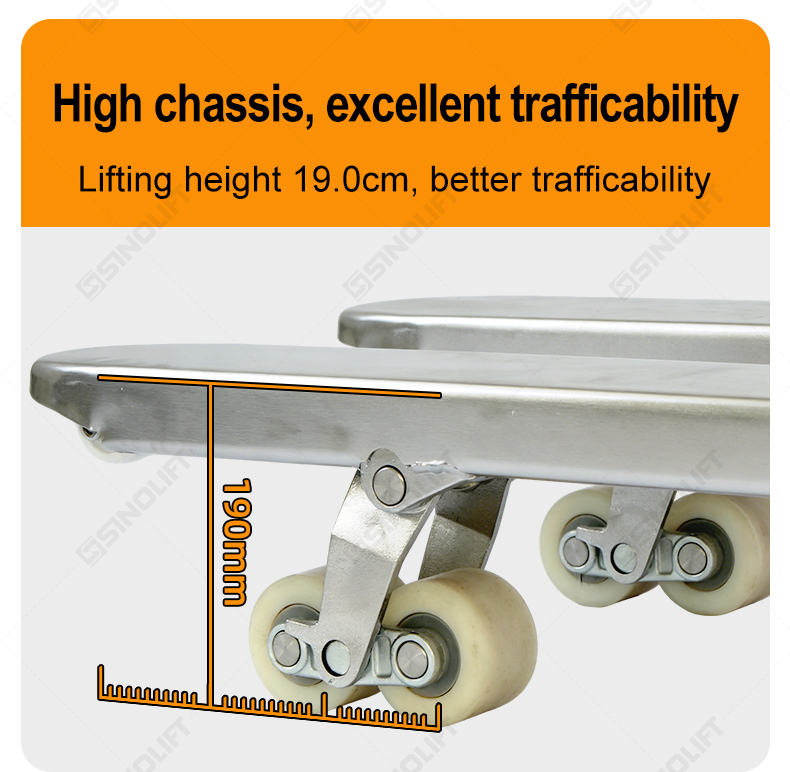

Max. fork heightmm200200200
Max. lift strokemm115115115
Fork outer widthmm550/685550/685550/685
Fork inner widthmm220/365220/365220/365
Fork lengthmm1150/12201150/12201150/1220
Single fork widthmm160160160
Fork thicknessmm505050
Overall lengthmm1315-16201315-16201315-1620
Overall heightmm124512451245
Cylinder piston rodmmΦ31.5Φ31.5Φ31.5
Load wheel (single)mmΦ80x93Φ80x93Φ80x93
Load wheel (tandem)mmΦ80x70Φ80x70Φ80x70
Drive wheelmmΦ180x50Φ180x50Φ180x50
Min. turning dia.mm1120/1300/1350/14501120/1300/1350/14501120/1300/1350/1450
Wheel material/NylonNylonNylon
