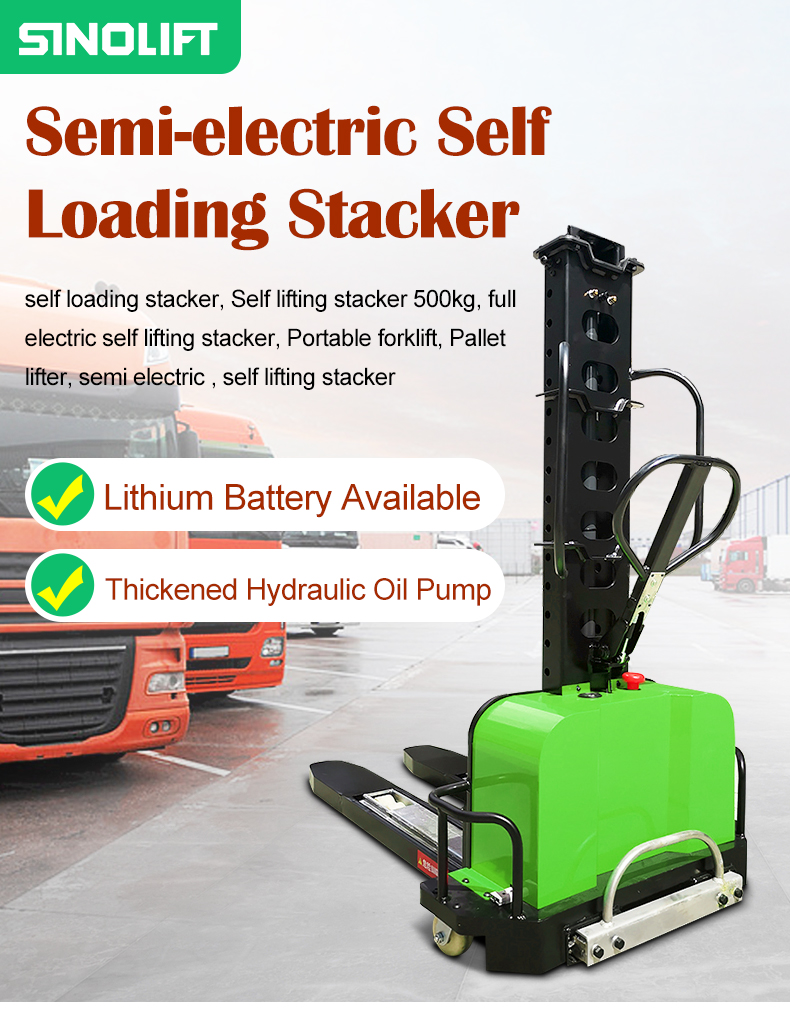

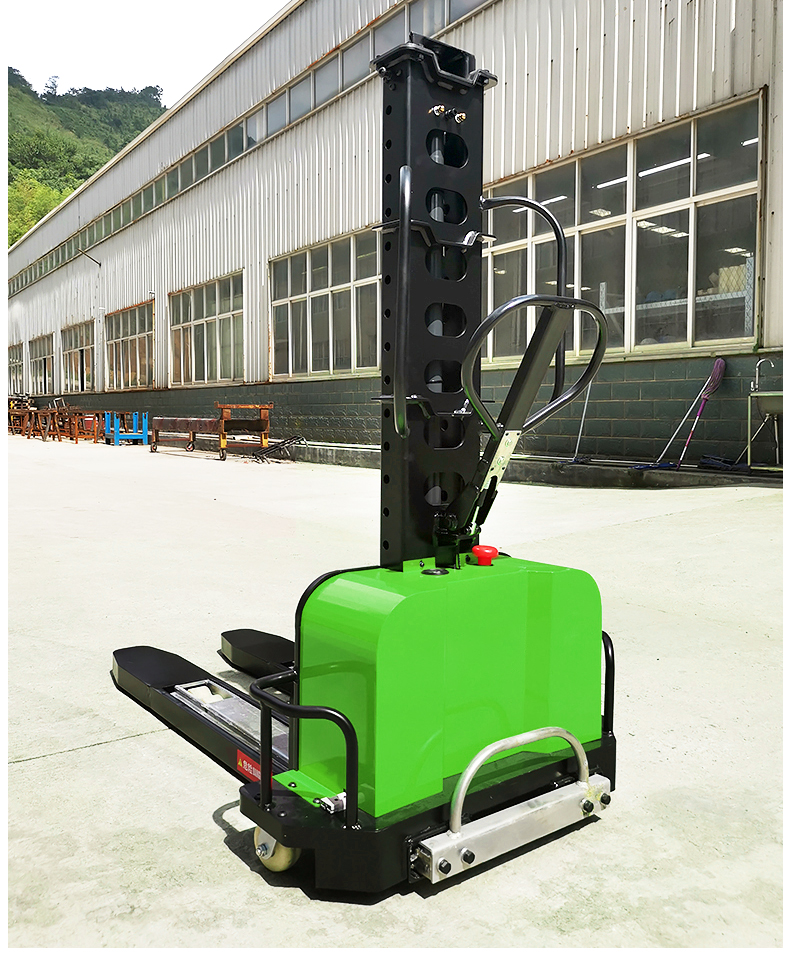

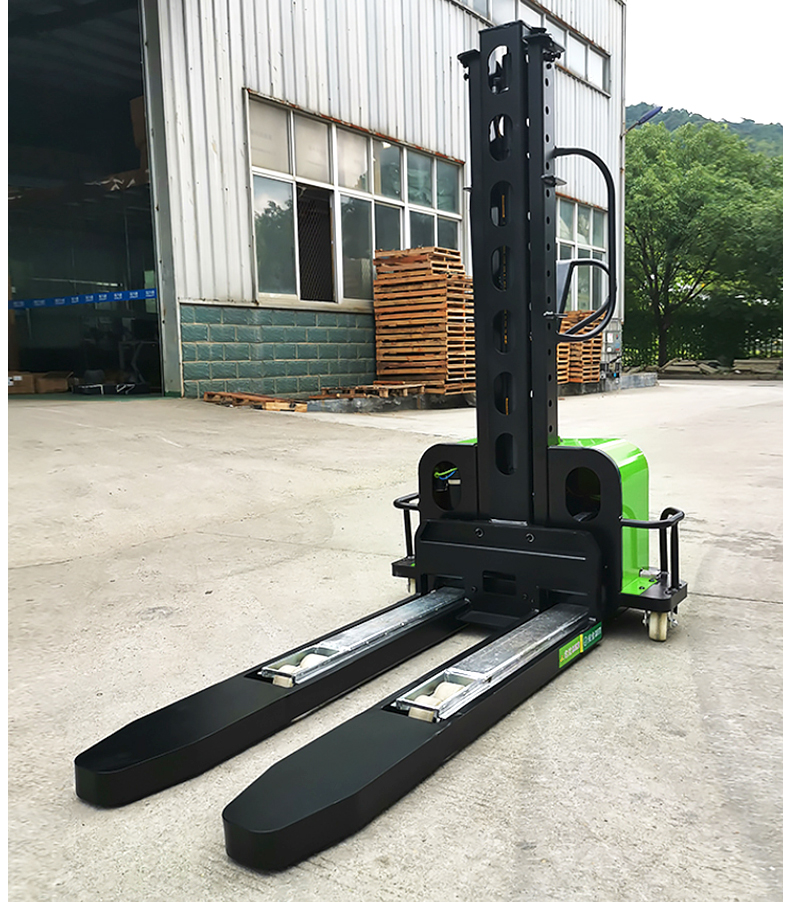

BSL series Semi-electric Self Loading Lifter

BSL

Smart forklift self-loading stacker 700kg forklift smart portable self-lifting Full electric pallet stacker .
Self-loader Forklift for Vans and Light Trucks

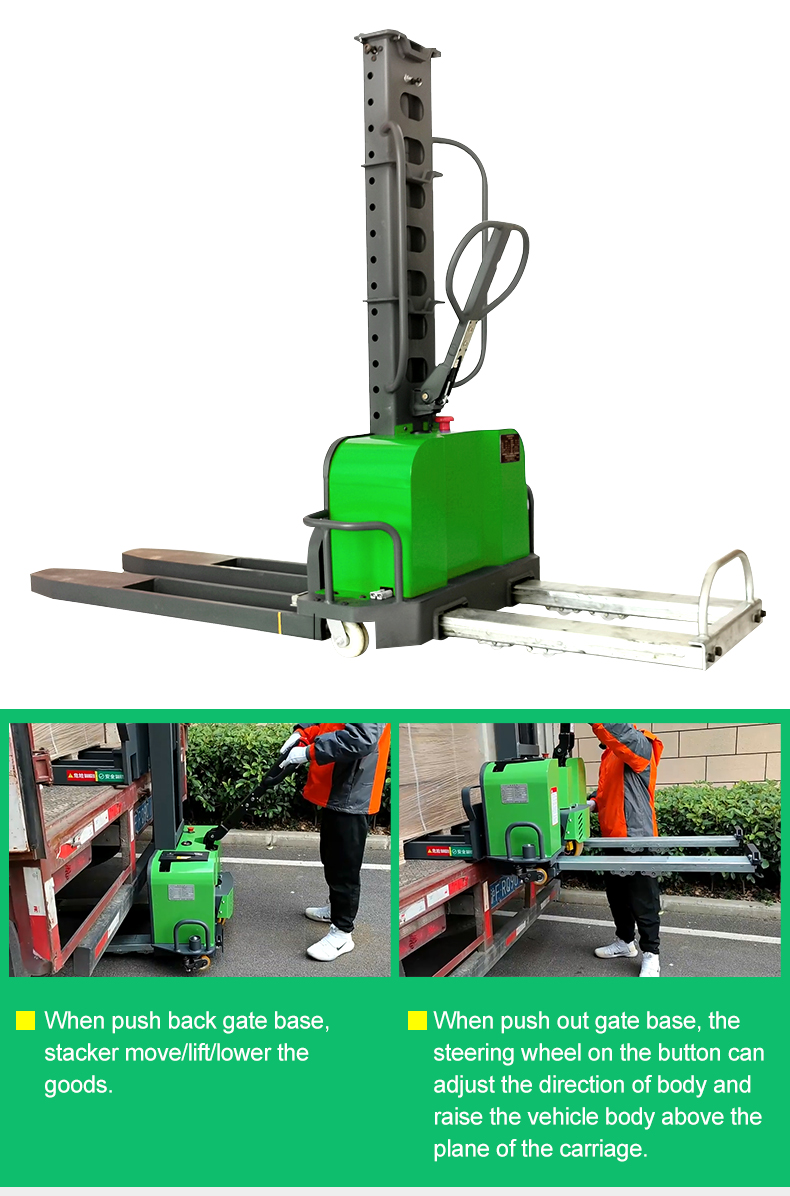

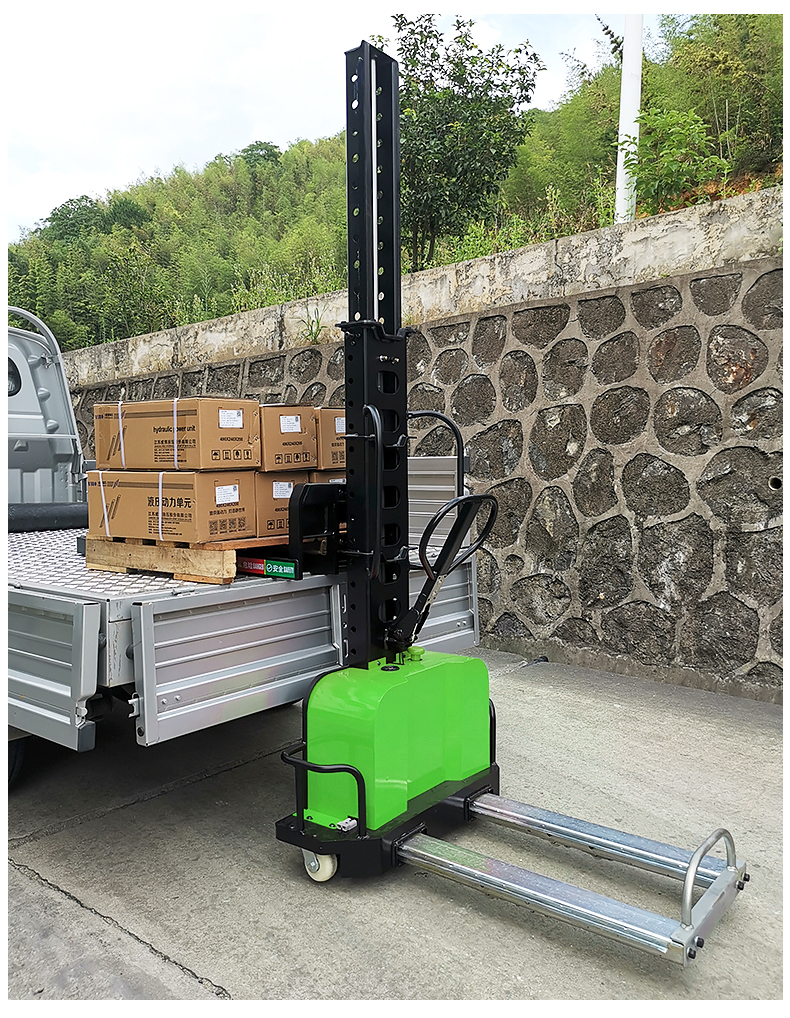

After loading the cargo, self-loader stacker climbs into the Vehicle itself. The space needed is the same as with a hand pallet truck. The unloading process is as easy as the loading.
Efficient
With a vehicle and a self-loader, you can load, unload and deliver your cargo safely and efficiently to your client. Thanks to the fast operation you are able to make even more deliveries.
Safe
Ergonomic design and simple operation helps you avoid health and safety risks. It also reduces sick days due to strain. The self-loader is very easy and safe to operate.
High-quality
Careful planning, superior standard parts and high-class manufacturing ensure reliable and durable products.
The self-loader is CE marked and it meets all international quality standards.

Quantity

Contact Now

add to cart

Name:self-loading stacker for Vans and Light Trucks

Features of Name:self-loading stacker

After loading the cargo,Self-loading stacker climbs into the Vehicle itself. The space needed is the same as with a hand pallet truck. The unloading process is as easy as the loading.

Efficient

With a vehicle and a self-loading stacker , you can load, unload and deliver your cargo safely and efficiently to your client. Thanks to the fast operation you are able to make even more deliveries.

Safe

Ergonomic design and simple operation helps you avoid safety risks. Semi-electric Self-loading stacker also reduces sick days due to strain. Self-loading stacker is very easy and safe to operate.

High-quality

Careful planning, superior standard parts and high-class manufacturing ensure reliable and durable products.

The self-loading stacker is CE marked and it meets all international quality standards.

Features of Self-loading stacker:-

Self-loading stacker with portable use where ever you are.

	Model		Self-loading stacker BSL-05/BSL-07
Performance of Self-loading stacker	Maximum load capacity	kg	500/700	500/700	500/700	500/700	500/700	500/700	500
	Load center	mm	450
	Weight （with battery）	kg	276/286	278/289	284/295	290/302	295/306	292/303	302
	Maximum lifting height	mm	800	900	1100	1300	1500	1600	1800
	Lifting speed (without load)	mm/s	140
	Lifting speed (with load)	mm/s	135
	Lowered speed (without load)	mm/s	140
	Lowered speed (with load)	mm/s	145
Dimensions of Self-loading stacker	Overall length of frame	mm	1578
	Overall width of frame	mm	885
	Mast lowered height	mm	1095	1195	1395	1595	1795	1895	2156
	Max height(mast lifted with backrest	mm	2360	2460	2660	2860	3060	3160	3360
	Wheelbase	mm	832
	Fork length	mm	1180
	Fork outside width	mm	565
	Fork inside width	mm	195
	Fork thickness	mm	60
	width of theoretical minimum aisle for right-angle stacking （1200x1000）	mm	1200
	Min frounf height	mm	20
	Fork lowered height	mm	90
	Minimum turning radius	mm	1000
Tire of Self-loading stacker	Front wheel	mm	80*50
	Hoist motor type		DC
	Rated output	kw	0.8

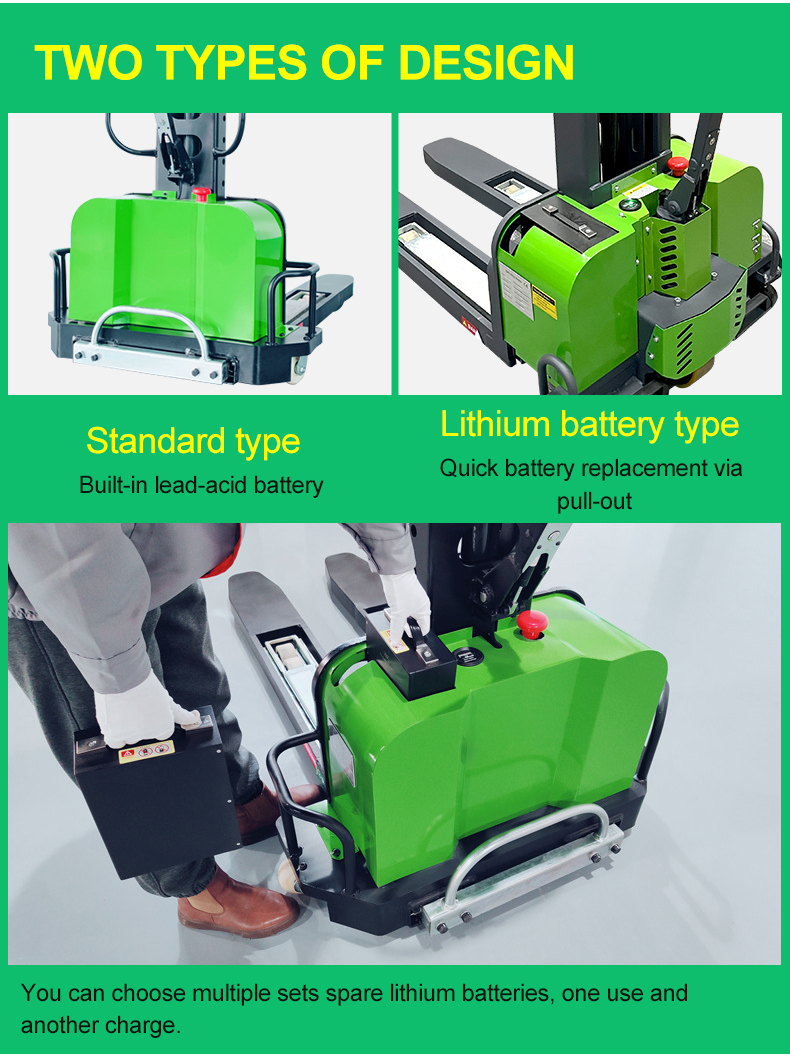

Battery of Self-loading stacker	Battery Type		Maintenance-free battery
	Voltage	V	12
	Capacity	AH	45
	Model		BSL-10
Performance of Self-loading stacker	Maximum load capacity	kg	1000
	Load center	mm	450
	Weight （with battery）	kg	332.6	337	346	355	363	372	372
	Maximum lifting height	mm	800	900	1100	1300	1500	1600	1800
	Lifting speed (without load)	mm/s	65
	Lifting speed (with load)	mm/s	35
	Lowered speed (without load)	mm/s	65
	Lowered speed (with load)	mm/s	35
Dimensions of Self-loading stacker	Overall length of frame	mm	1560
	Overall width of frame	mm	913
	Mast lowered height	mm	1150	1250	1450	1650	1850	1950	2156
	Max height(mast lifted with backrest	mm	2385	2485	2685	2885	3085	3185	3385
	Wheelbase	mm	845	845	845	845	845
	Fork length	mm	1180
	Fork outside width	mm	580/626
	Fork inside width	mm	236
	Fork thickness	mm	70
	width of theoretical minimum aisle for right-angle stacking （1200x1000）	mm	1200
	Min frounf height	mm	32
	Fork lowered height	mm	90
	Minimum turning radius	mm	1000
Tire of Self-loading stacker	Front wheel	mm	80*50	80*50	80*50	80*50	80*50	80*51	80*51
	Hoist motor type		DC
	Rated output	kw	1.2
Battery of Self-loading stacker	Battery Type		Maintenance-free battery
	Voltage	V	12
	Capacity	AH	45
