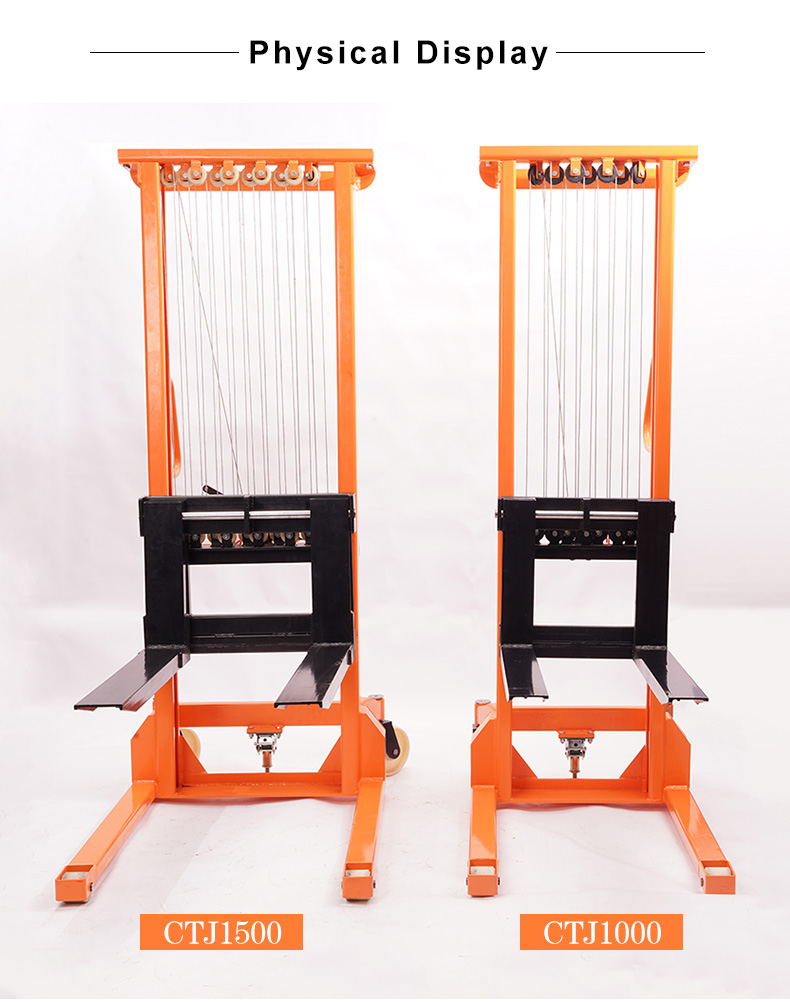

CTJ500 CTJ1000 CTJ1500 Light Duty Winch Stacker
CTJ500 CTJ1000 CTJ1500
The SINOLIFT CTJ light duty stacker is the ideal solution to countless handling problems which are regularly encountered in all areas of business.
The CTJ can be used either as a sack barrow, a low lift stacker capable of lifting to 1500 mm.
The CTJ can be used either as a sack barrow, a low lift stacker capable of lifting to 1500 mm.
Quantity
The SINOLIFT CTJ light duty Winch Stacker is the ideal solution to countless handling problems which are regularly encountered in all areas of business.
The CTJ Winch Stacker can be used either as a sack barrow, a low lift Winch Stacker capable of lifting to 1500 mm.

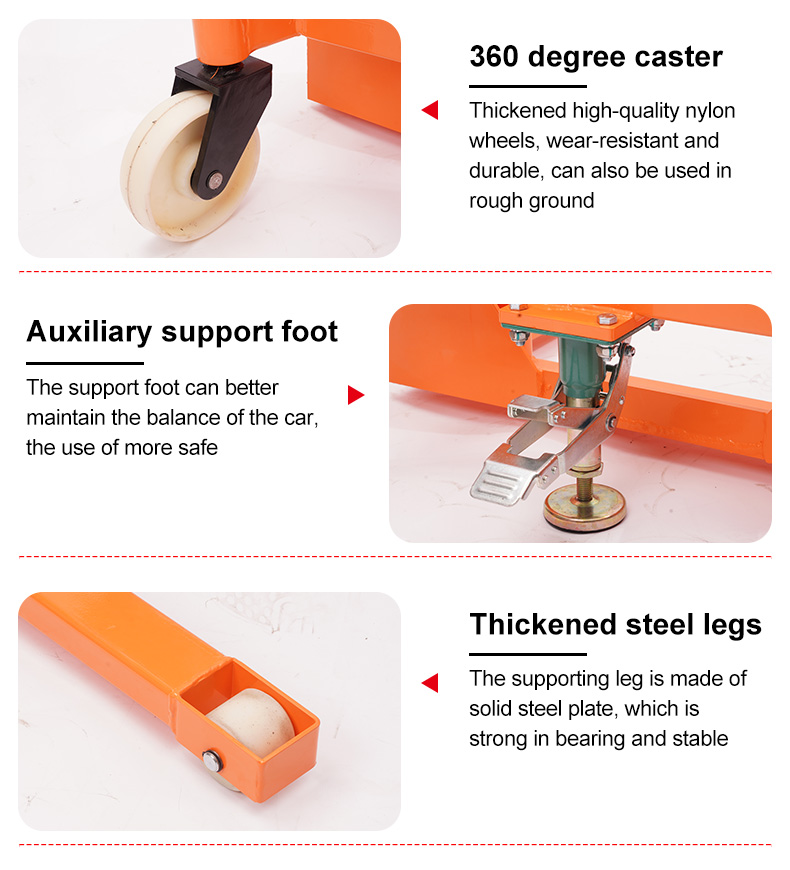

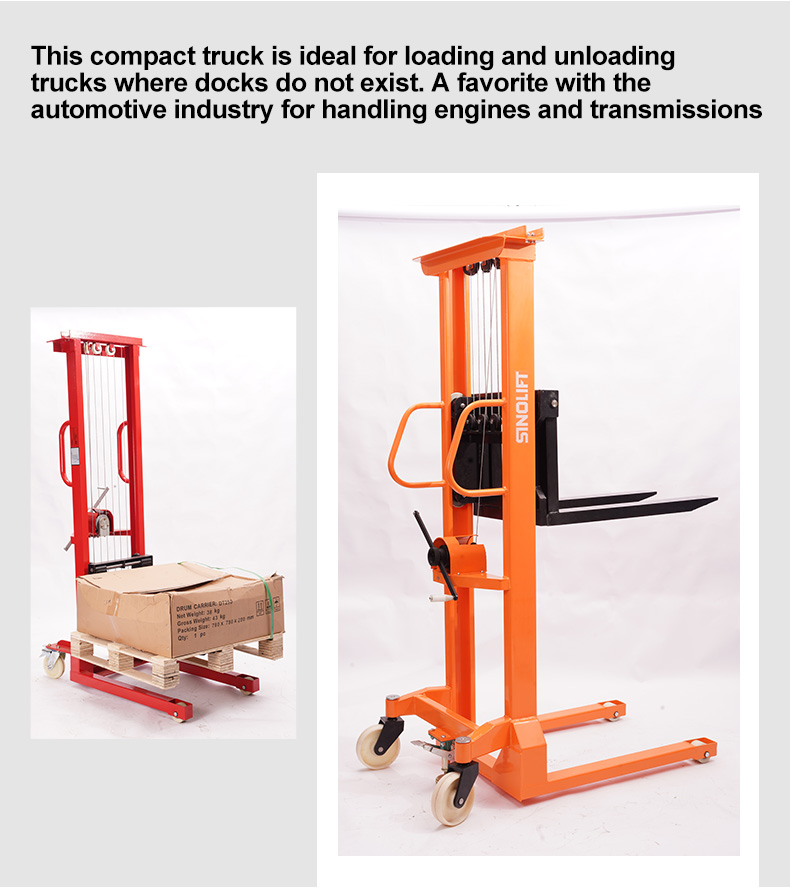

As a sack barrow, the truck is fitted with large diameter, rubber tyred wheels to make movement easy and light even over rough ground. In its upright position as a Winch Stacker, the CTJ Winch Stacker is fitted with ball rollers which allow the Winch Stacker to turn on the spot to allow access to the tightest spaces.

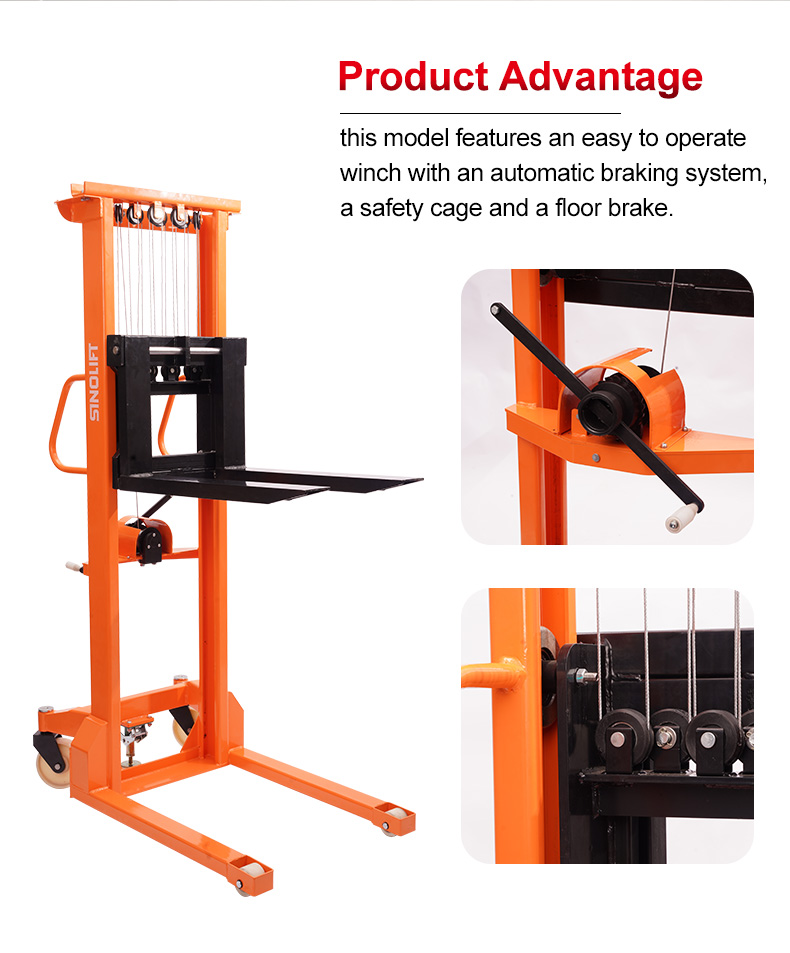

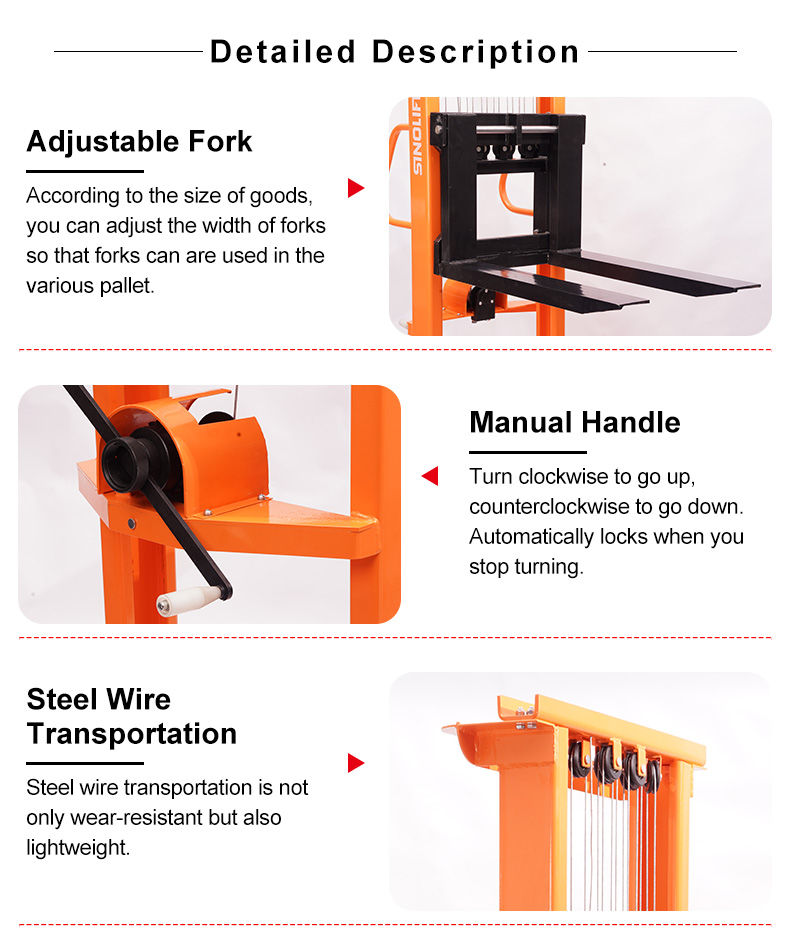

Lifting and lowering is carried out by a hand winch with clutch mechanism this method of operation means that there are no hydraulics, keeping the machines weight to a minimum and, with no possibility of leakage, there is no problem with use in offices.
The CTJ Winch Stacker can be used either as a sack barrow, a low lift Winch Stacker capable of lifting to 1500 mm.
As a sack barrow, the truck is fitted with large diameter, rubber tyred wheels to make movement easy and light even over rough ground. In its upright position as a Winch Stacker, the CTJ Winch Stacker is fitted with ball rollers which allow the Winch Stacker to turn on the spot to allow access to the tightest spaces.
Lifting and lowering is carried out by a hand winch with clutch mechanism this method of operation means that there are no hydraulics, keeping the machines weight to a minimum and, with no possibility of leakage, there is no problem with use in offices.

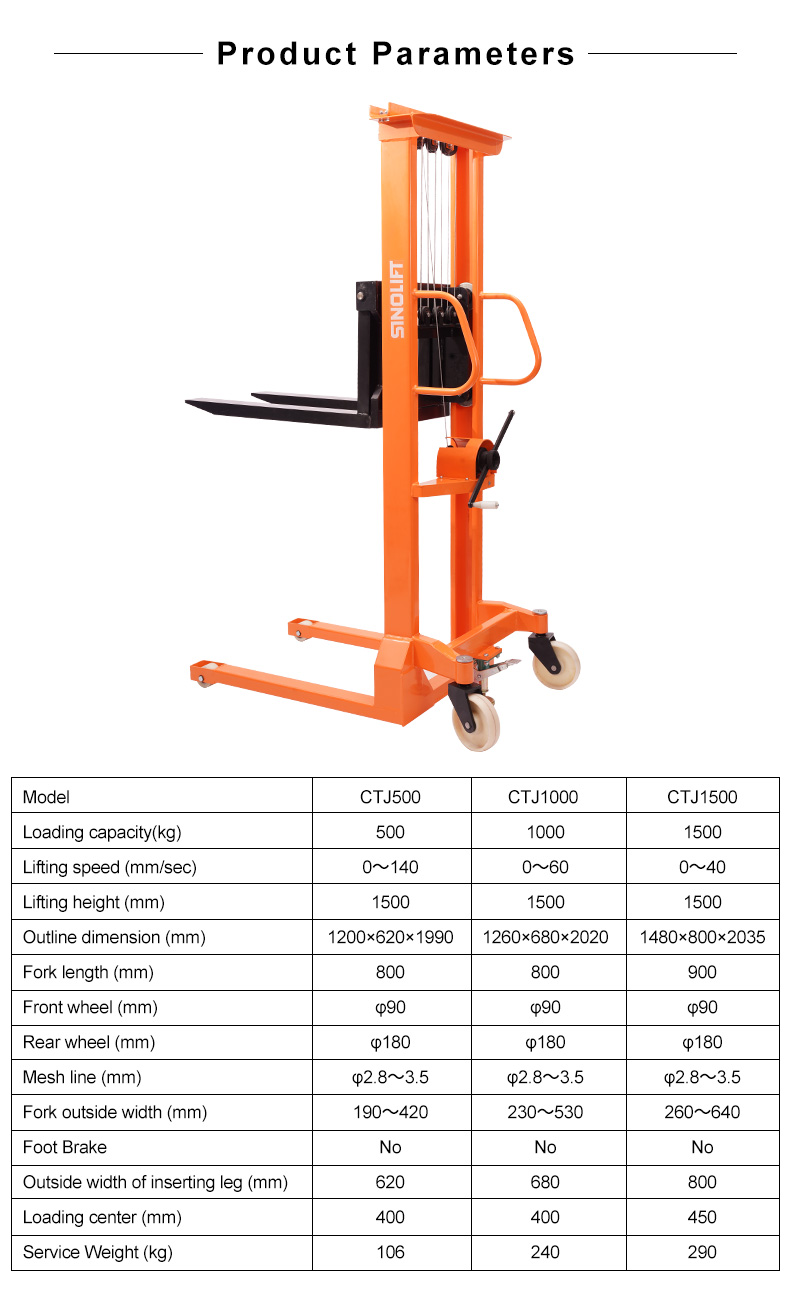

| Model | CTJ500 | CTJ1000 | CTJ1500 |
| Loading capacity(kg) | 500 | 1000 | 1500 |
| Lifting speed (mm/sec) | 0~140 | 0~60 | 0~40 |
| Lifting height (mm) | 1500 | 1500 | 1500 |
| Outline dimension (mm) | 1200×620×1990 | 1260×680×2020 | 1480×800×2035 |
| Fork length (mm) | 800 | 800 | 900 |
| Front wheel (mm) | φ90 | φ90 | φ90 |
| Rear wheel (mm) | φ180 | φ180 | φ180 |
| Mesh line (mm) | φ2.8~3.5 | φ2.8~3.5 | φ2.8~3.5 |

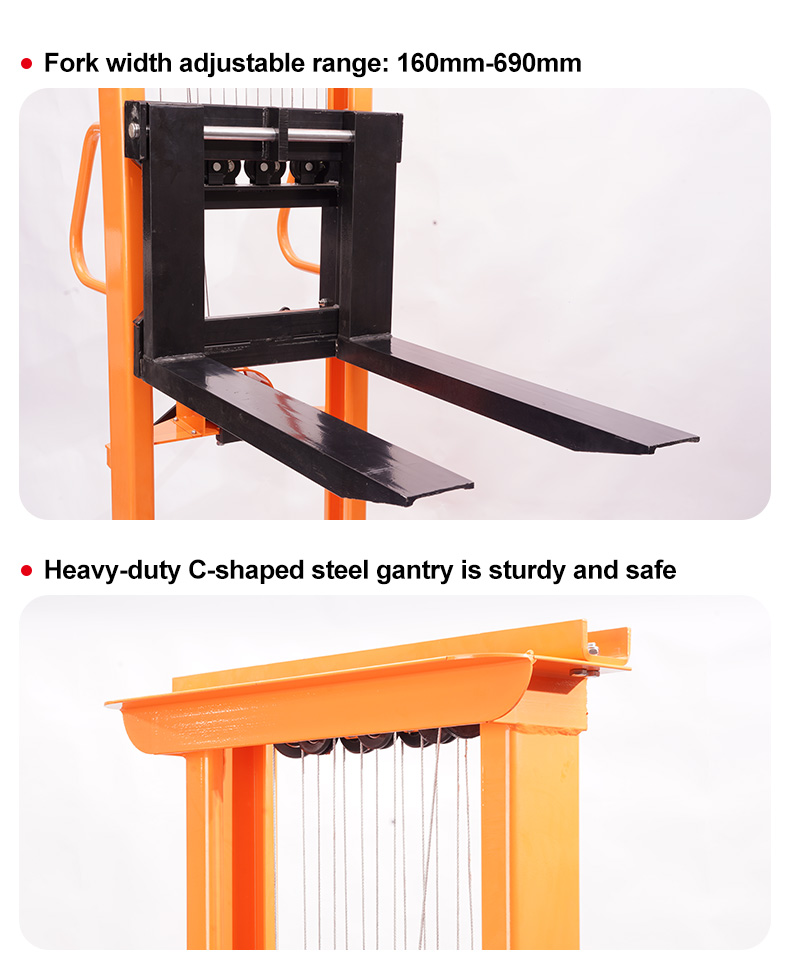

| Fork outside width (mm) | 190~420 | 230~530 | 260~640 |
| Foot Brake | No | No | No |
| Outside width of inserting leg (mm) | 620 | 680 | 800 |
| Loading center (mm) | 400 | 400 | 450 |
| Service Weight (kg) | 106 | 240 | 290 |
