DG500 DG1000 DG1500 DG2000 Forklift Mounted Drum Grab

DG500 DG1000 DG1500 DG2000

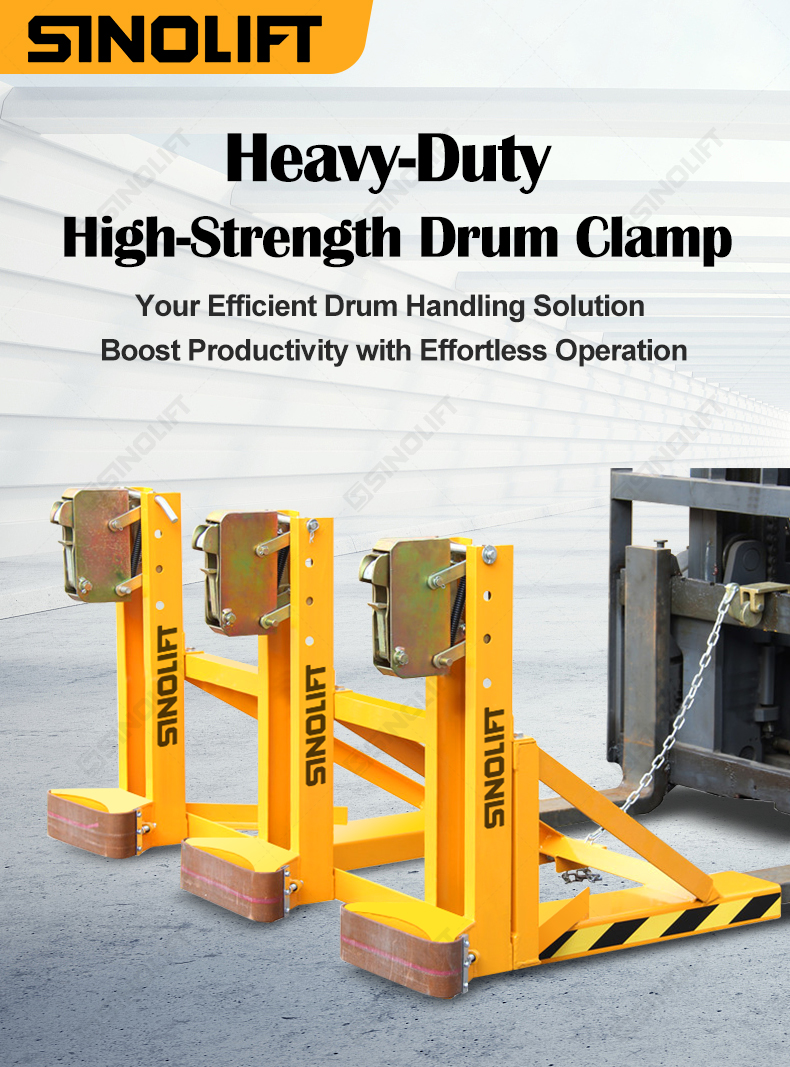

The heavy-duty double Drum Grab with pure mechanical structure design can be easily matched with forklift, and can automatically handle 3 drums at a time by relying only on forklift's movement and no other power.

Quantity:

Contact Now

add to cart

Product Name
DG500 / DG1000 / DG1500 / DG2000 Heavy-Duty Forklift Mounted Drum Gra

Product Description

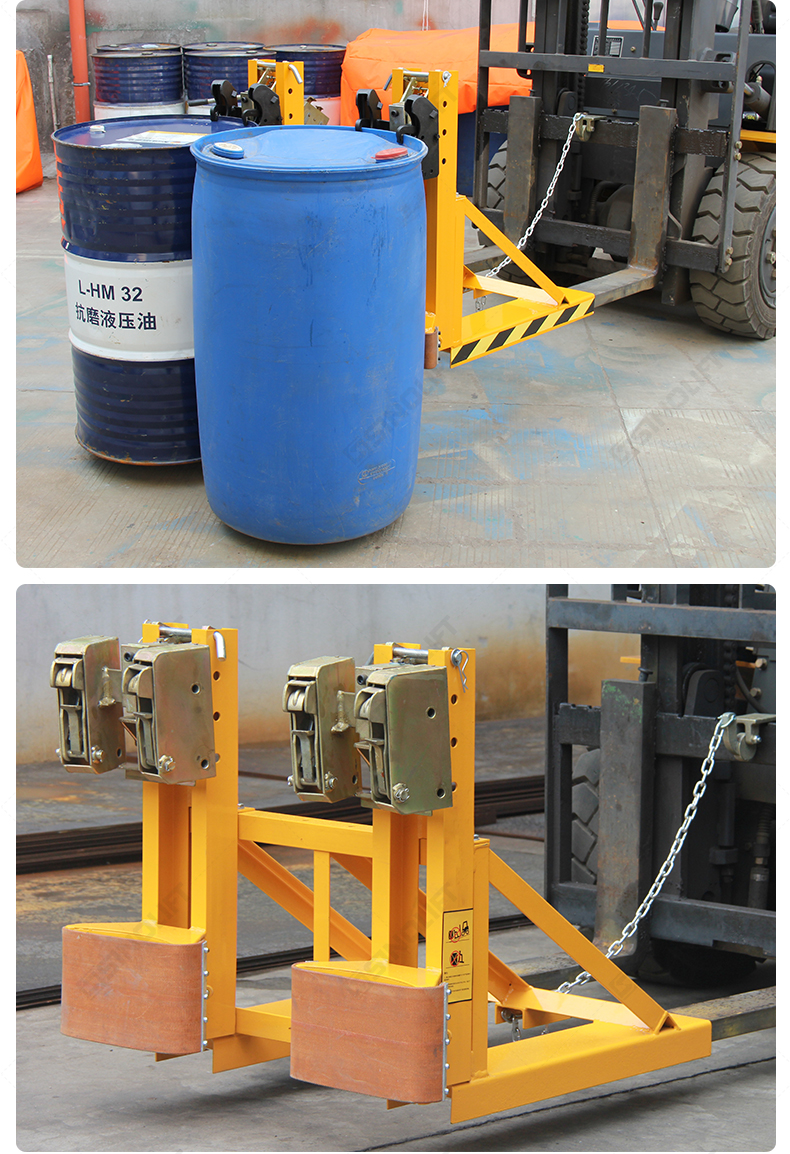

A high-capacity forklift drum grab designed for safe and efficient handling of 1 to 4 steel or plastic drums at once. Features an automatic alloy clamp with a durable low-alloy steel gripping head, gravity-activated locking, and reinforced straps for maximum safety and stability during transport.

Highlights

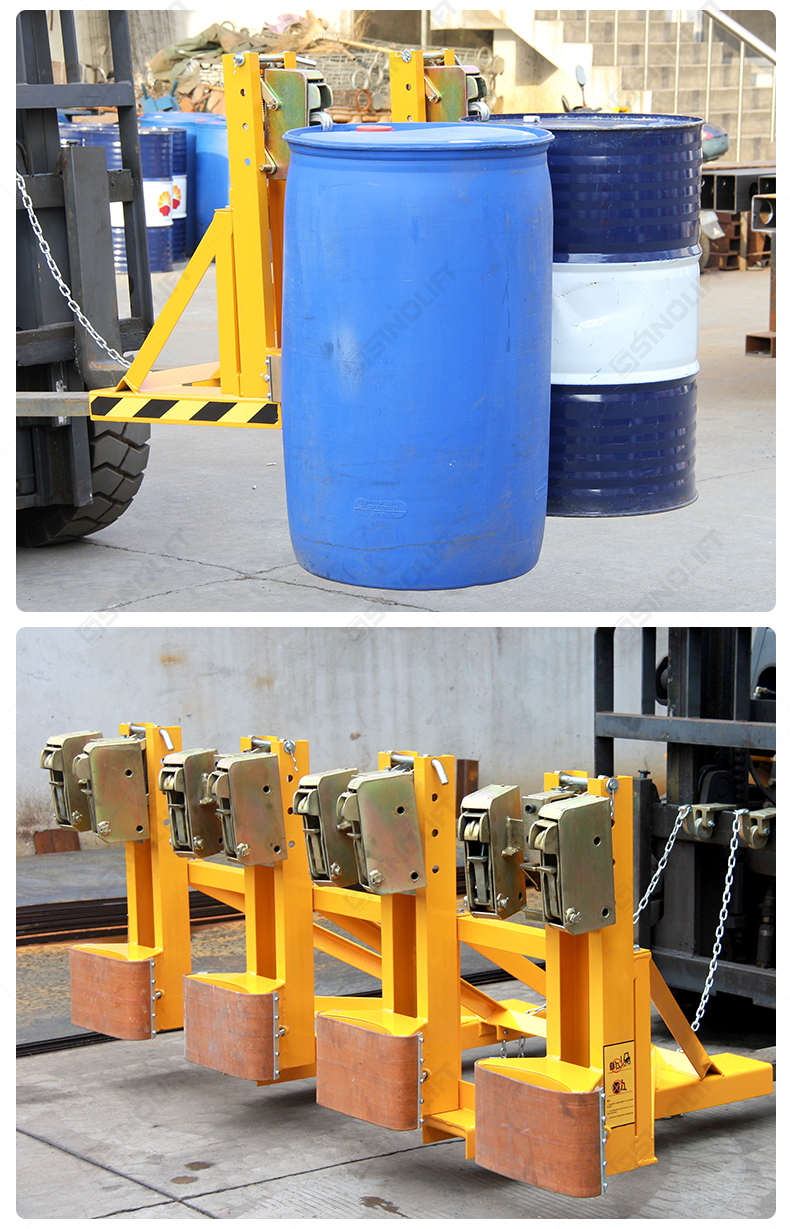

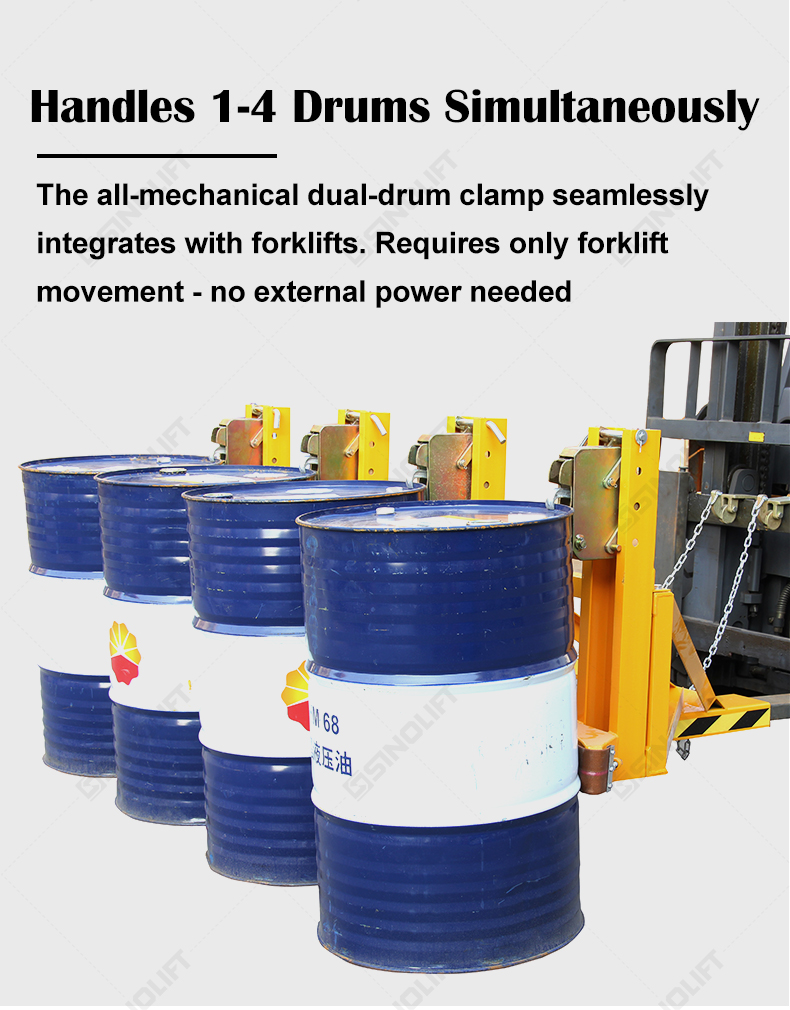

Handles up to 4 drums simultaneously
Auto-locking alloy clamp ensures secure grip
Suitable for steel and plastic drums

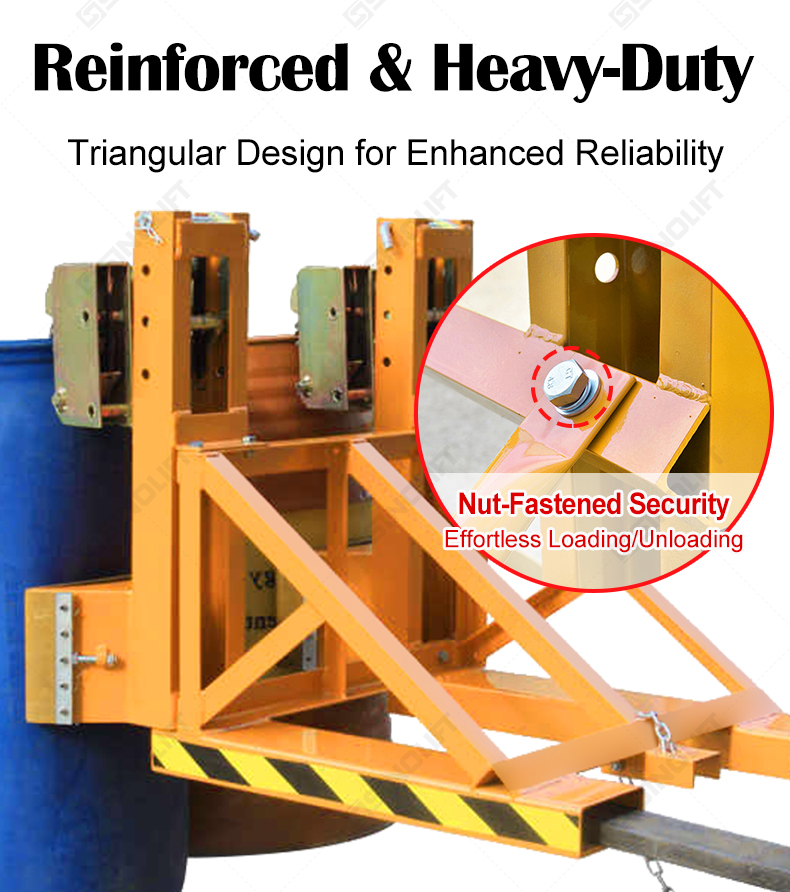

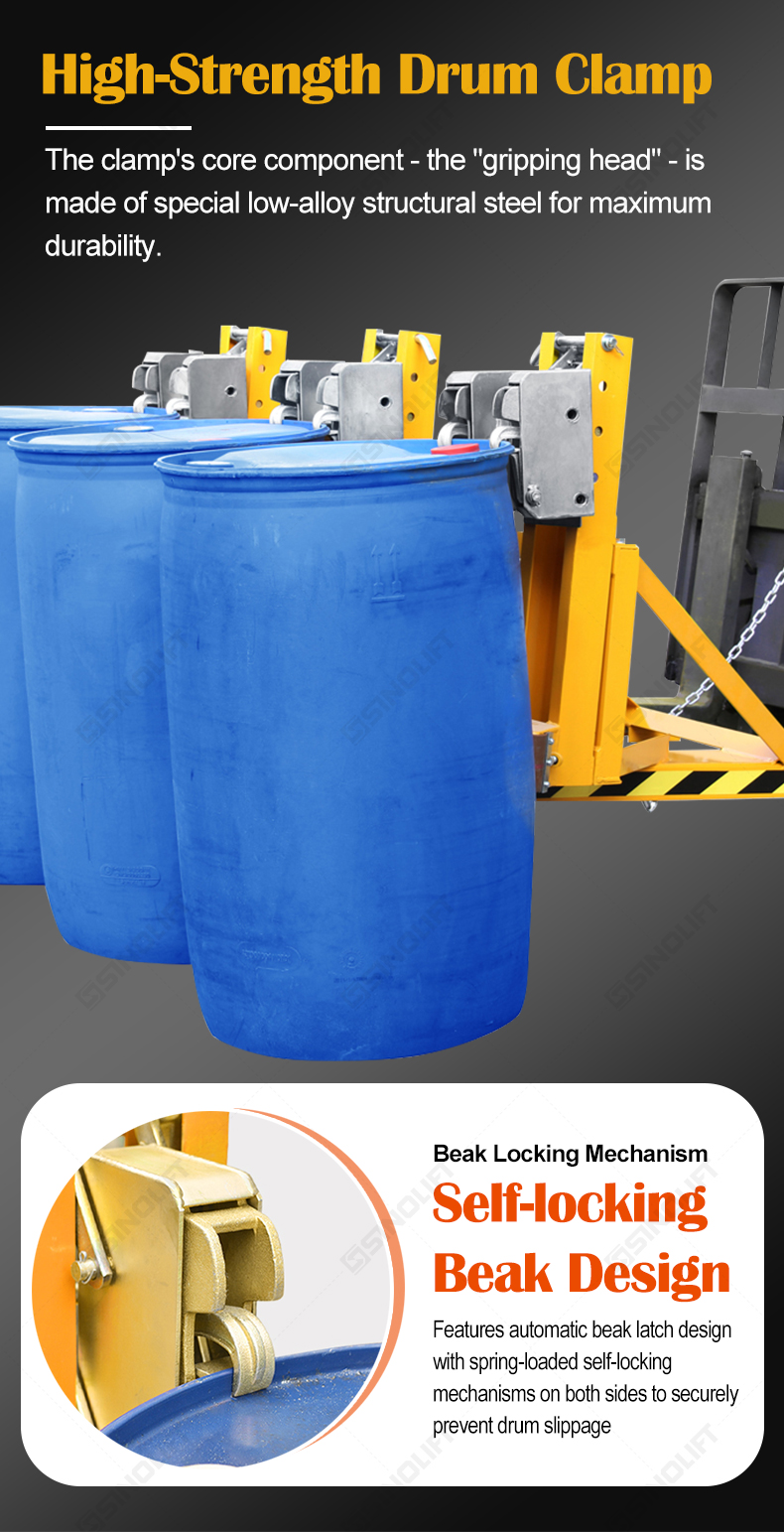

Heavy-duty structural steel gripping head

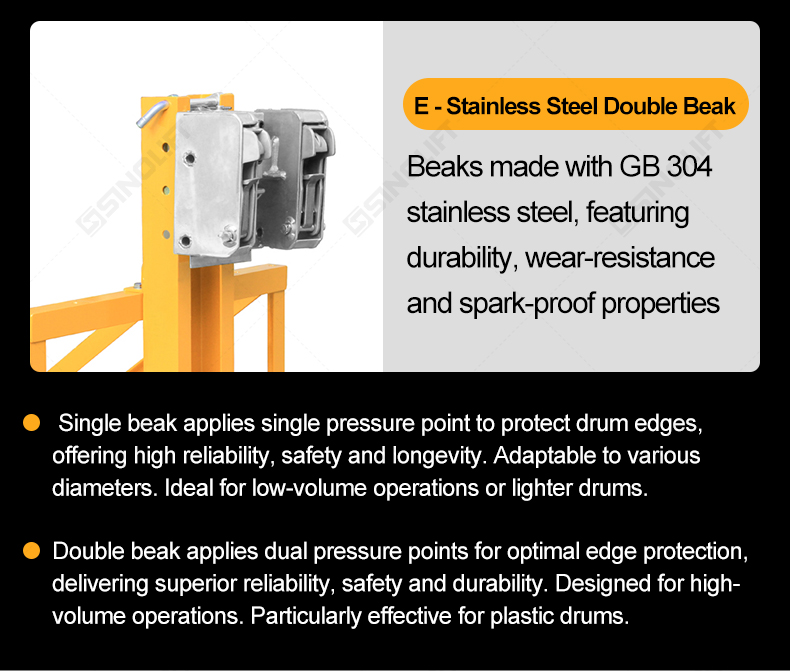

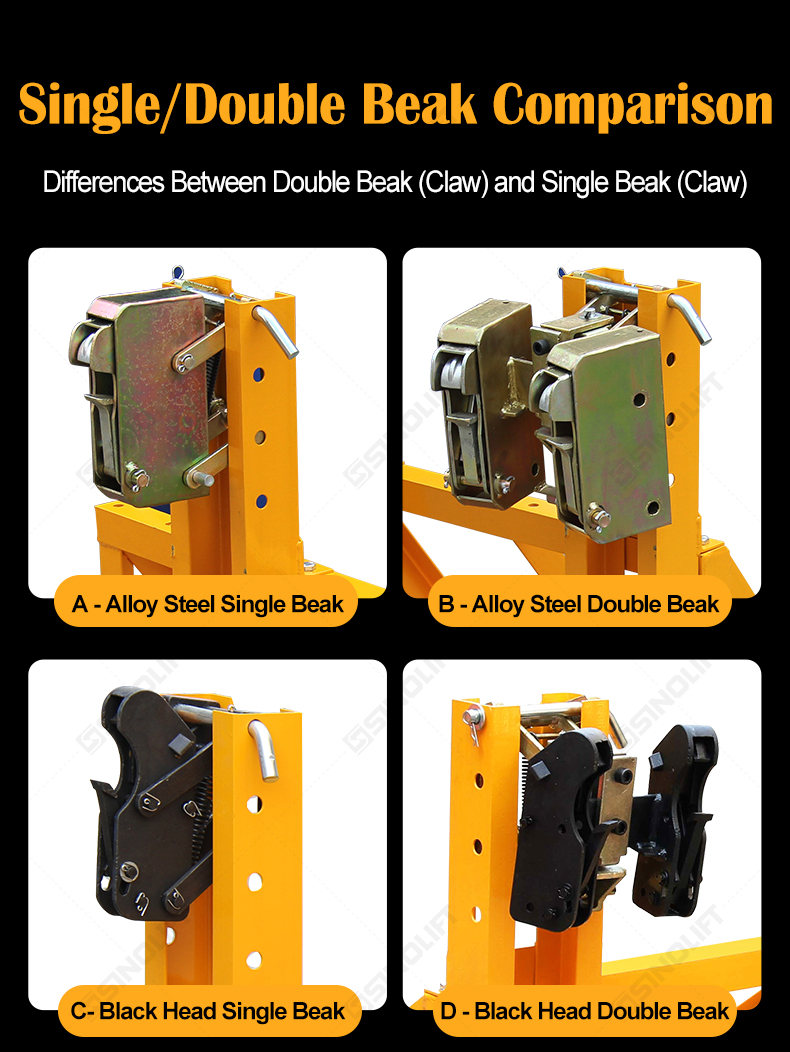

Self-locking beak latches prevent slippage

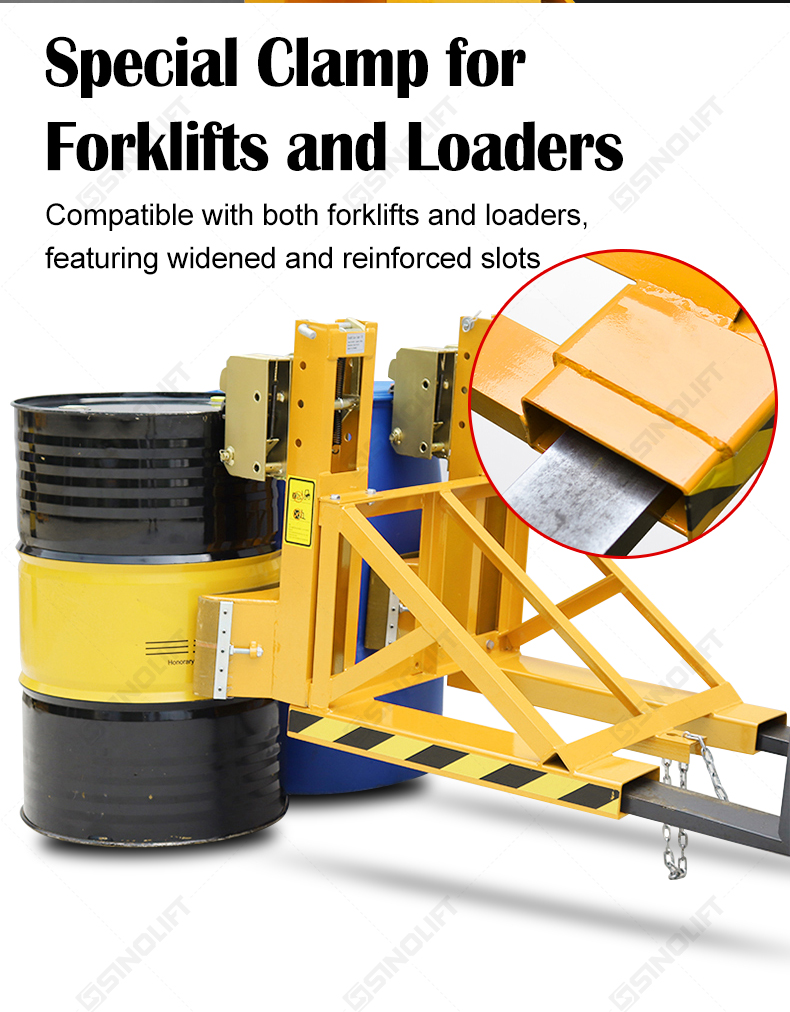

Reinforced slots fit forklifts and loaders

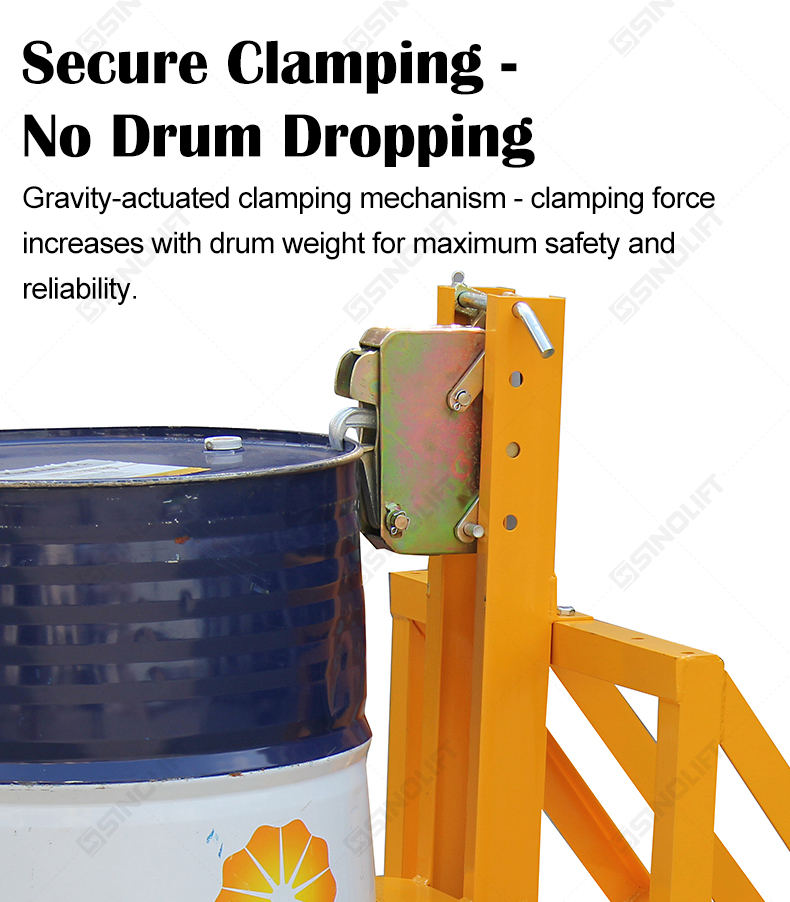

Gravity-enhanced clamping for safer operation

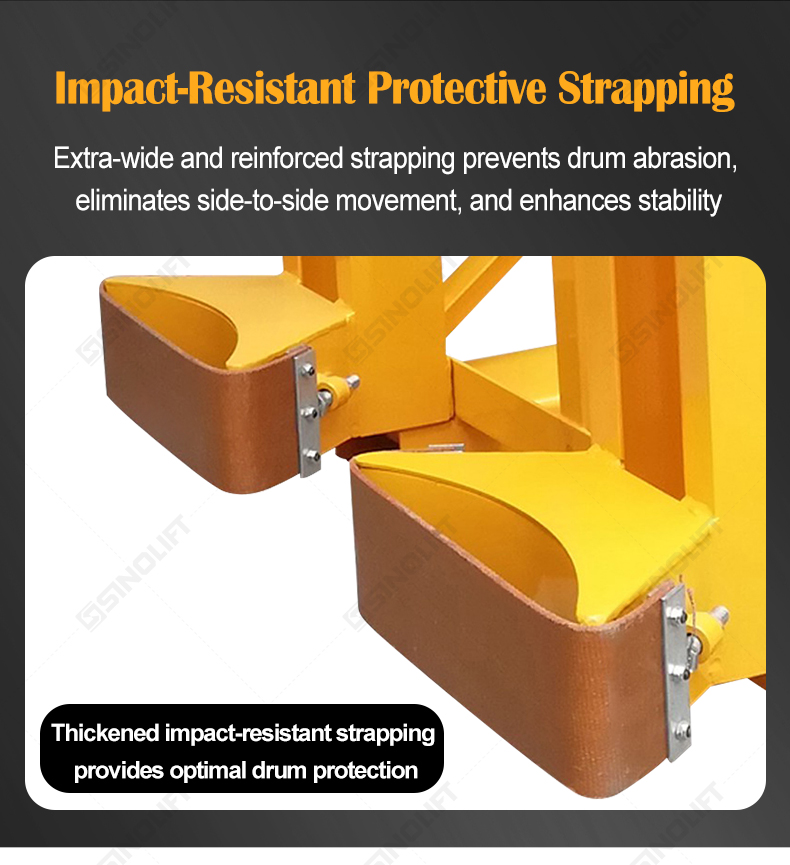

Wide straps reduce abrasion and improve stability

Product Specifications

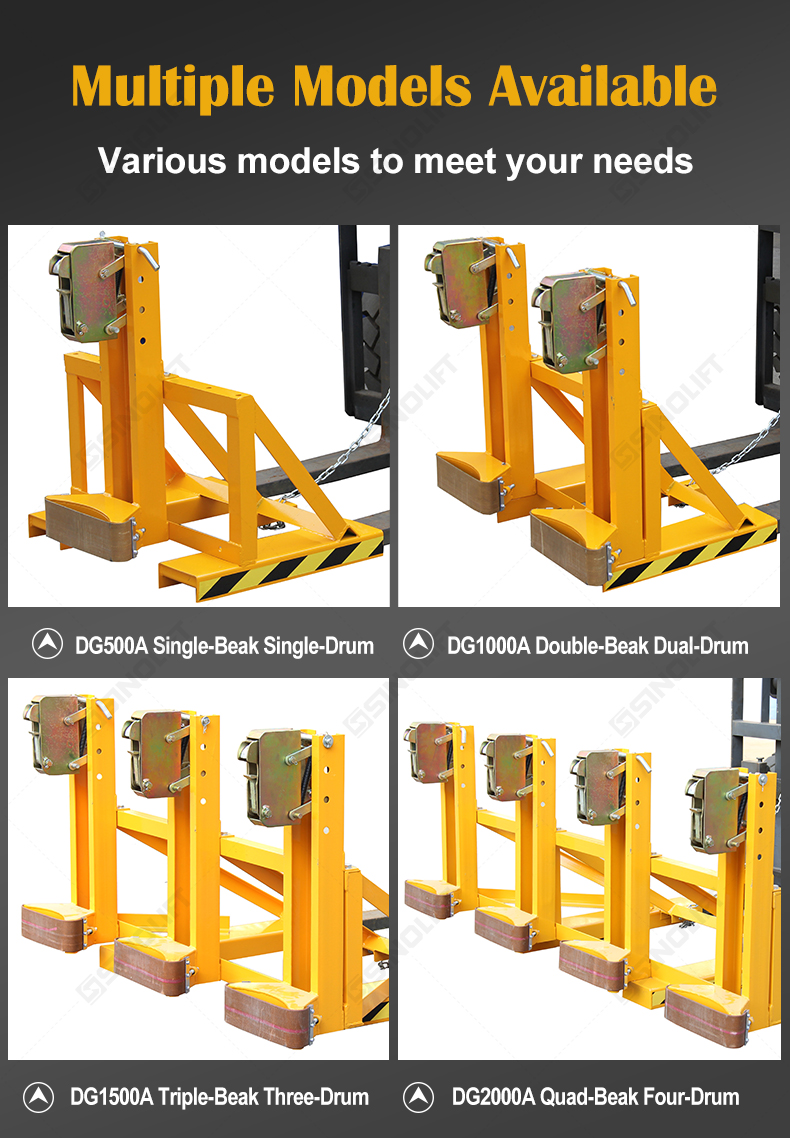

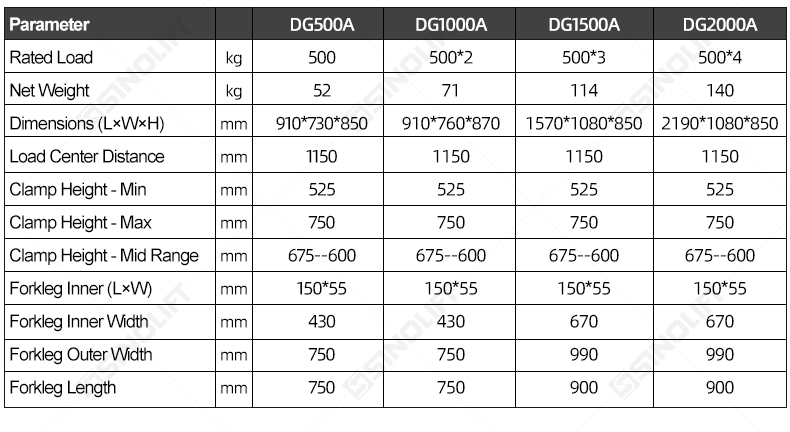

Parameter	Unit	DG500A	DG1000A	DG1500A	DG2000A
Rated Load	kg	500	500×2	500×3	500×4
Net Weight	kg	52	71	114	140
Dimensions (L×W×H)	mm	910×730×850	910×760×870	1570×1080×850	2190×1080×850
Load Center Distance	mm	1150	1150	1150	1150
Clamp Height - Min	mm	525	525	525	525
Clamp Height - Max	mm	750	750	750	750
Clamp Height - Mid Range	mm	675-600	675-600	675-600	675-600
Forkleg Inner (L×W)	mm	150×55	150×55	150×55	150×55
Forkleg Inner Width	mm	430	430	670	670
Forkleg Outer Width	mm	750	750	990	990
Forkleg Length	mm	750	750	900	900

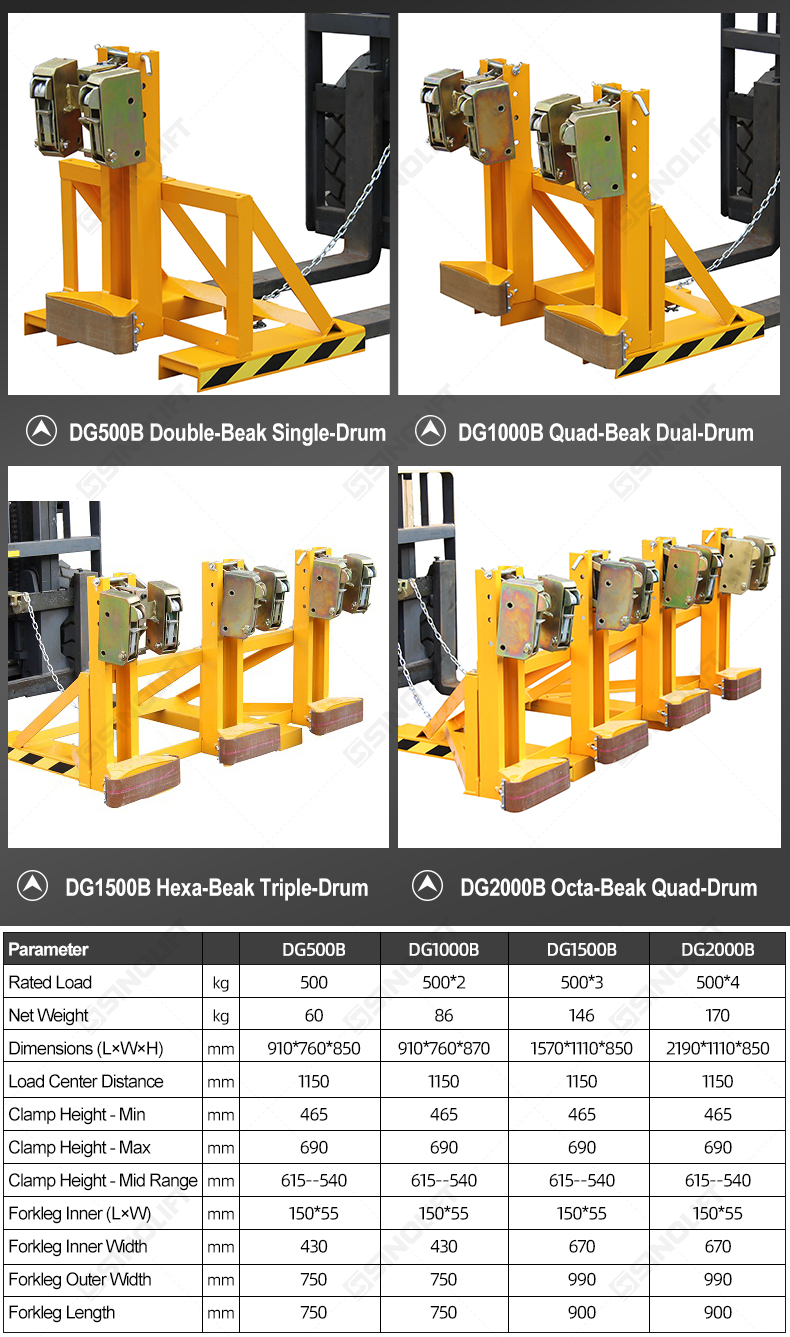

Model		DG500B	DG1000B	DG1500B	DG2000B
Rated Load	kg	500	500×2	500×3	500×4
Net Weight	kg	60	86	146	170
Dimensions (L×W×H)	mm	910×760×850	910×760×870	1570×110×850*	2190×110×850*
Load Center Distance	mm	1150	1150	1150	1150
Clamp Height - Min	mm	465	465	465	465
Clamp Height - Max	mm	690	690	690	690
Clamp Height - Mid Range	mm	615-540	615-540	615-540	615-540
Forkleg Inner (L×W)	mm	150×55	150×55	150×55	150×55
Forkleg Inner Width	mm	430	430	670	670
Forkleg Outer Width	mm	750	750	990	990
Forkleg Length	mm	750	750	900	900

Technical Specifications	Unit

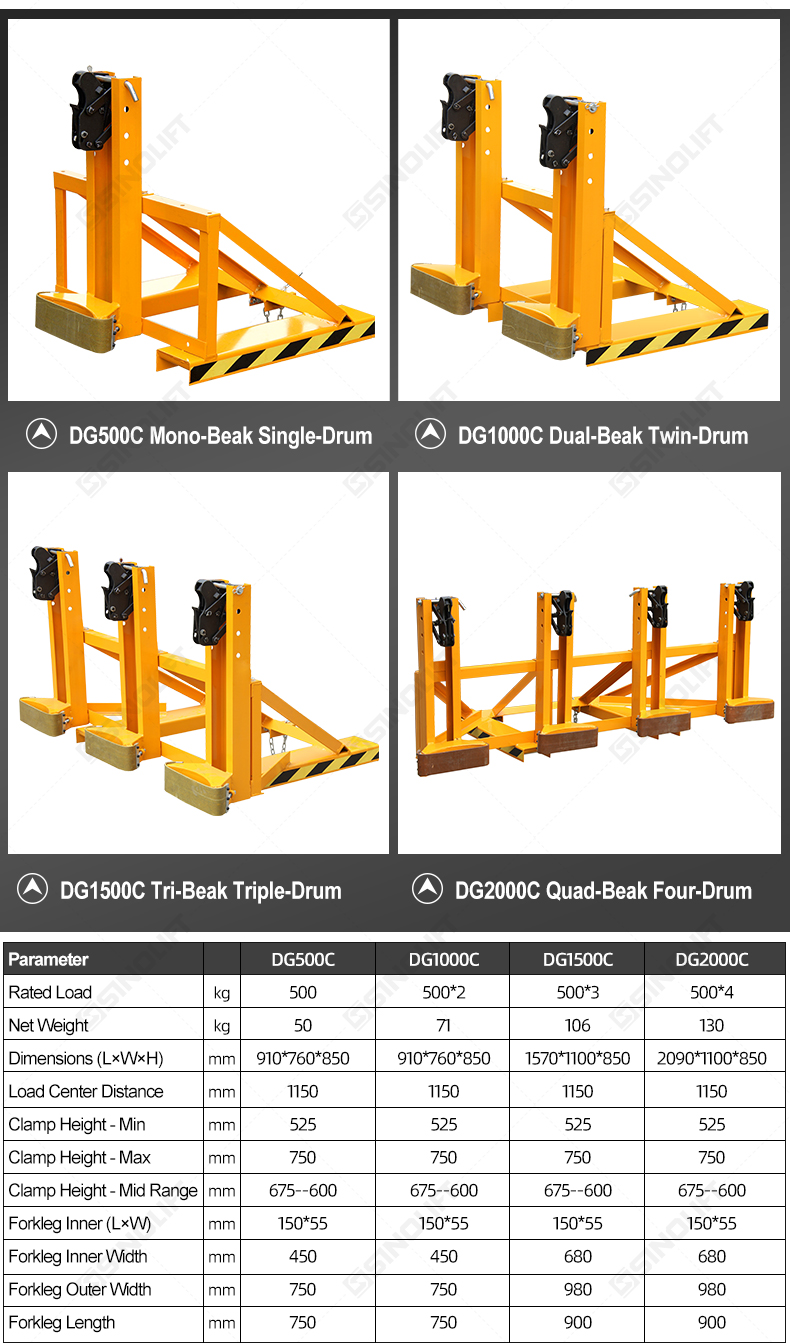

Model		DG500C	DG1000C	DG1500C	DG2000C
Load Capacity	kg	500	500×2 (1000)	500×3 (1500)	500×4 (2000)
Net Weight	kg	50	71	106	130
Dimensions (L×W×H)	mm	910×760×850	910×760×850	1570×1100×850	2090×1100×850
Load Center Distance	mm	1150	1150	1150	1150

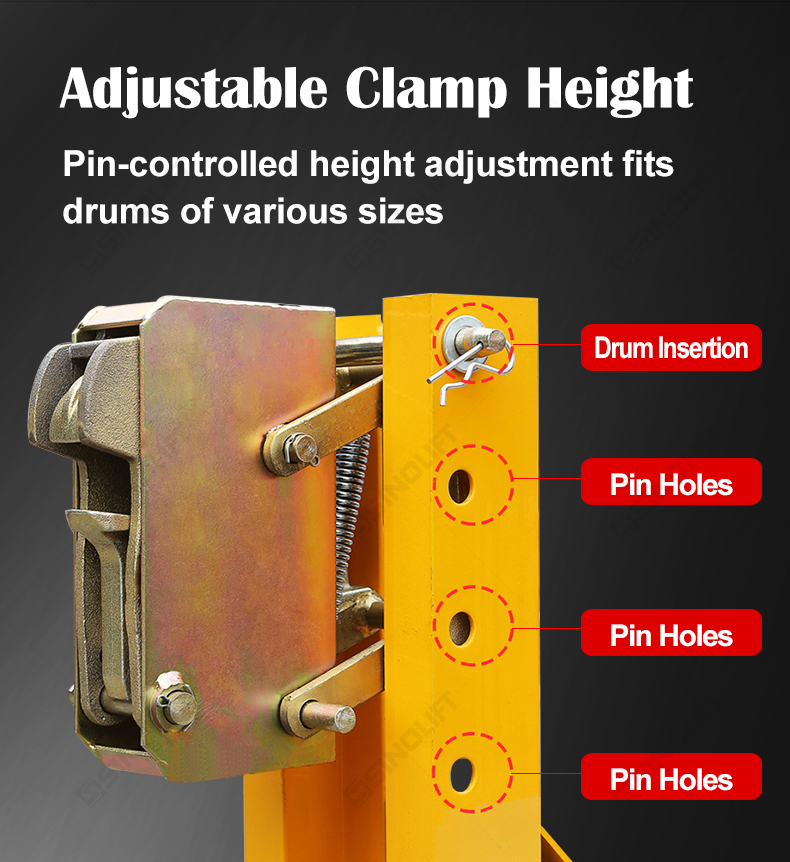

Clamping Height Range
Minimum	mm	525	525	525	525
Maximum	mm	750	750	750	750
Adjustable Mid Range	mm	675 600	675 600	675 600	675 600
Forklift Compatibility
Forkleg Inner (L×W)	mm	150×55	150×55	150×55	150×55
Forkleg Inner Width	mm	450	450	680	680
Forkleg Outer Width	mm	750	750	980	980
Forkleg Length	mm	750	750	900	900

Technical Specifications	Unit

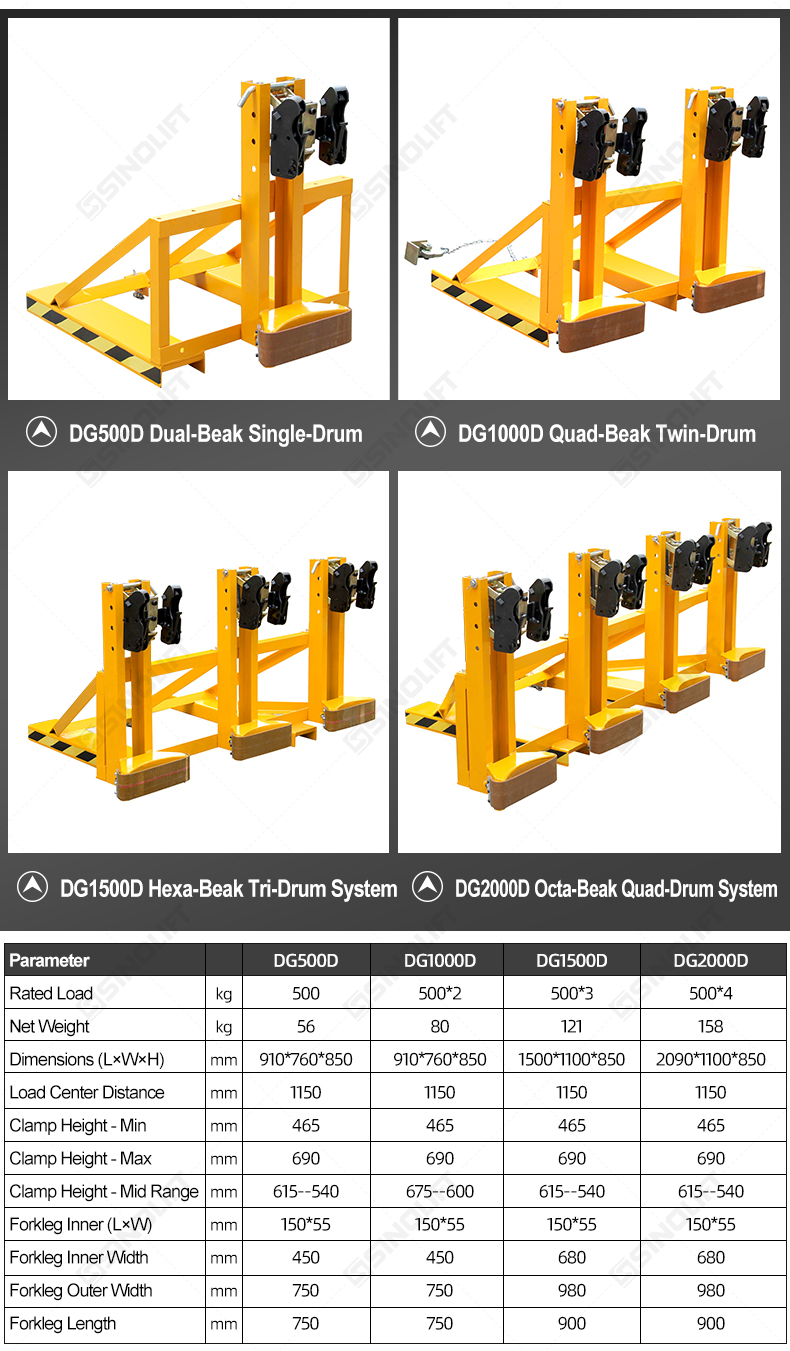

Model		DG500D	DG1000D	DG1500D	DG2000D
Load Capacity	kg	500	500×2 (1000)	500×3 (1500)	500×4 (2000)
Net Weight	kg	56	80	121	158
Dimensions (L×W×H)	mm	910×760×850	910×760×850	1500×1100×850	2090×1100×850
Load Center Distance	mm	1150	1150	1150	1150
Clamping Height Range
Minimum	mm	465	465	465	465
Maximum	mm	690	690	690	690
Adjustable Mid Range	mm	615 540	675 600*	615 540	615 540
Forklift Compatibility
Forkleg Inner (L×W)	mm	150×55	150×55	150×55	150×55
Forkleg Inner Width	mm	450	450	680	680
Forkleg Outer Width	mm	750	750	980	980
Forkleg Length	mm	750	750	900	900

Technical Specifications	Unit

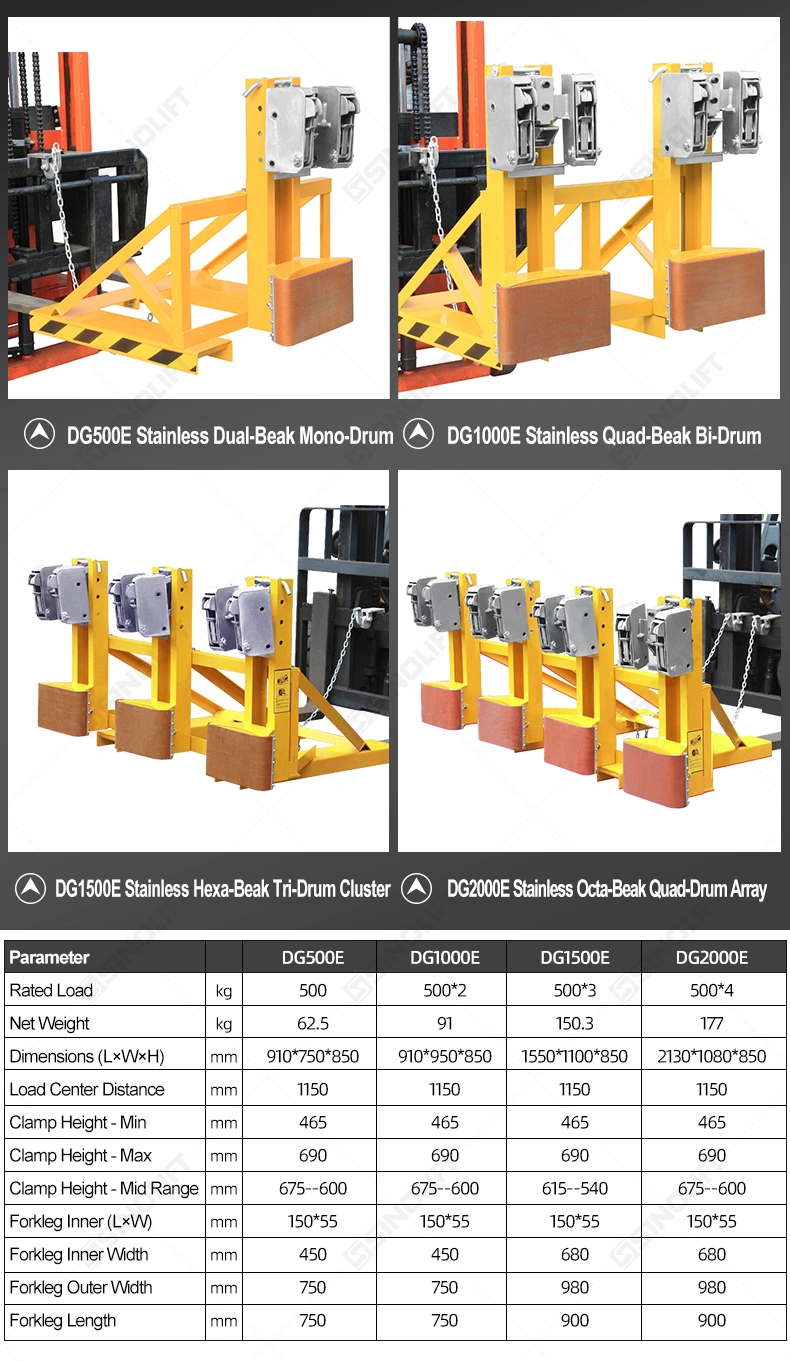

Model		DG500E	DG1000E	DG1500E	DG2000E
Load Capacity	kg	500	500×2 (1000)	500×3 (1500)	500×4 (2000)
Net Weight	kg	62.5	91	150.3	177
Dimensions (L×W×H)	mm	910×750×850	910×950×850	1550×1100×850	2130×1080×850
Load Center Distance	mm	1150	1150	1150	1150
Clamping Height Range
Minimum	mm	465	465	465	465
Maximum	mm	690	690	690	690
Adjustable Mid Range	mm	675 600	675 600	615 540	675 600
Forklift Compatibility
Forkleg Inner (L×W)	mm	150×55	150×55	150×55	150×55
Forkleg Inner Width	mm	450	450	680	680
Forkleg Outer Width	mm	750	750	980	980
Forkleg Length	mm	750	750	900	900

Forklift Mounted Drum Grab
