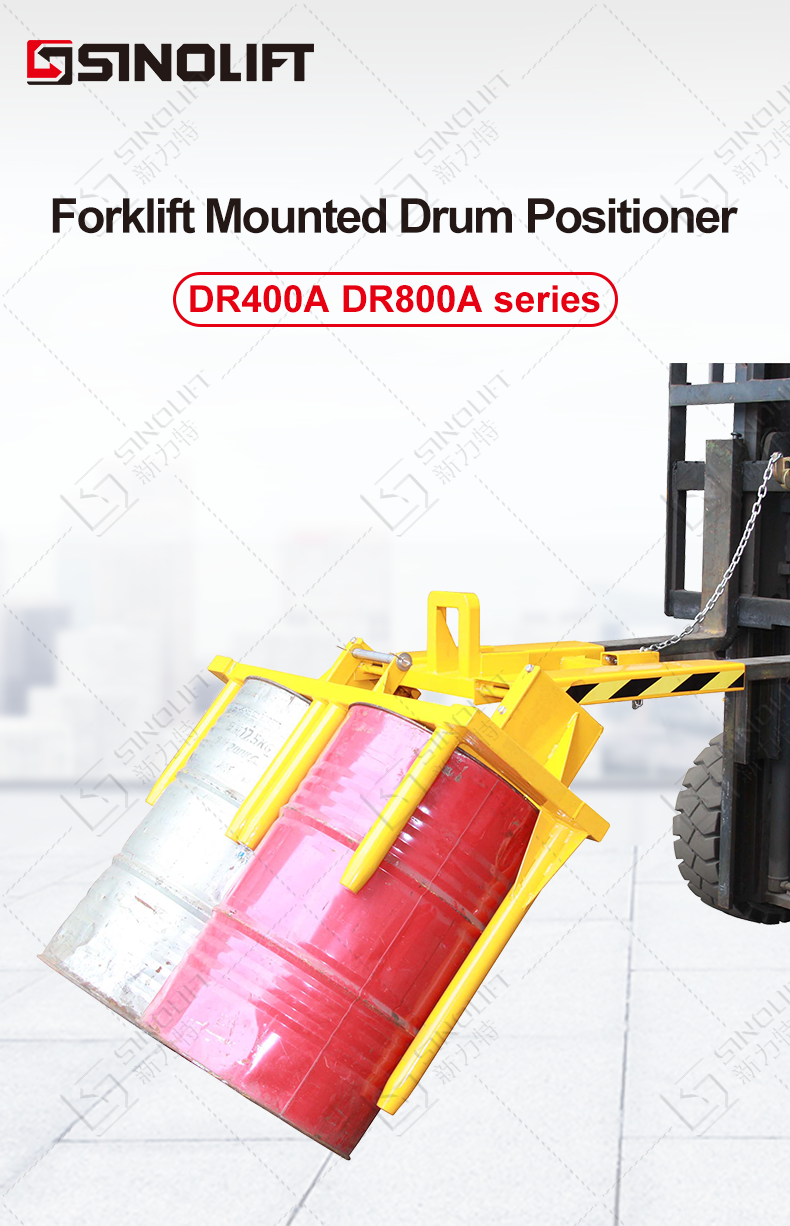

DR400A DR800A Forklift Mounted Drum Positioner
DR400A DR800A

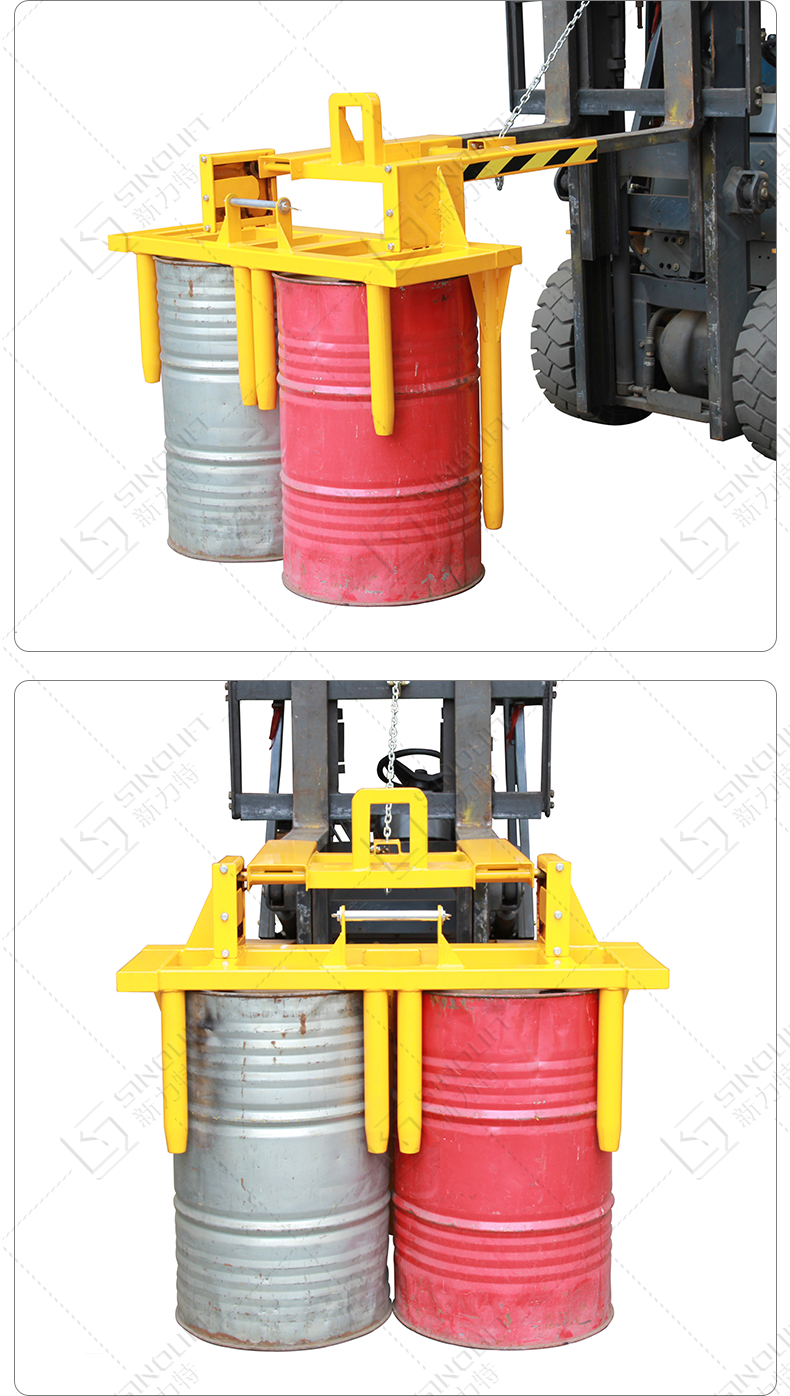

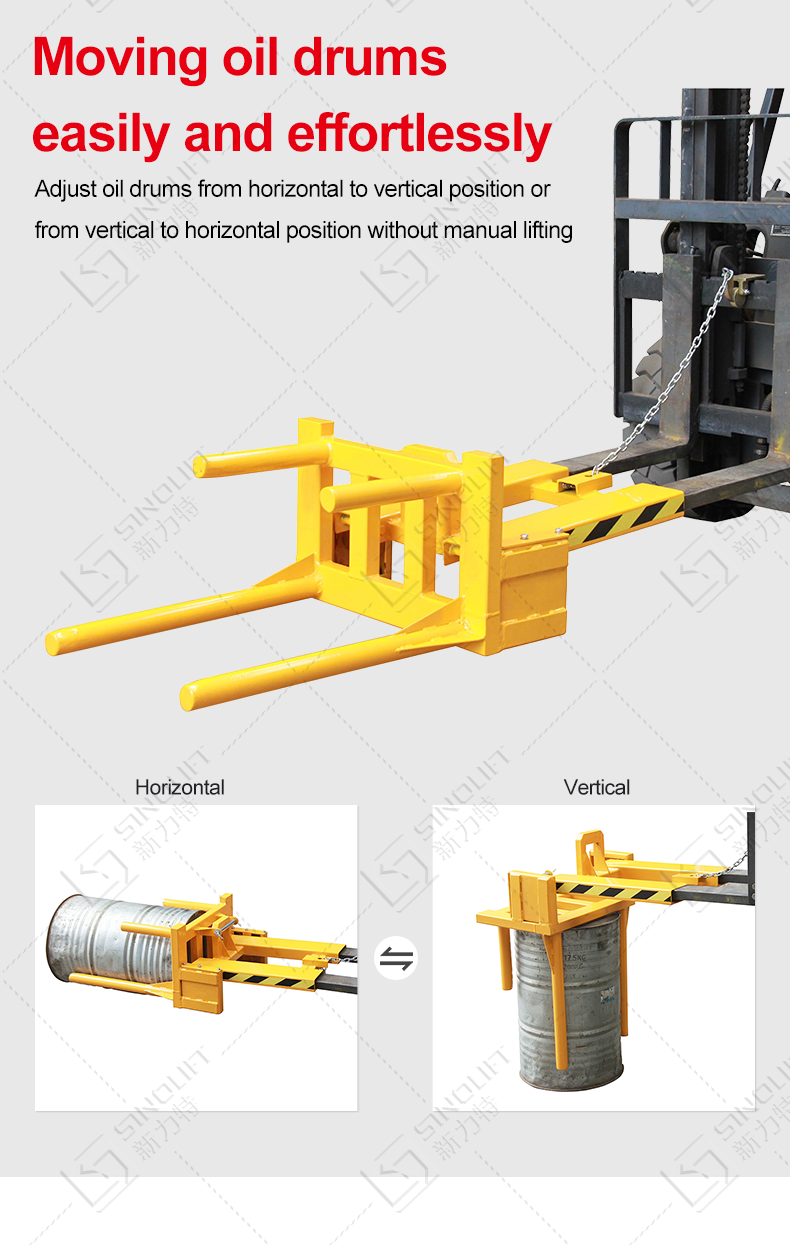

1. Allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa;
2. Positive latching system ensures safe handling of drums weighing up to 400kg, 800kg;

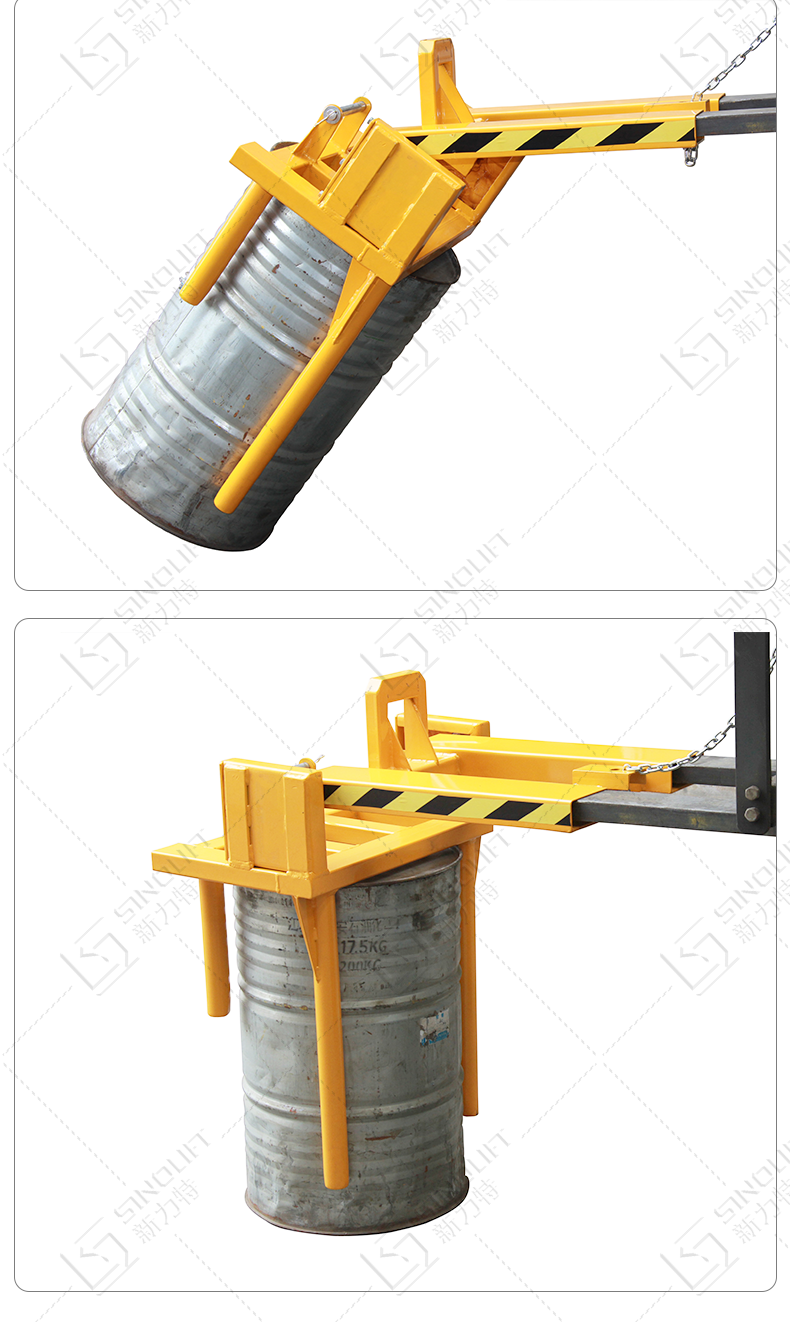

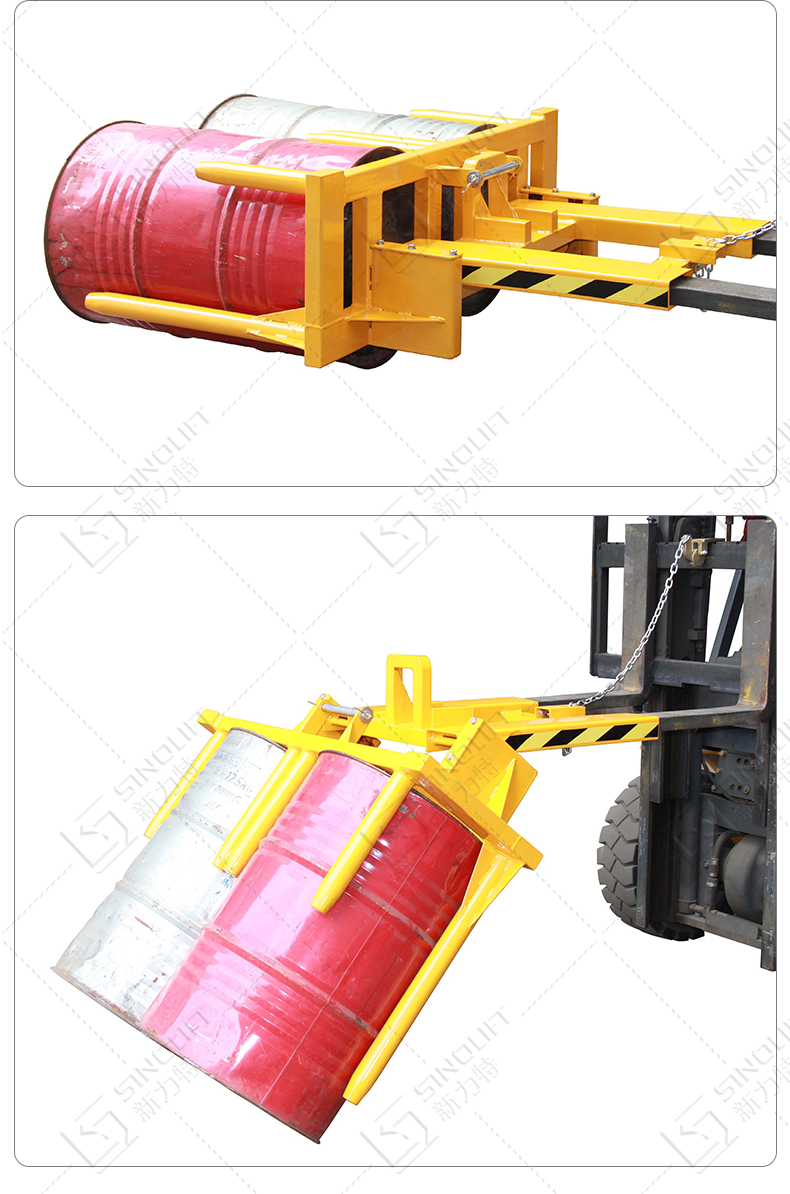

3. Slide the positioner extensions over the vertical drum. With the aid of the Drum Positioner, rotate drum to horizontal position;
4. Latching system will engage to allow horizontal positioning of drum;
5. Mechanical operation relies on fork truck to rotate and lift drums;

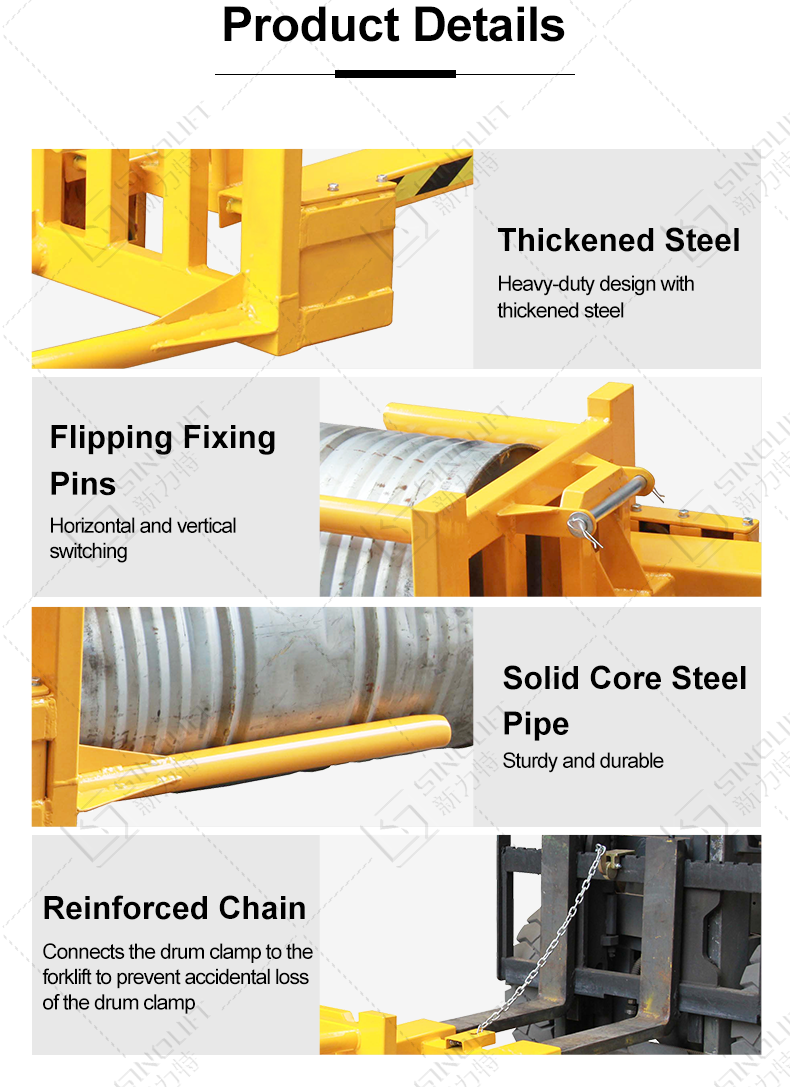

6. Units now feature a welded spacer to protect drum fixtures from damage when rotating;
7. It is widely applied to transport, lift and stack the horizontal drums in the fields of chemical, food and medicine industry;
2. Positive latching system ensures safe handling of drums weighing up to 400kg, 800kg;
3. Slide the positioner extensions over the vertical drum. With the aid of the Drum Positioner, rotate drum to horizontal position;
4. Latching system will engage to allow horizontal positioning of drum;
5. Mechanical operation relies on fork truck to rotate and lift drums;
6. Units now feature a welded spacer to protect drum fixtures from damage when rotating;
7. It is widely applied to transport, lift and stack the horizontal drums in the fields of chemical, food and medicine industry;
Quantity:
1Drum Positioner Allows fork truck driver to rotate standing drums to the horizontal racking position and vice-versa;
2. Positive latching system ensures safe handling of drums weighing up to 400kg, 800kg;
3. Slide the positioner extensions over the vertical drum. With the aid of the Drum Positioner, rotate drum to horizontal position;
4. Latching system will engage to allow horizontal positioning of drum;
5. Mechanical operation relies on fork truck to rotate and lift drums;
6. Units now feature a welded spacer to protect drum fixtures from damage when rotating;
7. It is widely applied to transport, lift and stack the horizontal drums in the fields of chemical, food and medicine industry;

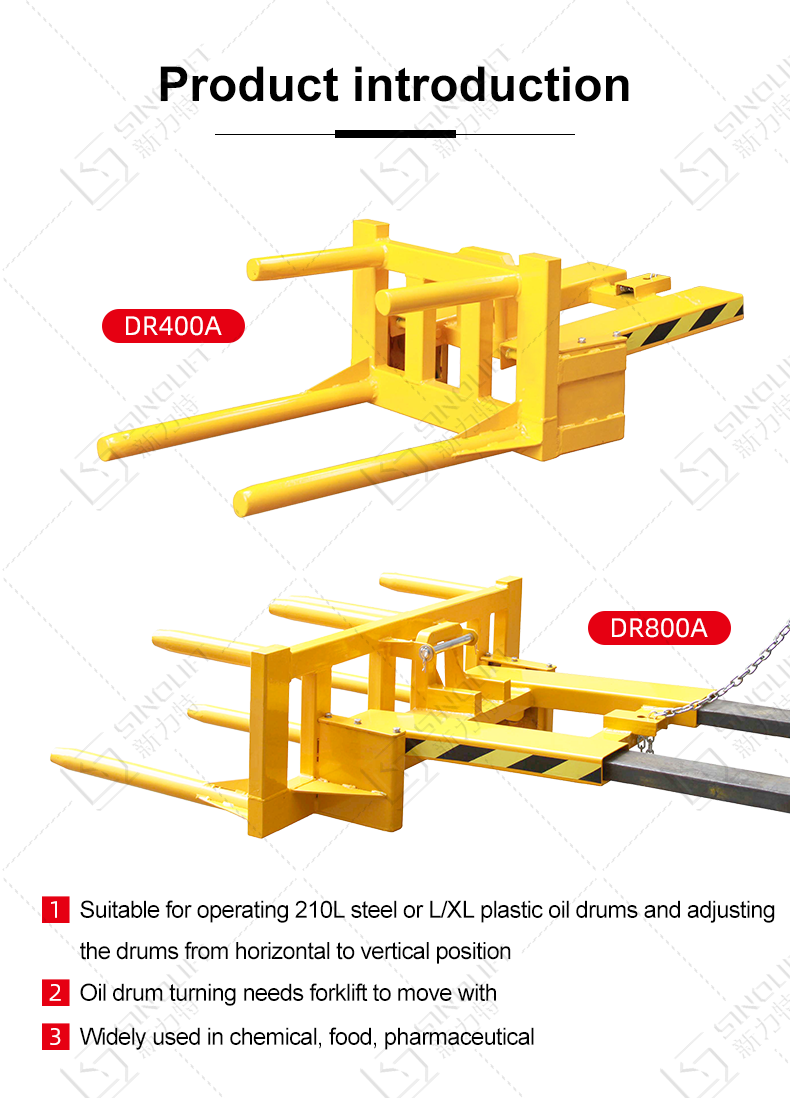

| Model | Drum Positioner DR400A | Drum Positioner DR800A | |
| Load capacity | kg | 400 | 800 |
| Net weight | kg | 85 | 115 |
| Outline dimension | mm | 1600*750*480 | 1600*1330*480 |
