LM800TY LM800 LM800A LG800 LG800A Drum Rotating Tongs
LM800TY LM800 LM800A LG800 LG800A
Features:
1. A hinged girth clamp secures the drum to the cradle. This enables a hoist or crane to raise a drum, and allow the operator to rotate it for decanting purposes, using the chain wheel actuated gearbox on the side.
2. Also available with 3 phase pendant control rotation device.
3. The drum can be rotated 360°in either direction.
4. Locks also hold drum in horizontal position.
1. A hinged girth clamp secures the drum to the cradle. This enables a hoist or crane to raise a drum, and allow the operator to rotate it for decanting purposes, using the chain wheel actuated gearbox on the side.
2. Also available with 3 phase pendant control rotation device.
3. The drum can be rotated 360°in either direction.
4. Locks also hold drum in horizontal position.
Quantity
LM800TY LM800 LM800A LG800 LG800A Drum Rotating Tongs

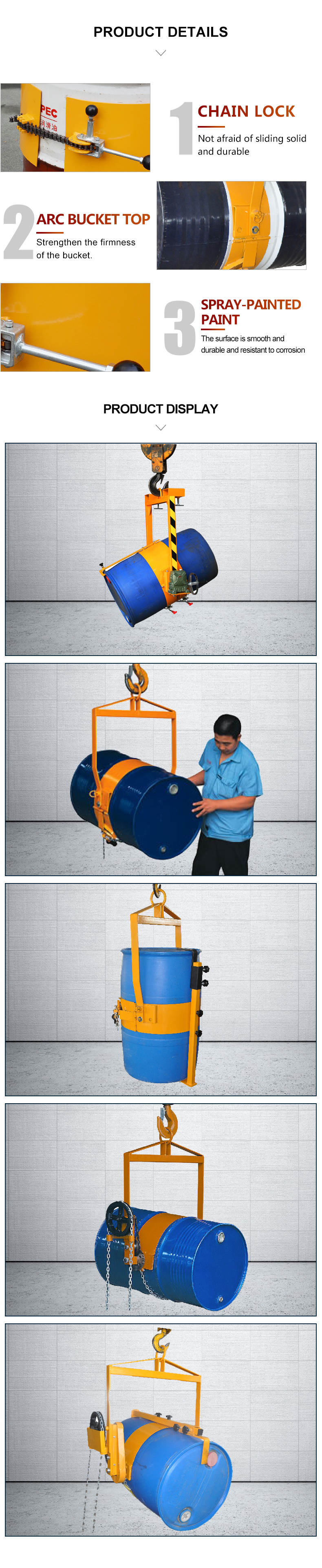

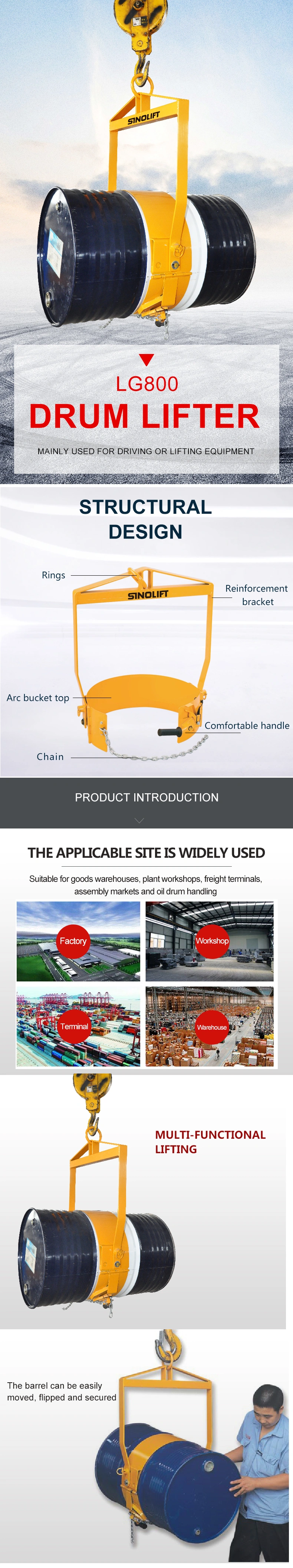

Features of Drum Rotating Tongs:
1. A hinged girth clamp secures the drum to the cradle. This enables a hoist or crane to raise a drum, and allow the operator to rotate it for decanting purposes, using the chain wheel actuated gearbox on the side.
2. Also available with 3 phase pendant control rotation device.
3. The Drum Rotating Tongs can be rotated 360°in either direction.
4. Locks also hold drum in horizontal position.

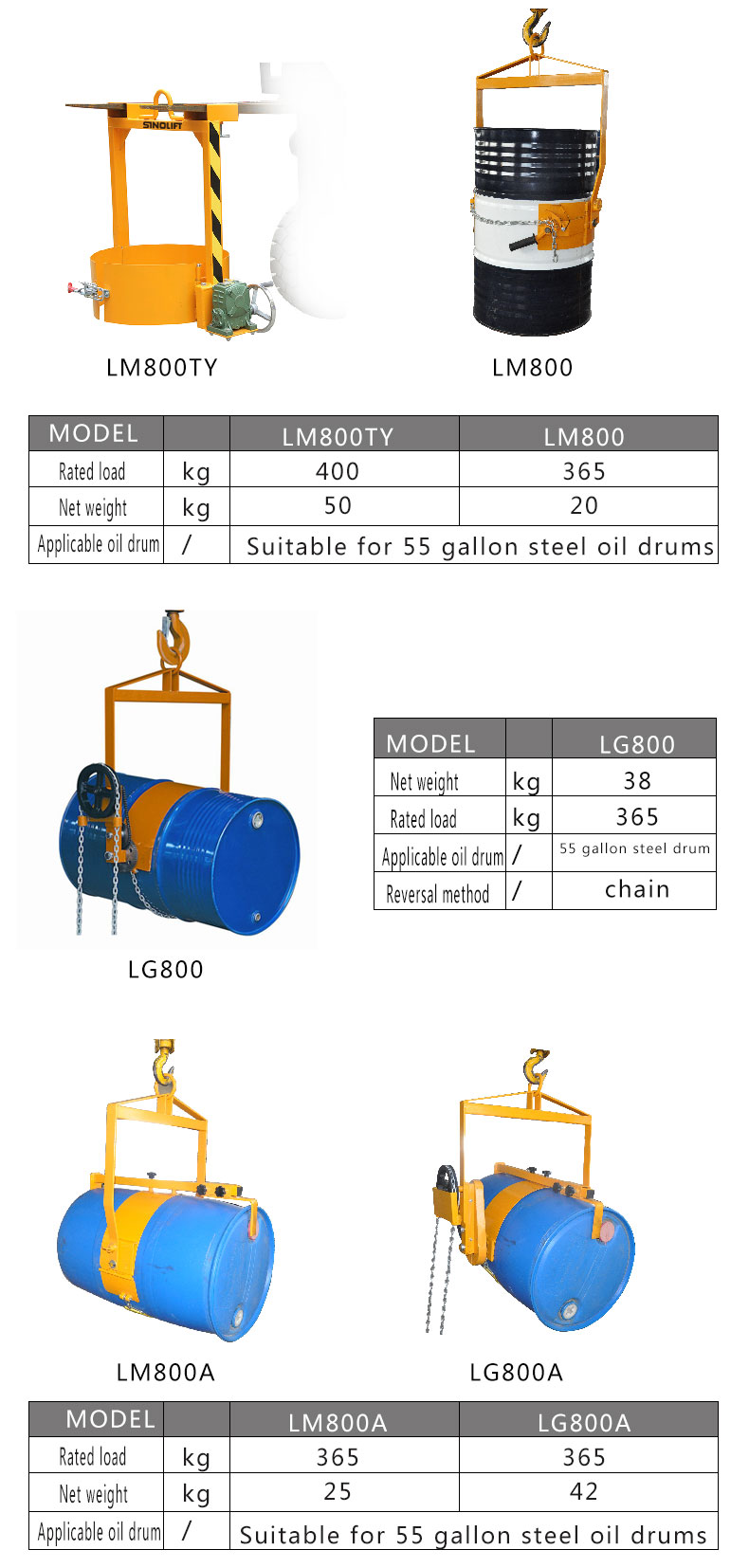

| Model | LM800 | LM800A | LG800 | DruLG800A | |
| Capacity | kg(lbs) | 365(800) | 365(800) | 365(800) | 365(800) |
| Drum Size | mm | 55gallon steel | 55gallon steel,210L plastic | 55gallon steel,210L plastic | 55gallon steel,210L plastic |
| Flipping Angle | ° | 90°or180° | 90°or180° | 360° | 360° |
| Net Weight | kg | 20 | 25 | 38 | 42 |
