Winch Stacker

LS80 LS150 Light Duty Winch Stacker

LS80 LS150

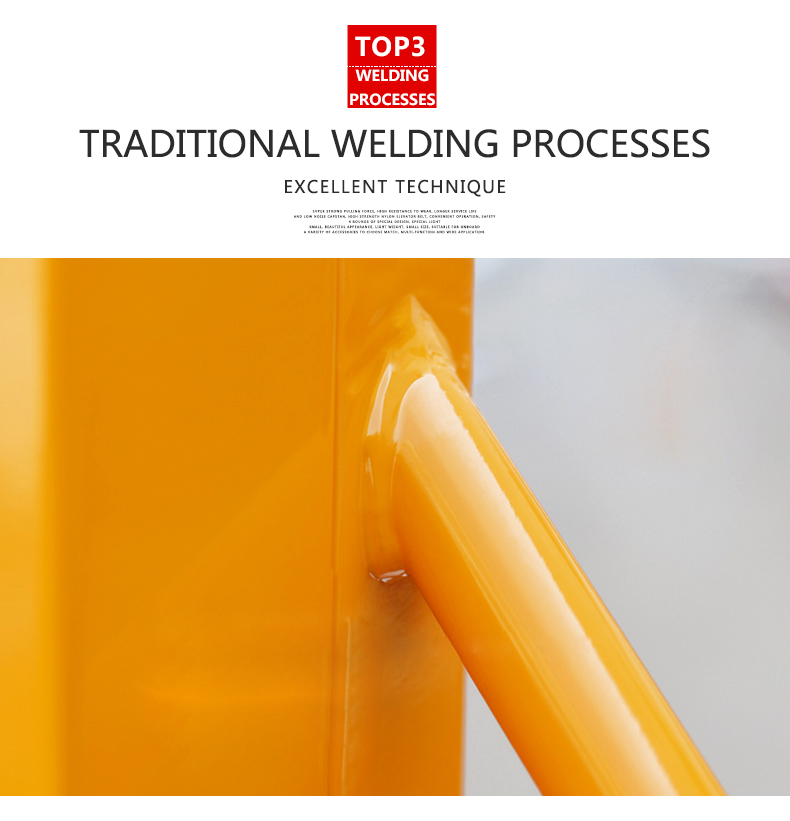

- Robust, lightweight, steel construction.
- Maneuverable, extremely easy to use.

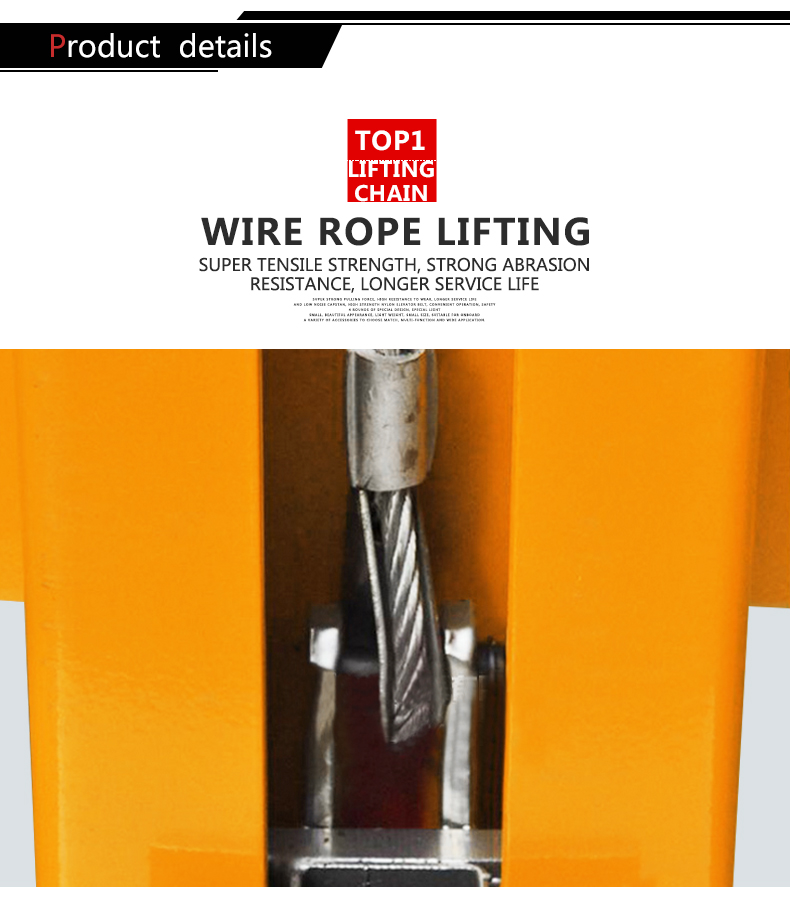

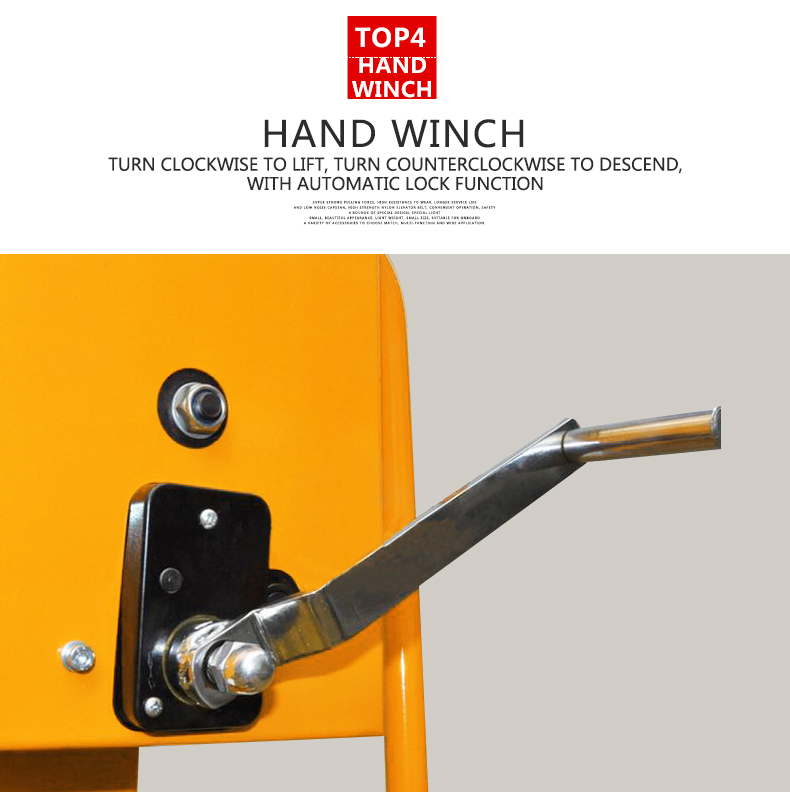

- Cable winch lifting system with full cable housing.
- Adjustable fork from 132mm to 520mm.

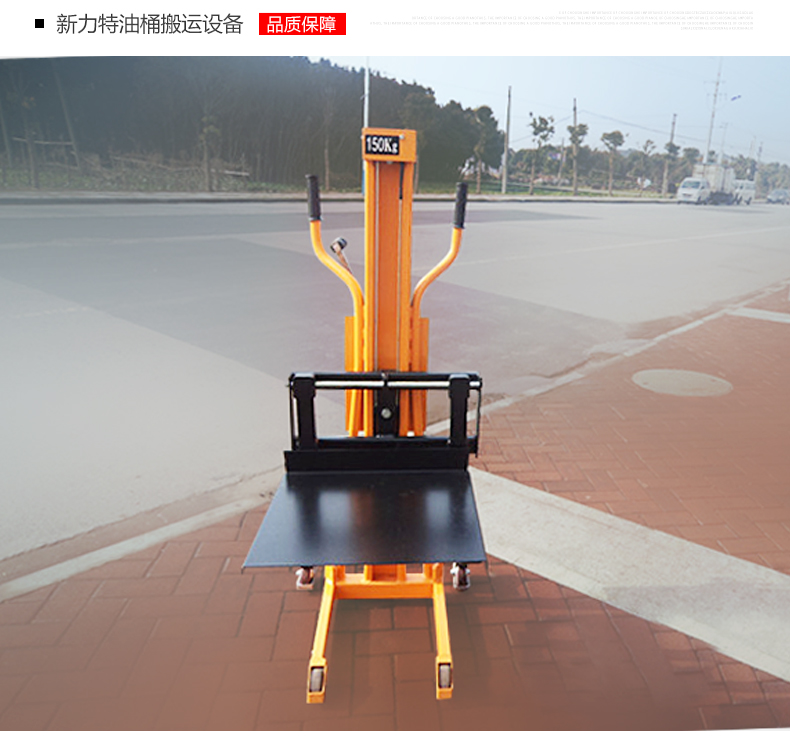

- Platform is a standard accessory.
Quantity:
Contact Now
add to cart
All Products

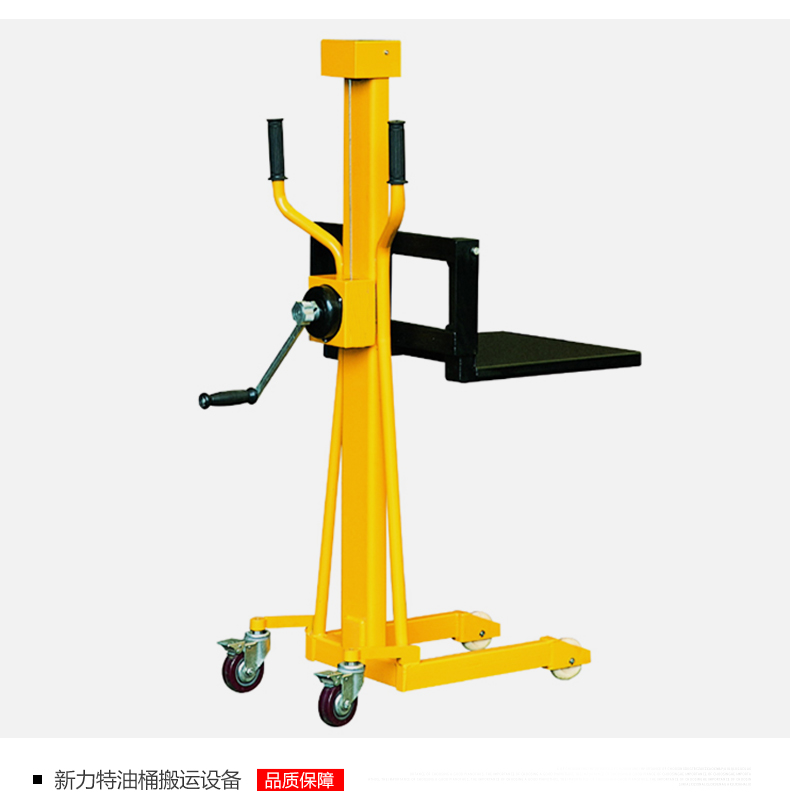

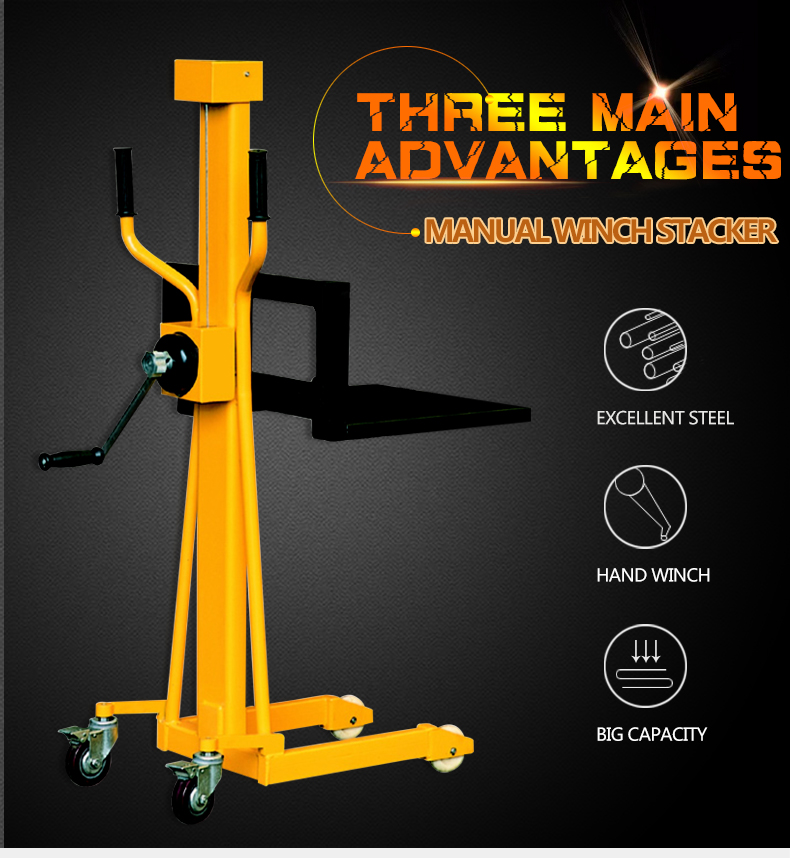

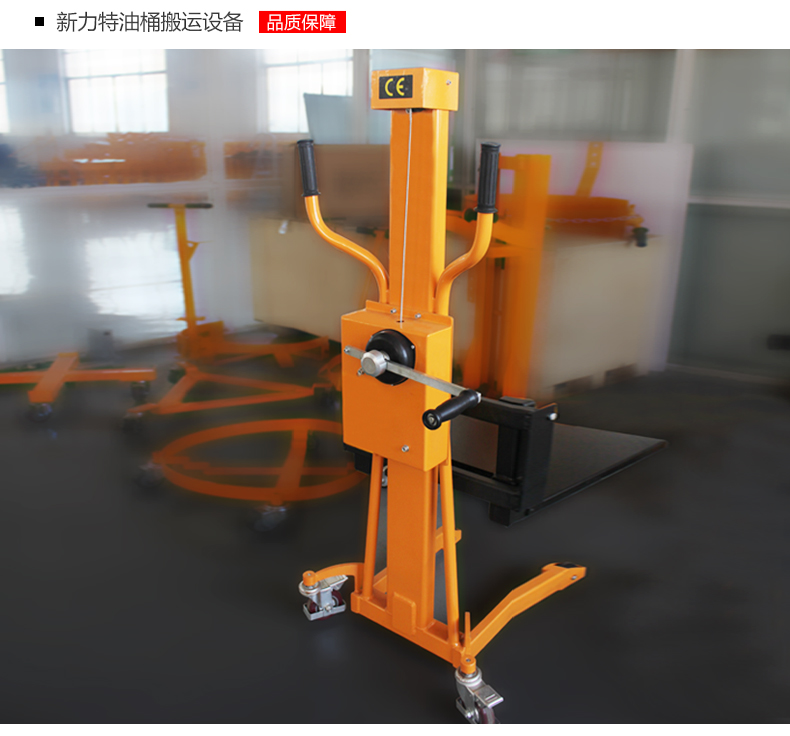

Name:LS80 LS150 Light Duty Winch Stacker

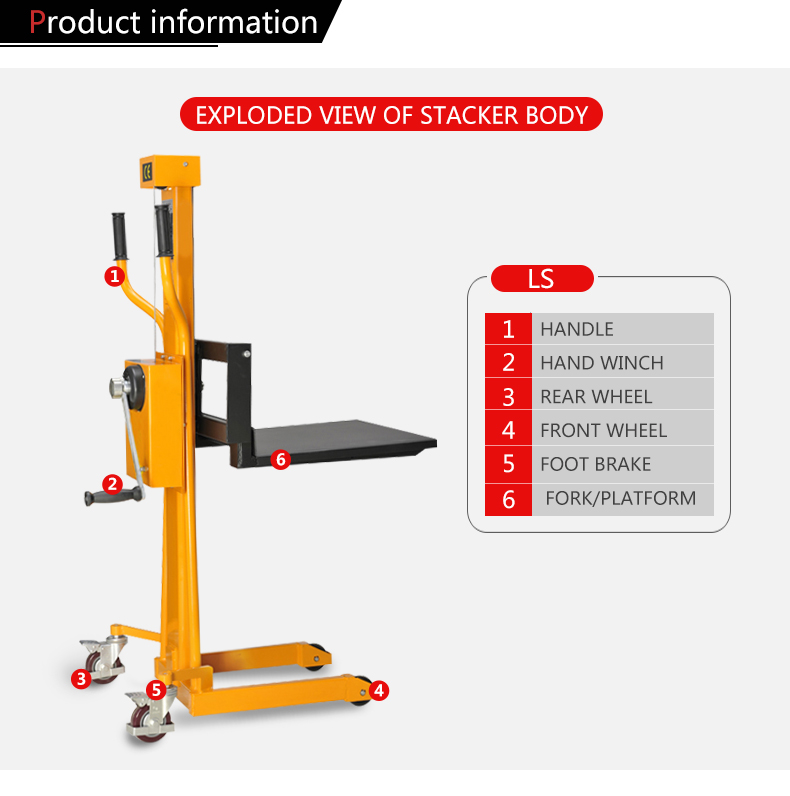

Features of Winch Stacker

- Robust, lightweight, steel construction.
- Maneuverable, extremely easy to use.

- Cable winch lifting system with full cable housing.
- Adjustable fork from 132mm to 520mm.
- Platform is a standard accessory.

Model
Winch Stacker
LS80
Winch Stacker
LS150
Capacity(kg)80150
Load Centre(mm)250250
Lifting Height(mm)11001100
Straddle Leg Height(mm)100100
Min. Fork Height(mm)7070
Fork Length(mm)500500
Individual Fork Width(mm)5050
Platform Size(mm)500x530x90500x530x90
Over Adjustable Fork Width(mm)132-520132-520
Effort Force with Load(N)82106
Load Wheel(mm)Ø100x30
Steering Wheel(mm)Ø100x30
Overall Dimensions(mm)865x550x1470830x580x1475
Net Weight(kg)5262
Important: Forks MUST be in Max. fork width position when fit platform on two forks.

Light Duty Stacker
Light Duty Stacker
Light Duty Stacker
Light Duty Stacker
Light Duty Stacker
Light Duty Stacker
Light Duty Stacker
Light Duty Stacker
Light Duty Stacker
Light Duty Stacker
