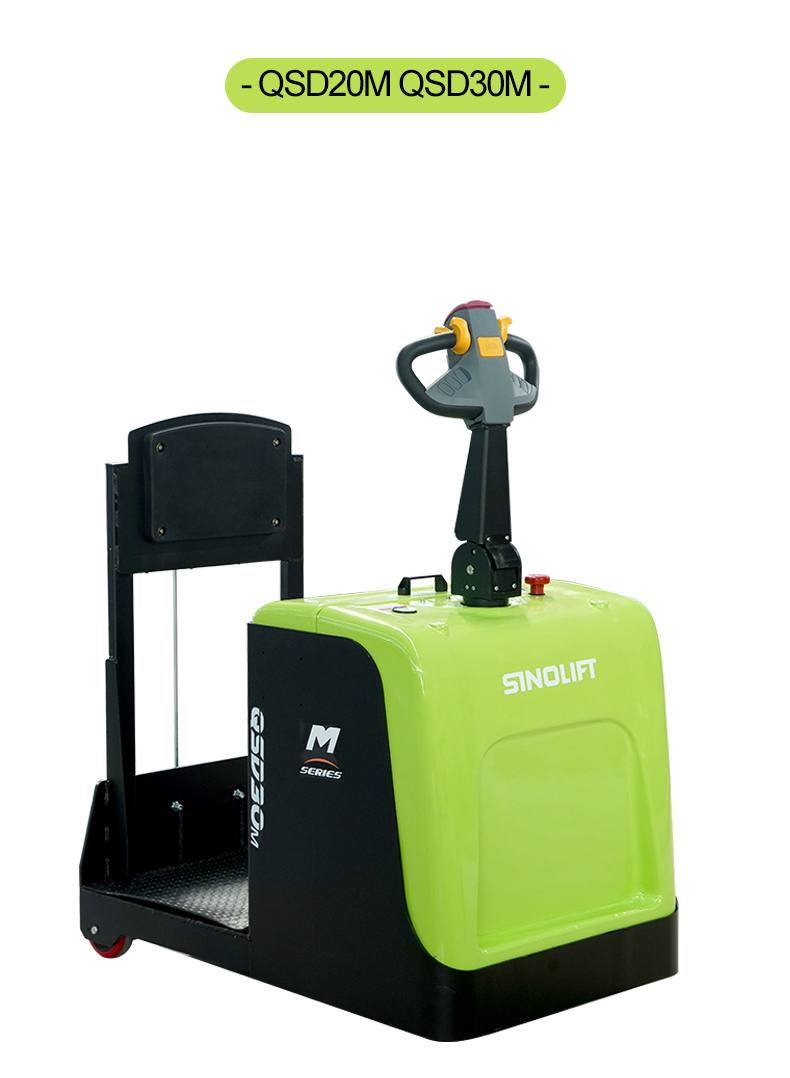

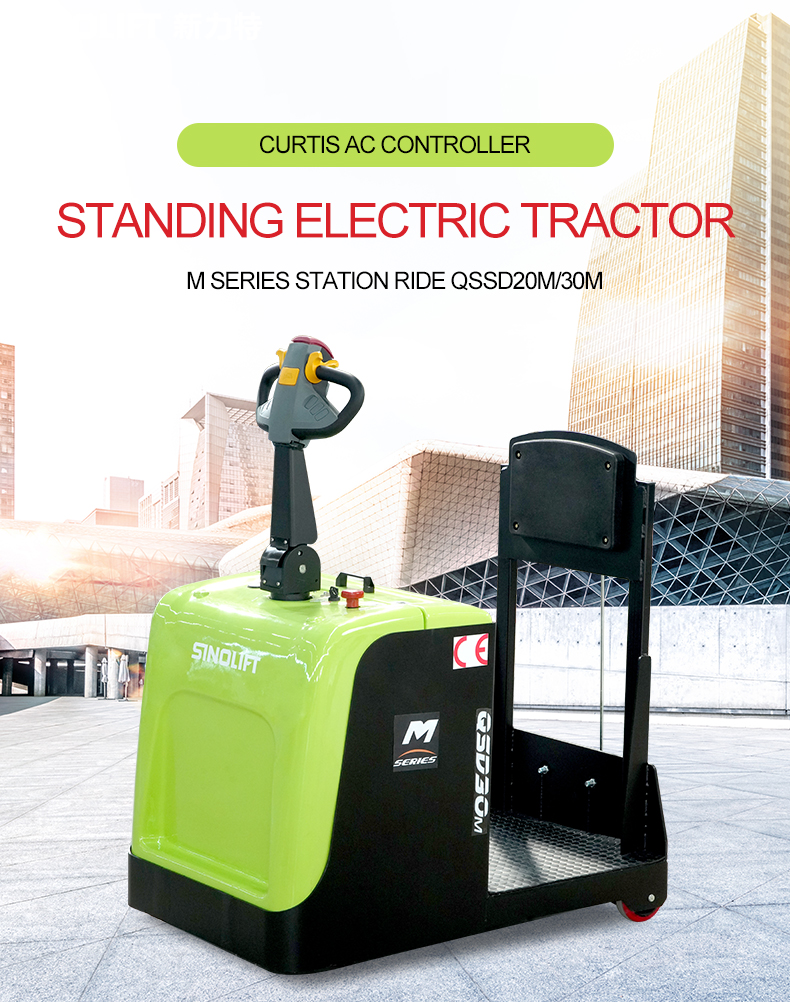

QSD20M QSD30M Stand-in Electric Towing Tractor
QSD20M QSD30M
With enhanced safety and efficiency features, they are perfect for horizontal transport and order picking operations. Electric tractors allow operators to haul palletized or non-palletized goods and are suitable for both indoor and outdoor applications.
Quantity:
QSD20M QSD30M Stand-in Electric Tractor
With enhanced safety and efficiency features, they are perfect for horizontal transport and order picking operations. Electric tractors allow operators to haul palletized or non-palletized goods and are suitable for both indoor and outdoor applications. This includes factory lines, cross-dock logistics, airports, train stations and ports.

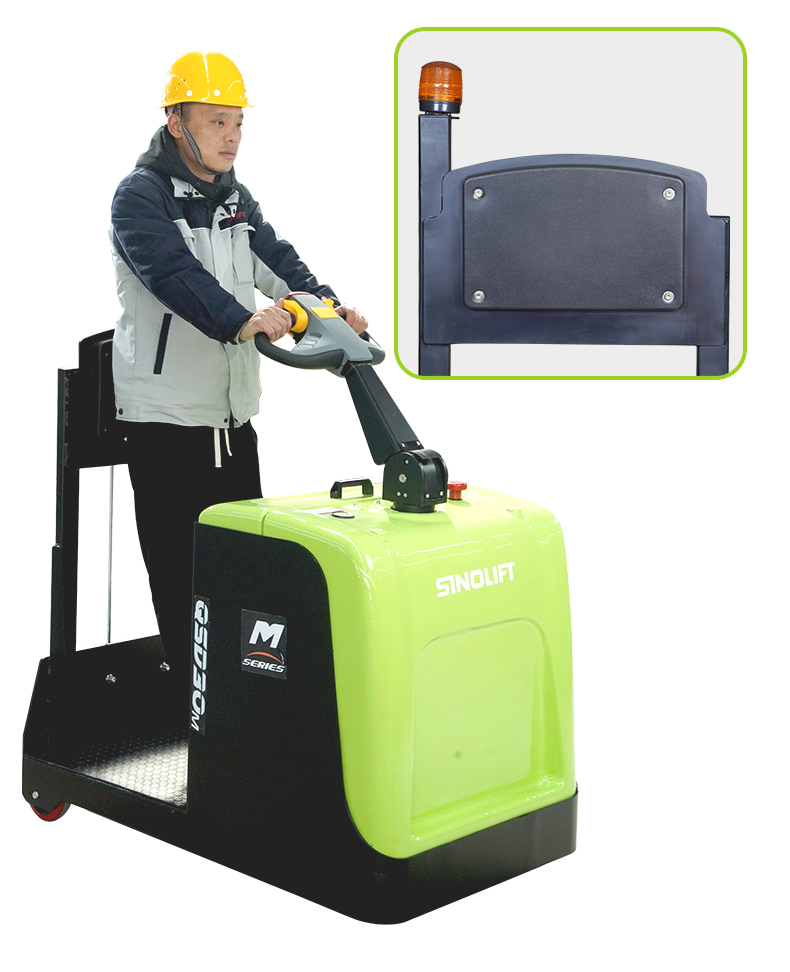

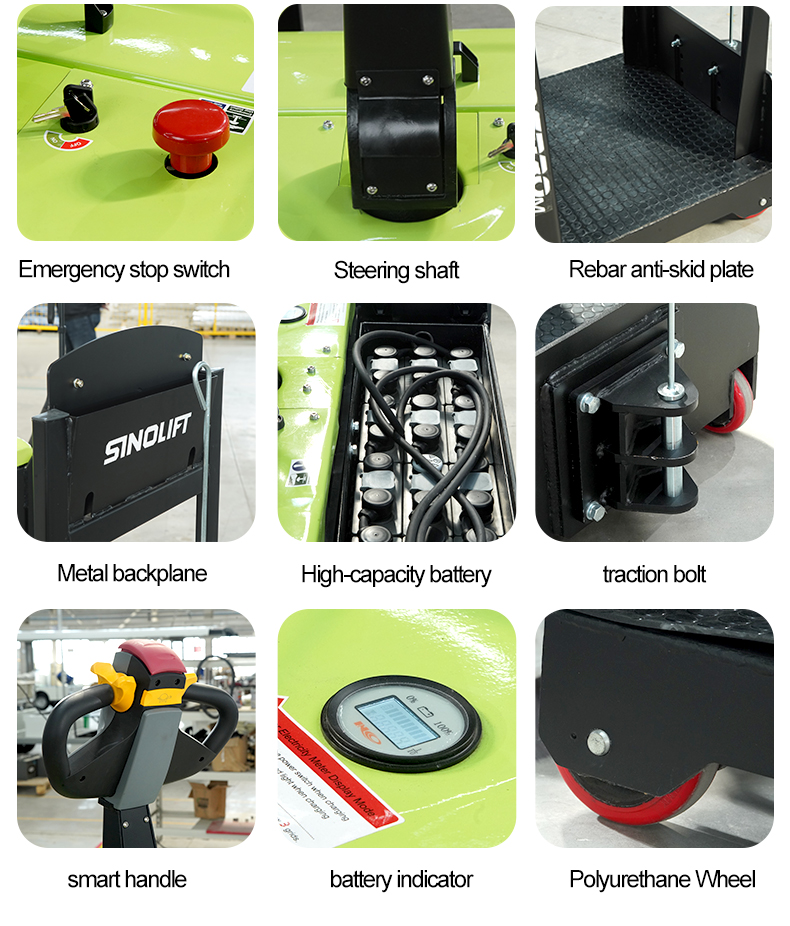

The tractor also features an automatic parking brake to prevent it from accidentally rolling. Both models of the tractor are available with knee protection pads. There is also a different version with more ground clearance that prevents the bottom of the truck from coming into contact with the road; for example, when the tractor is driving in open spaces and needs to handle uneven surfaces and/or ramps.
We can provide sit-down and stand-up electric tractors for heavy-duty work. Our range of tractors can meet a variety of needs regarding travel distance, towing load capacity and frequency of use.
The tractor also features an automatic parking brake to prevent it from accidentally rolling. Both models of the tractor are available with knee protection pads. There is also a different version with more ground clearance that prevents the bottom of the truck from coming into contact with the road; for example, when the tractor is driving in open spaces and needs to handle uneven surfaces and/or ramps.
We can provide sit-down and stand-up electric tractors for heavy-duty work. Our range of tractors can meet a variety of needs regarding travel distance, towing load capacity and frequency of use.
| Manufacture's type designation | SINOLIFT | |||
| Model | QSD20M | QSD30M | ||
| Power Type | Electric | |||
| Type ofoperation | Stand-in | |||
| Steering Mode | Electric Power Steering | |||
| Wheelbase | y | mm | 950 | 950 |
| Total Weight(with battery) | kg | 550 | 550 | |
| Axle Load(unladen):Drive side/Load-bearing side | kg | 350/200 | 350/200 | |
| Overall length | L1 | mm | 1 455 | 1455 |
| Overall width | W1 | mm | 800 | 800 |
| Overall height | h14 | mm | 1610 | 1610 |
| Couping Height(Hook center above ground) | h10 | mm | 175/225/275 | 175/225/275 |
| Standing Platform | h2 | mm | 175 | 175 |
| Ground Clearance at center of wheelbase (Min) | m1 | mm | 65 | 65 |
| Turning Radius | Wa | mm | 1280 | 1280 |
| Tyre Type | Polyurethane/Rubber | |||
| Tyre Size(Front) | mm | 230x75 | 230x75 | |
| Tyre Size(Rear) | mm | 254x100 | 254x100 | |
| Wheels Quantity,front/rear (x=driving wheels) | 1x/2 | 1x/2 | ||

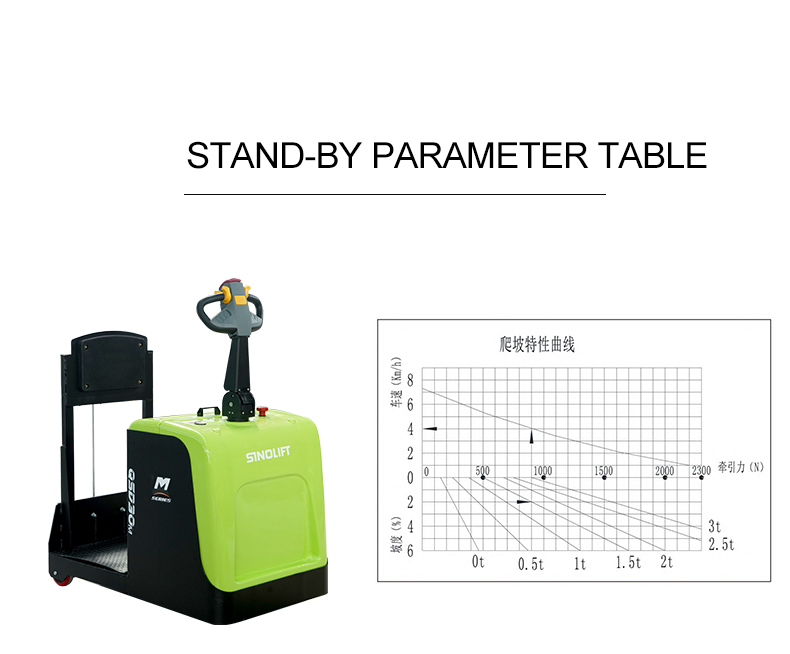

| Traveling Speed(laden/unladen) | Km/h | Referto the climbing curve | ||
| Rated Draw-bar Pull | F | N | 600 | 600 |
| Max.Gradient Performance S25min laden/unladen) | % | Referto the climbing curve | ||
| Service Brake Type | Electromagnetic | |||
| Parking Brake Type | Electromagnetic | |||

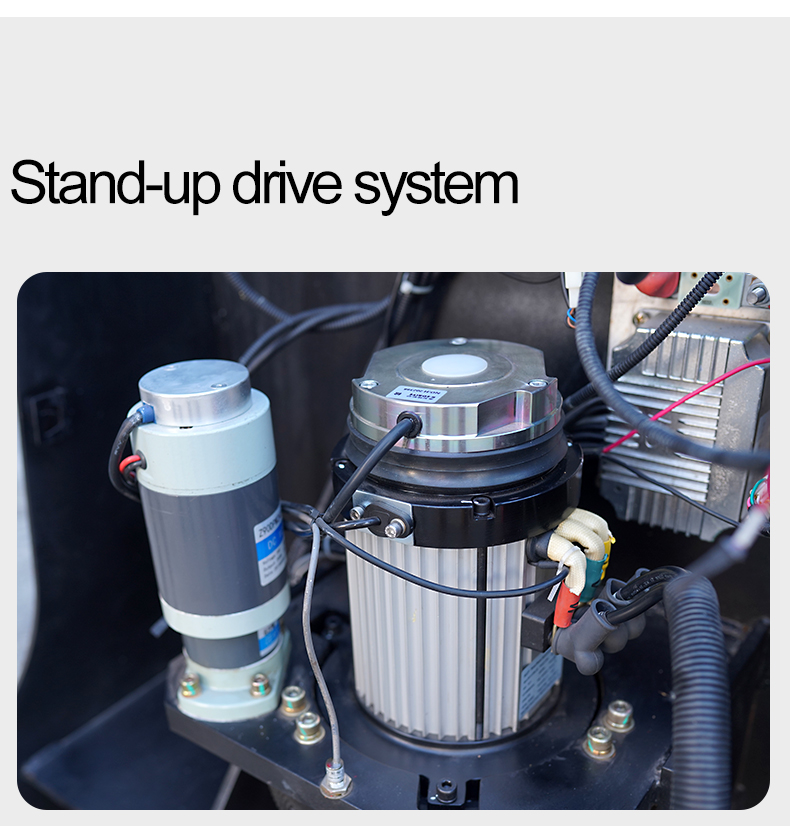

| Drive Motor Rating(AC) S2-60min | kW | 1.5 | 1.5 | |

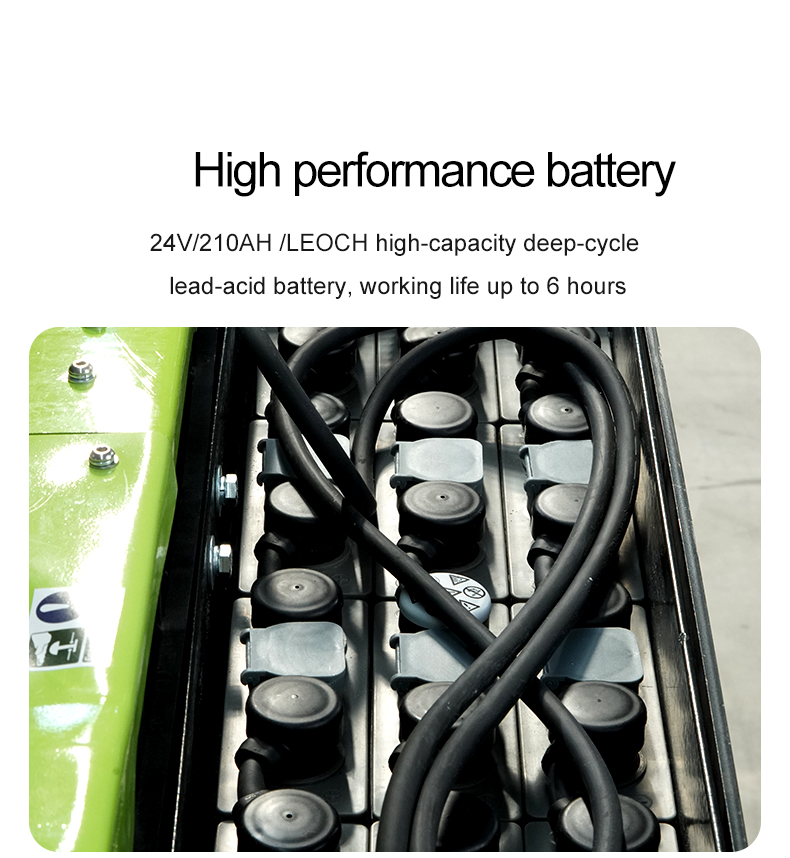

| Battery Vo ltage/Capacity K5 | V/Ah | 24/210 | 24/210 | |
| Battery Weight | kg | 188 | 188 | |

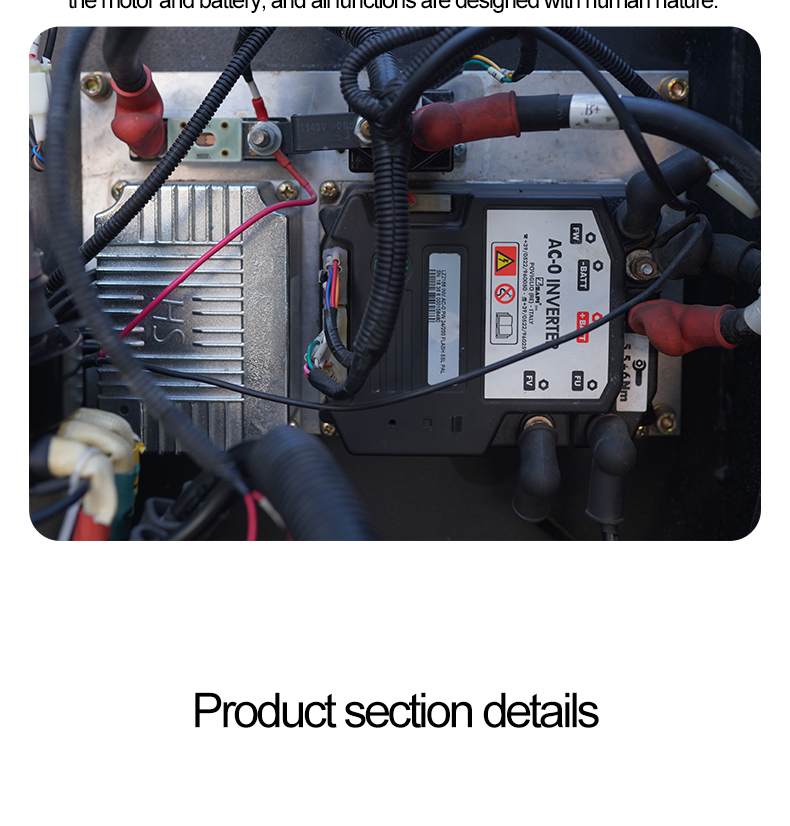

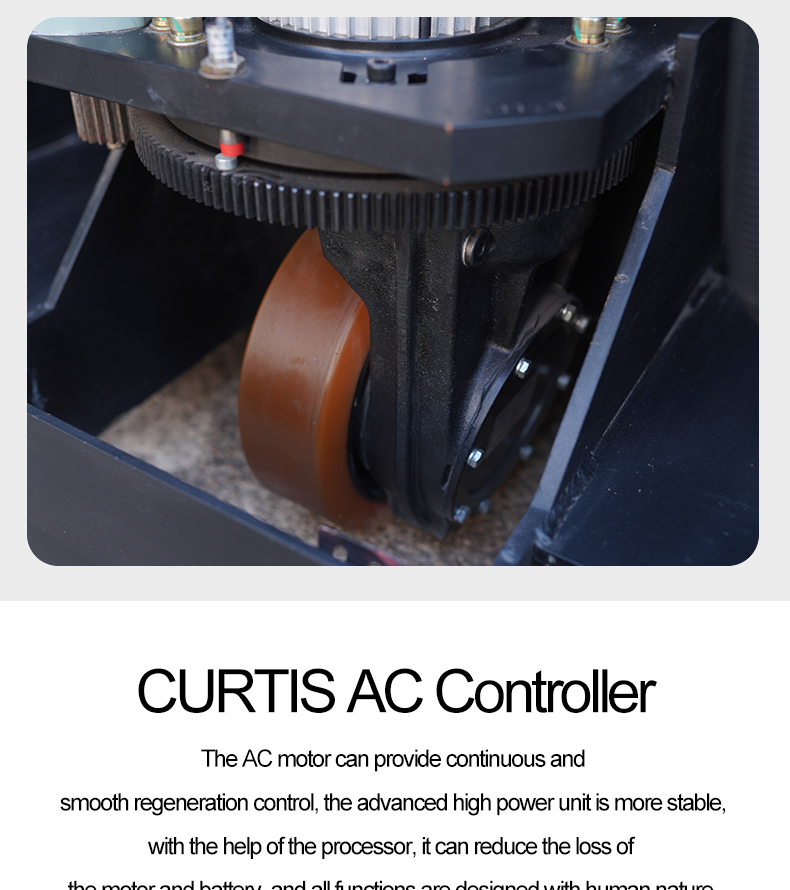

| Controller Brand | CURTIS | CURTIS | ||
| Controller Model | 1232E | 1232E | ||
| Sound levelat driver's ear according to EN 12053 | dB | 65 | 65 | |
