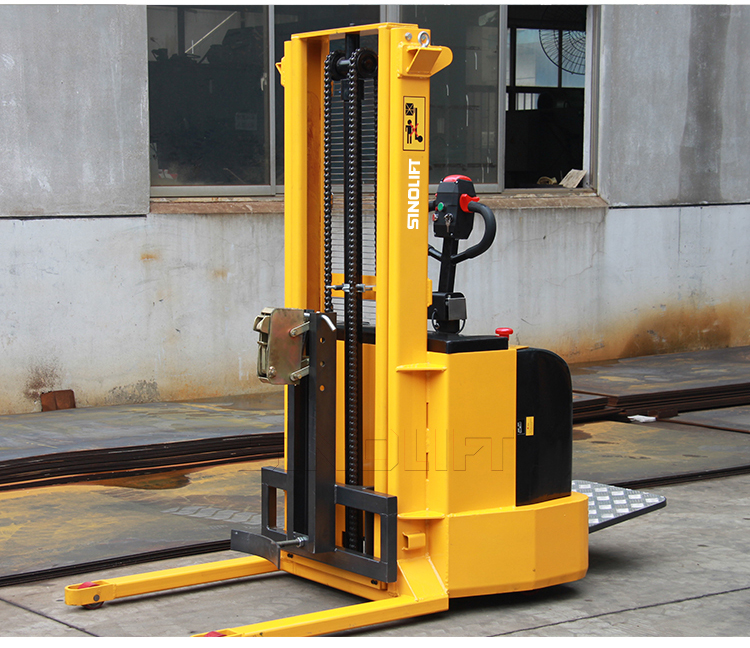

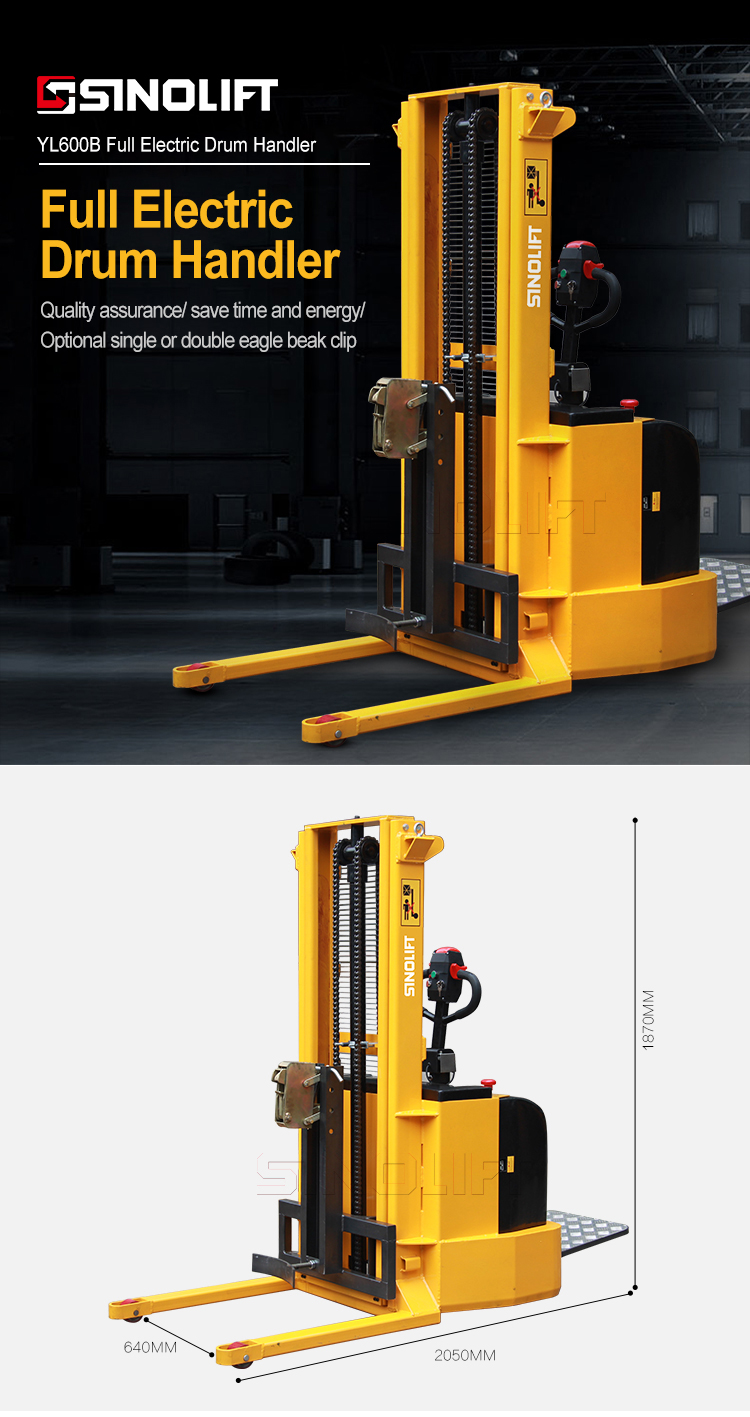

YL600B Full Electric Drum Handler
1) Features of Drum Handler
The Full electric Drum Handlermake easy tasks of handling plastic, fiber and steel drums. This is the most ergonomic equipment available for transporting, manipulating, weighing and dispensing drums, with models suitable for most applications.
The Drum Handlerare designed to work in tightly confined production areas. The large industrial battery provides enough power to run continuously for a 2-shift operation without recharging.
Capable of removing or placing drums from pallets, pallet racking, cabinets, spill pallets and conveyors as well as dispensing by weight eliminates the need for several pieces of equipment in congested production areas.
- Drum Handler Include safety covered gears for your protection
- Drum Handler Have durable stress-relief weld joints for years of service
- Power-drive wheels plus full-function hydraulic lift and pour means any operator can move drums. Eliminate operator effort in moving 600kg/1,200 lbs. loads, while reducing injury rates from heavy handling by more than 50%.
- A powered drum handler can provide substantial cost savings by eliminating the need for forklifts, and feature fully adjustable and programmable controls with 1 - 2.5 mph speed controls.
- Exclusive auto lock will not drop a drum;
- Units easily handle grades up to 5 degrees.
| Model | Drum Handler YL600B | |
| Drive Type | Full Electric | |
| Operating Type | Walkie | |
| Rated Load Capacity | kg | 600 |
| Drum Size | 30 gallon (Ø450x700), 55 gallon (Ø572x900) steel, 210L plastic | |
| Lifting Height | mm | 2400 |
| Turning Radius | mm | 1500 |
| Max. Grade ability (Fully-loaded/no-loaded) | % | 3/5 |
| Driving Wheel Size | mm | Ø250*80 |
| Tire | Polyurethane | |
| Controlling Type | Electromagnetic brake | |
| Drive Motor Power | KW | 1.2 |
| Lifting Motor Power | KW | 2.2 |
| Noise Level | db(A) | <70 |
| Battery | V/Ah | 24/210 |
| Charger | V/A | 24/30 |
| Rotating Range (degree) | ° | 140° |
| Overall Size | mm | 2270x1170x1860 |
| Net Weight | kg | 890 |
