ACR roll paper reel hand pallet truck

ACR

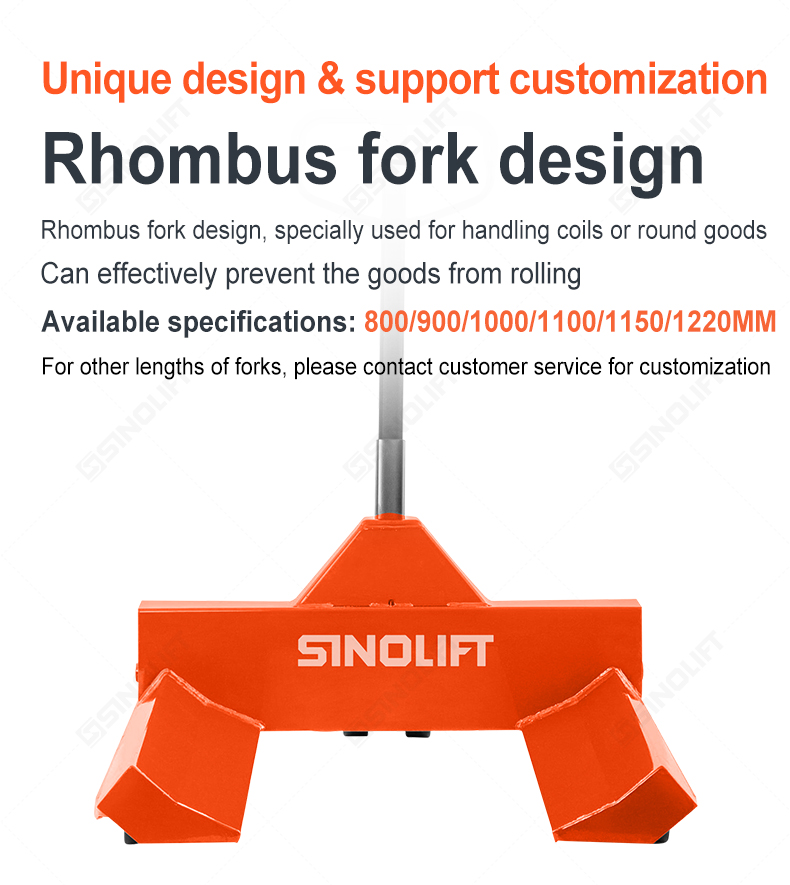

Rhombus fork design, used for handling cylindrical goods of various diameters.Commonly used in paper making, printing, packaging, textile, building materials and other industries.Unique diamond-shaped fork design to meet the needs of handling cylindrical goods of various diameters.

Quantity:

Contact Now

add to cart

Product Name

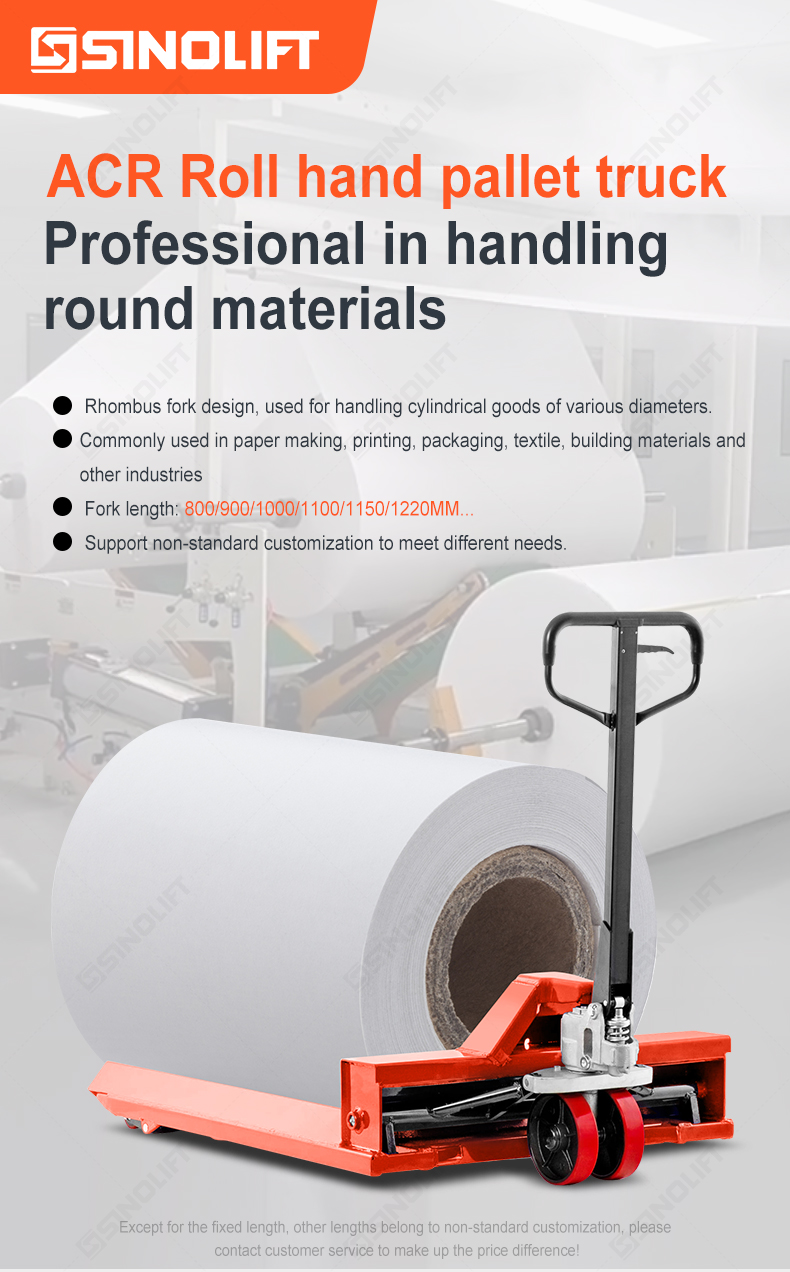

ACR Roll hand pallet truck

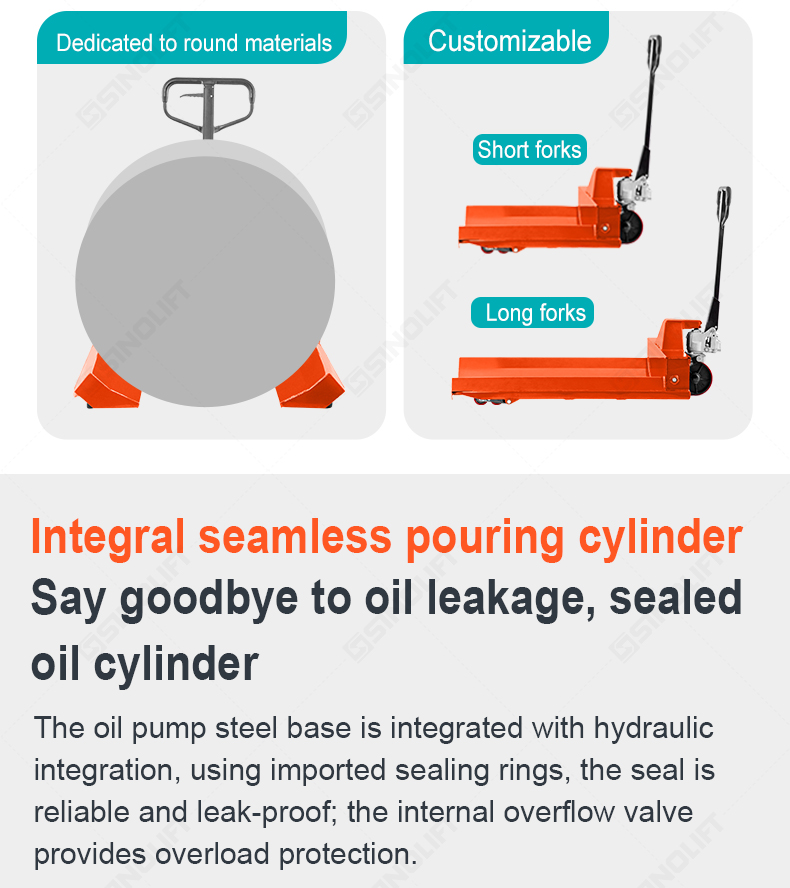

Rhombus fork design, used for handling cylindrical goods of various diameters.Commonly used in paper making, printing, packaging, textile, building materials and other industries.Unique diamond-shaped fork design to meet the needs of handling cylindrical goods of various diameters

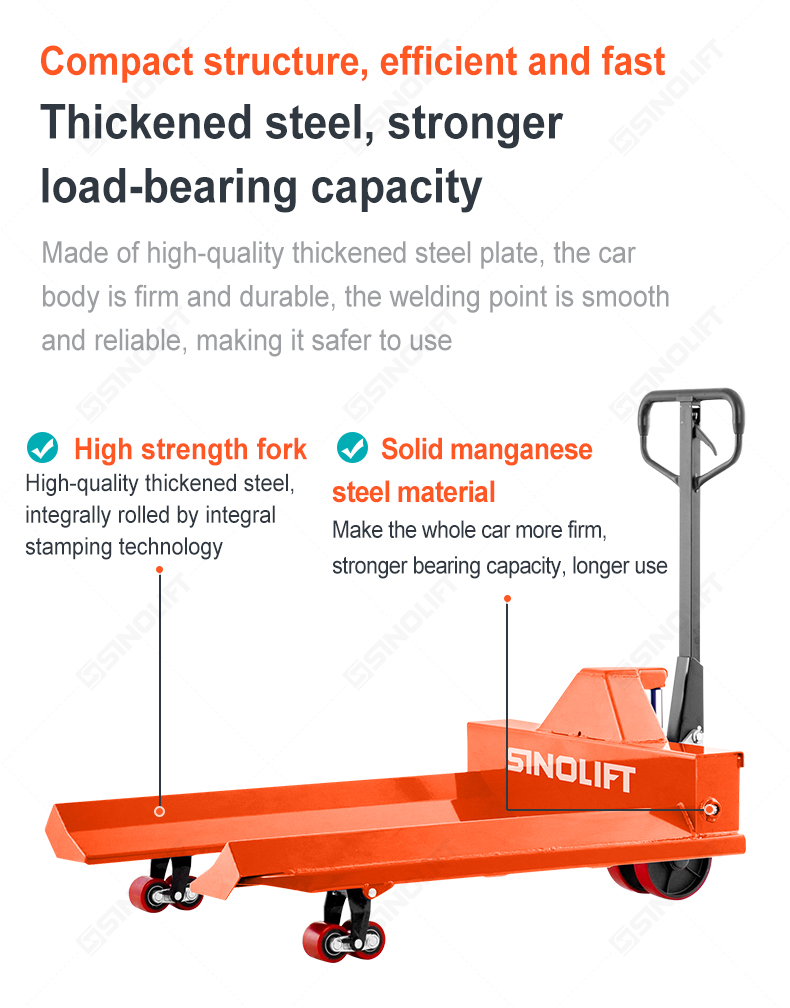

Compact structure, efficient and fast
Thickened steel, stronger load-bearing capacity
Made of high-quality thickened steel plate, the car body is firm and durable
The welding point is smooth and reliable, making it safer to use
High-quality thickened steel, integrally rolled by integral stamping technology

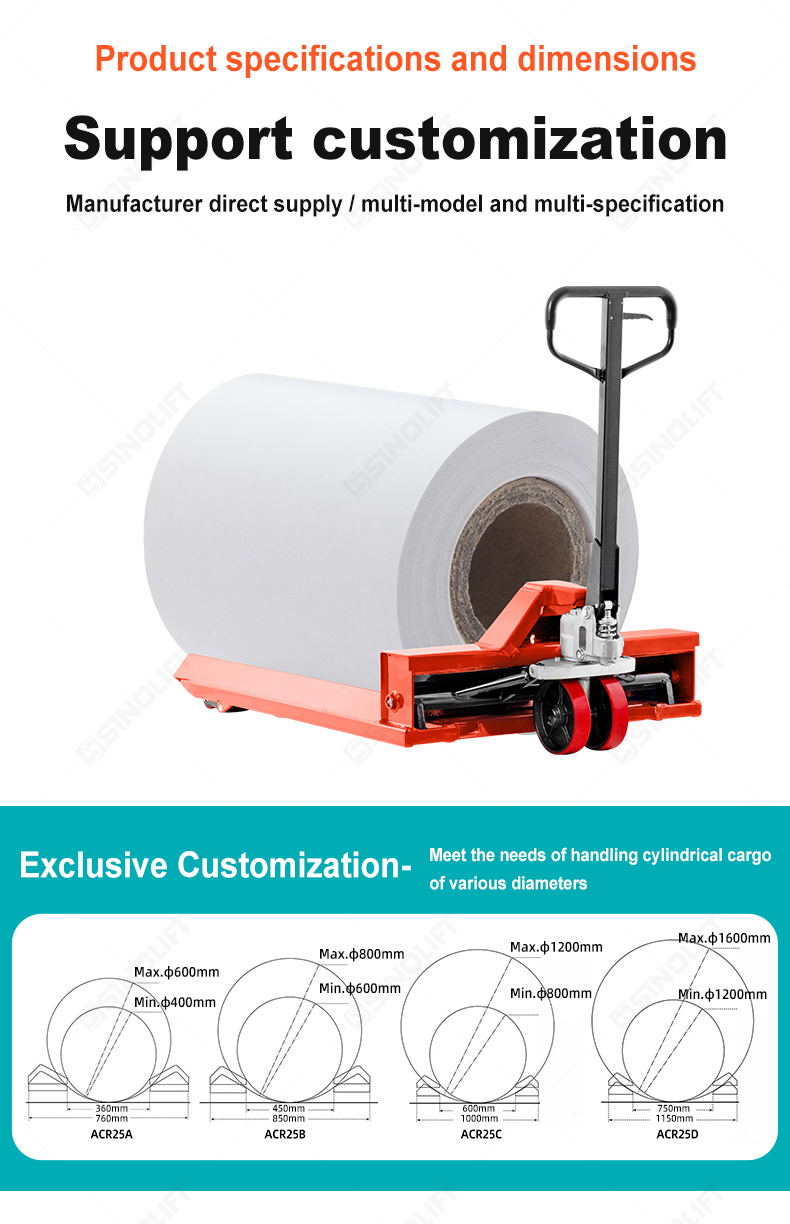

Product Specifictions

Feature	Unit	ACR25A	ACR25B	ACR25C	ACR25D
Load Capacity	kg	2500	2500	2500	2500
Applicable Coil Diameter	mm	Φ400-600	Φ600-800	Φ800-1200	Φ1200-1600
Fork Overall Width	mm	760	850	1000	1150
Steering Rear Wheel	mm	Φ200X50 or Φ180X50	Φ200X50 or Φ180X50	Φ200X50 or Φ180X50	Φ200X50 or Φ180X50

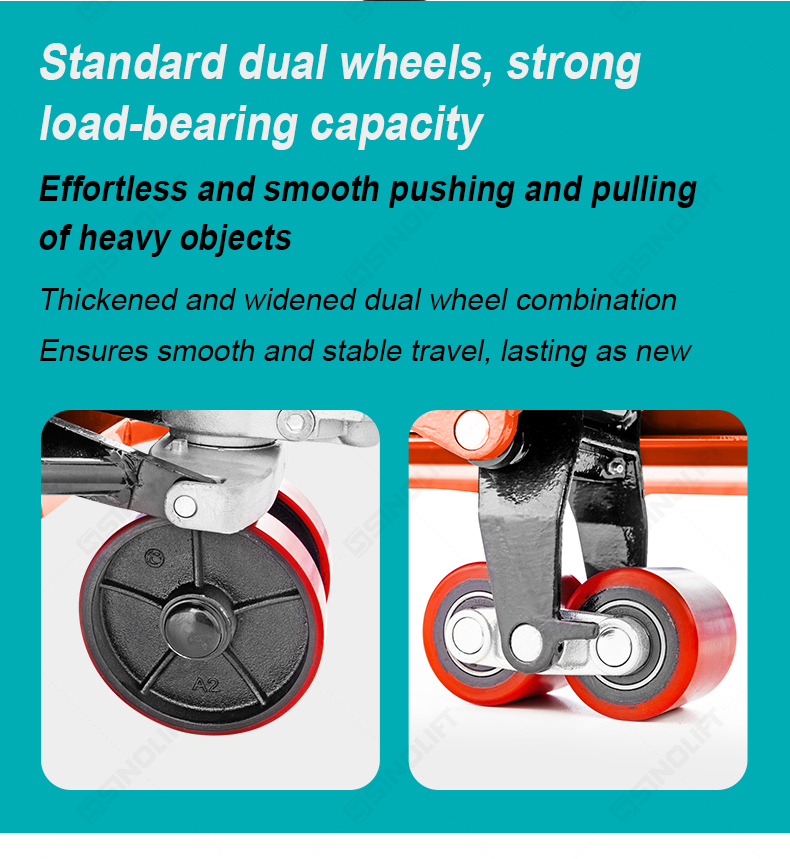

Load Front Wheel (Single)	mm	Φ78X100	Φ78X100	Φ78X100	Φ78X100
Load Front Wheel (Dual)	mm	Φ78X70	Φ78X70	Φ78X70	Φ78X70
Fork Overall Length	mm	800/900/1000/1100/1150/1220 - Max 1500	800/900/1000/1100/1150/1220 - Max 1500	800/900/1000/1100/1150/1220 - Max 1500	800/900/1000/1100/1150/1220 - Max 1500
Self Weight	kg	135	150	155	175
