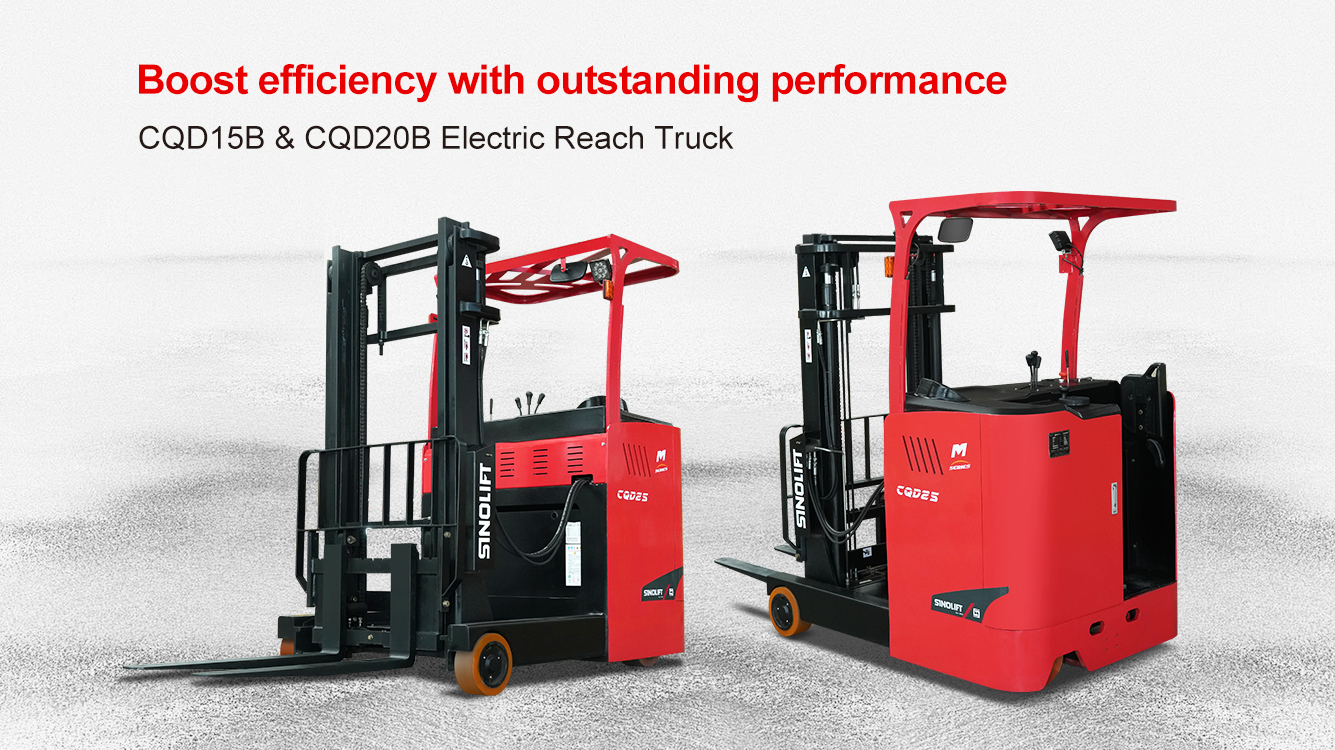

CQD15B and CQD20B Electric Reach Trucks: Elevating Warehouse Performance

The CQD15B and CQD20B Electric Reach Trucks from SINOLIFT’s acclaimed CQD series set a new standard for industrial material handling, combining exceptional lift height, maneuverability, and energy efficiency. Designed for high-performance operations in challenging warehouse environments, these battery-powered reach trucks offer lifting capacities of 1.5 tons (CQD15B) and 2.0 tons (CQD20B). With advanced technology, ergonomic design, and robust safety features, the CQD15B and CQD20B deliver precision and reliability, making them indispensable for modern logistics. Explore their standout features, applications, and why they redefine efficiency in the CQD series.

Advanced Design for Maximum Reach and Stability

The CQD15B and CQD20B are engineered for superior reach, with maximum lift heights of up to 10 meters (CQD15B) and 11 meters (CQD20B), ideal for high-rack storage. Their movable mast design allows precise load handling in narrow aisles, while stable legs eliminate the need for counterweights, optimizing balance and reducing energy consumption. Constructed with high-strength alloy steel, the mast offers 20% greater rigidity than standard models, ensuring durability under heavy loads. A four-point support system and wear-resistant support arm rollers enhance stability, enabling safe and efficient operation in demanding conditions.

Intelligent Technology for Precision and Safety

Equipped with SINOLIFT’s intelligent control system, the CQD15B and CQD20B prioritize safety and performance. The system dynamically adjusts speed based on steering angle and operator input, ensuring smooth navigation during tight turns. Electronic 360° steering provides exceptional maneuverability, with a turning radius as low as 1.6 meters (CQD15B) and 1.7 meters (CQD20B). A tilting cab mechanism, exclusive to select models, enhances operator visibility for high lifts, while an optional camera with an LCD screen offers real-time load monitoring. With top travel speeds of 9 km/h, these trucks boost productivity in fast-paced environments.

Energy-Efficient and Low-Maintenance Power

The CQD15B and CQD20B feature maintenance-free sealed batteries with capacities of 48V/400Ah (CQD15B) and 48V/450Ah (CQD20B), delivering up to 7 hours of continuous operation per charge. An automatic cut-off prevents deep discharge, extending battery life, while lateral battery removal allows swaps in under 8 minutes. The energy-efficient design eliminates liquid refills, reducing operational costs and environmental impact. Accessible service ports simplify routine maintenance, ensuring minimal downtime and uninterrupted workflows.

Ergonomic Design for Operator Comfort

Operator comfort is at the core of the CQD15B and CQD20B’s design. The spacious cabin features adjustable seating, an open overhead guard for enhanced visibility, and intuitive controls. Stepless speed control enables seamless adjustments to match workload demands, reducing operator fatigue during long shifts. The ergonomic layout, combined with a tilting cab option, provides a comfortable viewing position for high lifts, improving precision and efficiency. Protective covers on support arm rollers ensure smooth movement and durability, enhancing the overall operator experience.

Robust Safety Features

Safety is paramount in the CQD15B and CQD20B’s design. An emergency reverse button moves the truck away from the operator in critical situations, while an emergency stop button activates electromagnetic brakes for immediate halting. Load-stabilizing casters prevent tipping, and a built-in horn provides audible alerts in busy environments. High-quality components—sensors, controllers, and hydraulic units—are sourced from trusted suppliers, ensuring consistent performance in harsh conditions. Optional cameras and LCD screens further enhance safety by providing clear visibility during high lifts.

Real-World Applications: Versatility and Efficiency

1.The CQD15B and CQD20B excel in a variety of industrial settings, delivering tailored solutions for diverse needs:

2.High-Density Warehouses: With lift heights up to 11 meters and a compact turning radius, these trucks maximize vertical storage, increasing capacity by 15% in tight spaces. They handle up to 40 pallets per hour in high-throughput environments.

3.Manufacturing Plants: The tilting cab and stable legs ensure safe handling of heavy components, such as machinery parts, reducing accident risks by 25% in high-traffic areas.

4.Double-Deep Storage: Equipped with extended forks, the CQD20B is ideal for double-deep racking, optimizing storage for warehouses with multiple loads per bay, boosting efficiency by 20%.

These applications underscore the CQD15B and CQD20B’s adaptability, making them versatile assets for businesses seeking streamlined operations.

• Standout Features of the CQD15B and CQD20B Electric Reach Trucks
• High Lift Capability: Up to 10m (CQD15B) and 11m (CQD20B) for high-rack storage.
• Movable Mast Design: Enables precise handling in narrow aisles.
• Stable Leg Design: Eliminates counterweights for enhanced balance.
• Intelligent Control System: Adjusts speed for safe, efficient navigation.
• Maintenance-Free Battery: 48V/400Ah (CQD15B) and 48V/450Ah (CQD20B) with 7-hour runtime.
• Ergonomic Cabin: Tilting cab option, adjustable seating, and open overhead guard.
• Comprehensive Safety Suite: Emergency reverse, stop button, horn, and stabilizing casters.
• Reliable Components: High-quality sensors and hydraulics for consistent performance.

Why Choose the CQD15B and CQD20B Electric Reach Trucks?

The CQD15B and CQD20B Electric Reach Trucks combine SINOLIFT’s legacy of innovation with cutting-edge technology, delivering unmatched efficiency, safety, and operator comfort. Their energy-saving design, high maneuverability, and robust safety features make them ideal for warehouses, manufacturing facilities, and double-deep storage systems. By minimizing maintenance and maximizing productivity, these trucks empower businesses to optimize their logistics operations.

Whether you’re navigating compact aisles or managing high-volume storage, the CQD15B and CQD20B provide the power and precision to elevate your operations. Visit SINOLIFT’s official website for detailed specifications, to request a demo, or to connect with our sales team for customized solutions.
