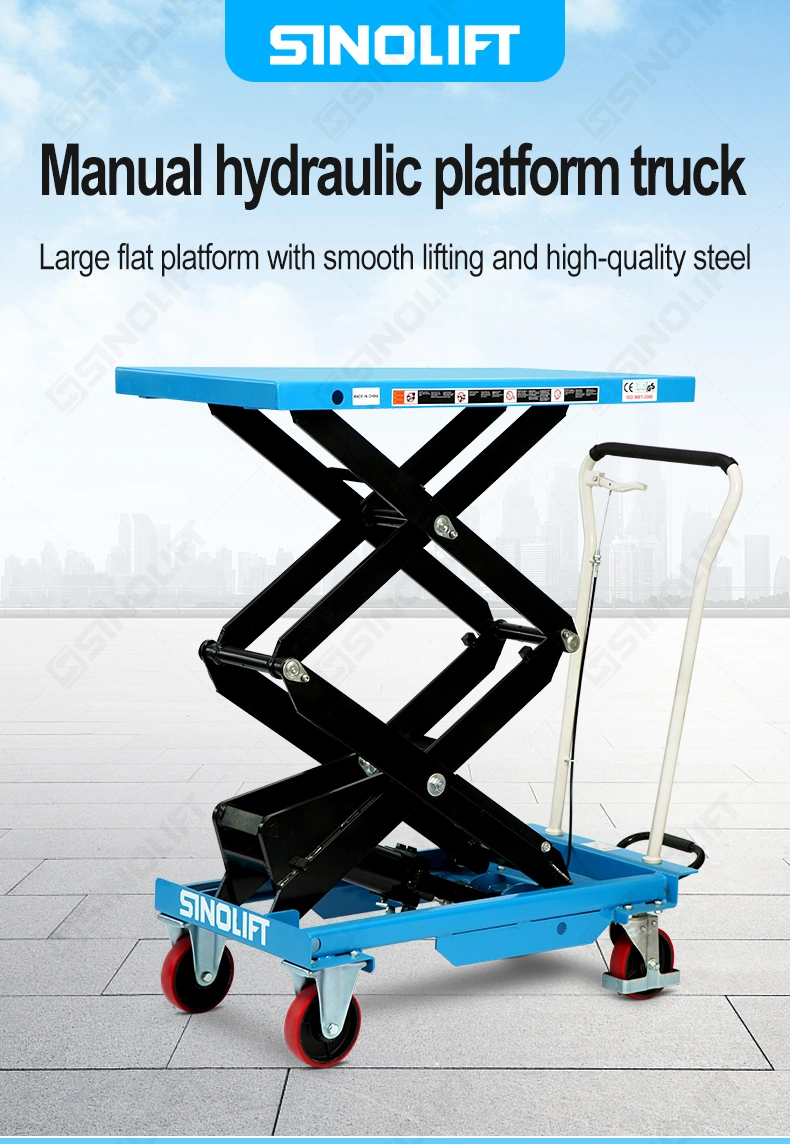

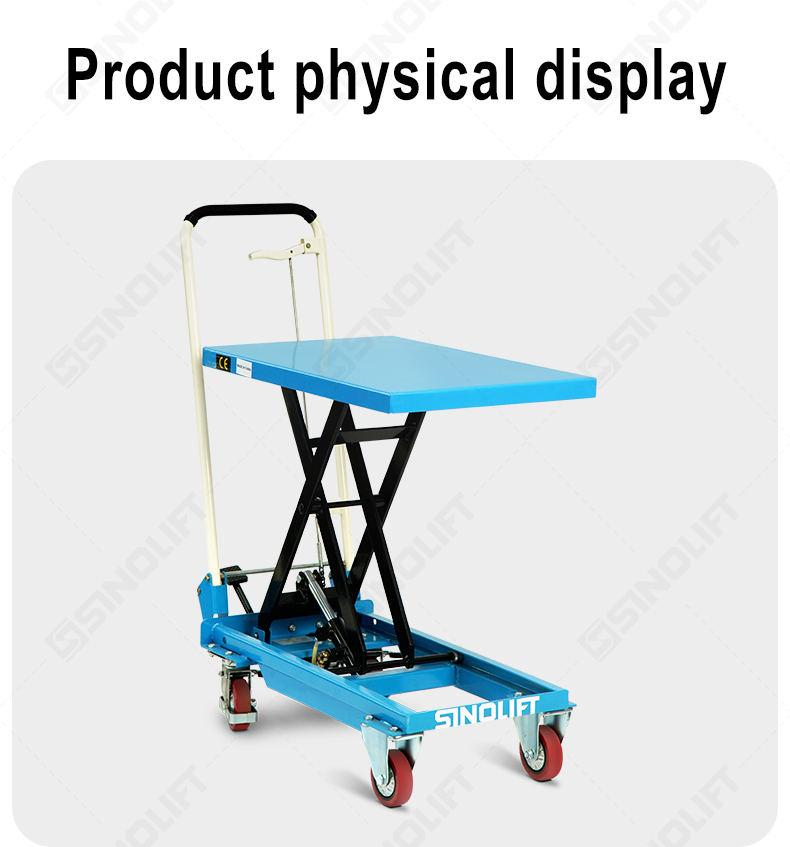

BS Series manual hydraulic platform truck
BS15 BS25 BS50 BS75 BS100

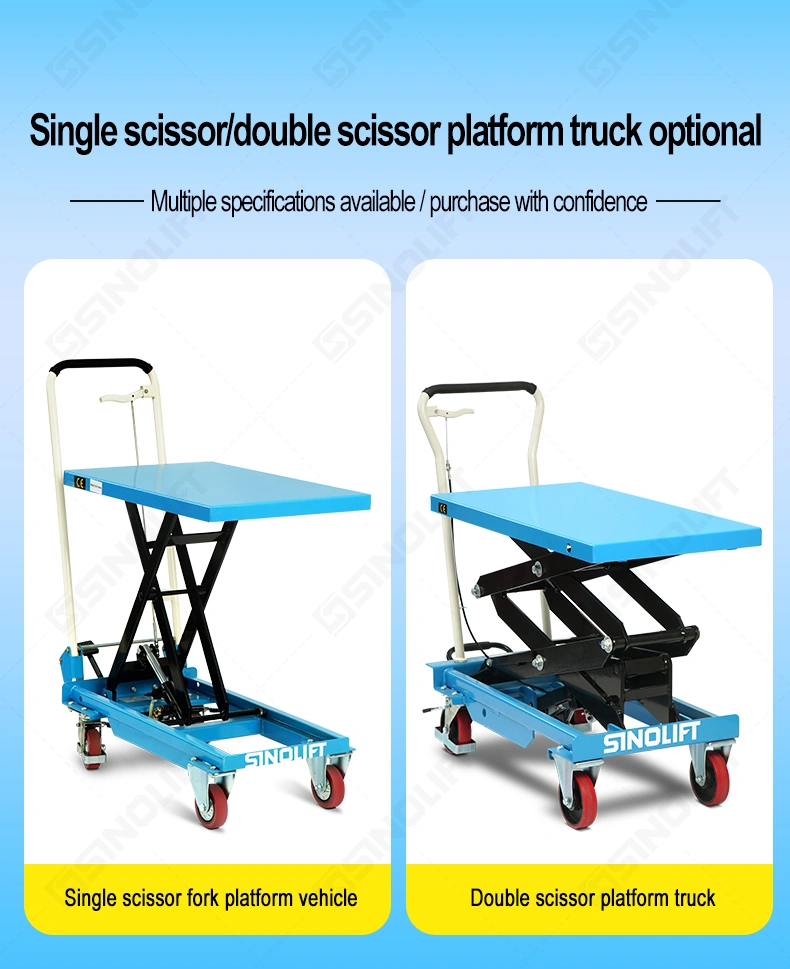

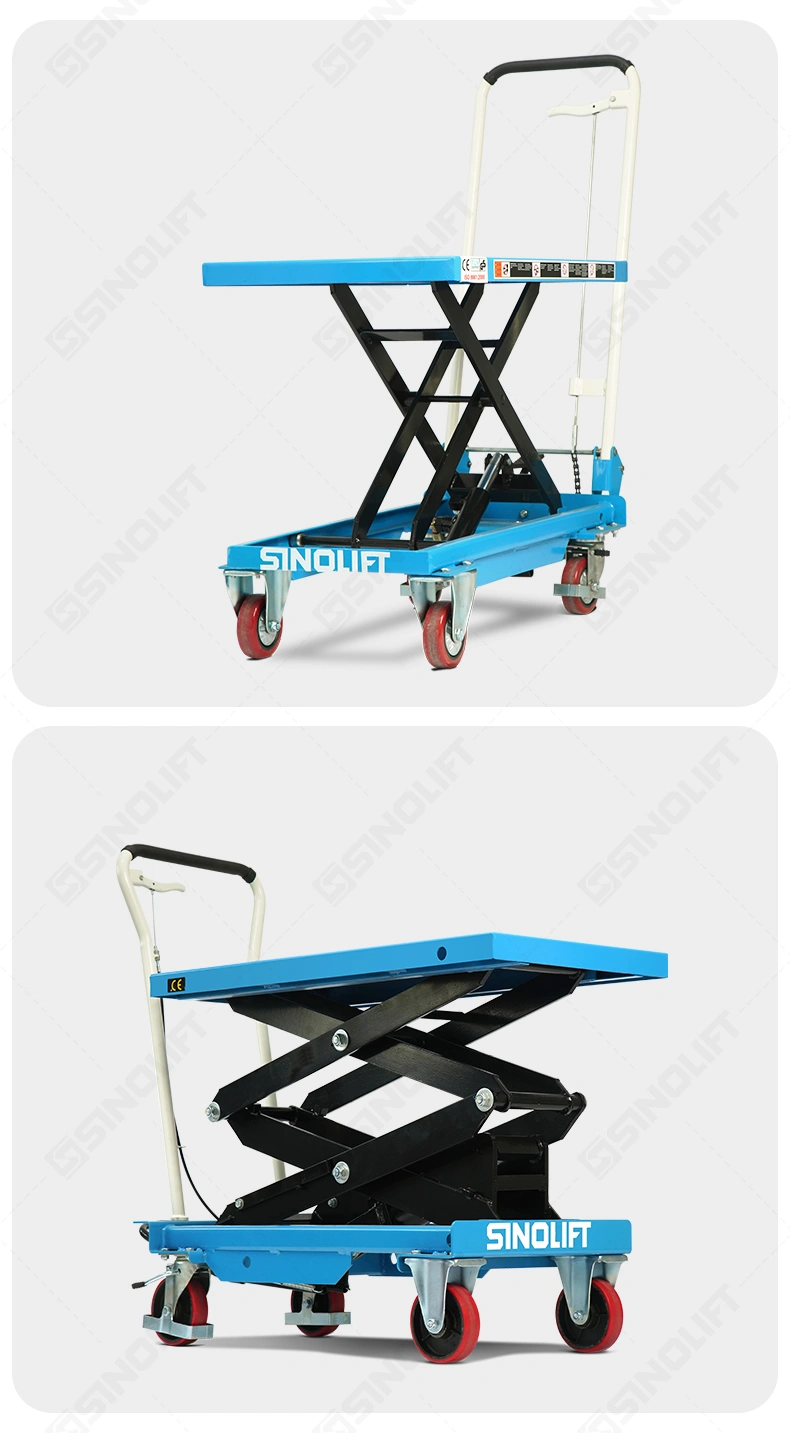

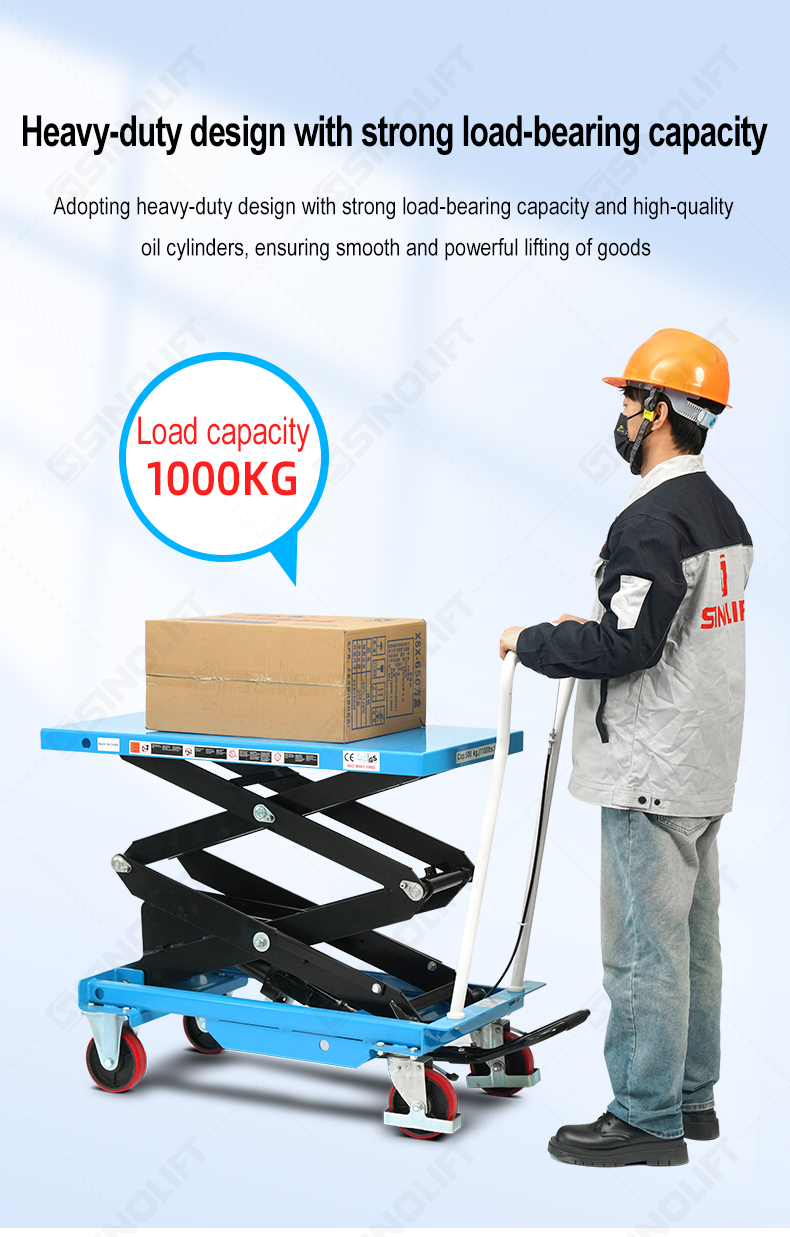

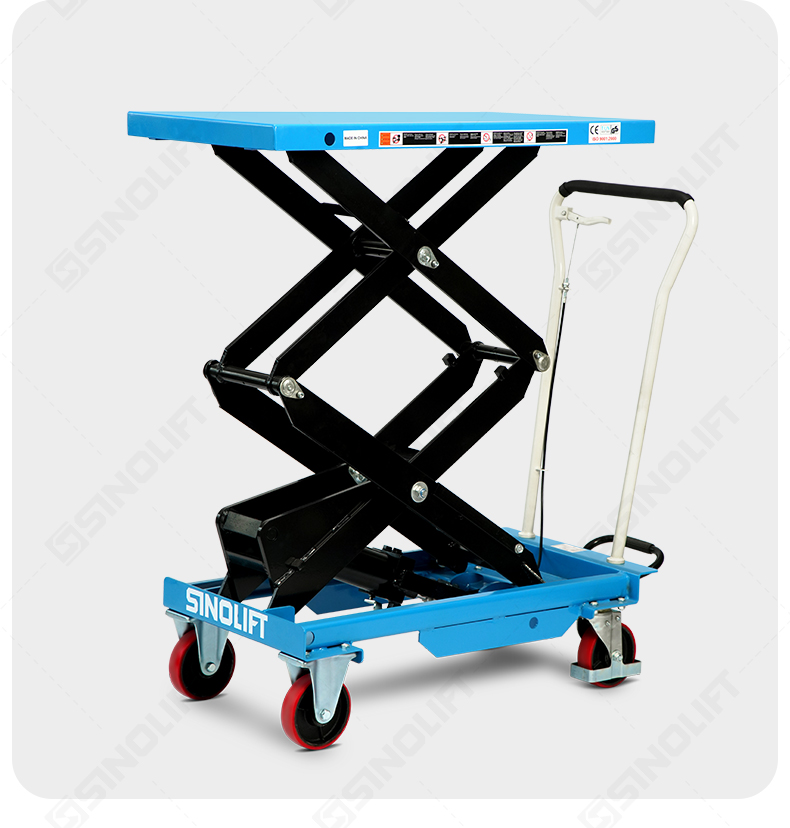

Single scissor/double scissor platform truck optional,adopting heavy-duty design with strong load-bearing capacity and high-quality oil cylinders, ensuring smooth and powerful lifting of goods,multiple specifications avaliable/purchase with confidence.
Quantity
Single scissor/double scissor platform truck optional,adopting heavy-duty design with strong load-bearing capacity and high-quality oil cylinders, ensuring smooth and powerful lifting of goods,multiple specifications avaliable/purchase with confidence.
- It’s suitable for maintenance workshops, production workshops,packaging line and other workshops

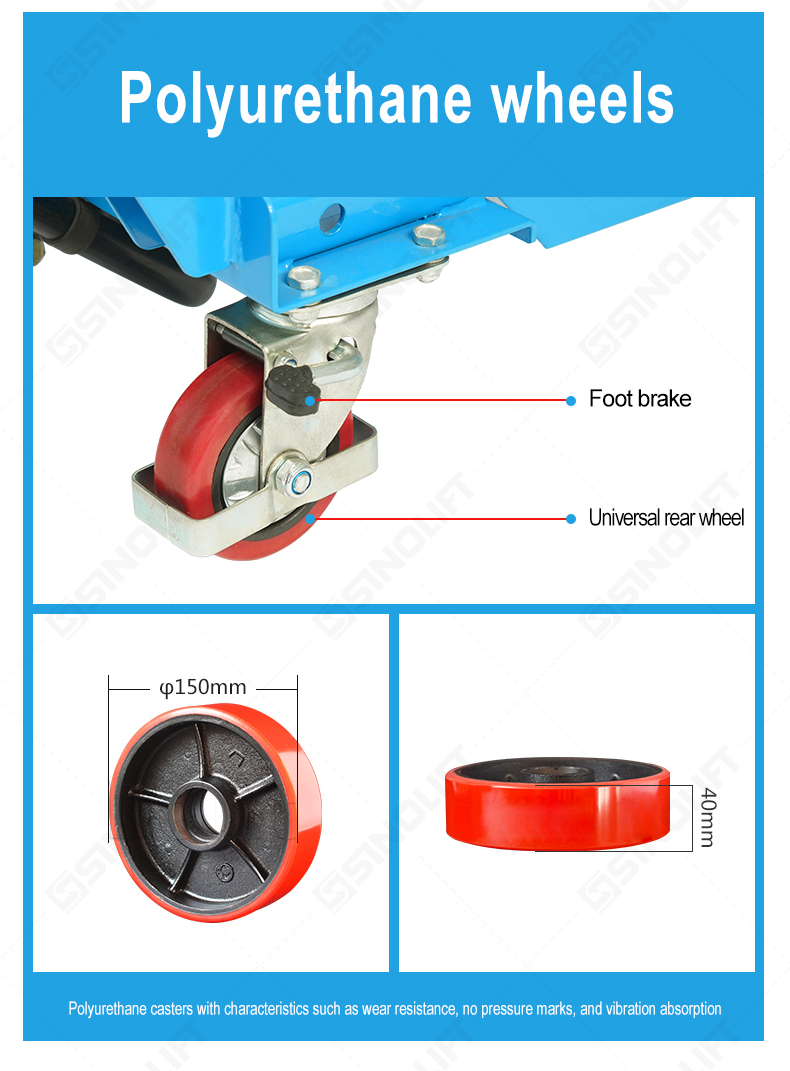

- It’s wheels come with protective frames to prevent or crush injury and it uses anti-clamping fork design to prevent clamping injury. It also has overload protection function which is safer;
- This product conforms to EN1757-2 and ANS/ASME;
Model | BS15 | BS25 | BS50 | BS75 | BS100 | BS15D | BS30D | BS50D | BS80D | |
Scissor fork | Single | Double | ||||||||
Capacity(kg) | 150 | 250 | 500 | 750 | 1000 | 150 | 300 | 500 | 800 | |
Min.height(mm) | 265 | 330 | 435 | 442 | 445 | 435 | 435 | 440 | 470 | |

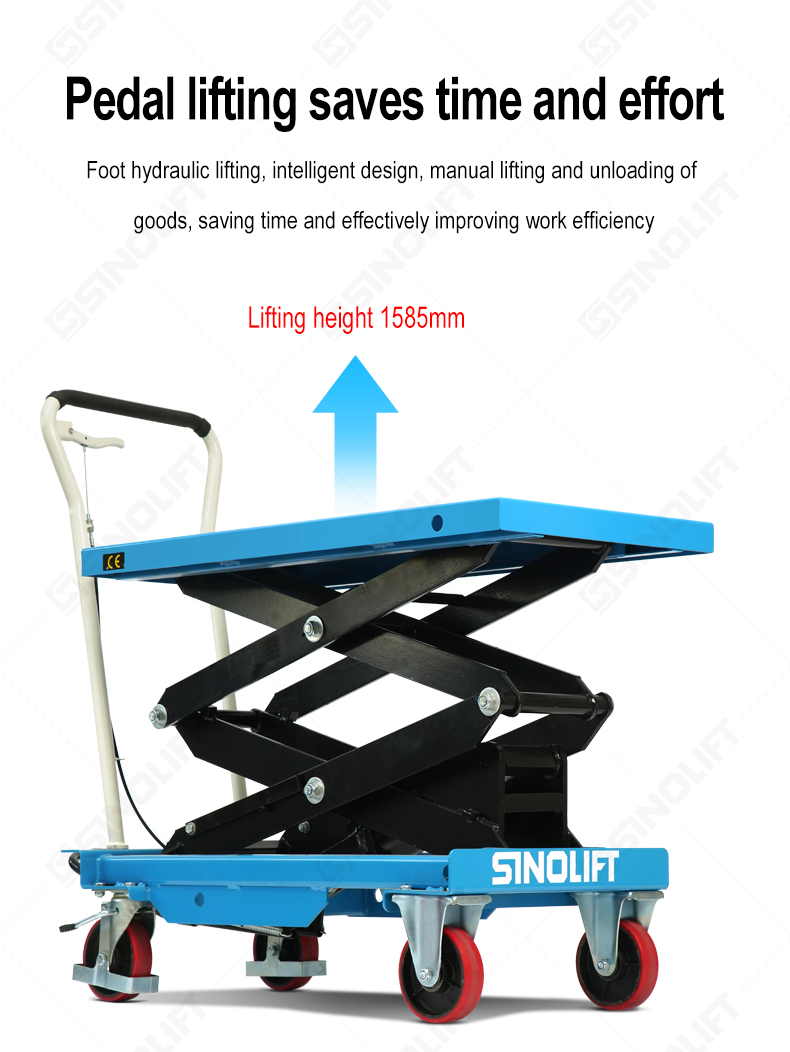

Max.height(mm) | 755 | 910 | 1000 | 1000 | 950 | 1430 | 1585 | 1575 | 1410 | |
Table Size(mm) | 700x450 | 830x500 | 1010x520 | 1010x520 | 1010x520 | 830x500 | 1010x520 | 1010x520 | 1010x520 | |
Net Weight(kg) | 41 | 78 | 112 | 112 | 130 | 90 | 137.5 | 156 | 160 | |
Diameter(mm) | 100 | 125 | 150 | 150 | 150 | 125 | 125 | 150 | 150 | |
