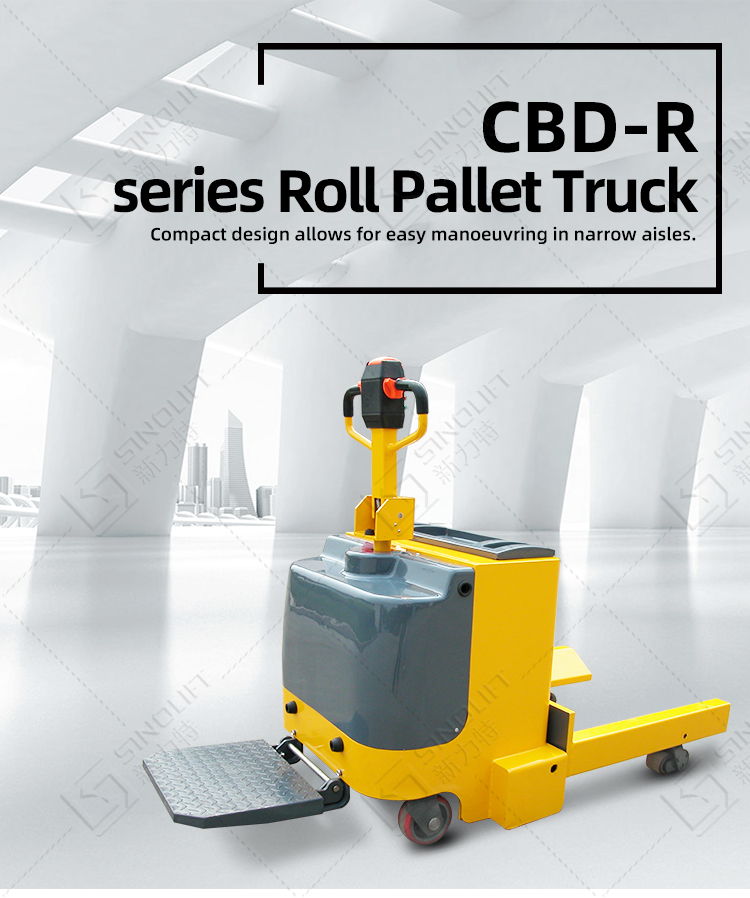

CBD-R series Roll Pallet Truck

CBD-R

Its Capacity 2000kg,Standard fork lengths 1000mm or 1150mm. Longer forks available on request

Quantity:

Contact Now

add to cart

Name:CBD-R series Roll Pallet Truck

Features of CBD-R series Roll Pallet Truck:

- Roll Pallet Truck,capacity 2000kg
- Standard fork lengths 1000mm or 1150mm. Longer forks available on request
- Roll Pallet Truck compact design allows for easy manoeuvring in narrow aisles
- External + Internal battery options

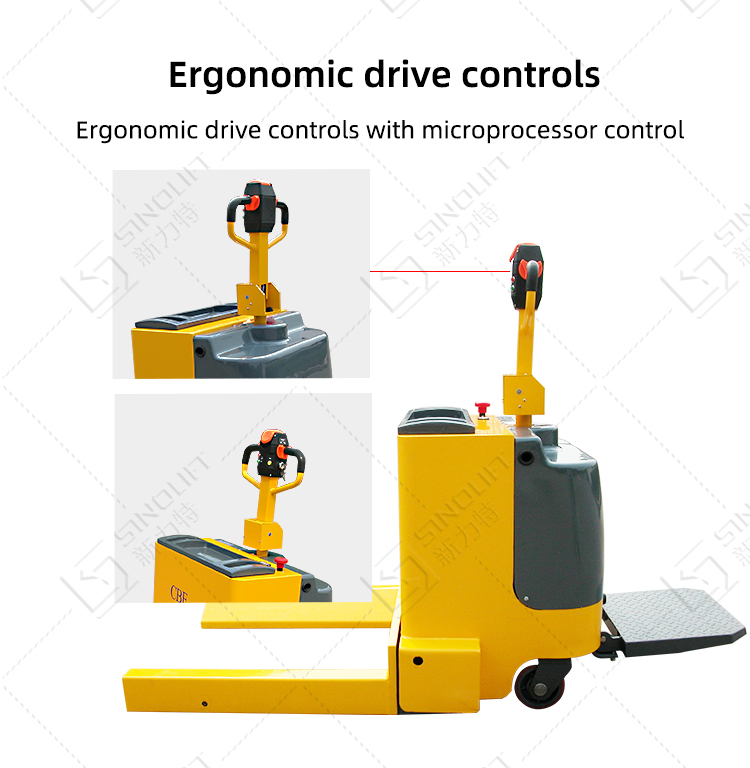

- Ergonomic drive controls with microprocessor control

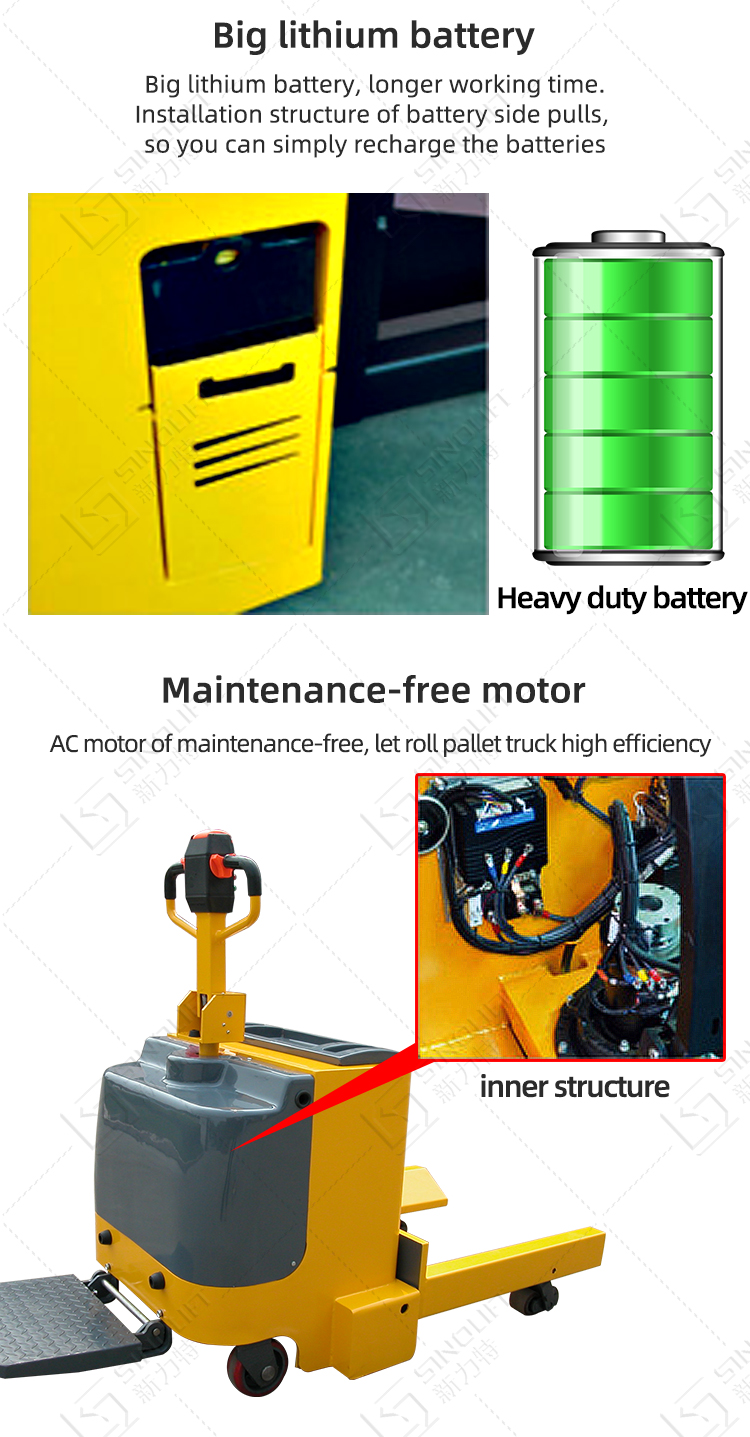

- Heavy duty battery
- Smooth stepless drive controls
- Roll Pallet Trucks carry CE mark and comply with all current safety legislation
- Various widths of angled forks available to suit size of reels to be transported
- Comprehensive warranty and superb after sales service provided

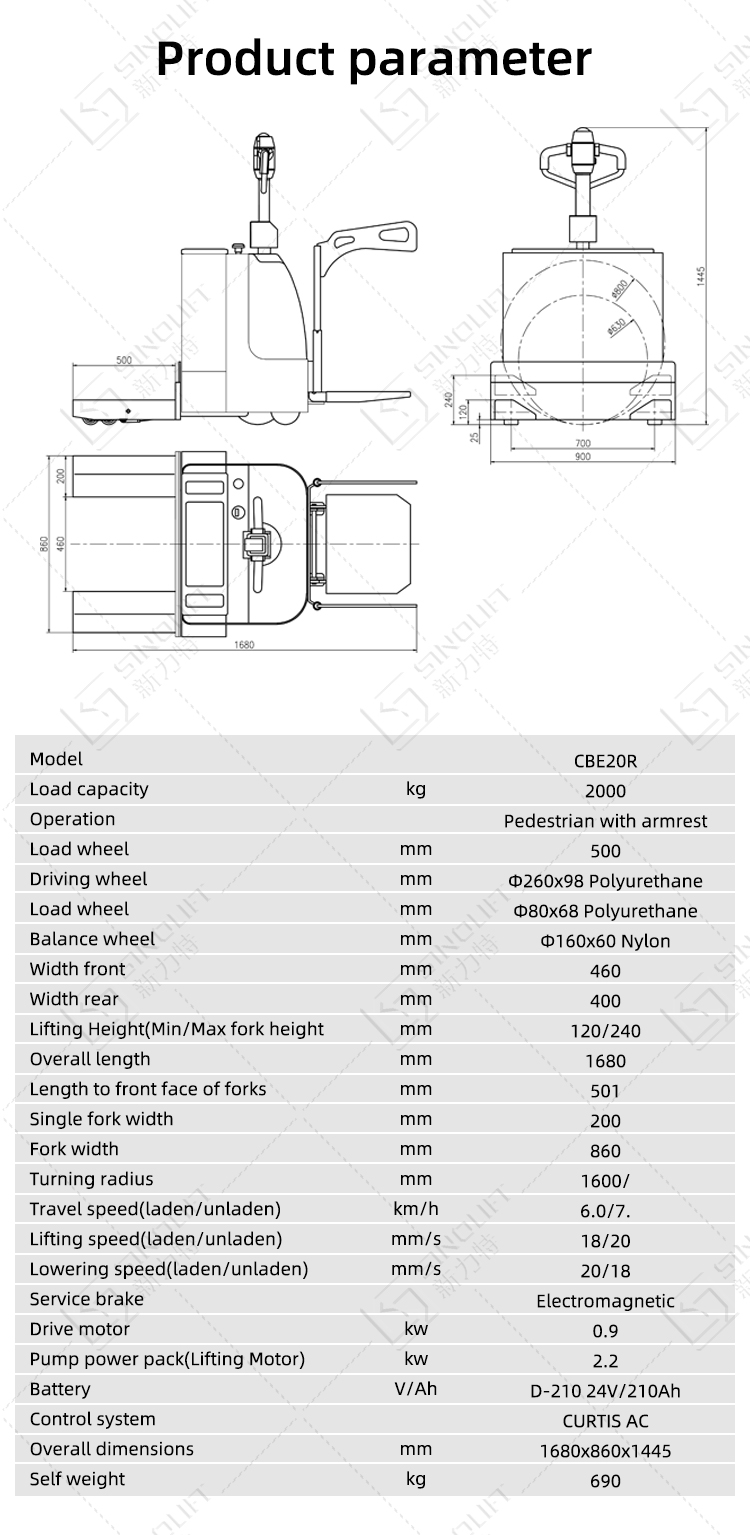

Model		Roll Pallet Truck CBD20R
Load capactiy *	kg	2000
Operation		Pedestrian with armrest
Load center	mm	500
Driving wheel	mm	φ260*98 Polyurethane
Load wheel	mm	φ80*68 Polurethane

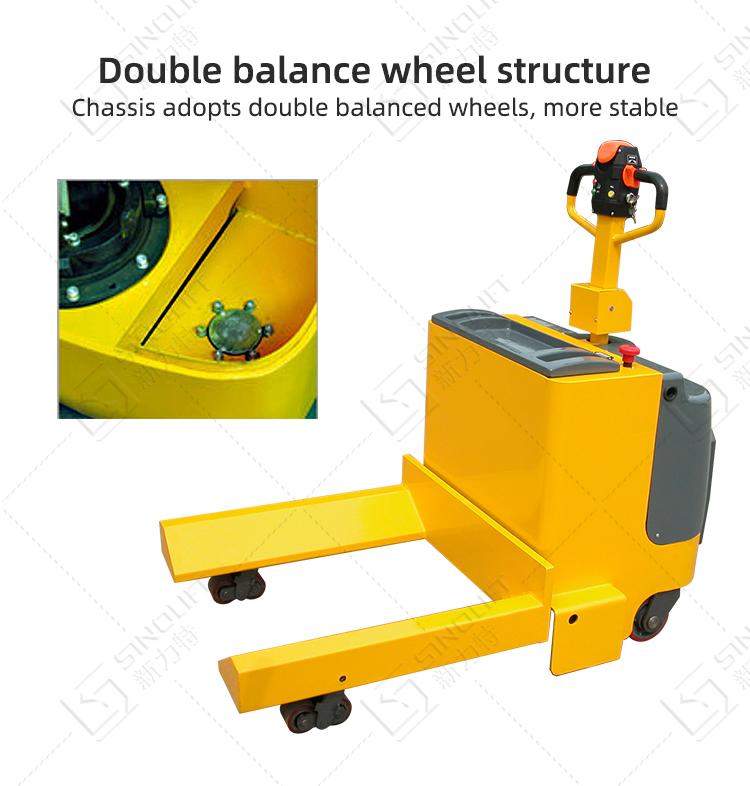

Balance wheel	mm	φ160*60 Nylon
Width front	mm	460
Width rear	mm	400
Lifting Height (Min/Max fork height)	mm	120/240
Overall length	mm	1680
Length to front face of forks	mm	501
Single fork width	mm	200
Fork width	mm	860
Turning radius	mm	1600
Travel speed (laden/unladen)	km/h	6.0/7.0
Lifting speed (laden/unladen)	mm/s	18/20
Lowering speed (laden/unladen)	mm/s	20/18
Service brake		Electromagnetic
Drive motor	kw	0.9
Pump power pack (Lifting Motor)	kw	2.2
Battery	V/Ah	D-210 24V/210Ah
Control system		CURTIS AC
Overall dimensions	mm	16808601445
Self weight	kg	690
