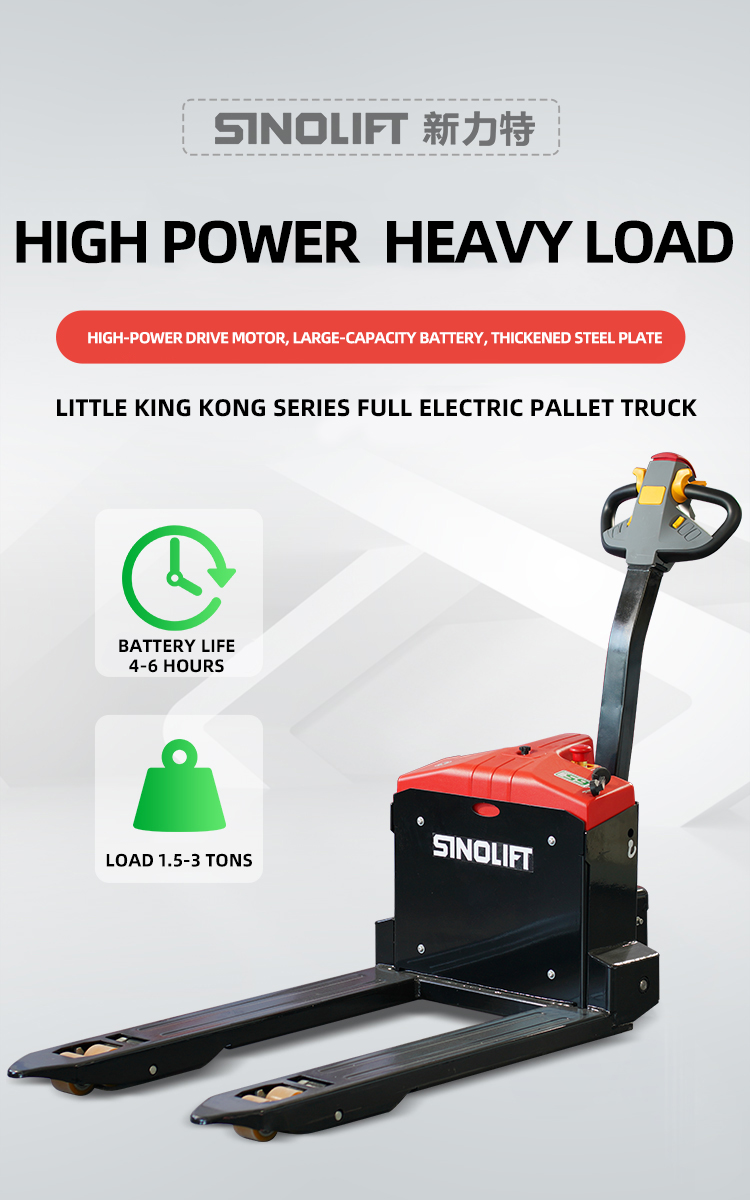

EPT20-15ET Series Electric Pallet Jack

EPT20-15ET; EPT20-20ET; EPT20-30ET

This Electric pallet truck is a material handling equipment operated by hydraulic and DC motor used to lift, drop, move, load, and unload pallets.

Quantity:

Contact Now

add to cart

Features ofElectric Pallet Jack:

1.Lift and lower pallet loads quickly and easily with a push of a button.It is capable of moving heavy weights more than 1 to 2 tons.

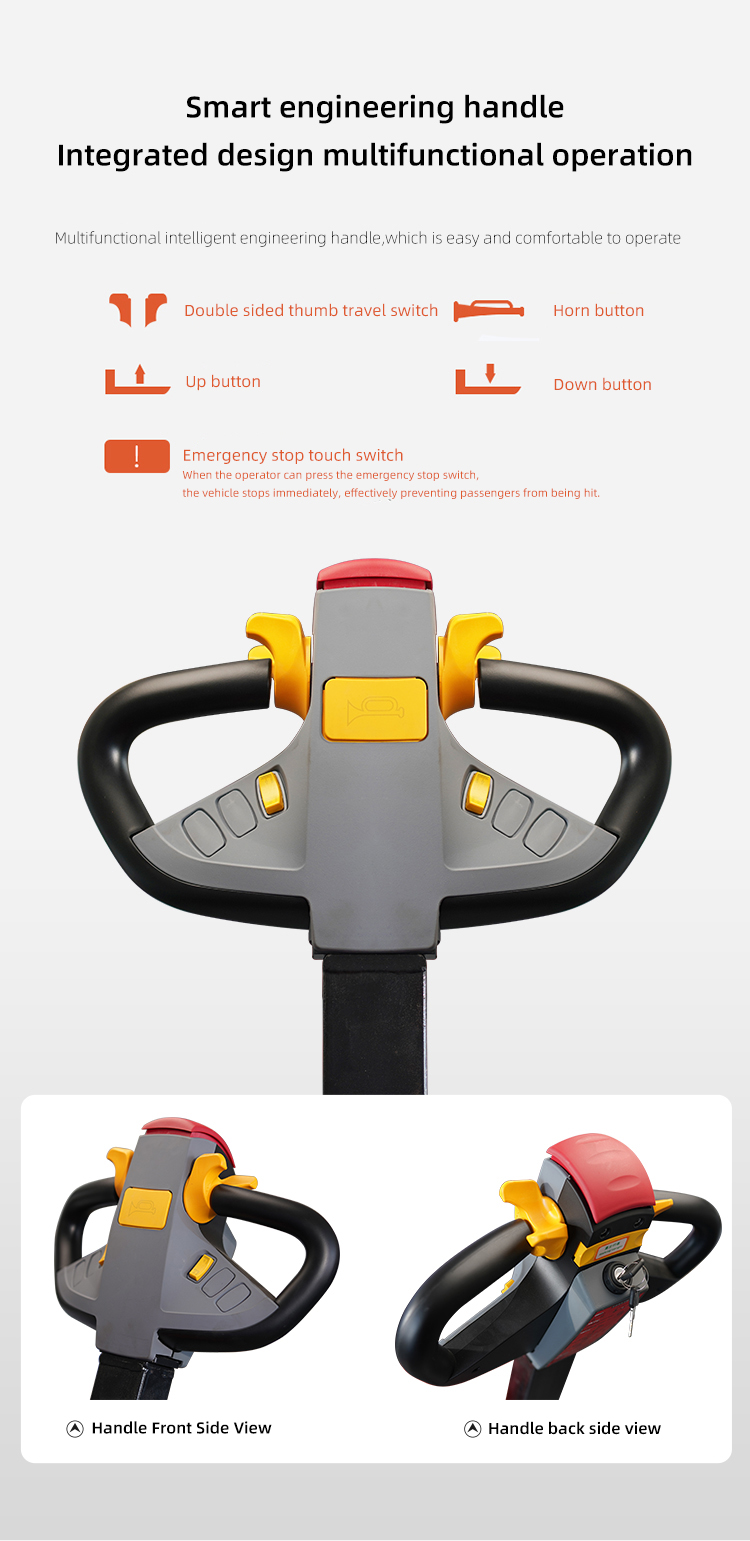

2.Ergonomic handle features dual butterfly thumb controls with infinite forward and reverse speeds, lift/lower controls, safety belly reverse button, and horn.

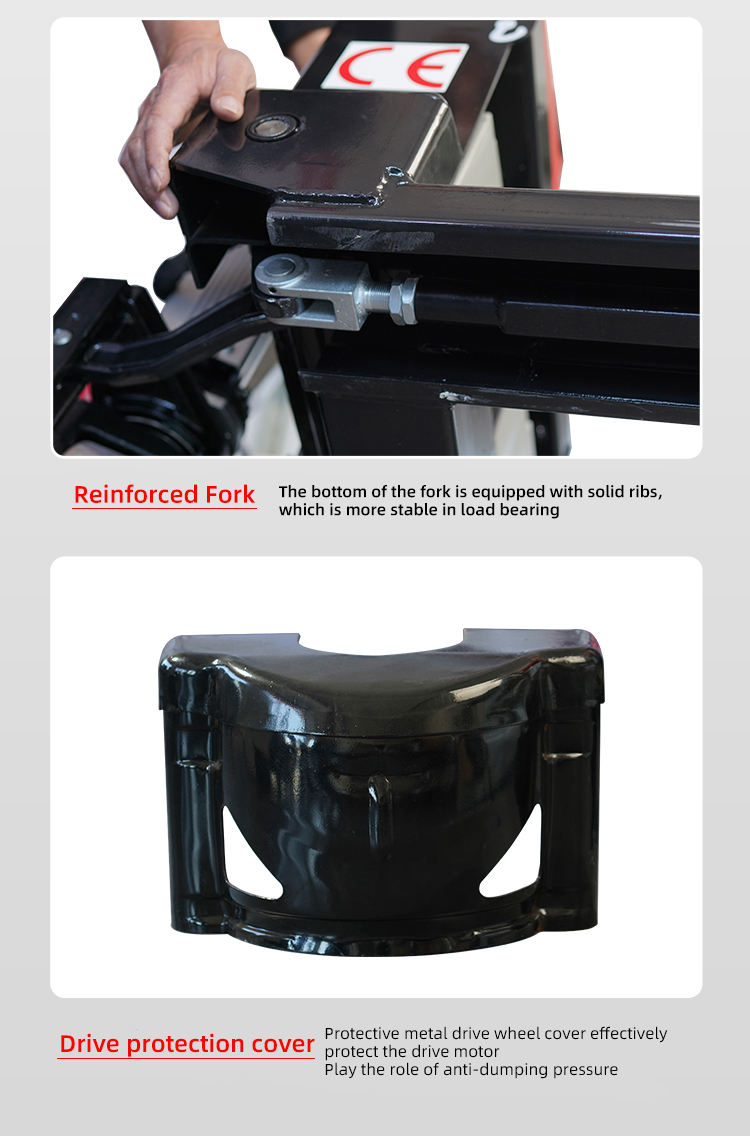

3.This Electric Pallet Jack is equipped with reinforced 150mm or 6”welded forks
4.The Electric Pallet Jack offers 4.8 hours service per charge.

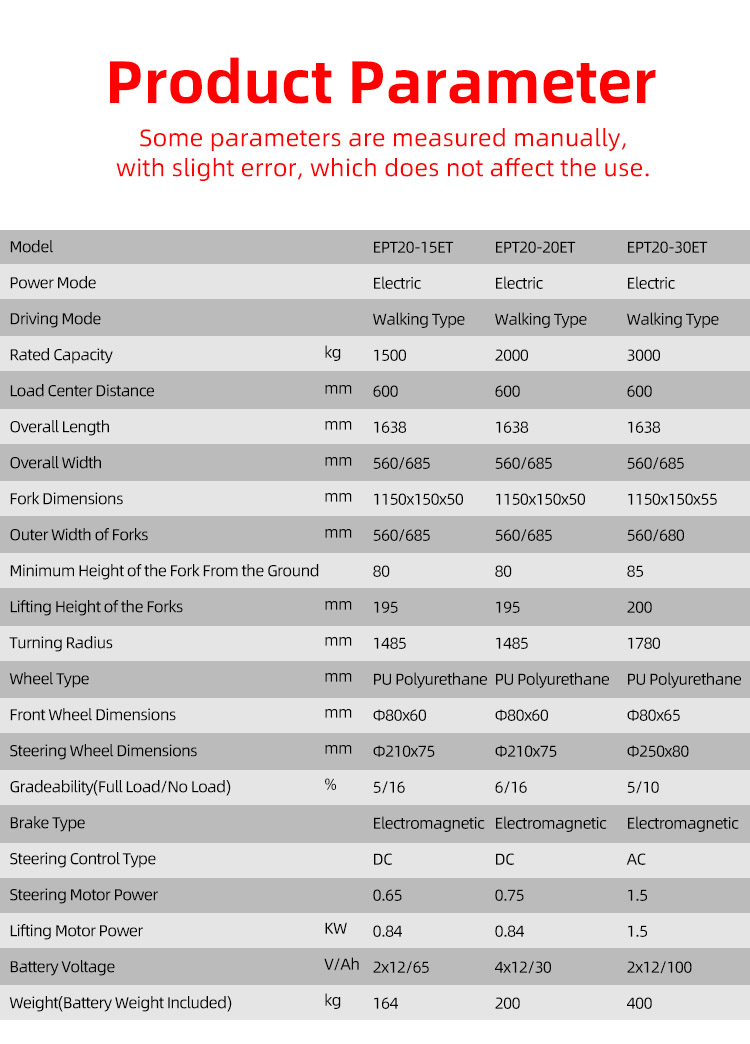

Specifications of Electric Pallet Jack:

Brand	Sinolift
Model		Electric Pallet Jack EPT20-15ET	Electric Pallet Jack EPT20-20ET	Electric Pallet Jack EPT20-30ET
Power Mode		Electric	Electric	Electric
Driving Mode		Walking Type	Walking Type	Walking Type
Rated Load	kg	1500	2000	3000
Load Center Distance	mm	600	600	600
Truck Length	mm	1638	1638	1638
Truck Width	mm	560/685	560/685	560/685
Fork Size	mm	115015050	115015050	115016055
Fork Outer Width	mm	560/685	560/685	560/680
Minimum Height of The Fork from The Ground	mm	80	80	85
Fork Lift Height	mm	195	195	200
Turning Radius	mm	1485	1485	1780
Wheel Type		PU Polyurethane	PU Polyurethane	PU Polyurethane
Front Wheel Size	mm	ф80*60	Ф80*60	Ф85*65
Drive Wheel Size	mm	ф210*75	ф210*75	ф250*80

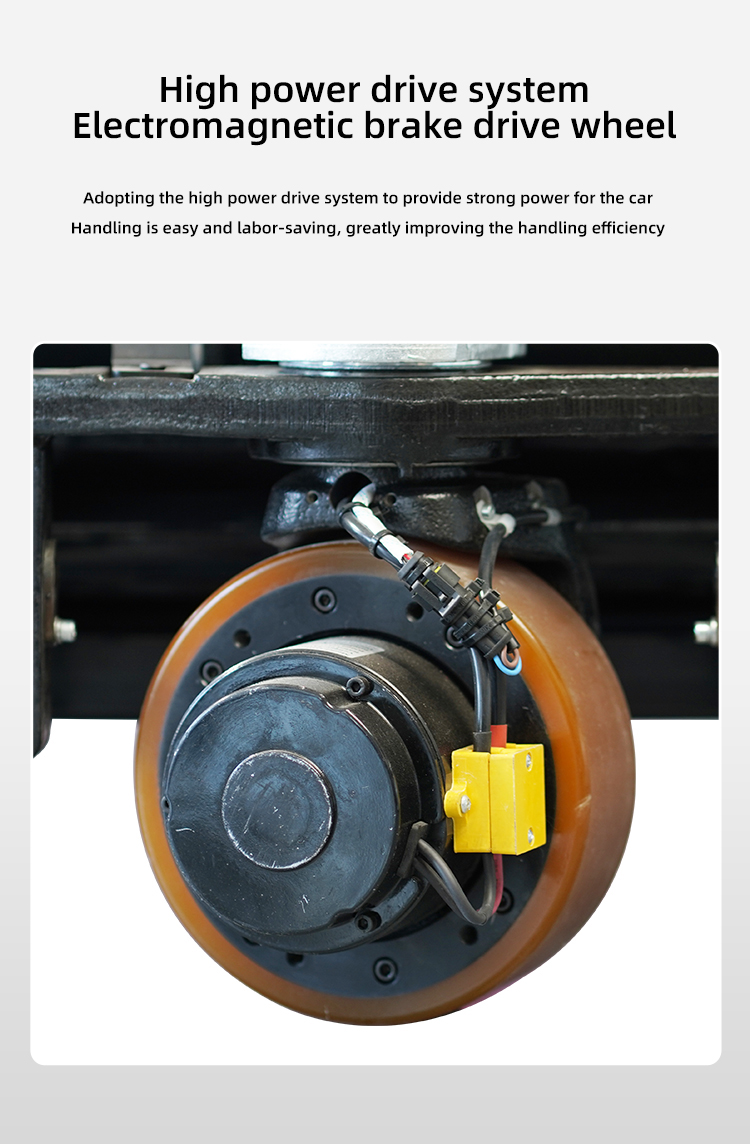

Brake Type		Electromagnetic	Electromagnetic	Electromagnetic
Drive Control Type		DC	DC	AC
Drive Motor Power	KW	0.65	0.75	1.5
Lifting Motor Power	KW	0.84	0.84	1.5

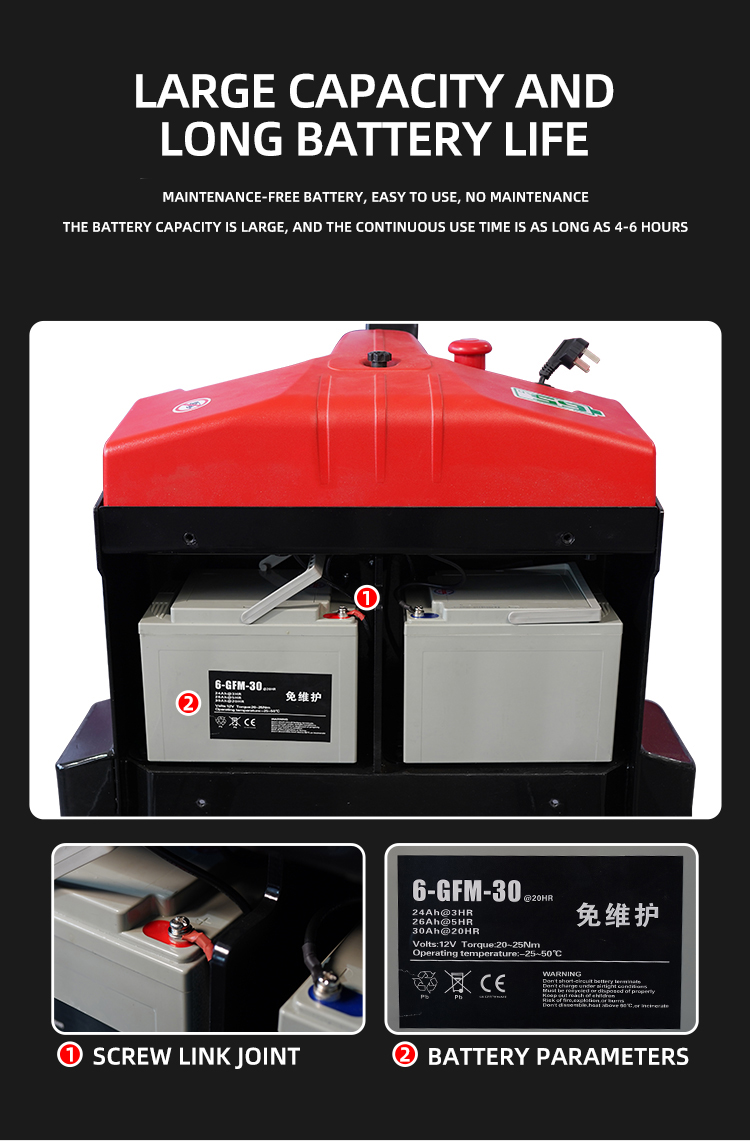

Battery Voltage	V/Ah	2X12/65	4X12/30	2X12/100
Weight (including battery)	kg	164	200	400
