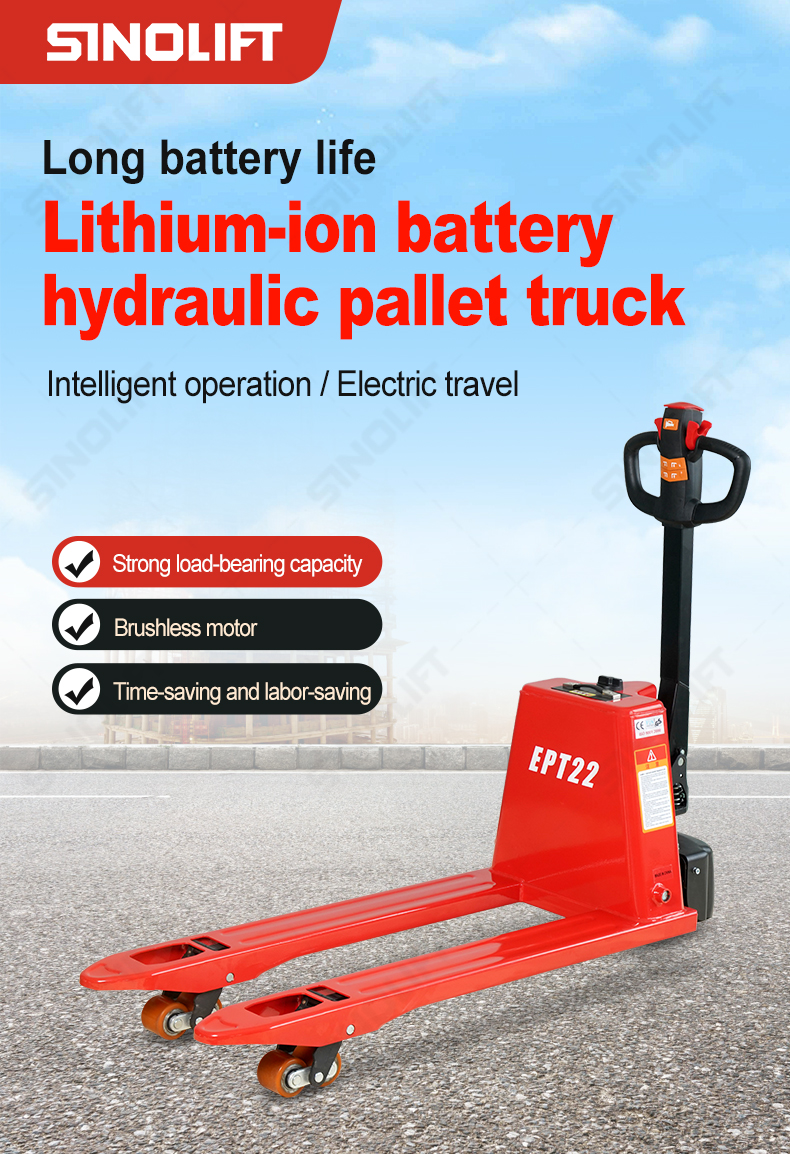

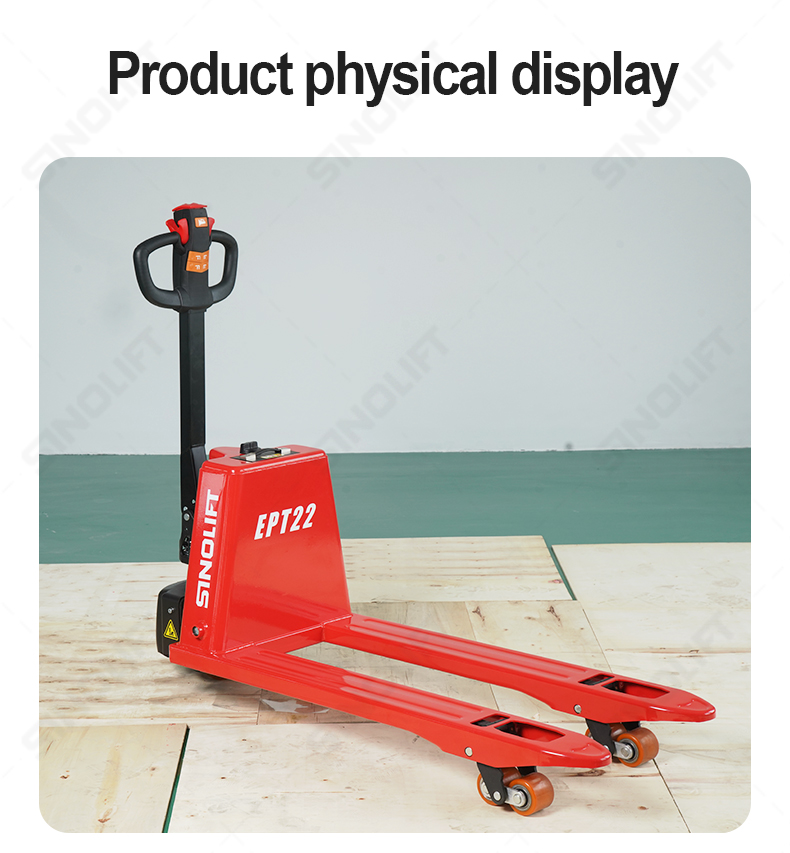

EPT22 Lithium-ion batteryhydraulic pallet truck
EPT22
Serves as the centerpiece and drive of the EPT22, providing exceptional performance.The intelligent charging system prevents overcharging, increasing battery lifespan and preventing overheating during charging.
Quantity:
Product Name:EPT22 Lithium-ion batteryhydraulic pallet truck
Features of EPT22 Lithium-ion batteryhydraulic pallet truck:

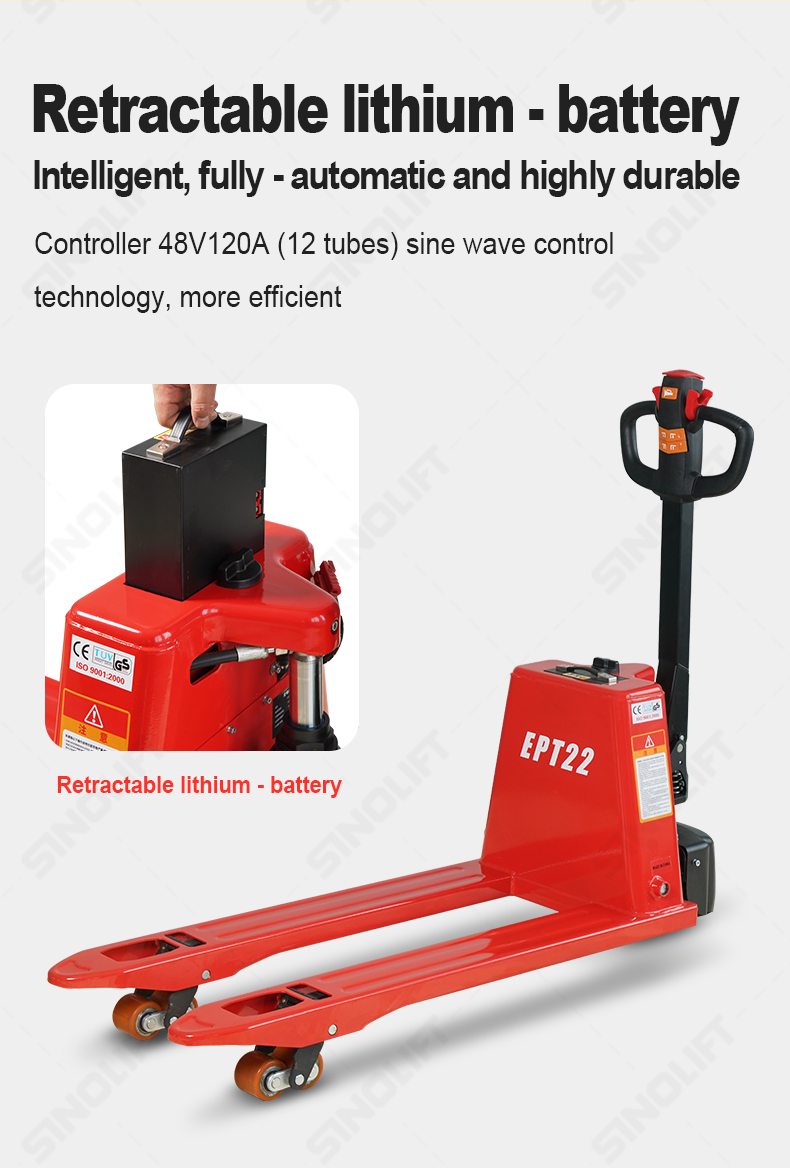

Powerful 48V Lithium-Ion Battery:
- Serves as the centerpiece and drive of the EPT22, providing exceptional performance.

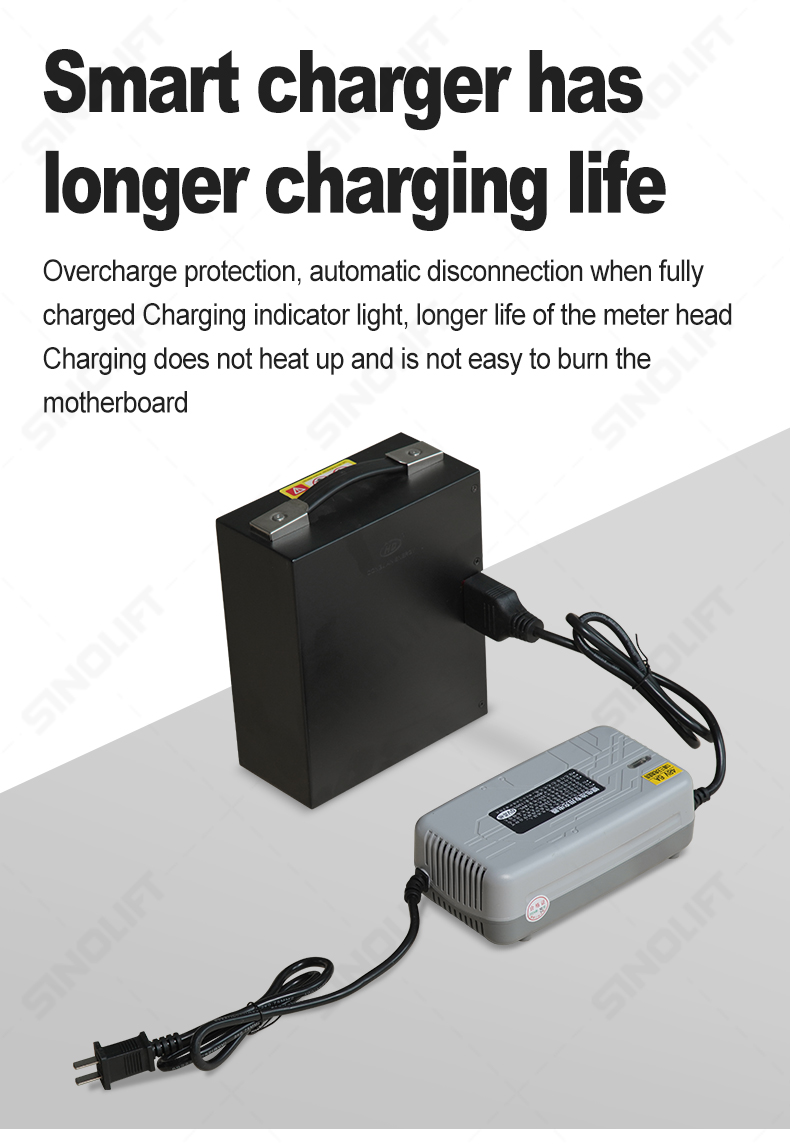

- The intelligent charging system prevents overcharging, increasing battery lifespan and preventing overheating during charging.
- Battery charge level can be easily monitored on the device's housing, ensuring you know when to recharge.
Battery Life:
- The battery supports 3-5 hours of uninterrupted use.
- After use, the pallet truck can be hung on the charging station, and it will be fully operational again in 2.5 hours, allowing for continued efficient transportation of goods.
EPT22 Plus Features:
- Combines material handling and weighing intelligently, enhancing work efficiency and reducing operator labor intensity.

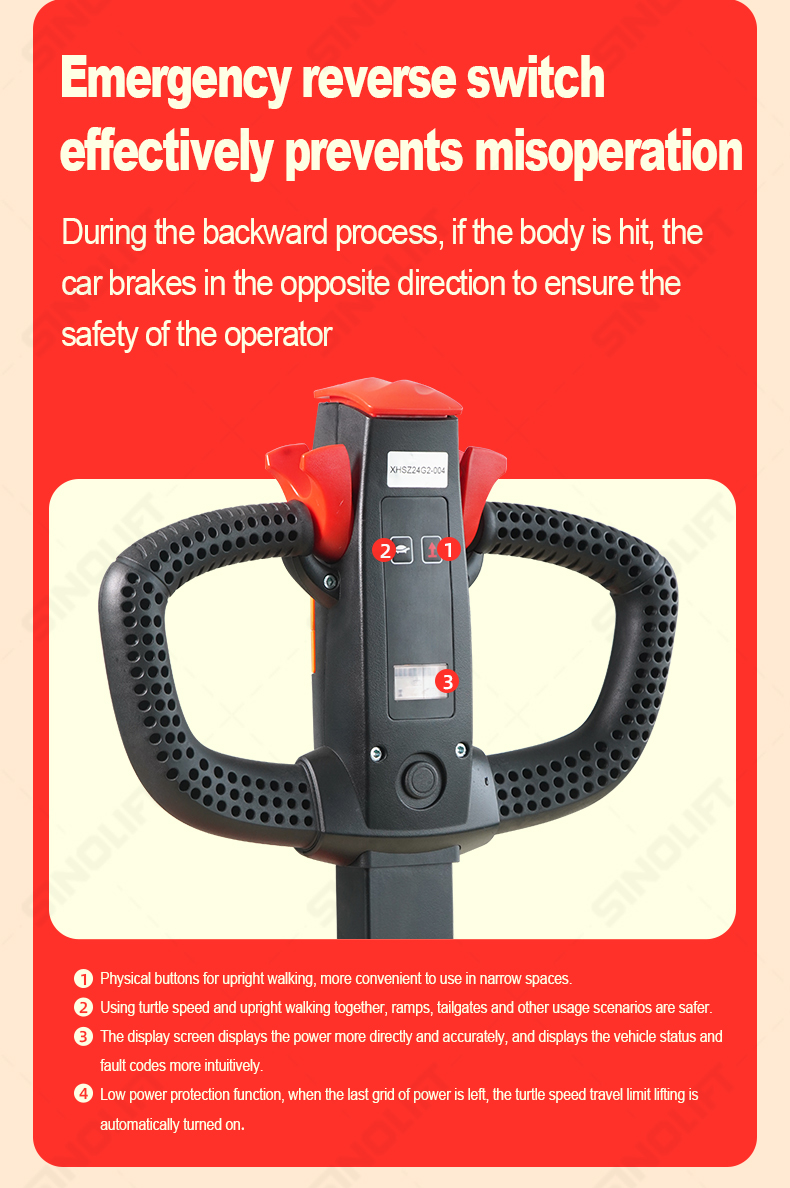

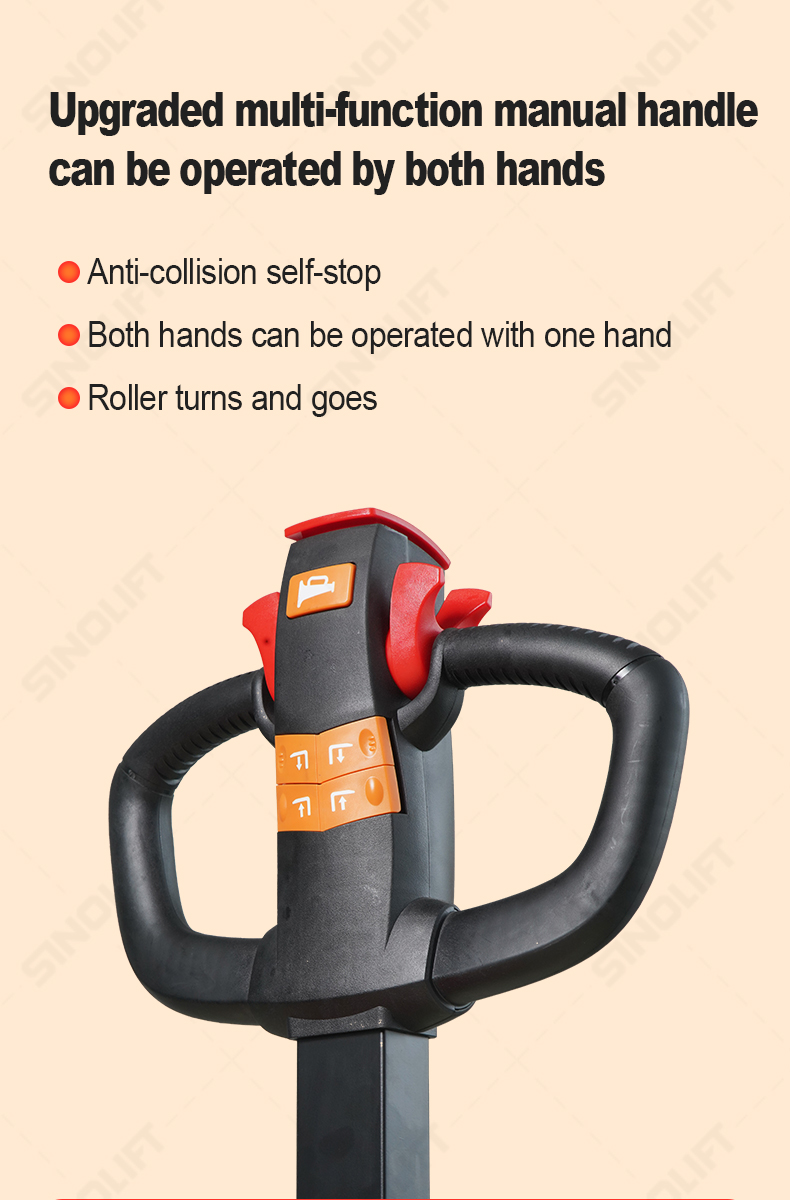

- Features include speed reduction when turning, electromagnetic lock, driving with the handle in a vertical position, fast charging, easy battery replacement, and a high-precision weighing display with an optional printer.
Parametersof EPT22 Lithium-ion batteryhydraulic pallet truck:
| Dentification | 1.1 | Manufacturer | SINOLIFT | ||
| 1.2 | Model | EPT22 PLUS | |||
| 1.4 | Power Type | Lithium Battery | |||
| 1.5 | Type of Operation | Pedestrian | |||
| 1.6 | Load capacity/Rated load | q | kg | 2000 | |
| 1.7 | Load Center Distance | c | mm | 600 | |
| 1.8 | Alex Centre to Fork Face | x | mm | 820 (890) | |
| 1.9 | Wheelbase | y | mm | 1193 | |
| Weight | 2.1 | Total Weight (with battery) | kg | 146 (152) | |
| 2.2 | Axle Load(laden):Drive Side/Load-bearing Side | kg | // | ||
| 2.3 | Axle Load(unladen):Drive Side/Load-bearing Side | kg | // | ||
| Tyre and Chassis | 3.1 | Tyre Type | Polyurethane | ||

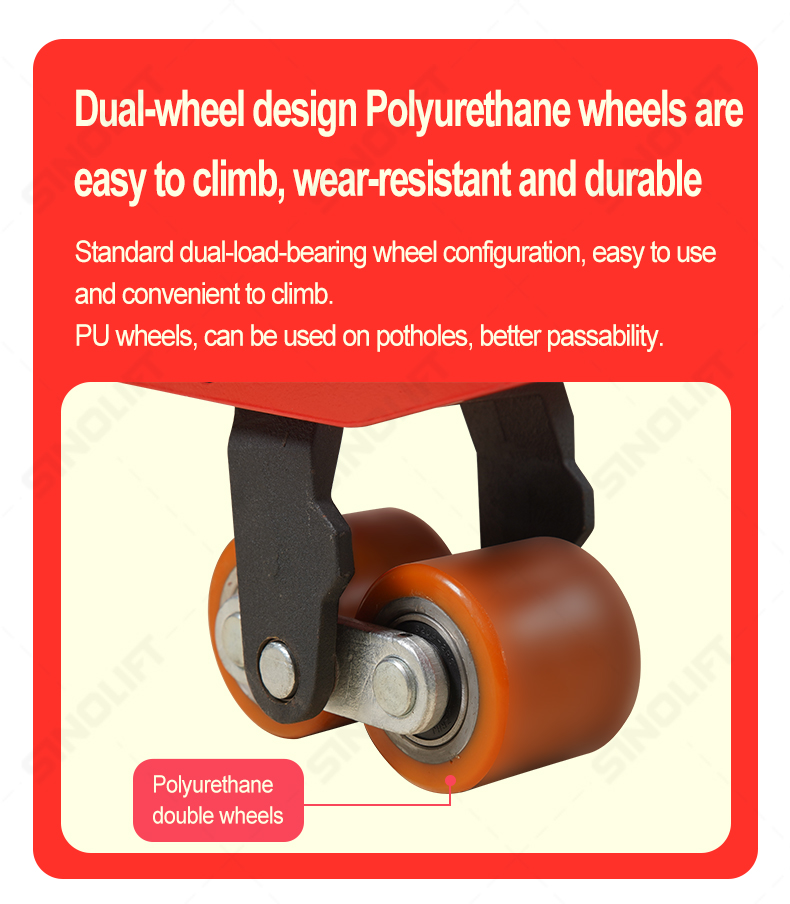

| 3.21 | Tyre Size (Load Wheel) Tandem | mm | φ80x70(85mm) or φ74x70(75mm) | ||
| 3.22 | Tyre Size (Load Wheel) Single | φ80x93(85mm) or φ74x93(75mm) | |||
| 3.3 | Tyre Size (Drive Wheel) | mm | φ190x70 | ||
| 3.5 | Wheels Quantity, Front/Rear (x=Driving Wheels) | 4/1x+2 | |||
| 3.6 | Track Width,Front,Driving Side | b10 | mm | 460 | |
| 3.8 | Track Width,Rear,Loading Side | b11 | mm | 400(520) | |

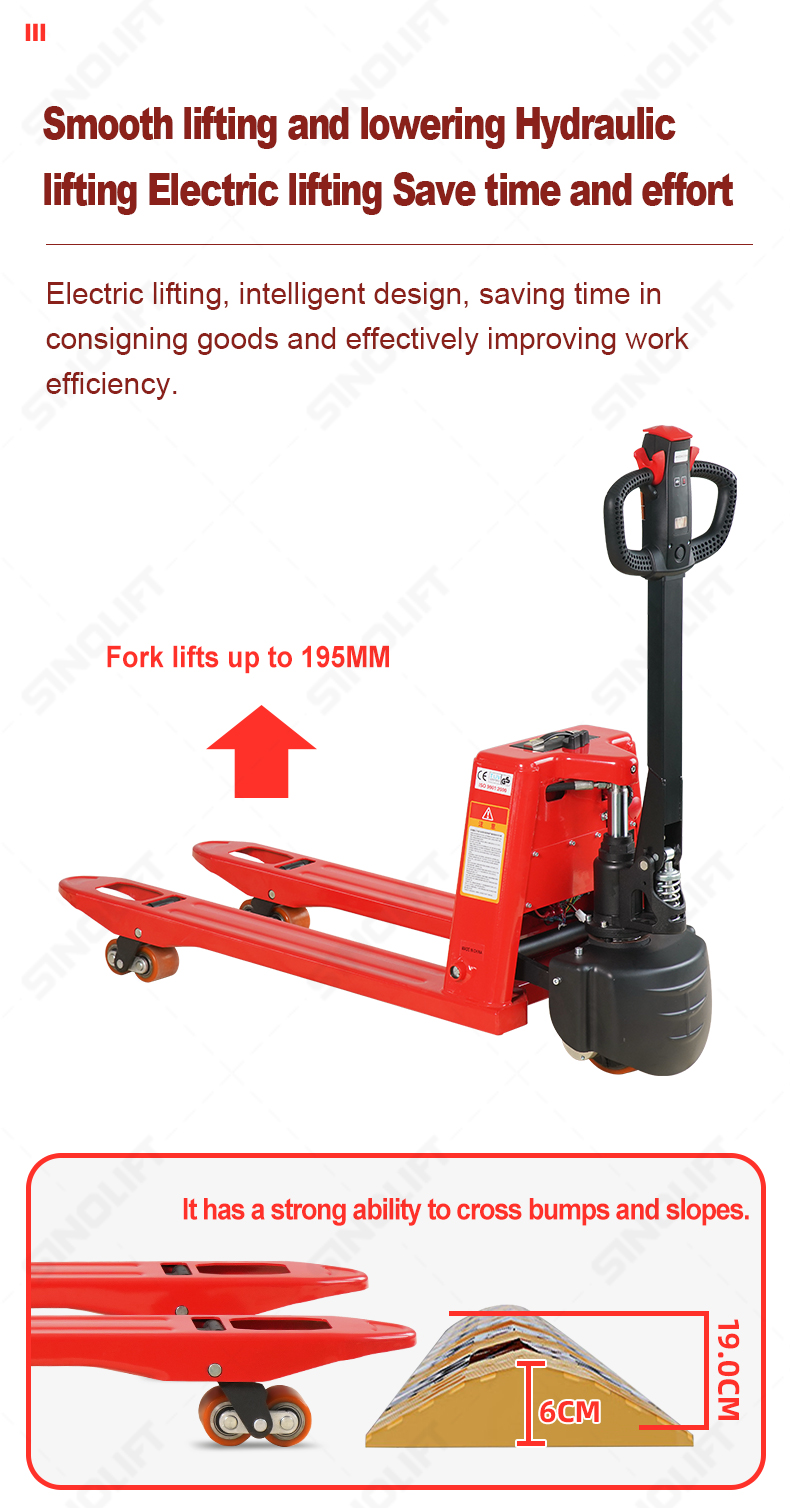

| Dimension | 4.4 | Lifting Height | h3 | mm | 180(200) |
| 4.9 | Height of Tiller Arm in Driving Position, Min.- Max. | h14 | mm | 561-1215 | |
| 4.15 | Lowered Height | h13 | mm | 75(85) | |
| 4.19 | Overall Length | l1 | mm | 1566(1616) | |
| 4.20 | Length to Fork Face | l2 | mm | 390 | |
| 4.21 | Overall Width | b1 | mm | 550(680) | |

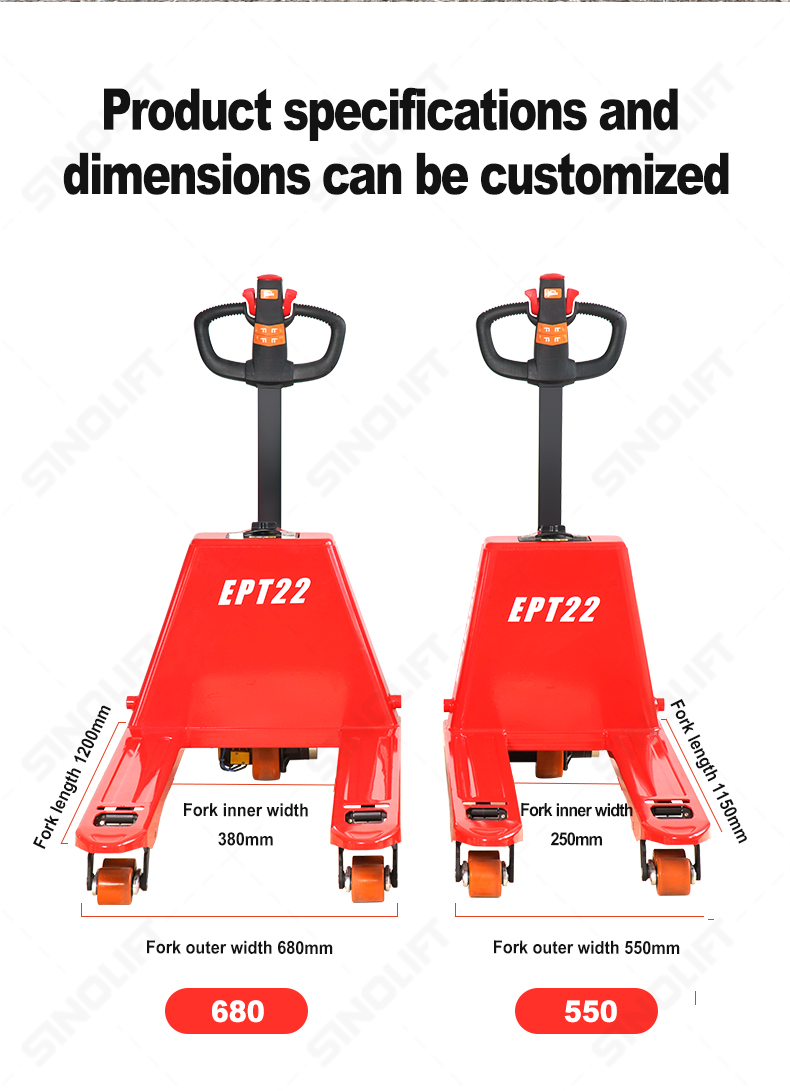

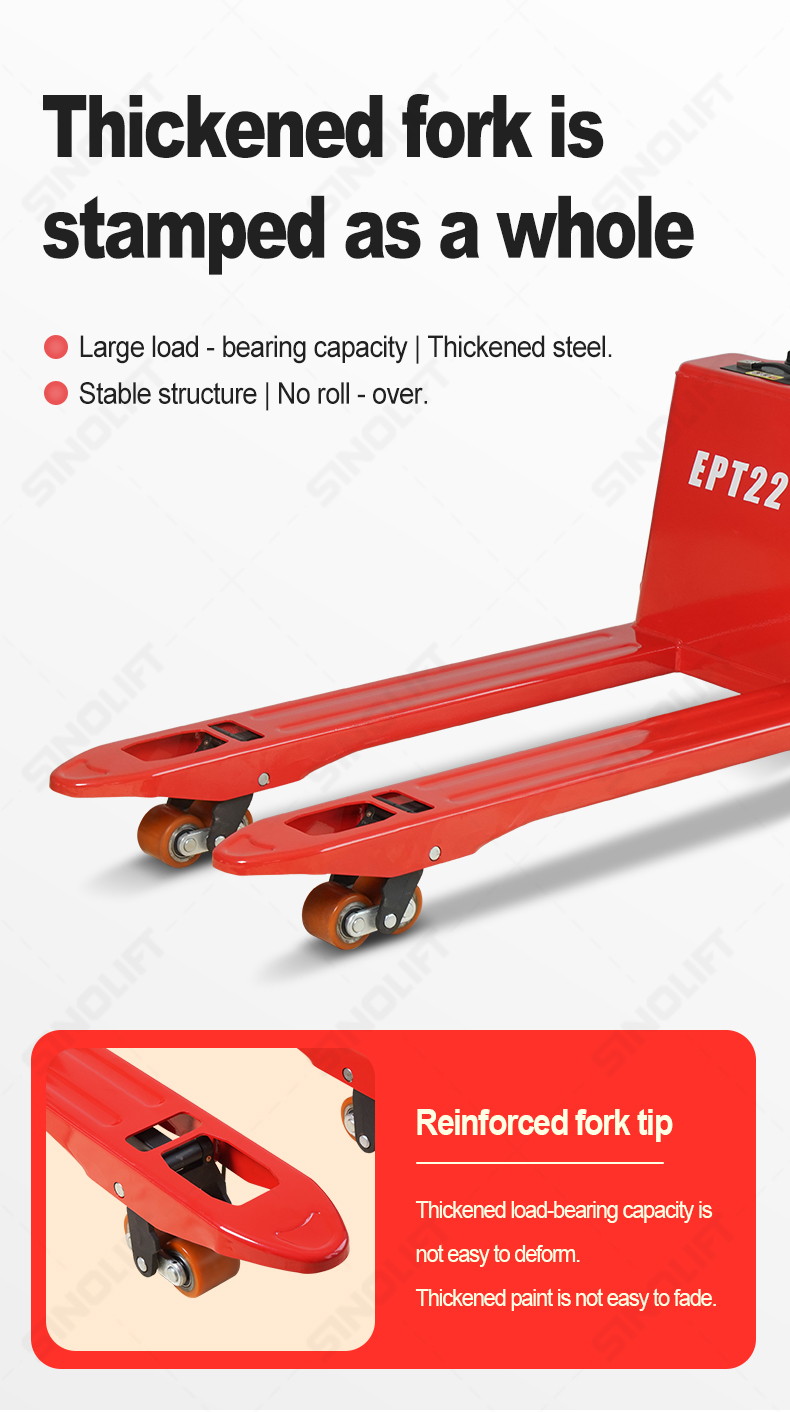

| 4.22 | Fork Dimension | s/e/l | mm | 50x160x1150(1200) | |
| 4.25 | Fork Spread Width | b5 | mm | 550/680 | |
| 4.32 | Ground Clearance at Center of Wheelbase (Min) | m2 | mm | 30 | |
| 4.33 | Aisle Width for Pallets 1000x1200 Crossways | Ast | mm | 1790 | |
| 4.34 | Aisle Width for Pallets 800x1200 Crossways | Ast | mm | 1740 | |
| 4.35 | Turning Radius | Wa | mm | 1361/1511 | |
| Performance | 5.1 | Traveling Speed (Laden/Unladen) | km/h | 4.5/4.5 | |
| 5.2 | Lifting Speed (Laden/Unladen) | mm/s | 22/17 | ||
| 5.3 | Lowering Speed (Laden/Unladen) | mm/s | 26/30 | ||

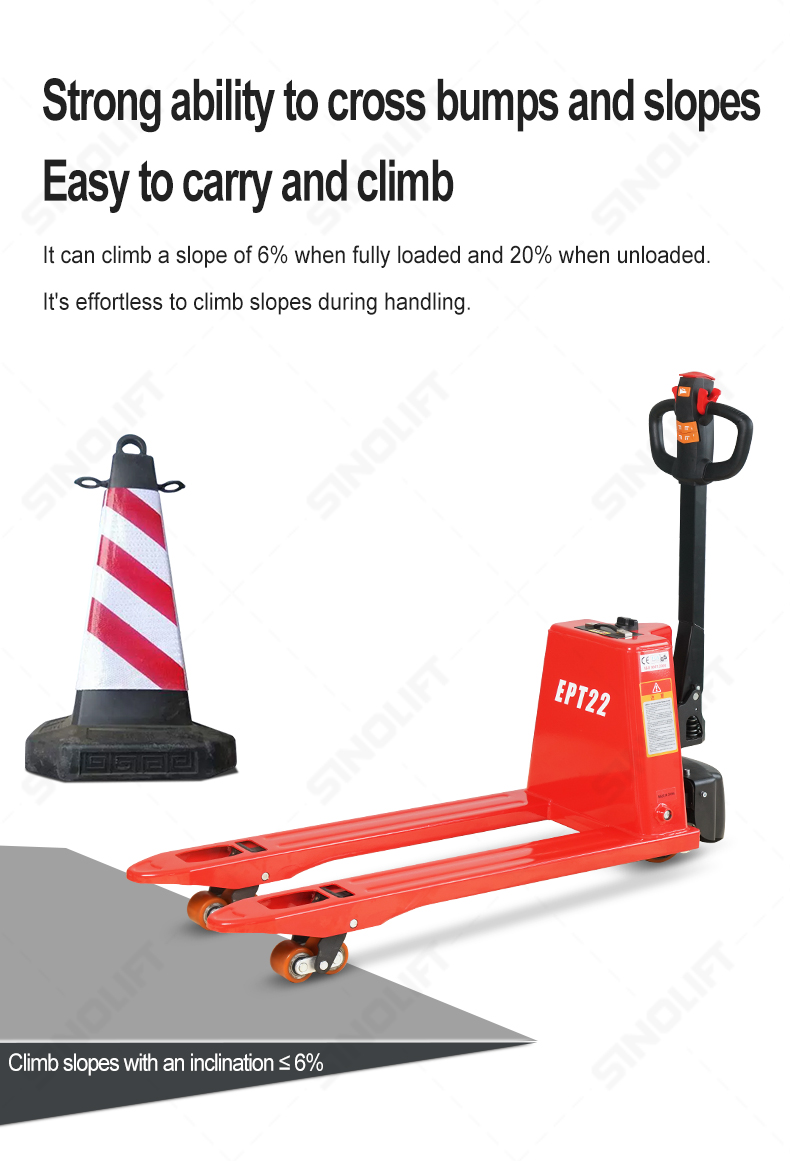

| 5.8 | Max.Gradient Performance (Laden/Unladen) | % | 6/20 | ||
| 5.10 | Service Brake Type | Electromagnetic | |||

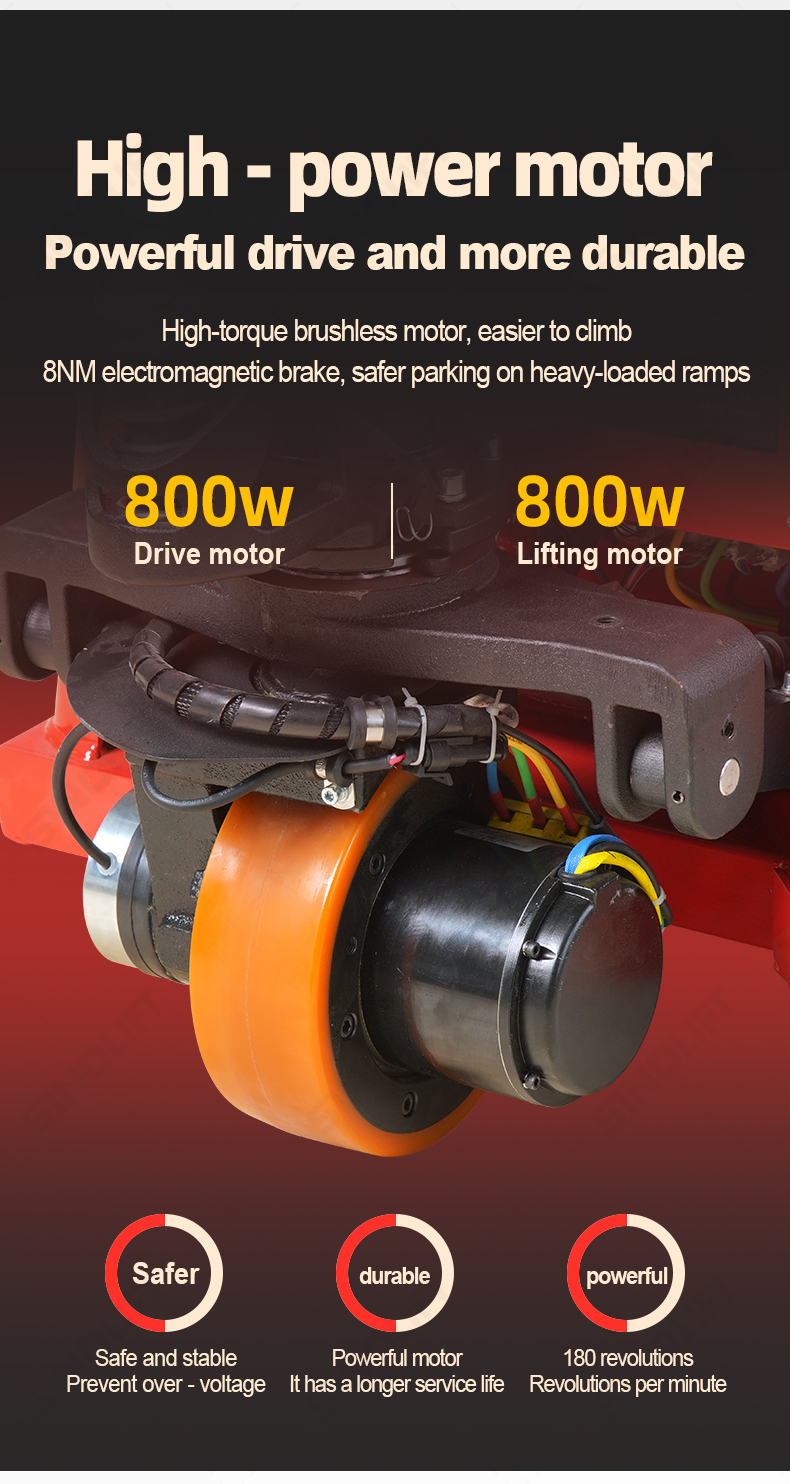

| Power Unit | 6.1 | Driving Motor Rating (DC) S2 60min | kw | 0.8 | |
| 6.2 | Lifting Motor Rating S3 15% | kw | 0.6 | ||
| 6.3 | Battery Type | Li-ion | |||
| 6.4 | Battery Voltage/Capacity K5 | V/Ah | 48/15 | ||
| 6.5 | Battery Weight | kg | 4.22/5.68 | ||
| 6.7 | Charger | V/A | 48/6 | ||
| Others | 8.1 | Controller Model | DC | ||
| 10.5 | Steering Type | Mechanical | |||
| 10.7 | Sound Level at Driver's Ear According to EN 12 053 | dB(A) | 70 | ||
