EPT30RTS Electric Rough Terrain Pallet Truck - 3T Off-Road
Product Name
EPT30RTS Electric Rough Terrain Pallet Truck - 3T Off-Road

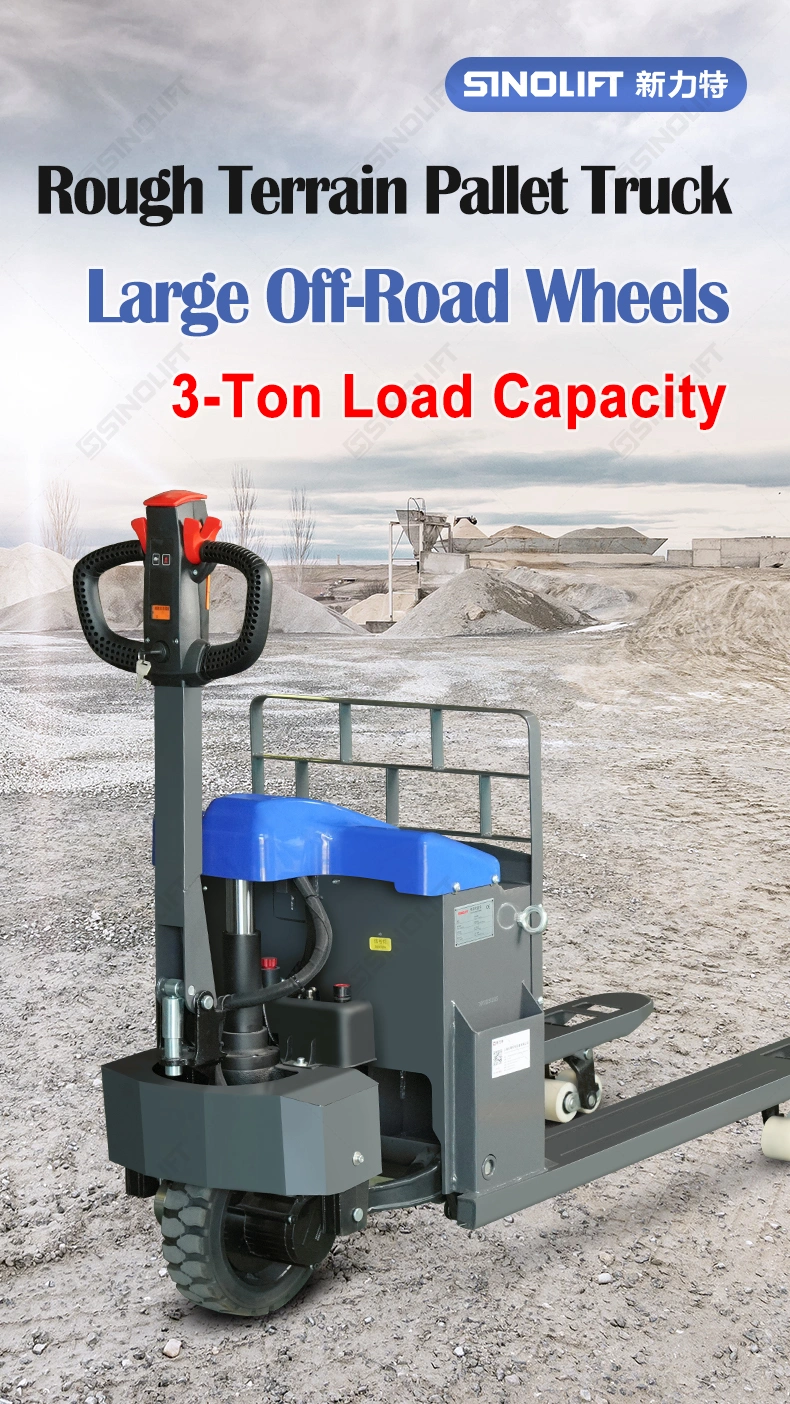

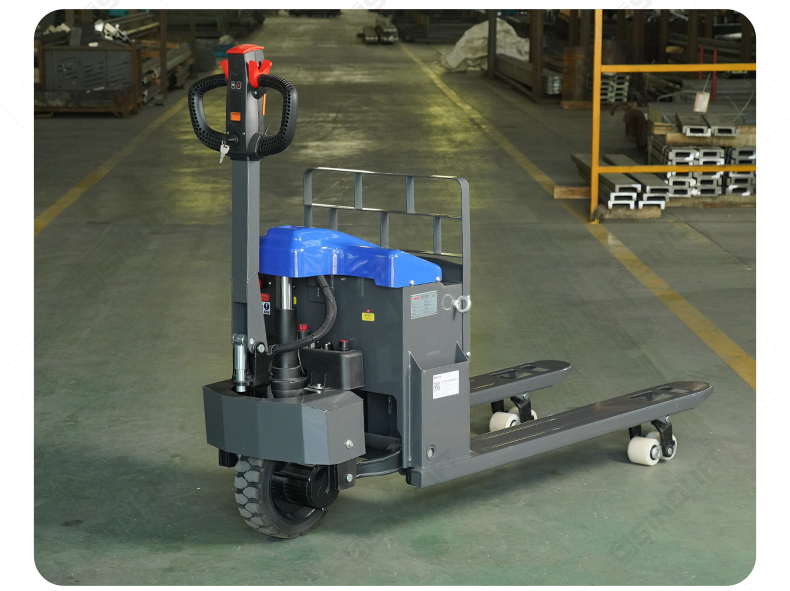

The EPT30RTS Rough Terrain Pallet Truck is built for heavy-duty transport on challenging surfaces like construction sites, mountains, and muddy paths. Its 48V system, 300mm solid rubber wheels, and 3-ton load capacity ensure robust performance, while the waterproof design and patented hydraulic system enhance durability. Ideal for ports, warehouses, and rugged outdoor environments, it combines power, stability, and safety with features like electromagnetic braking and ergonomic controls.
Key Features
Powerful Performance & Efficiency

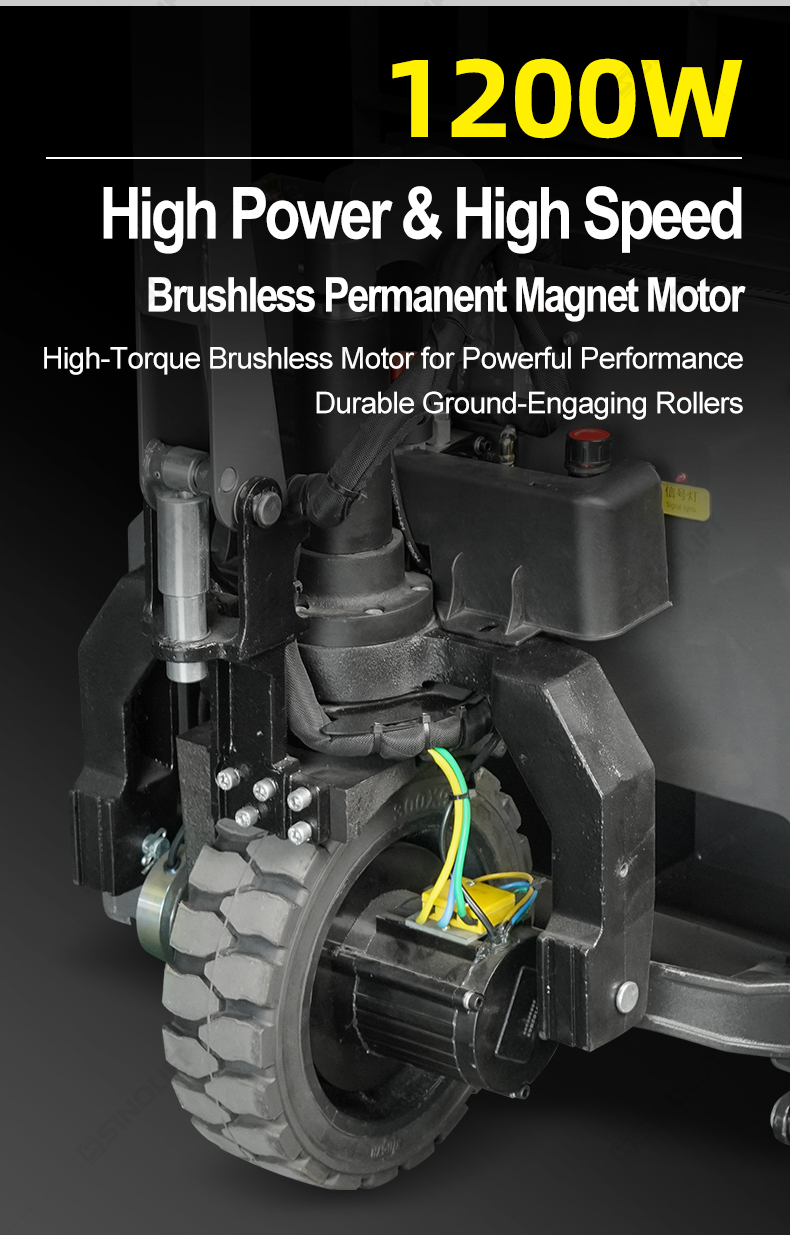

• 48V system with 1200W brushless motor for 3-ton load capacity
• Imported high-speed hydraulic pump for smooth operation

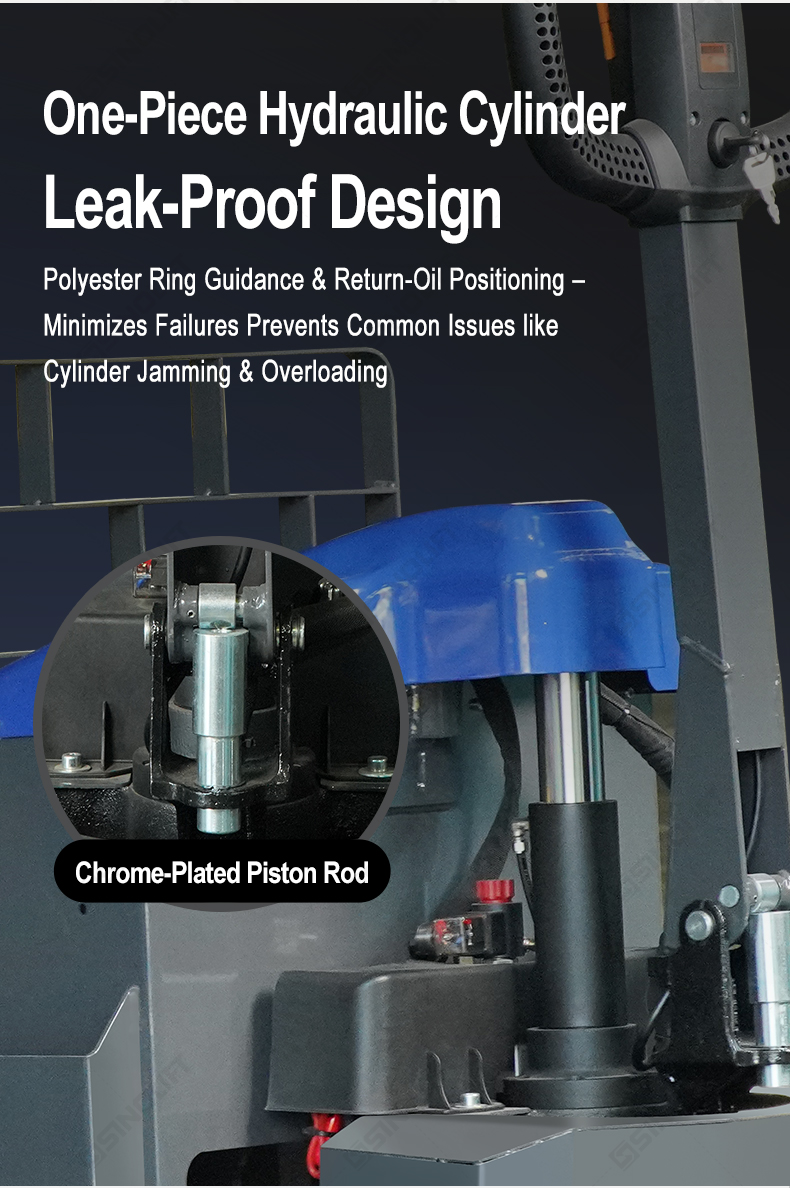

• Patented one-piece oil cylinder prevents leaks
Superior Off-Road Capability

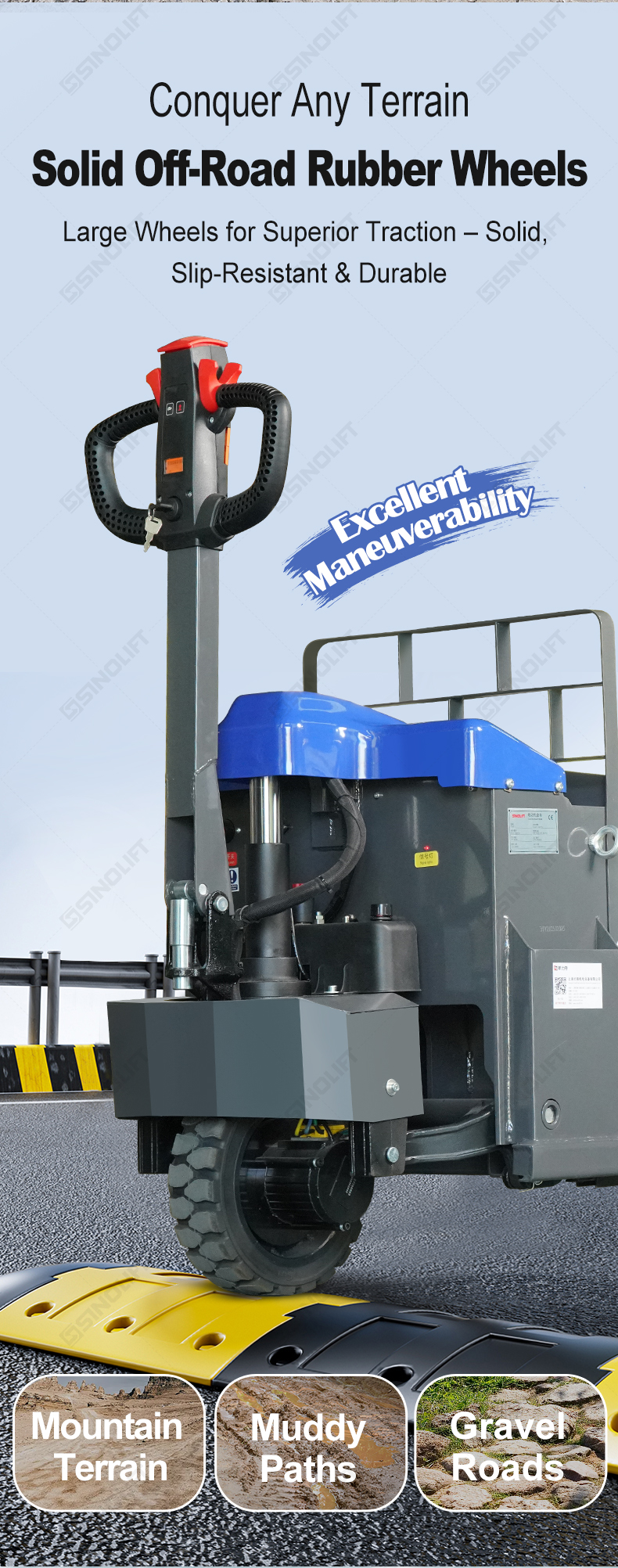

• 300×90mm solid rubber wheels for tough terrain

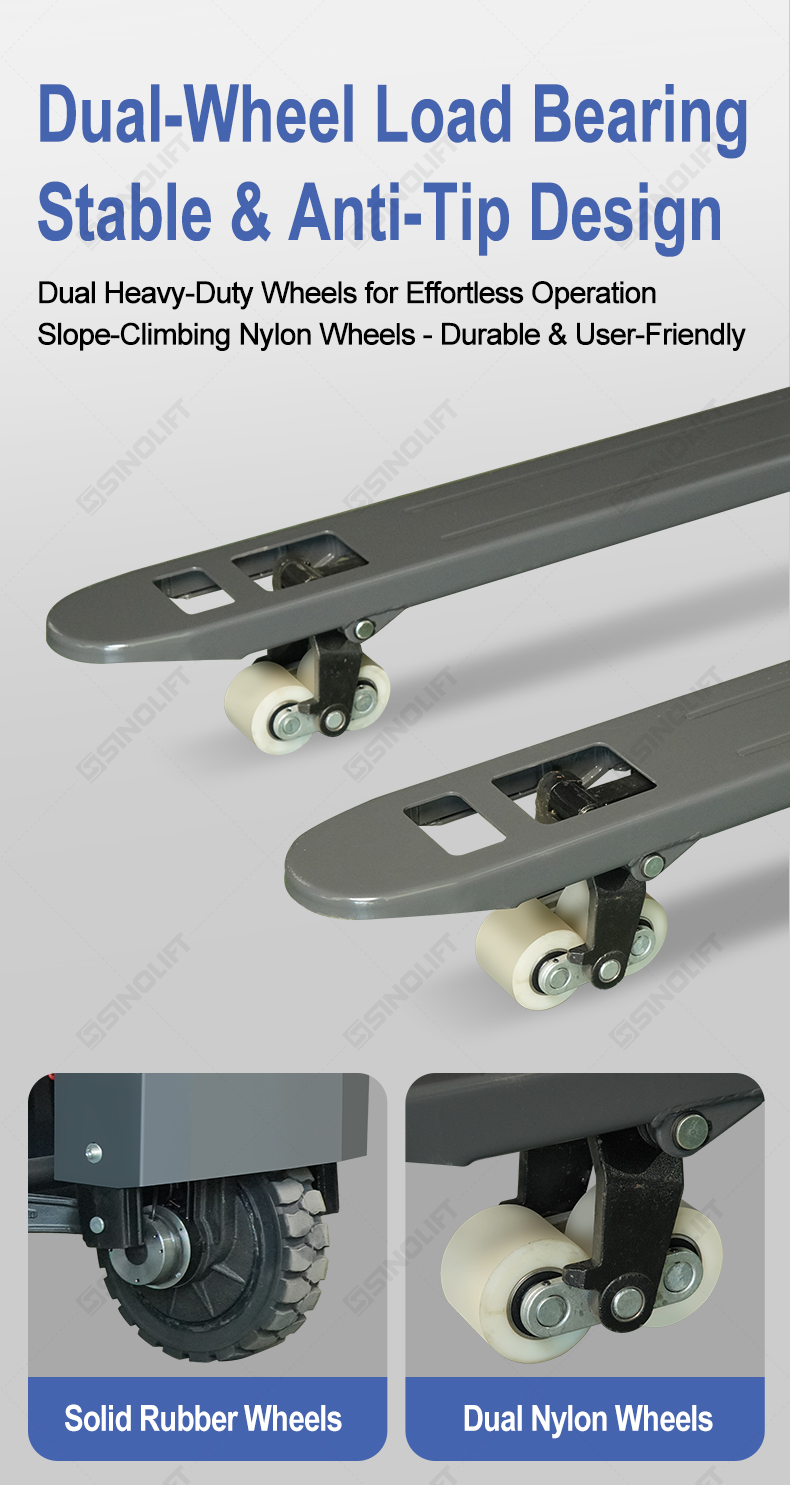

• Dual-wheel design ensures stability
Safe & Reliable Design

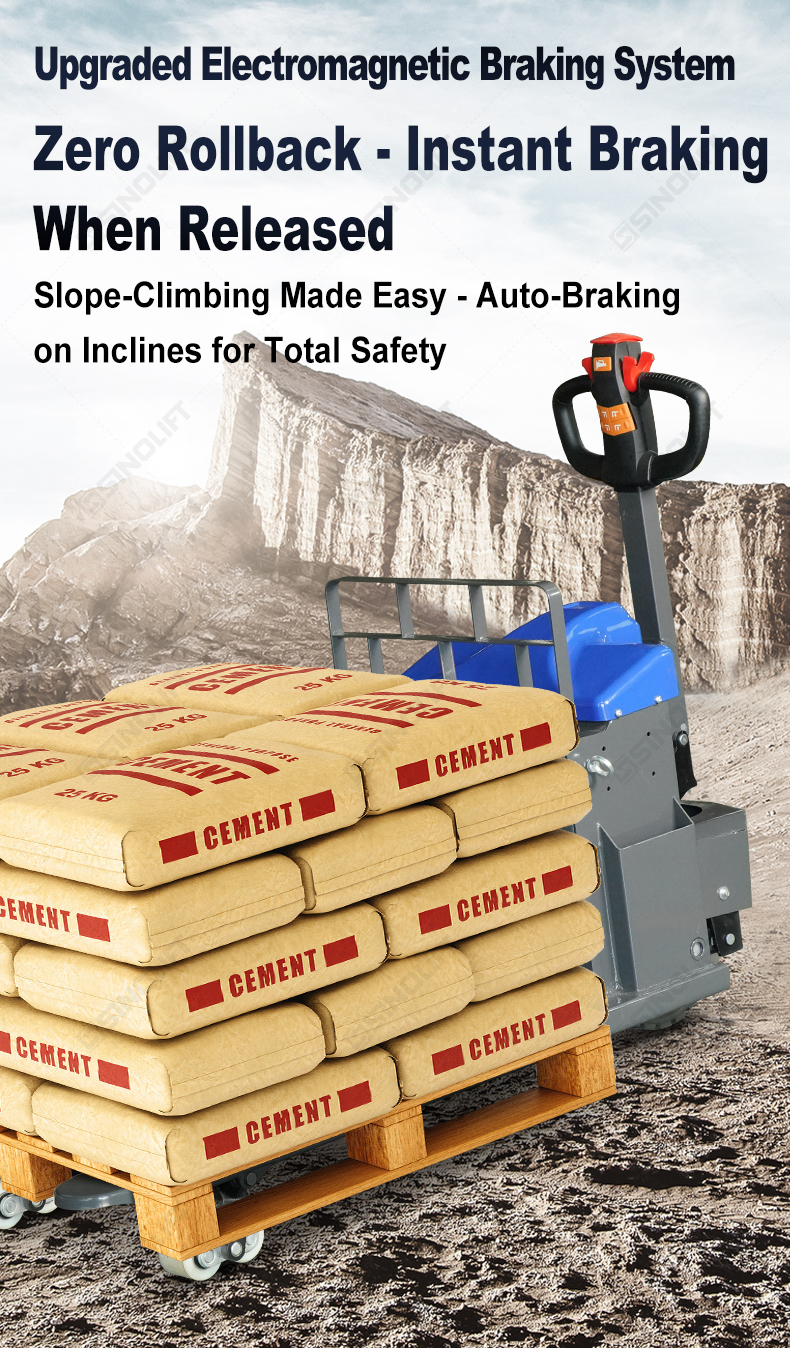

• Electromagnetic braking prevents rollback

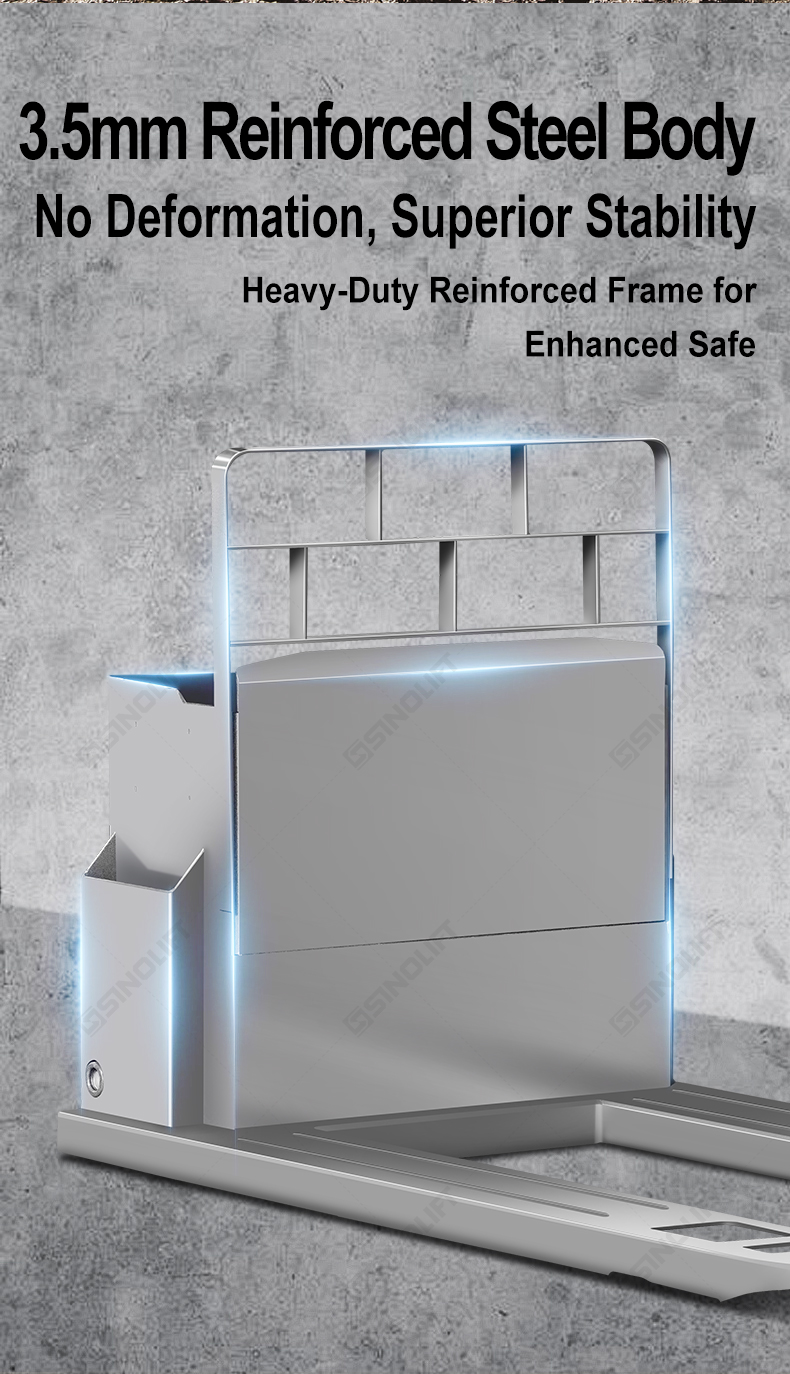

• 3.5mm reinforced steel frame
• Waterproof for harsh environments

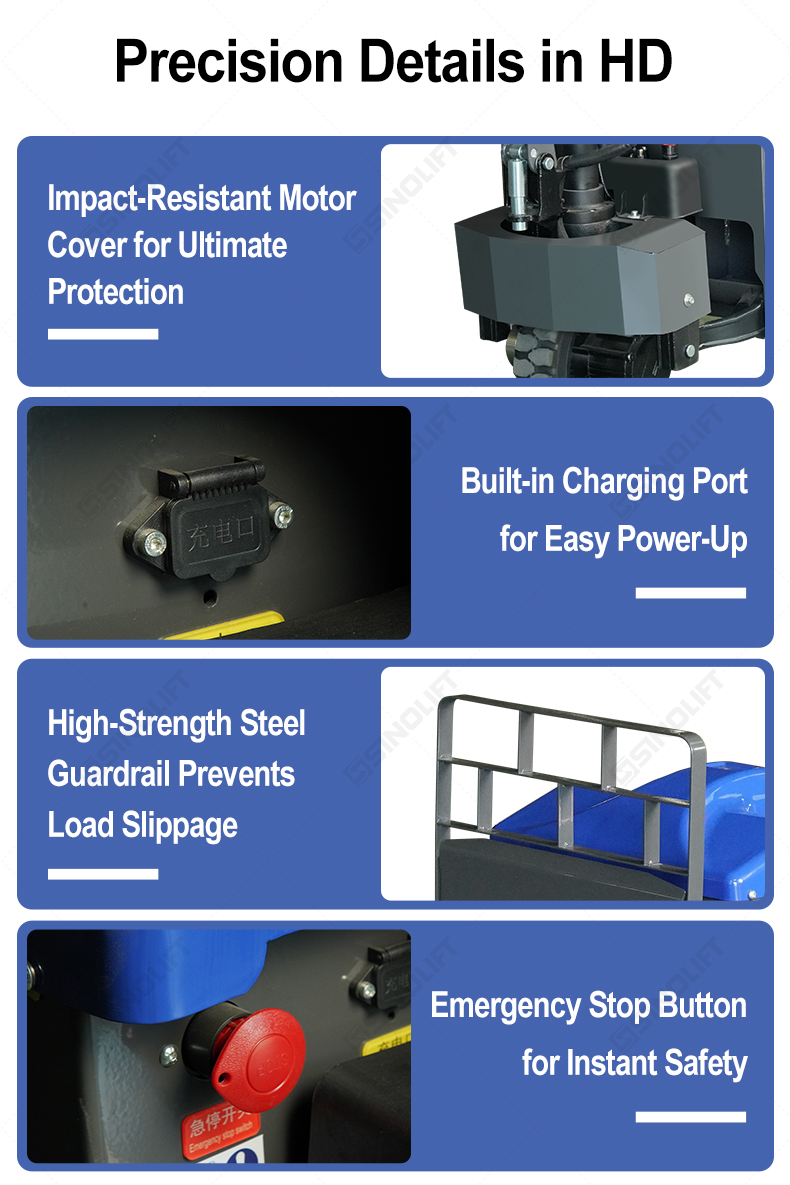

• Emergency stop and safety features
User-Friendly Operation

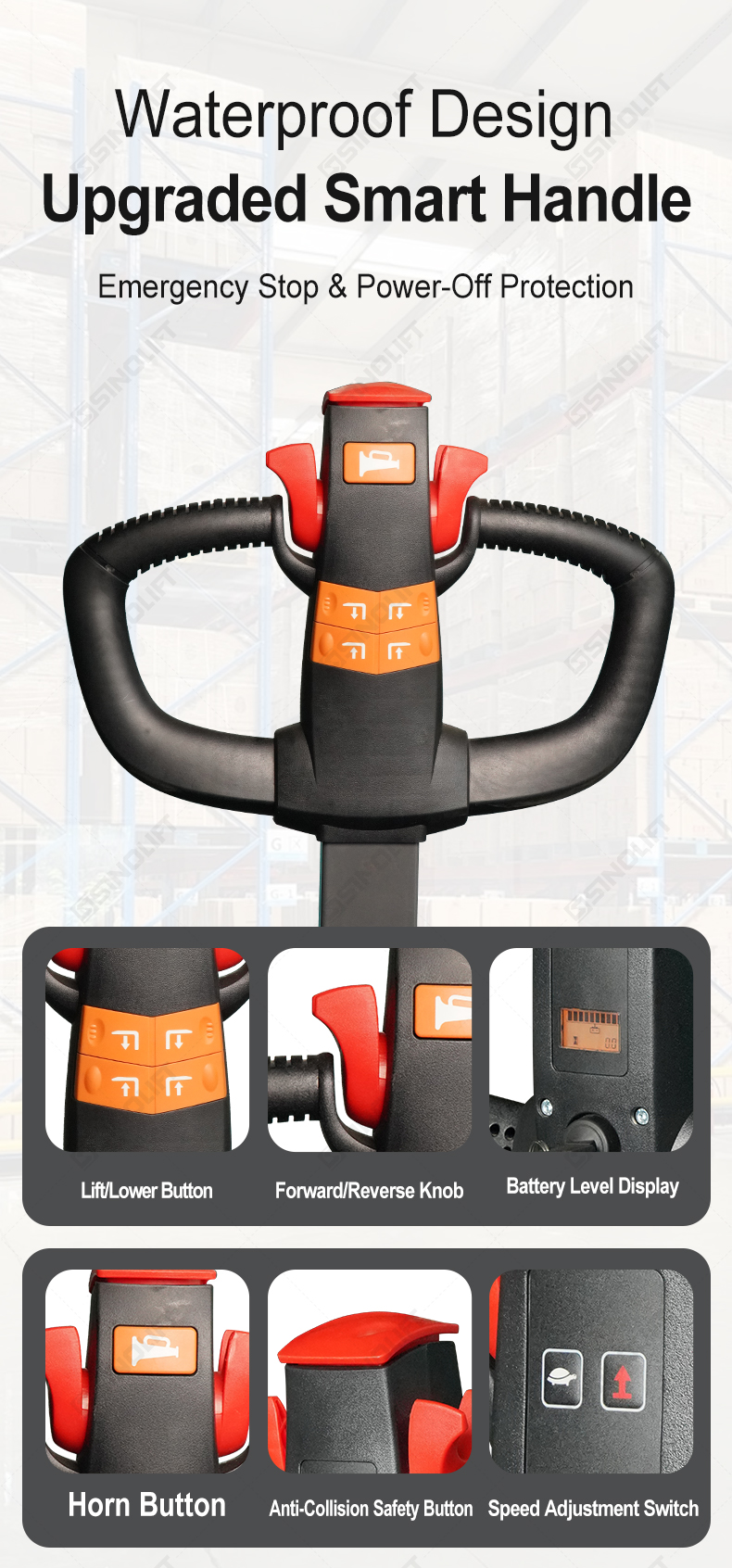

• Multi-function handle with speed control
• Turtle-speed mode for precision work
Long-Lasting Durability

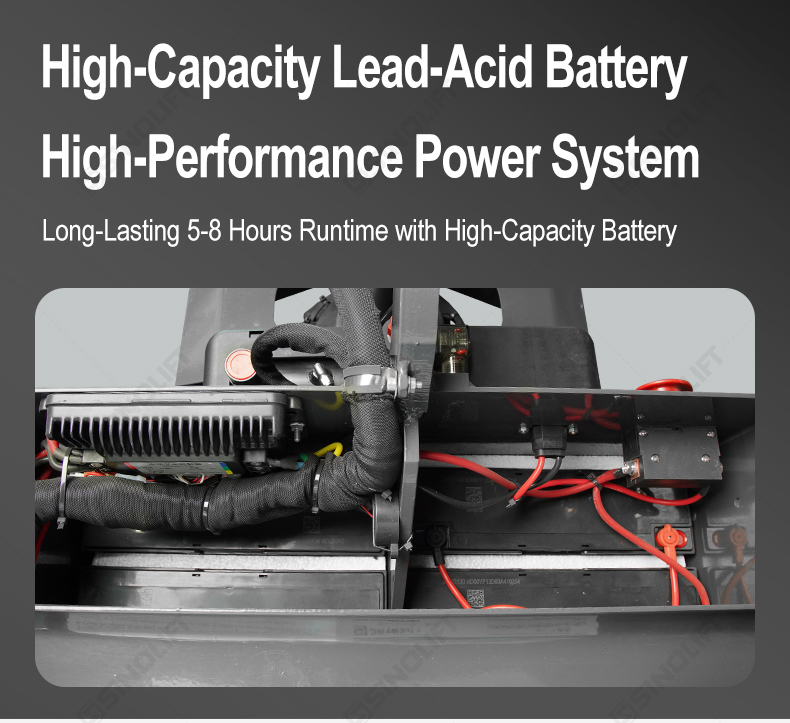

• 5-8 hour battery runtime
• Chrome-plated pistons and nylon wheels
Wide Compatibility

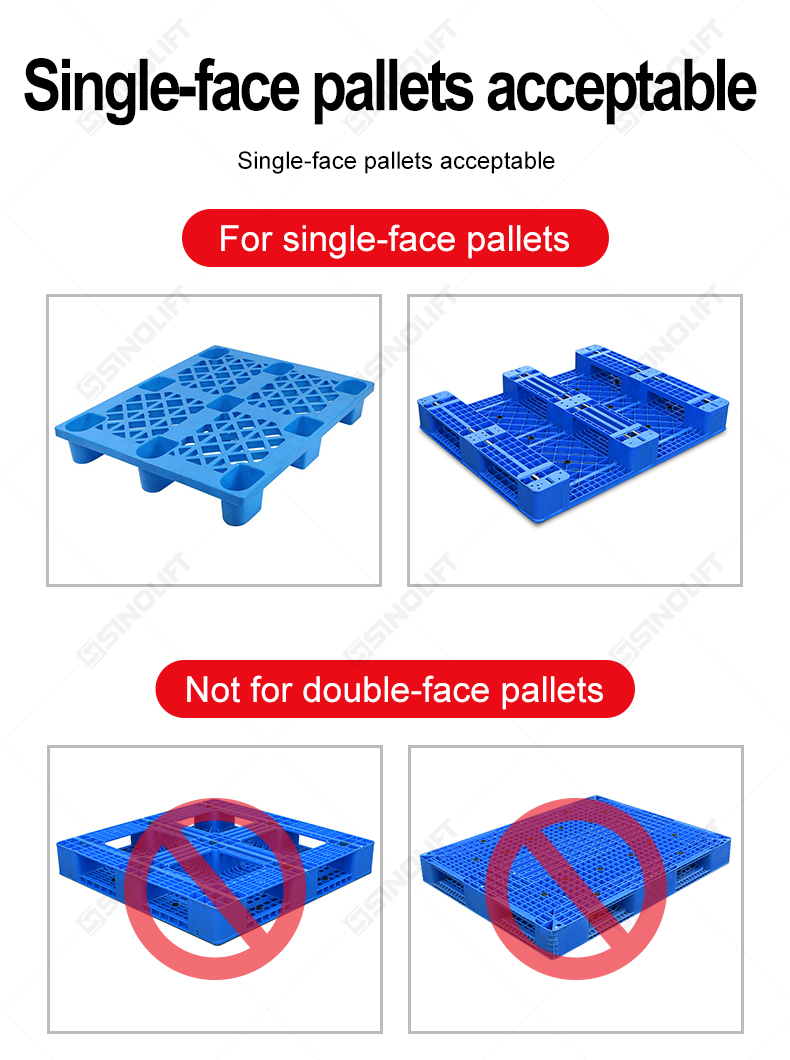

• 80mm low fork fits most pallet types
• Not for double-face pallets
Ideal Applications
Construction Sites – Transporting heavy materials like steel bars and cement on muddy or uneven ground.
Warehousing & Logistics – Outdoor/indoor pallet handling, especially in temporary storage areas.
Ports & Terminals – Loading/unloading cargo in wet conditions with waterproof durability.
Mountainous Areas & Farms – Hauling timber, crops, and other goods on steep slopes and rough paths.
Recycling Centers – Moving bulky waste like scrap metal and paper with impact-resistant construction.
Railways & Coal Mines – Heavy-duty short-distance transport in rugged industrial environments.
Product Specifications
| Model | EPT30RTS | |
| Drive Type | Electric | |
| Operation Mode | Walk-behind | |
| Rated Load Capacity | kg | 3000 |
| Load Center Distance | mm | 600 |
| Total Weight | kg | 32Ah:215/65Ah:235 |
| Front Wheel Size | mm | Φ300*90 |
| Rear Wheel Size | mm | Dual Φ80*70 |
| Lifting Height | mm | 115 |
| Fork Lowered Height | mm | 80±2 |
| Overall Length | mm | 1740 |
| Overall Width | mm | 685/575 |
| Fork Spread Width | mm | 685/550 |
| Maximum Travel Speed | km/h | 4.0 km/h (loaded), 4.5 km/h (unloaded) |
| Gradeability | % | 8% (loaded), 16% (unloaded) |
| Battery Voltage/Capacity | V/Ah | 48V/32Ah or 48V/65Ah |
| Drive Motor Power | W | 1200 |
