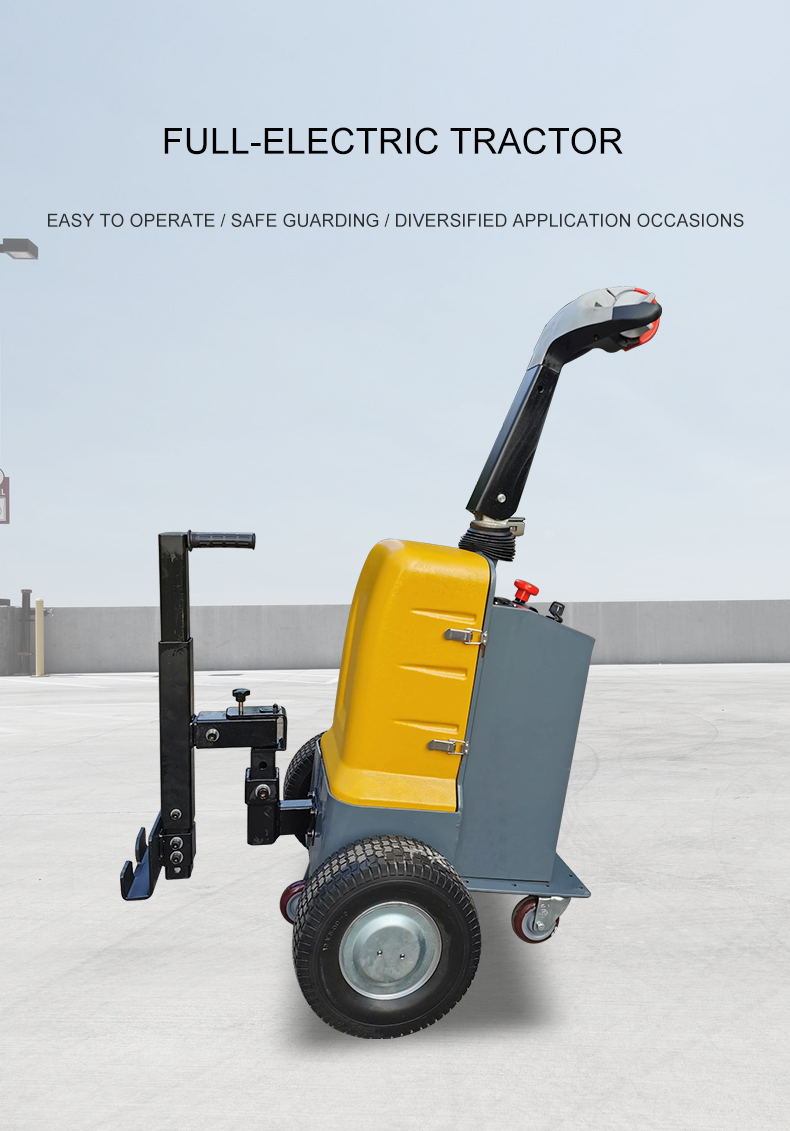

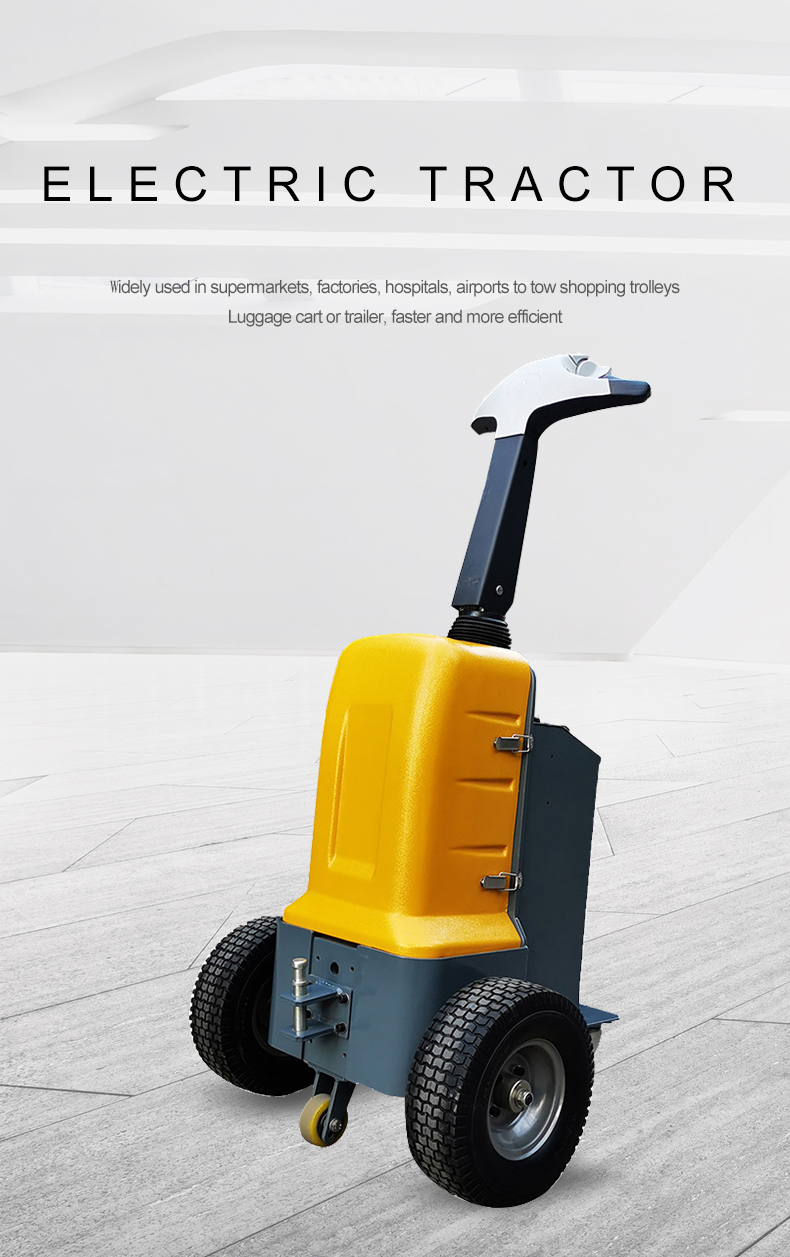

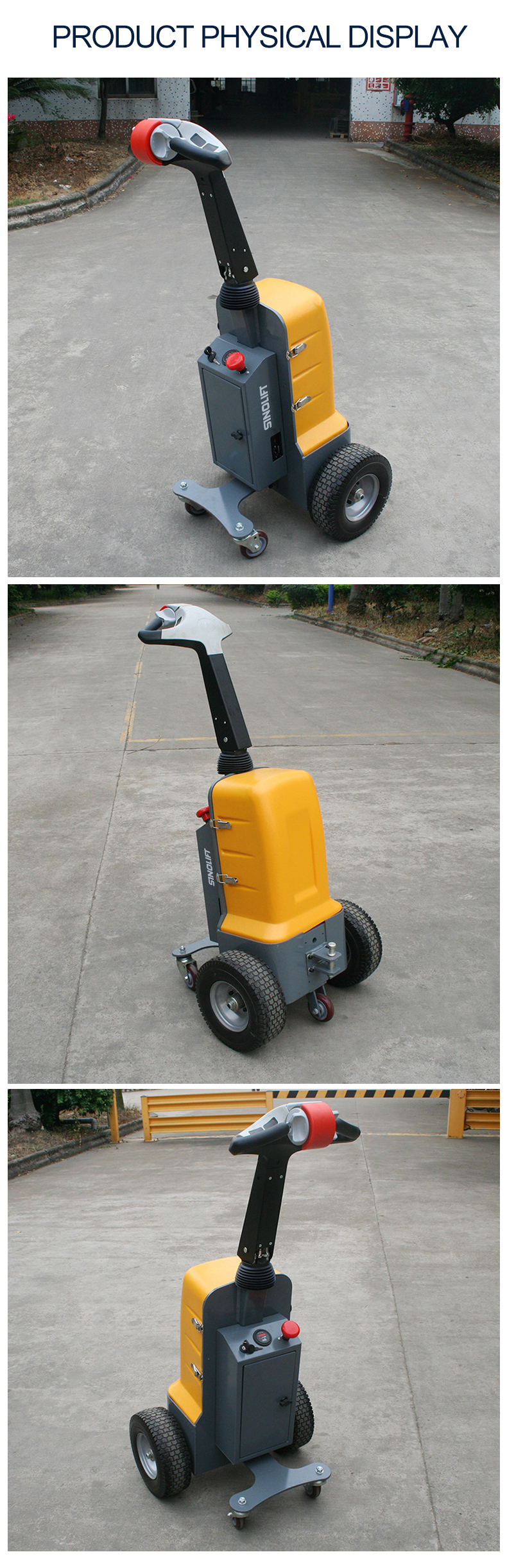

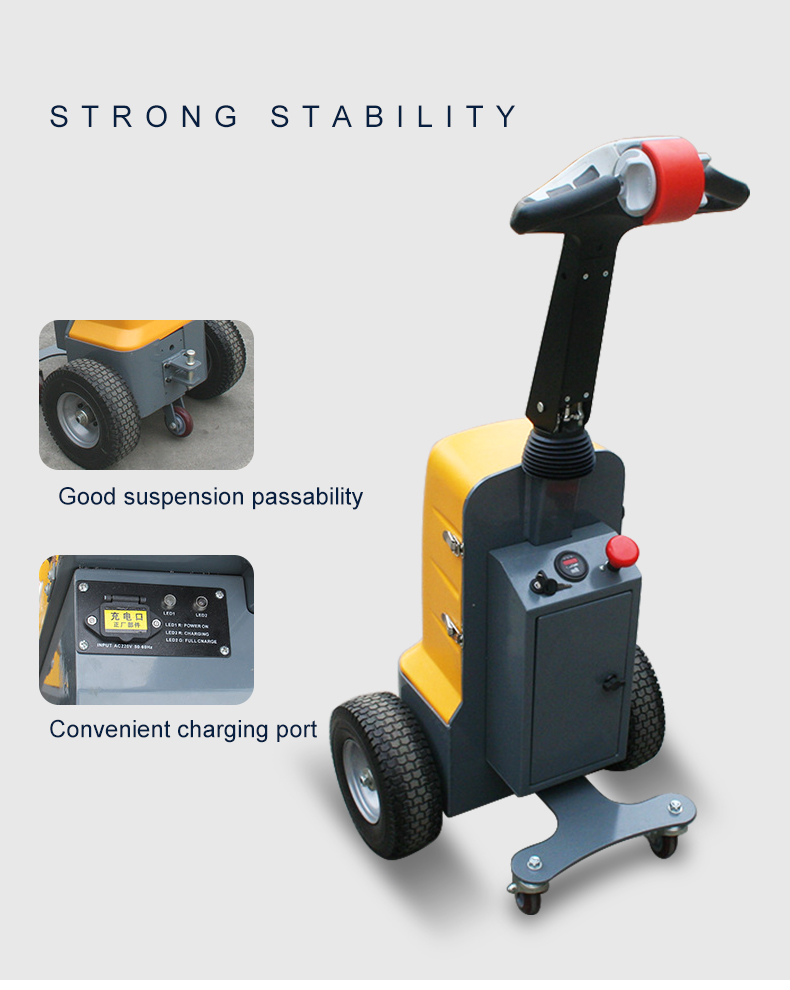

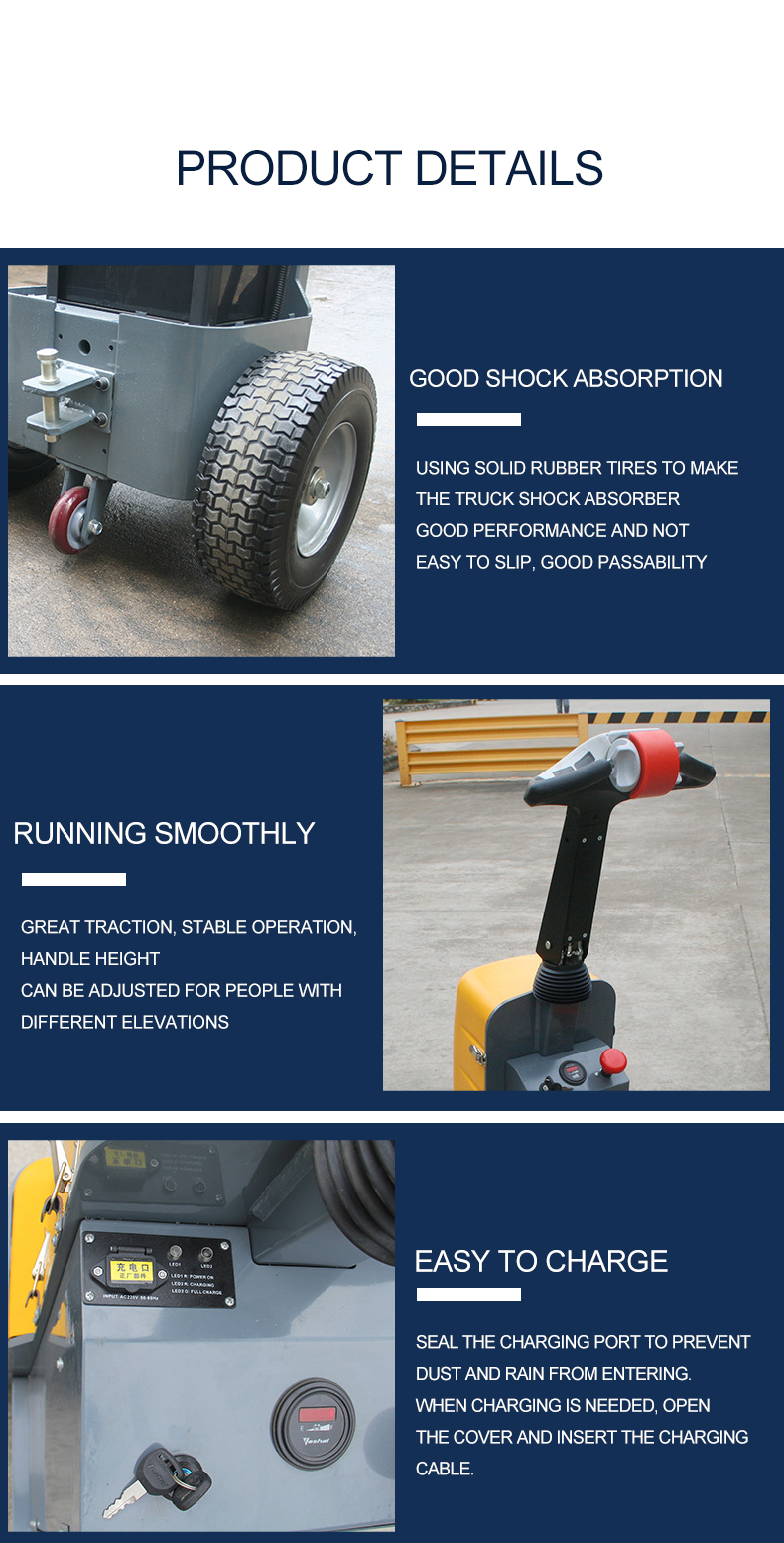

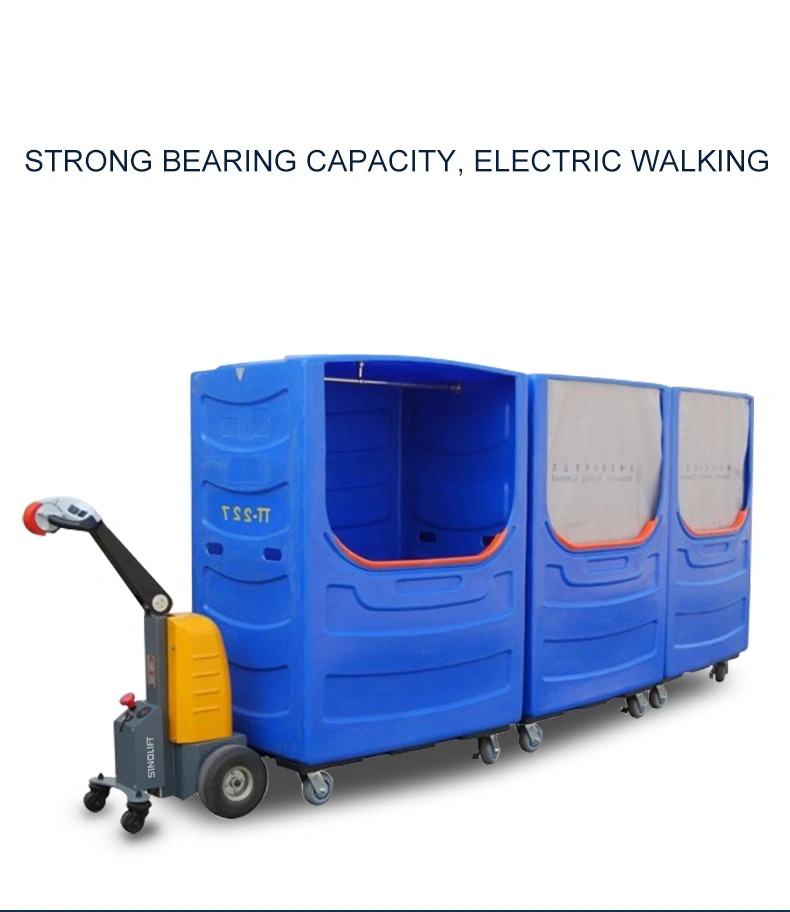

ETM Series Mini Walkie Electric Tugger
ETM
Use for logistics handling and traction in hospitals, factories, aviation, and other fields to facilitate different traction requirements.
Quantity:
Features
· Use for logistics handling and traction in hospitals, factories, aviation, and other fields to facilitate different traction requirements.
· Man-machine integrated control handles flexible in operation with many functions.
· Maintenance-free battery and permanent magnet traction motor provide greater traction power.
· Stable product performance, compact size, flexible operation, noise free, environmental protection, easy maintenance.
· US imported Curtis computer controller for greater torque, faster speed, higher reliability, better thermal performance, and smoother acceleration.
| Model | ETM100 | ETM150 | |
| Drive unit | Battery | Battery | |
| Operator type | pedestrian | pedestrian | |
| Load capacity | Kg | 1000 | 1500 |
| Rated drawbar pull | N | 450 | 650 |
| Wheelbase | mm | 650 | 345 |
| Battery | V/AH | 24V/70AH | 36V/70AH |
| Charge | V/AH | 24V/10A | 36V/15A |
| Drive motor | V/AH | 24V/800W | 36V/1200W |

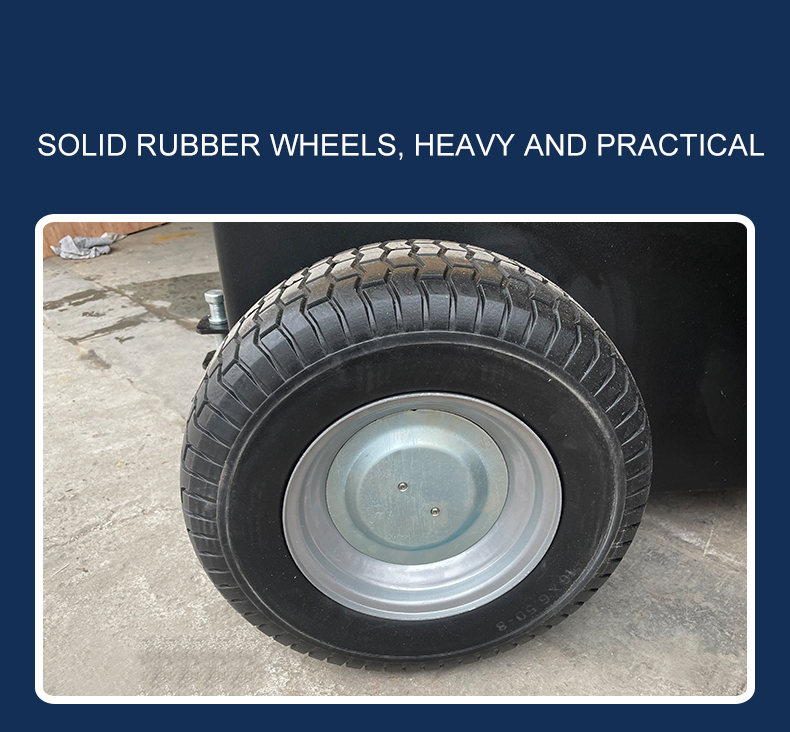

| Drive wheel | mm | φ300x115mm | φ310x136mm |
| Rear wheel | mm | φ100x32mm | φ100x32mm |
| Unload speed | Km/h | 7km/h | 7km/h |
| Load speed | Km/h | 6km/h | 6km/h |
| Load gradability | % | 5% | 5% |
| Unload gradability | % | 10% | 10% |
| Weight | Kg | 128 | 162 |
