Stainless Steel Pallet Truck

HL20S Stainless Steel Pallet Truck

HL20S
Bright 1.2-inch LED display provides clear and accurate weight measurements in any environment.Accumulates up to 2000 records for comprehensive tracking of your operations.
Quantity:
Contact Now
add to cart
All Products
Product Name:HL20S Stainless Steel Pallet Truck

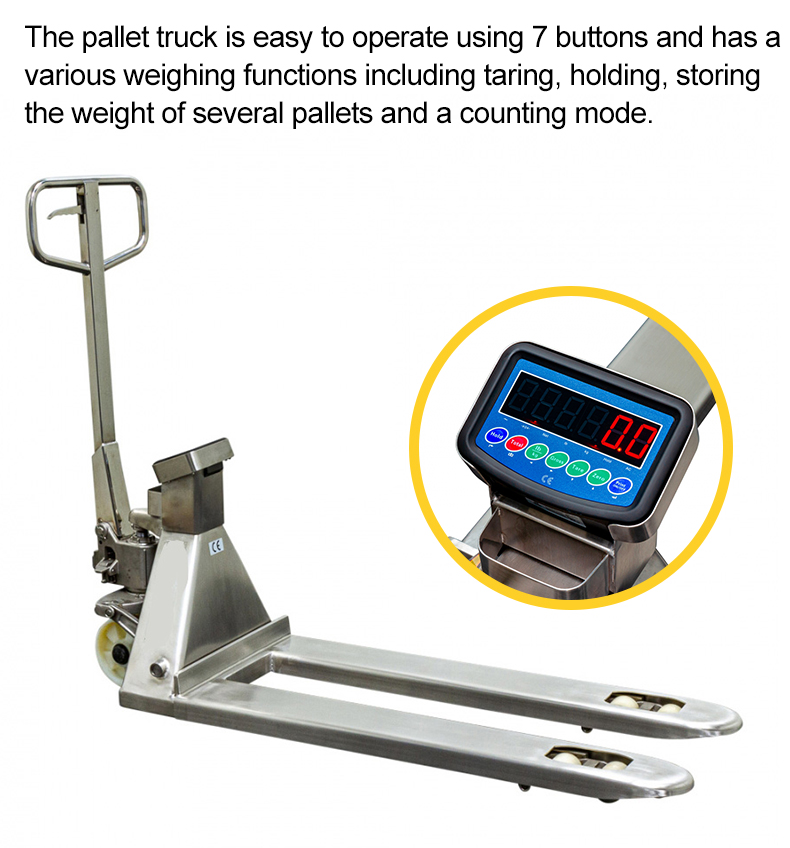

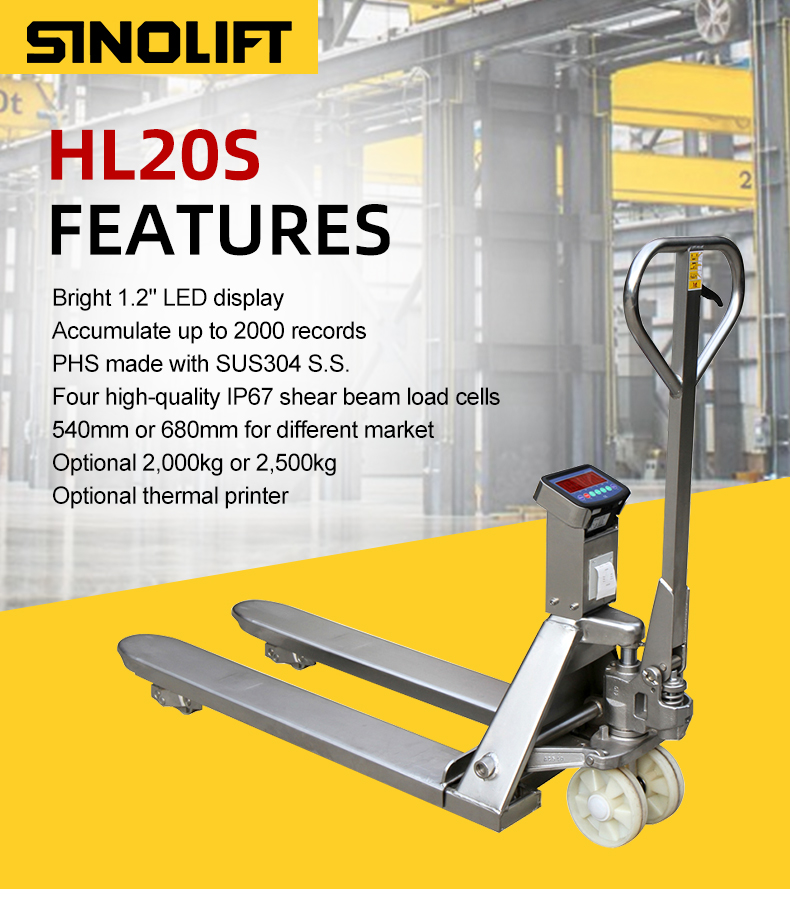

  • Bright 1.2-inch LED display provides clear and accurate weight measurements in any environment.
  • Accumulates up to 2000 records for comprehensive tracking of your operations.
  • Constructed with SUS304 stainless steel for exceptional durability and corrosion resistance, making it ideal for demanding environments.

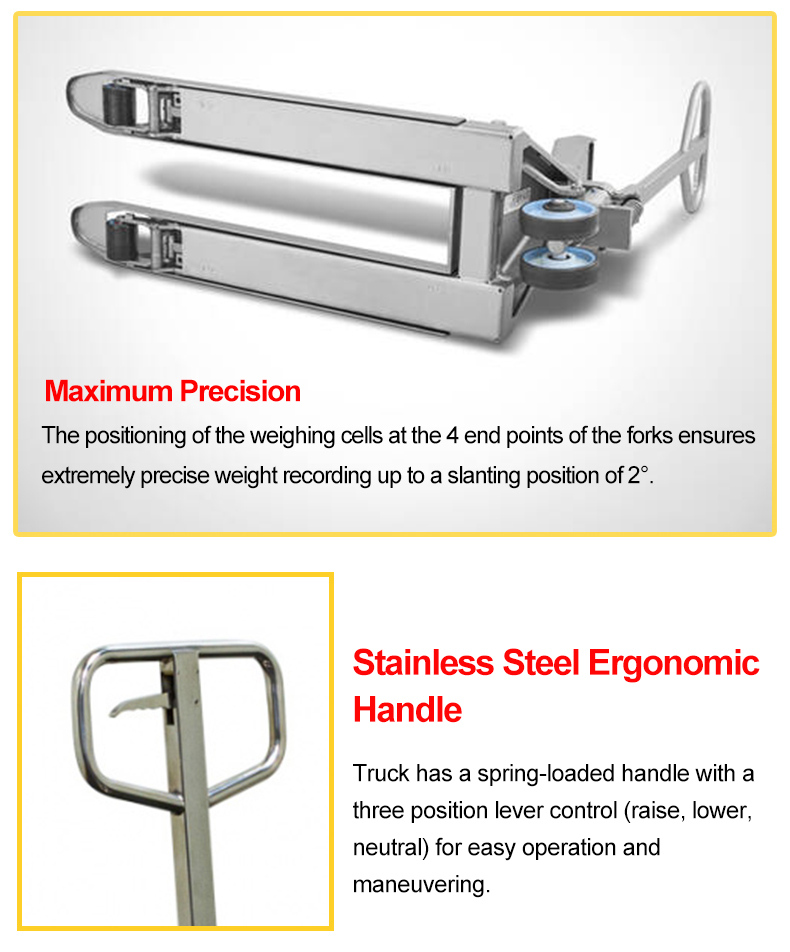

  • Equipped with four high-quality IP67-rated shear beam load cells, ensuring reliable and precise performance even in harsh conditions.
  • Available in 540mm or 680mm fork widths to meet different market demands and application needs.
  • Offers optional load capacities of 2000kg or 2500kg to handle specific workload requirements.

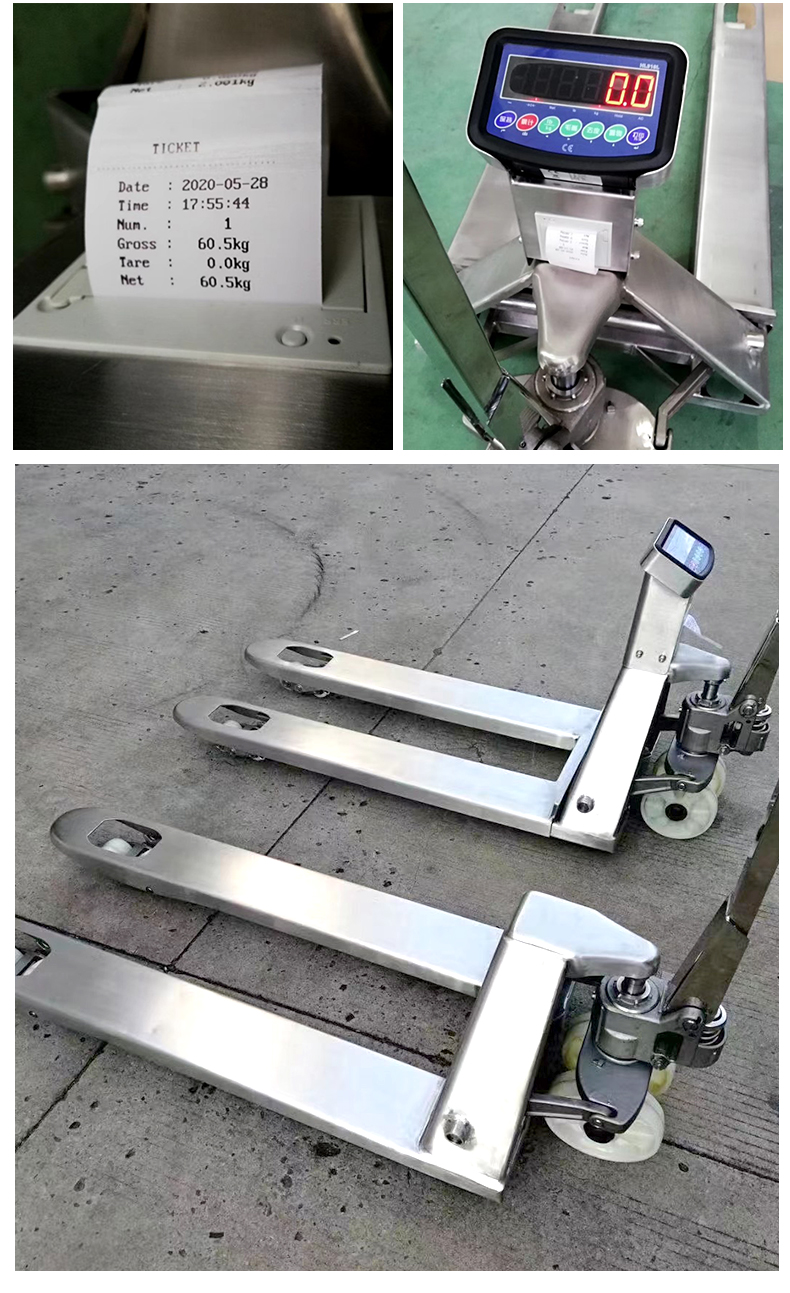

  • Optional thermal printer provides instant and convenient record-keeping functionality.
Ingress Protection Standard System IP65; Indicator IP67
Automatic Switch-off Standard After 15 minutes
Graduation 500-2200kg: 1kg
                  200-500kg: 0.5kg
                  0-200kg: 0.2kg
Maximum inaccuracy ±1% applied weight
ModelHL20S (metric)HL20S (imperical)HL25S (metric)HL25S (imperical)
MaterialStainless steelStainless steelAC stainlessAC stainless
CapacityQkglbs2000440025005500
Fork heighth13-h14mmin80-2053.1-880-2053.1-8
Steering wheelØxwmminφ180x507x2φ180x507x2
Single load rollerØxwmminφ74x932.9x3.6φ74x932.9x3.6
Tandem load rollerØxwmminφ74x702.9x2.75φ74x702.9x2.75
Size of forksxemmin160x606.3x2.36160x606.3x2.36
Width over forksb1mmin550/68021.6/27550/68021.6/27
Fork lengthlmmin1150/122045/481150/122045/48

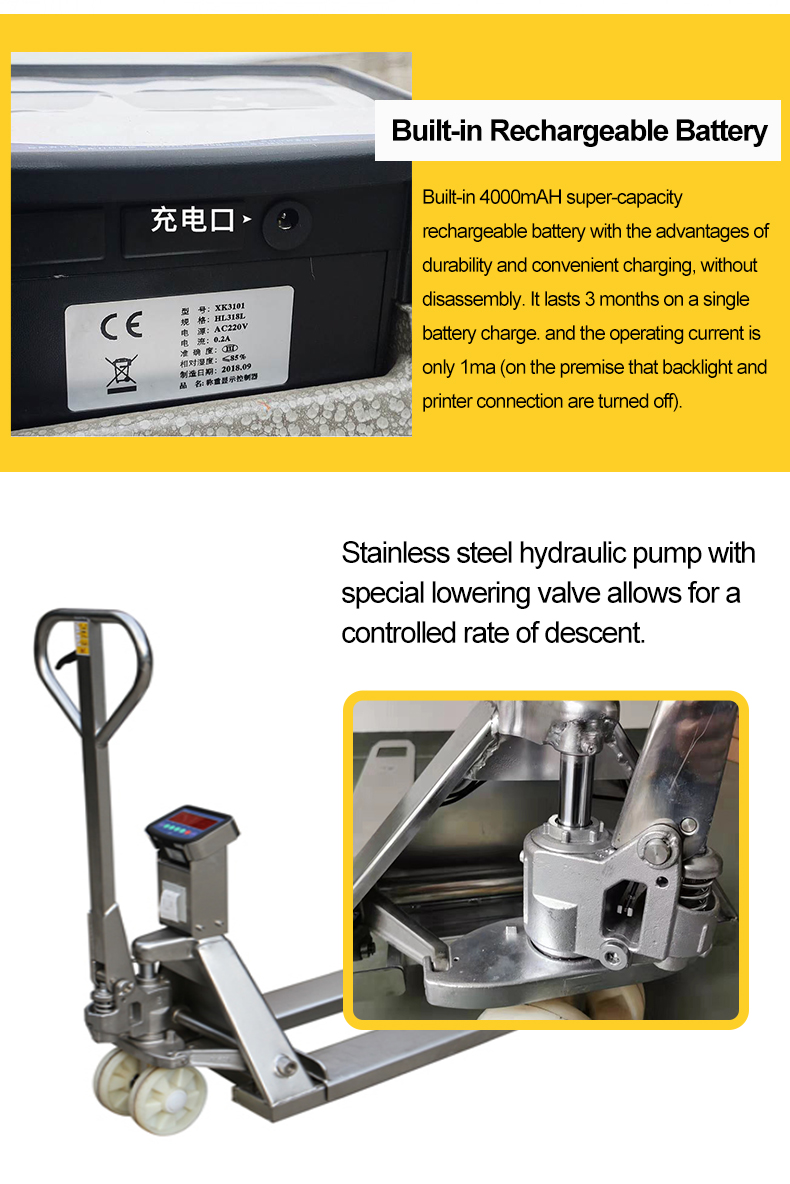

BatteryDC 6v/4.5ahDC 6v/4.5ahDC 6v/4.5ahDC 6v/4.5ah
Charger100V-240V100V-240V100V-240V100V-240V
N.Wkglbs106/108233/238122/124268/273

Stainless Steel Pallet Truck

Stainless Steel Pallet Truck

Stainless Steel Pallet Truck

Stainless Steel Pallet Truck

Stainless Steel Pallet Truck

Stainless Steel Pallet Truck

Stainless Steel Pallet Truck

Stainless Steel Pallet Truck
