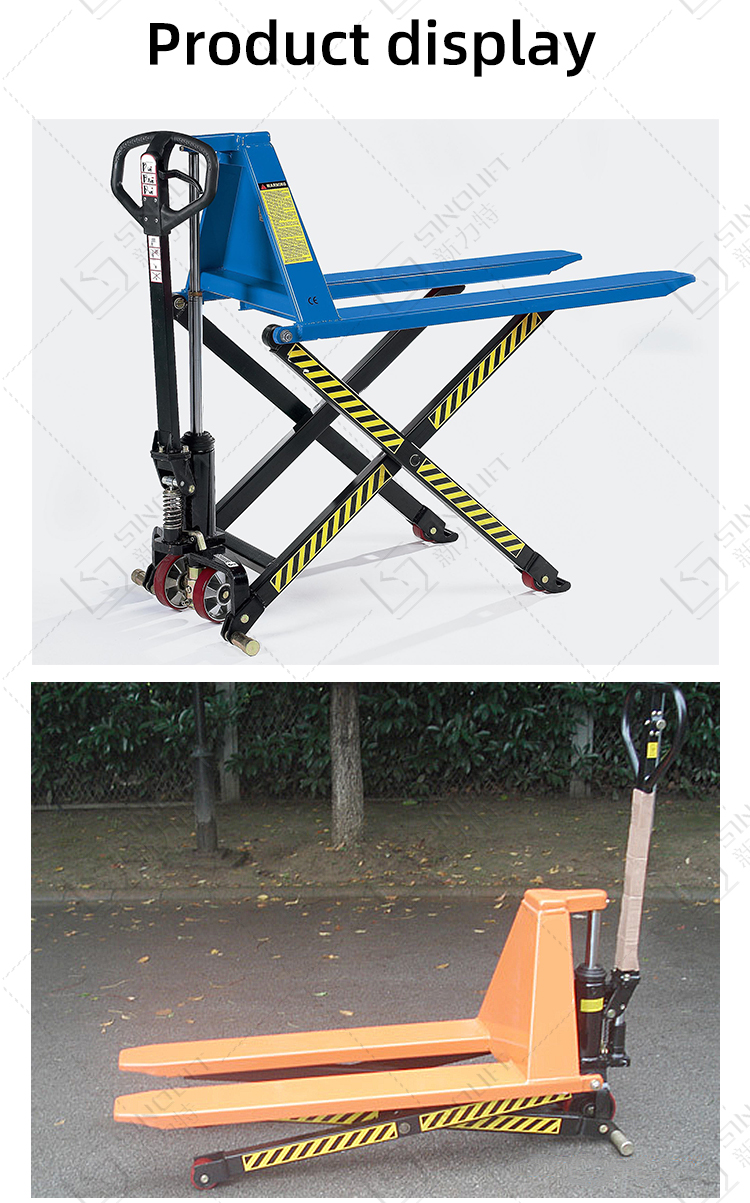

HLT Hand Scissors Pallet Jack

HLT

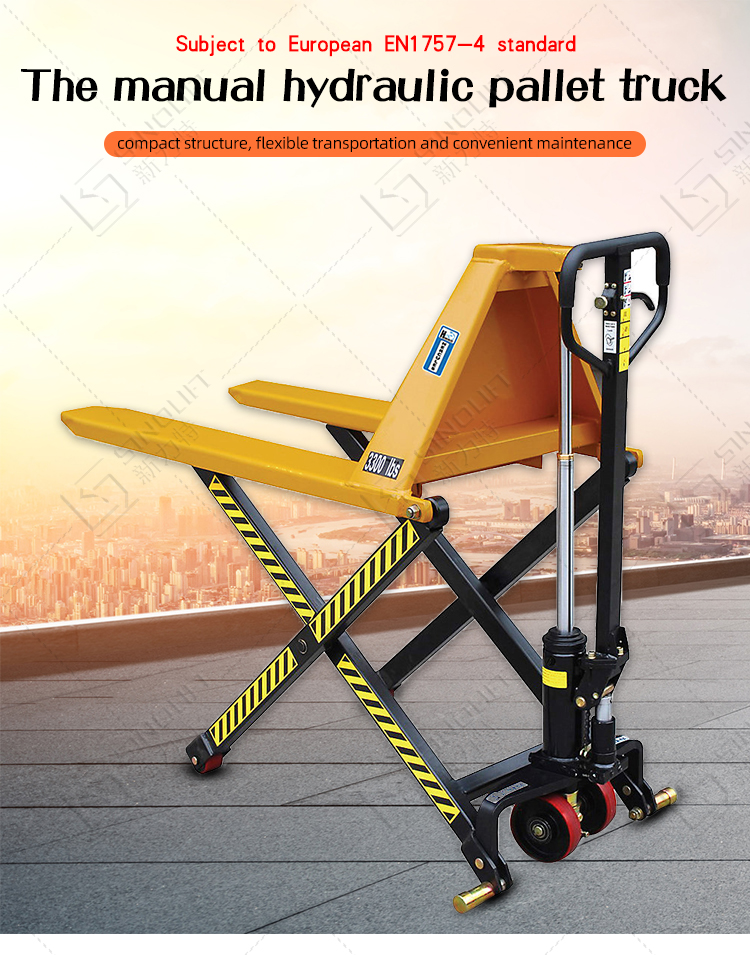

The manual hydraulic pallet truck is a power-free, pollution-free, manual hydraulic lifting transport vehicle. The machine has the advantages of compact structure, flexible transportation and convenient maintenance. It is designed for lifting, hoisting and handling of goods in factories, workshops, warehouses, stations, docks and other places.

Quantity:

Contact Now

add to cart

Name:HLT Hand Scissors Pallet Jack

Features of HLT Hand Scissors Pallet Jack:

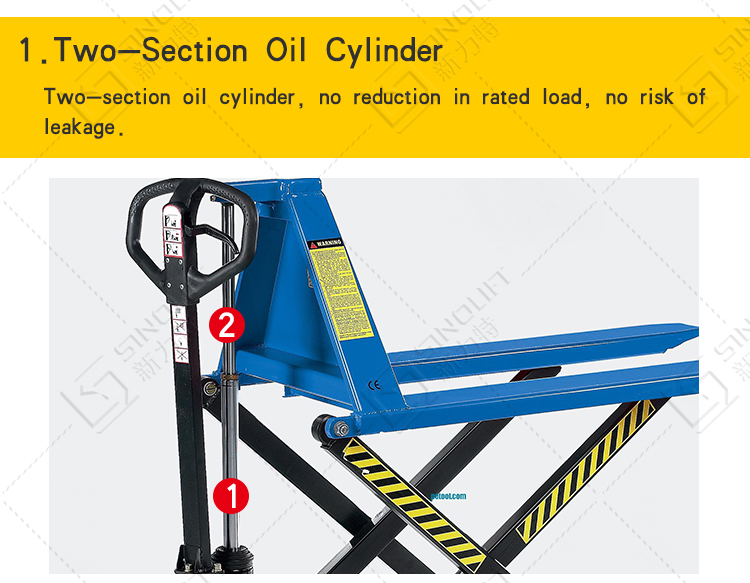

1.Two-Section Oil Cylinder

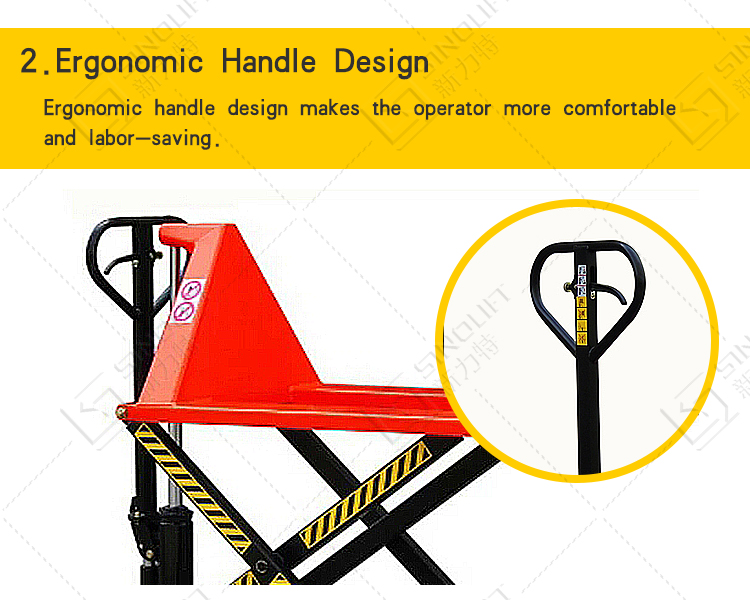

2.Ergonomic Handle Design

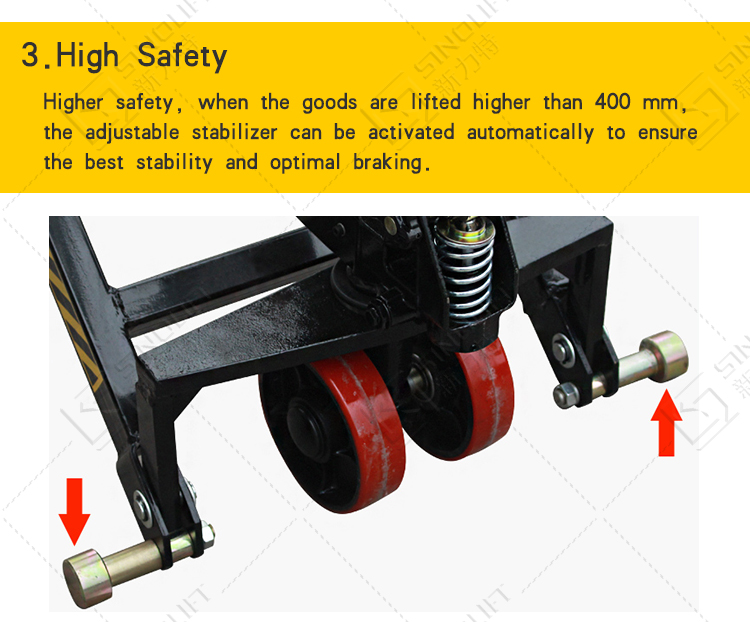

3.High Safety

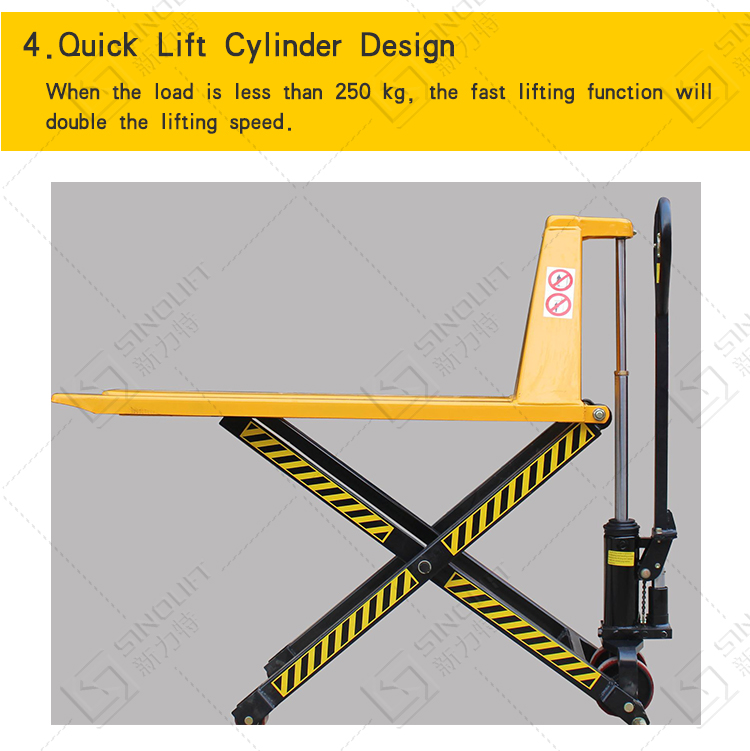

4.Quick Lift Cylinder Design

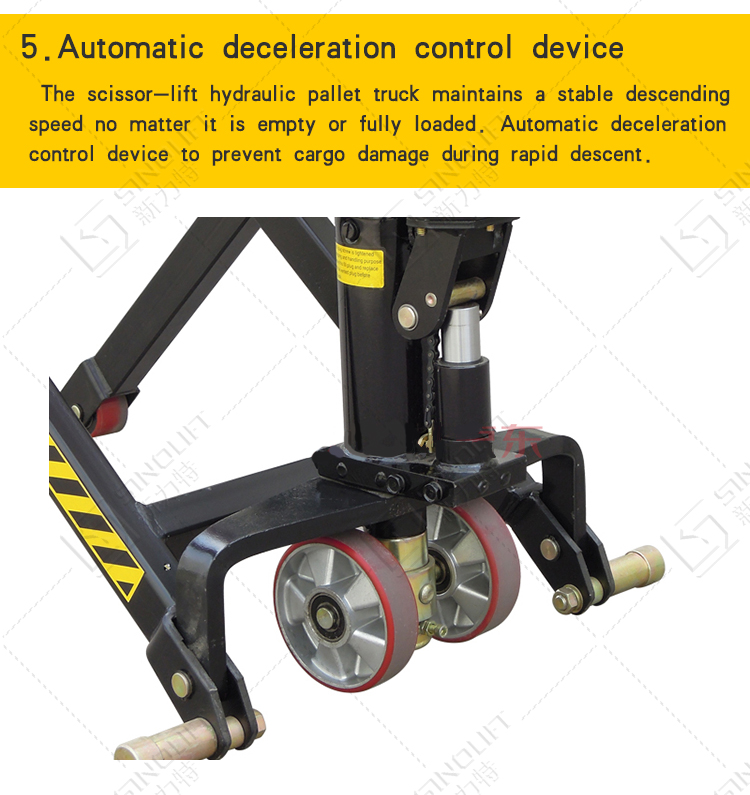

5.Automatic deceleration control device
6. Subject to European EN1757-4 standard
7.power-free, pollution-free
8.compact structure, flexible transportation

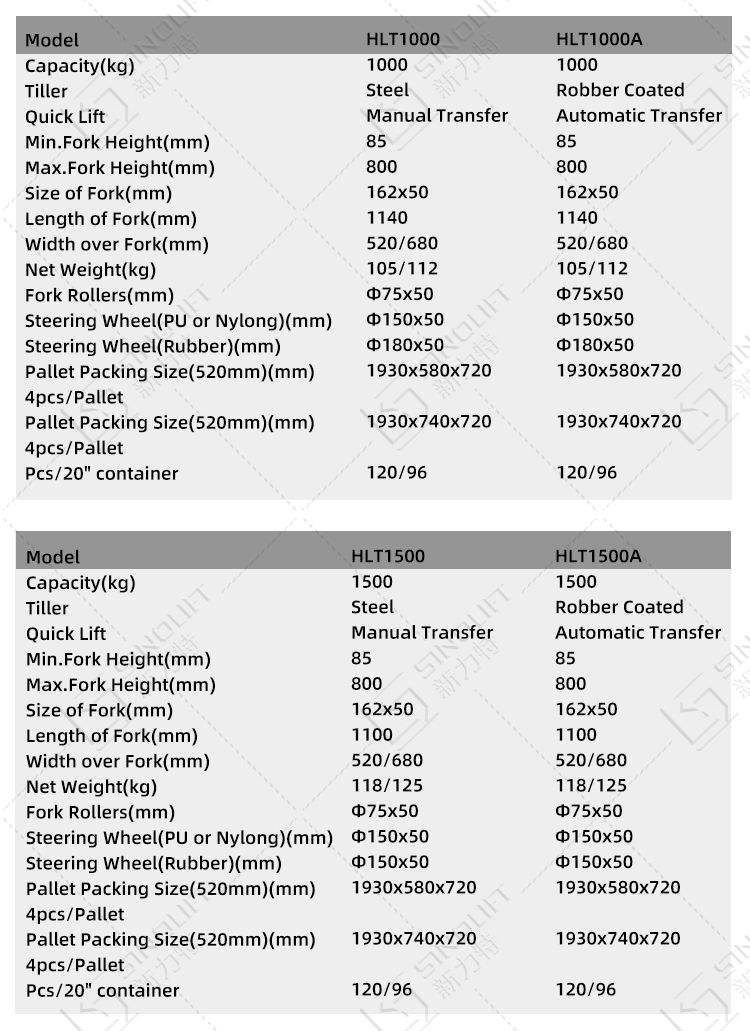

Specifications:

Model		HLT Hand Scissors Pallet Jack HLT1000	HLT Hand Scissors Pallet Jack HLT1500	HLT Hand Scissors Pallet Jack HLT1000A	HLT Hand Scissors Pallet Jack HLT1500A
Min. Height	kg	1000	1500	1000	1500
Tiller		Steel	Steel	Robber Coated	Robber Coated
Quick Lift		Manual Transfer	Manual Transfer	Automatic Transfer	Automatic Transfer
Min.Fork Height	mm	85	85	85	85
Max.Fork Height	mm	800	800	800	800
Size of Fork	mm	162×50	162×50	162×50	162×50
Length of Fork L	mm	1140	1100	1140	1100
Width over Fork	mm	520/680	520/680	520/680	520/680
Net Weight	kg	105/112	118/125	105/112	118/125
Fork Rollers	mm	Φ75×50	Φ75×50	Φ75×50	Φ75×50
Steering Wheel (PU or Nylon）	mm	Φ150×50	Φ150×50	Φ150×50	Φ150×50
Steering Wheel (Rubber)	mm	Φ180×50	Φ150×50	Φ180×50	Φ150×50
Pallet Packing Size (520mm）4pcs/Pallet	mm	1930×580×720	1930×580×720	1930×580×720	1930×580×720
Pallet Packing Size (680mm）4pcs/Pallet	mm	1930×740×720	1930×740×720	1930×740×720	1930×740×720
Pcs/20"container		120/96	120/96	120/96	120/96
