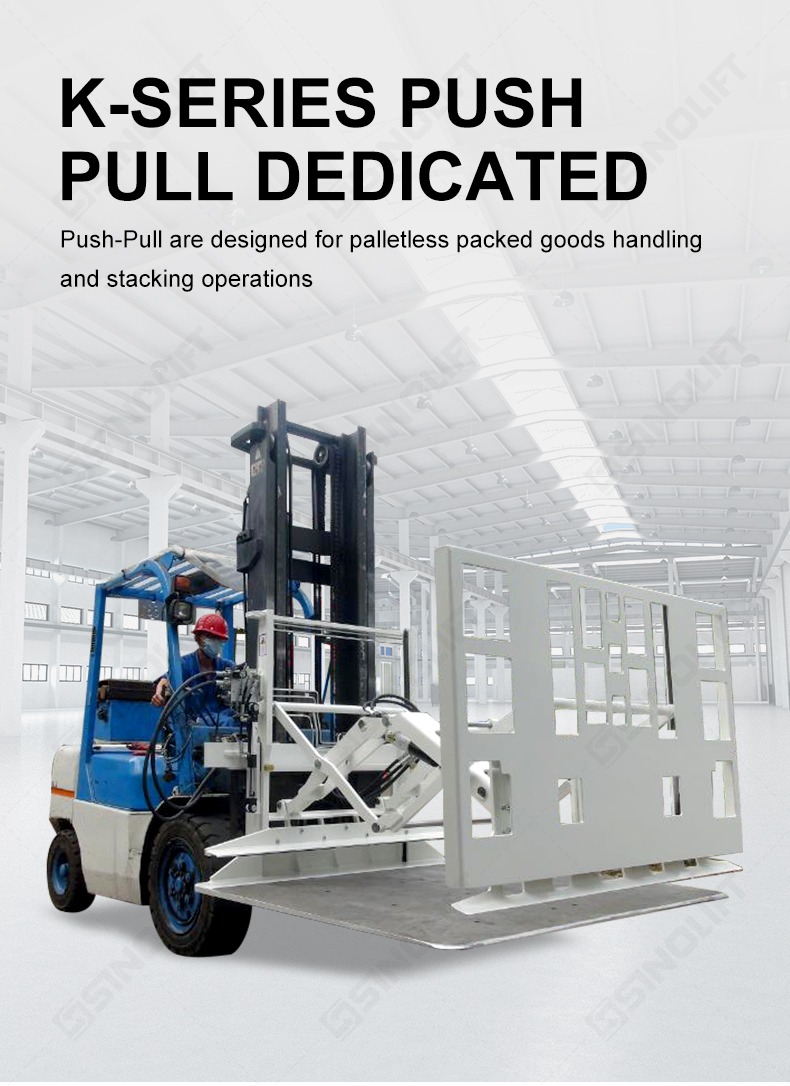

K-SERIES PUSH PULL DEDICATED

K-SERIES PUSH PULL DEDICATED

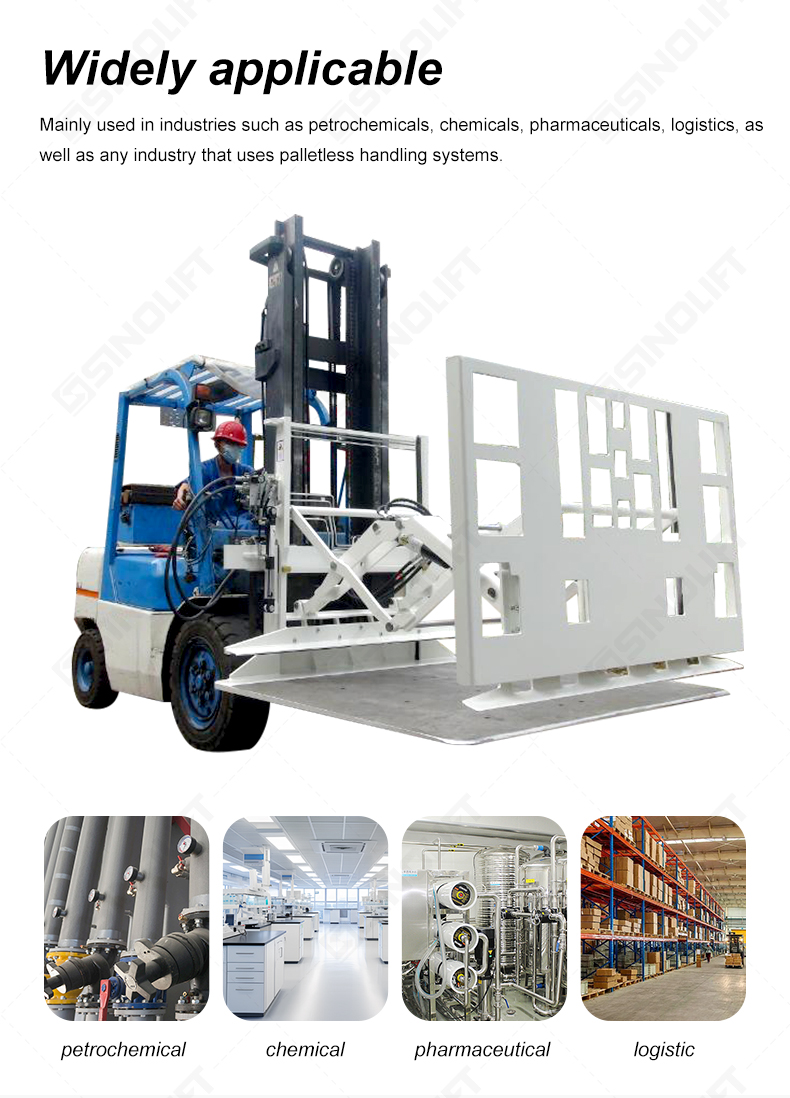

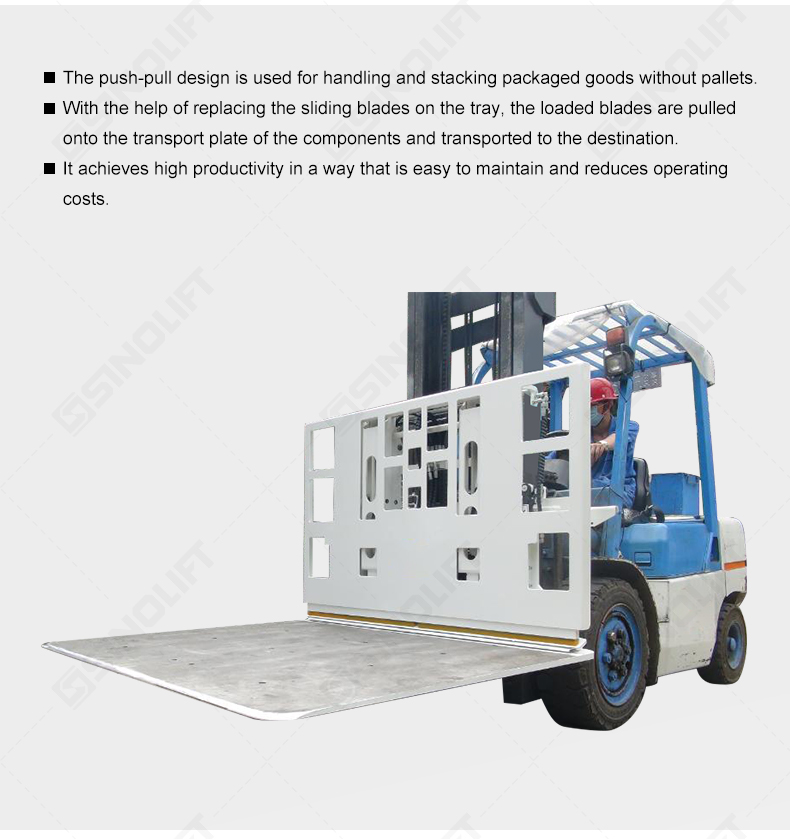

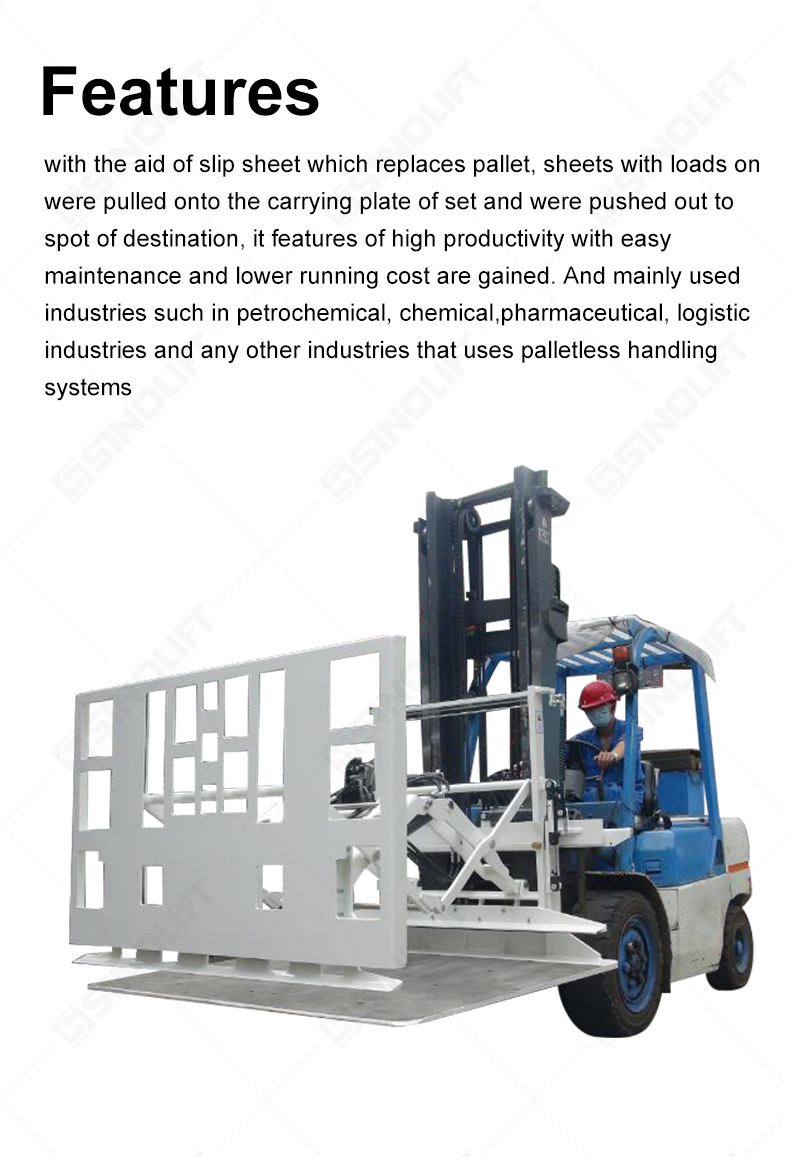

The push-pull design is used for handling and stacking packaged goods without pallets. With the help of replacing the sliding blades on the tray, the loaded blades are pulled onto the transport plate of the components and transported to the destination. It achieves high productivity in a way that is easy to maintain and reduces operating costs. Mainly used in industries such as petrochemicals, chemicals, pharmaceuticals, logistics, as well as any industry that uses palletless handling systems.
Quantity
Contact Now
add to cart
The push-pull design is used for handling and stacking packaged goods without pallets. With the help of replacing the sliding blades on the tray, the loaded blades are pulled onto the transport plate of the components and transported to the destination. It achieves high productivity in a way that is easy to maintain and reduces operating costs. Mainly used in industries such as petrochemicals, chemicals, pharmaceuticals, logistics, as well as any industry that uses palletless handling systems.

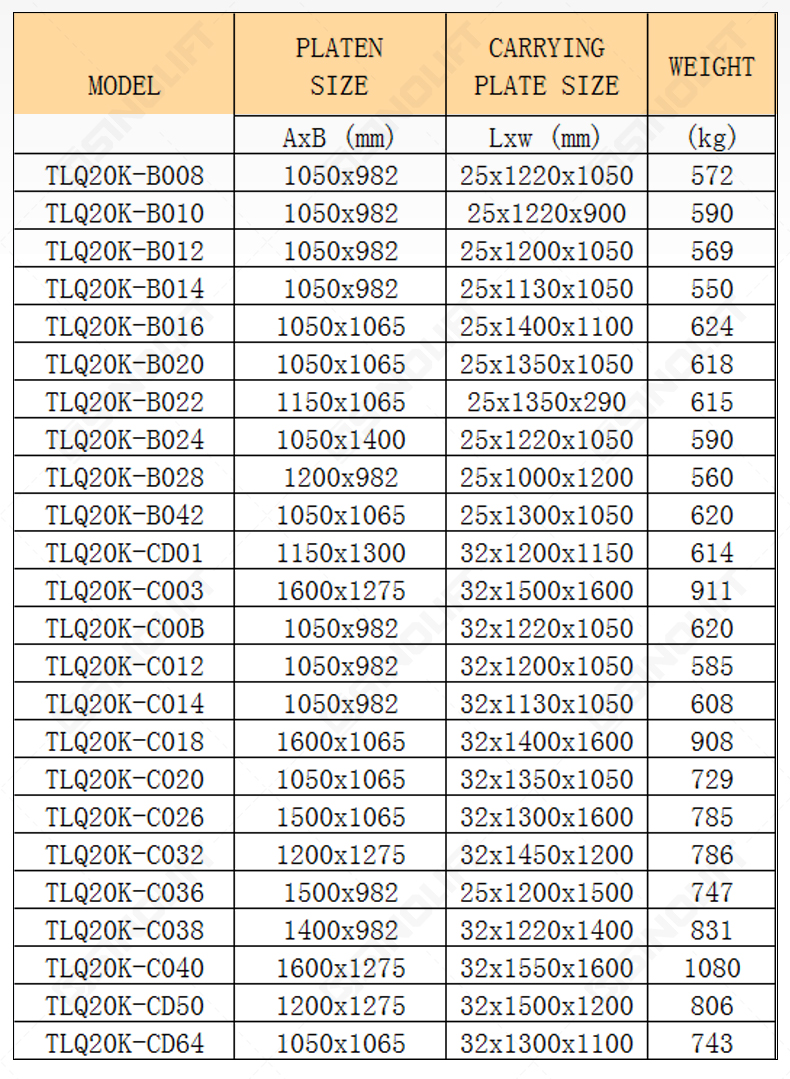

Specifications
MODEL
PLATEN
SIZE
CARRYING
PLATE SIZE
WEIGHT
AxB (mm)Lxw (mm)(kg)
TLQ20K-B0081050x98225x1220x1050572
TLQ20K-B0101050x98225x1220x900590
TLQ20K-B0121050x98225x1200x1050569
TLQ20K-B0141050x98225x1130x1050550
TLQ20K-B0161050x106525x1400x1100624
TLQ20K-B0201050x106525x1350x1050618
TLQ20K-B0221150x106525x1350x290615
TLQ20K-B0241050x140025x1220x1050590
TLQ20K-B0281200x98225x1000x1200560
TLQ20K-B0421050x106525x1300x1050620
TLQ20K-CD011150x130032x1200x1150614
TLQ20K-C0031600x127532x1500x1600911
TLQ20K-C00B1050x98232x1220x1050620
TLQ20K-C0121050x98232x1200x1050585
TLQ20K-C0141050x98232x1130x1050608
TLQ20K-C0181600x106532x1400x1600908
TLQ20K-C0201050x106532x1350x1050729
TLQ20K-C0261500x106532x1300x1600785
TLQ20K-C0321200x127532x1450x1200786
TLQ20K-C0361500x98225x1200x1500747
TLQ20K-C0381400x98232x1220x1400831
TLQ20K-C0401600x127532x1550x16001080
TLQ20K-CD501200x127532x1500x1200806
TLQ20K-CD641050x106532x1300x1100743

PUSH PULL

PUSH PULL

PUSH PULL

PUSH PULL

PUSH PULL

PUSH PULL

PUSH PULL

PUSH PULL
