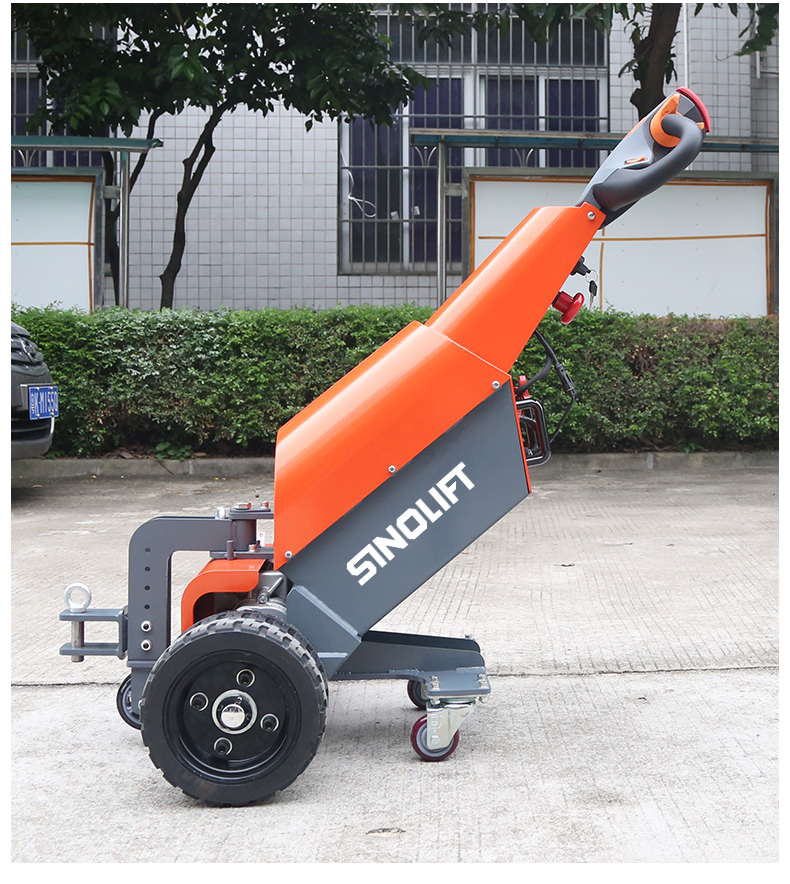

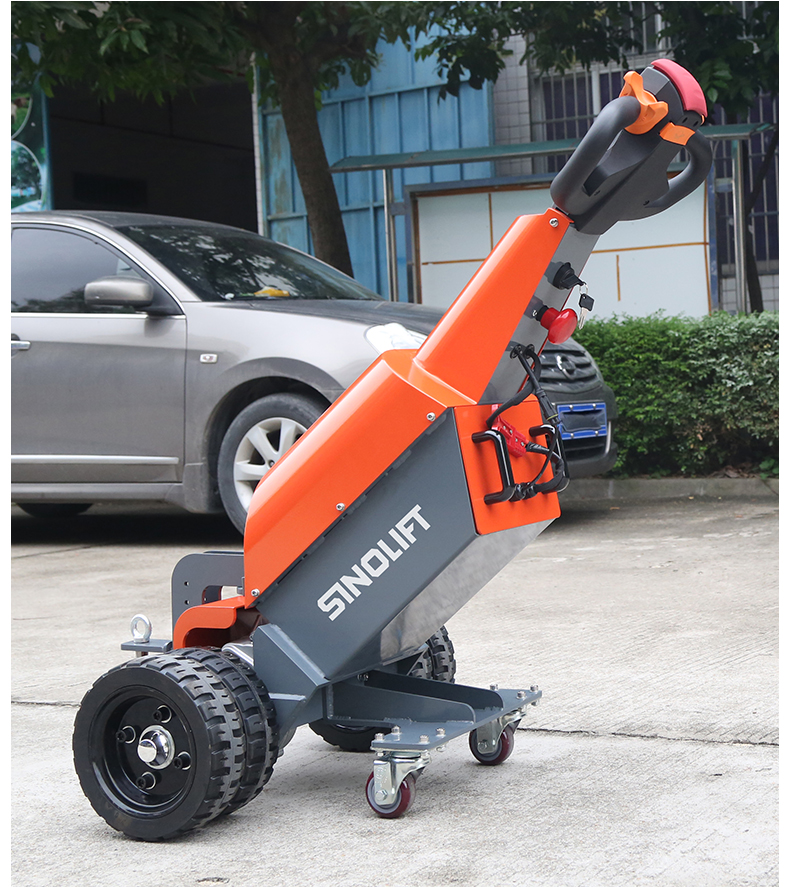

ML100 ML150 Pedestrian Tow Tugger

ML100 ML150

Unique ergonomic handle design adjusts to a wide range of user heights.

Quantity

Contact Now

add to cart

Unique ergonomic handle design adjusts to a wide range of user heights.

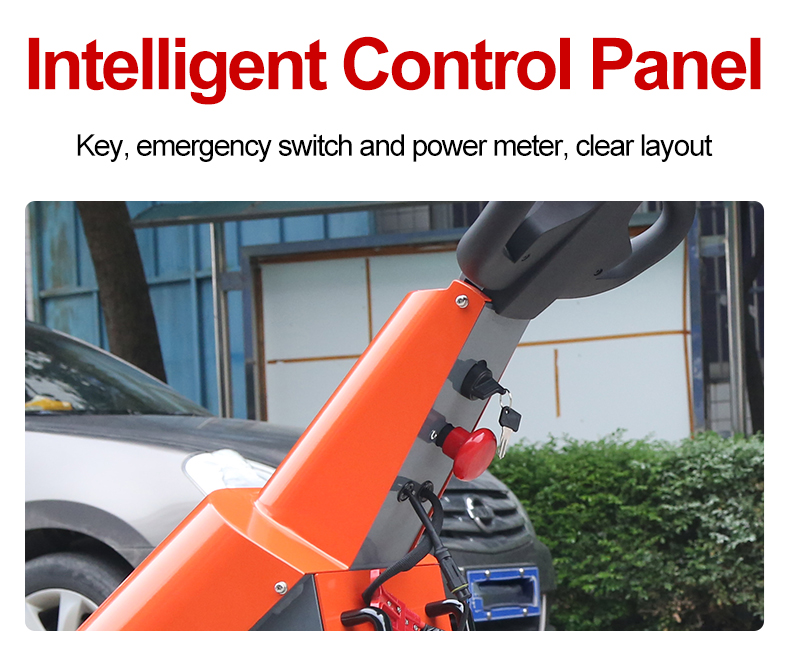

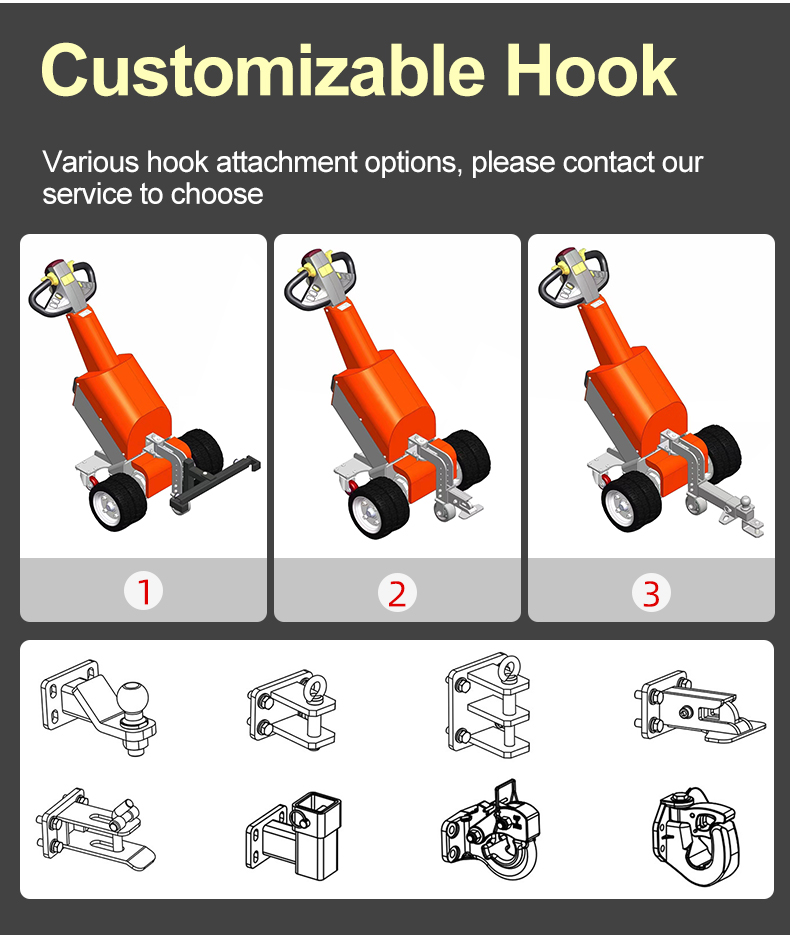

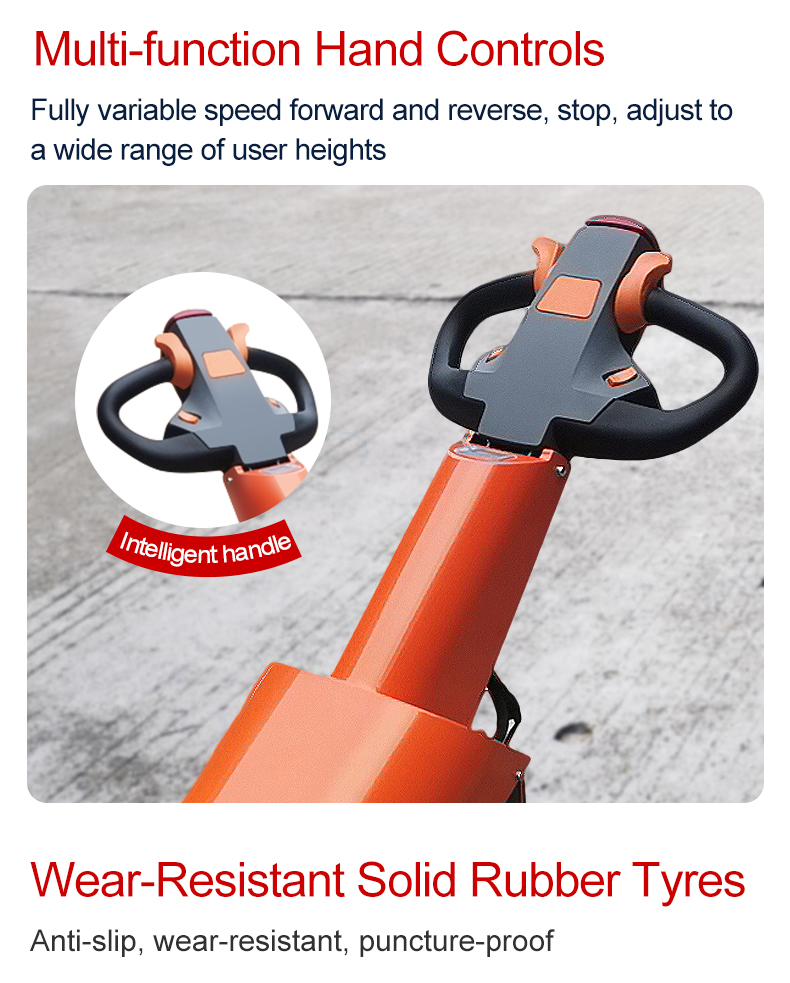

Award winning control design, provides the user with variable speed forward and reverse control from 0 to 4 km per hour, power on/off switch, color battery charge level indicator, automatic sleep mode to conserve battery power when not in use, emergency stop button, and horn. Front mounting plate accommodates a wide range of standard and custom hitches.

1.2	Model		ML100	ML150
1.3	Power supply		Electric	Electric
1.4	Operating type		Walking style	Walking style
1.5	Max traction weight	kg	1000	1500
1.6	Rated pulling force	N	300	500
2.1	Truck weight（with battery）	kg	105	115
2.2	Battery weight	kg	15	15
3.1	Tire type,Drive wheel/Supporting wheel		Rubber/PU	Rubber/PU

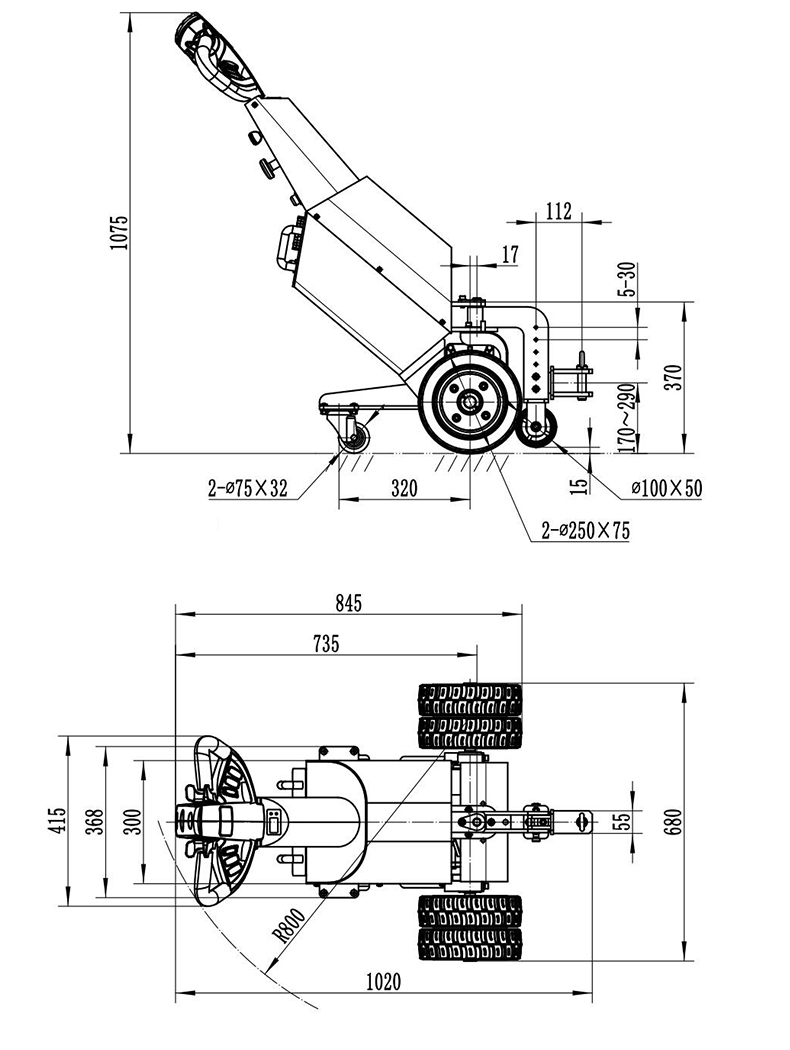

4.1	Overall height	mm	1075	1075
4.2	Height of tiller in drive position	mm	1010	1010

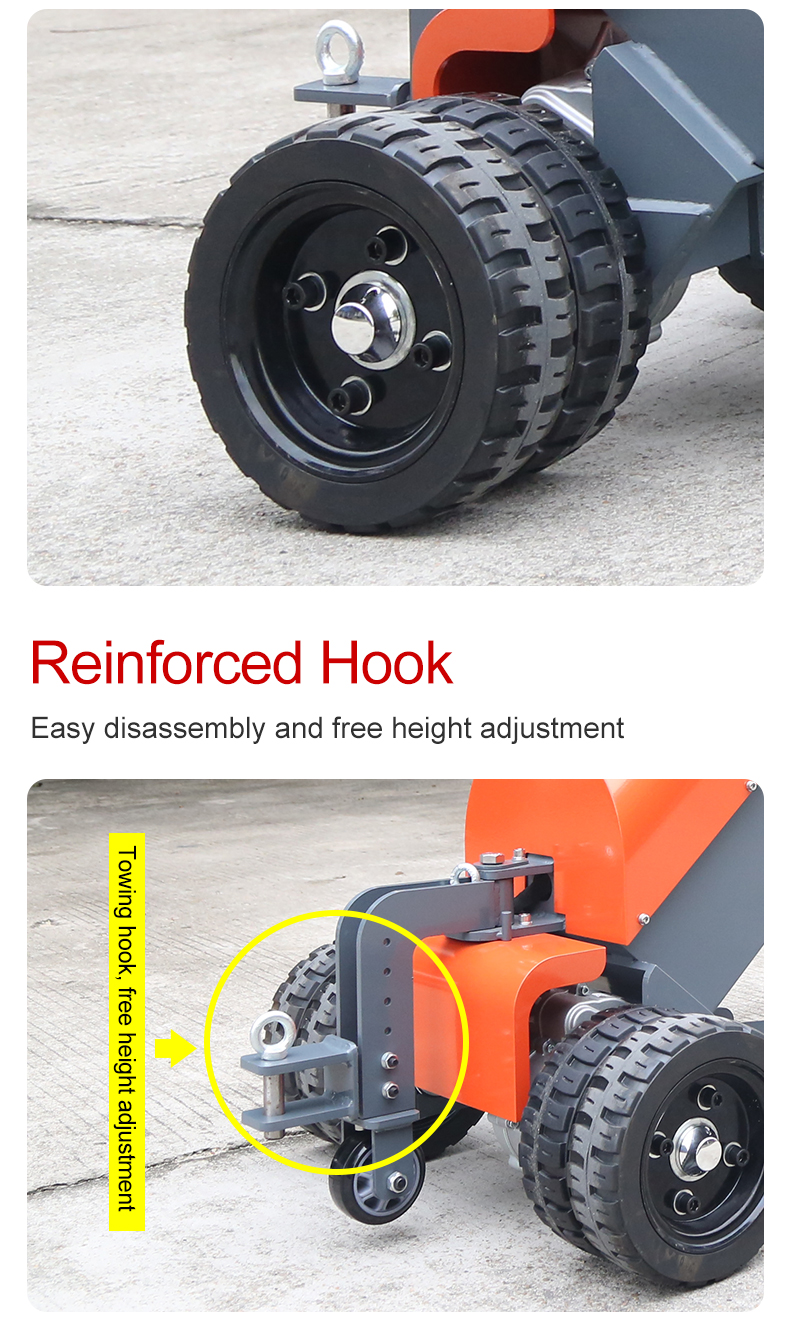

4.3	Hook height	mm	170/290	170/290
4.4	Overall length	mm	1080	1080
4.5	Overall width	mm	510	680
4.6	Ground clearance	mm	100	100
4.7	Turning radius	mm	780	800
5.1	Drive speed load/unload	km/h	3～4	3～4
5.2	Rated pulling force	N	300	500
5.3	Max pulling force	N	500	750
5.4	Max gradeability load/unload	%	5	5
6.1	Drive motor rating S2 60min	kw	0.8	1.0
6.2	Charger (external)	V/A	24/10	24/10
