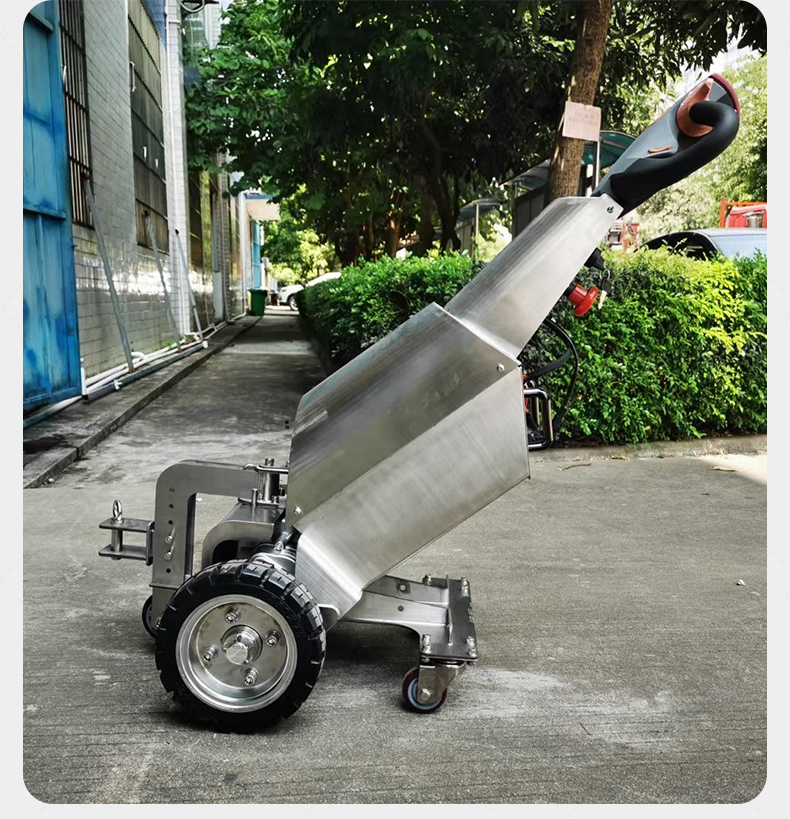

ML100S ML150S Stainless steel towing tugger

ML100S ML150S

Unique ergonomic handle design adjusts to a wide range of user heights.

Quantity

Contact Now

add to cart

Name

ML100S ML150S Stainless steel towing tugger

Product Description

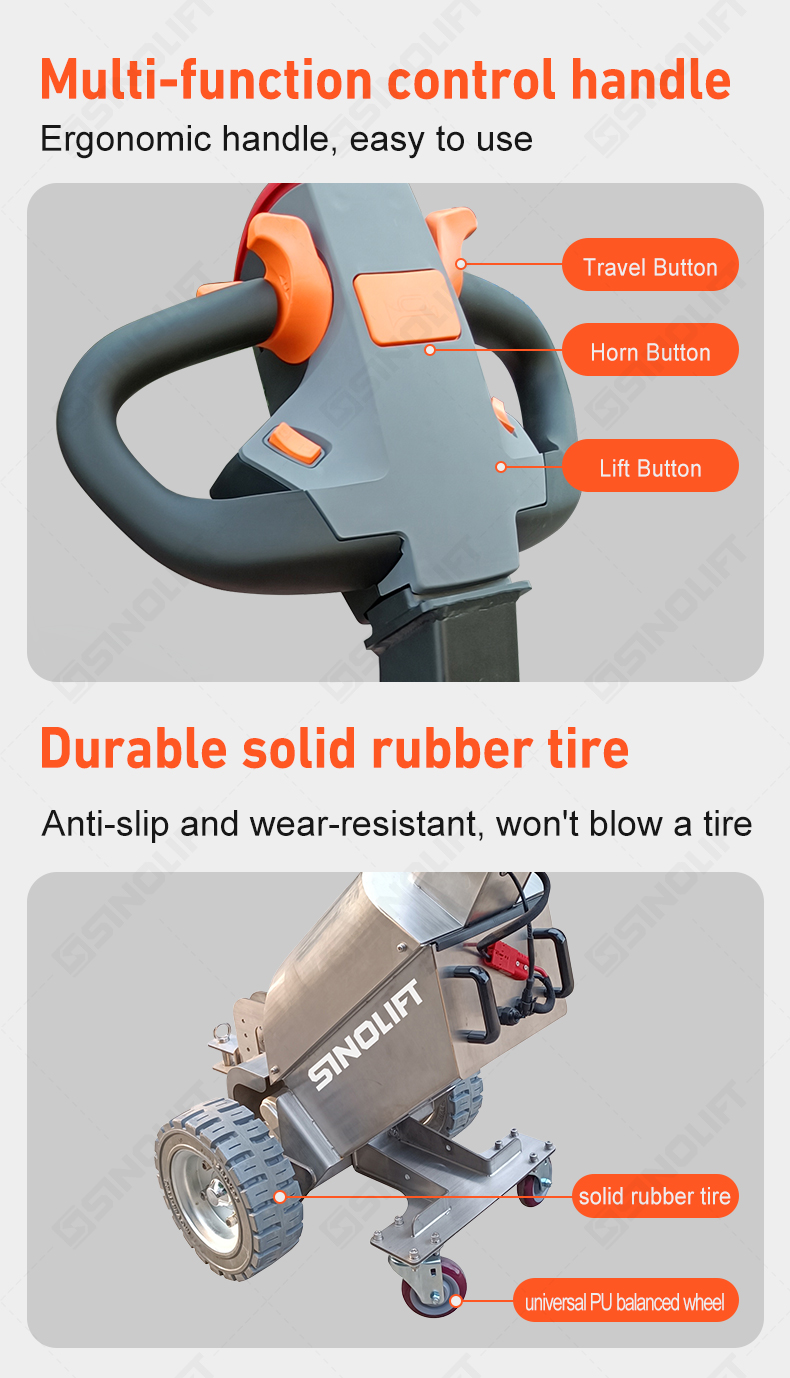

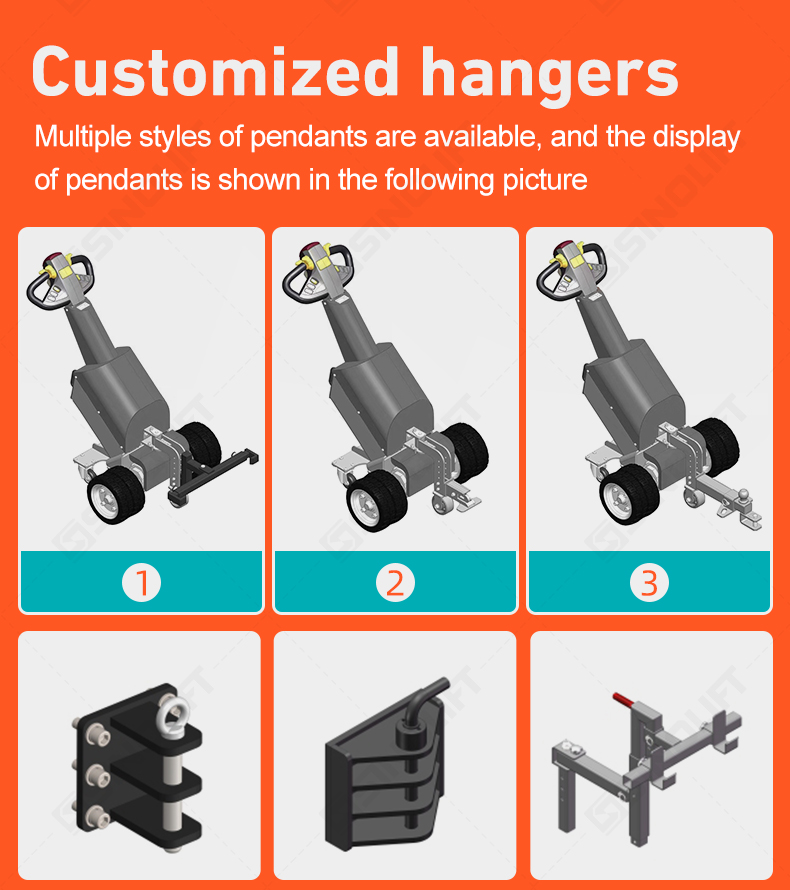

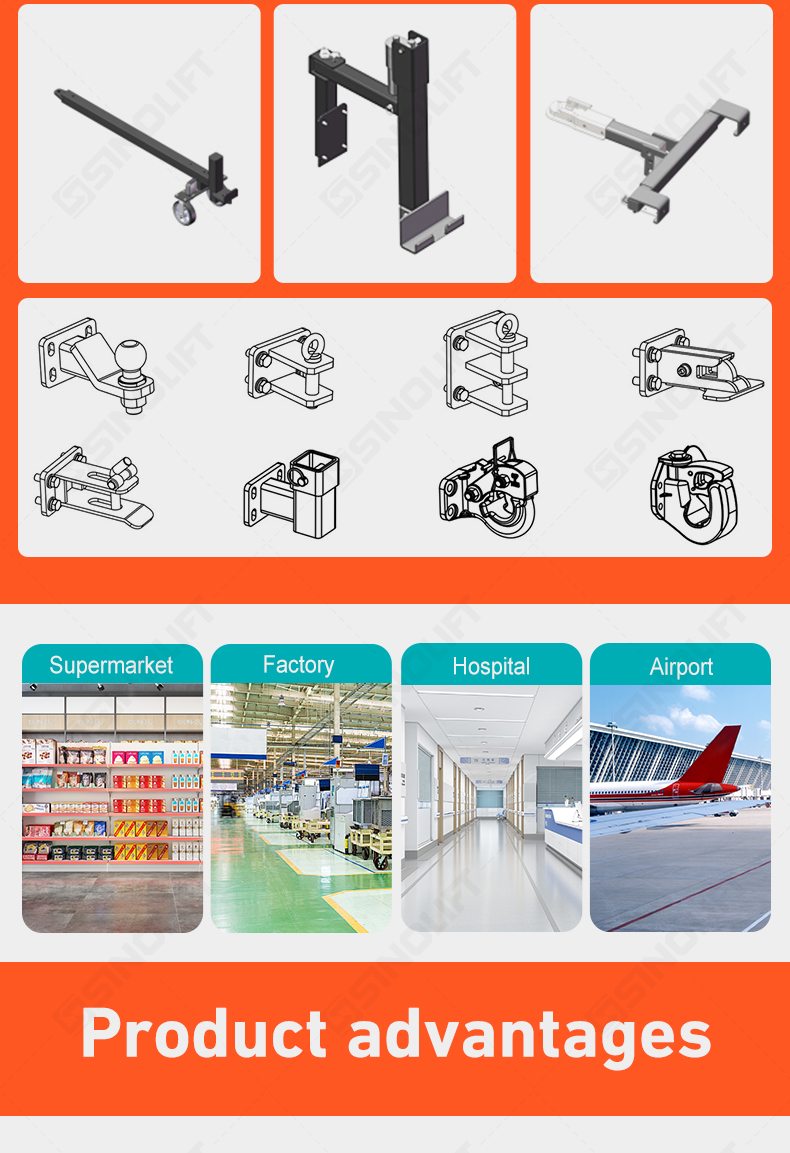

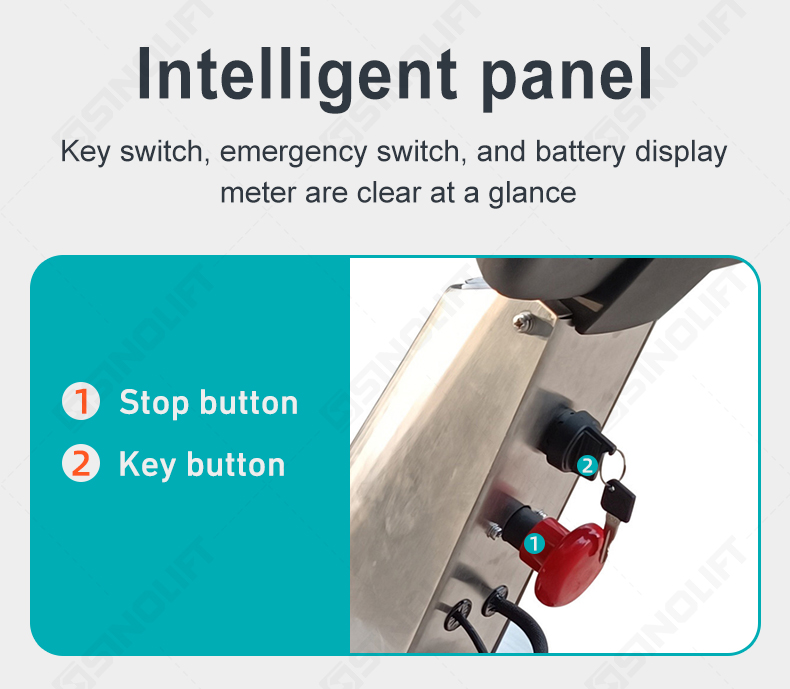

Unique ergonomic handle design adjusts to a wide range of user heights.Award winning control design, provides the user with variable speed forward and reverse control from 0 to 4 km per hour, power on/off switch, color battery charge level indicator, automatic sleep mode to conserve battery power when not in use, emergency stop button, and horn. Front mounting plate accommodates a wide range of standard and custom hitches.

Parameters

Operating type		Walking style	Walking style

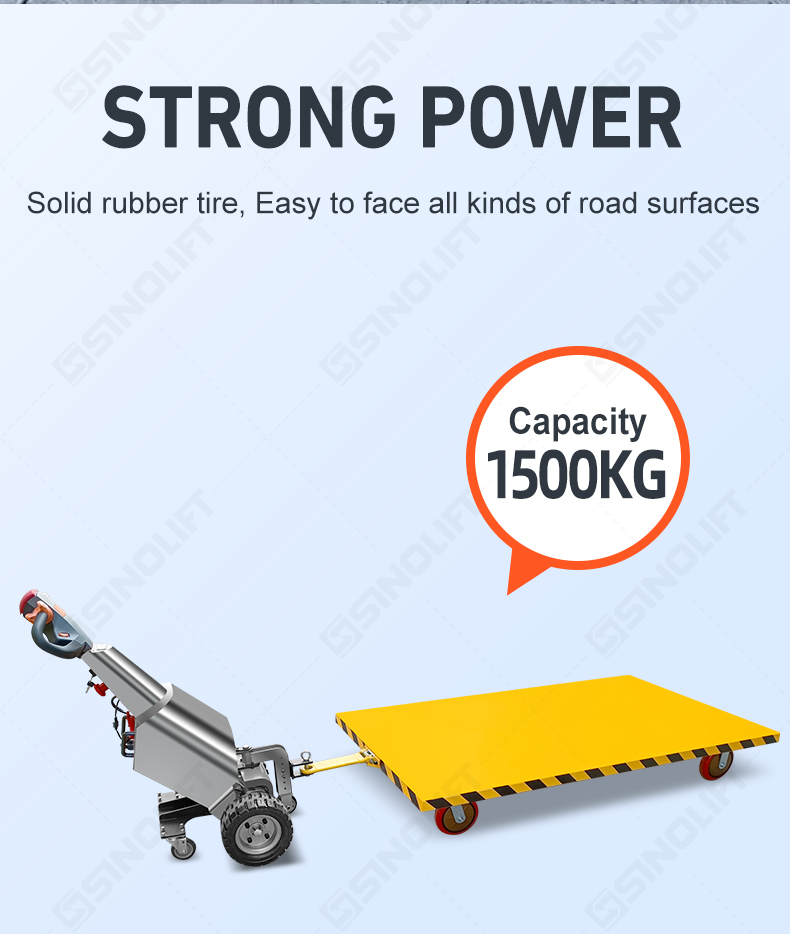

Max traction weight	kg	1000	1500
Rated pulling force	N	300	500
Truck weight（with battery）	kg	105	115
Battery weight	kg	15	15
Tire type,Drive wheel/Supporting wheel		Rubber/PU	Rubber/PU
Overall height	mm	1075	1075
Height of tiller in drive position	mm	1010	1010
Hook height	mm	170/290	170/290
Overall length	mm	1080	1080
Overall width	mm	510	680
Ground clearance	mm	100	100
Turning radius	mm	780	800
Drive speed load/unload	km/h	3～4	3～4
Rated pulling force	N	300	500
Max pulling force	N	500	750
Max gradeability load/unload	%	5	5
Drive motor rating S2 60min	kw	0.8	1
Charger (external)	V/A	24/10	24/10
