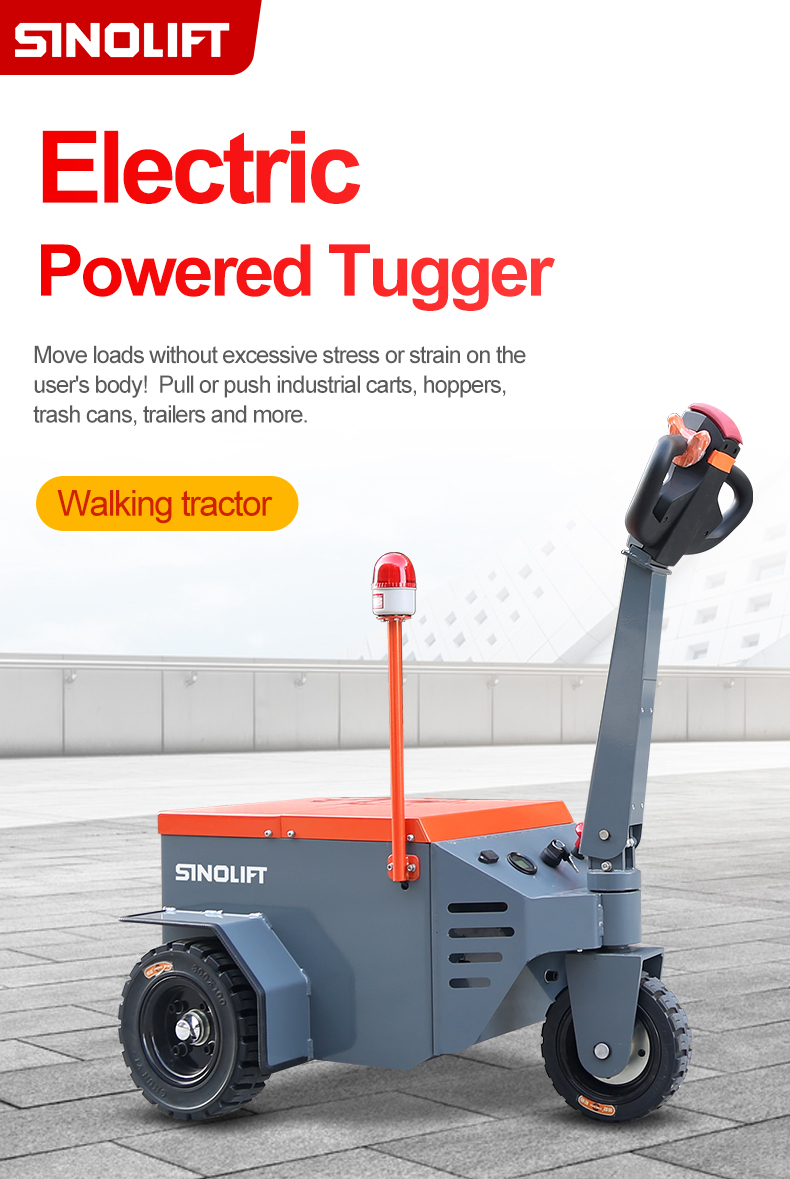

ML200A ML350A ML450A Electric Tow Tugger

ML200A ML350A ML450A Electric Tow Tugger

ML200A

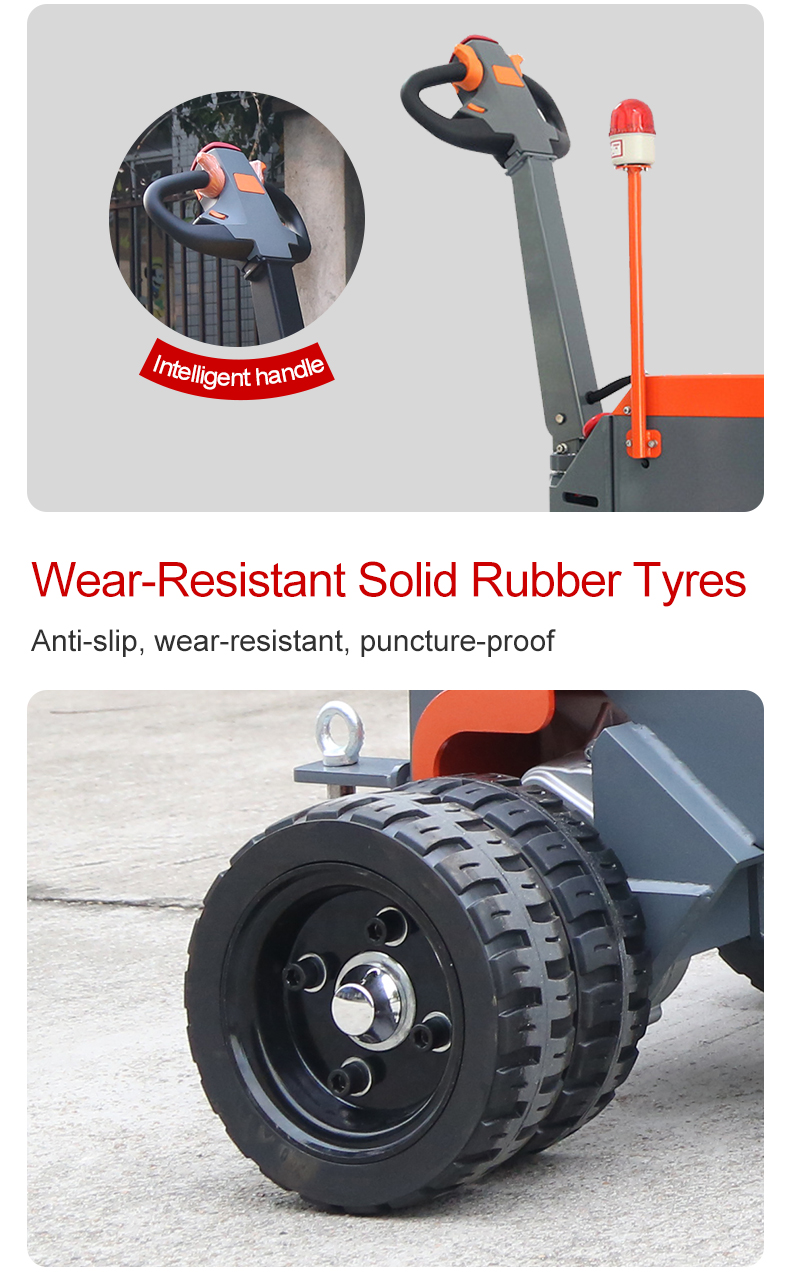

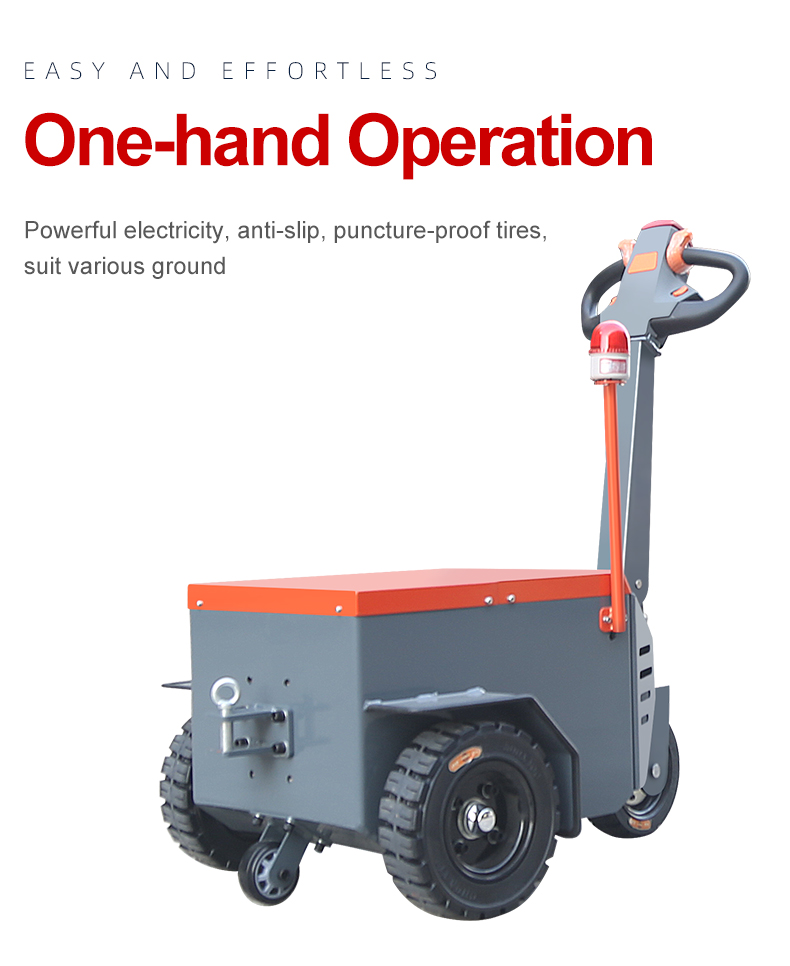

As the ML TOW is a self-weighted unit, it is the ideal electric tow tug for applications where weight transfer is not possible and with the addition of anti-slip, puncture-proof tires and supporting castors, operator safety is maintained at all times.

Quantity

Contact Now

add to cart

As the ML TOW is a self-weighted unit, it is the ideal electric tow tug for applications where weight transfer is not possible and with the addition of anti-slip, puncture-proof tires and supporting castors, operator safety is maintained at all times.

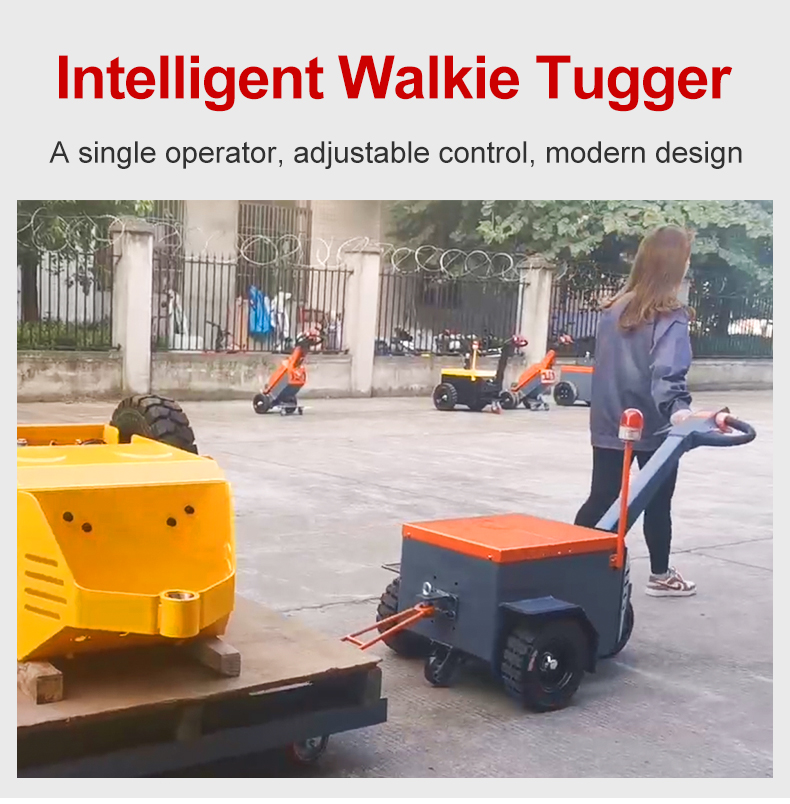

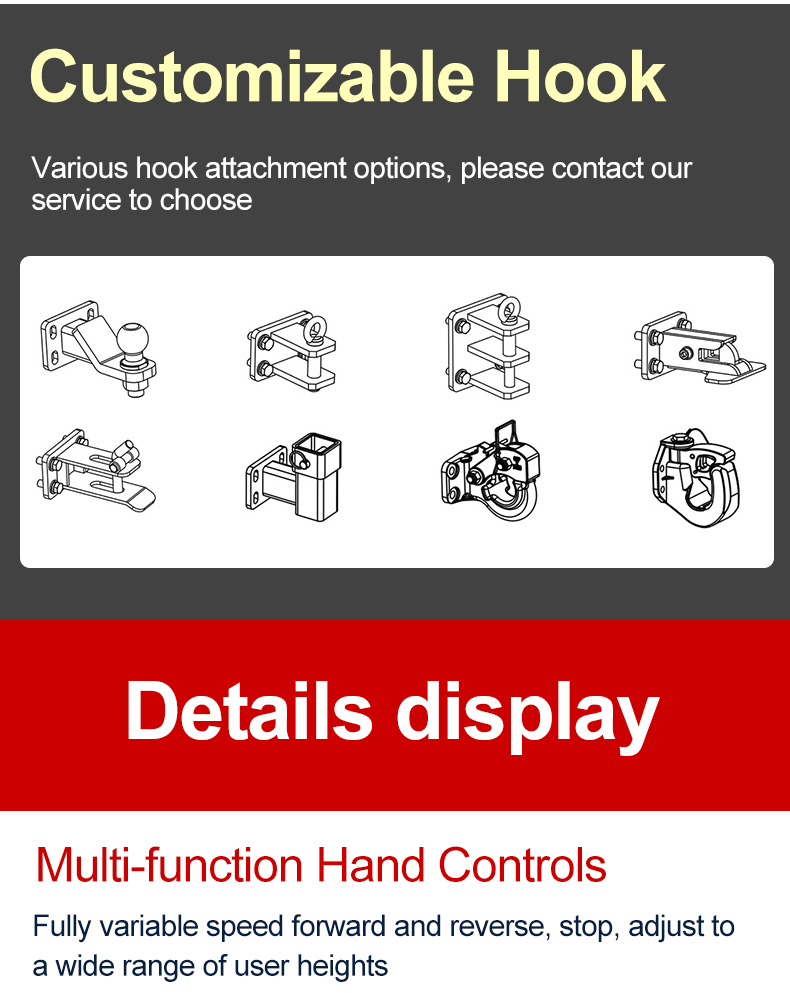

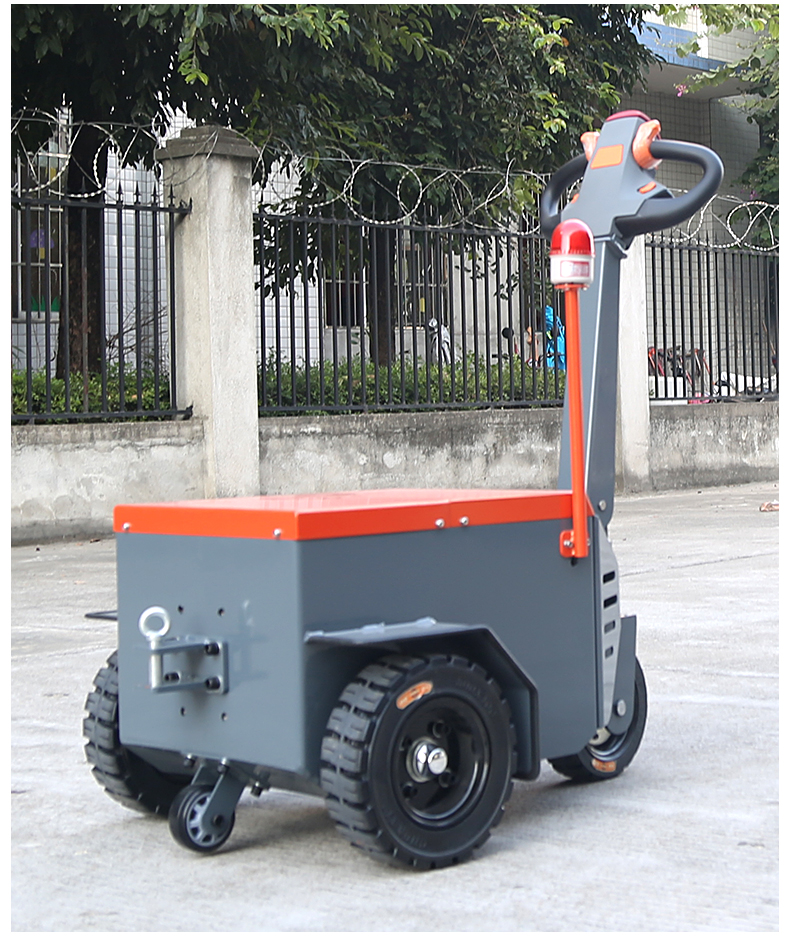

The ML TOW is a versatile and compact electric tow tugger, which can be fully customized and built to perform at its best in your workplace environment. Various couplings, additional safety features and machine options are available.

Model		ML200A	ML350A	ML450A
Power supply		Electric	Electric	Electric
Operating type		Walking style	Walking style	Walking style
Max traction weight	kg	2000	3500	4500
Rated pulling force	N	700	1100	1300
Truck weight（with battery）	kg	230	350	390

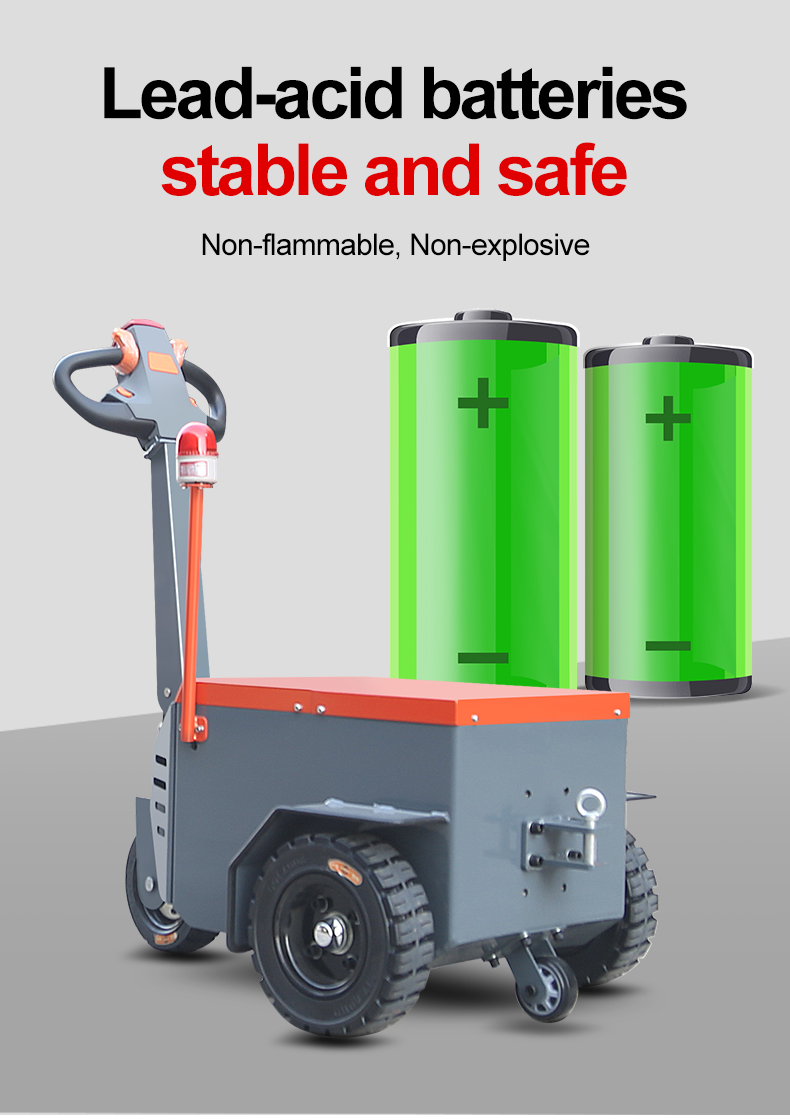

Battery weight	kg	54	70	70
Tire type,Drive wheel/Bearing wheel		Rubber/PU	Rubber/PU	Rubber/PU

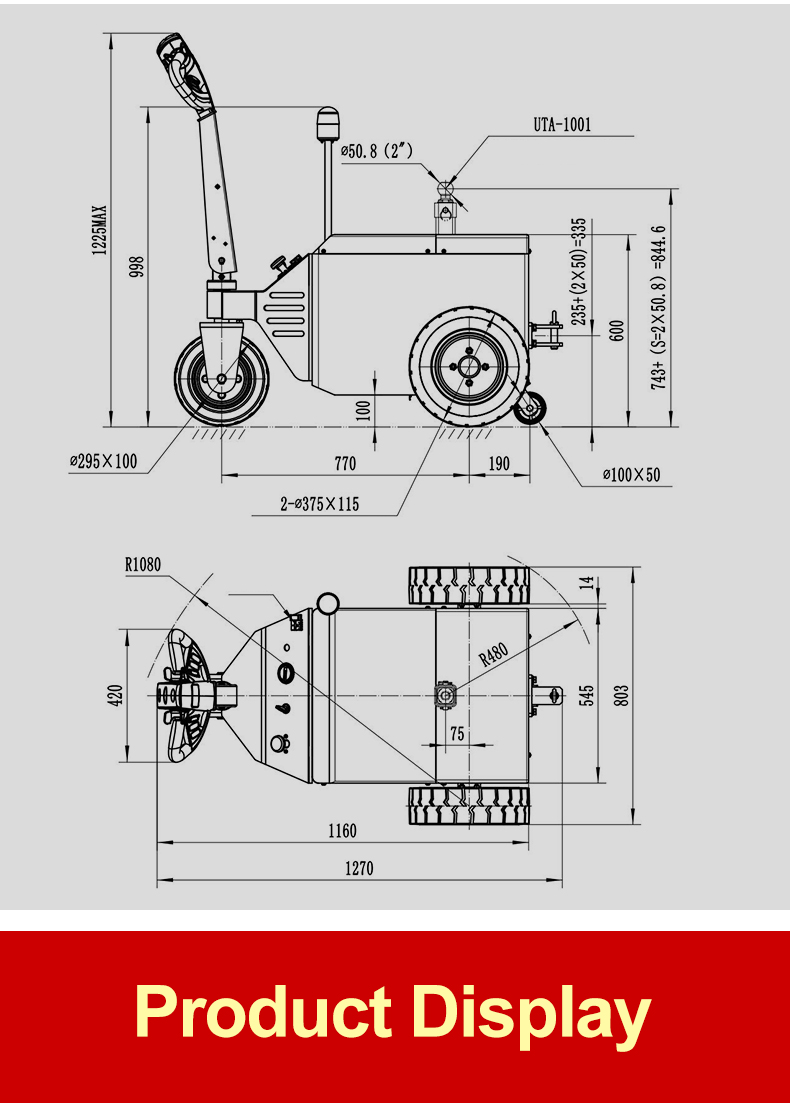

Overall height	mm	1190	1225	1225
Height of tiller in drive position	mm	900/1190	950/1225	950/1225

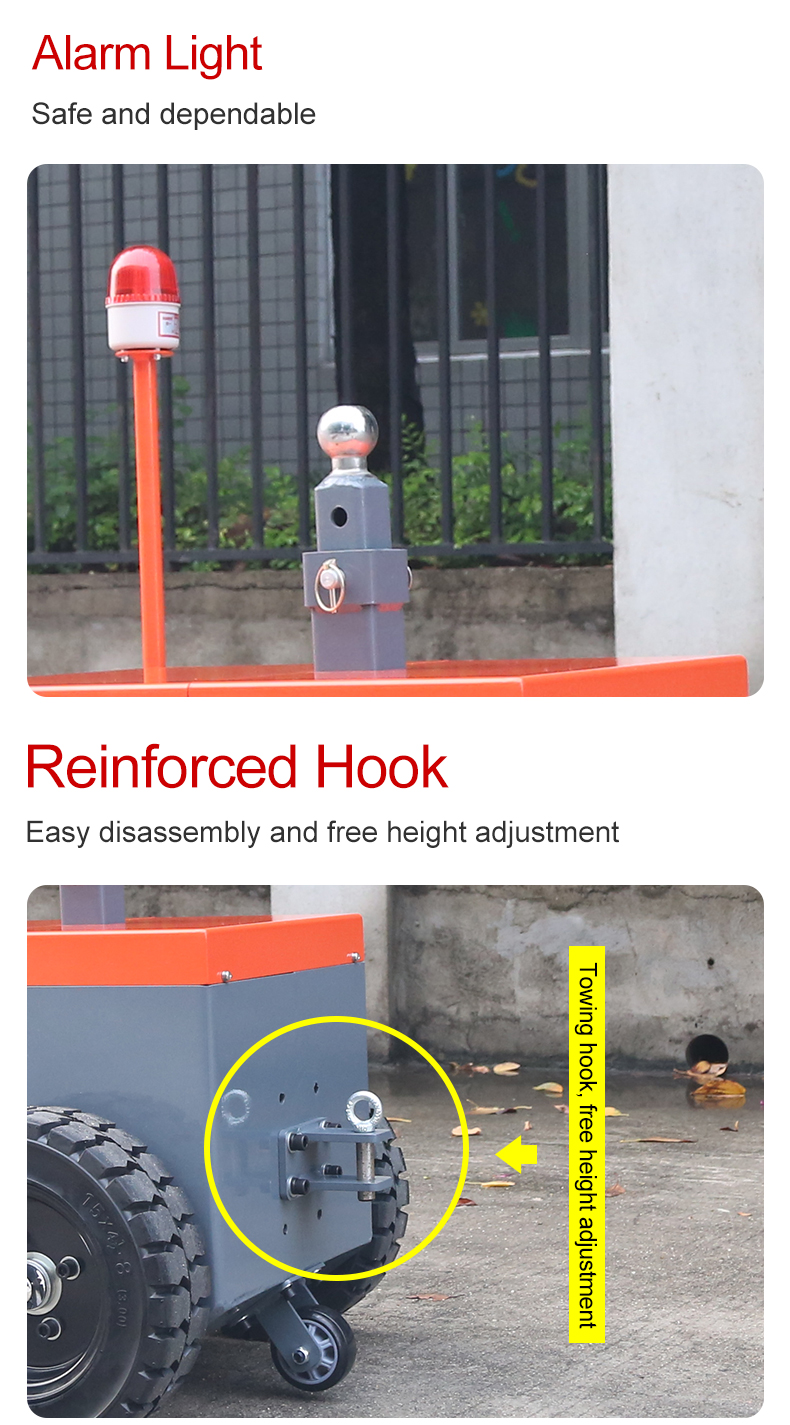

Hook height	mm	240/340	235/285/335	235/285/335
Overall length	mm	1165	1270	1270
Overall width	mm	695	803	803
Ground clearance	mm	100	100	100
Turning radius	mm	850	1080	1080
Drive speed load/unload	km/h	4～5	2.5～3.5	2～3
Rated pulling force	N	700	1100	1300
Max pulling force	N	900	1500	1800
Max gradeability load/unload	%	10	10	5
Drive motor rating S2 60min	kw	1.2	1.5	1.8
Charger (external)	V/A	24/10	24/15	24/15
