ML600 ML800 ML1000
These electric tuggers are normally used for heavier load applications or heavy-use applications.  This may include heavy loads, industrial applications, trailer towing, aircraft towing, and similar electric power tugger needs.
Quantity
Contact Now
add to cart

These electric tuggers are normally used for heavier load applications or heavy-use applications.  This may include heavy loads, industrial applications, trailer towing, aircraft towing, and similar electric power tugger needs.

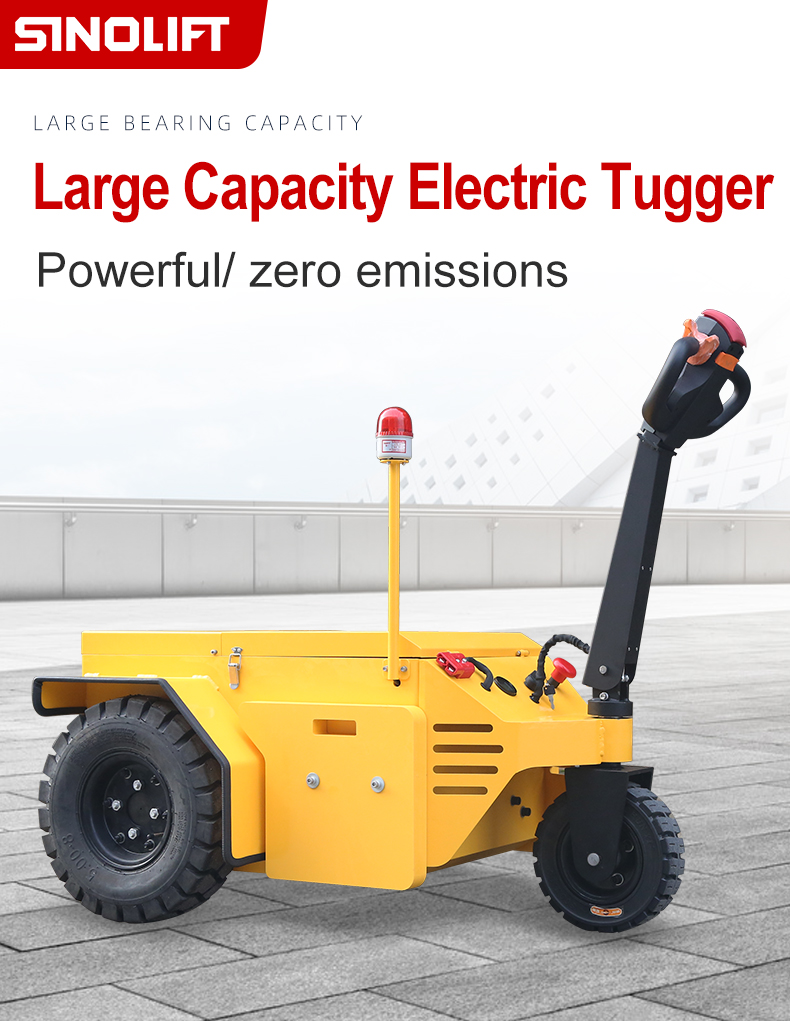

The ML TOW electric tug is perfect for safely towing loads where weight transfer is not possible, up to 22,000 lb.

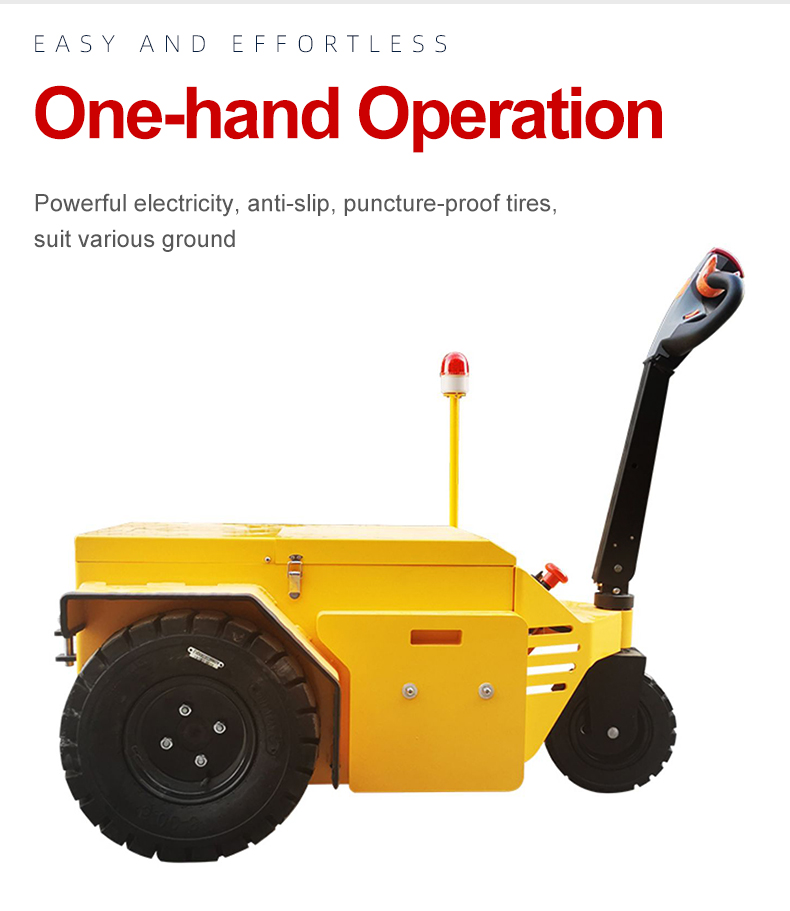

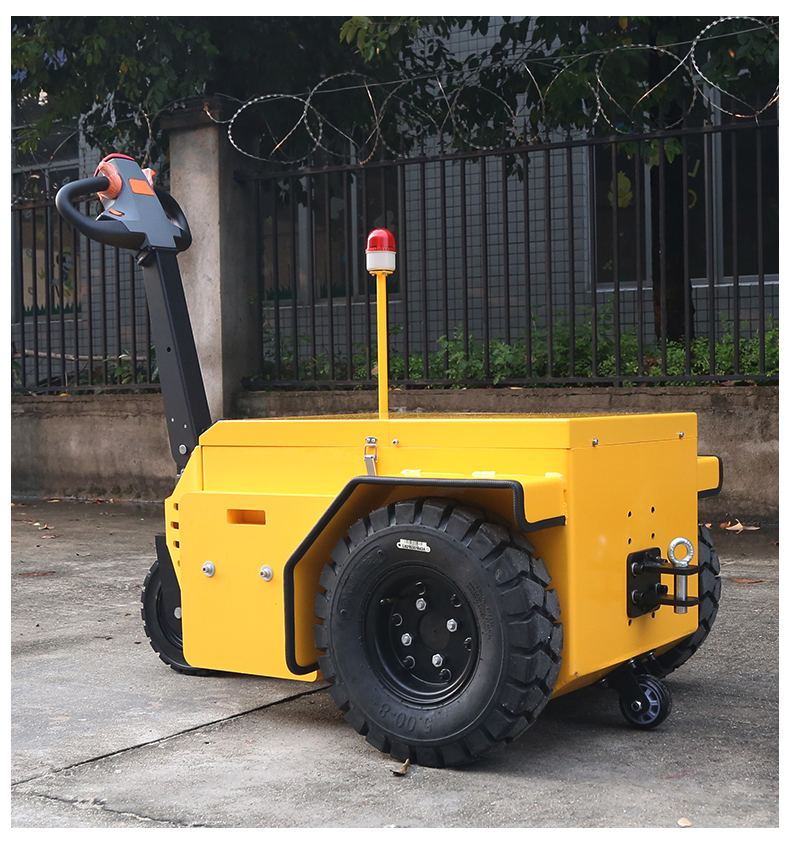

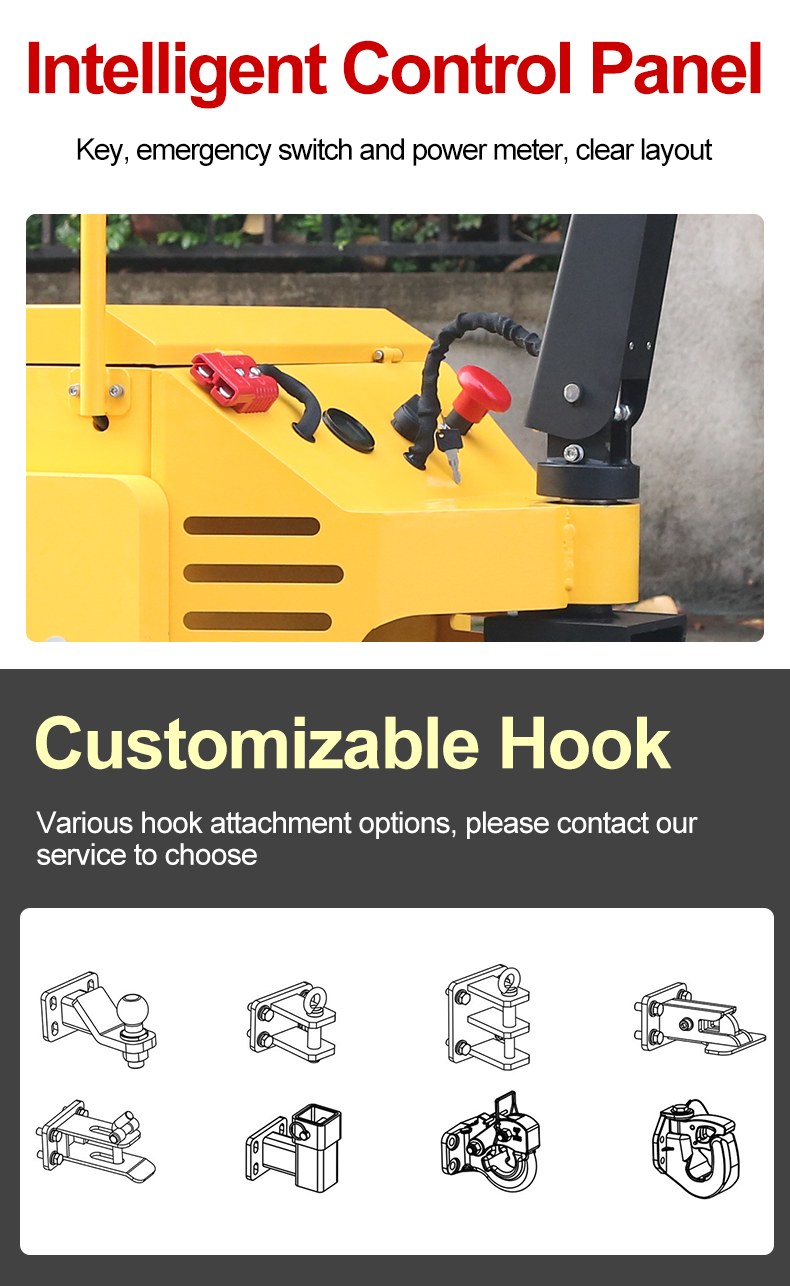

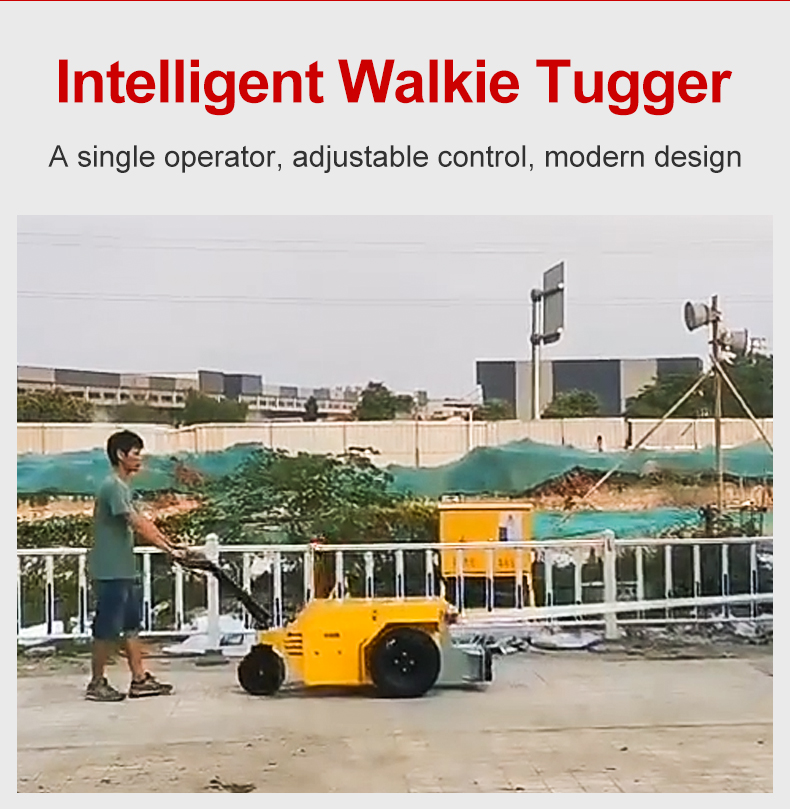

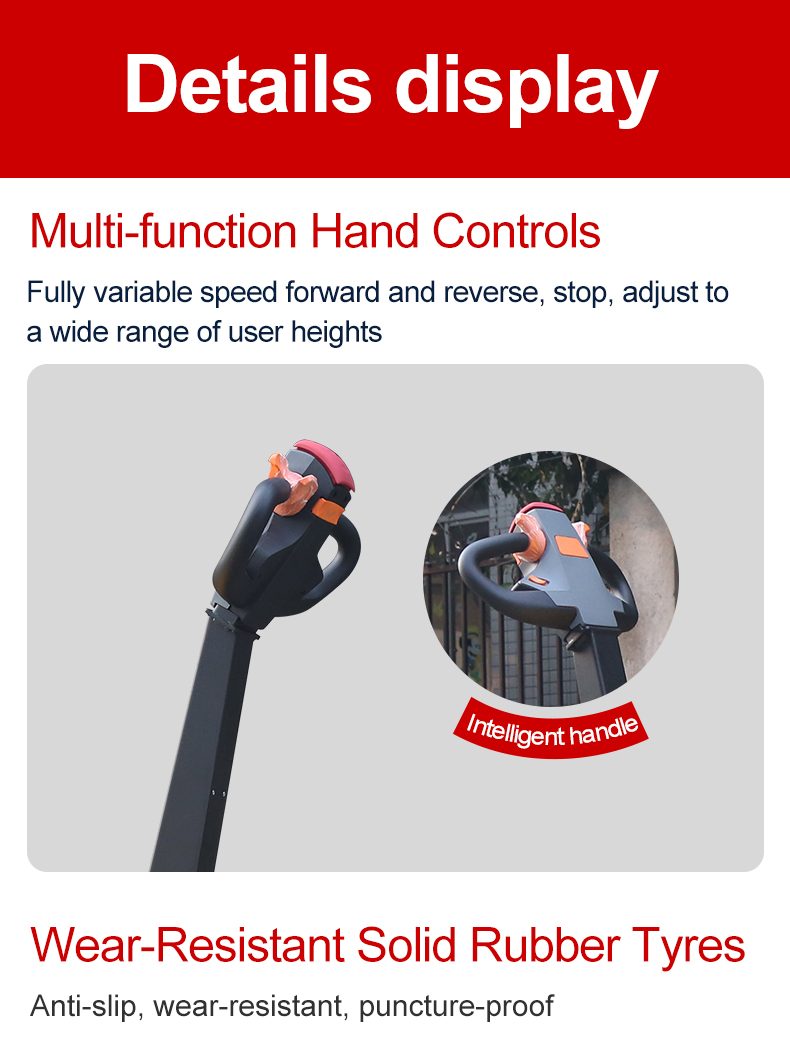

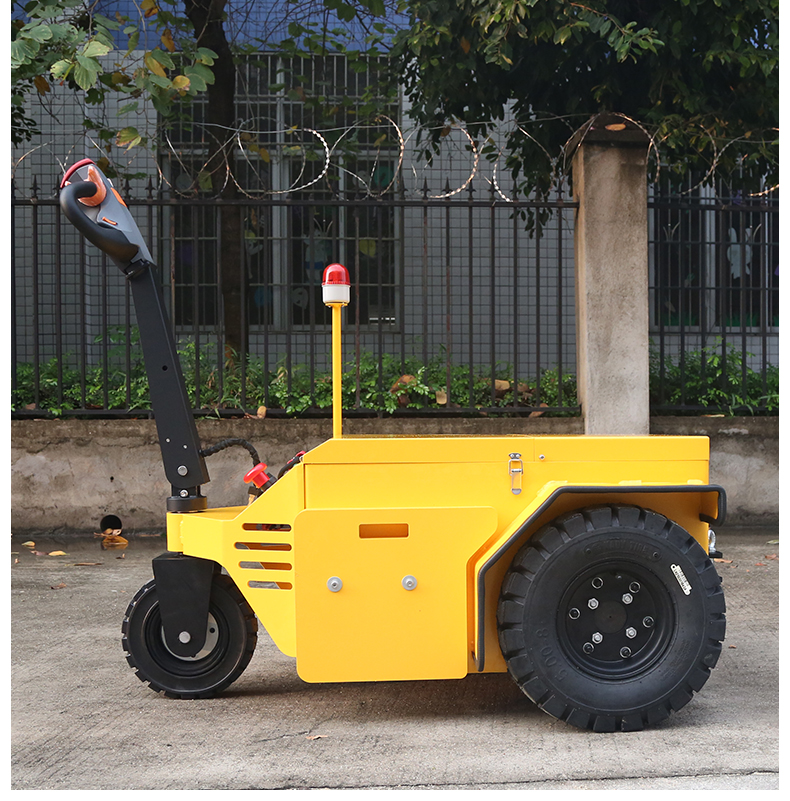

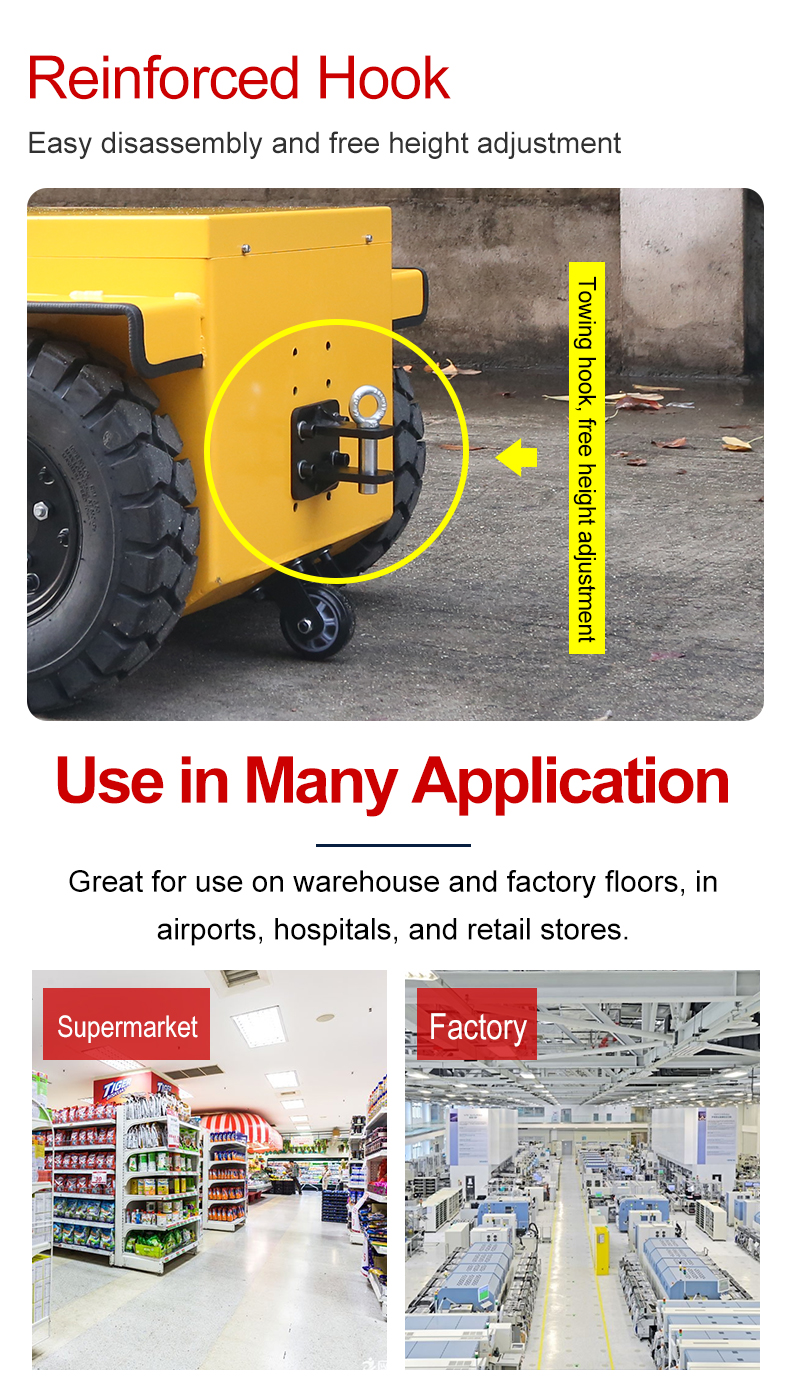

The Moto-Tugger ML is an ergonomically-designed motorized tow vehicle used to pull a variety of single or multiple carts in a safe and efficient manner with very little effort from the operator. Numerous standard hitch types are available to suit a wide variety of applications. Alternatively, we can customize the hitch plate to suit your specific requirements. The tug is self-weighted and compact, providing excellent traction for effortless load towing whilst attaching to any load with a draw bar, towing eye or ball hitch fitting. It can be used inside or outside, including on slopes and less than perfect surfaces.

ModelML600-DCML600-ACML800-ACML1000-AC
Power supplyElectric
Operating typeWalking style
Max traction   weightkg60006000800010000
Rated pulling   forceN1800190023002900
Truck   weight(with battery)kg550550620680
Tire   type,Drive wheel/Bearing wheel Rubber

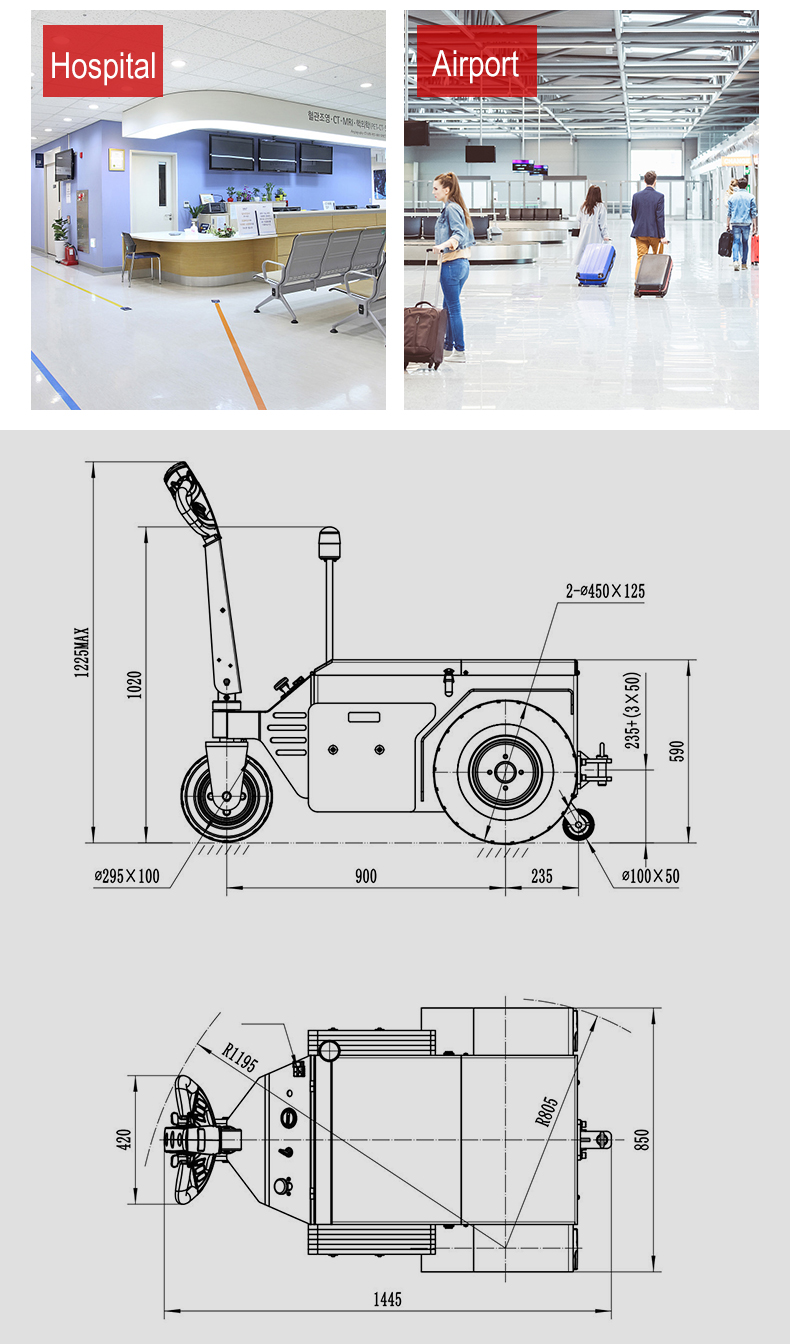

Overall heightmm1275127512751275
Height of   tiller in drive positionmm950/1200950/1200950/1200950/1200
Hook heightmm235/285/335235/285/335235/285/335235/285/335
Overall lengthmm1595159515951595
Overall widthmm850850850850
Ground   clearancemm100100100100
Turning radiusmm1320132013201320
Drive   speed  load/unloadkm/h2.5/3.52.5/3.52.5/3.53/4
Rated pulling   forceN1800190023002900
Max pulling   forceN2500260029003500
Max   gradeability  load/unload%5/85/85/85/8
Drive motor   rating S2 60minV/kw24/2.224/2.224/2.548/3.0
Charger   (external)V/A24/3024/3024/3048/15
