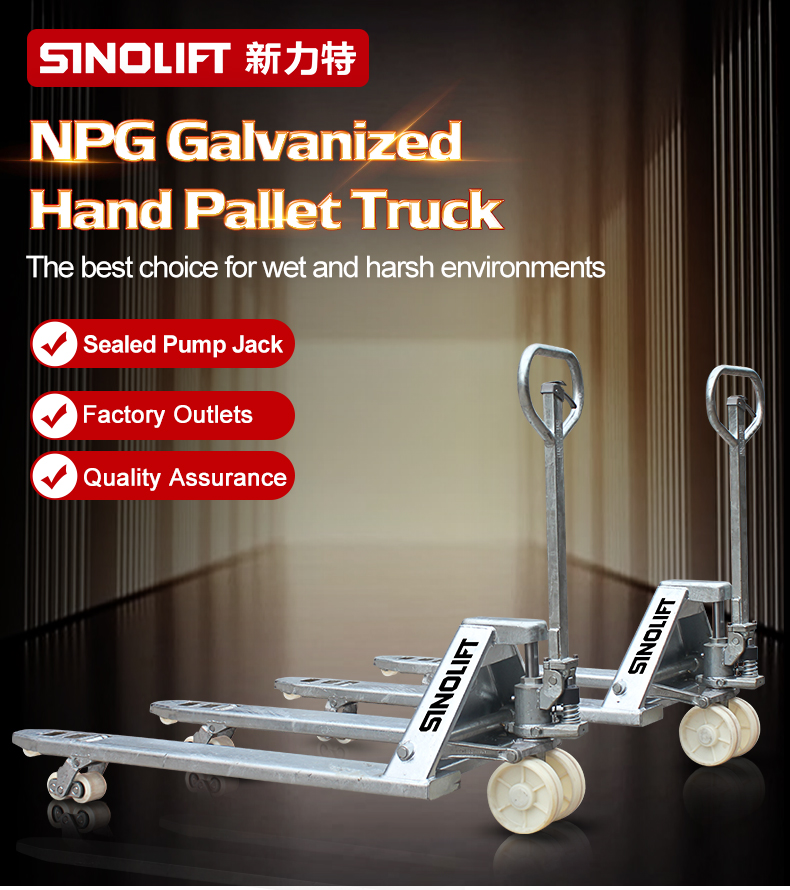

NPG Galvanized Hand pallet Jack
npg

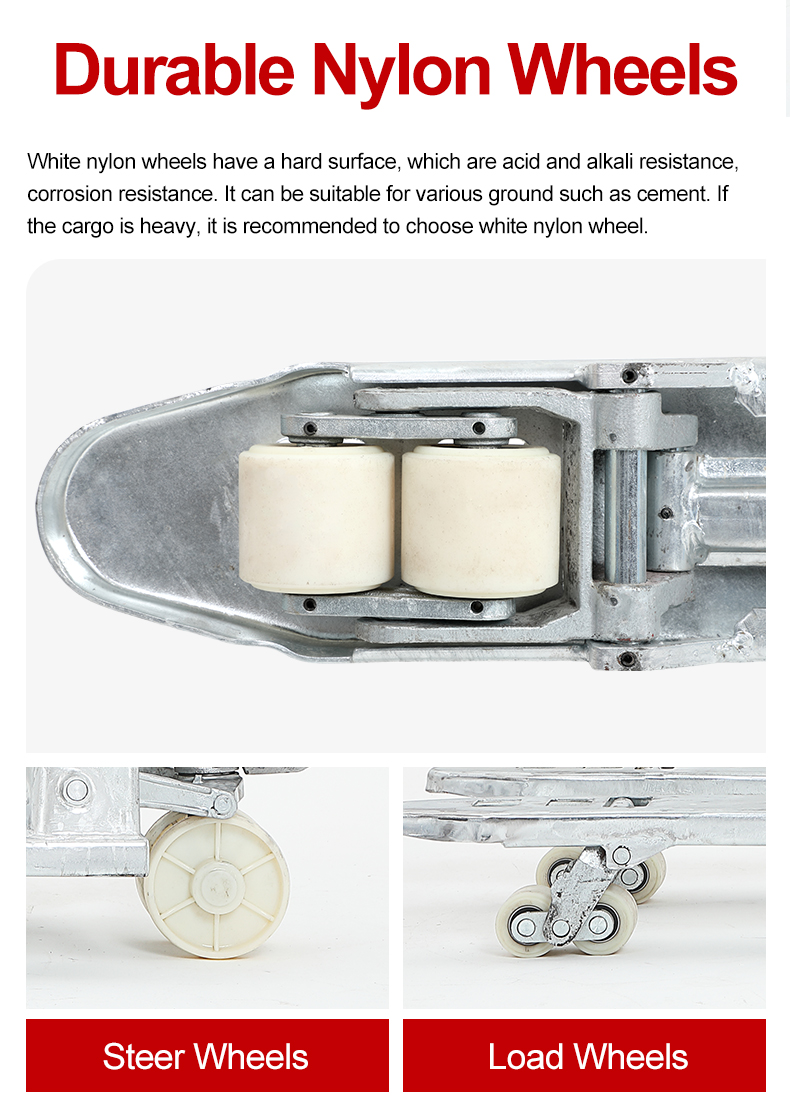

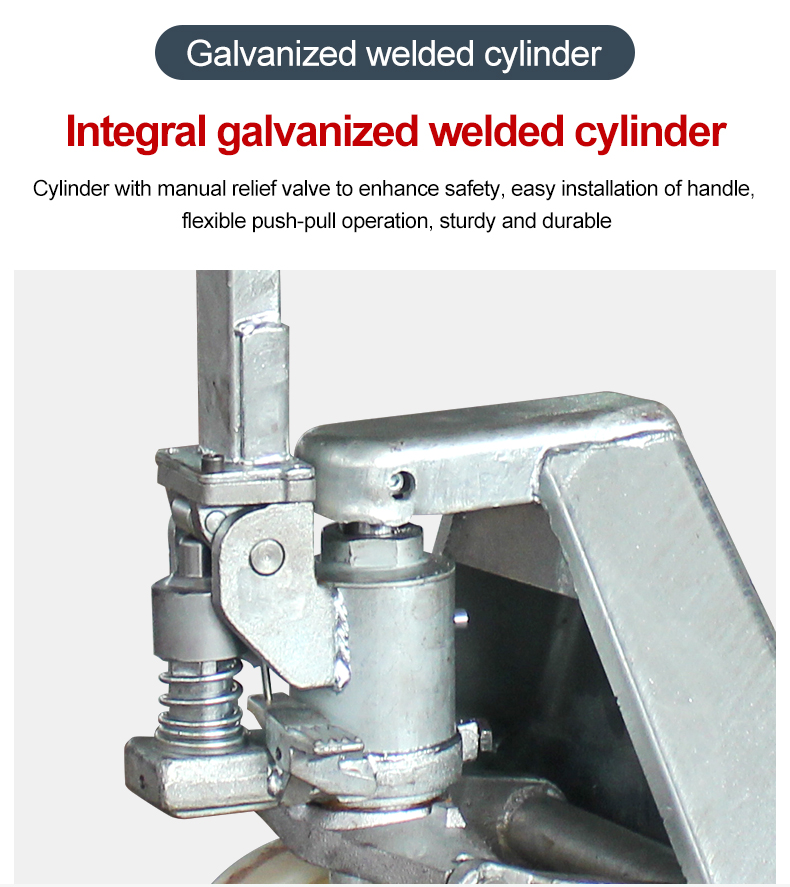

The oil cylinder of zinc manual hydraulic truck is leak-proof design. The frame, handle, oil cylinder and other exposed parts are all galvanized, equipped with stainless steel bearings, wear-resistant nylon wheels, and strong corrosion resistance

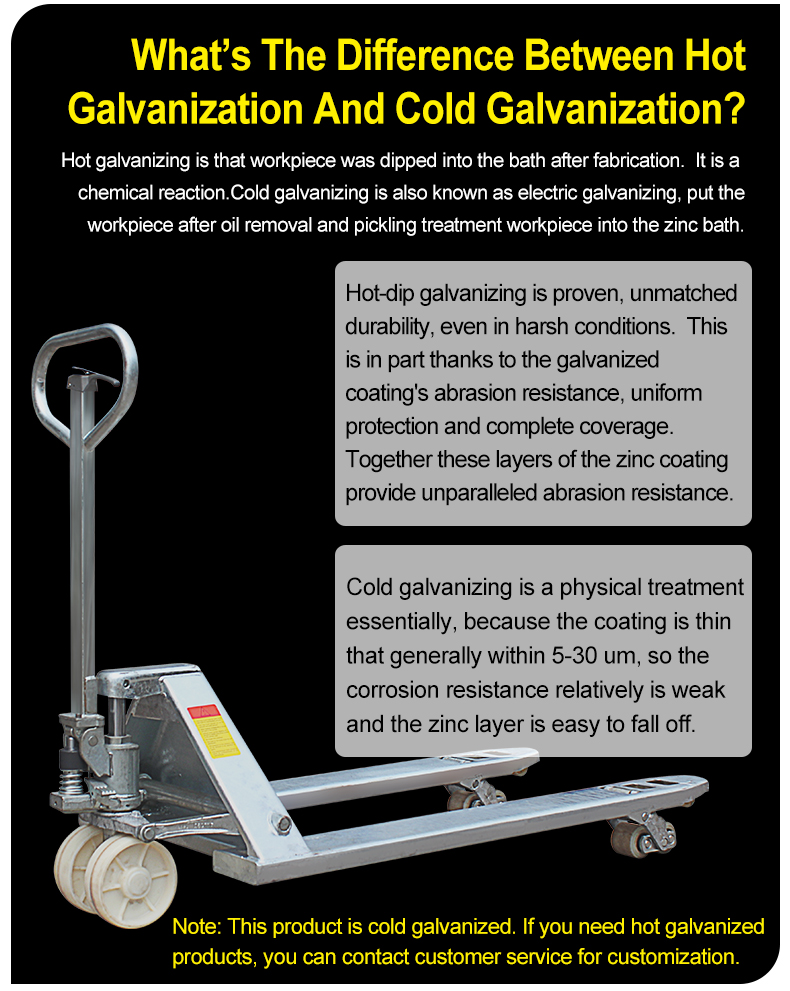

The main parts are hot-dip galvanized, with general corrosion resistance, suitable for use in humid environments, can also be used in cold storage, but can not be used in corrosive environments
The main parts are hot-dip galvanized, with general corrosion resistance, suitable for use in humid environments, can also be used in cold storage, but can not be used in corrosive environments
Quantity:
The NPG Galvanized Hand pallet Jack is leak-proof design. The frame, handle, oil cylinder and other exposed parts are all galvanized,NPG Galvanized Hand pallet Jack equipped with stainless steel bearings, wear-resistant nylon wheels, and strong corrosion resistance
The main parts of NPG Galvanized Hand pallet Jack are hot-dip galvanized, with general corrosion resistance, suitable for use in humid environments, can also be used in cold storage, but can not be used in corrosive environments
The main parts of NPG Galvanized Hand pallet Jack are hot-dip galvanized, with general corrosion resistance, suitable for use in humid environments, can also be used in cold storage, but can not be used in corrosive environments
| Model | Hand pallet Jack NPG20 | Hand pallet Jack NPG25 | |
| Capacity Q | kg | 2000 | 2000 |
| Min. fork height h | mm | 85 | 75 |
| Max. fork height h1 | mm | 200 | 190 |
| Steering wheel | mm | Φ200x50 | Φ180x50 |
| Load roller Single | mm | Φ82x93 | Φ74x93 |
| Load roller Tandem | mm | Φ82x70 | Φ74x70 |
| Size of fork | mm | 160x60 | |
| Width overall forks B | mm | 520/540/685 | |
| Fork length I | mm | 1100/1150/1220 | |
