Scissors Pallet Jack

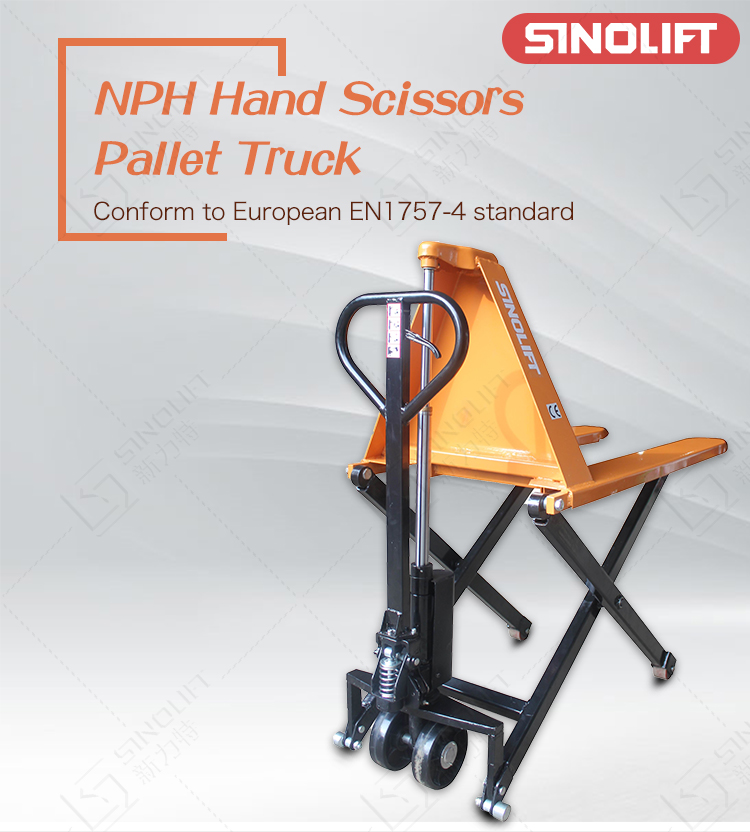

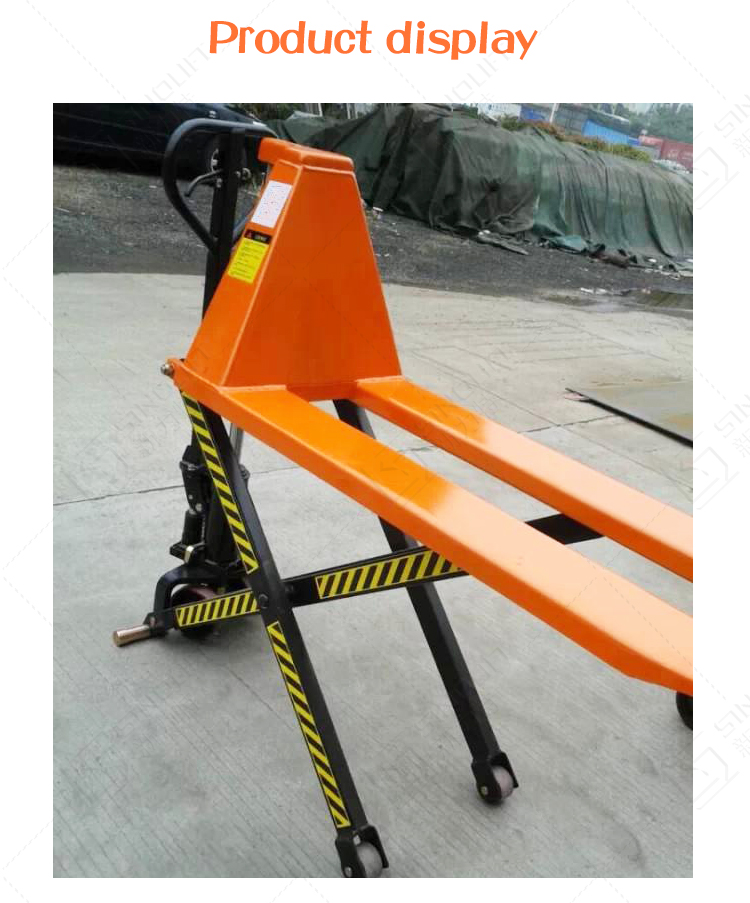

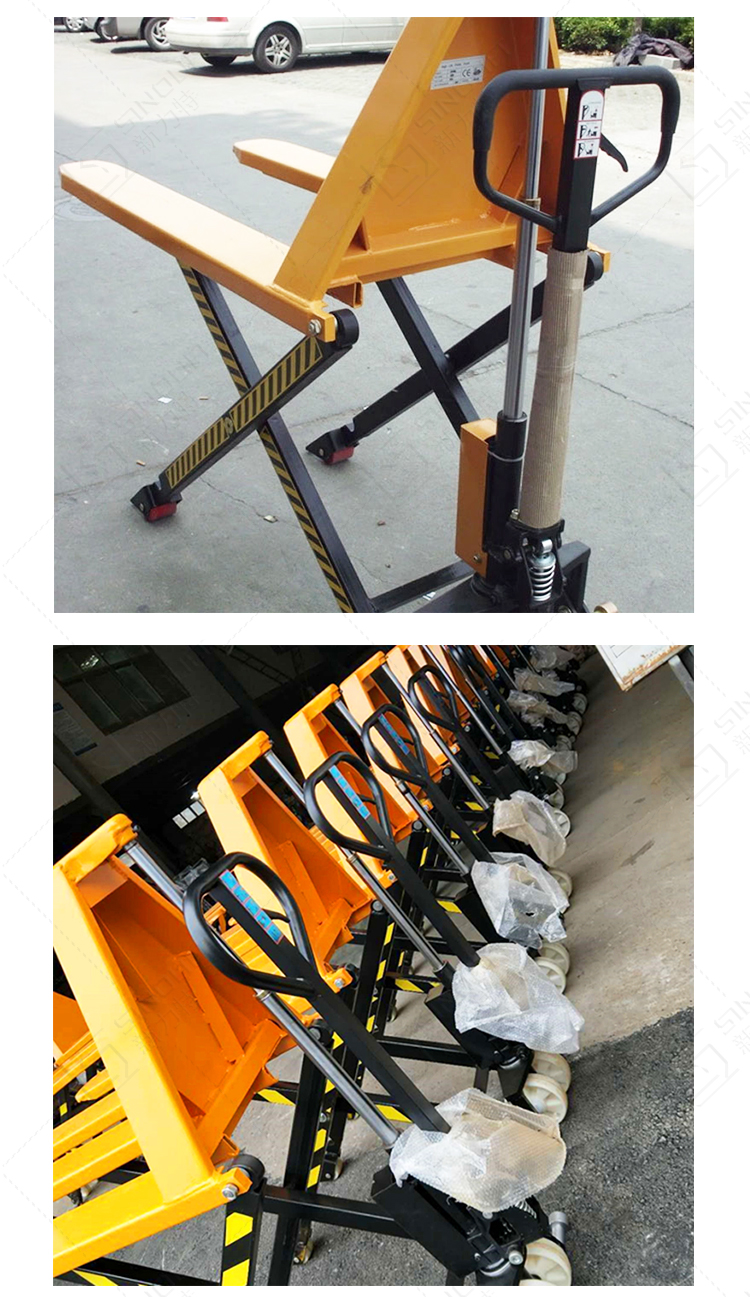

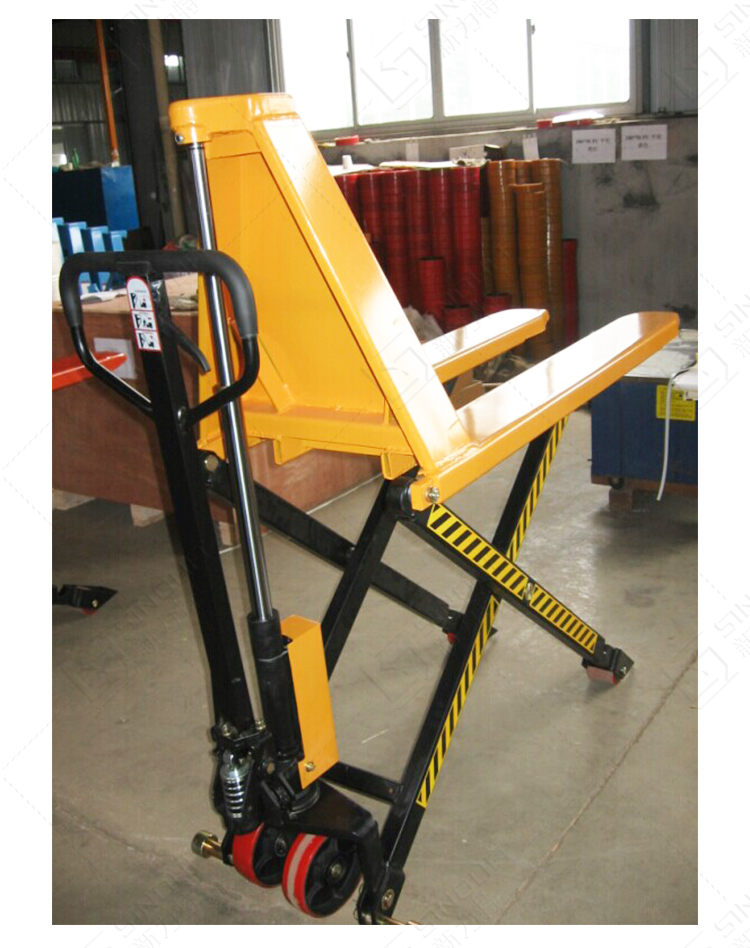

NPH Hand Scissors Pallet Jack

NPH
The scissor-type high-lift truck can be used not only for transportation, but also as a working platform. Its body design is compact, and the oil pump has the function of fast lifting, which can greatly save lifting time and improve labor efficiency.
Quantity:
Contact Now
add to cart
All Products
Features of Scissors Pallet Jack:

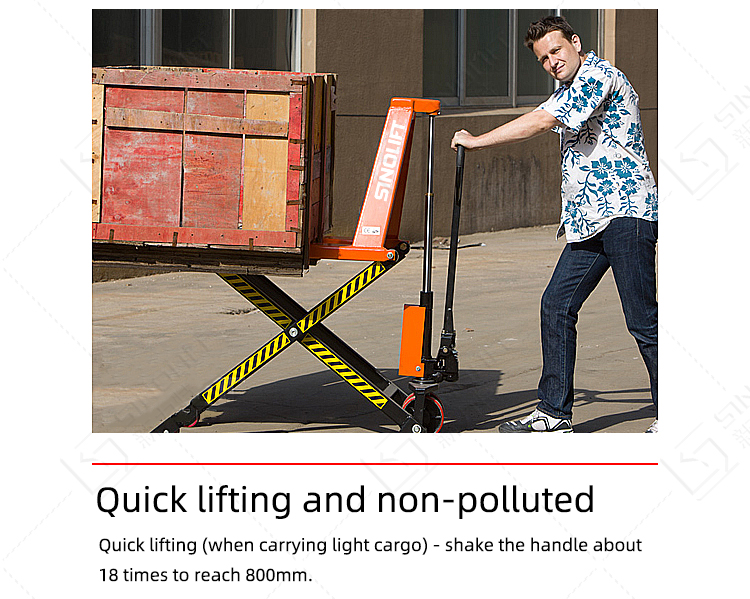

1.Quick lifting and non-polluted

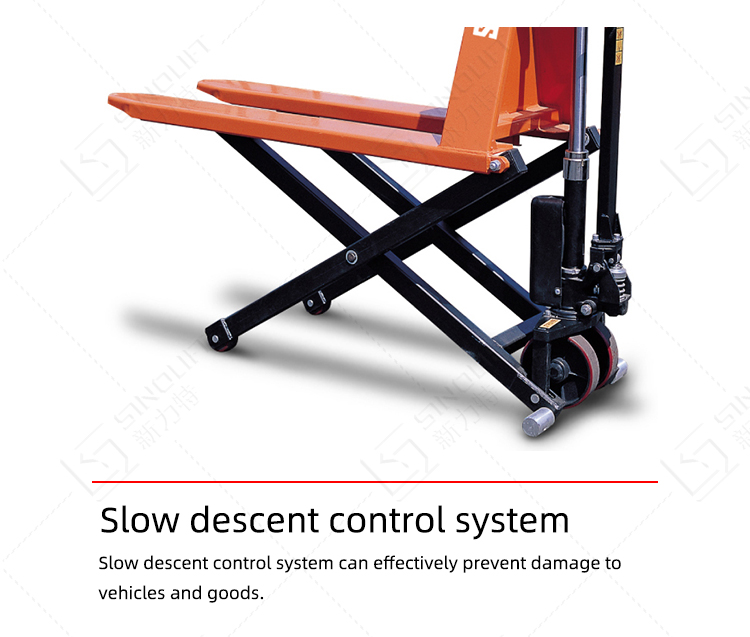

2.Slow descent control system

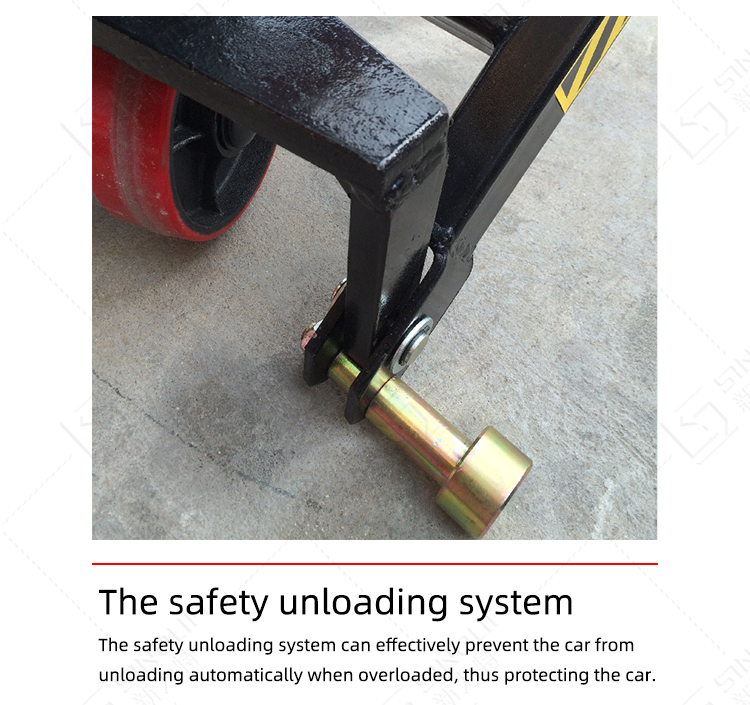

3.The safety unloading system

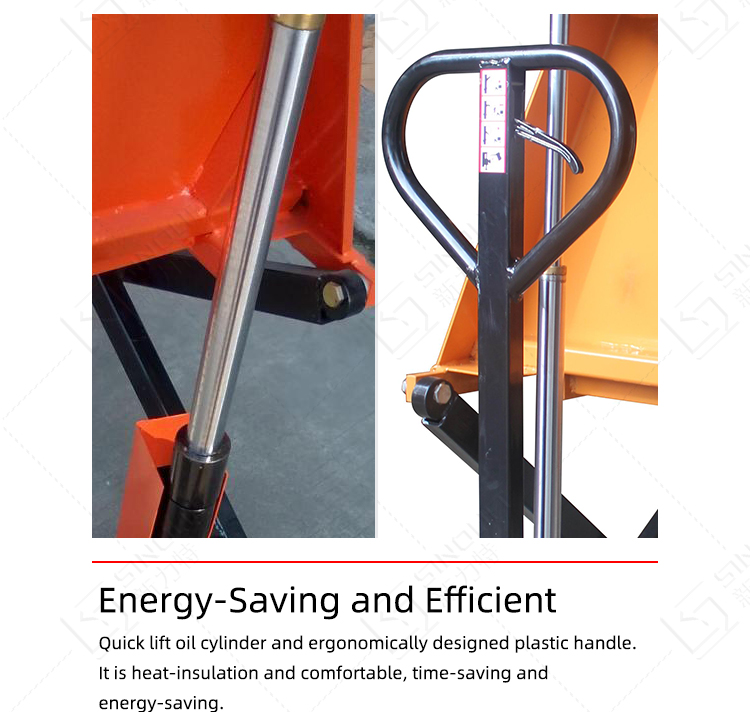

4. Energy-Saving and Efficient

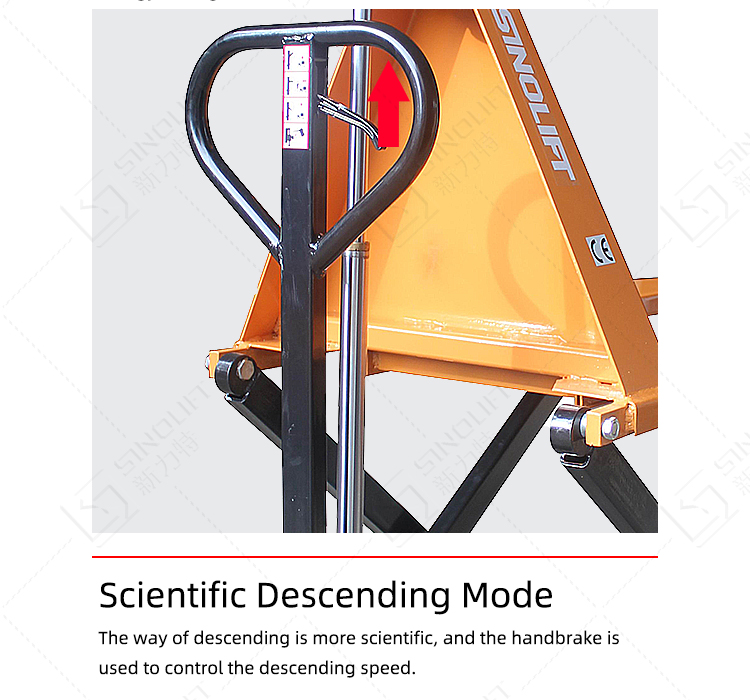

5.Scientific Descending Mode

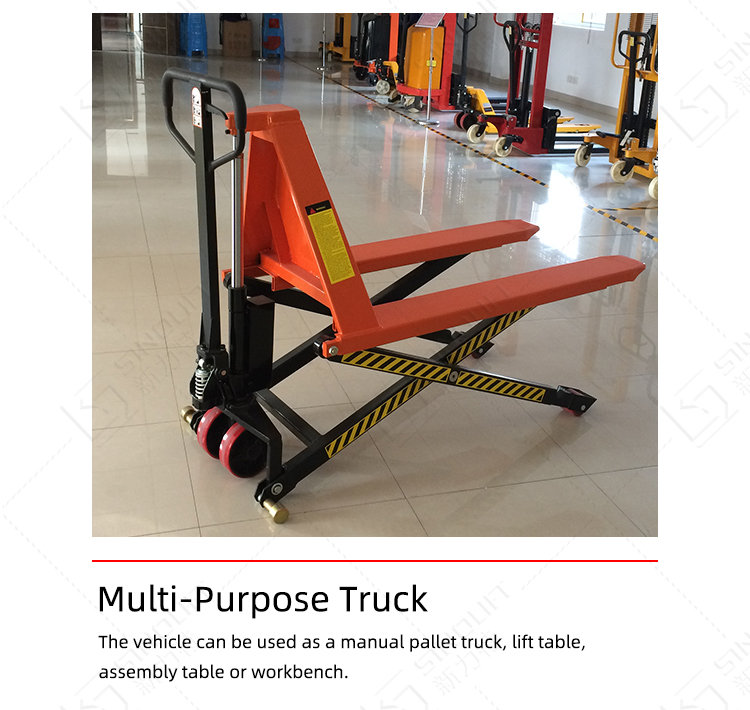

6.Multi-Purpose Truck

7. Subject to European EN1757-4 standard

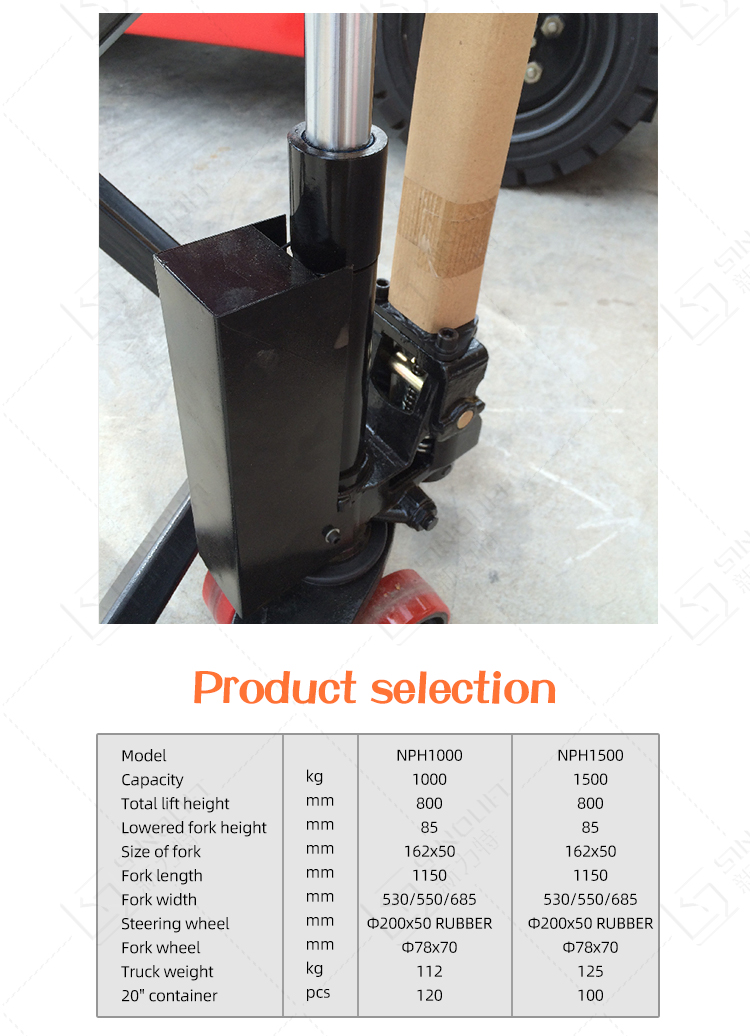

Specifications of Scissors Pallet Jack:

Model

Scissors Pallet Jack

 NPH1000

Scissors Pallet Jack

 NPH1500

Scissors Pallet Jack

 NPH1000(N)

Capacity

(kg)

1000

1500

1000

Total lift height

(mm)

800

800

800

Lowered fork height

(mm)

85

85

85

Size of fork

(mm)

162x50

162x50

162x50

Fork length

(mm)

1150

1150

1150

Width over the forks  *

(mm)

520/550/685

520/550/685

550/680

Height of handleless

(mm)

975

1050

975

Steering wheel

(mm)

Ø150x50

Ø150x50

Ø180x50

Fork wheel

(mm)

Ø74x50

Ø74x50

Ø74x50

Truck weight

(kg)

112

125

133

pcs/20"container

(pcs)

120

100

72
