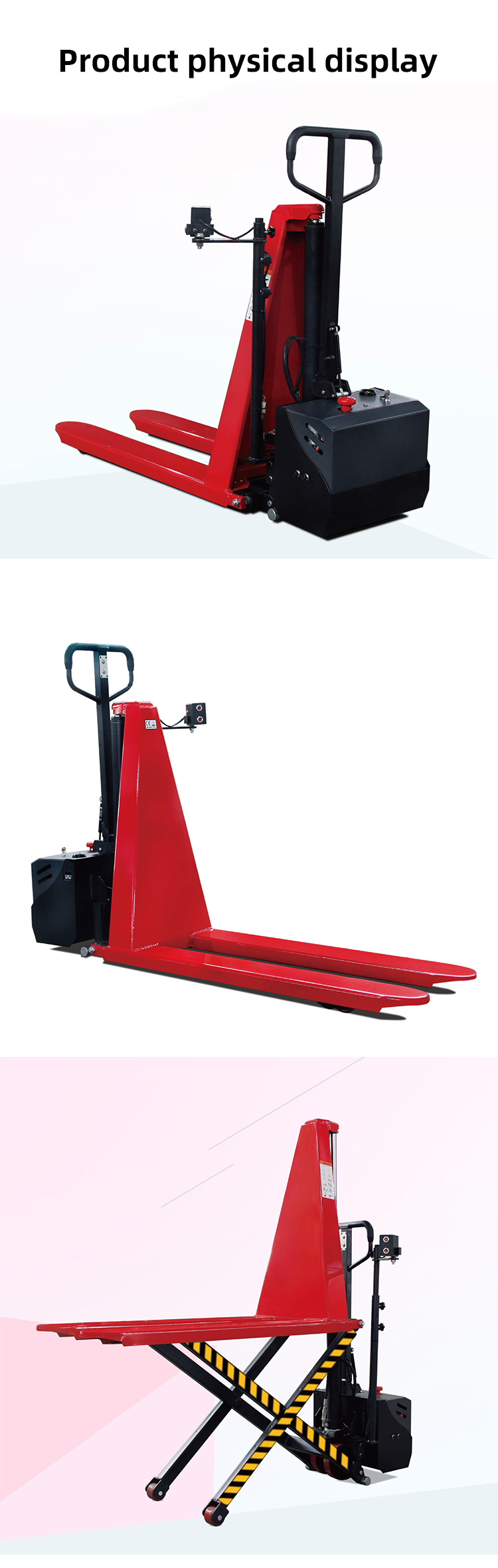

SINOLFT NPHD Electric Powered Scissor Lift Pallet Jack

NPHD

Powered by 12 voltage battery, driven by a good effective pump station

Quantity:

Contact Now

add to cart

Name:NPHD Electric Powered Scissor Lift Pallet Jack

Features of NPHD Electric Powered Scissor Lift Pallet Jack:

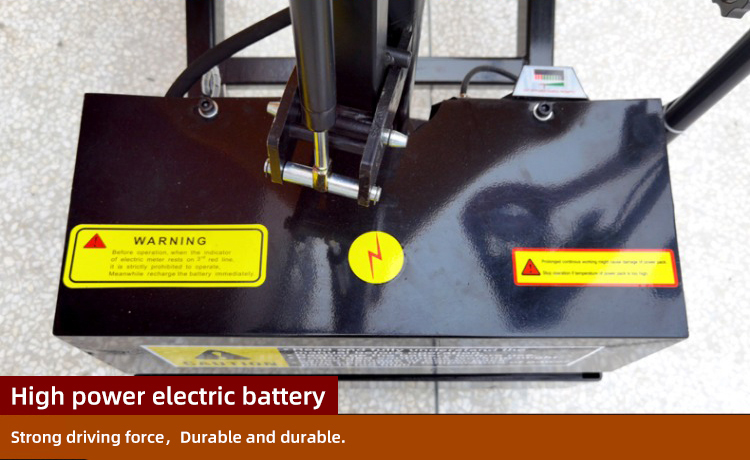

1.Electric Powered Scissor Lift Pallet Jack is Powered by 12 voltage battery, driven by a good effective pump station
2.Electric Powered Scissor Lift Pallet Jack is Used as both a work table and pallet jack
3.10-12 seconds pumping from the bottom to the top
4.Safety overload system prevents the truck from being used beyond its rated capacity

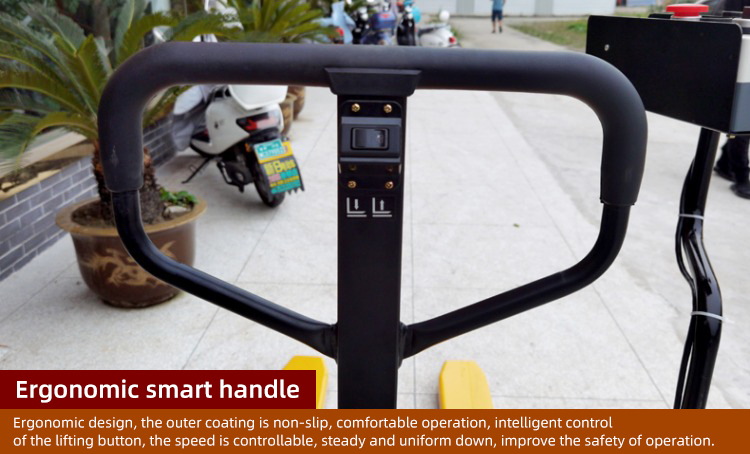

5.The handle automatically returns to its upright position when released.
6.Electric Powered Scissor Lift Pallet Jack Lifting motor power is 1.1kw
7.Electric Powered Scissor Lift Pallet Jack Conforms to EN1757-4
8.Safety: Patented safety system on handle to prevent accidental tough of the release handle thus causing suddent sllding down of the fork, you can screw the release handle tight in slow or quick lifting position.
9.Conforms to EN1757-4.

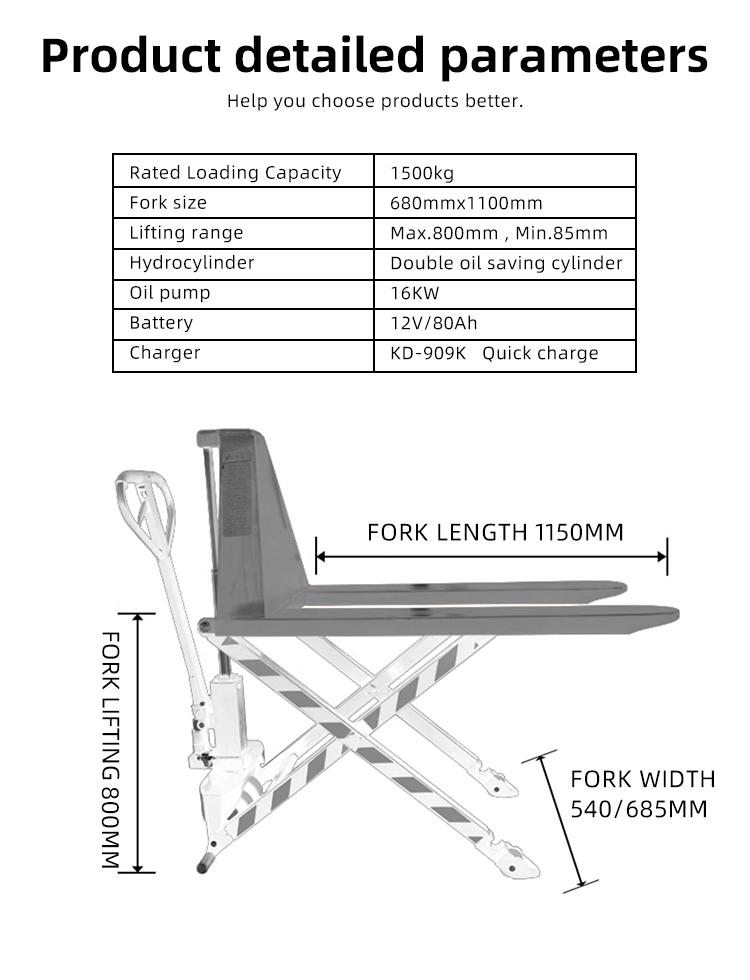

Model		Electric Powered Scissor Lift Pallet Jack NPHD1000	Electric Powered Scissor Lift Pallet Jack NPHD1500
Capacity	(kg)	1000	1500
Lowest Fork Height	(mm)	85	85
Max. Fork Height	(mm)	800	800
Fork Length X Fork Width	(mm)	1140X520 or 1140X680	1100X520 or 1100X680

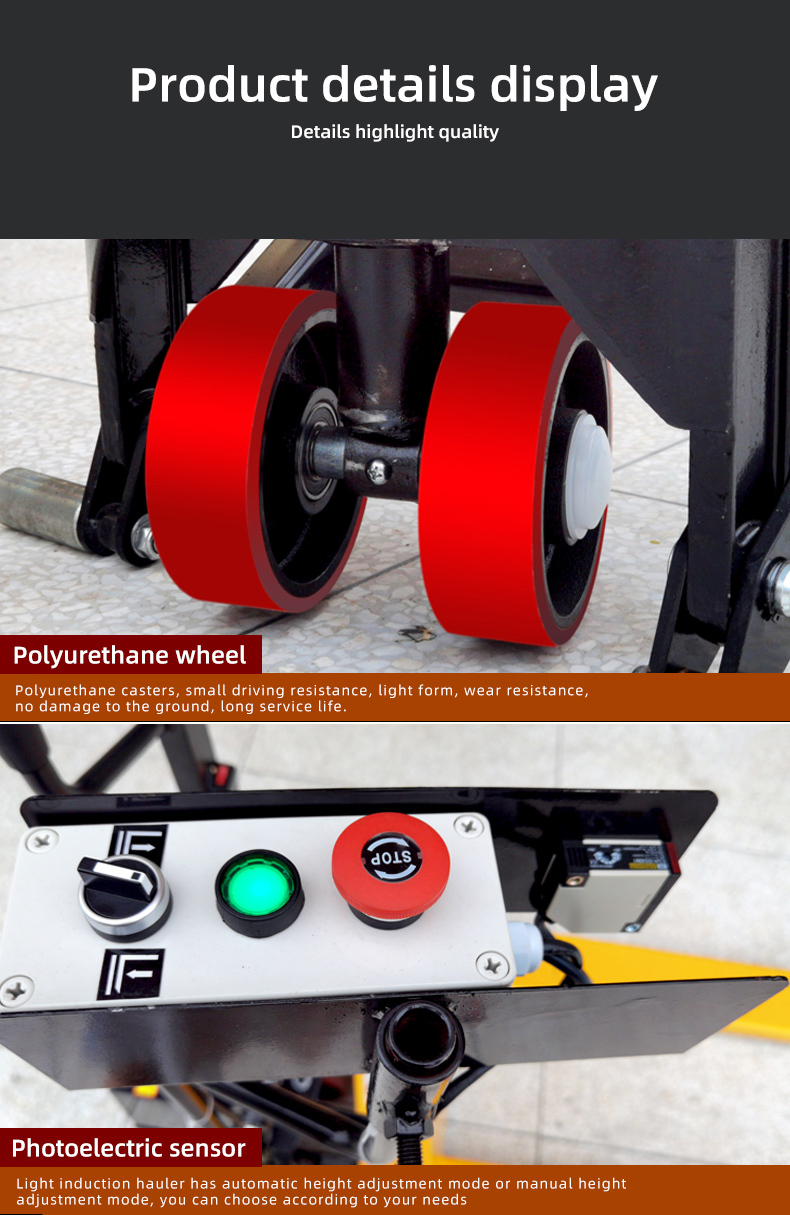

Diameter of front wheel	(mm)	Ø75X50	Ø75X50
Diameter of Rear Wheel	(mm)	Ø150X50	Ø150X50
Lifting time in Full Range(s)		12	18
Size of Fork	(mm)	162X50	162X50
Descending Speed	(m/s)	<0.1	<0.1
Motor Working Voltage	(v)	12	12
Battery Volgage	(v)	12	12
Electricity Volume	(A/h)	63	63
Working pressure of Pump Station	(Mpa)	15	21
Imput/output Voltage of Charger	(v)	200-240/12	115-230/12
Service Weight	(kg)	118 / 128	145 / 155
Max. Charging Current of Charger	(A)	10	10
Packing Details		4pcs/crate, crate size:193X60X72, 108pcs/20"	4pcs/crate, crate size:193X76X72, 84pcs/20"
