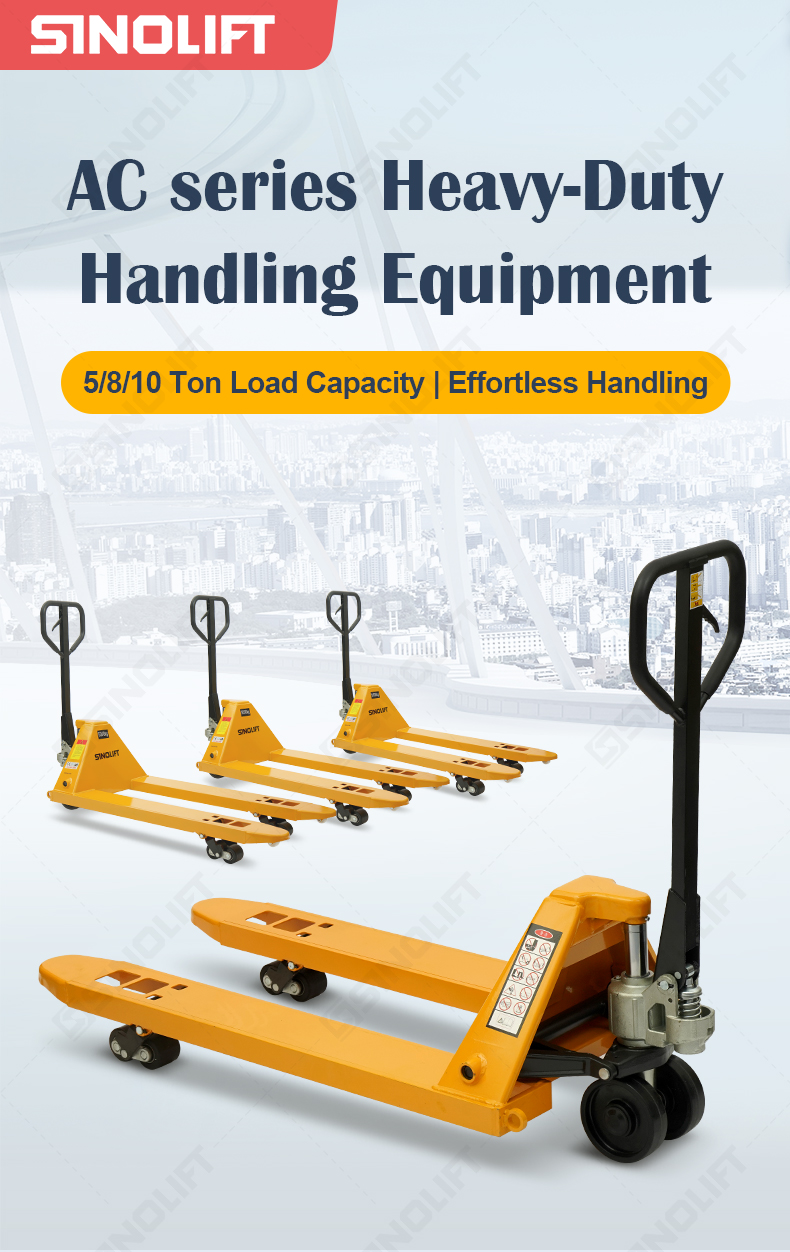

AC series Heavy-Duty Manual Hydraulic Pallet Truck
AC50
This pallet truck is Designed for efficient lifting and long-term dependability you can trust.
Quantity:
Product Name
AC series Heavy-Duty Manual Hydraulic Pallet Truck
This pallet truck is Designed for efficient lifting and long-term dependability you can trust.
Key Features

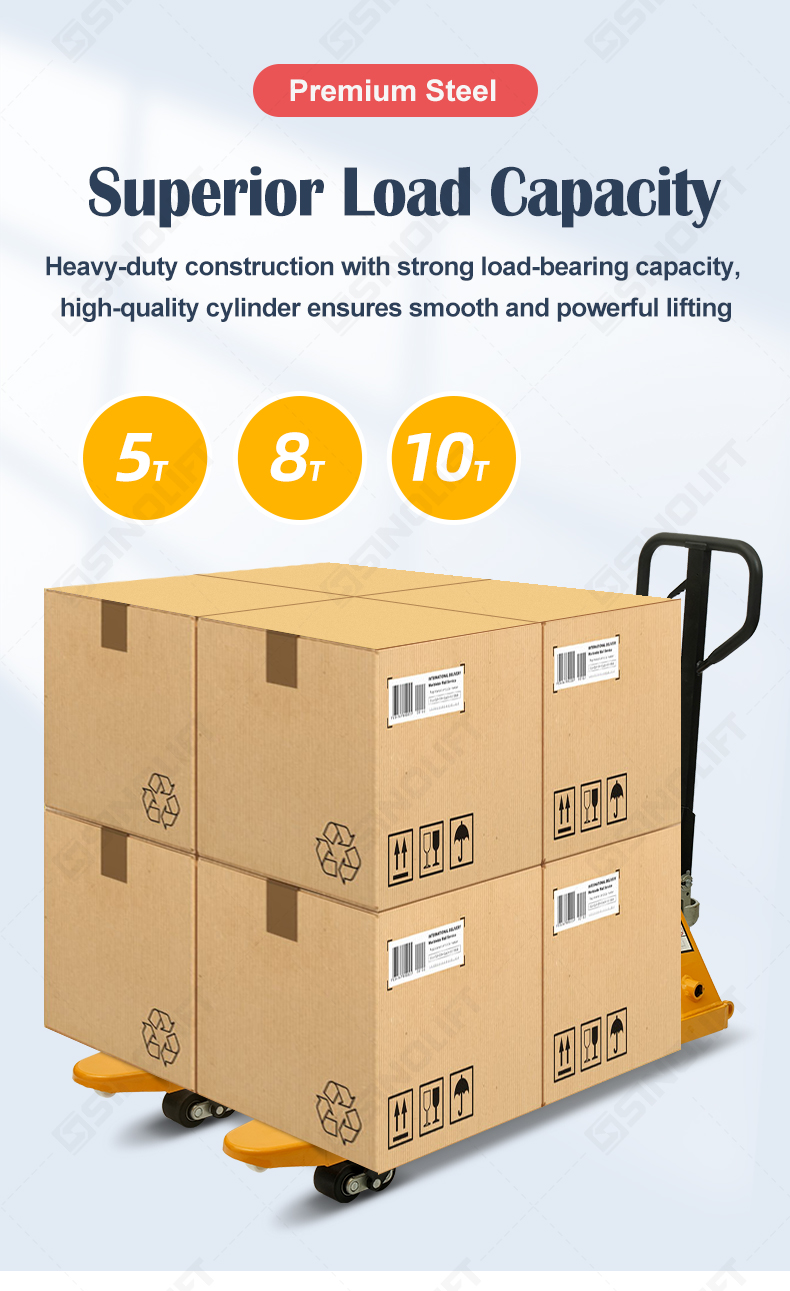

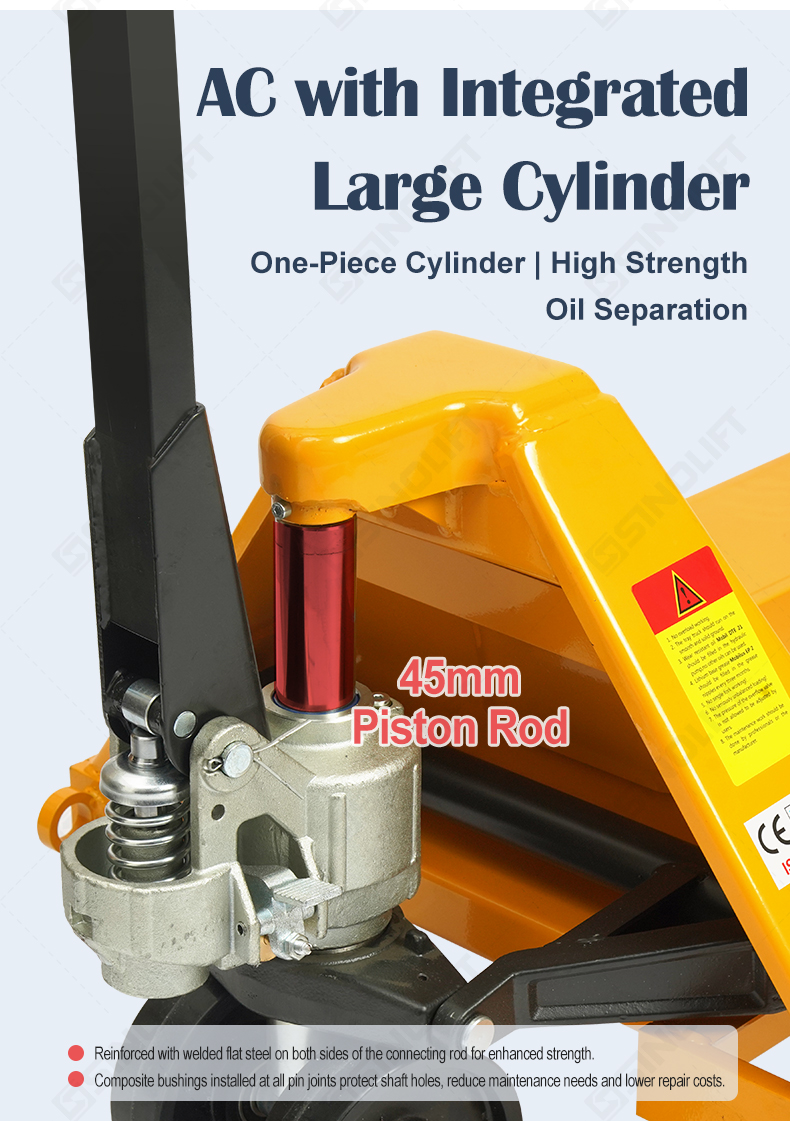

- Heavy-duty construction with strong load-bearing capacity, high-quality cylinder ensures smooth and powerful lifting
- Hydraulic system with anti-burst valve prevents sudden load drop in case of hose rupture.

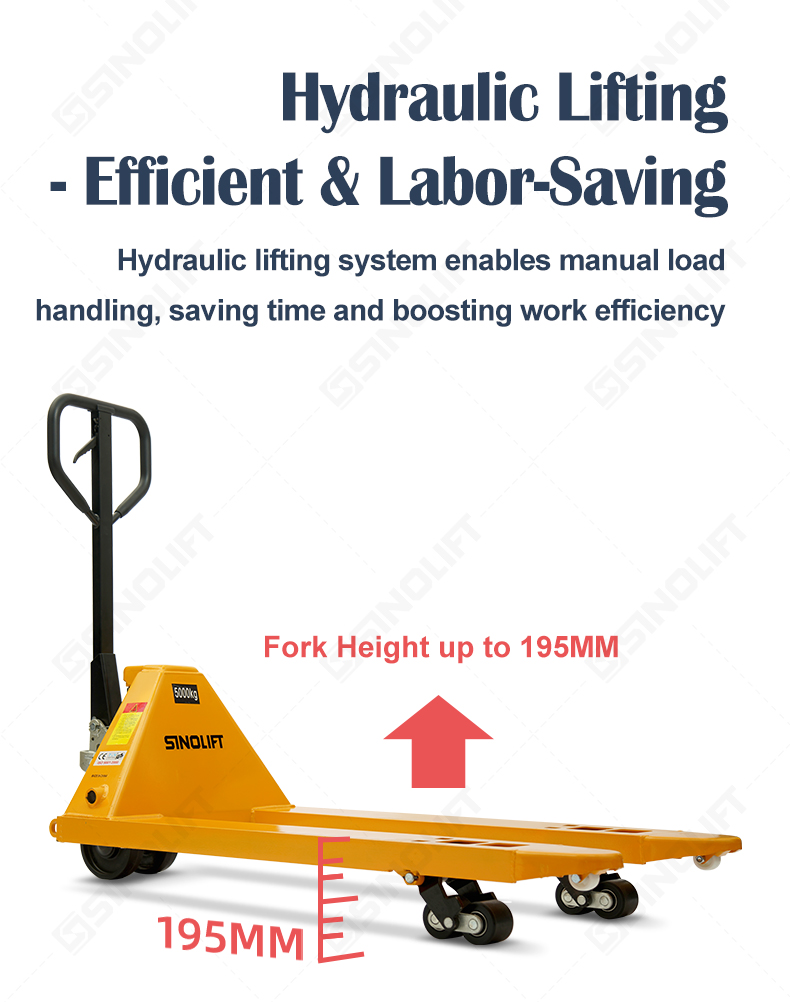

- Hydraulic lifting system enables manual load handling, saving time and boosting work efficiency.
- Composite bushings installed at all pin joints protect shaft holes, reduce maintenance needs and lower repair costs.

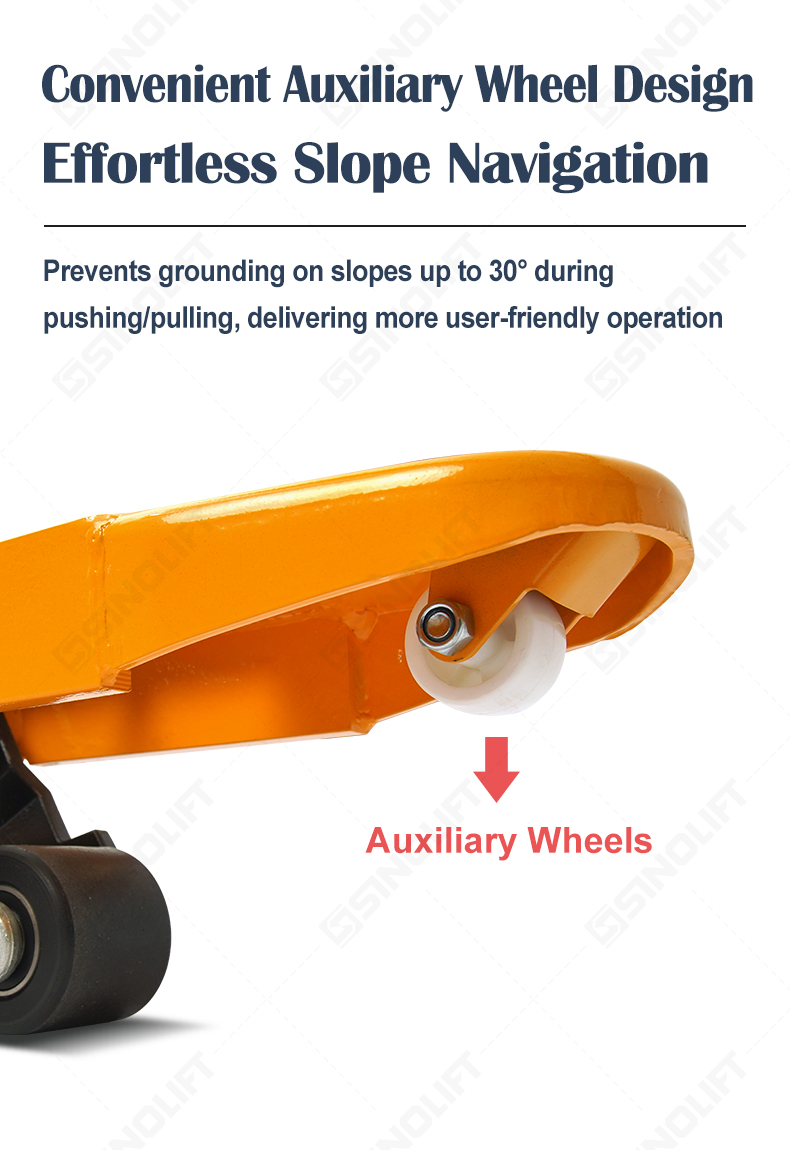

- Prevents grounding on slopes up to 30° during pushing/pulling, delivering more user-friendly operation

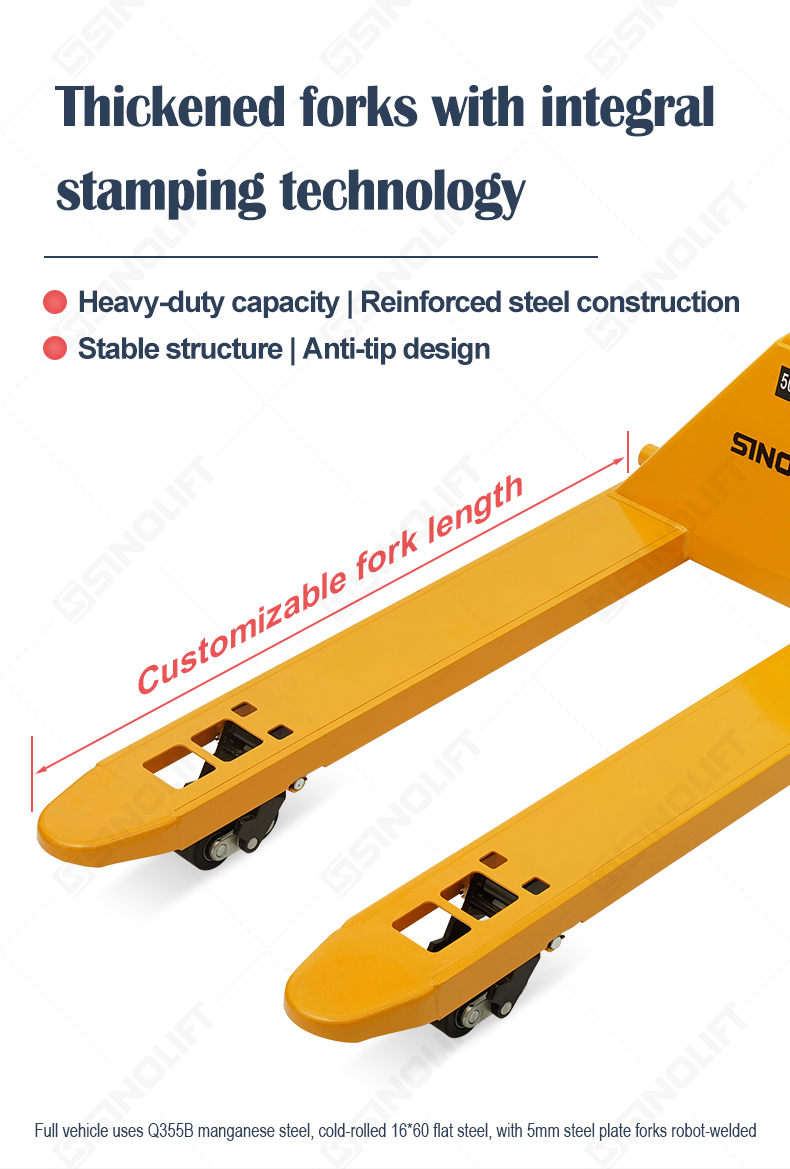

- Full vehicle uses Q355B manganese steel, cold-rolled 16*60 flat steel, with 5mm steel plate forks robot-welded

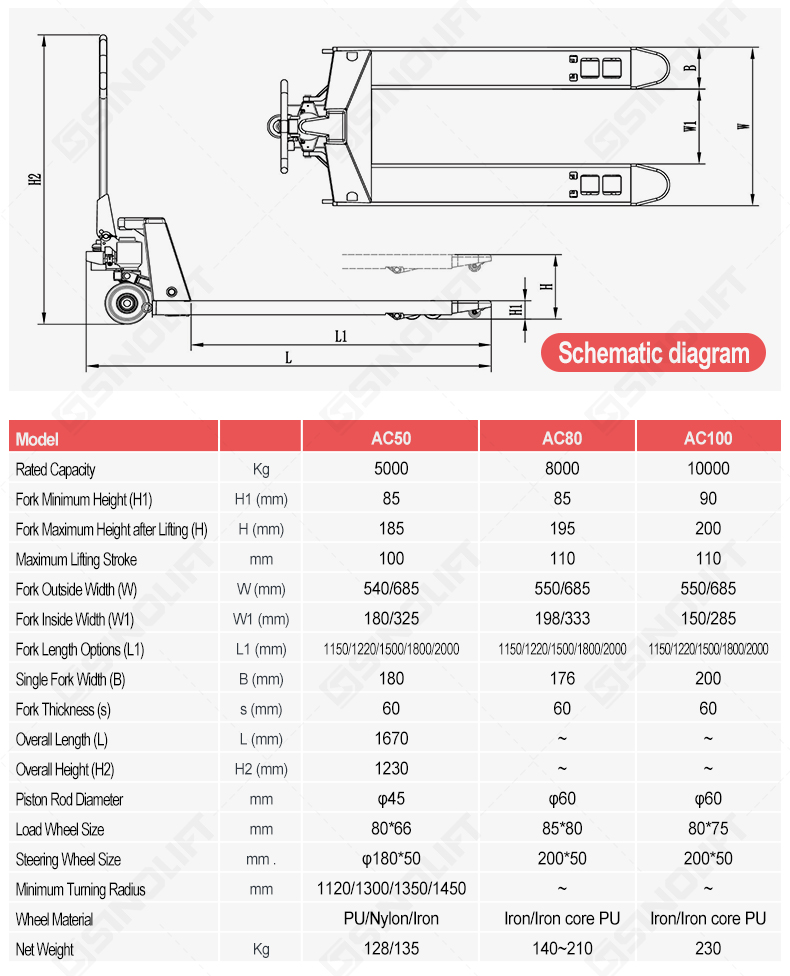

Product Specifications
| Model | Unit | AC50 | AC80 | AC100 |
| Rated Capacity | Kg | 5000 | 8000 | 10000 |
| Fork Minimum Height (H1) | mm | 85 | 85 | 90 |
| Fork Maximum Height after Lifting (H) | mm | 185 | 195 | 200 |
| Maximum Lifting Stroke | mm | 100 | 110 | 110 |
| Fork Outside Width (W) | mm | 540/685 | 550/685 | 550/685 |
| Fork Inside Width (W1) | mm | 180/325 | 198/333 | 150/285 |

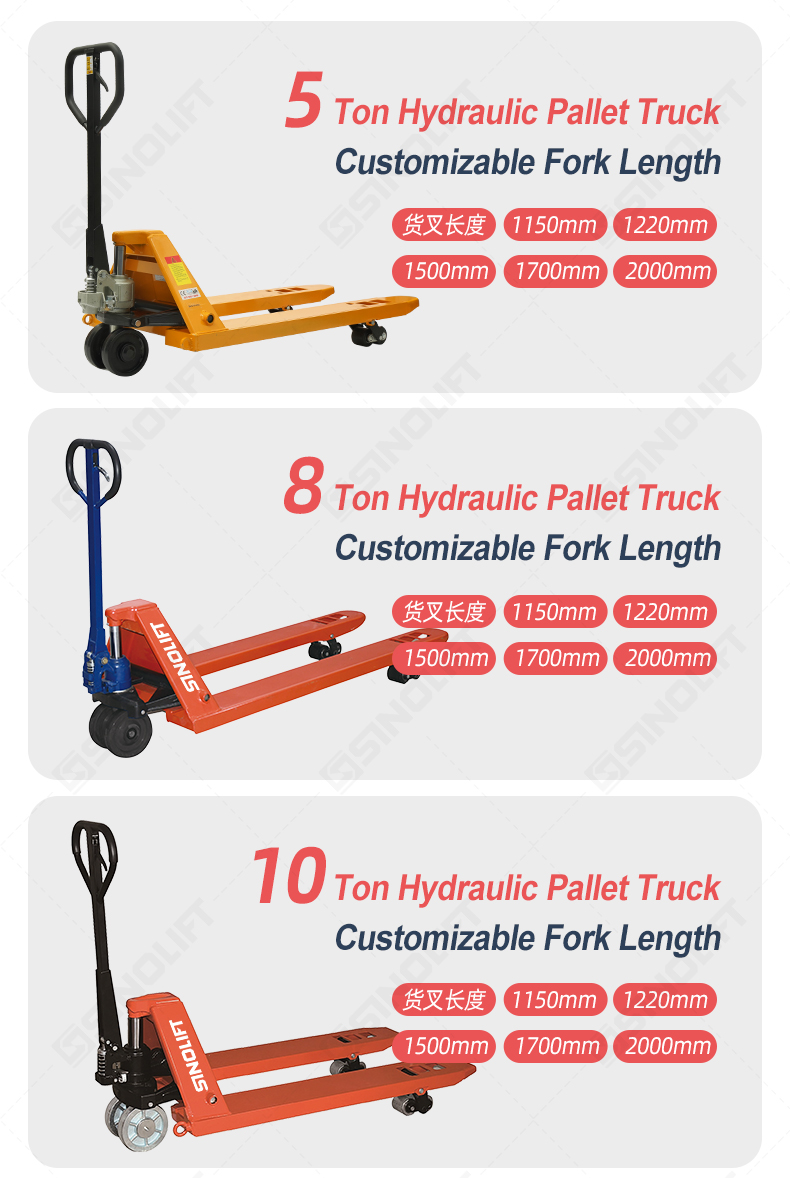

| Fork Length Options (L1) | mm | 1150/1220/1500/1800/2000 | 1150/1220/1500/1800/2000 | 1150/1220/1500/1800/2000 |
| Single Fork Width (B) | mm | 180 | 176 | 200 |
| Fork Thickness (s) | mm | 60 | 60 | 60 |
| Overall Length (L) | mm | 1670 | ||
| Overall Height (H2) | mm | 1230 | ||
| Piston Rod Diameter | mm | φ45 | φ60 | φ60 |
| Load Wheel Size | mm | 80*66 | 85*80 | 80*75 |
| Steering Wheel Size | mm | φ180*50 | 200*50 | 200*50 |
| Minimum Turning Radius | mm | 1120/1300/1350/1450 | ||
| Wheel Material | PU/Nylon/Iron | Iron/Iron core PU | Iron/Iron core PU | |
| Net Weight | Kg | 128/135 | 140~210 | 230 |
