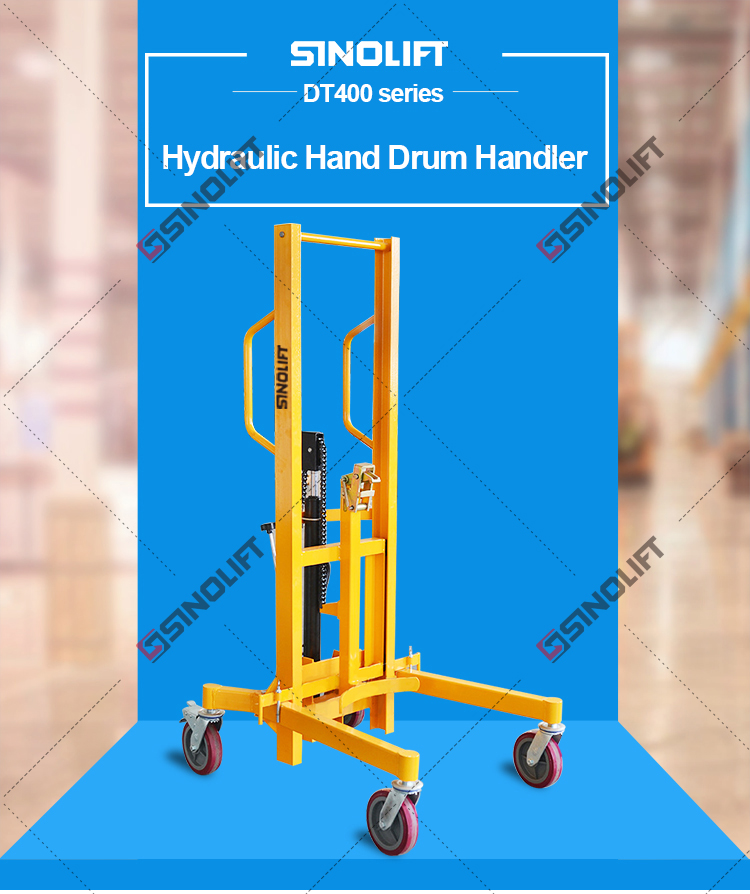

DT400 DT400-1 Hand Drum Handler
• A spring - loaded clamp securely holds any rimmed drum.
• It has swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability.
• Legs adjust for different pallet.
• Handles 55-85 gallon drums.
DT400 is heavy duty ergonomic drum handler, it ergonomically lifts, transports and places poly drum, steel drum or fiber drums on or off from pallet.
Its unique design made it can lift drum from the front or the corner of a pallet. Legs adjustable for different pallet and for 55 gallon and 85 gallon drums. It has swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability.
DT400 DT400-1 Hand Drum Handler

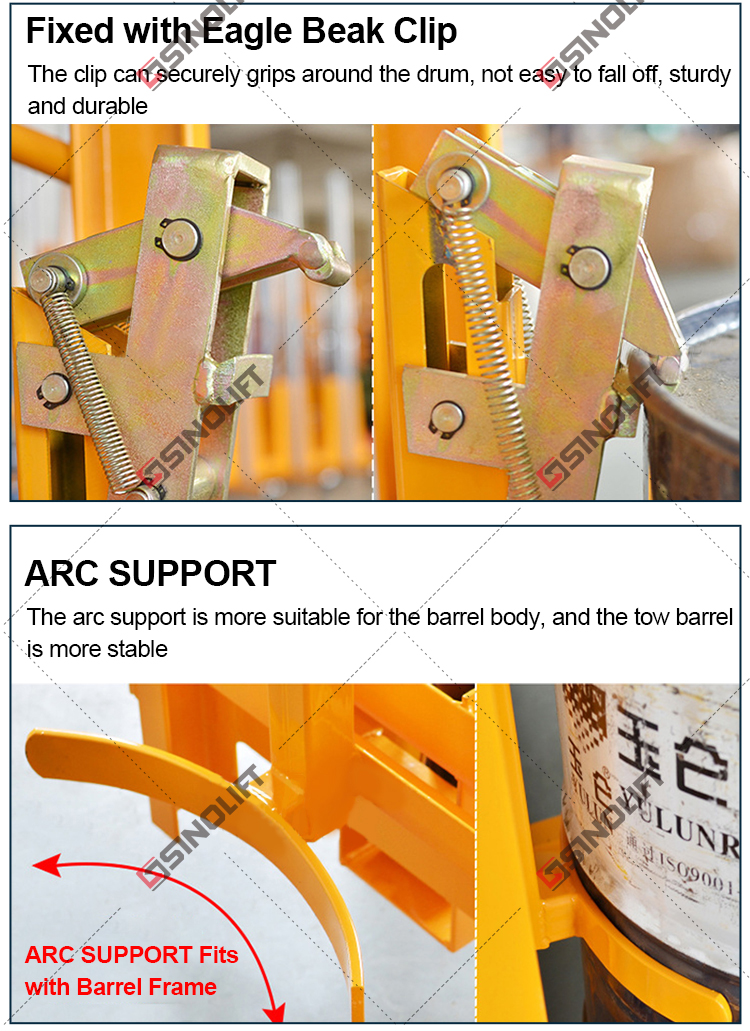

Description: Drum Hand Drum Handler are uniquely designed to lift and move plastic, steel, and fiber drums with a top lip. For transport security, the steel jaws securely grips to lock the top lip of the drum. The straddle legs of Hand Drum Handler are designed to rotate for access for drums on pallets.

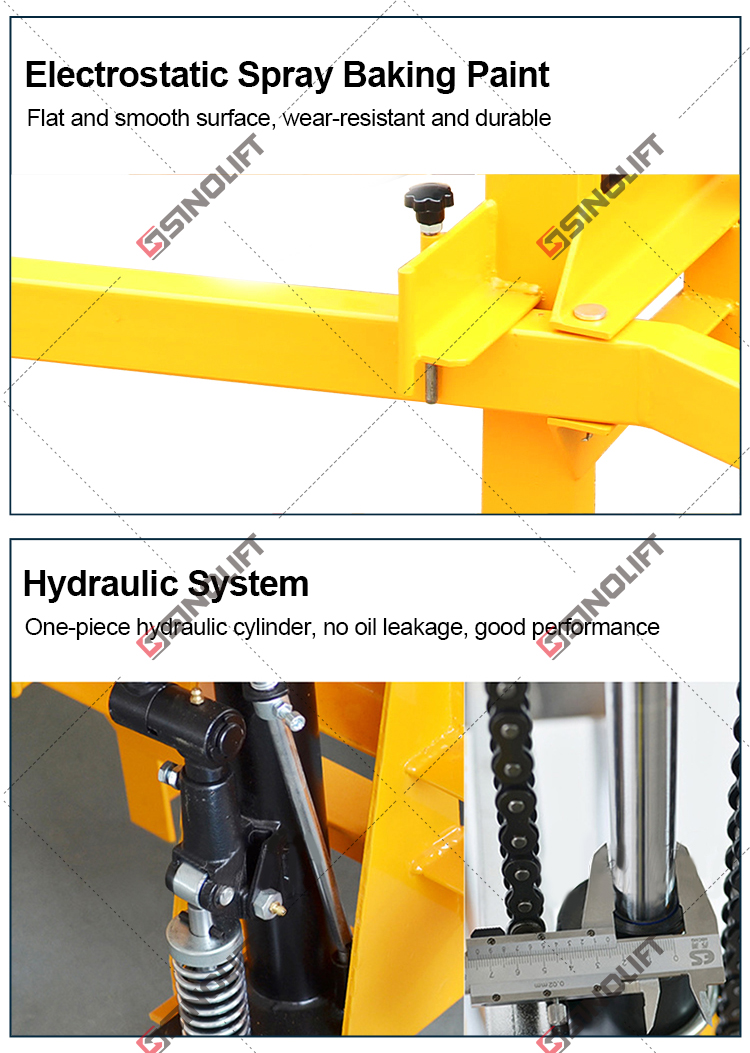

Construction: These units feature all welded steel construction.

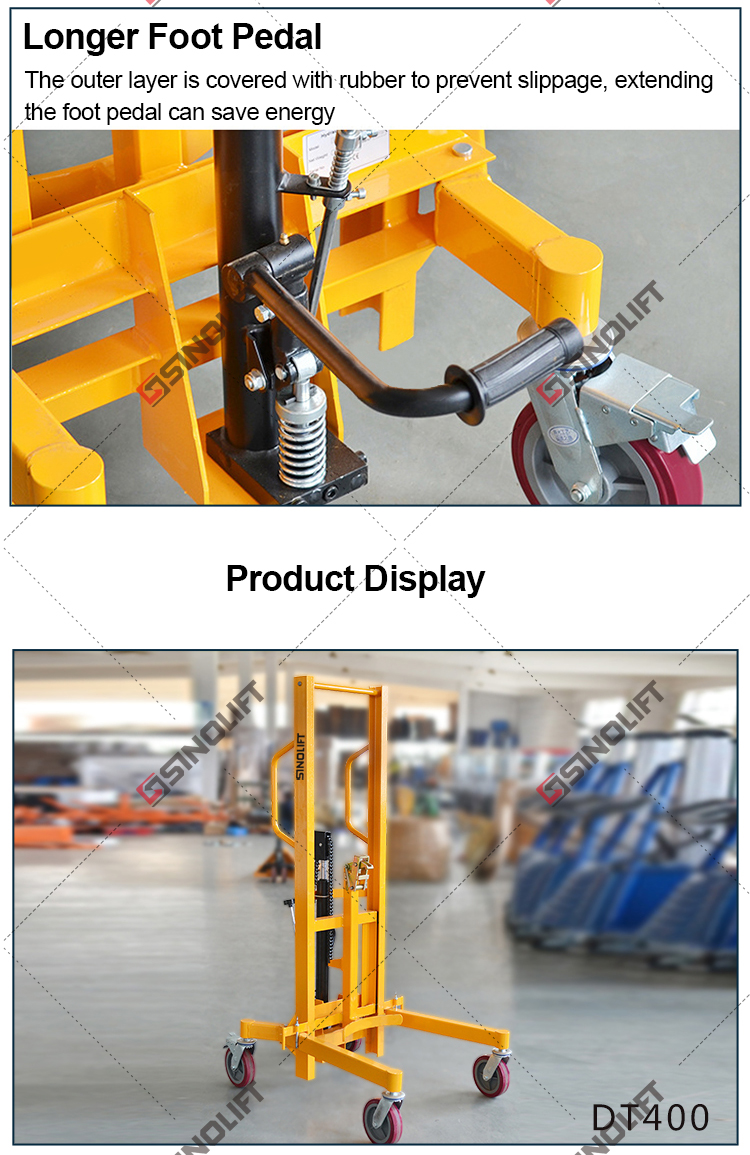

Operation:Hand Drum Handler are available in either a manual mechanical ratchet or a foot pump hydraulic lift mechanism. The units roll on four 8"x 2"phenolic casters.
Service Range: Models have a jaw service range from 27"to 74".
Capacity:Hand Drum Handler Units feature a 1,500 lb. capacity.
Power: Optional DC-powered models are available.
Standard: This series rolls on four 8"x 2"glass-filled casters. The push handle is able to fold down to allow access to the ratchet and foot pump.
Options: An optional weight scale is available for this series. The scale allows users to weigh drums within accuracy +/- 0.5 lbs. and includes an AC adaptor and 6 D batteries.
Color: Models are powder coated with a Beacon safety yellow finish.
Weight: Units weigh between 170 and 250 lbs. The optional scale adds 70 lbs. to the overall weight.
| Model | Hand Drum HandlerDT400 | Hand Drum HandlerDT400-1 | |
| Capacity | Kg | 400 | 400 |
| Drum size | 30 gallon (Ф450×700), 55gallon(Ф572×900) or 80 gallon(Ф800×900) steel, 210L Plastic | ||
| plastic or steel drum | |||
| Lifting Height | mm | 1100 | 400 |
| Support Leg adjustable Width | mm | 700-1370 | 700-1370 |
| Front wheel size（PU） | mm | Ф200×50 | Ф200×50 |
| Rear wheel size（PU） | mm | Ф200×50 | Ф200×50 |

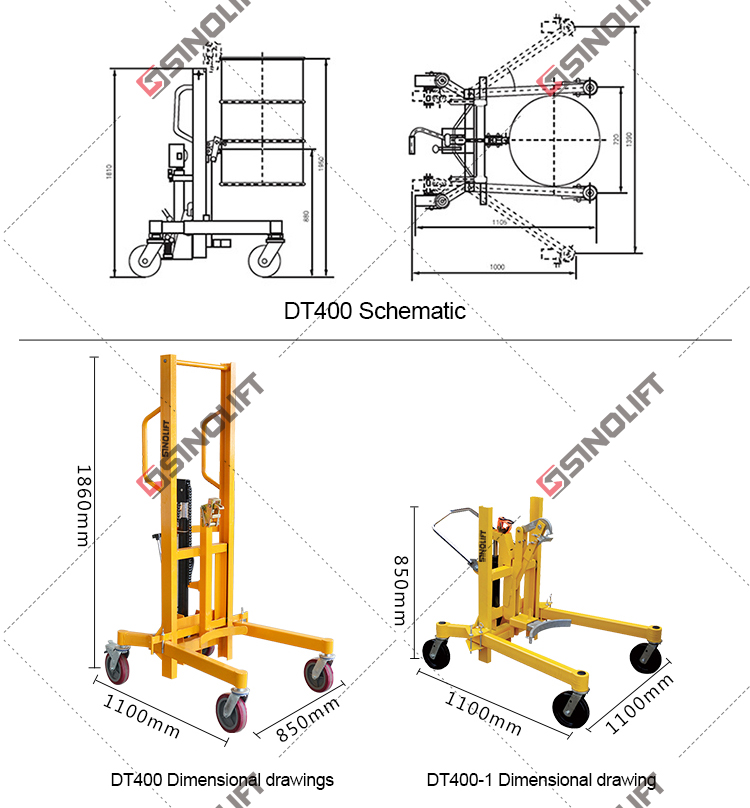

| Overall Dimension | mm | 1100x850x1860 | 1100x850x1860 |
| N.W | Kg | 105 | 97 |
