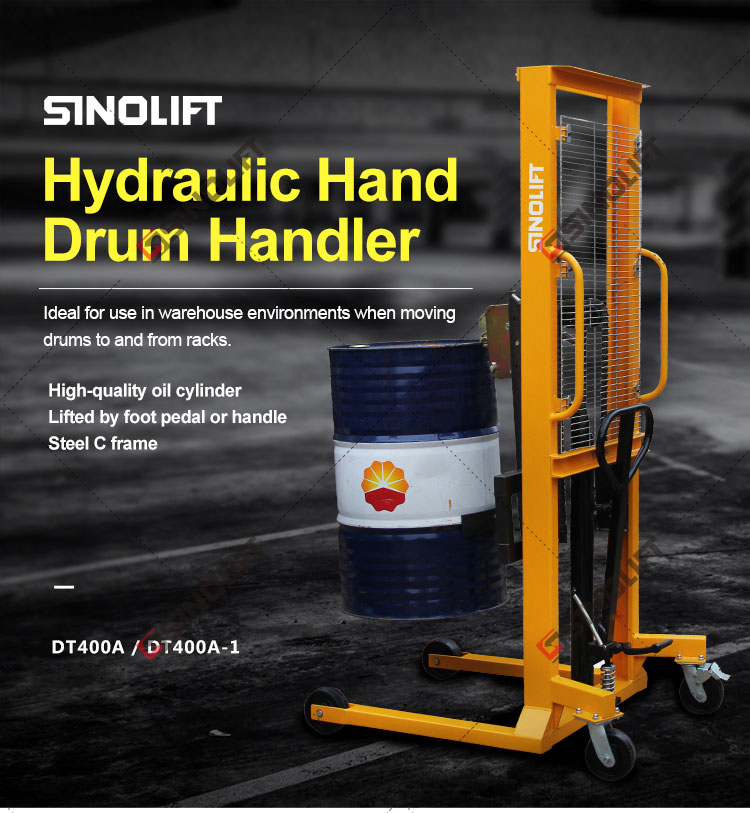

DT400A DT400A-1 Hand Drum Handler
DT400A DT400A-1
1. The DT400A-1 have swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability.
2. Ergonomic solution for lifting, transporting, weighing and placing drums on pallets.
3. With Scale, which can control pouring & measure capabilities, accuracy: ±3‰.
2. Ergonomic solution for lifting, transporting, weighing and placing drums on pallets.
3. With Scale, which can control pouring & measure capabilities, accuracy: ±3‰.
Quantity:
DT400A DT400A-1 Hand Drum Handler

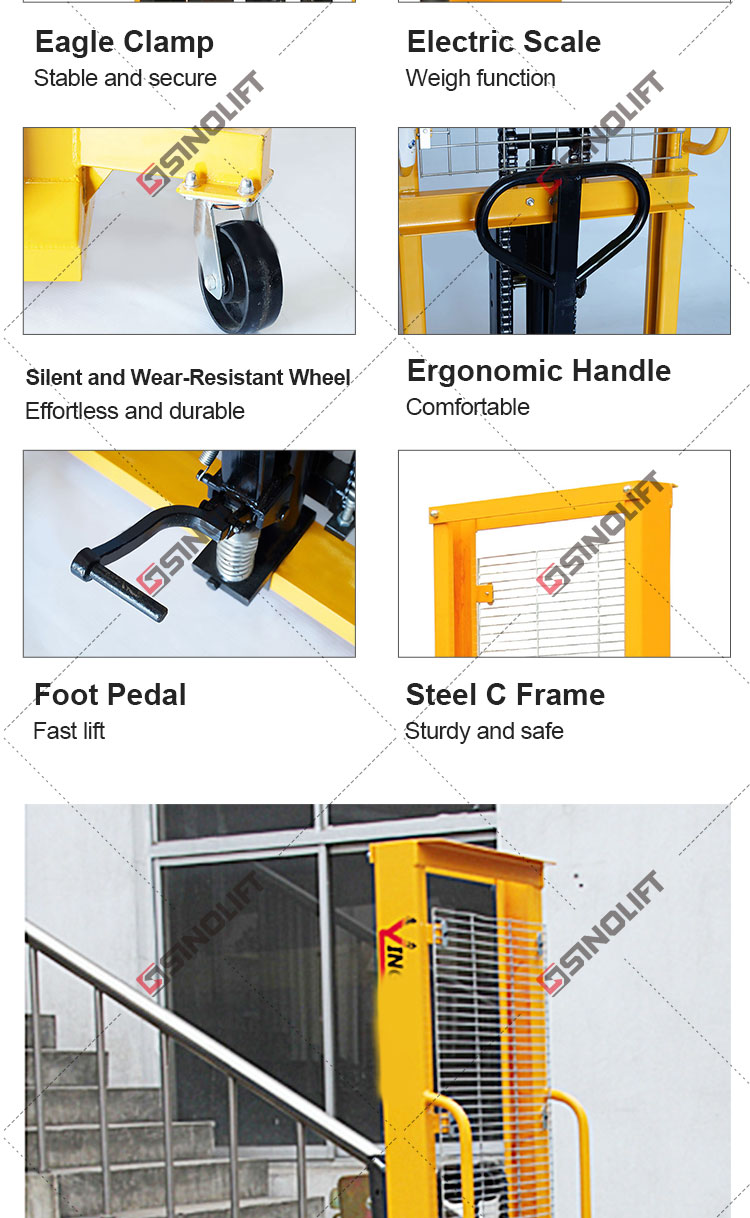

- Integrated functions of transporting, stacking and weighting.

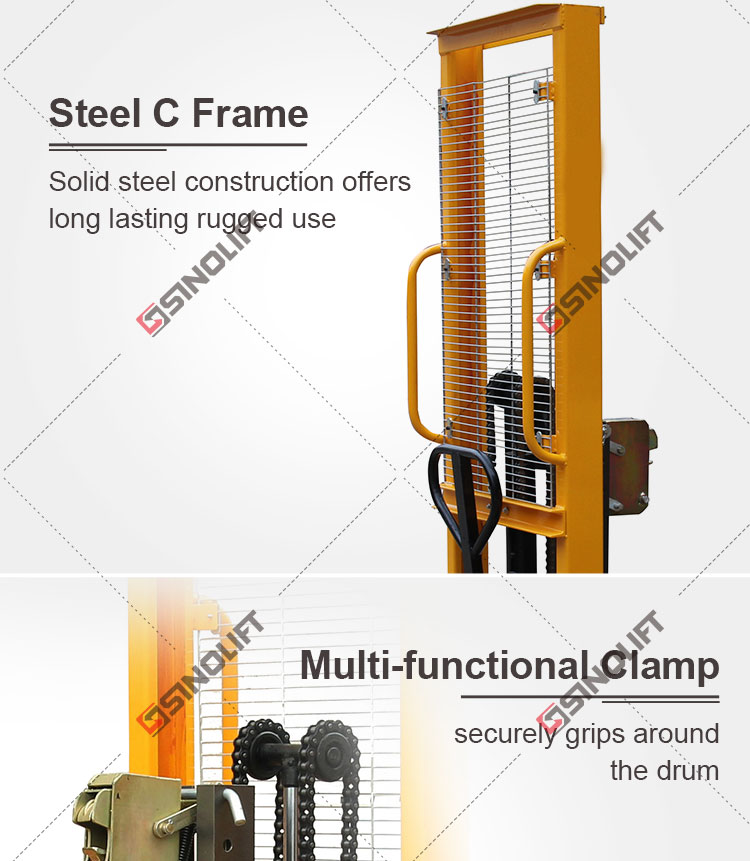

- Gantry made of special-rolled industrial-manufactured C-type steel which is strong and safe.
- Eagle-gripper structure, fit for operating with steel oil drum and PE oil drum;

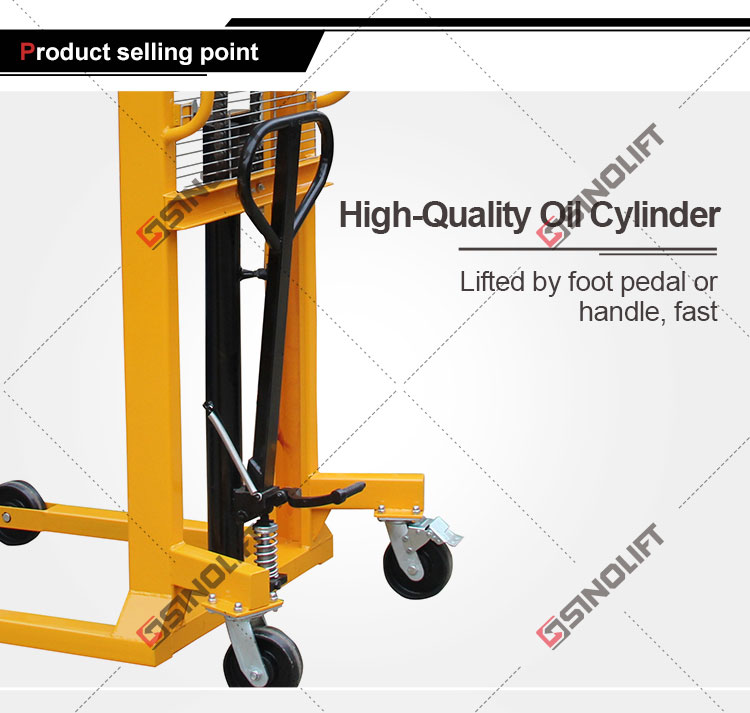

- Excellent-quality oil cylinder, high lifting speed, maximum lifting height:1600mm
- Hand Drum Handler carrier is featured by its simple-and-light-structure outline design which enables single one man complete transporting, stacking and loading & unloading.
- Applicable for chemical plants and food plants for transferring, loading & unloading and compounding materials of fluids, such as dyes, paintings, adhesives, petrol and edible oils, etc.
- Hand Drum Handler Note: Electronic weighting device is built in DT400-1, operational functions include: ZERO, TARE and weighting, of accuracy: ±3‰
Model Hand Drum HandlerDT400A Hand Drum HandlerDT400A-1 Capacity Kg 400 400 Drum size 55gallon(Ф572×900)or 80gallon(Ф800×900) 210L Plastic plastic or steel drum Lifting height mm 1500 1500 Straddle leg width mm 630 (810) 630 (810) Straddle leg lenth mm 770 770 Turning Radius mm 1400 1300 Outline dimension mm 1110x900x2100 1100x900x2100 Front wheel size（PU） mm Ф150×50 Ф150×50 Rear wheel size（PU） mm Ф150×50 Ф150×50 N.W Kg 136 151
