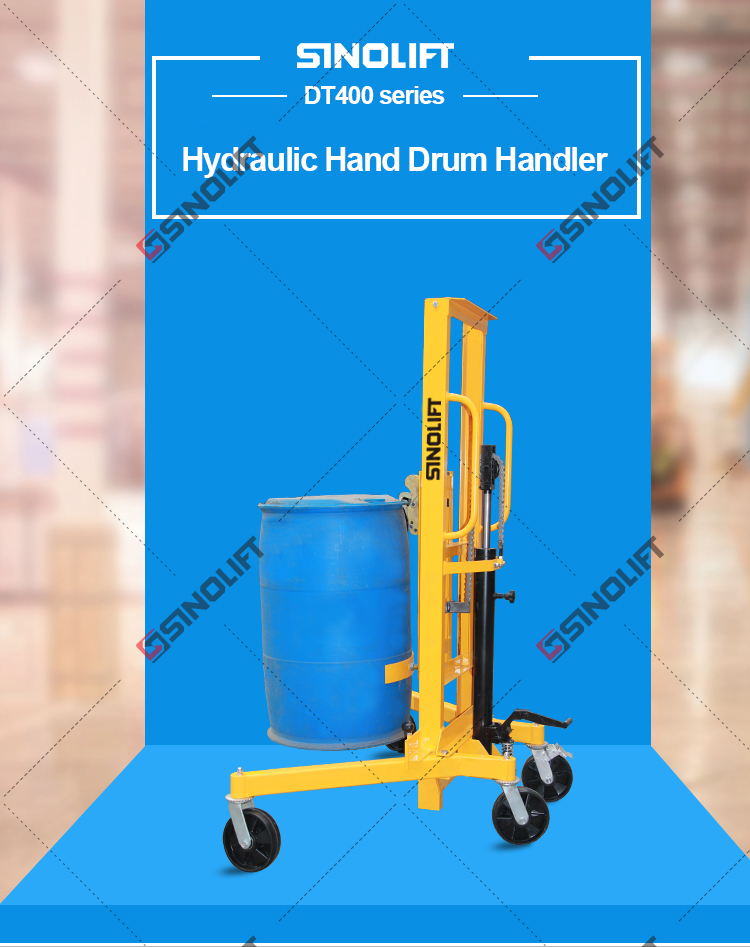

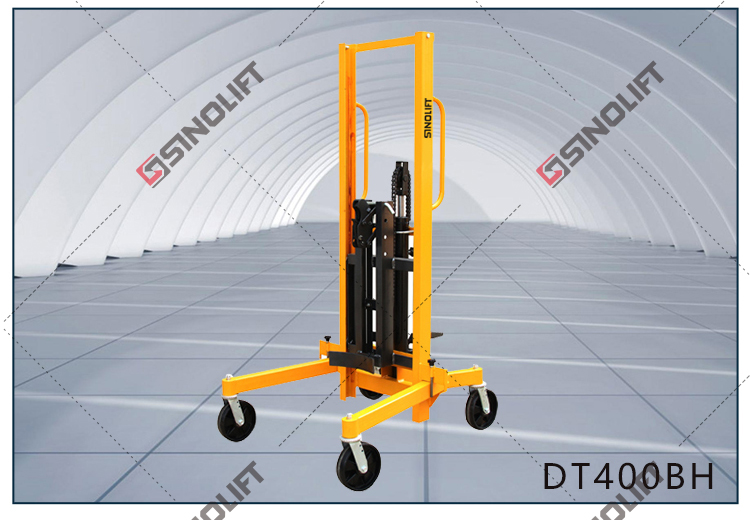

DT400B DT400BH Hand Drum Handler
DT400B DT400BH
* Ergonomic lifts, transport, and places poly, steel, or fiber drums on or off pallets.

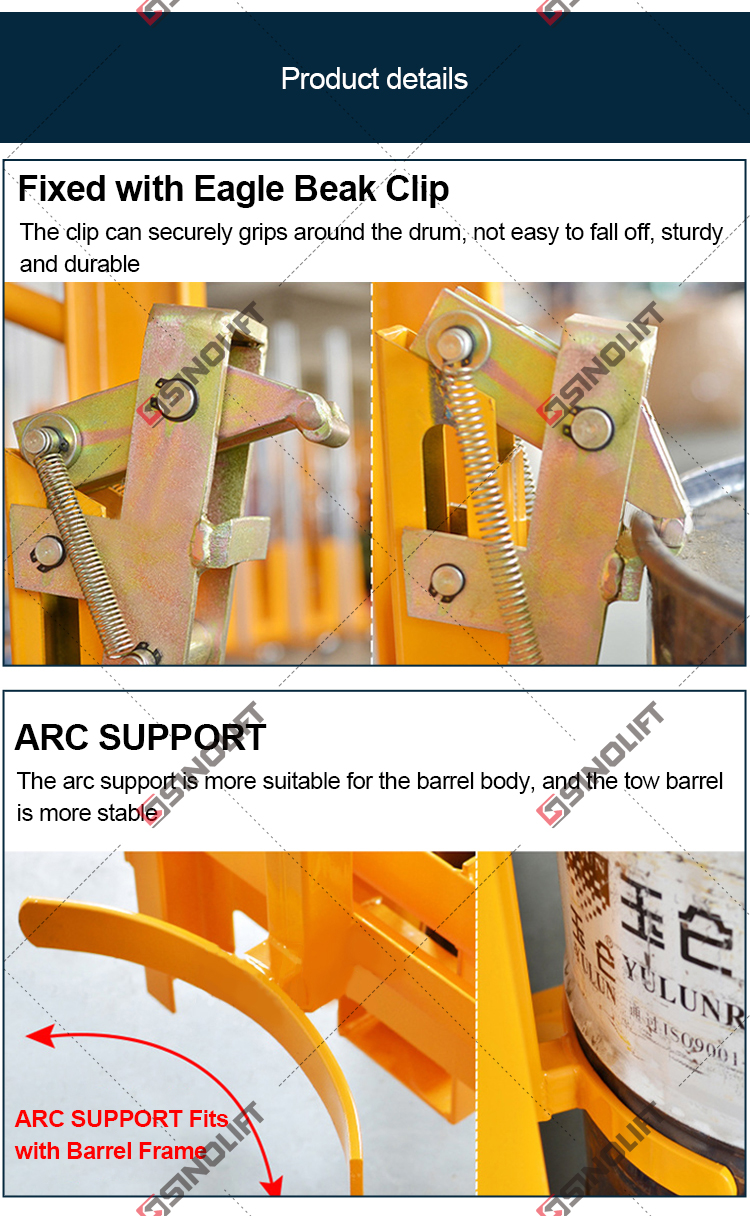

* A spring-load clamp securely holds any rimmed drum.
* It has swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability.
* A spring-load clamp securely holds any rimmed drum.
* It has swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability.
Quantity
DT400B DT400BH Hand Drum Handler
* Ergonomic lifts, transport, and places poly, steel, or fiber drums on or off pallets.
* A spring-load clamp securely holds any rimmed drum.
*Hand Drum Handler has swivel steering wheels for easy positioning and precision roller bearing load wheels for maximum stability.
* Legs adjust for different pallet, handles 30-, 55-, 85-gallon drums and plastic drums
* Automatic clamping tightly drum during lifting, safety & reliable.
* Optional Single Eagle-grip and Double Eagle-grip.

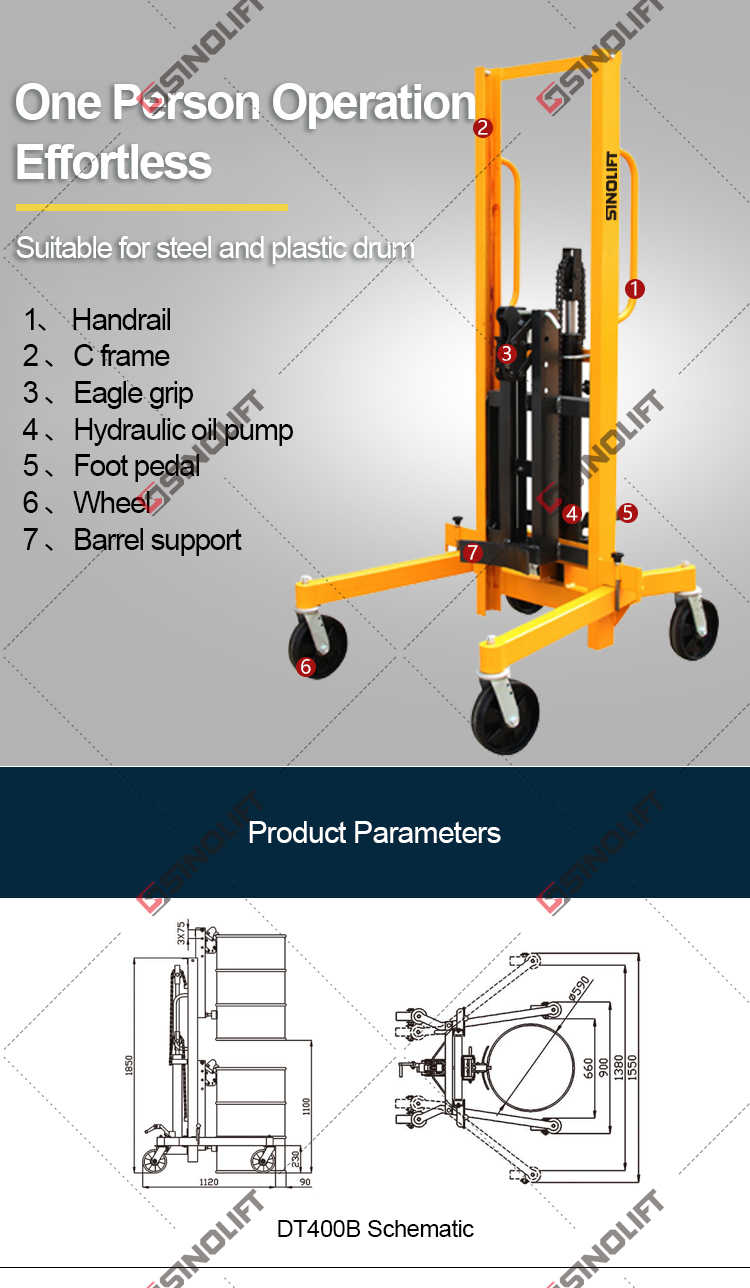

| Model | Hand Drum HandlerDT400B | Hand Drum HandlerDT400BH | |
| Capacity | Kg | 400 | 400 |
| Drum size | 55gallon(Ф572×900)or 80gallon(Ф800×900) 210L Plastic | ||
| plastic or steel drum | |||
| Lifting height | mm | 1100 | 1100 |
| Straddle leg width | mm | 660 (1380) | 660 (1380) |
| Straddle leg lenth | mm | 600 | 600 |
| Turning Radius | mm | 590 | 590 |
| Outline dimension | mm | 1010x900x1850 | 1010x900x1850 |
| Front wheel size（PU） | mm | Ф200×50 | Ф200×50 |
| Rear wheel size（PU） | mm | Ф200×50 | Ф200×50 |
| N.W | Kg | 123 | 123 |
