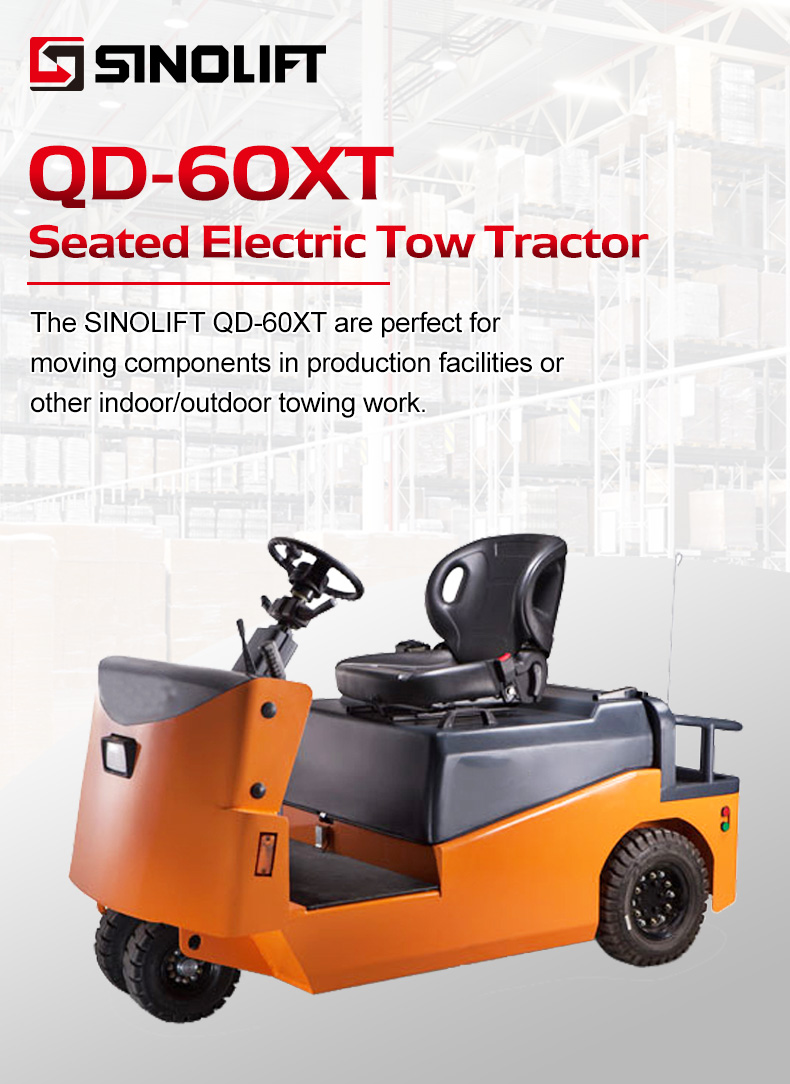

QD-60XT Rider Electric Tow Tractor

QD60XT

New type of suspended seat: adjust the bearing capacity according to the weight, and provide the most comfort.

Quantity

Contact Now

add to cart

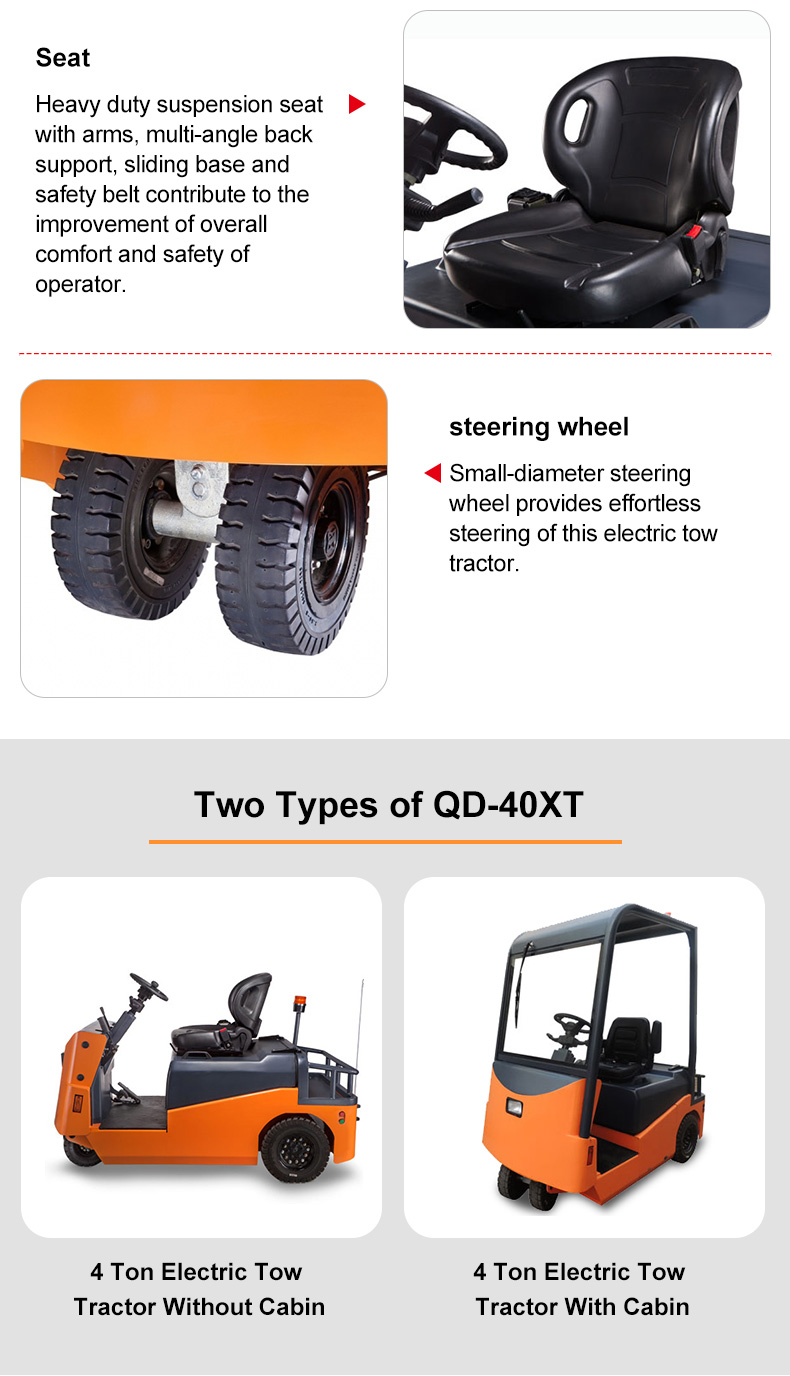

1. Suspended seat
New type of suspended seat: adjust the bearing capacity according to the weight, and provide the most comfort.

2. Reliable accelerator
The inner safety switch ensures safer operation.
The service life is more than 10 million times.

3. Big steering angle
Bigger steering angle ensures smaller turning radius and easier operation, and the space utilization ratio is also increased.

4. Beautiful and useful tighten mechanism
The tighten mechanism is installed at the top of the cover, so that the forklift is more beautiful, convenient and useful.

5. Tricolor taillight
Fog light, turning light and braking light, which ensure more safety for both life and property.

Model No.				QD60XT
Power supply				Battery
Operating type				Sit-on
Tyres		front / rear		Pneumatic
Tyre Quantity		front / rear		2/2x
Max. pulling force		3min rating	N(kgf)	4410(450)
Rated pulling force		60min rating	N(kgf)	1470(155)
(traction capacity)
Traction weight		60min rating	kg	6000
Traveling speed		without loaded	km/h	17
		with load		7
Max. gradeability		without load	%	30
Overall length		with hook	mm	2000
		without hook	mm	1870
Front overhang			mm	150
Rear overhang			mm	370
Overall width			mm	960
Overall height			mm	1220
Turning radius			mm	1845
Hook length			mm	136
Hook height			mm	290/340/390
Wheelbase			mm	1350
Tread	front wheel		mm	260
	rear wheel		mm	860
Ground clearance			mm	100
Platform height			mm	340
Total weight	with battery		kg	1150
	without battery			610
Weight layout	front wheel		kg	370
(with standard battery)	rear wheel			780
Tyre Dimension	front wheel			3.50-5-6PR
	rear wheel			4.00-8-6PR
Main brake				Hydraulic
Hand brake				Manual
Battery Voltage/ Nominal capacity (5H rating)			V/AH	48/320
Battery Weight			kg	540
Driving motor			kW	AC 4.0
Type of drive control				MOSFET Control
