QDD10 Electric Mini Tow Tractor

QDD10 Electric Mini Tow Tractor

QDD10

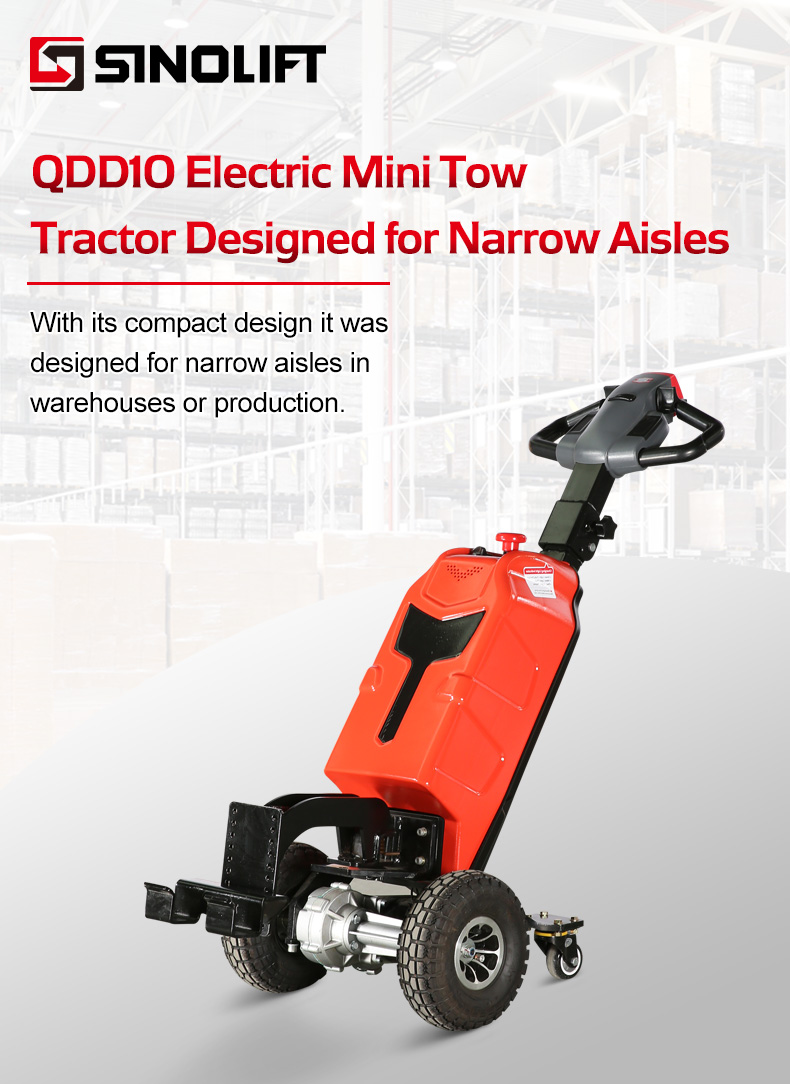

With its compact design it was designed for narrow aisles in warehouses or production. At a self-weight of only 95Kg and a capacity of 1000Kg, the QDD10 tow tractor can climb slopes up to 3%.
Quantity:
Contact Now
add to cart
All Products

With its compact design it was designed for narrow aisles in warehouses or production. At a self-weight of only 95Kg and a capacity of 1000Kg, the QDD10 tow tractor can climb slopes up to 3%.

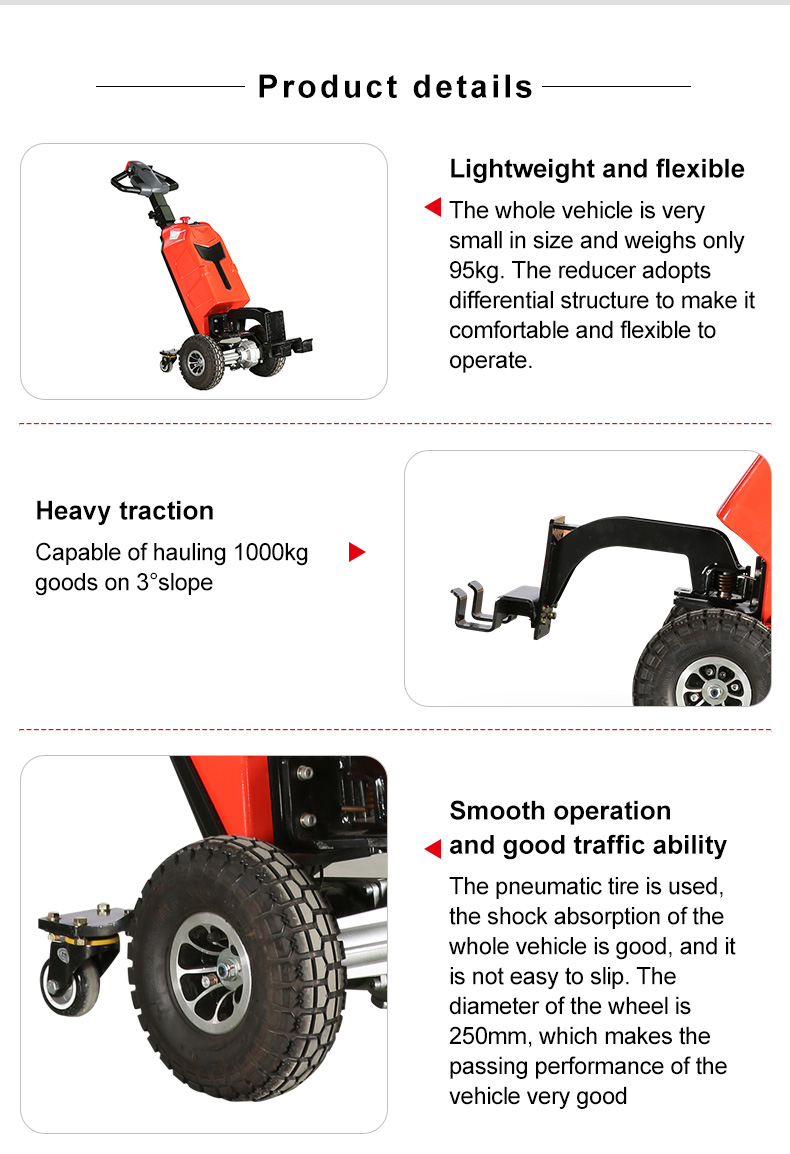

With its 250mm diameter pneumatic tyres, the QDD10 is ready for a variety of operations. It does not matter if you are using the tow tractor on flat ground in the warehouse, or on uneven floors or outdoors, the QDD10 towing tractor will safely bring your trolleys to their destination.

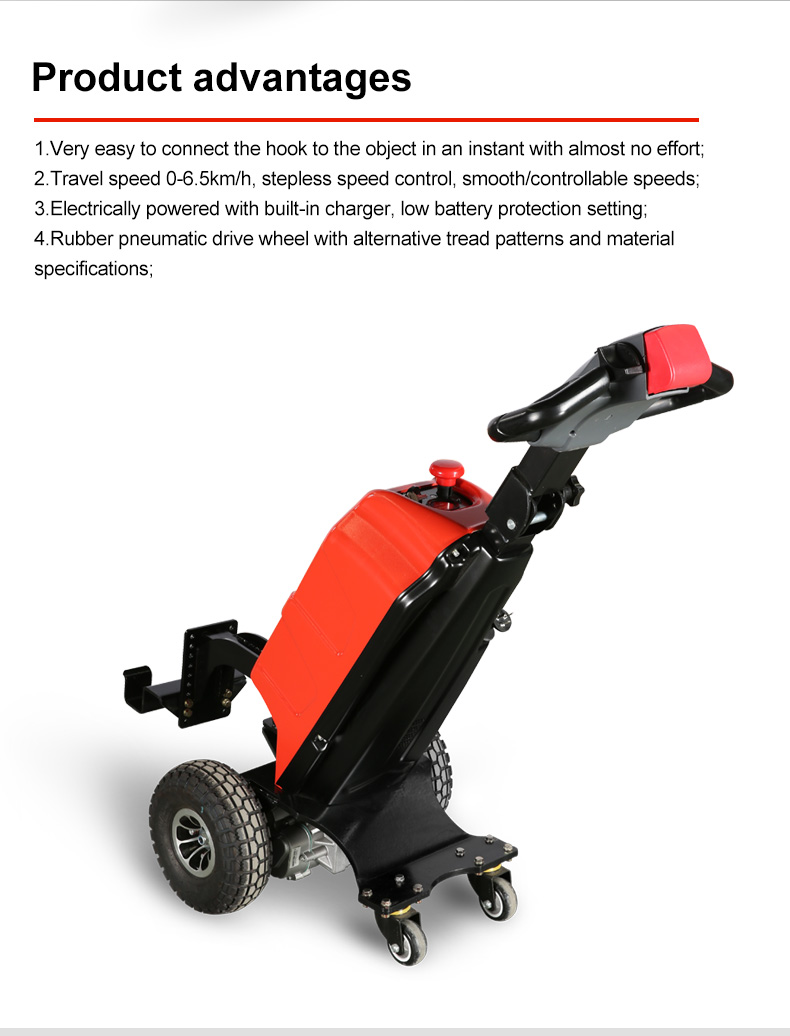

1.Very easy to connect the hook to the object in an instant with almost no effort;
2.Travel speed 0-6.5km/h, stepless speed control, smooth/controllable speeds;

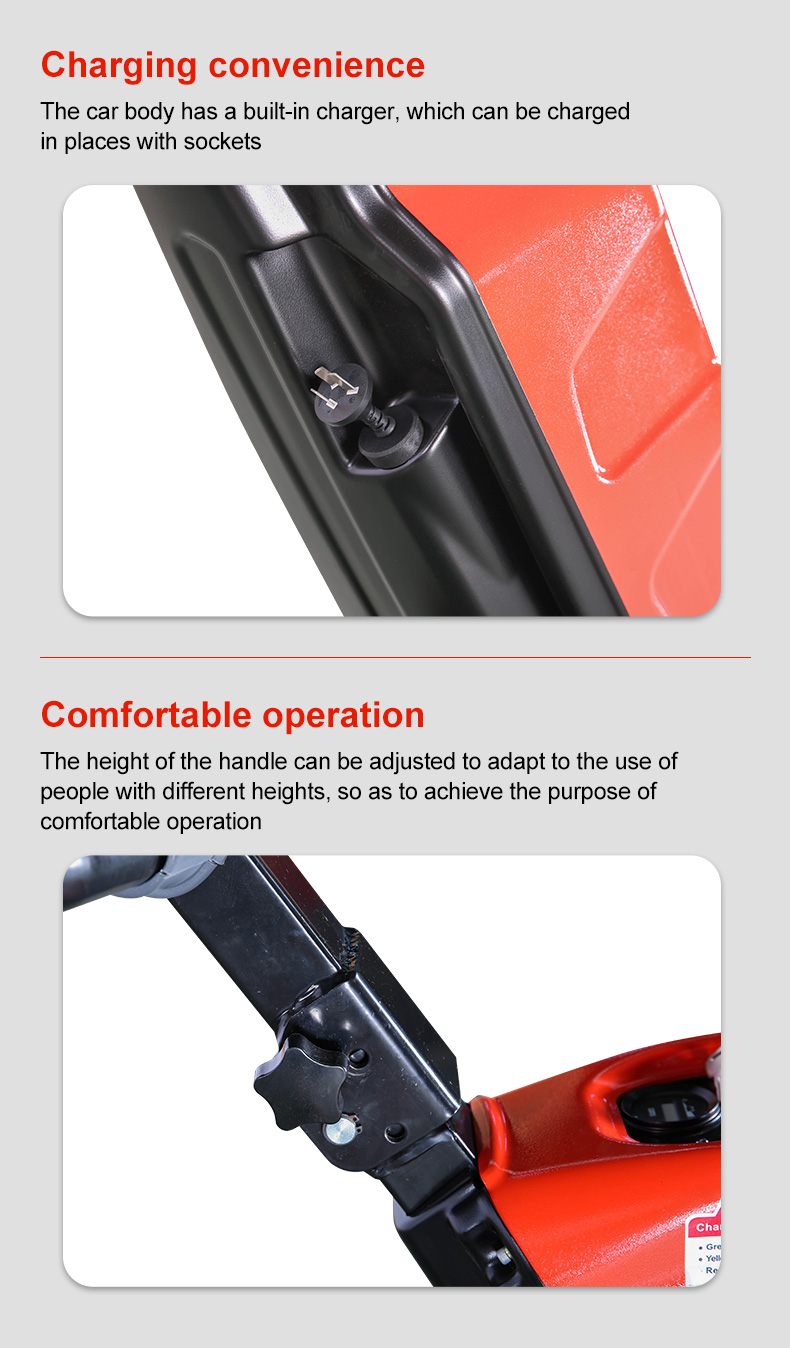

3.Electrically powered with built-in charger, low battery protection setting;
4.Rubber pneumatic drive wheel with alternative tread patterns and material specifications;

Model QDD10
Drive unitElectric
Type of operationPedestrian
Load Q(kg)1000
Self weightkg95
Tire typerubber tire
Drive wheel size(mm)2x250x85
Universal wheel size(mm)2x75x32
Drive trackb10(mm)520(outermost)
Universal wheelbaseb11(mm)268(outermost)

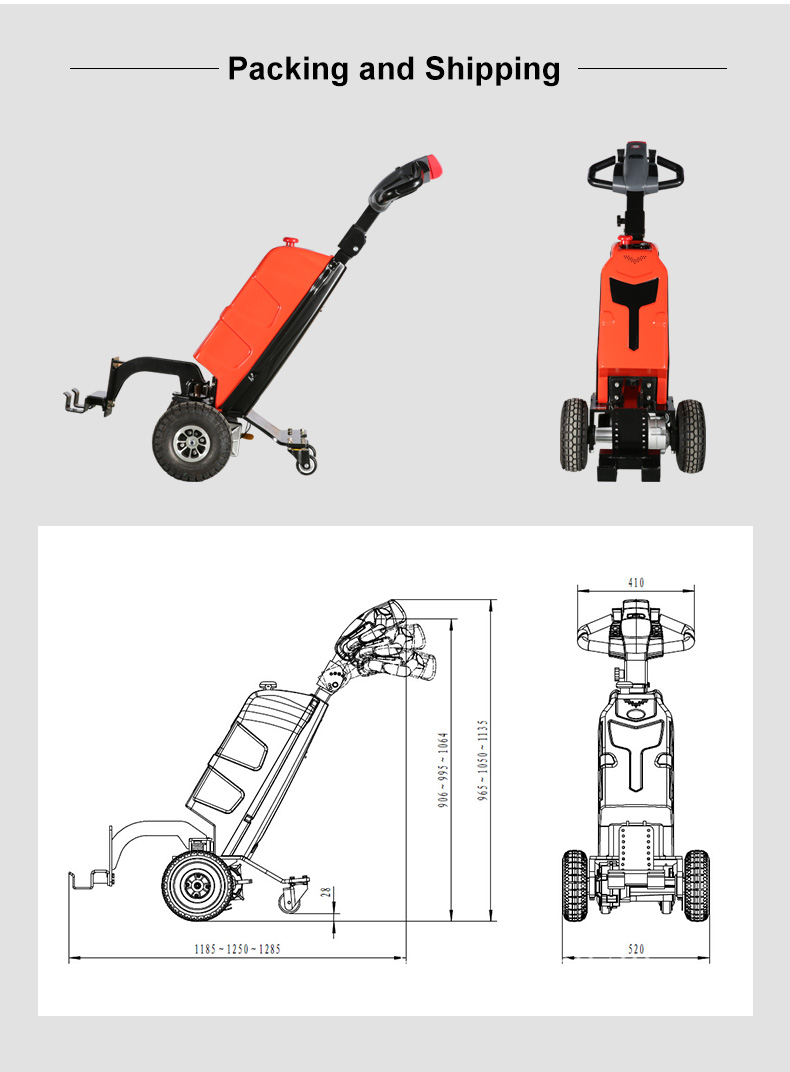

Dimensions(non-operating state )mm1255x520x1070
Dimensions(working condition )mm1185x520x1135
The maximum allowed size batterymm196/165/175

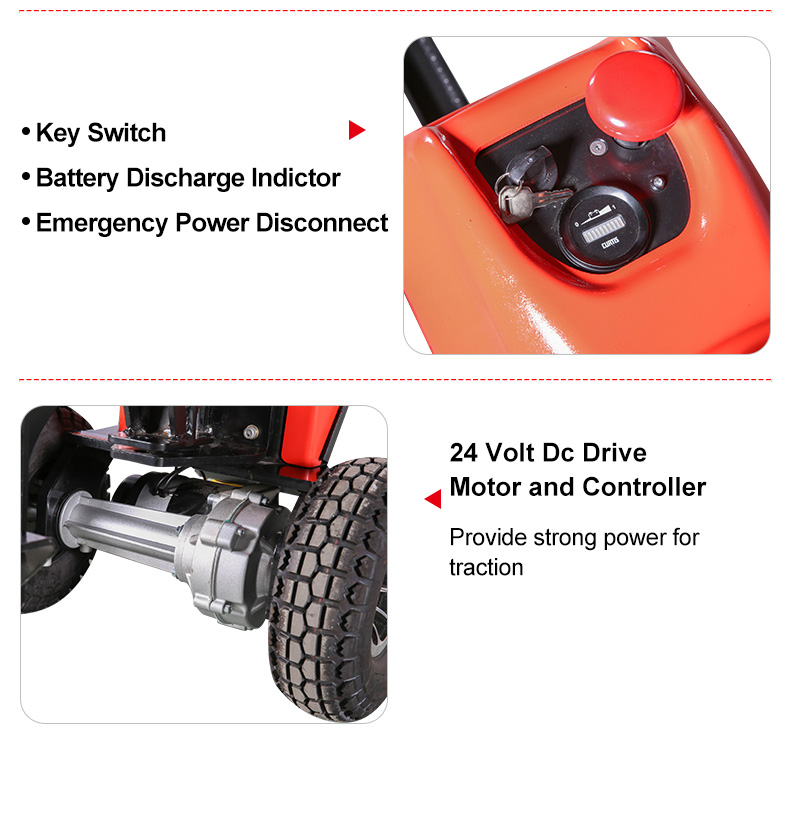

Type of drive unitDC
Steering type CURTIS
