SINOLFT NPHE High Lift Scissor Lift Pallet Jack

NPHE

Quantity:

Contact Now

add to cart

Name:

NPHE electricSINOLFT NPHE High Lift Scissor Lift Pallet Jack high-lift or Scissor Lift Pallet Jack inserts its fork into the pallet hole when it is in use, and the hydraulic system is driven by electric power to realize the lifting and lowering of the pallet cargo, and Scissor Lift Pallet Jack is pulled by manpower to complete the handling operation. Scissor Lift Pallet Jack is the easiest, most effective, and most common loading and unloading and handling tool among pallet transport tools, and is widely used in logistics, warehouses, factories, hospitals, schools, shopping malls, airports, stadiums, stations and airports, etc.

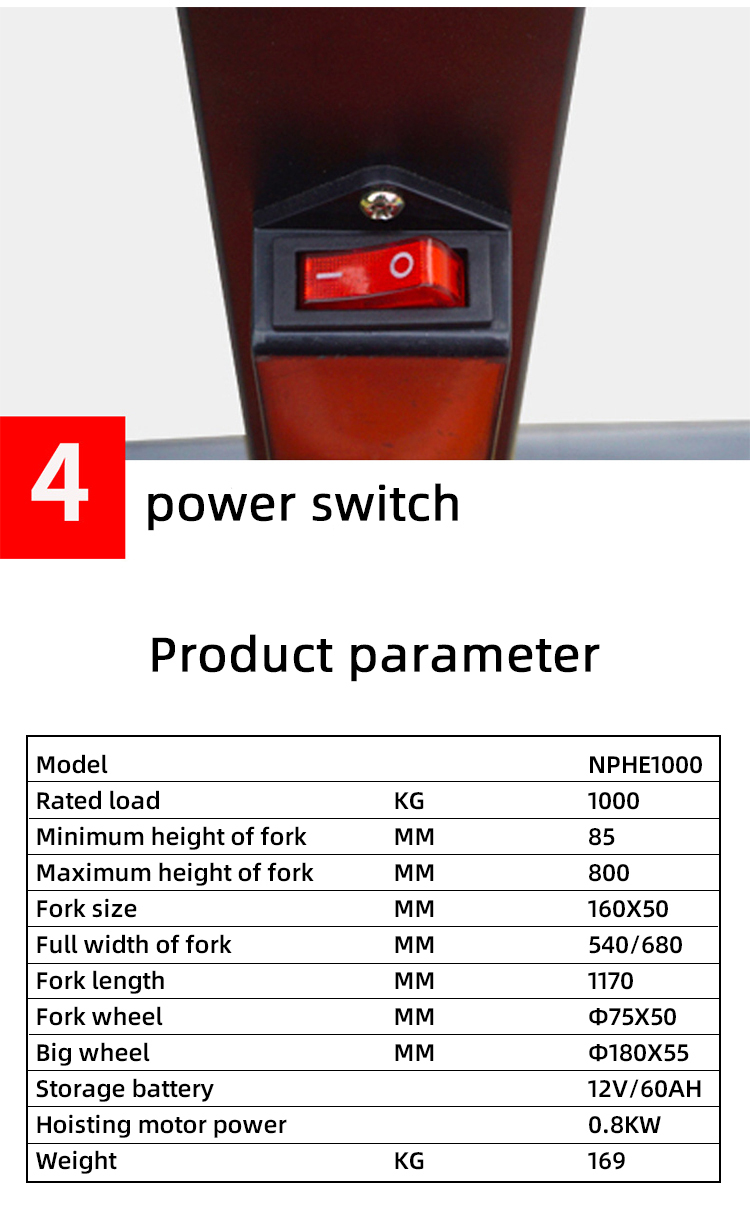

Model		NPHE High Lift Scissor Lift Pallet Jack NPHE1000
Rated load Q	Kg	1000
Fork minimum height h	mm	85
Maximum fork height h1	mm	800
Fork size	mm	160x50
Fork full width b5	mm	540/680
Fork length l	mm	1170
Fork wheel	mm	Φ75x50
Big wheel	mm	Φ180x55
Battery V/Ah(5h autonomy)		12V/60Ah
Lifting motor power		0.8KW
Weight	Kg	169
