Sinolift EPT20-ET Rough Terrain Power Pallet Jack
EPT20-ET

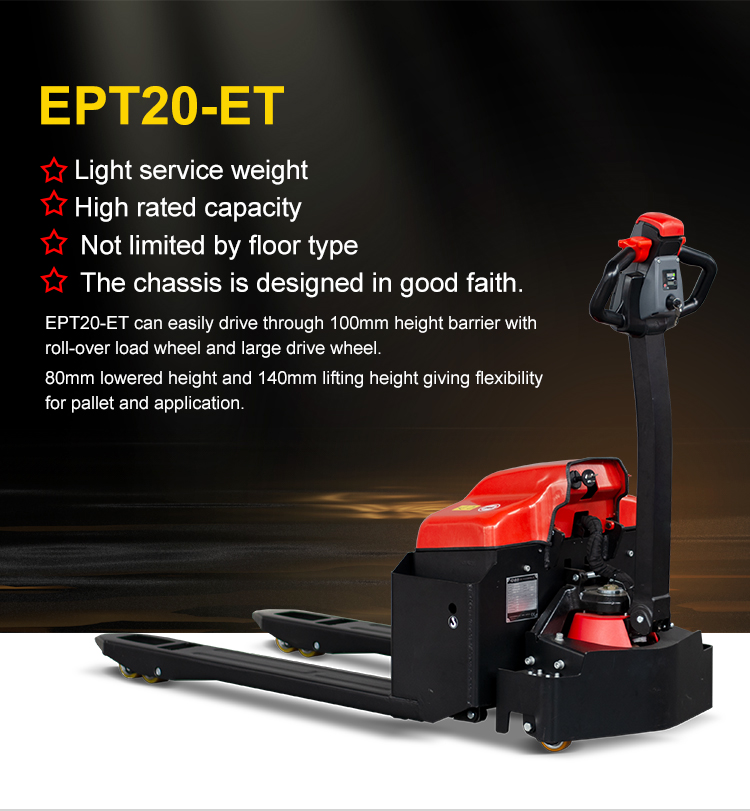

EPT20-ET Power Pallet Jack is designed to cope with complex environment, EPT20-ET Power Pallet Jack is designed to cope with complex environment, It's a new star which has 48V superpower, Ideal out-door solution, longer run time.220kg light service weight, 2000kg high rated capacity, maneuver through narrow aisle with 1465mm turning radius. It isn't limited by floor type and harsh environments.
Quantity
Name:Sinolift EPT20-ET Rough Terrain Power Pallet Jack

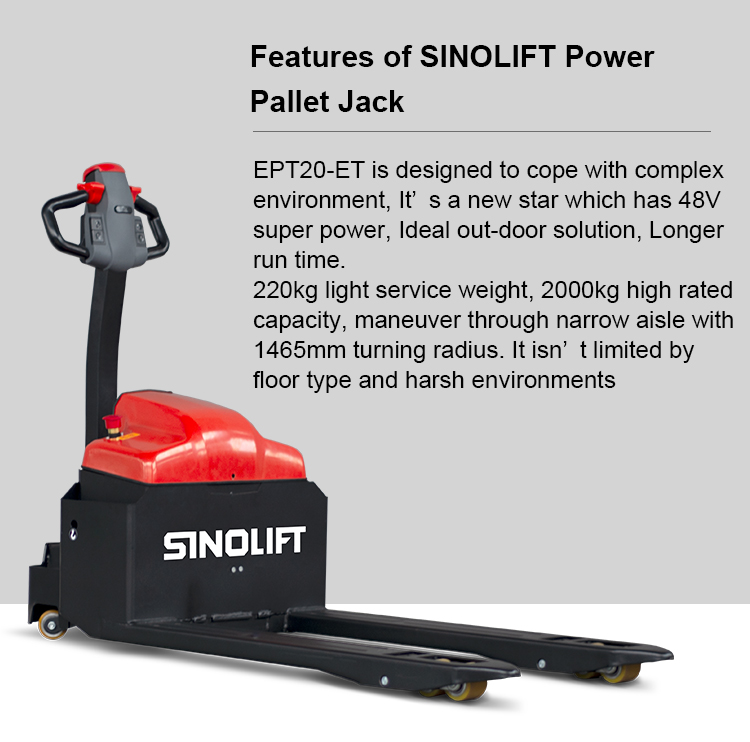

EPT20-ET Power Pallet Jack is designed to cope with complex environment, EPT20-ET Power Pallet Jack, a new star which has 48V superpower, Ideal out-door solution, longer run time.220kg light service weight, 2000kg high rated capacity, maneuver through narrow aisle with 1465mm turning radius. EPT20-ET Power Pallet Jack isn't limited by floor type and harsh environments.
| Model | Power Pallet JackEPT20-ET |
| Rated load(kg) | 2000 |
| Load center B11(mm) | 600 |
| Operation type | Walking style |
| Standard fork width聽b5(mm) | 560(685) |
| Fork length(mm) | 1150 |
| Fork thickness(mm) | 50 |
| Fork width(mm) | 150 |
| Overall length(mm) | 1685 |
| Minimum turning radius(mm) | 1465 |
| Minimum channel width(1000x1200mm,Tray)(mm) | 1792 |
| Minimum channel width(800x1200mm,Tray)(mm) | 1992 |
| Maximum running speed, full load / no load(km/h) | 4/5.5 |
| Maximum lifting speed, full load / no load(m/s) | 0.024/0.038 |
| Maximum down speed, full load / no load(m/s) | 0.034/0.025 |
| Steep slope, full load / no load(%) | 42963 |
| Dead weight with battery(kg) | 220 |
| Tire material | Polyurethane |
| Running power(kw) | 0.75 |
| Lifting power(kw) | 0.84 |
| Voltage / capacity(V/Ah) | 12*4/30 |
| Running braking | Electromagnetic brake |
| Brake | Battery brake |
| Drive control type | DC |
