SINOLIFT HL20SS HL30SS Customized Stainless Steel Scale Pallet Truck with Built in Printer
Product Overview
The SINOLIFT HL20SS and HL30SS are heavy-duty, stainless steel scale pallet trucks with built-in thermal printers, custom-designed to combine efficient material transport with highly accurate mobile weighing. Ideal for harsh, wet, or hygienic environments such as food processing, chemical, and brewing industries, these IP67-rated washdown units prevent rust while ensuring reliable performance. Designed for optimum maneuverability and workflow efficiency, they feature a high-visibility display and long-lasting battery, allowing operators to seamlessly weigh, print, and handle loads up to 3,000 kg in a single step.
Key Features
- Hygienic Washdown Design — Full stainless steel construction with IP67 rating for easy cleaning in wet, damp, or corrosive industrial environments
- IP68-Rated Load Cells — Waterproof sensors meet the stringent hygiene standards of food processing and chemical sectors
- High-Accuracy Weighing System — Four-shear-beam load cell construction delivers exceptional stability and accurate readings, even on slightly uneven surfaces
- Built-in Thermal Printer — Immediate on-the-go printing of weight tickets and shipping documentation for seamless receiving and dispatch operations

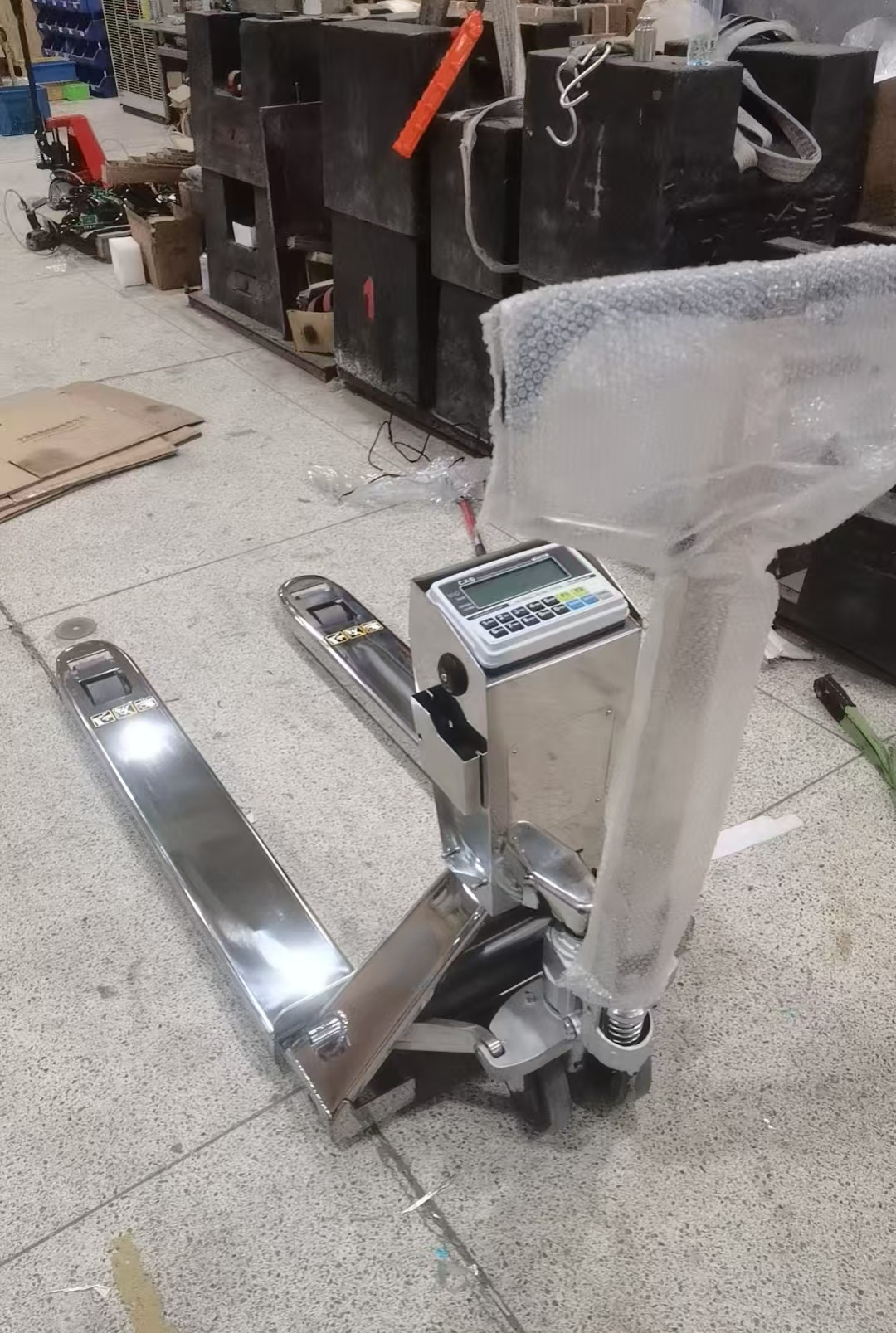

- High-Visibility LED/LCD Display — High-contrast readout easily viewed from any distance or angle, operated via full-rubber numeric and function keys
- Advanced Scale Functions — Includes Auto Tare, Zero, Lb/kg unit switching, counting mode, and weight summation with sequence numbers for totalizing
- Long-Lasting Battery — Rechargeable DC 6V / 5 Ah battery provides up to 100 hours of continuous use with programmable sleep mode and auto power-off
- Dual Storage Boxes — Two built-in compartments for securely holding manuals, tools, or shipping documents during transport
- Ergonomic Hydraulic Pump — Smooth hydraulic lift assembly ensures optimum maneuverability and effortless handling of heavy loads
- Customized Logistics Design — Built on the proven CPS Hand Pallet Truck platform, engineered to save time and costs by enabling weight estimation during transport
Applications
- Food Processing & Beverage / Brewing
- Pharmaceutical & Chemical Plants
- Cold Storage & Refrigerated Warehouses
- Shipping, Receiving & Logistics
- General Warehousing & Material Handling
Specifications
Dimensions & Structure
| Parameter | Value |
|---|---|
| Fork Length Options | 1,150 mm / 1,220 mm |
| Fork Width Options | 550 mm / 685 mm |
| Min. Lowered Height | 95 mm |
| Max. Lift Height | 115 mm |
| Rear Wheel Size | 2 × Ø180 × 50 mm |
| Front Wheel Size | 4 × Ø80 × 70 mm |
| Wheel Material | Polyurethane |
| Construction Material | Stainless Steel |
Performance
| Parameter | Value |
|---|---|
| Load Capacity (HL20SS) | 2,000 kg |
| Load Capacity (HL30SS) | 3,000 kg |
| Min. Weighing Capacity | 10 kg |
| Load Cell Type | 4 × Shear Beam |
| IP Rating – Truck | IP67 |
| IP Rating – Load Cells | IP68 |
Electrical & Scale System
| Parameter | Value |
|---|---|
| Battery | DC 6V / 5 Ah |
| Battery Life | Up to 100 hrs |
| Printer Type | Built-in Thermal |
| Display Type | LED / LCD |
| Keypad | Full Rubber Numeric |
| Unit Switching | kg / lb |
| Scale Functions | Tare, Zero, Count, Sum |
| Power Saving | Sleep Mode + Auto Off |
Specifications are subject to change without notice. Please contact SINOLIFT for the latest technical data or custom configuration requirements.
