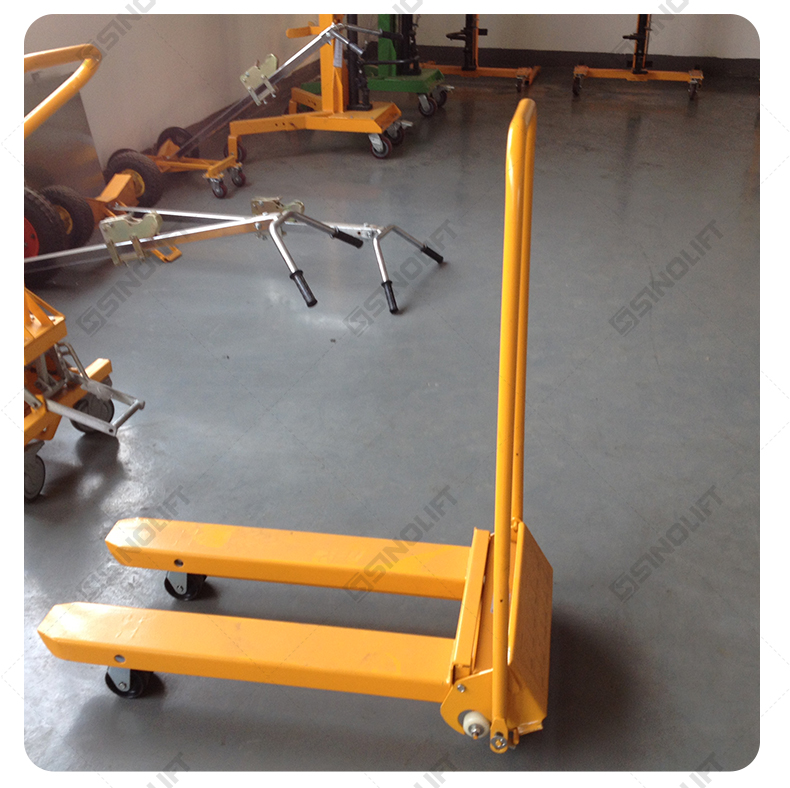

SINOLIFT MX Mechanic Lifter
MX

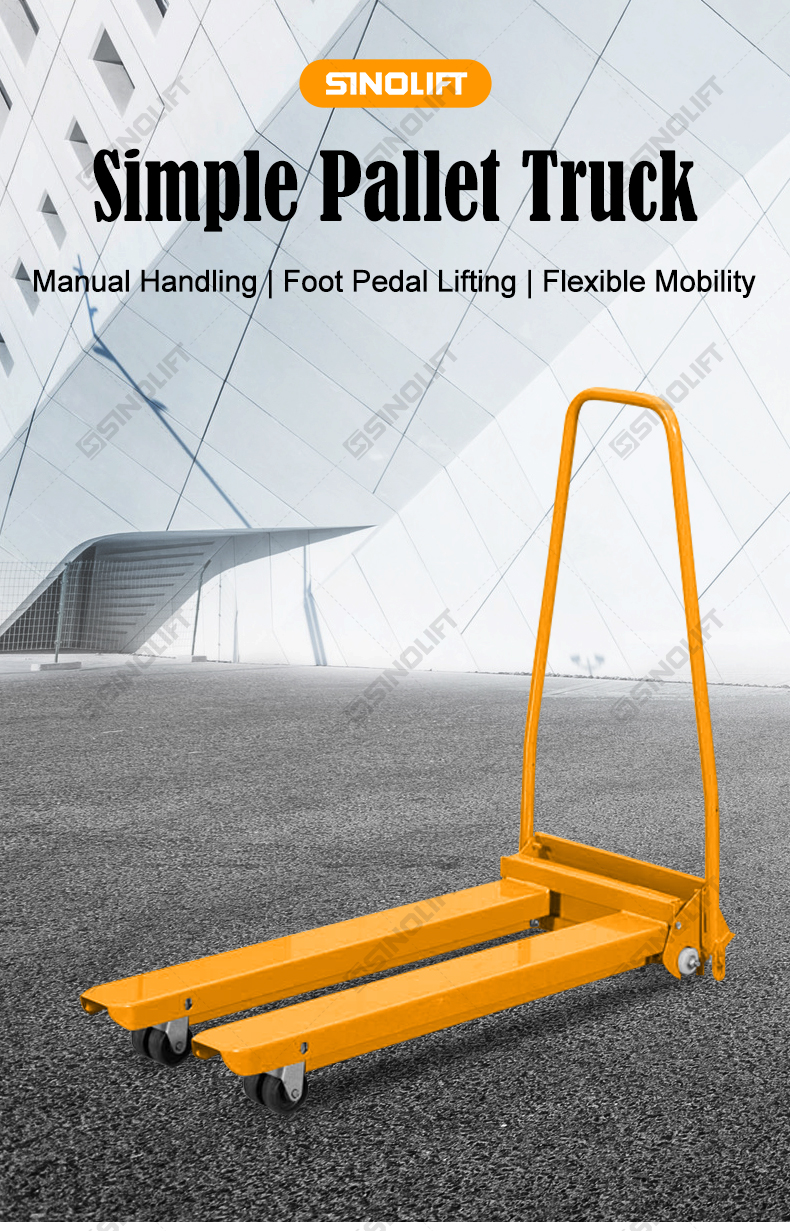

This mechanical mini pallet truck is designed for light use. Its compact size and low weight allow it to be easily transported as well as being very manoeuvrable thanks to its minimal turning radius. Ideal for use in the back of a vehicle.
Quantity
Mechanic Lifter MX series
▲ To replace hydraulic pallet truck when under 300kg load.

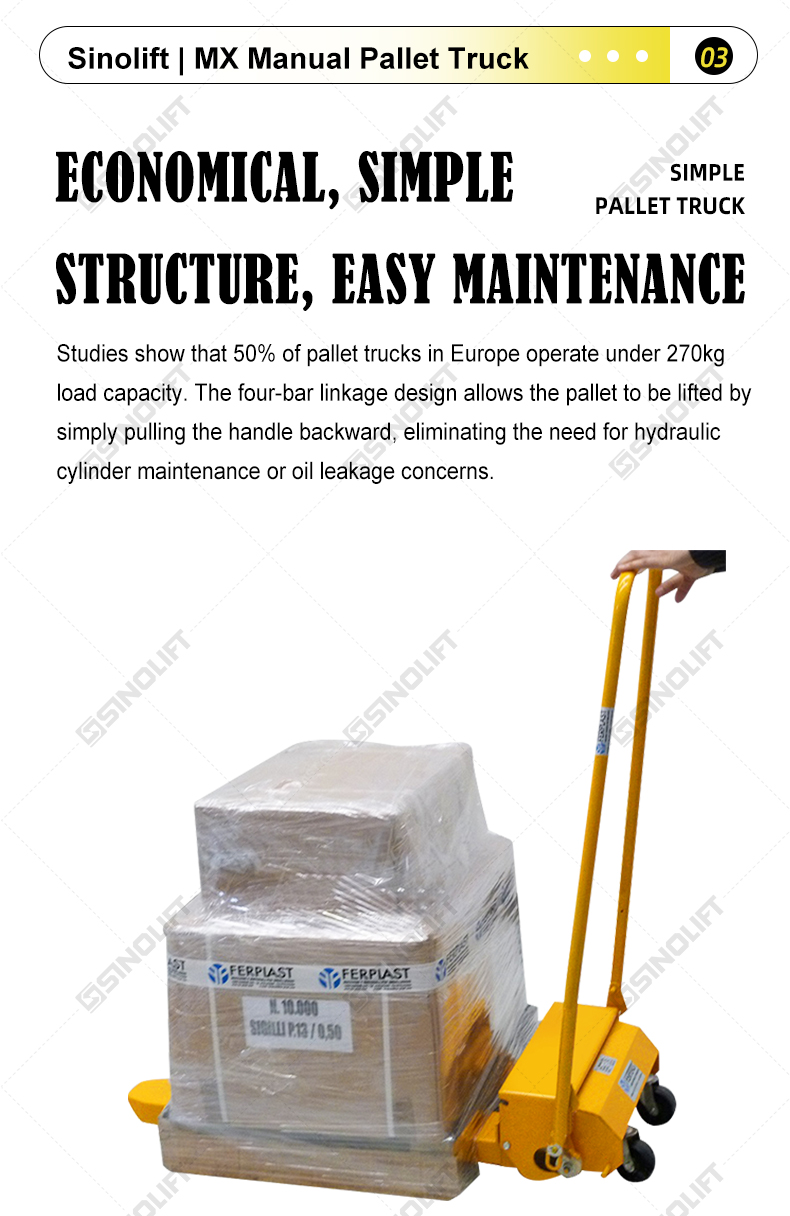

Pallets are simply lifted by pulling the handle backwards (the leverage principle).
Saves a lot of time as no pumping is required.

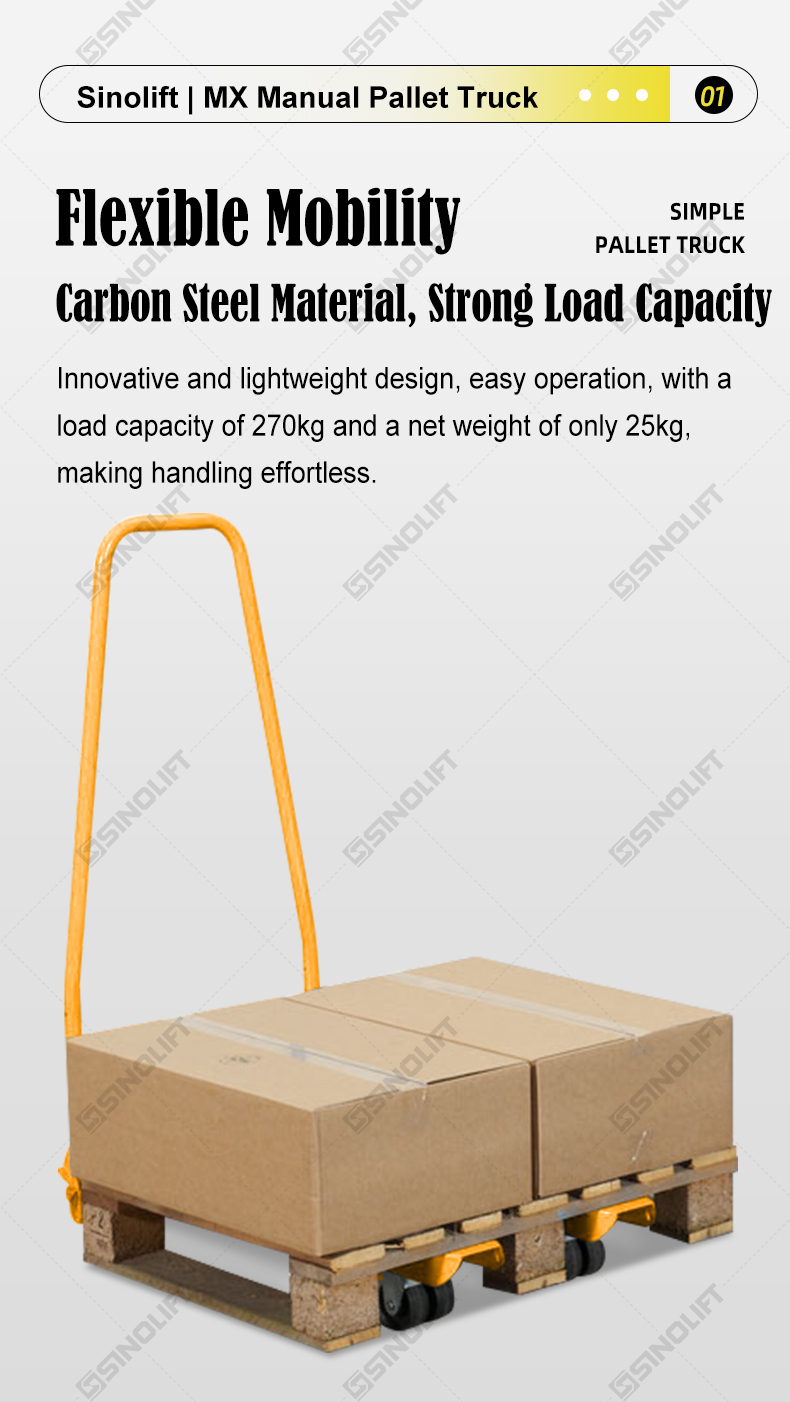

▲ Extremely low weight, about 25kg.

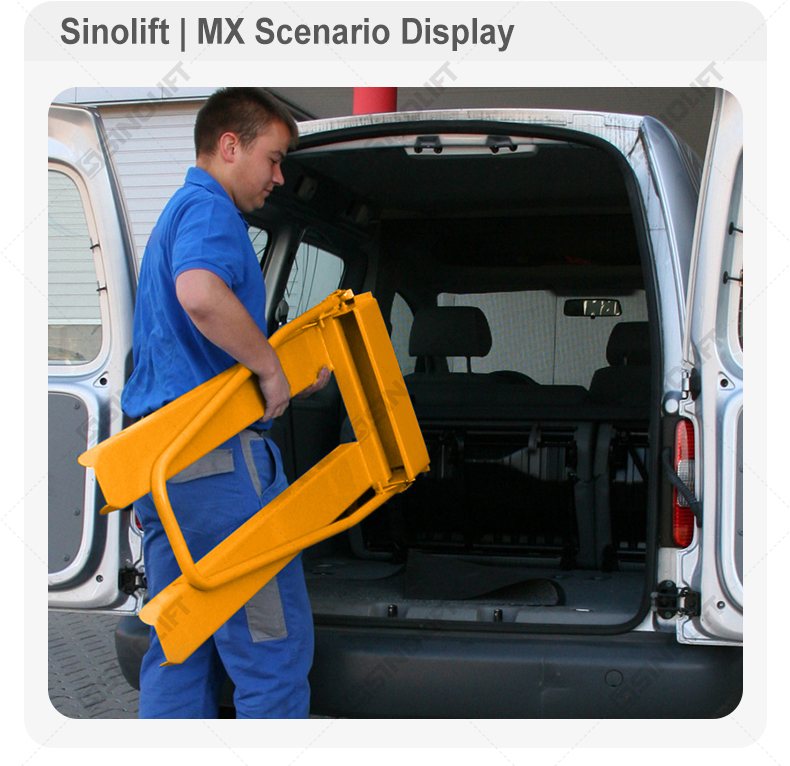

Thanks to the low weight, the mechanic lifter can easily be carried to other floors, put into a truck or a car.

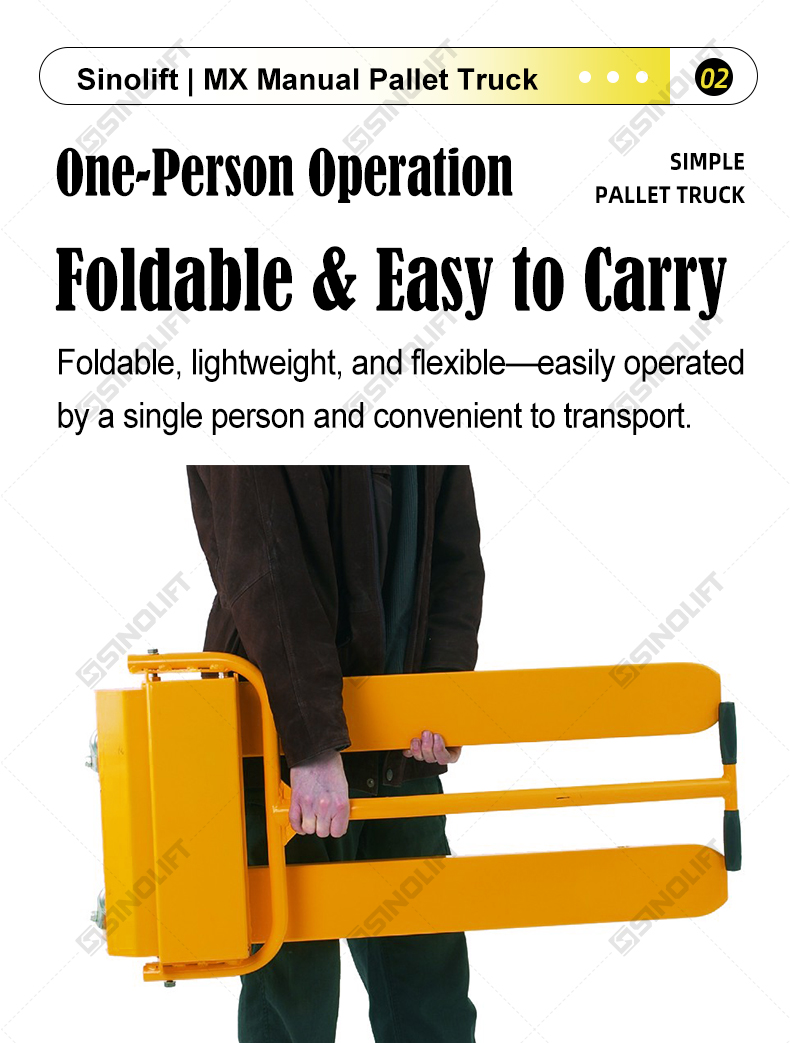

▲ Foldable.when not in use, it can be hung up on a hook on the wall.
▲ No hydraulic pump to repair, no oil can leak out no seals to replace.
▲ Ideal for grocery stores, all kind of small stores, pharmaceutical industry, drugstores, offices, schools, hospitals etc.
| Model | MX0608 | MX0610 | |
| Capacity | (kg) | 300 | 300 |
| Lift Height | (mm) | 145 | 145 |
| Lowered Height | (mm) | 85 | 85 |
| Fork Width Outside | (mm) | 420 | 420 |
| Fork Length | (mm) | 800 | 1100 |
| Width of Single Fork | (mm) | 120 | 120 |
| Total Height | (mm) | 200/1160 | 200/1160 |

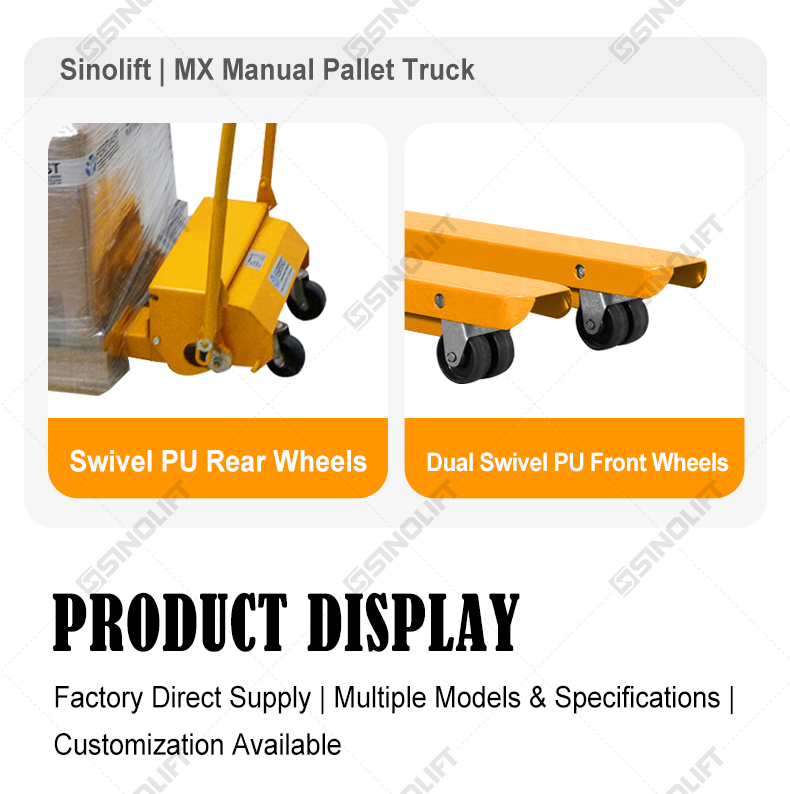

| Steer Wheel | Dia.xWid (mm) | Ø80x40 | Ø80x40 |
| Load Wheel | Dia.xWid (mm) | Ø80x40 | Ø80x40 |
| Overall Size | LxW (mm) | 1030x420 | 1330x420 |
| Net Weight | (kg) | 25 | 30 |
