SINOLIFT NPR hydraulic roll lift pallet truck
NPR hand pallet truck

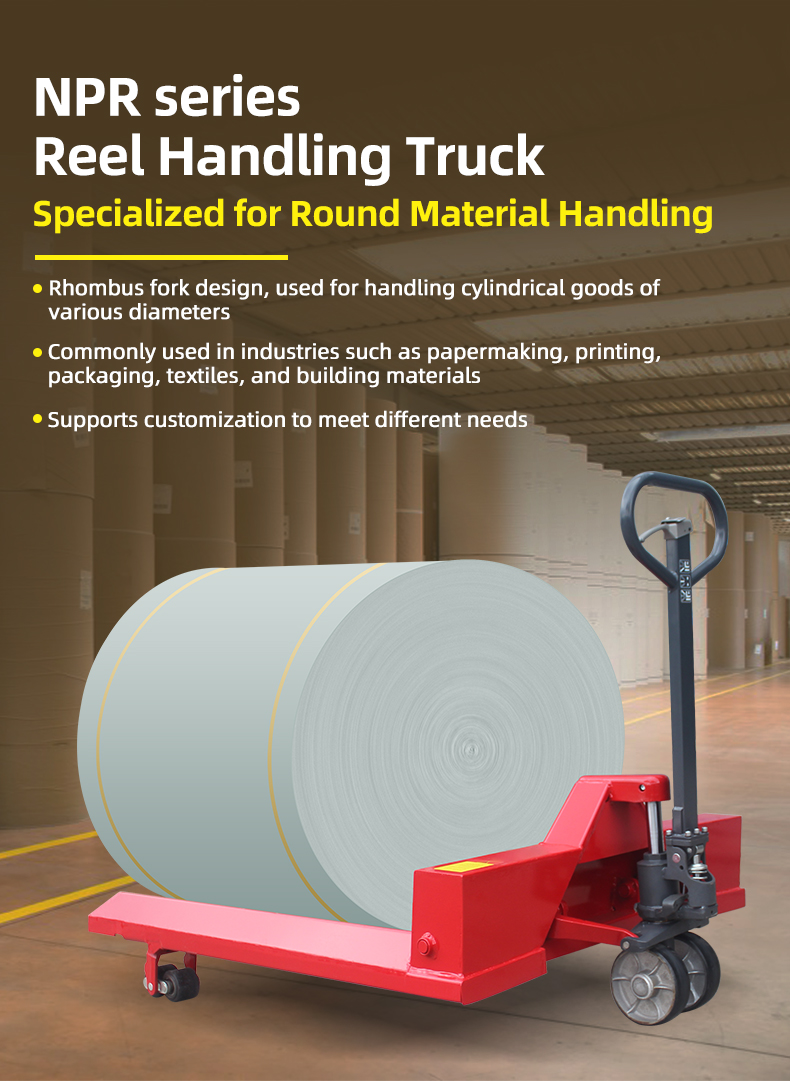

The unique fork of SINOLIFT NPR hydraulic roll lift pallet truck for roll or reel handing dedicated to handling tubular goods can effectively prevent goods from rolling.
Quantity
Product Name
NPR hydraulic roll lift pallet truck
Features of NPR hydraulic roll lift pallet truck

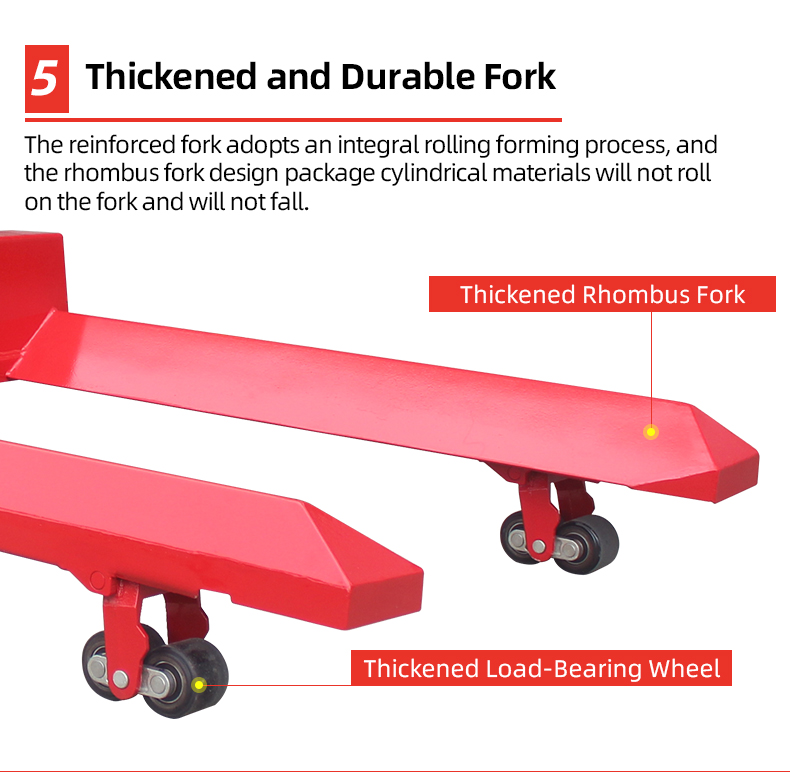

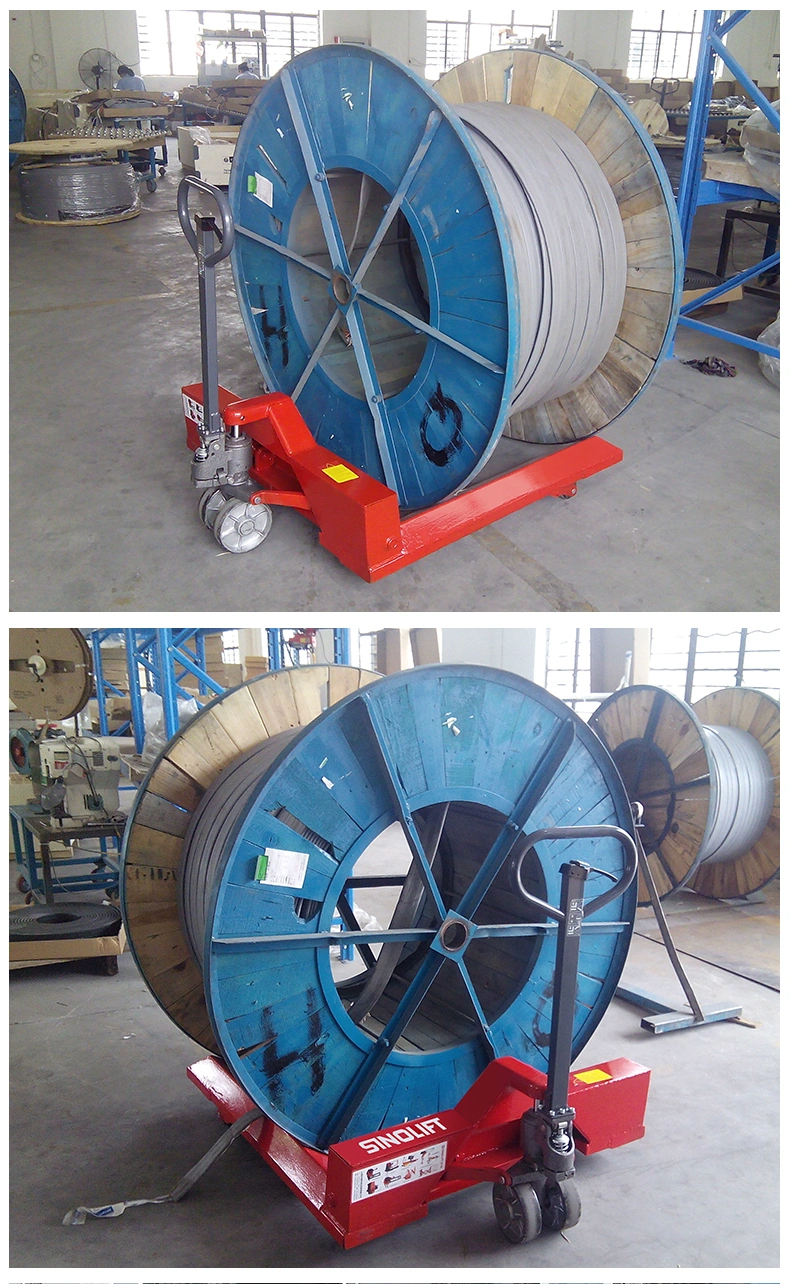

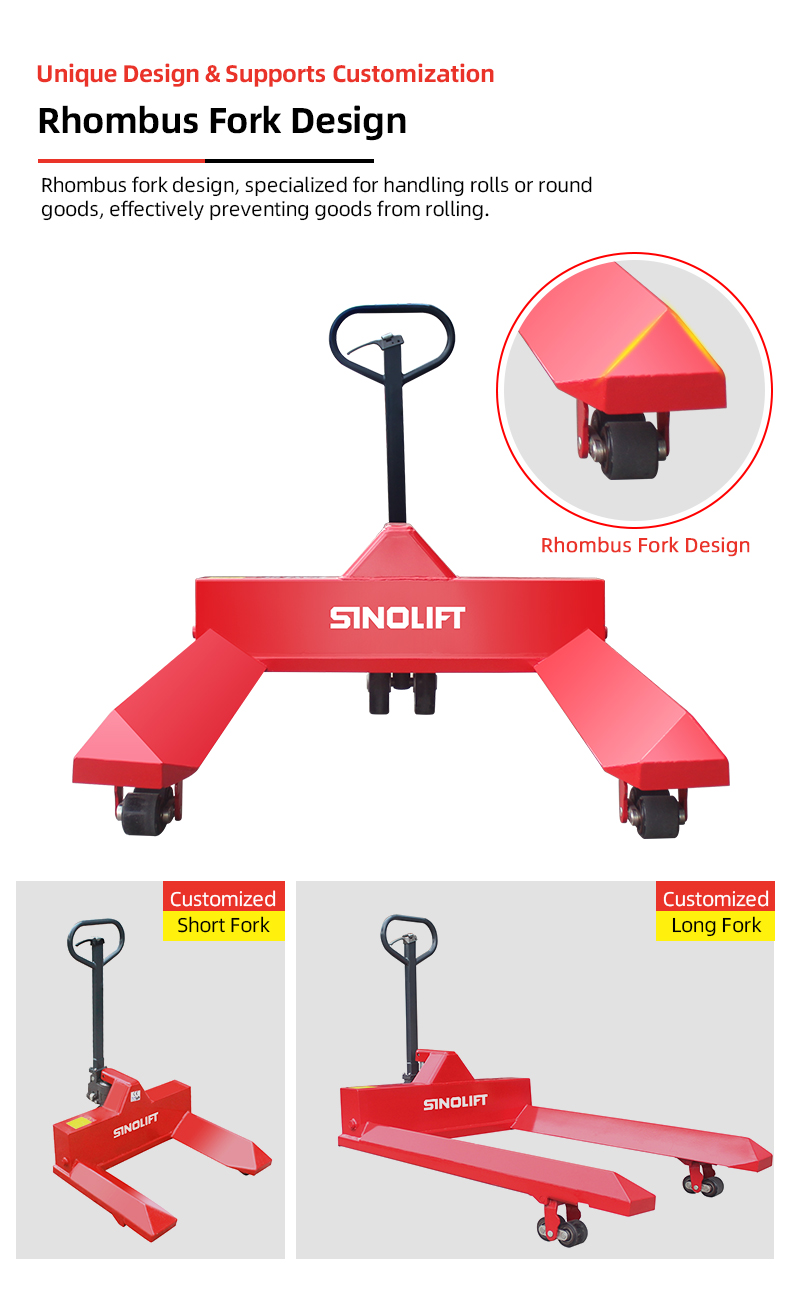

The unique fork of SINOLIFT NPR hydraulic roll lift pallet truck for roll or reel handing dedicated to handling tubular goods can effectively prevent goods from rolling. The length and the width of truck can also be designed according to the diameter and the length of the drum beam. In general, triangle steel plate is added on the basis of plane fork, so that it is in line with the arc of the warp axis, so as to achieve the effect of easy handling when the warp axis is on the ground.
| Model | NPR20S | NPR20M | NPR20L | NPR20SL | NPR20SL( I ) | NPR20SL( II ) |
| Load Capacity (kg) | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |

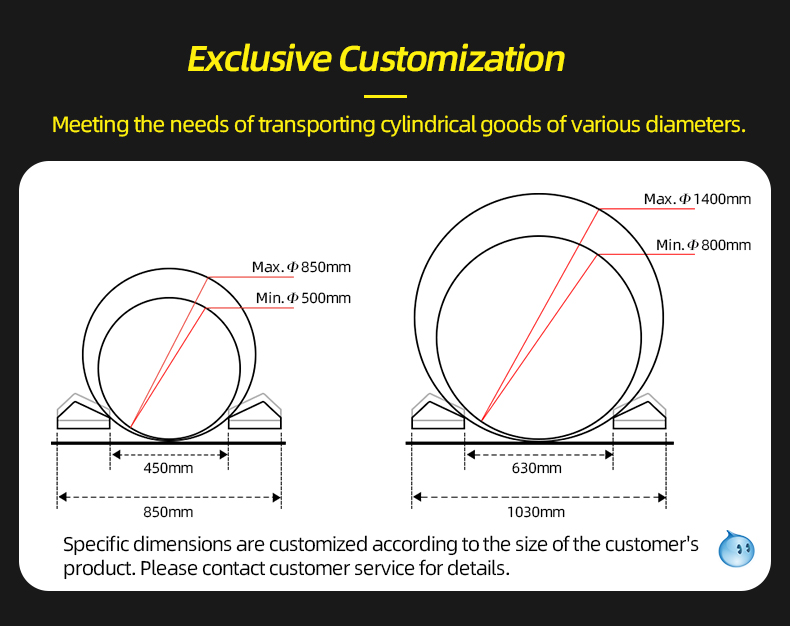

| Applicable Roll Diameter (mm) | Φ400-600 | Φ600-800 | Φ800-1200 | Φ1200-1600 | Φ1450-2350 | Φ1900-3200 |
| Fork Width (mm) | 760 | 850 | 1000 | 1150 | 1200 | 1350 |

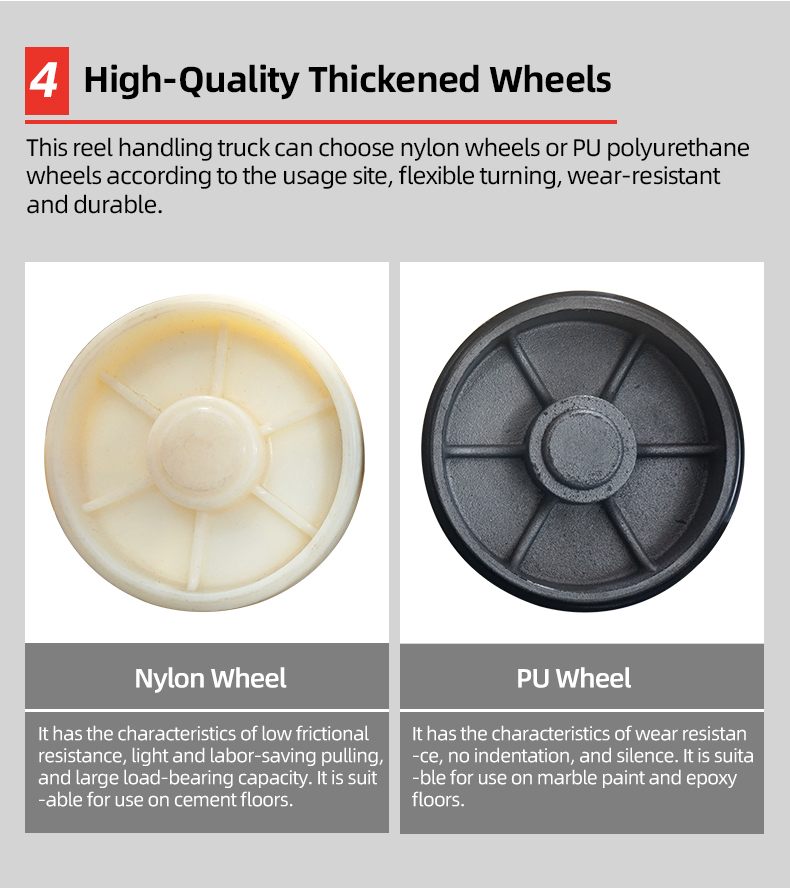

| Steering Rear Wheel (mm) | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 | Φ200×50 or Φ180×50 |
| Load Front Wheel Single(mm) | Φ78x100 | Φ78x100 | Φ78x100 | Φ78x100 | Φ78x100 | Φ78x100 |
| Load Front Wheel (Double) (mm) | Φ78x70 | Φ78x70 | Φ78x70 | Φ78x70 | Φ78x70 | Φ78x70 |
| Fork Length (mm) | 800/900/1000/1100/1150/1220--(up to 1500 (customizable) | |||||
| Self Weight (kg) | 130 | 150 | 155 | 150 | 220 | 240 |
