SINOLIFT NPSL10-35 NPSL25-51 super low profile pallet jack
NPSL
Low level car is suitable for low pallet, narrow space work occasions;

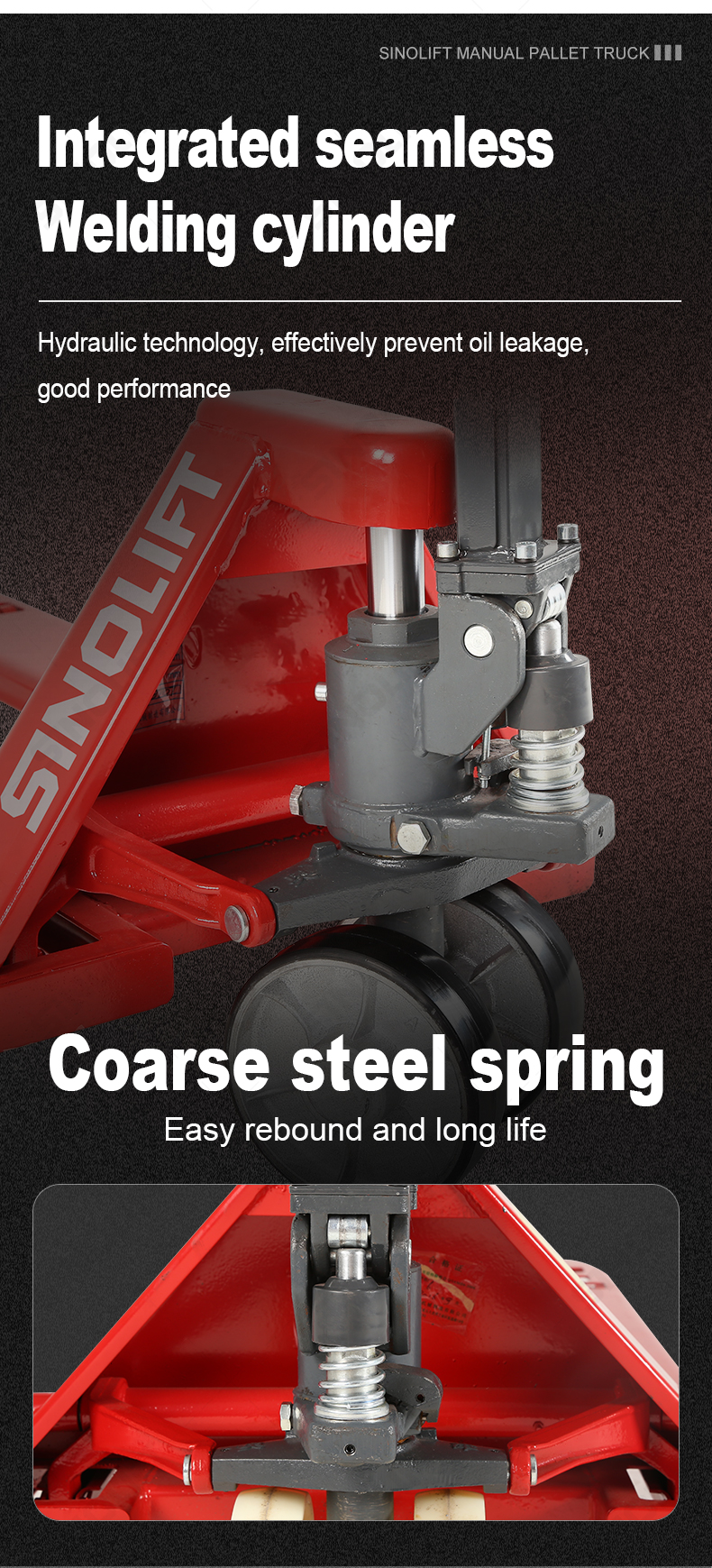

Integral welded cylinder, cylinder drop speed is not affected by the load;
Imported sealing ring, chrome plated piston rod;
Internal relief valve provides overload protection, effectively reducing maintenance costs;
High quality radial roller bearing is used at the connection of rotating shaft, which is flexible and does not shake.

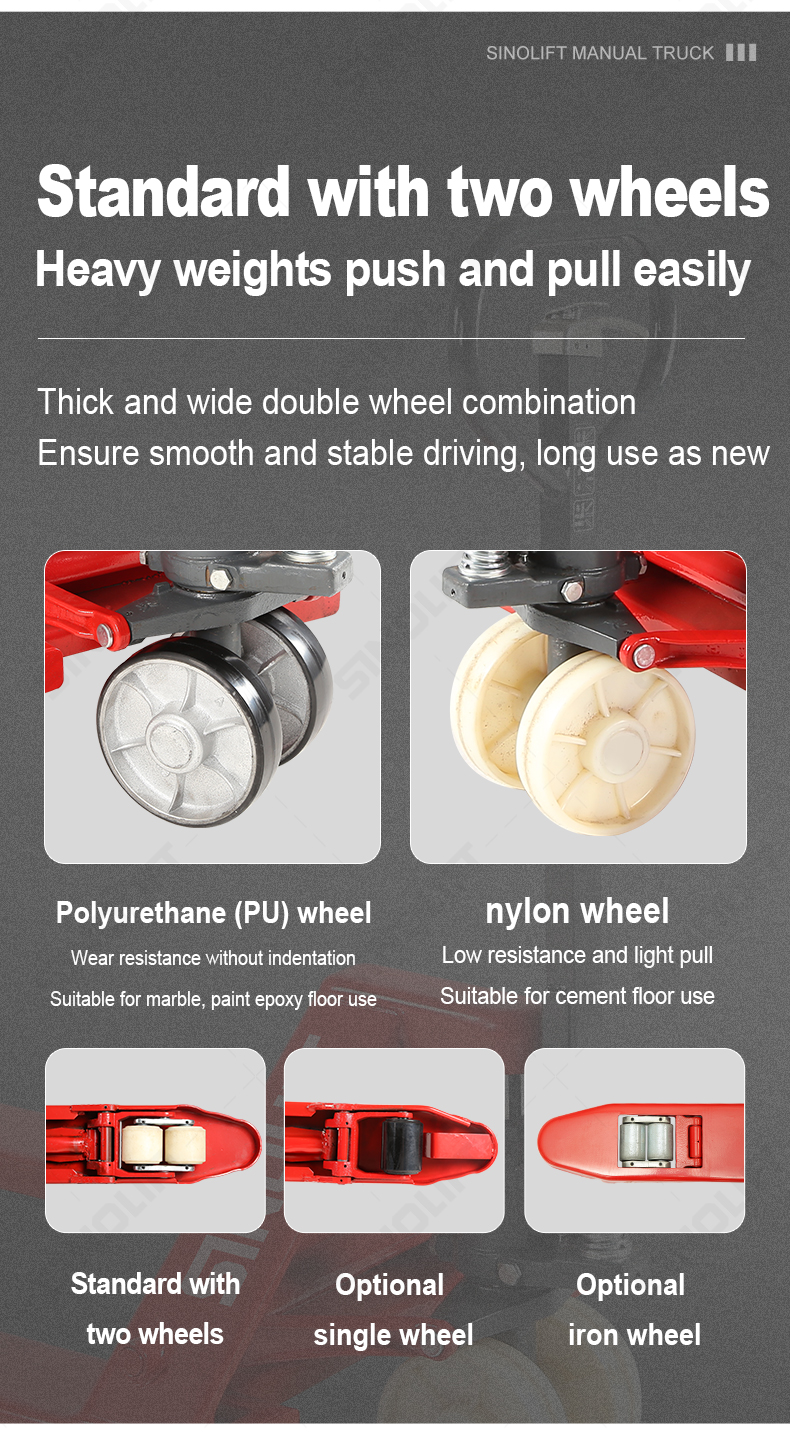

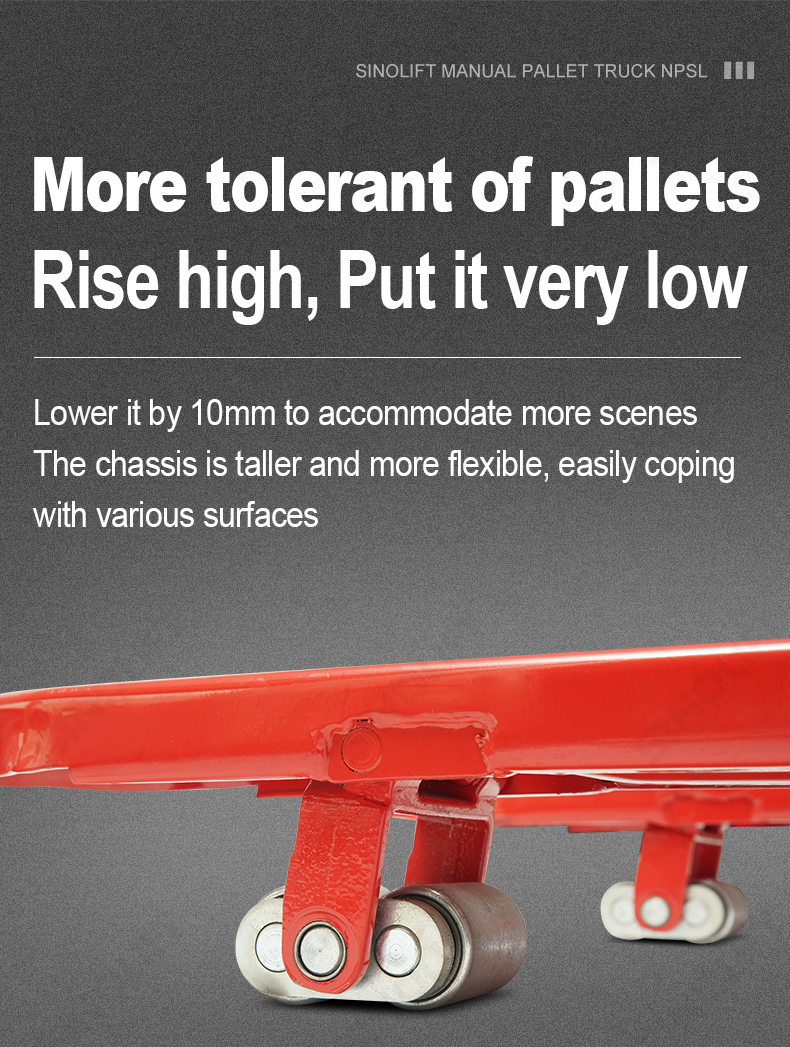

Integrated cast wheel frame, equipped with front and rear guide wheels to protect the assembly wheel from impact and extend the life of the wheel.
Integral welded cylinder, cylinder drop speed is not affected by the load;
Imported sealing ring, chrome plated piston rod;
Internal relief valve provides overload protection, effectively reducing maintenance costs;
High quality radial roller bearing is used at the connection of rotating shaft, which is flexible and does not shake.
Integrated cast wheel frame, equipped with front and rear guide wheels to protect the assembly wheel from impact and extend the life of the wheel.
Quantity:
NPSL10-35 NPSL25-51 super low profile pallet jack
Low profile pallet jack is suitable for low pallet, narrow space work occasions;
Integral welded cylinder, cylinder drop speed is not affected by the load;
Internal relief valve provides overload protection, effectively reducing maintenance costs;
High quality radial roller bearing is used at the connection of rotating shaft, which is flexible and does not shake.
Integral welded cylinder, cylinder drop speed is not affected by the load;
Internal relief valve provides overload protection, effectively reducing maintenance costs;
High quality radial roller bearing is used at the connection of rotating shaft, which is flexible and does not shake.

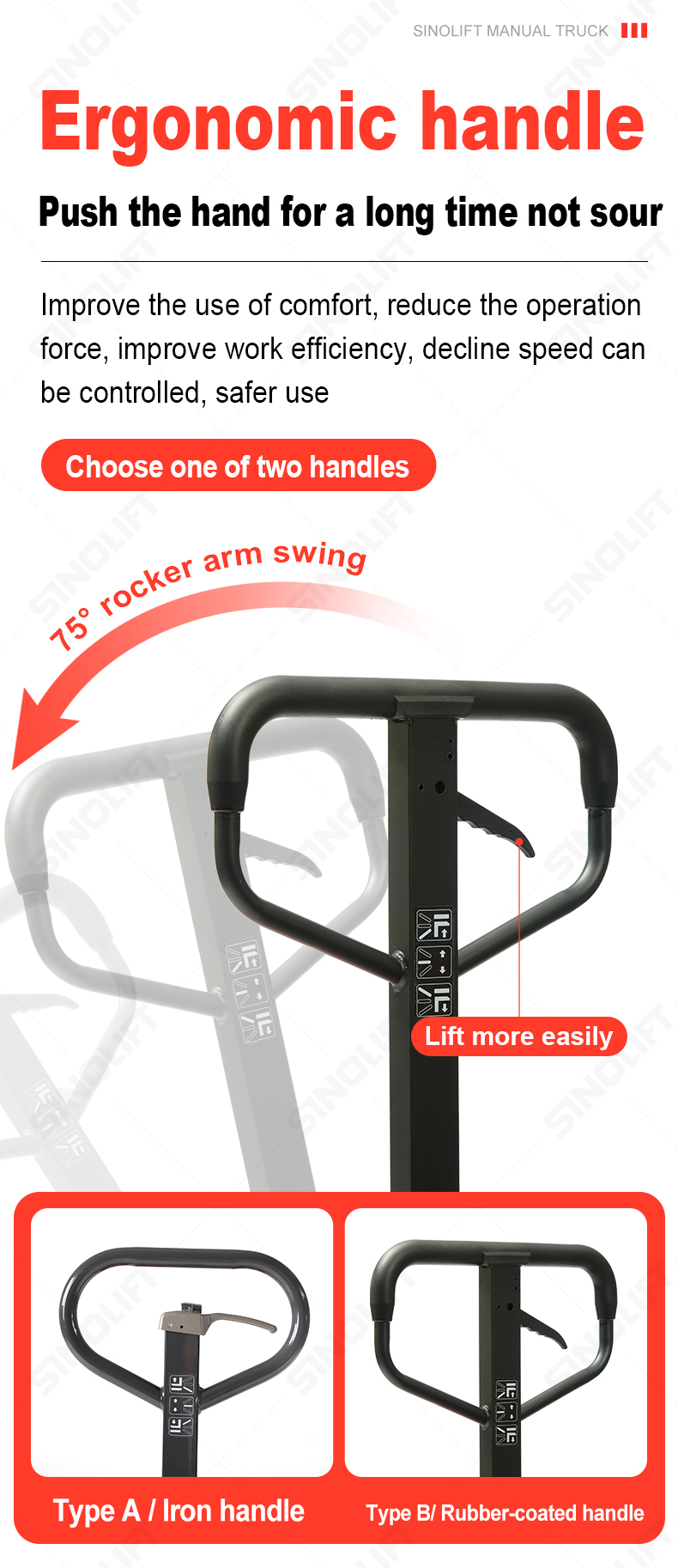

Pallet jack is equipped with a safety loop handle allowing the operator to control with ease.
| Item/Type | NPSL25-Low-51mm | NPSL10-Supper Low | |
| Capacity Q | kg | 1500 | 1000 |

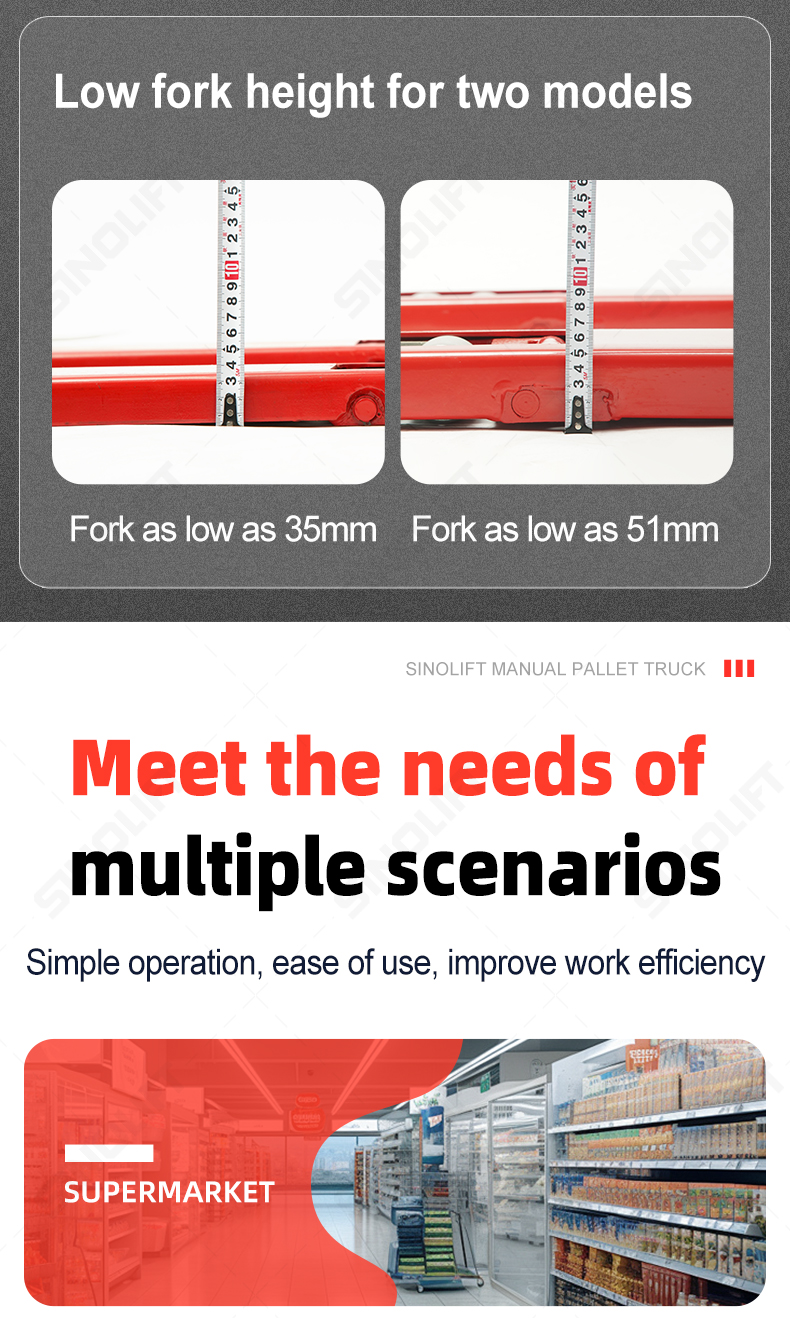

| Min. fork height h | mm | 51 | 35 |
| Max. fork height h1 | mm | 165 | 90 |
| Steering wheel | mm | Ø180x50 | Ø160x50 |
| Load roller Single | mm | Ø50x93 | No |
| Load roller Tandem | mm | Ø50x70 | Ø34x58 |
| Size of fork e*s | mm | 160x37 | 160x30 |
| Width overall forks B | mm | 540 / 685 / 838 | 530/685 |
| Fork length I | mm | 1150/1220 | 1120 |
