RTT12 Rough Terrain Pallet Jack

RTT12

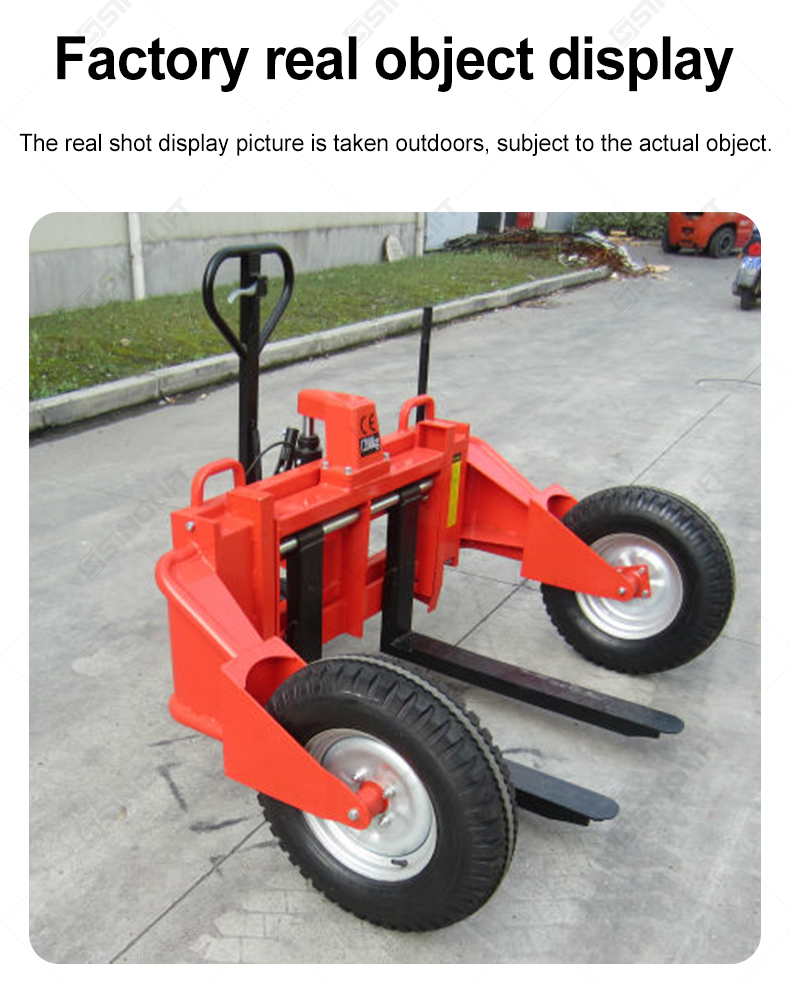

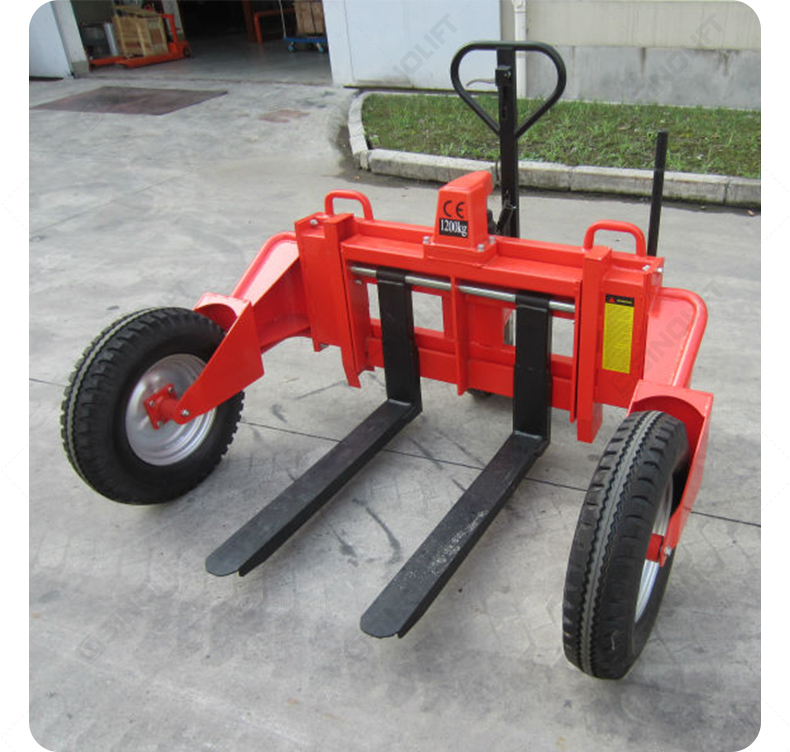

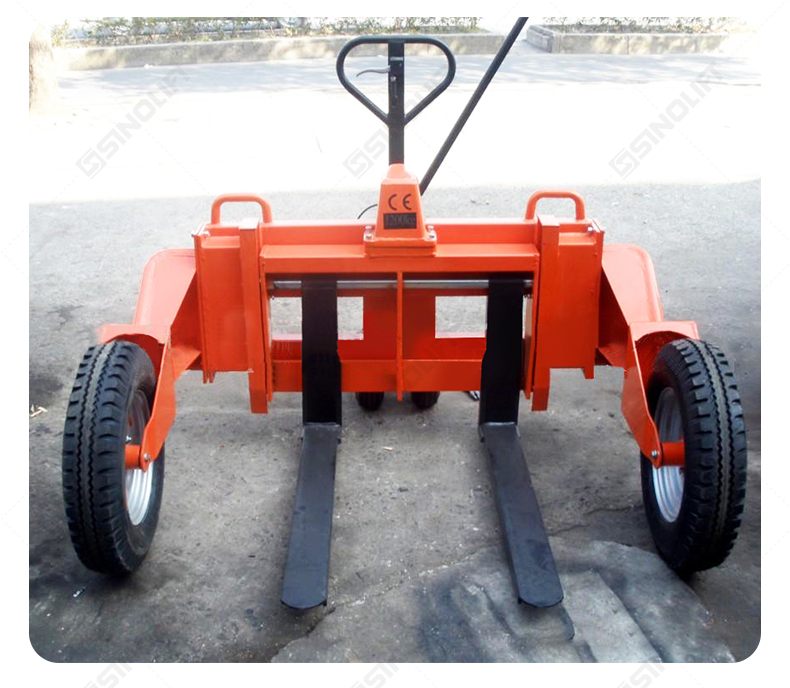

The Rough Terrain Pallet Jackis the perfect means of moving pallets outside onrough or uneven surfaces where a regular pallet jackor forklift can't go. The large wheels and straddle forkarrangement can be used for any type of pallet on uneven ground.

Quantity:

Contact Now

add to cart

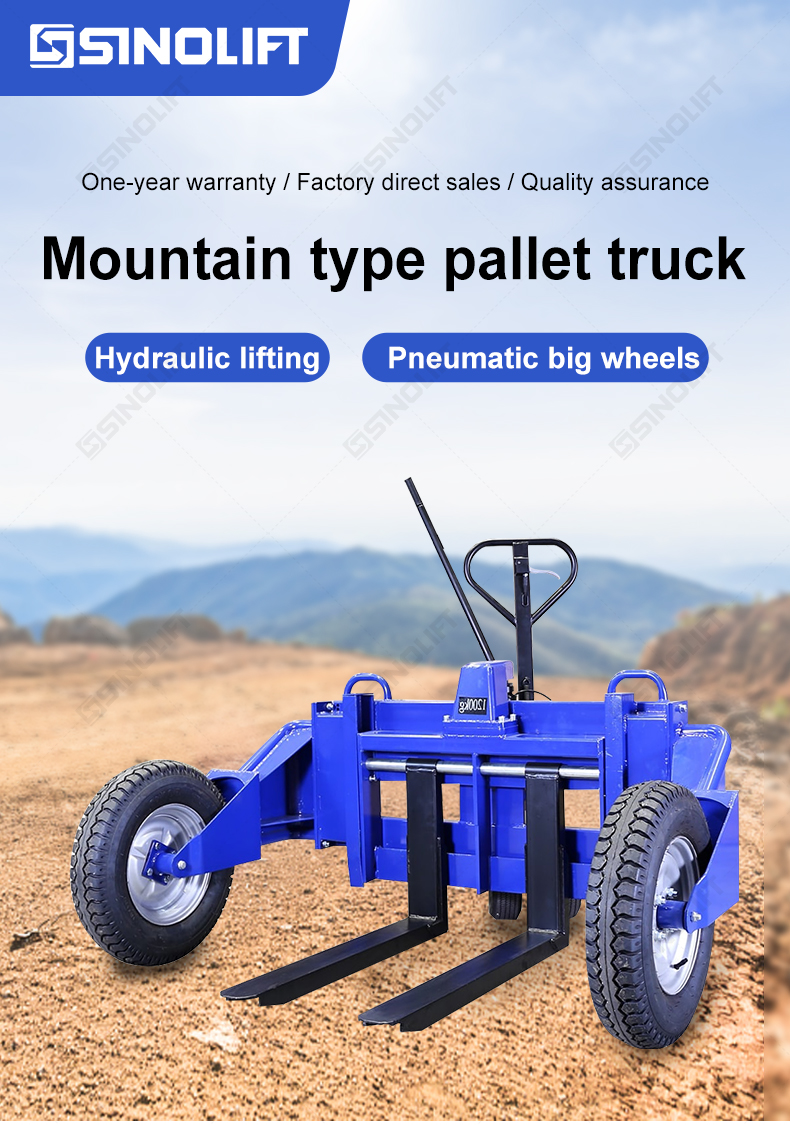

Product Name:RTT12 Mountain type pallet truck

The frame is carefully made of high-strength steel plate and seamless steel pipe, with a load capacity of 1200KG/2640KG, large bearing capacity, ergonomic design, achieving labor-saving effect, and improving work efficiency.

Strictly selected sturdy steel plate

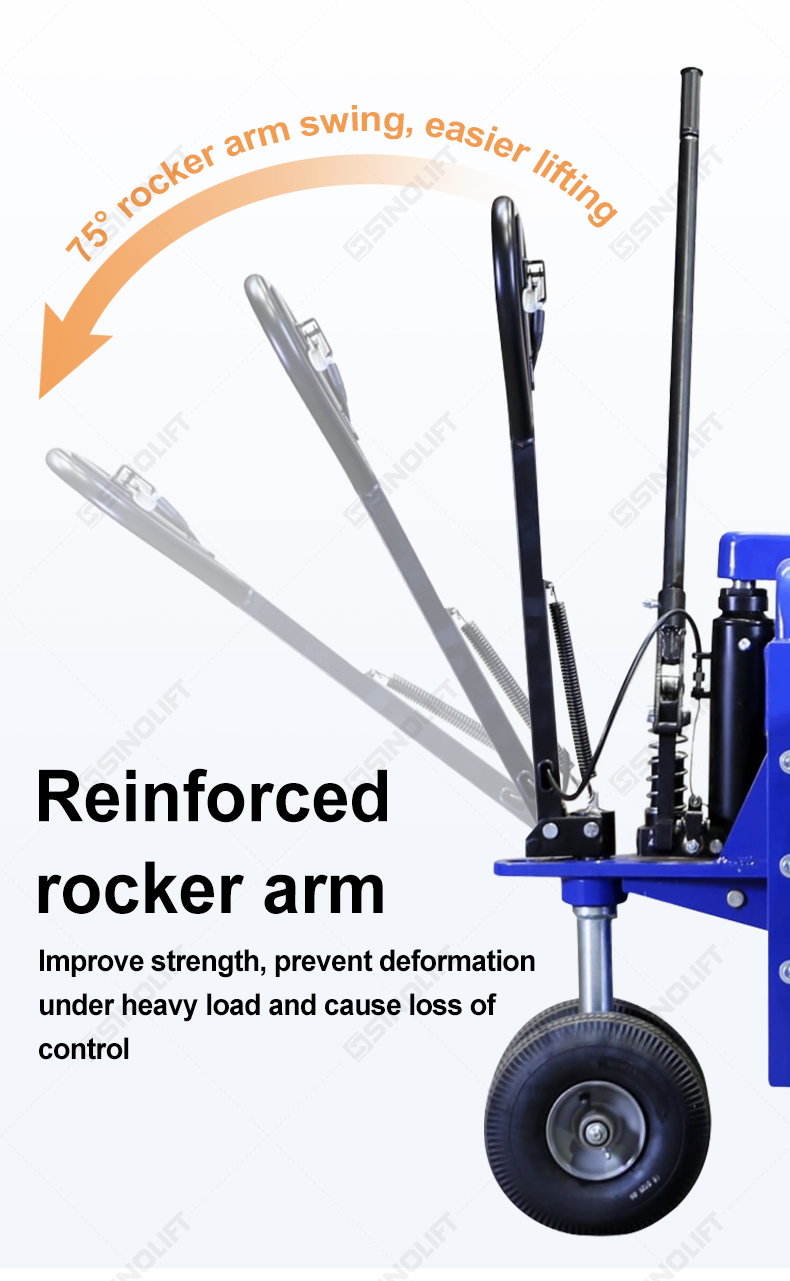

Flexible steering, small turning radius

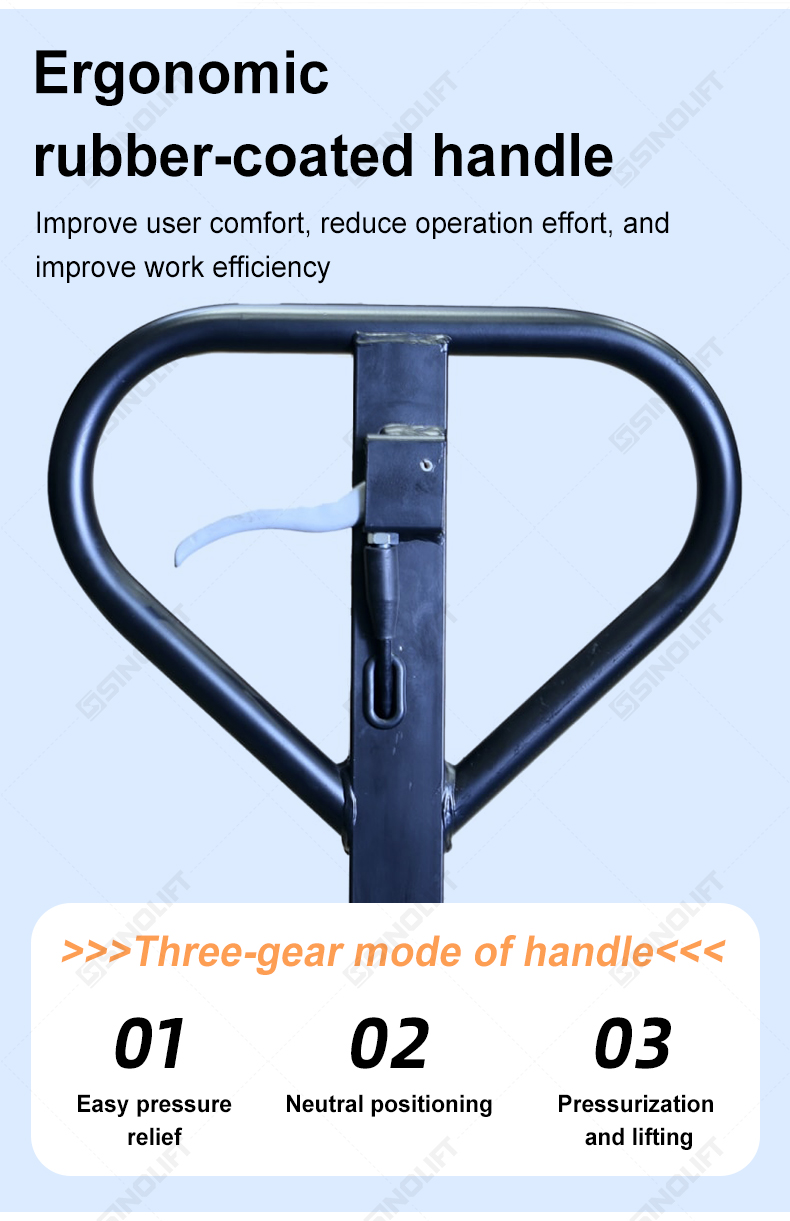

Comfortable handle Handle control valve
The whole vehicle is painted with high temperature paint

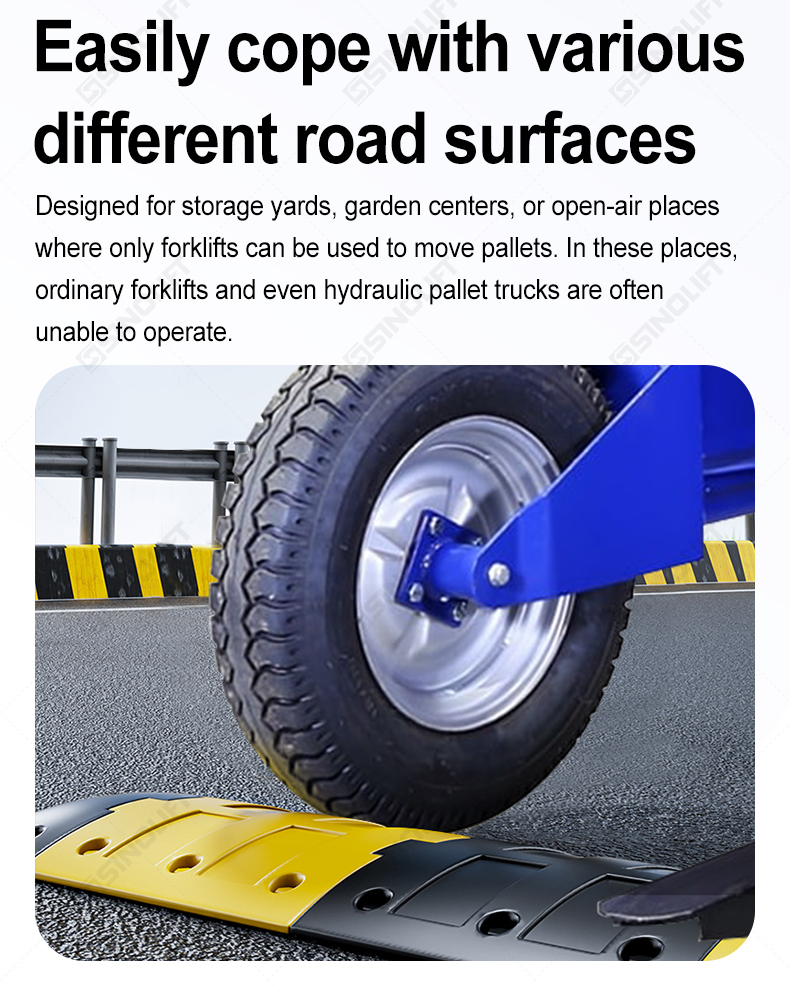

Applicable to multiple scenarios

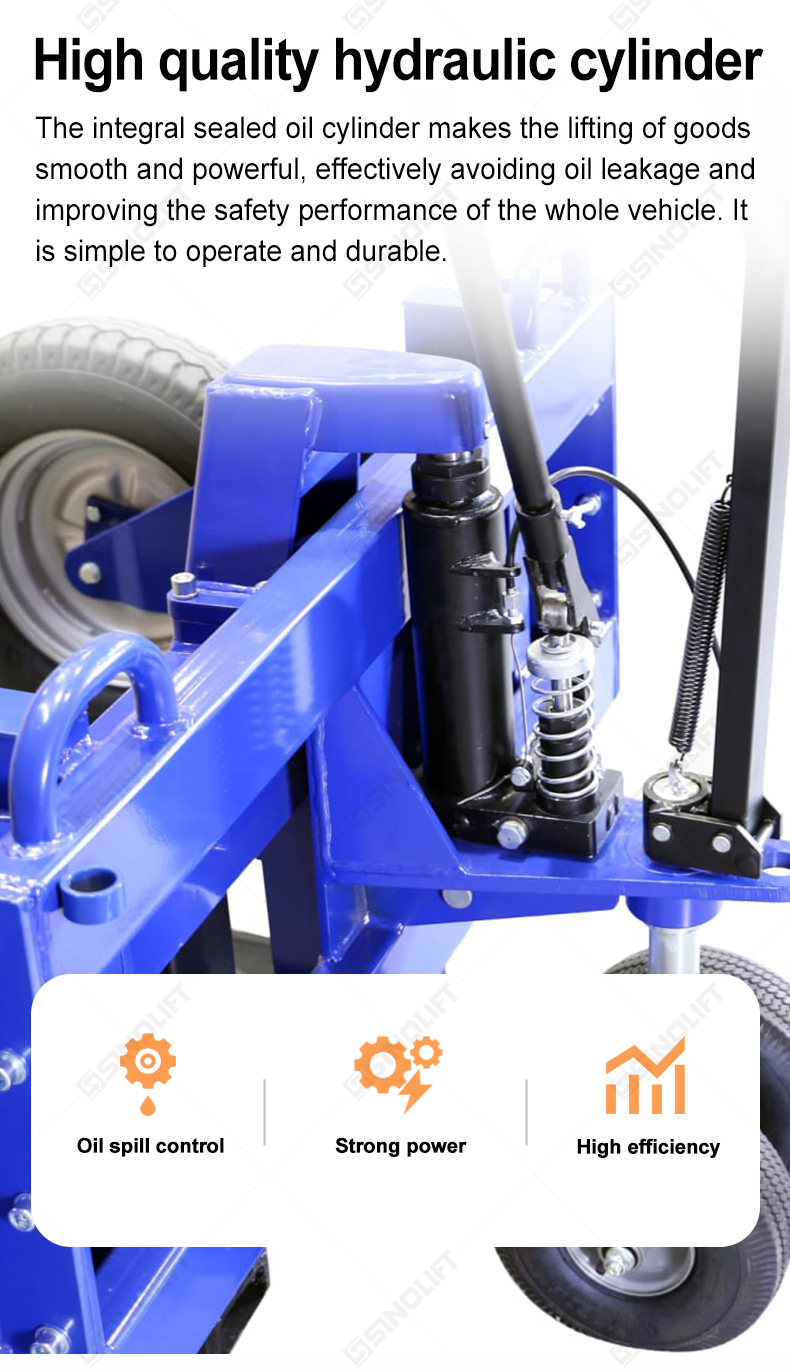

Integrated sealed oil cylinder

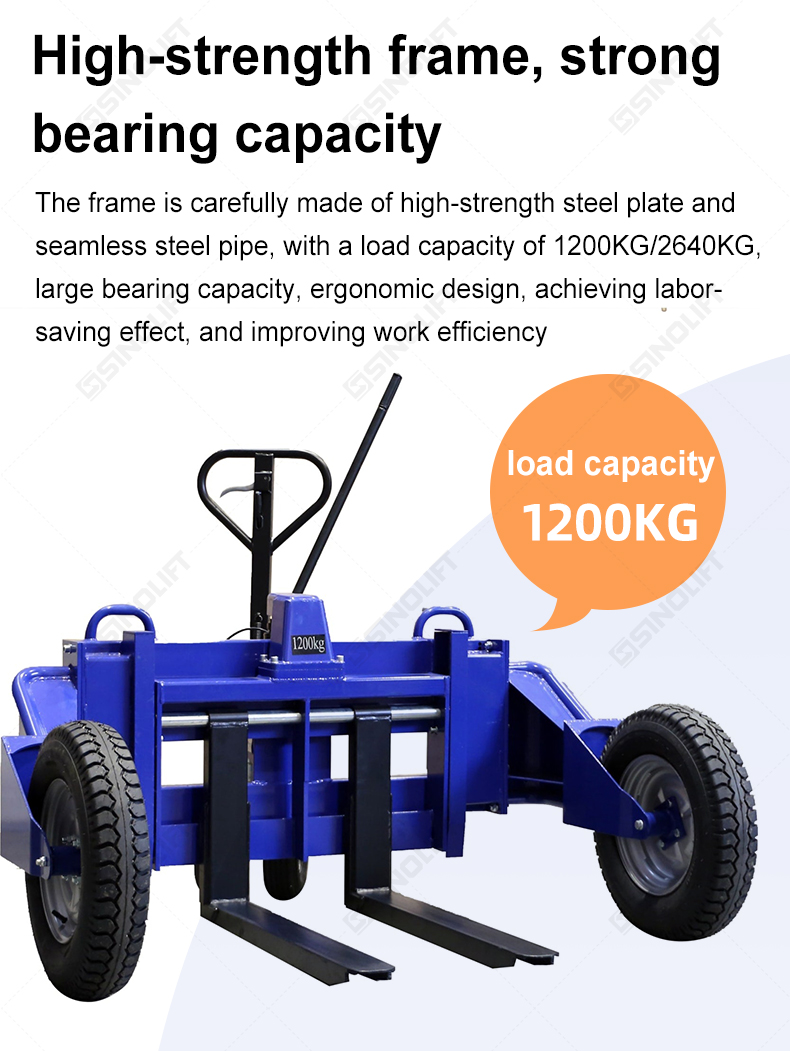

High-strength frame, strong bearing capacity

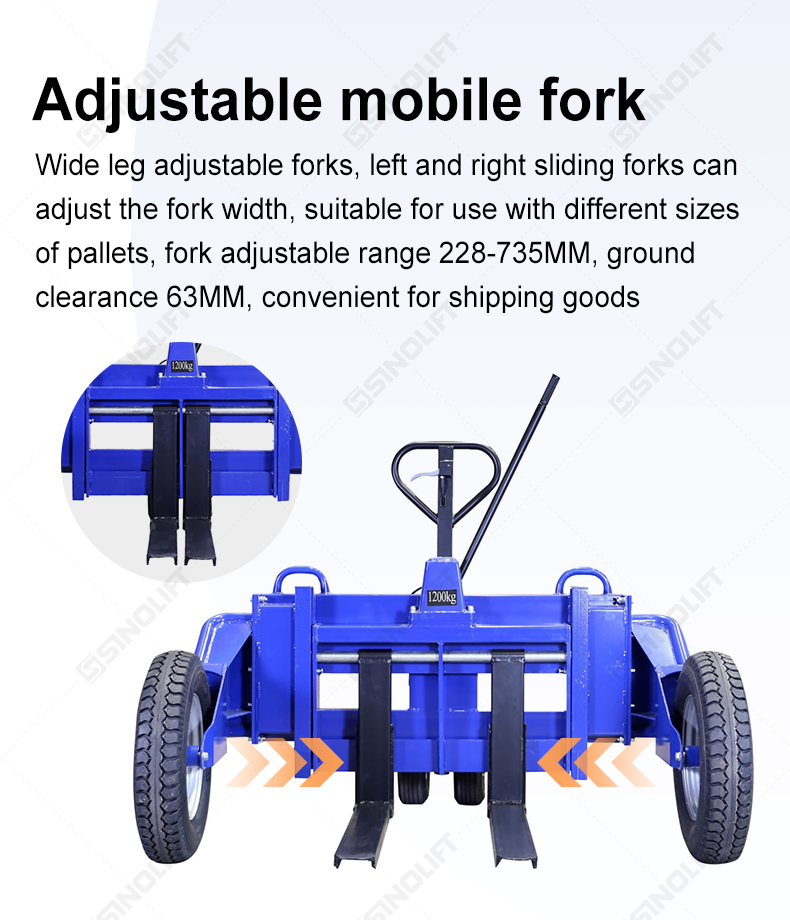

Adjustable mobile fork

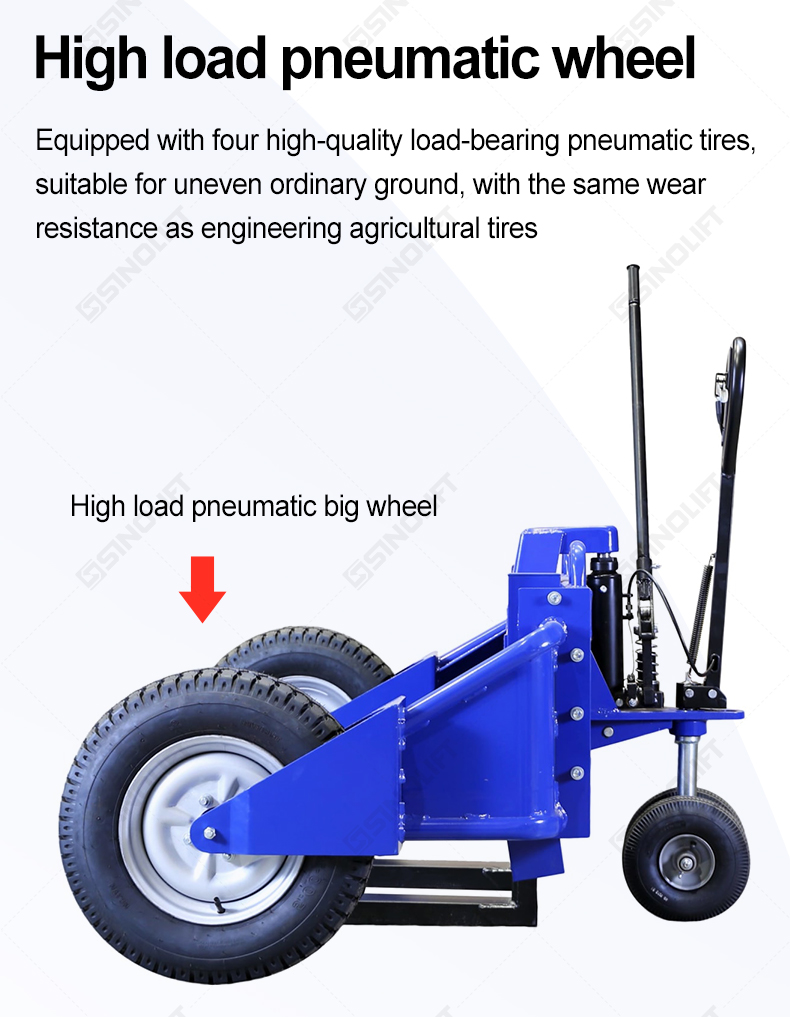

High load pneumatic wheel

Item	Unit	Value
Model		RTT12
Rated Load	kg	1200/2640
Load Center	kg	450
Fork Lowered Height	mm	63
Fork Raised Height	mm	233
Fork Length	mm	860
Fork Width	mm	228-735
Single Fork Size	mm	100*50
Available Width Between Legs	mm	1277
Wheelbase	mm	973
Turning Radius	mm	1500
Overall Length	mm	1375
Overall Width	mm	1605
Overall Height	mm	1200
Load Wheel	mm	Ø550X132
Steering Wheel	mm	Ø265X80
Net Weight	kg	225/495
