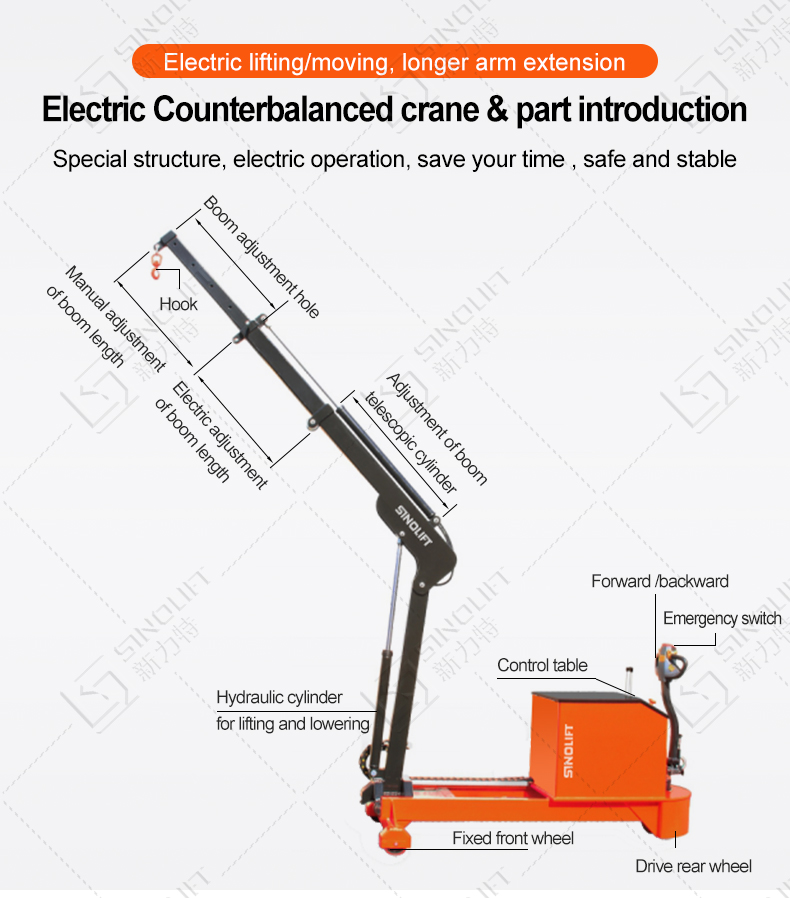

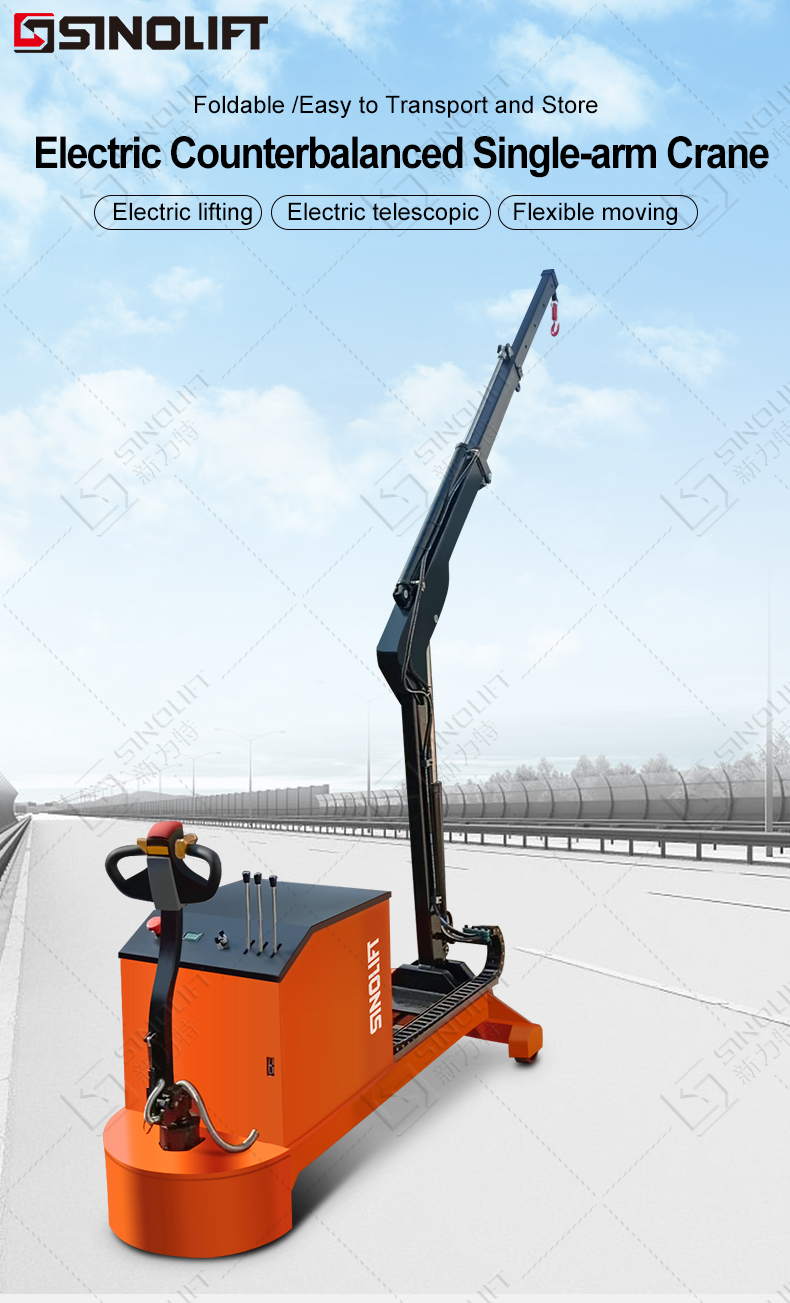

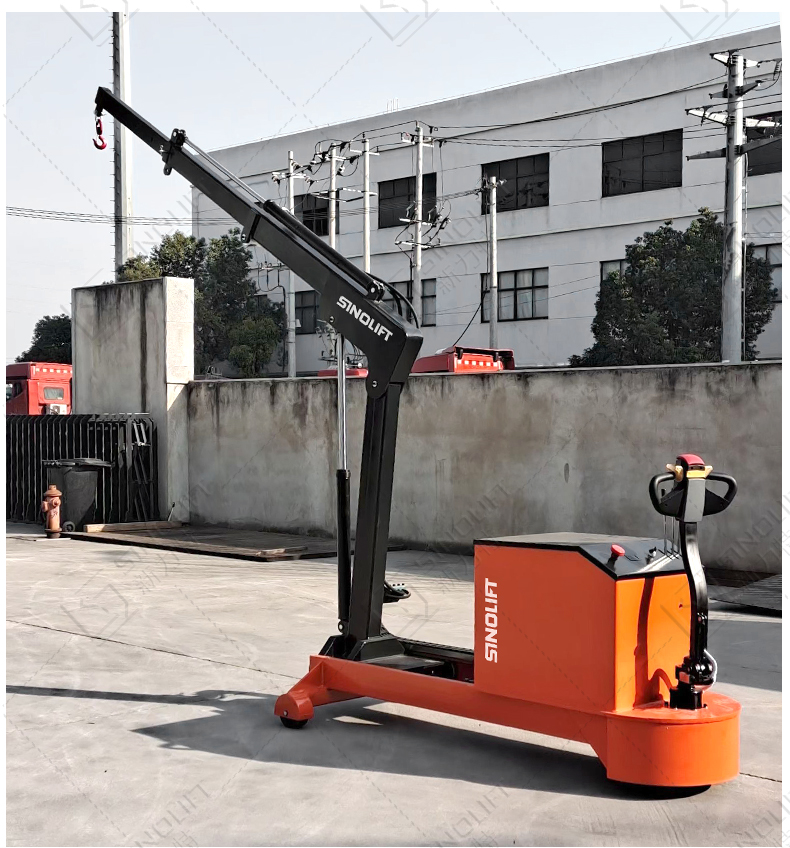

Sinolift YLH01 Factory 2-Ton Fully Electric Single Arm Powered Crane
Efficient
Electric walking, hydraulic lifting, hydraulic forward movement, and hydraulic forward extension are multifunctional integrated balanced weight fully electric single arm cranes. The frame is designed with a humanized design, and the height and angle can be adjusted according to one's own situation, making it convenient, time-saving, and labor-saving to improve work efficiency.
Long battery life
Joint venture hydraulic pump station with strong power, maintenance free battery and long-lasting power, suitable for long-term operation of business.
High quality

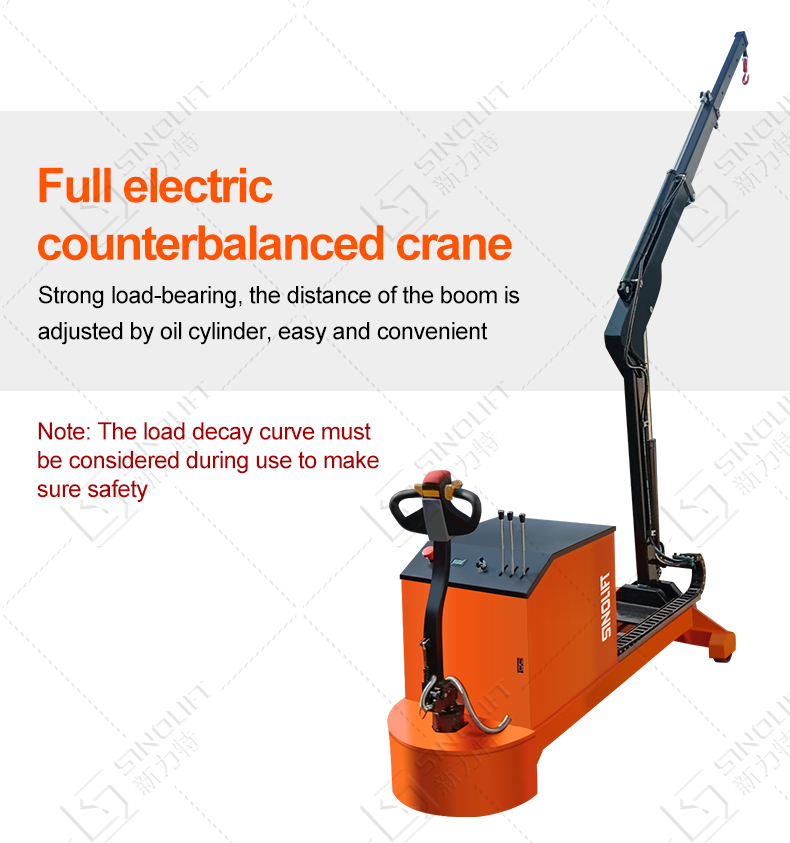

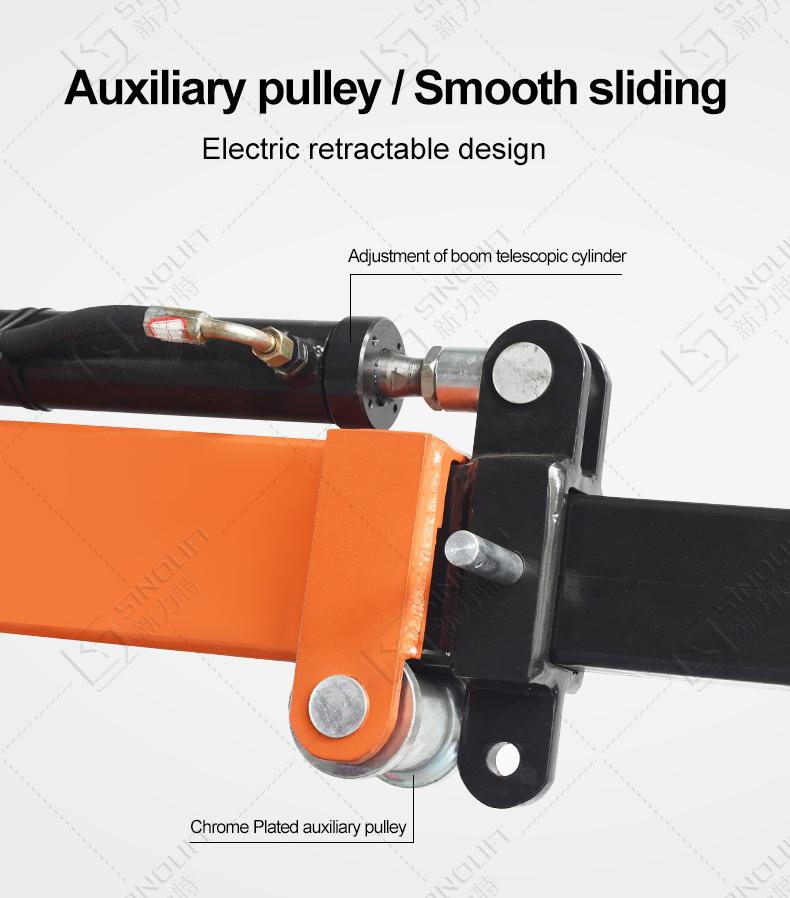

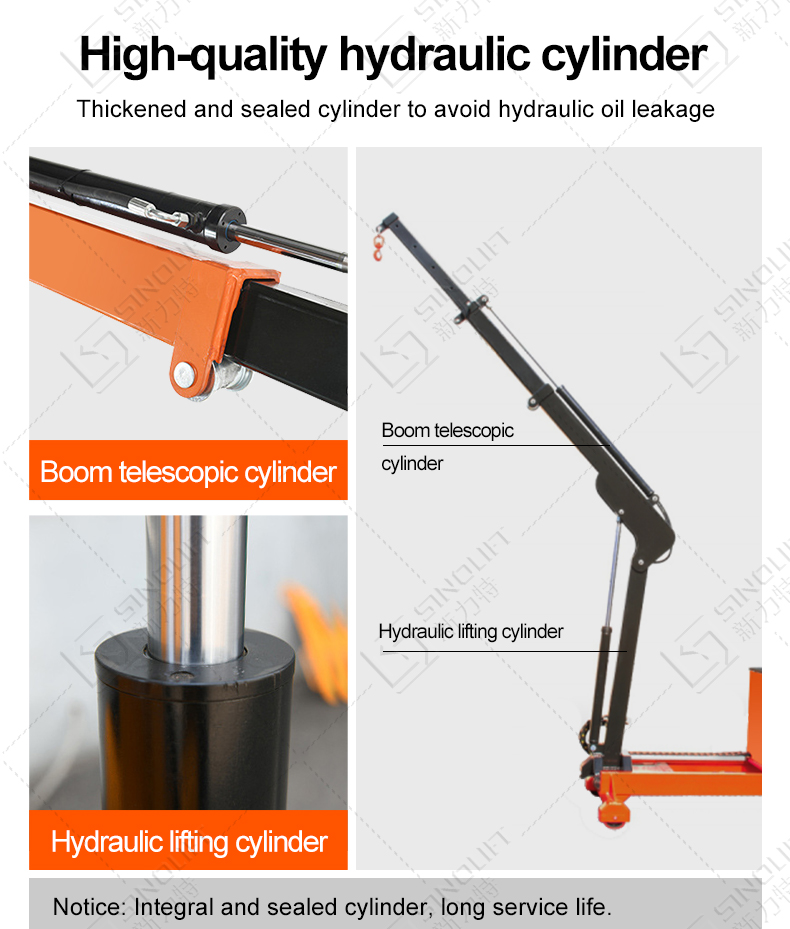

High quality oil cylinder, heavy-duty design, easy and convenient adjustment of boom distance through oil cylinder
Small volume

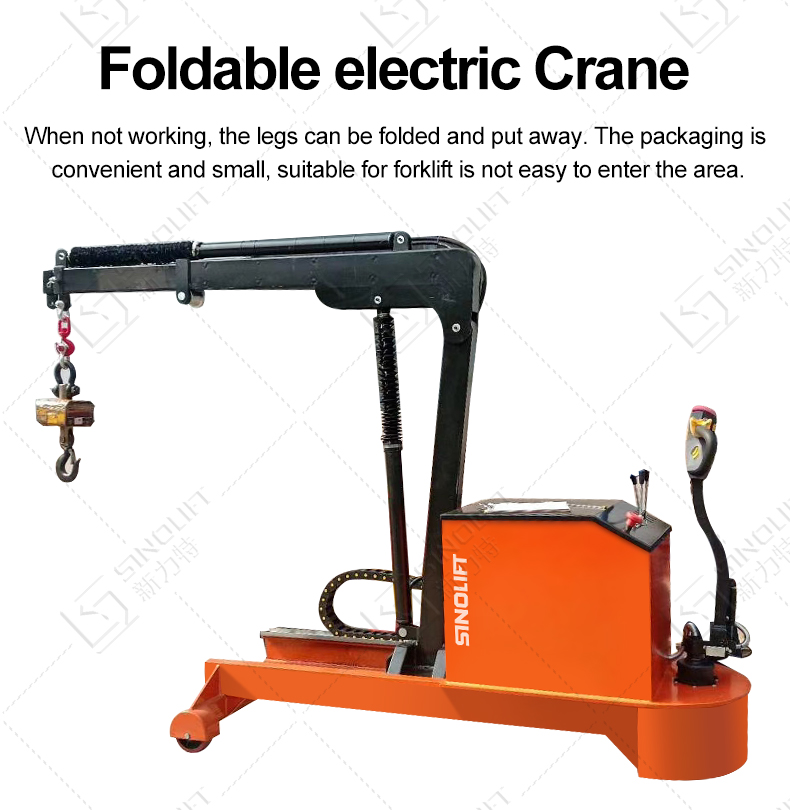

Equipped with a safety valve, it can be folded and packaged with a small volume, making it easy to store and suitable for operation in areas where forklifts are not easy to enter.
Specification
| model | YLH01 | |
| deadweight | kg | 725 |
| Counterweight | 600 | |
| Battery parameters | 12V/120Ah*2 | |
| Battery size | mm | 406*172*211 |
| Battery weight | kg | 30*2 |
| Lifting motor | kw | 2.2 |
| Drive motor power | kw | 0.75 |
| front wheel | mm | 150*70 |
| Drive wheel | mm | 250*80 |
| Walking speed | kw/h | 5 |
