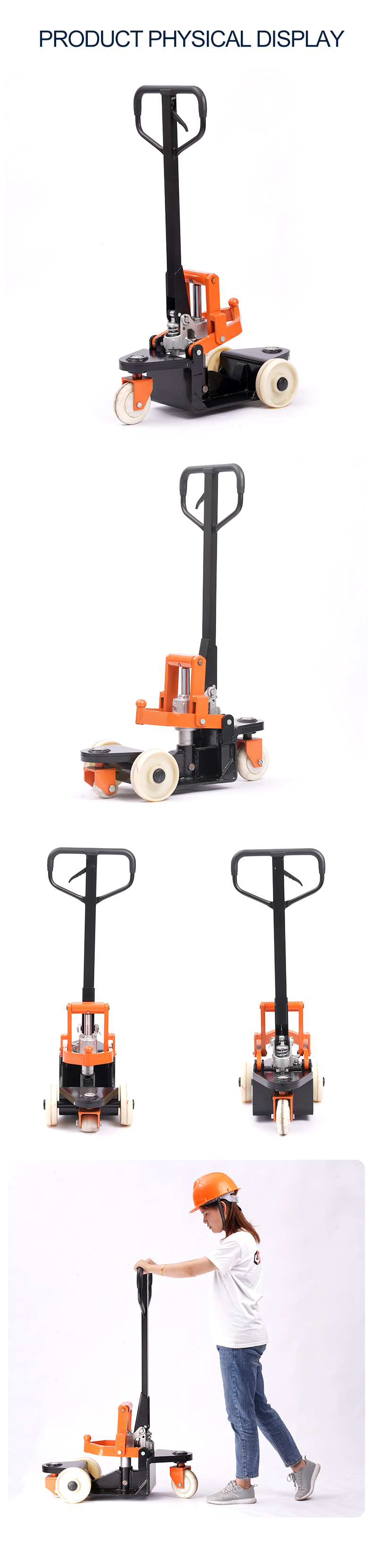

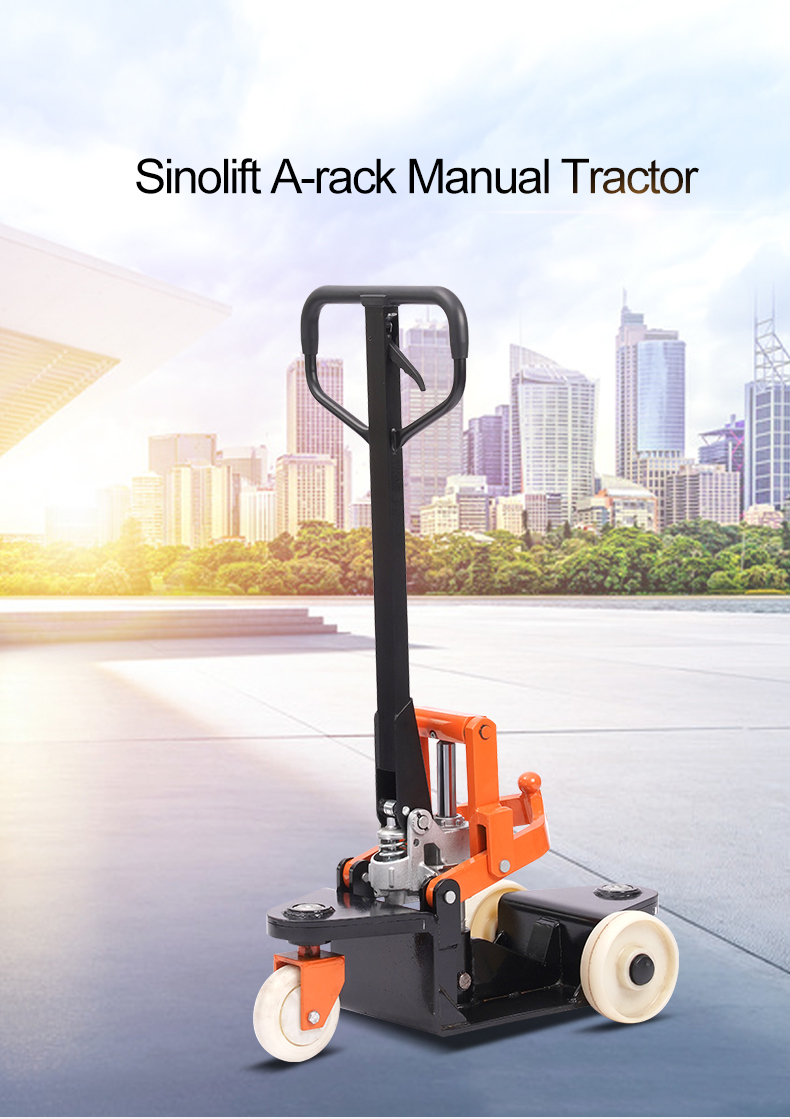

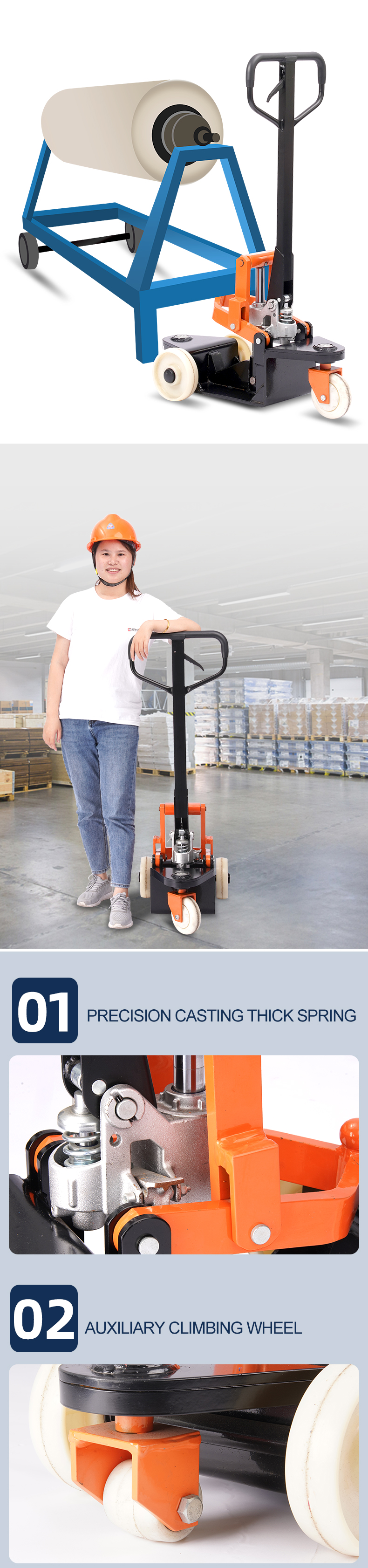

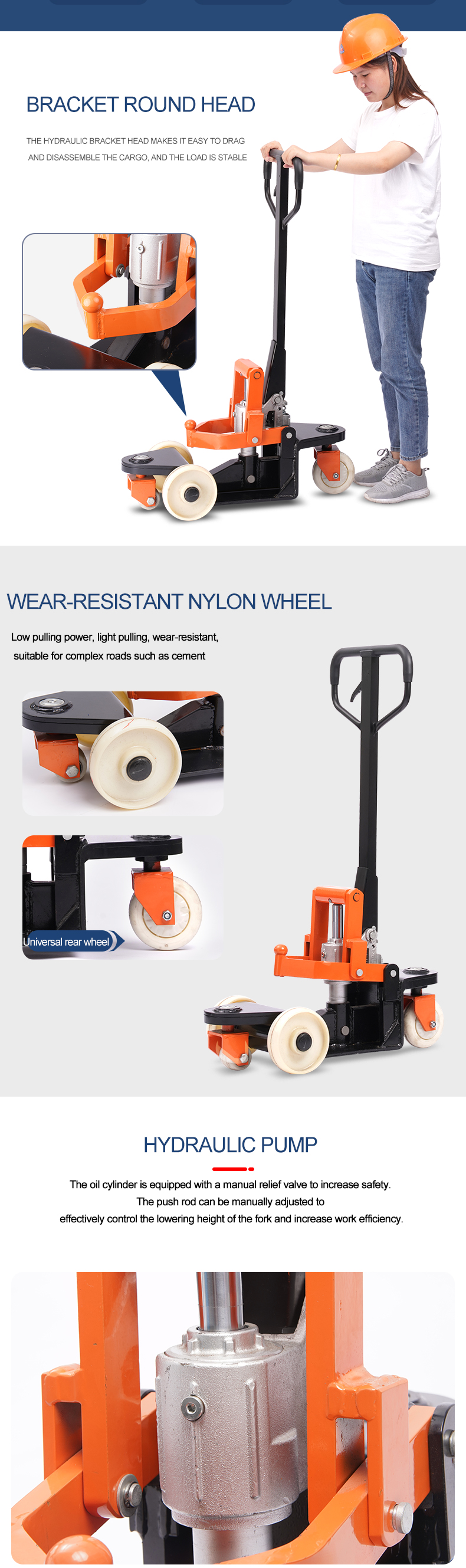

WKP30 WKP50 Manual Hydraulic A-Frame Tow Tractor
WKP Hydraulic A-frame Lifting Trolley is small, robust and powerful. Due to its loading capacity of 3000kg-5000kg, the trolley can transport A-frame weighing up to 5000kg. Safe lifting and lowering operations can be performed with this device, since no catapult effect of the drawbar can occur. There is a wide range of applications for this tractor, e.g. for wheeled plates and transport frames. The spherical head diameter and the lifting range of the spherical head can be adapted to the individual requirements.
Main Feature:
1. Heavy design, rated load up to 5000kg
2. Integral cast oil pump, strong and durable
3. Special handle, easy operation
4. High-strength nylon wheels, not easy to wear
5. Suitable for traction and transportation of A-frame flatbed trucks in the printing and dyeing textile industry
| Model | unit | WKP30 | WKP50 |
| Type | manual | manual | |
| Load capacity | kg | 3000 | 5000 |
| Mini Height | mm | 185 | 185 |
| Max Height | mm | 450 | 450 |
| Size | mm | 810*410*1190 | 810*410*1190 |
| Wheel | nylon | nylon | |
| Outer width | mm | 380 | 380 |
| Load-bearing wheel size | mm | 180*50 | 180*50 |
| Back wheel | mm | 150*50 | 150*50 |
| Front wheel | mm | 80*40 | 80*40 |
| Weight | kg | 70 | 90 |
