WS-150 Rough Terrain Stacker
WS-150

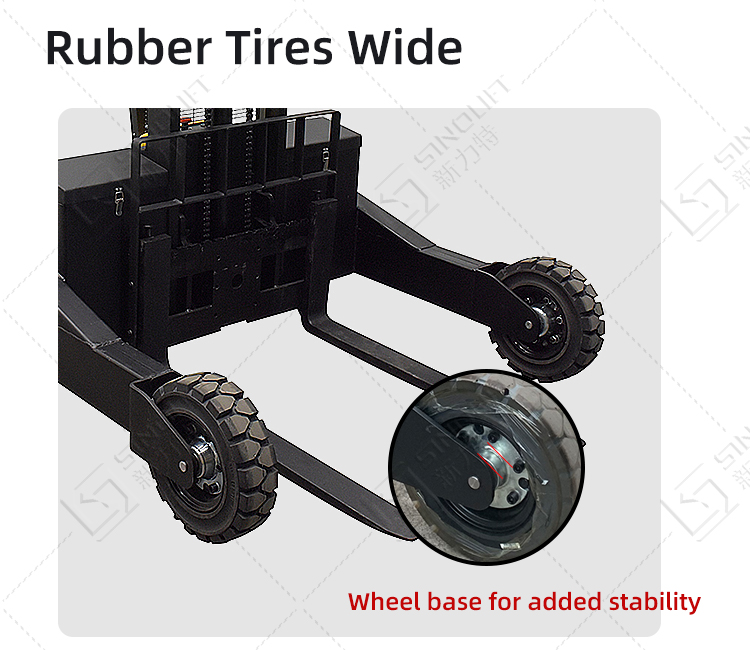

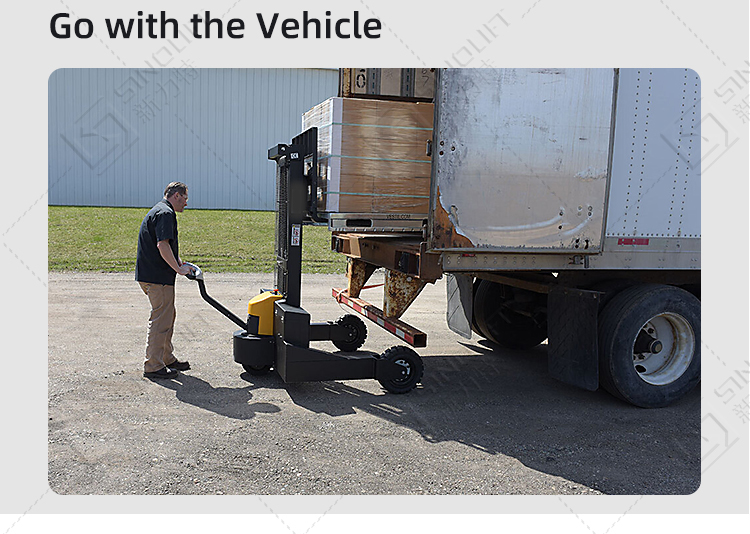

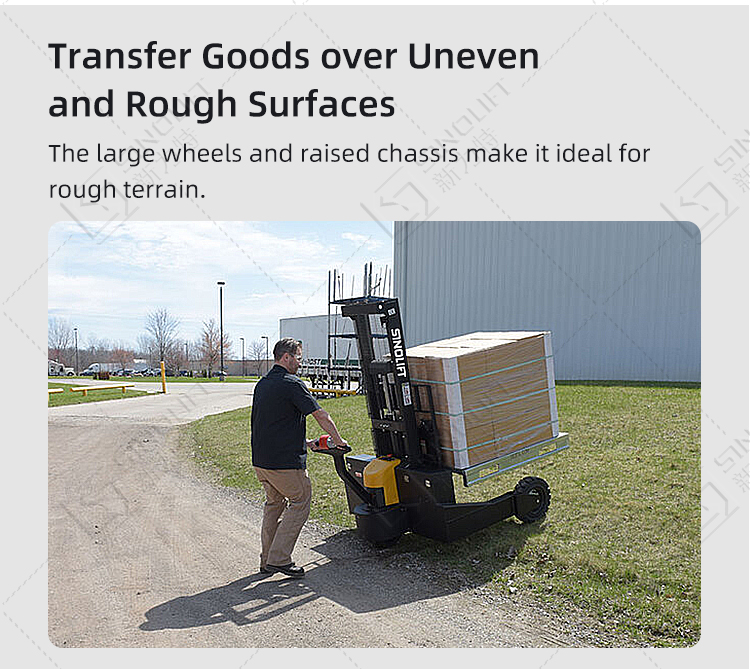

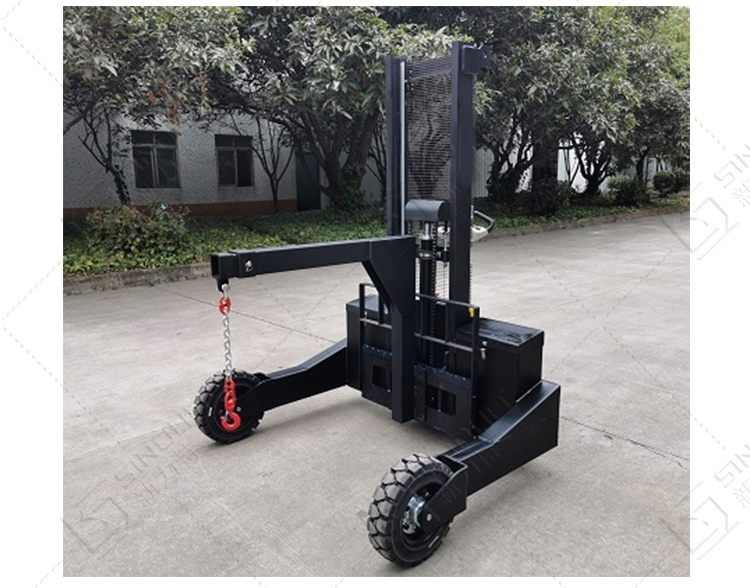

This pallet stacker has straddle legs which provide great stability. The large wheels and raised chassis make it ideal for rough terrain. It is suitable for loading, unloading and transportation of most standard pallets.
Quantity:
Name:Rough Terrain Stacker
This Rough Terrain Stacker has straddle legs which provide great stability. The large wheels and raised chassis make it ideal for rough terrain. It is suitable for loading, unloading and transportation of most standard pallets.

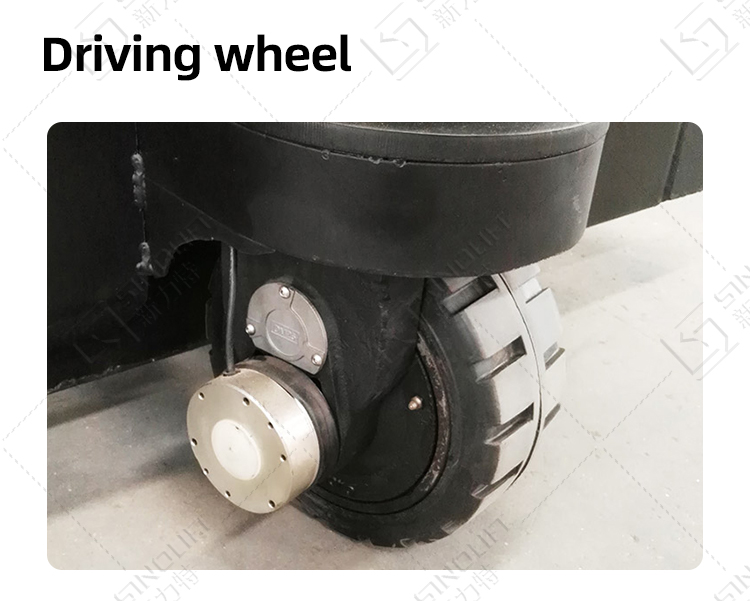

Rough Terrain Stacker is Designed with 2 independently powered drive wheels.
This rough terrain stacker can travel inclines of up to 1500kg. The rough terrain pallet stacker can for example be used in underground car parks and travel up ramps between levels.

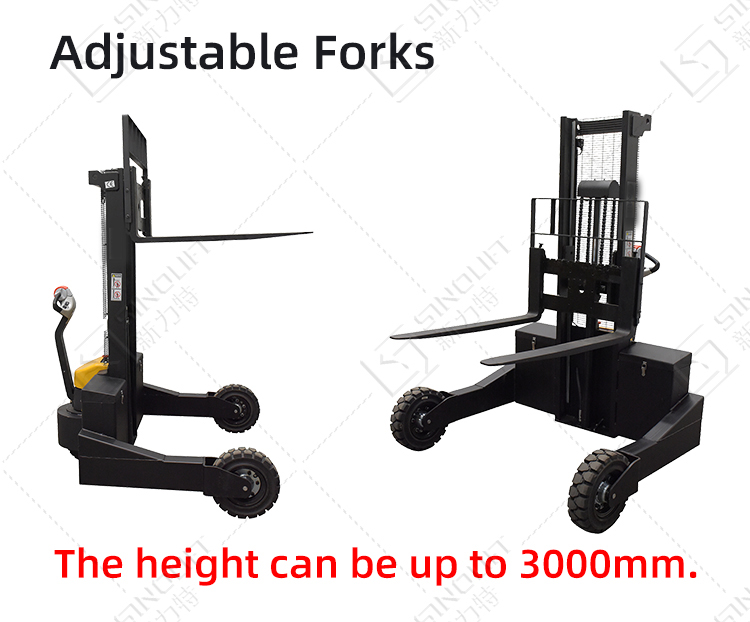

The Electric Rough Terrain Pallet Stacker is also available with raised fork heights of 3000mm. Please contact us for more information.

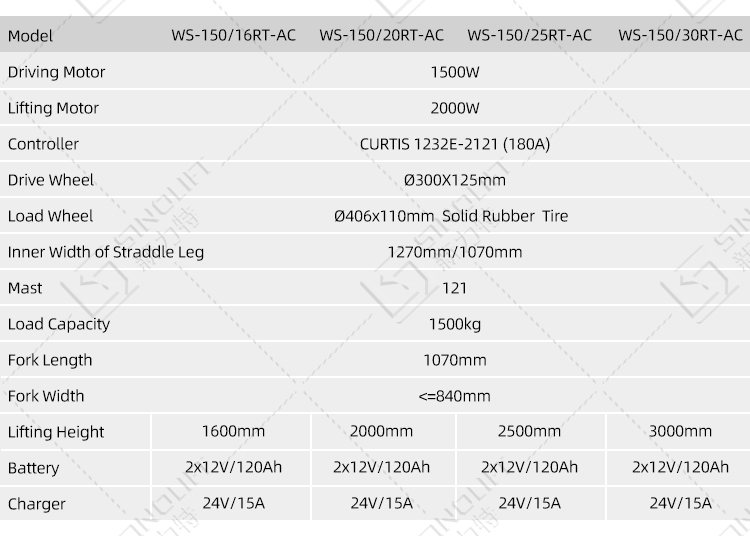

Spescifications of Rough Terrain Stacker:
| MODEL NO. | WS-150/16RT-AC | WS-150/20RT-AC | WS-150/25RT-AC | WS-150/30RT-AC |
| Drive Motor/Lifiting Motor | Driving Motor: 1500W / Lifting Motor: 2000W / Controller: CURTIS 1232E-2121 (180A) / Mast: 121 / Driving Wheel :Ø300x125 / Load Wheel: Ø406x110 Solid Rubber Tire / Fork Length: 1070mm / Fork Width: <=840mm / Inner Width of Straddle Leg: 1270mm or 1070mm. | |||
| Load Capacity | 1500kg | |||
| Lifting Height | 1600mm | 2000mm | 2x12V/120Ah | 24V/15A |
| Battery | 2x12V/120Ah | |||
| Charger | 24V/15A | |||
