DT300A DT300B Portable Drum Truck oil drum lifter
DT300A DT300B
1. Simple design is easy to use;
2. Unit features a manual mechanical hand ratchet crank lift mechanism. Also removes drums from the corner of containment skids.
3. Less lifting force by a reliable hydraulic pump.
2. Unit features a manual mechanical hand ratchet crank lift mechanism. Also removes drums from the corner of containment skids.
3. Less lifting force by a reliable hydraulic pump.
Quantity:

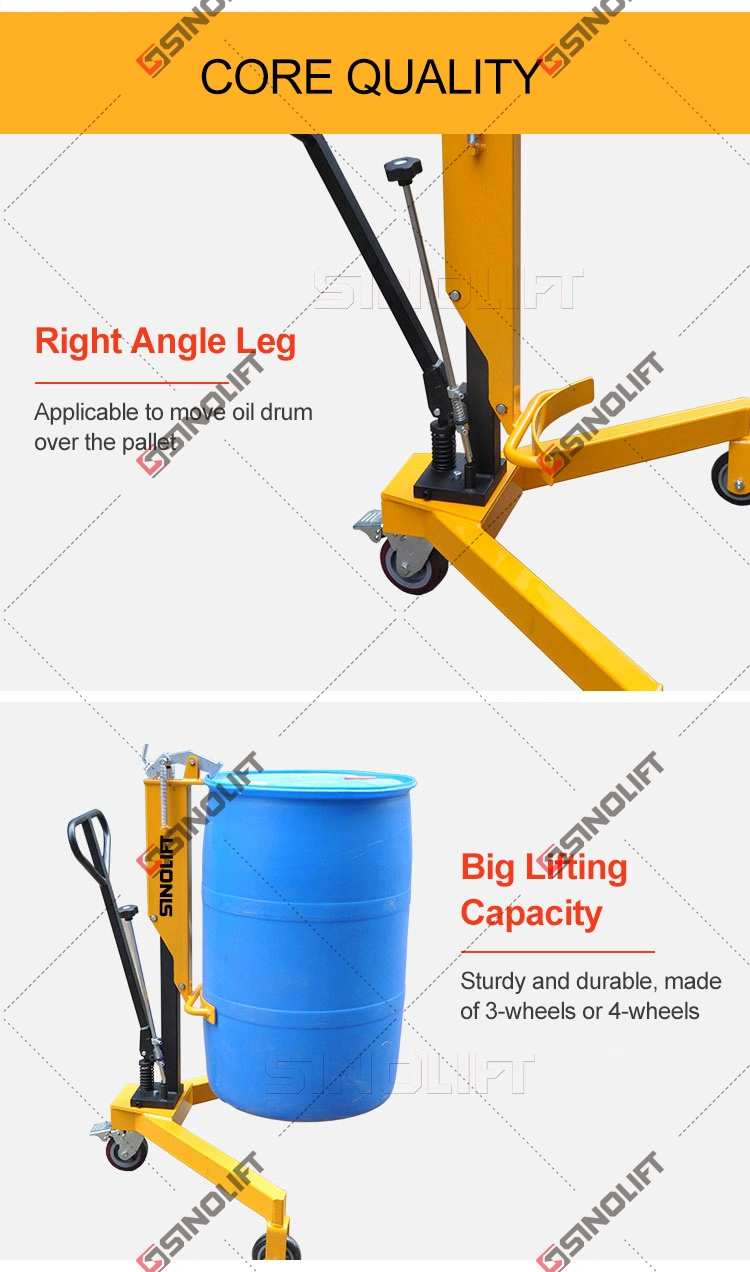

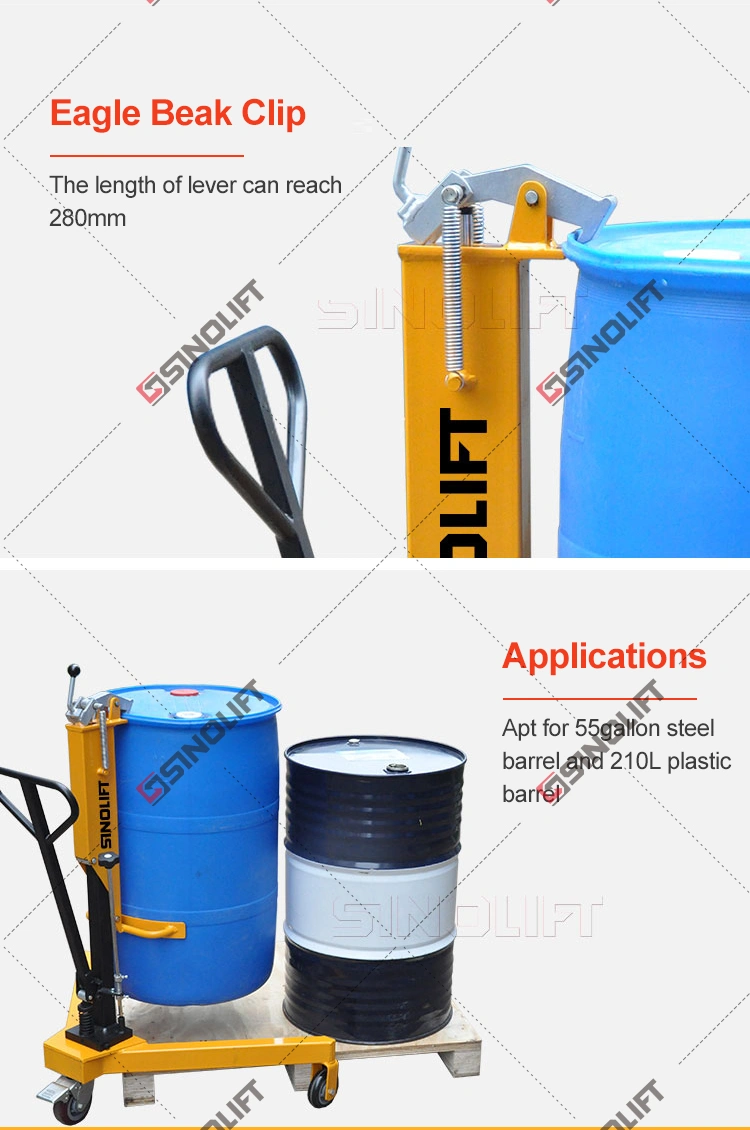

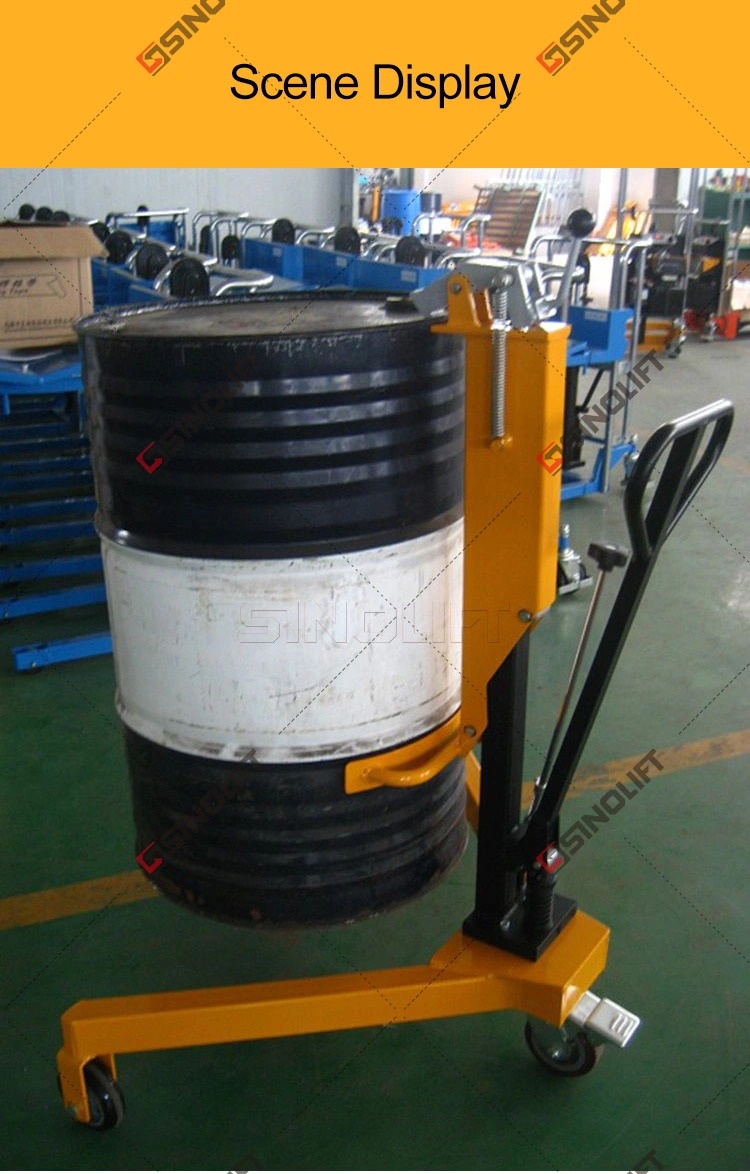

▲ Oil drum lifter is Ideal for lifting and transporting steel drums and plastic drum with a top lip.
▲ Oil drum lifter Easily glides over pallets orpound scaleplatform to quickly load or unload 30 or 55-gallon drums.
▲ Grabs drums from the middle of a standard pallet with a drum claw grab, raises the drums up, and redistributes them throughout the facility.

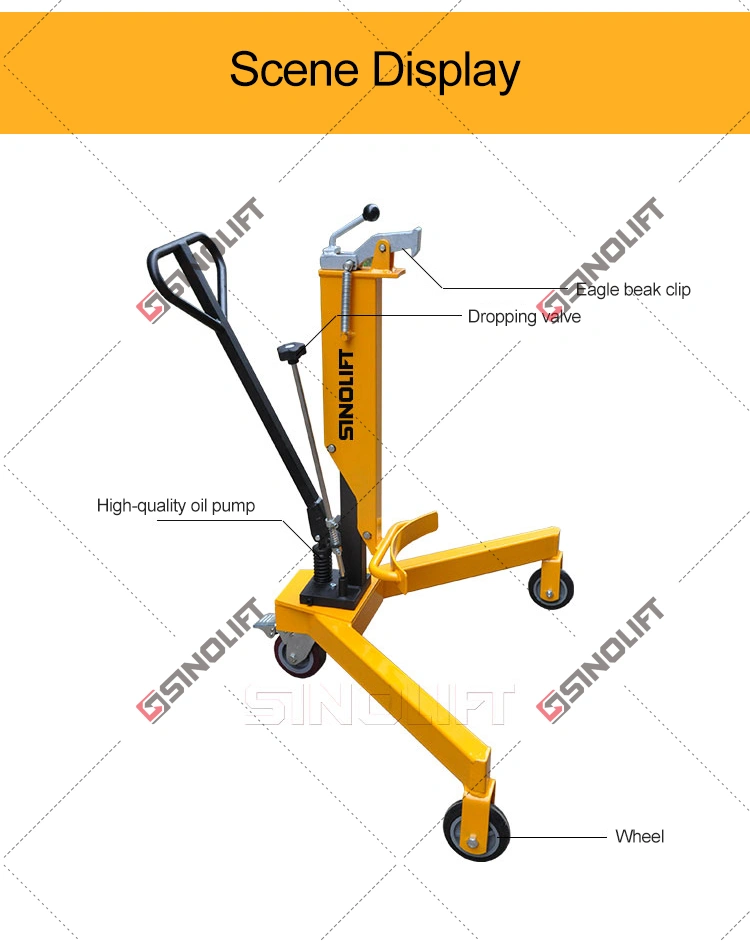

▲ Simple design is easy to use; unit features a manual mechanical hand ratchet crank lift mechanism. Also removes drums from the corner of containment skids.
▲ Less lifting force by a reliable hydraulic pump.
▲ Easier moving with two big size rollers and one caster wheel.

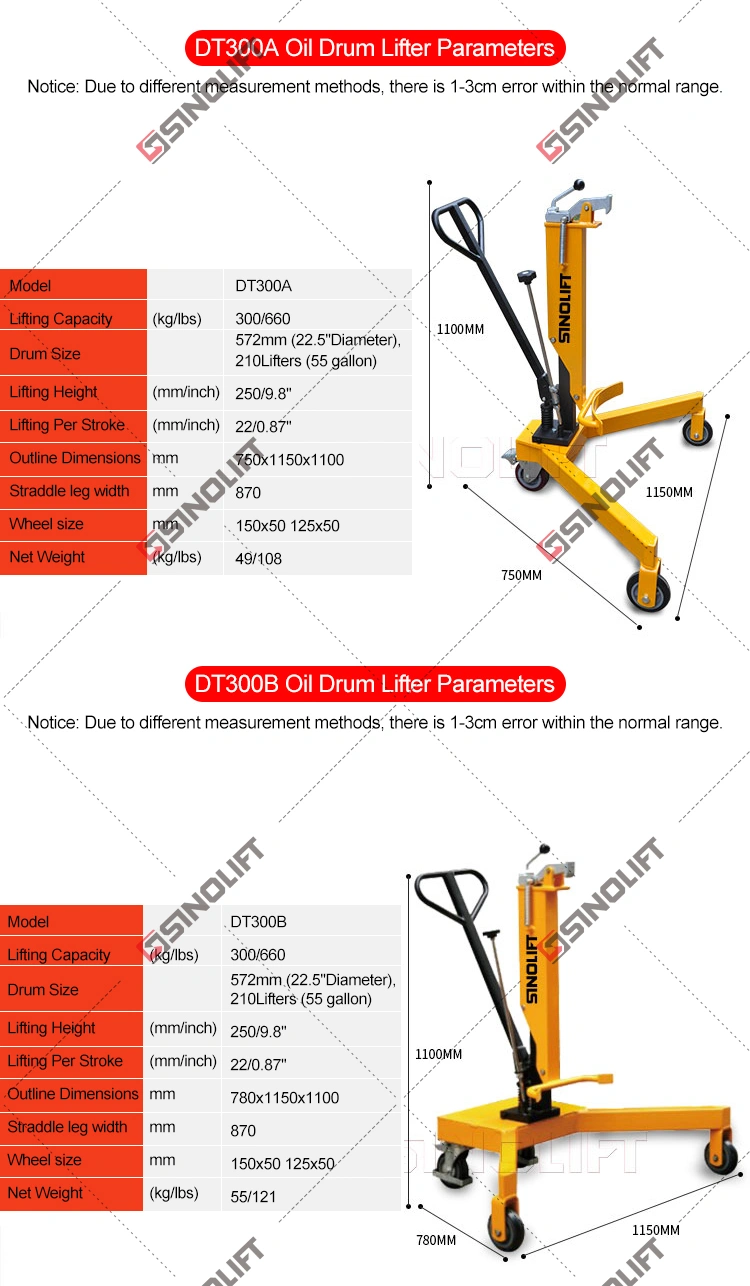

| Model | oil drum lifter DT300A | oil drum lifter DT300B | |
| Lifting Capacity | (kg/lbs) | 300/660 | 300/660 |
| Drum Size | 572mm (22.5"Diameter), 210Lifters (55 gallon) | 572mm (22.5"Diameter), 210Lifters (55 gallon) | |
| Lifting Height | (mm/inch) | 250/9.8" | 250/9.8" |
| Lifting Per Stroke | (mm/inch) | 22/0.87” | 22/0.87” |
| Outline Dimensions | mm | 1000x900x1200 | 1100x1100x1160 |
| Straddle leg width | mm | 670(850) | 920 |
| Wheel size | mm | 150x50 125x50 | 150x50 125x50 |
| Net Weight | (kg/lbs) | 45/99 | 45/99 |
