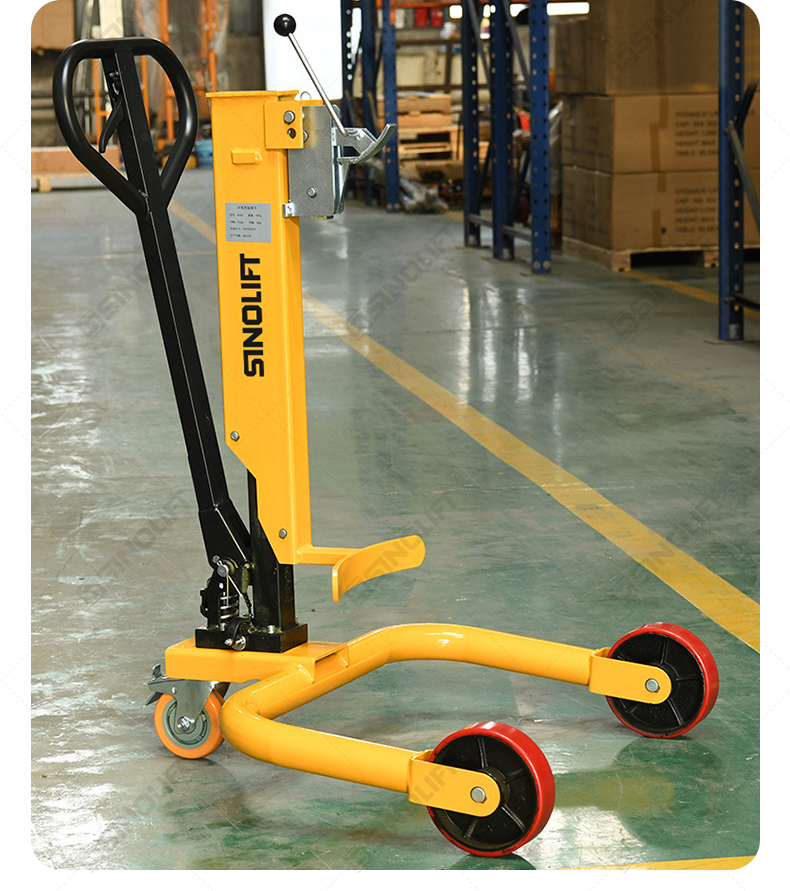

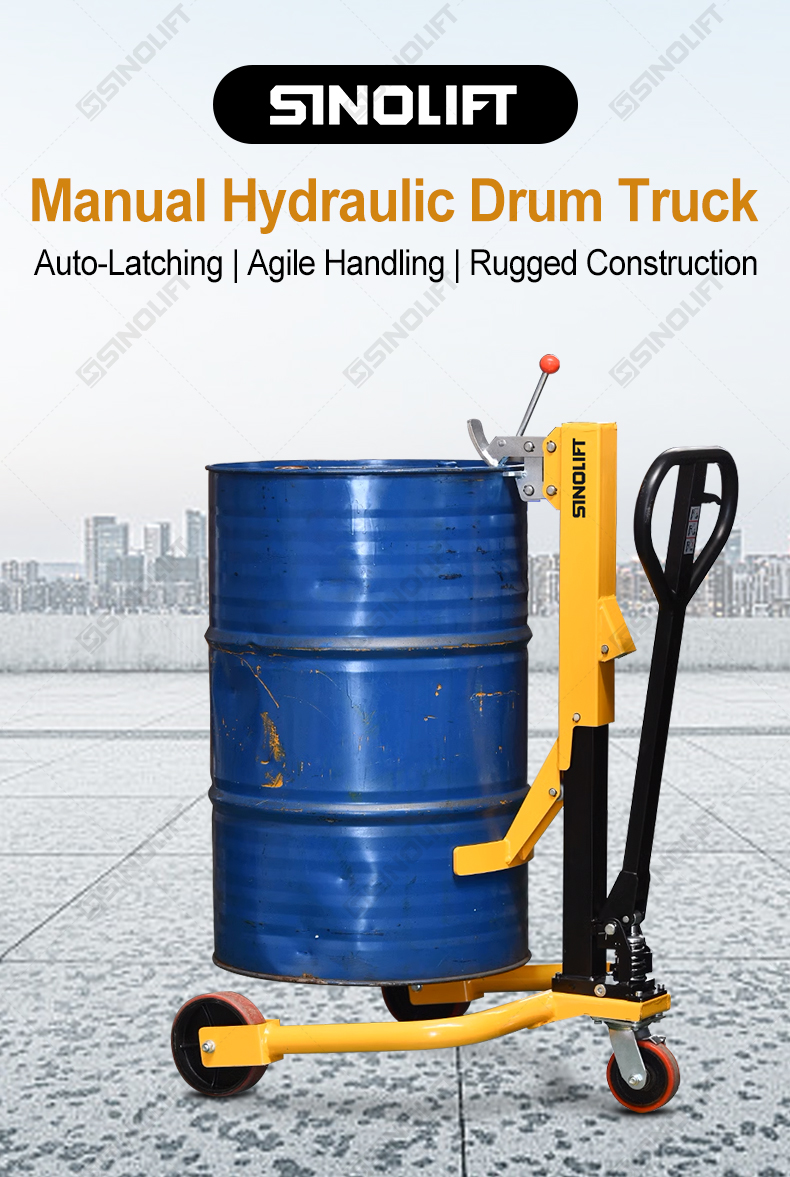

DP35C-B Manual Hydraulic Drum Truck

DP35C-B

Features automatic beak-lock design with bilateral spring-loaded locking mechanisms to prevent accidental drum disengagement

Quantity:

Contact Now

add to cart

Product Name

DP35C-B Manual Hydraulic Drum Truck

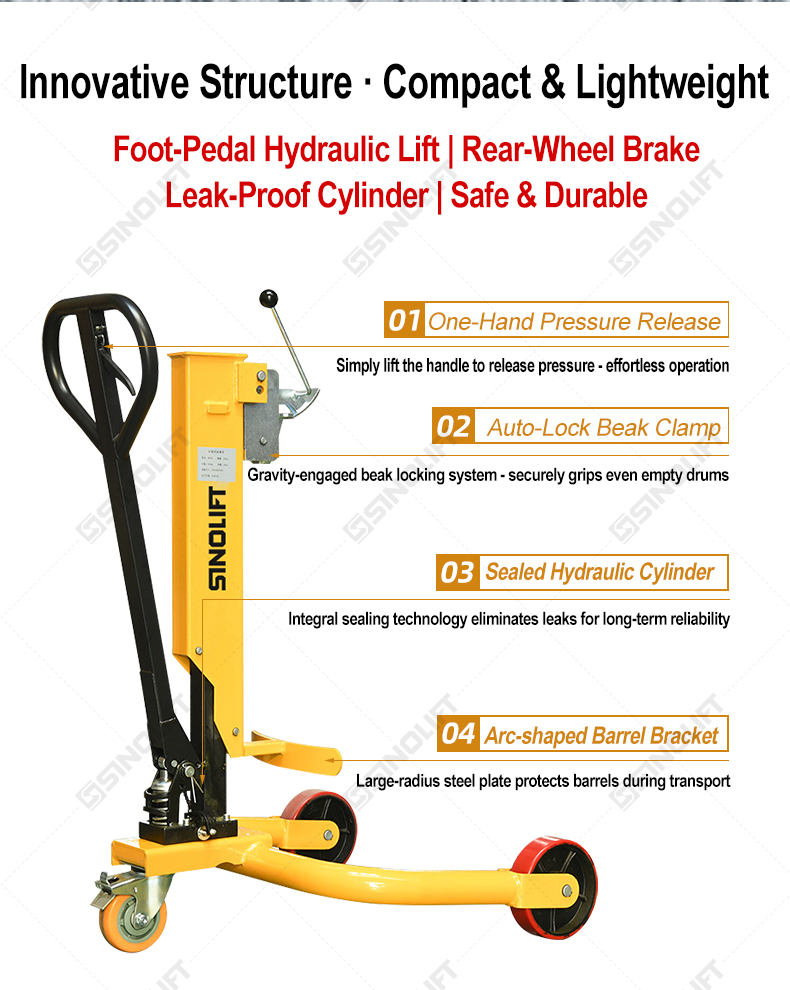

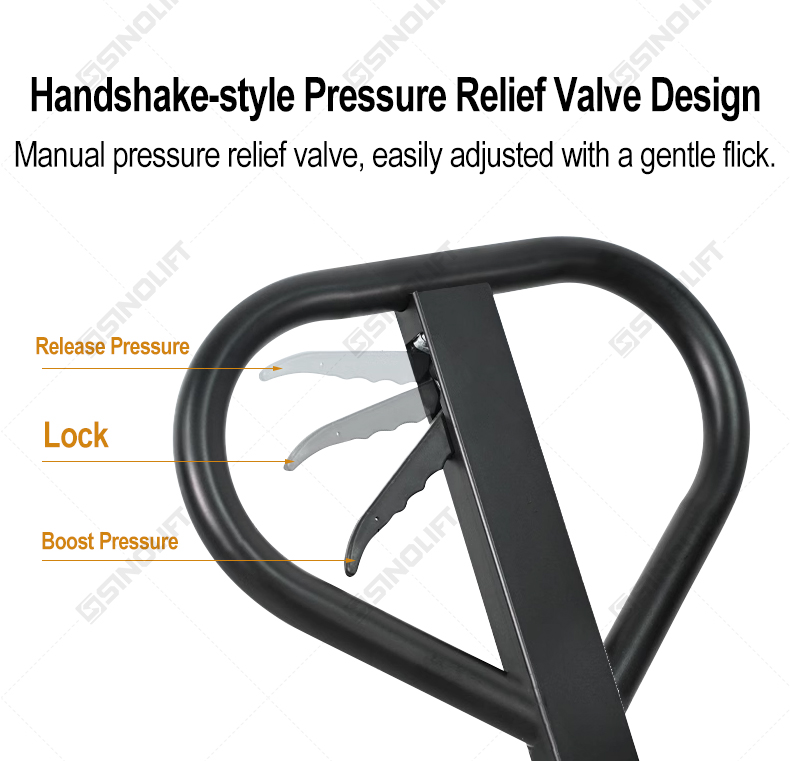

1. One-Hand Pressure Release
Simply lift the handle to release pressure - effortless operation

2. Auto-Lock Beak Clamp
Gravity-engaged beak locking system - securely grips even empty drums

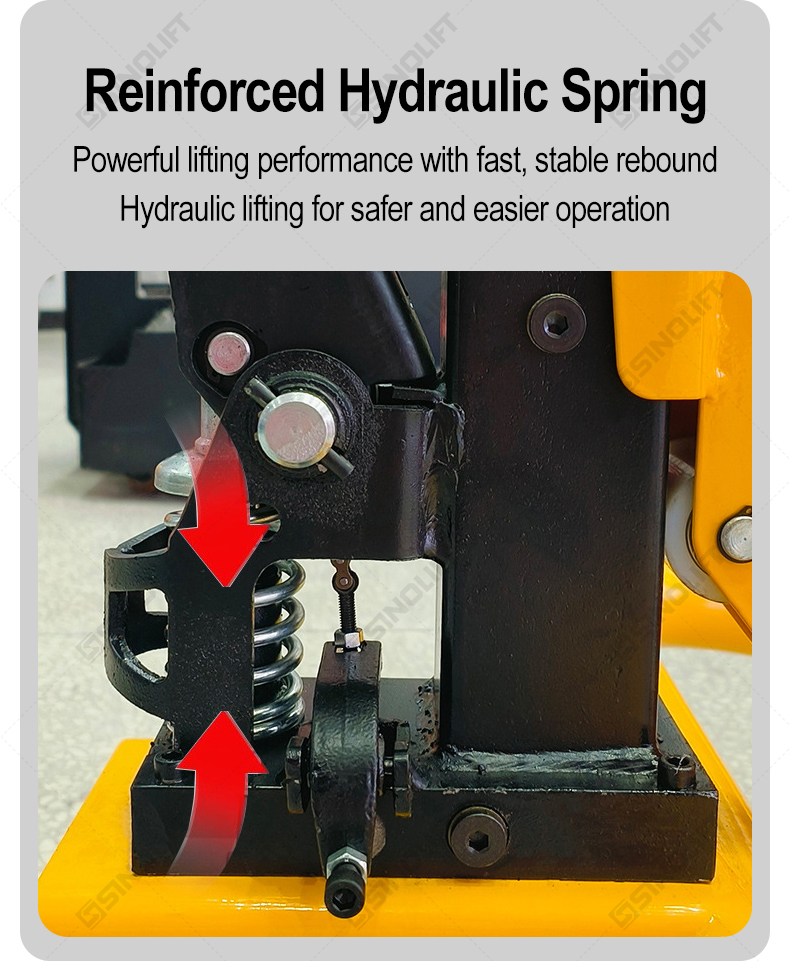

3. Sealed Hydraulic Cylinder
Integral sealing technology eliminates leaks for long-term reliability

4. Arc-shaped Barrel Bracket
Large-radius steel plate protects barrels during transport

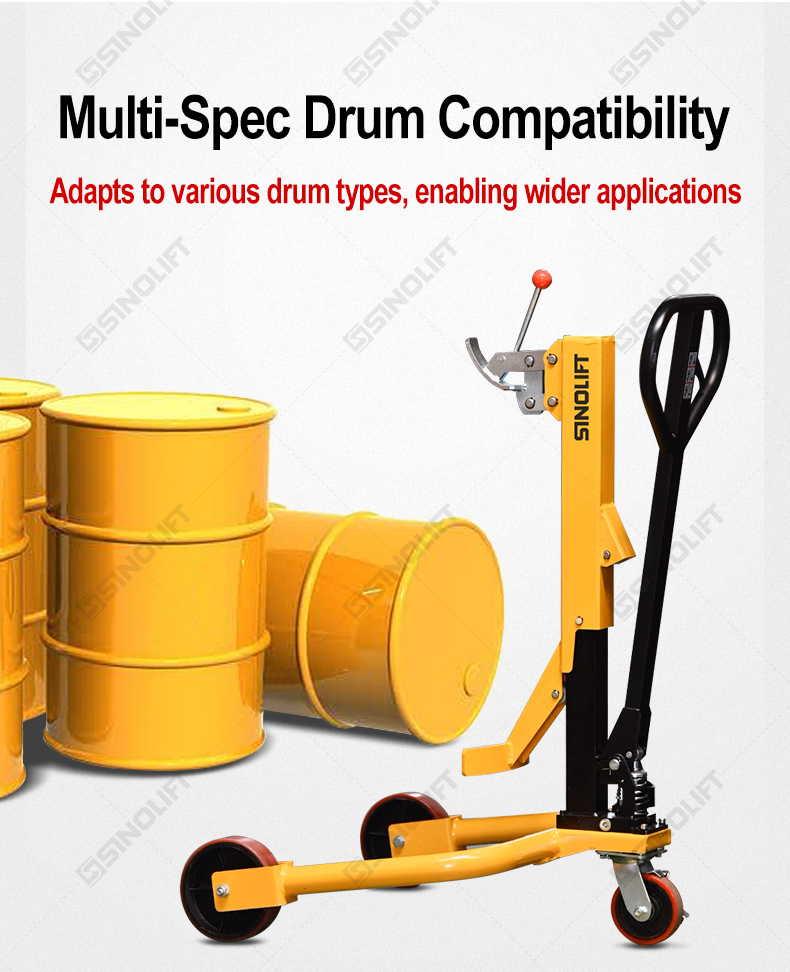

5. Multi-Spec Drum Compatibility
Adapts to various drum types, enabling wider applications

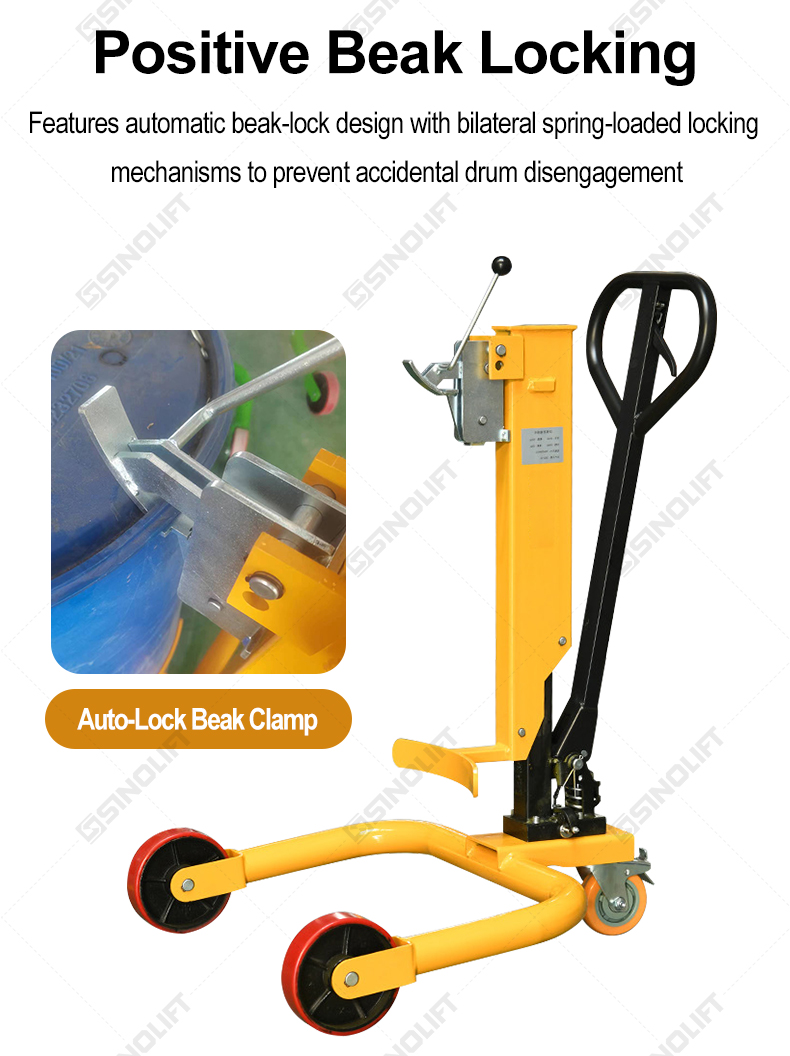

6. Positive Beak Locking - Industrial-Grade Durability

Features automatic beak-lock design with bilateral spring-loaded locking mechanisms to prevent accidental drum disengagement

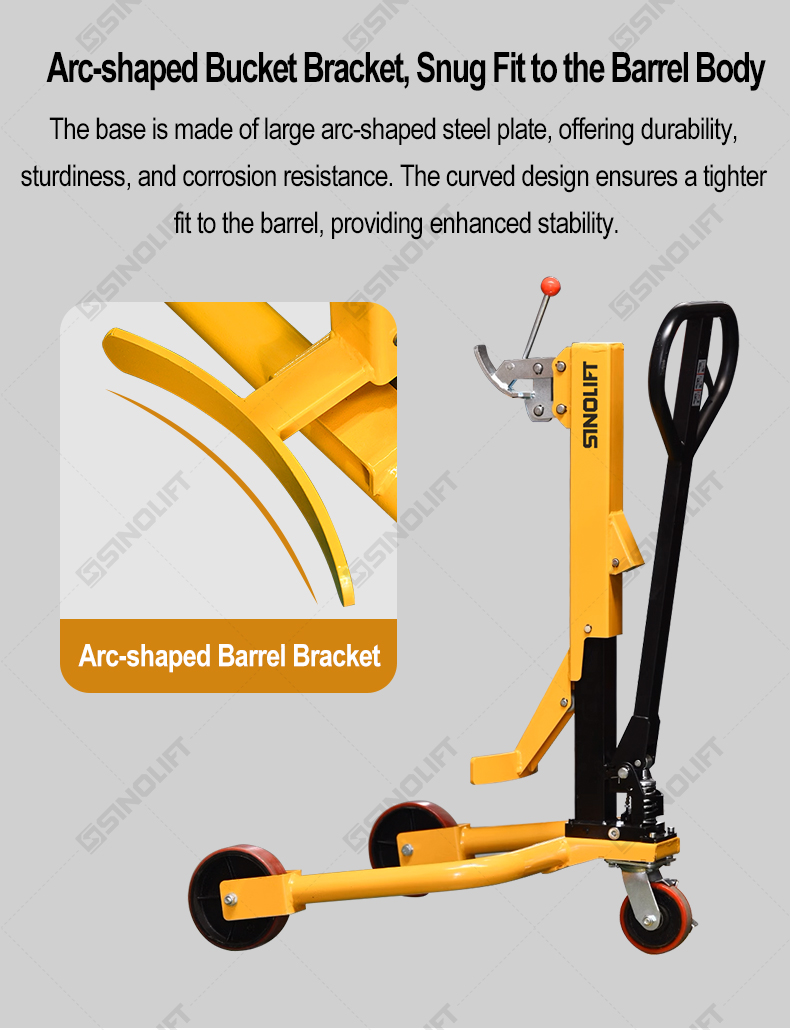

7.Arc-shaped Bucket Bracket, Snug Fit to the Barrel Body

The base is made of large arc-shaped steel plate, offering durability, sturdiness, and corrosion resistance. The curved design ensures a tighter fit to the barrel, providing enhanced stability.

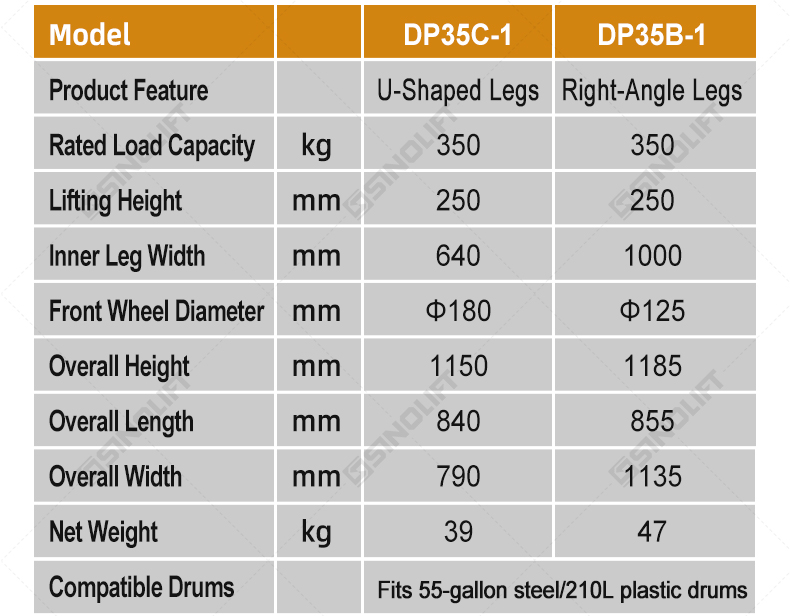

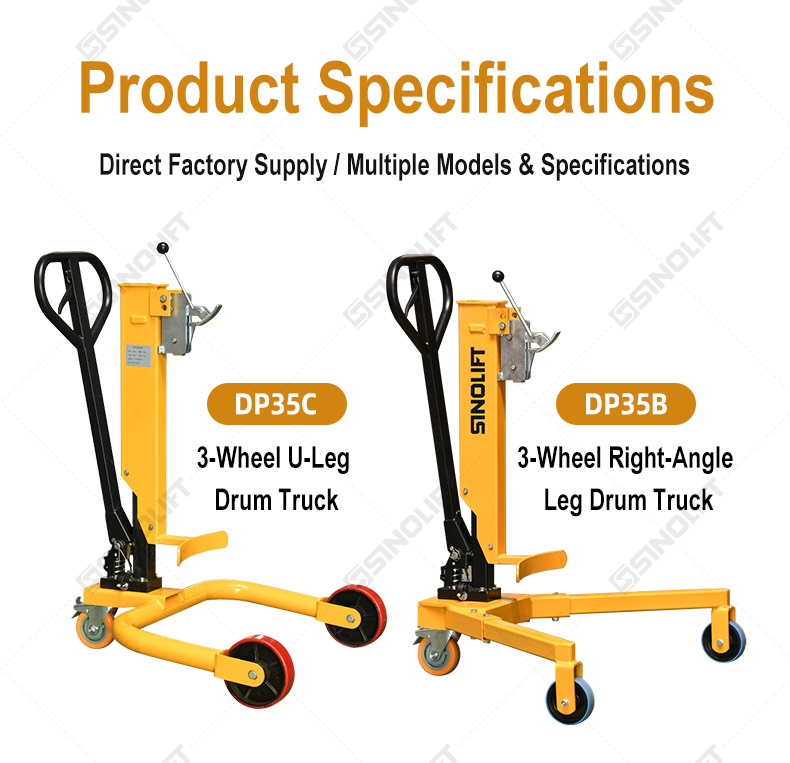

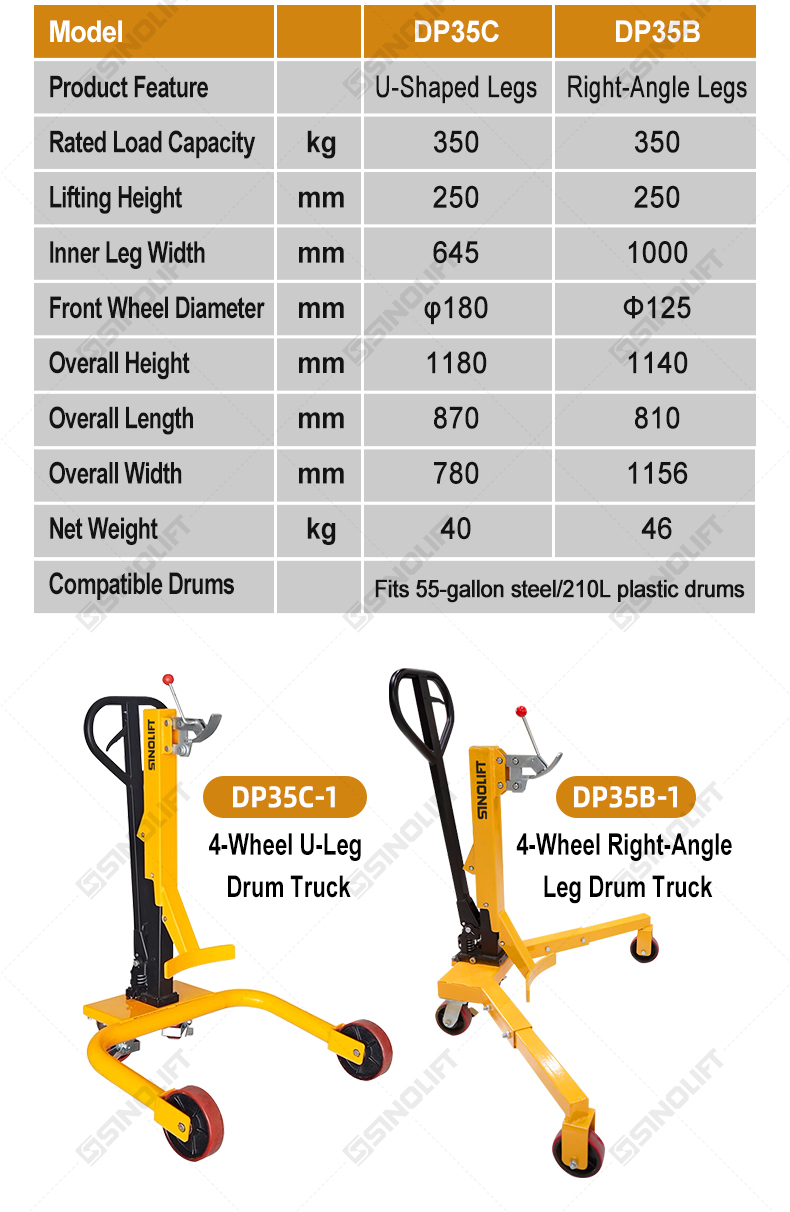

Product Specifications

Technical Parameters/Model		DP35C	DP35B	DP35C-1	DP35B-1

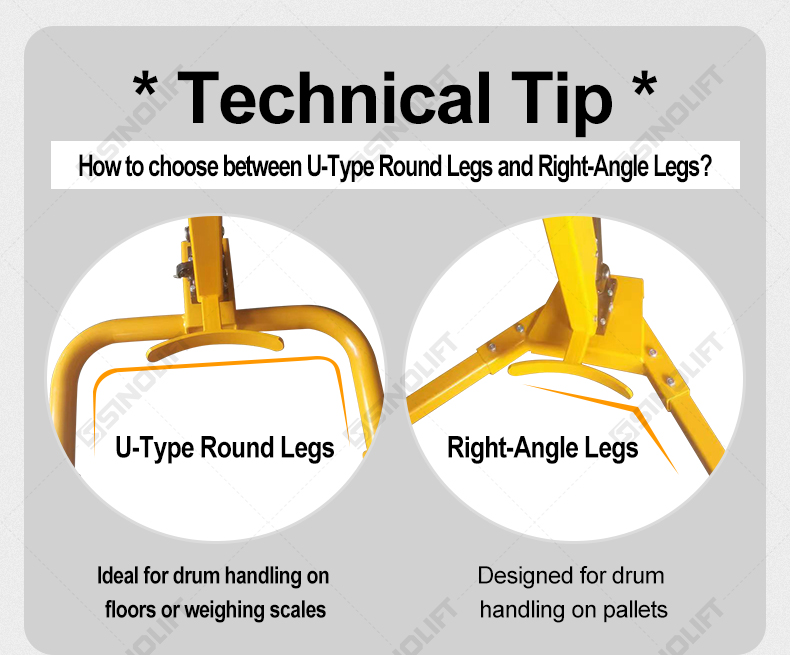

Product Feature		U-Shaped Legs	Right-Angle Legs	U-Shaped Legs	Right-Angle Legs
Rated Load Capacity	kg	350	350	350 kg	350 kg
Lifting Height	mm	250	250	250	250
Inner Leg Width	mm	645	1000	640	1000

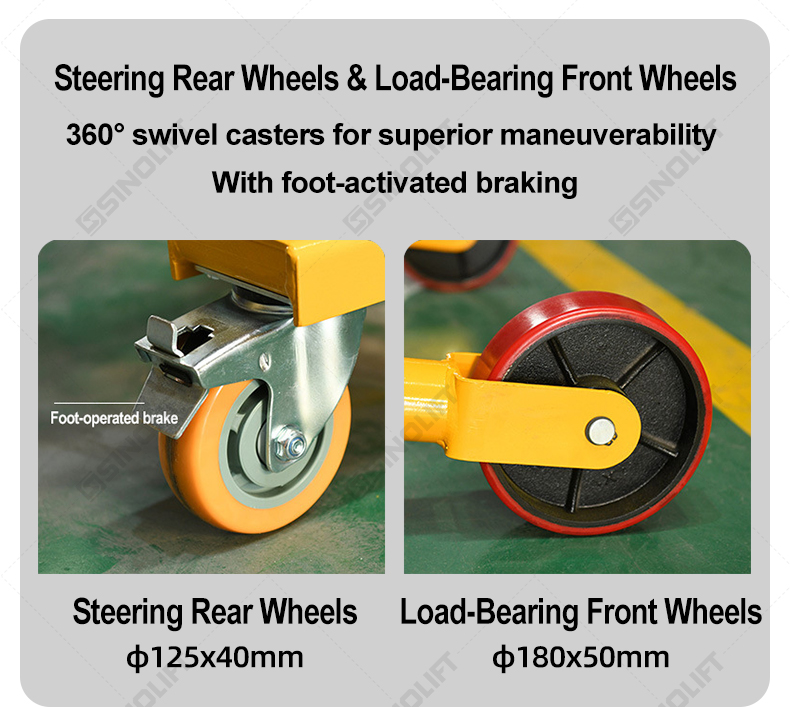

Front Wheel Diameter	mm	Φ180	Φ125	Φ180	Φ125
Overall Height	mm	1180	1140	1150	1185
Overall Length	mm	870	810	840	855
Overall Width	mm	780	1156	790	1135
Net Weight	kg	40	46	39	47
Compatible Drums		Fits 55-gallon steel/210L plastic drums
