DDS350 Manual Hydraulic Drum Dumper 350kg Capacity Oil Drum Tipper Barrel Handling Equipment
DDS350

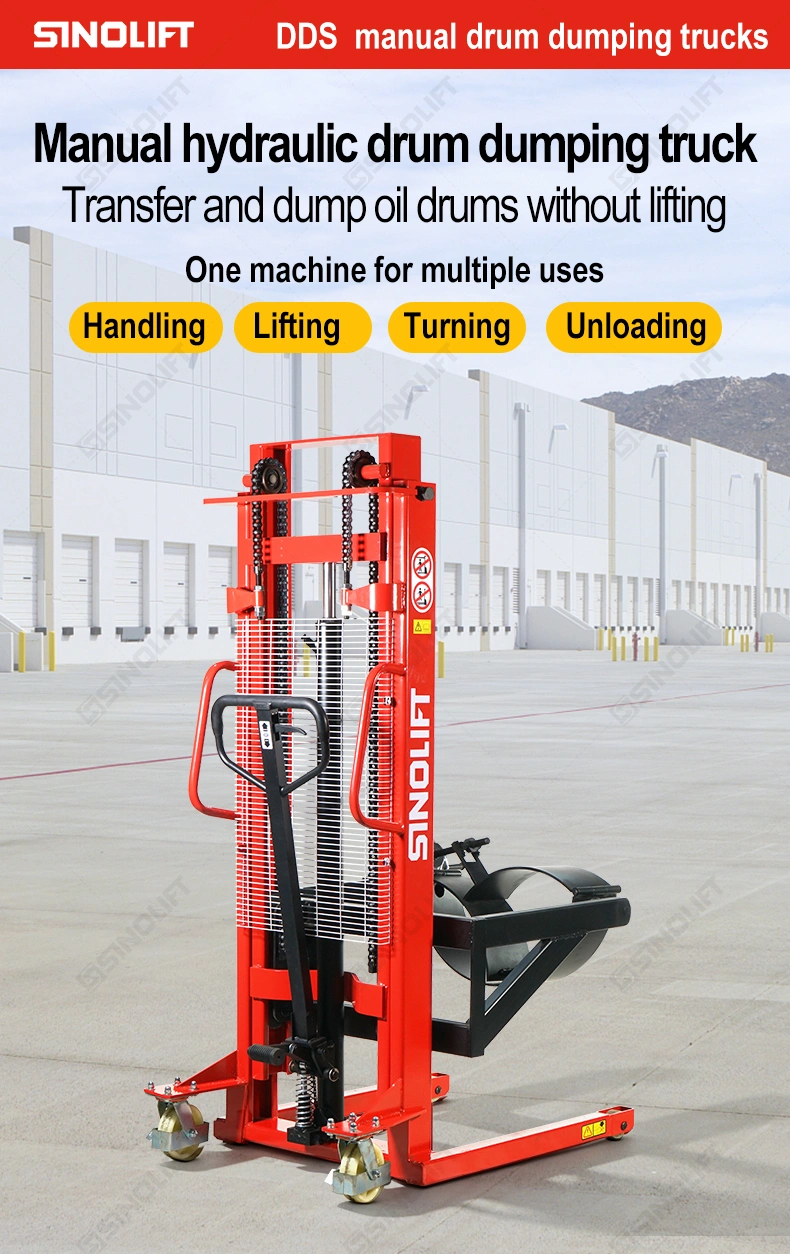

The DDS350 Manual Hydraulic Drum Dumper is built for lifting, transporting, rotating, and dispensing heavy drums without manual lifting. It combines a manual hydraulic lifting system, foot-pedal operation, hand-cranked drum rotation, and a reinforced full-clamp structure to make drum handling safer, cleaner, and more efficient.
Quantity
Product Overview
The SINOLIFT DDS350 Manual Hydraulic Drum Dumper is designed for safe and efficient lifting, transporting, rotating, and dispensing of heavy drums without manual lifting. It combines manual hydraulic lifting, foot-pedal operation, hand-cranked drum rotation, and reinforced full-clamp structure to provide a safer, cleaner, and more efficient drum handling solution. Designed for 55-gallon steel drums and 210 L closed plastic drums, the DDS350 supports lifting, turning, unloading, feeding, and filling operations in one compact machine.
Key Features
- 350kg Rated Capacity — Reliable drum handling performance for industrial applications.
- All-in-One Drum Handling — Supports transferring, lifting, rotating, dumping, feeding, and dispensing.

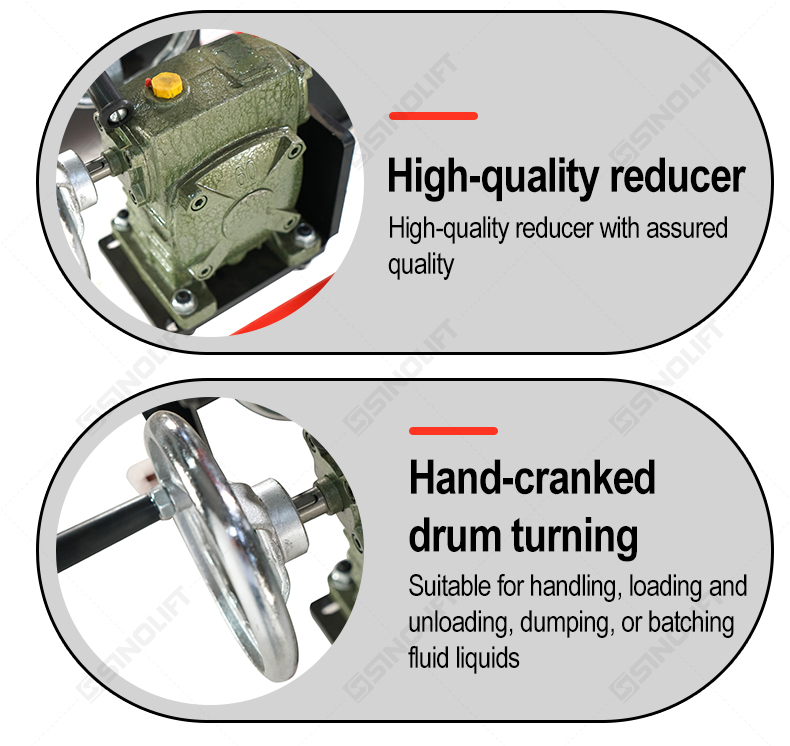

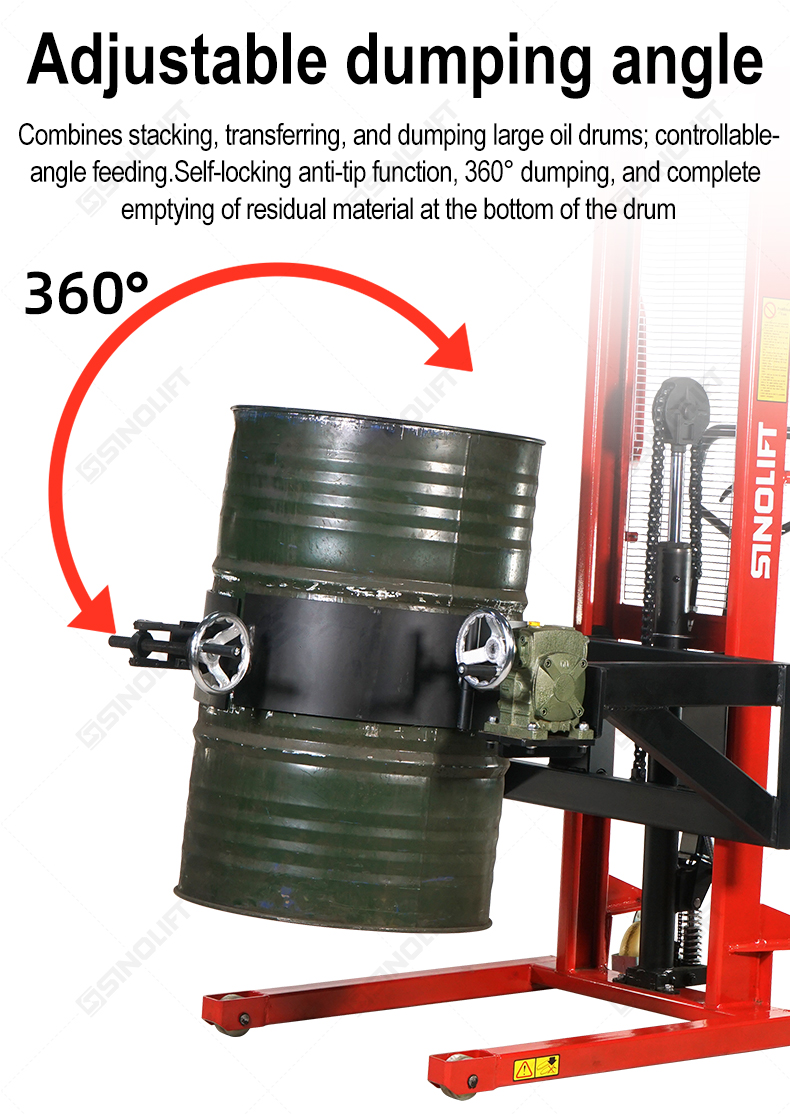

- 360° Manual Rotation — Adjustable hand-crank rotation enables controlled pouring.

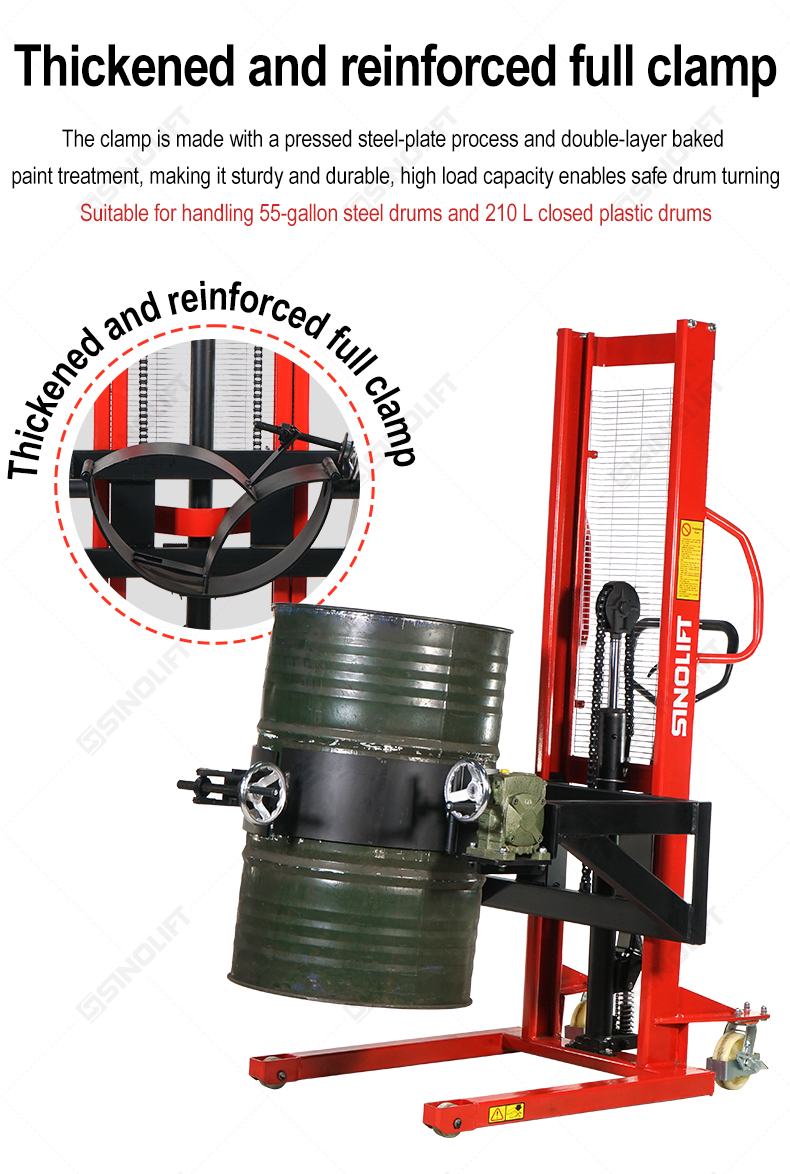

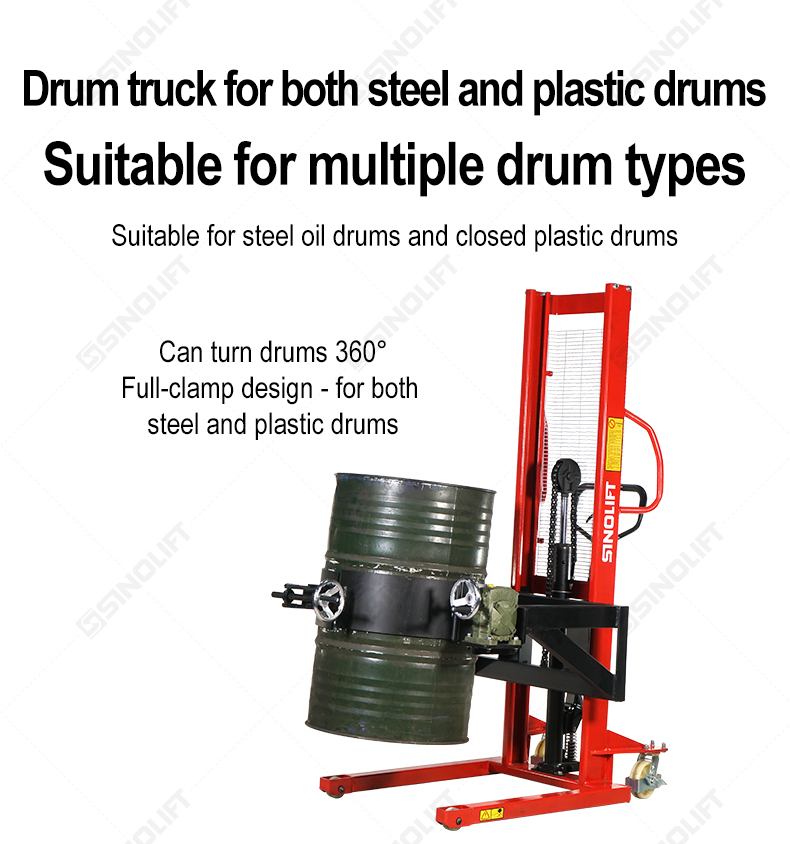

- Reinforced Full Clamp — Securely holds steel drums and compatible plastic drums.

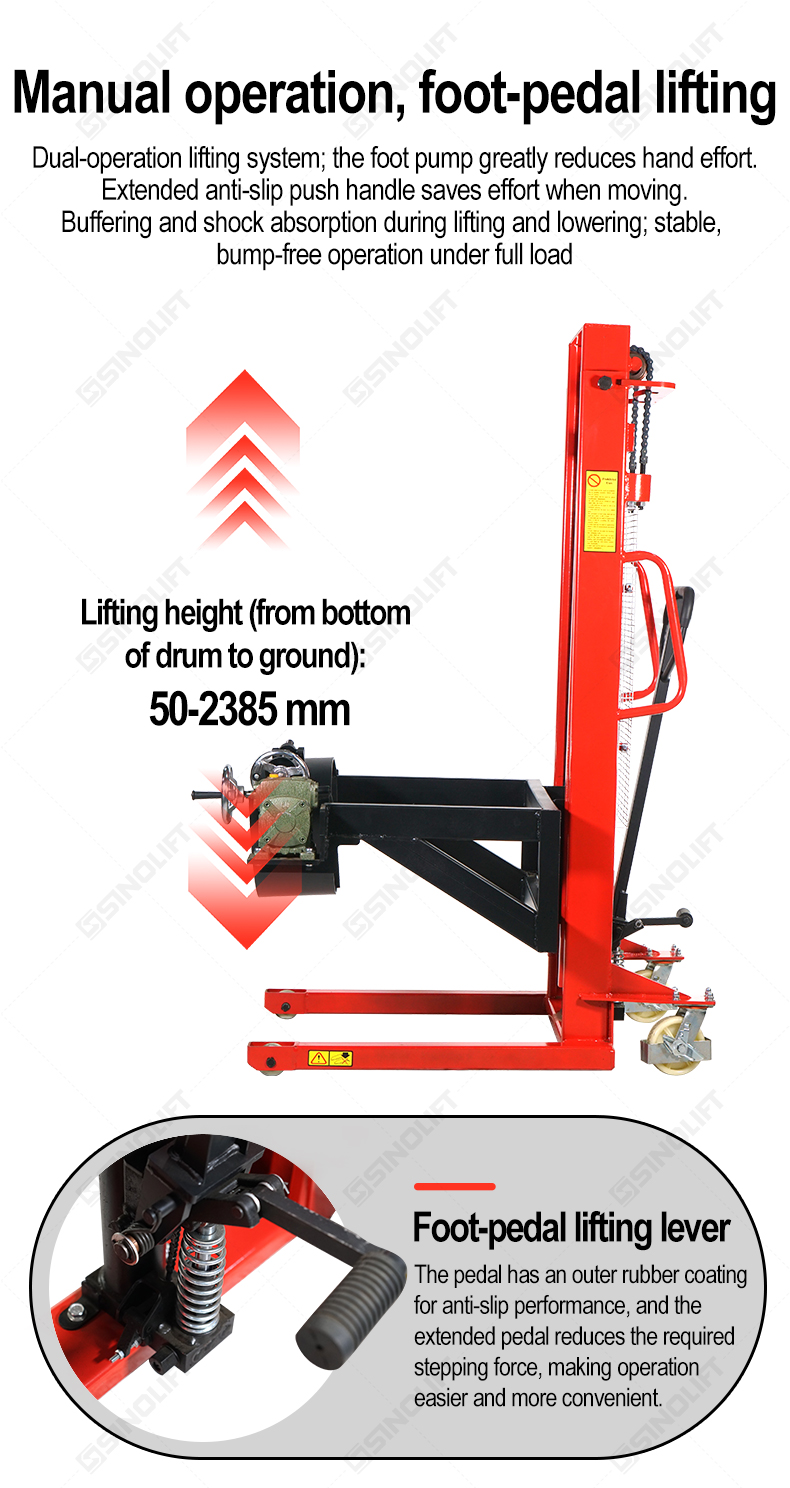

- Foot Pedal Hydraulic Lift — Reduces operator effort during lifting operations.

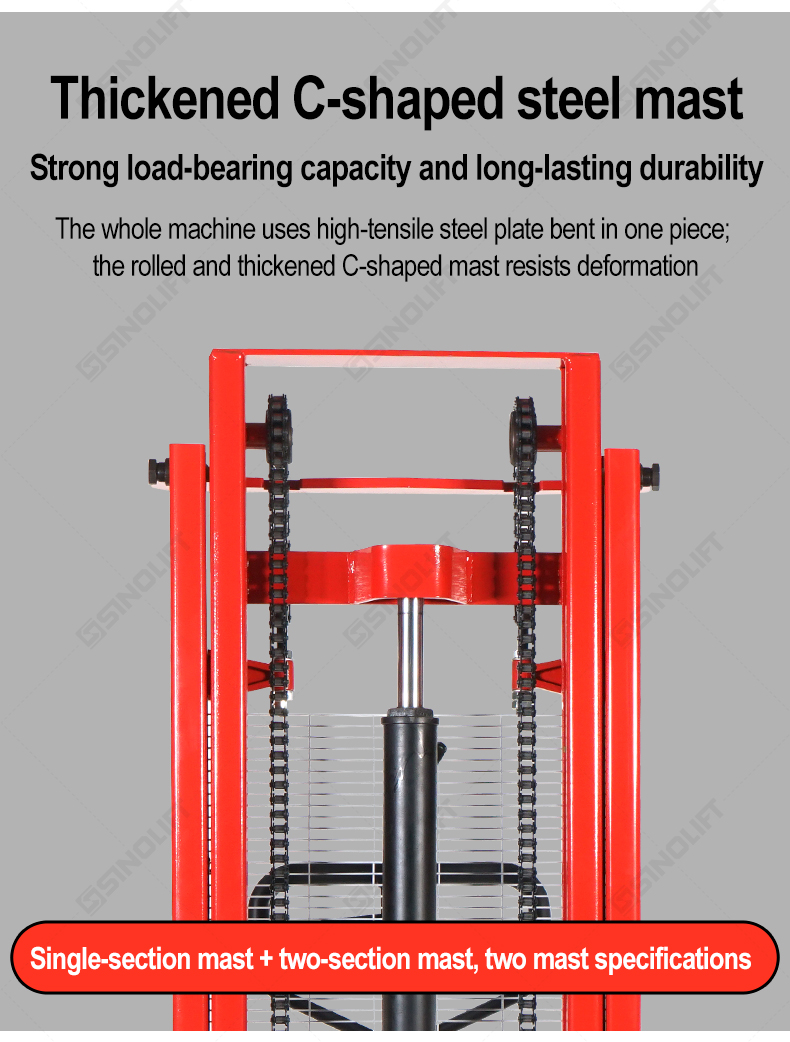

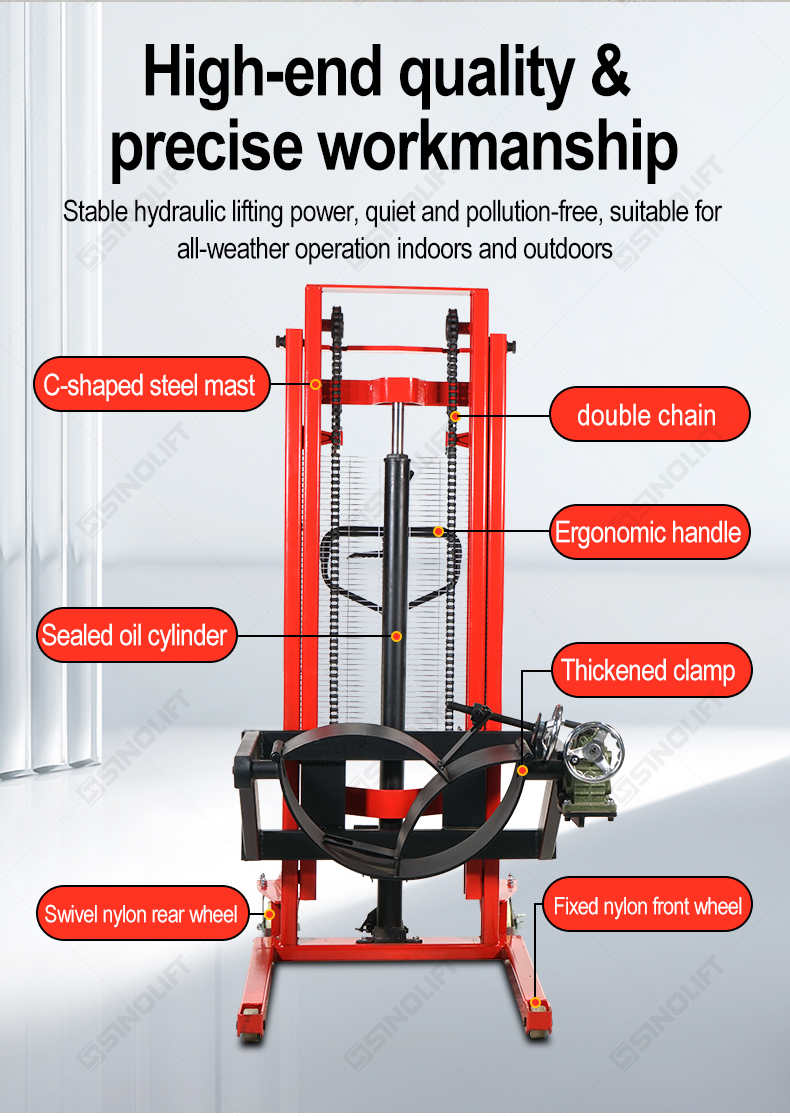

- C-Shaped Steel Mast — High-strength folded steel structure improves durability.

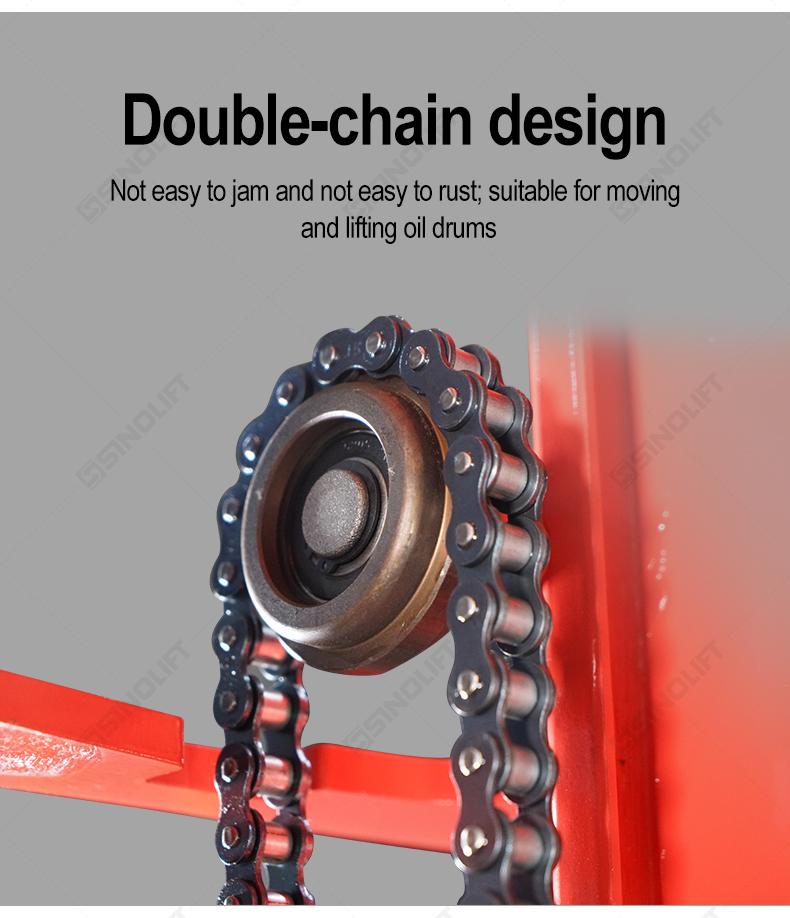

- Double Chain Lifting System — Smooth operation with excellent durability.

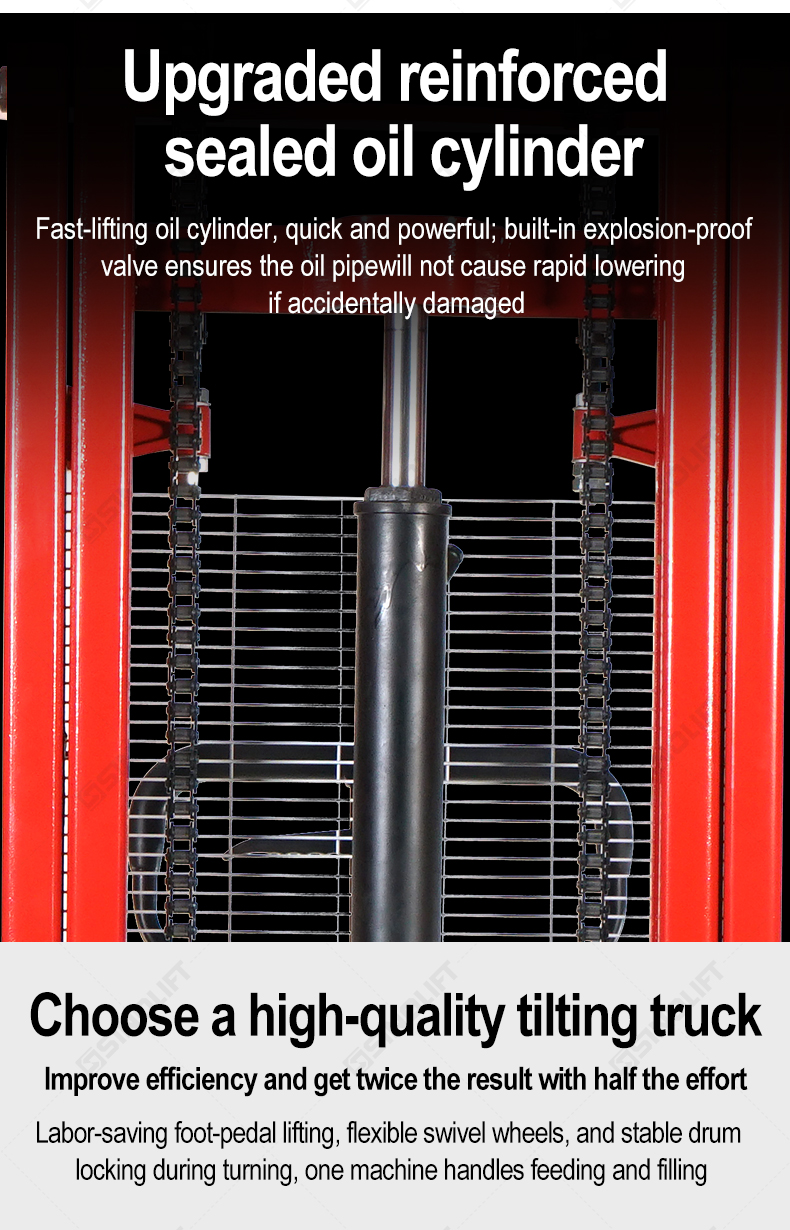

- Safety Hydraulic Cylinder — Helps prevent sudden lowering.

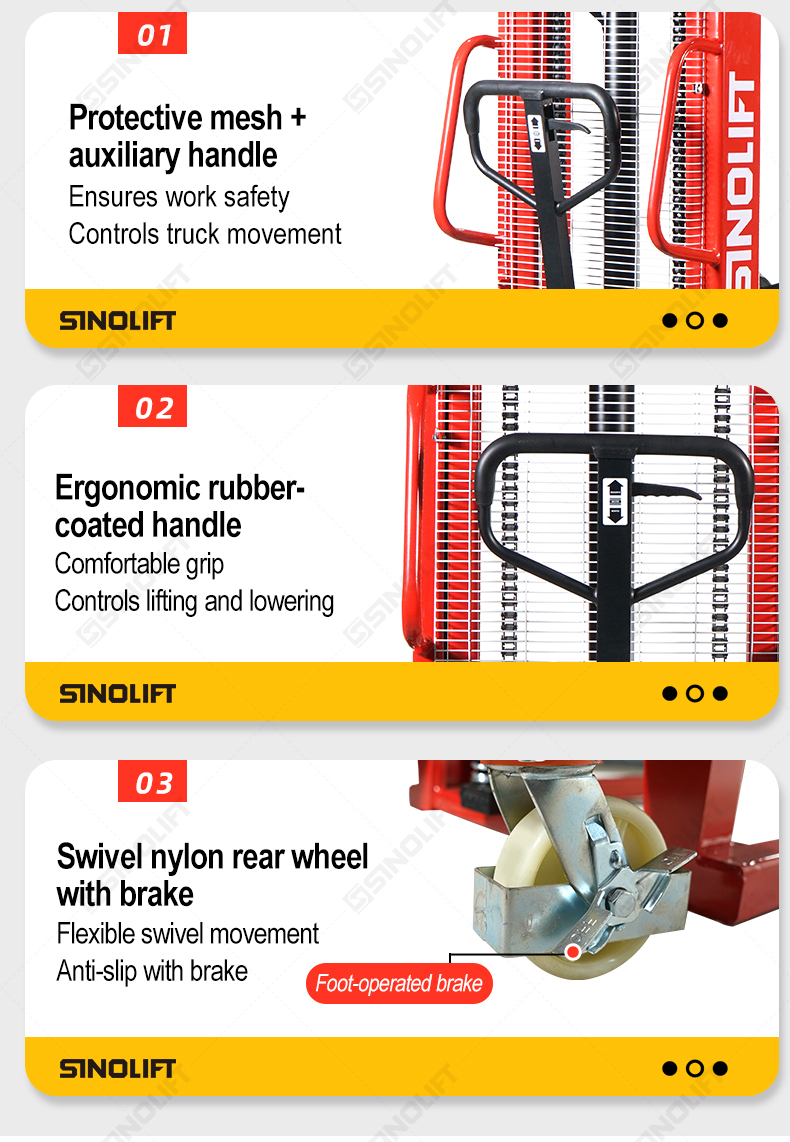

- Ergonomic Design — Handles, protective mesh, and brake wheels improve safety.
- Customization Available — Solutions can be adapted to special requirements.
Applications
- Oil Drum Handling
- Chemical Industry
- Factories & Workshops
- Production Lines

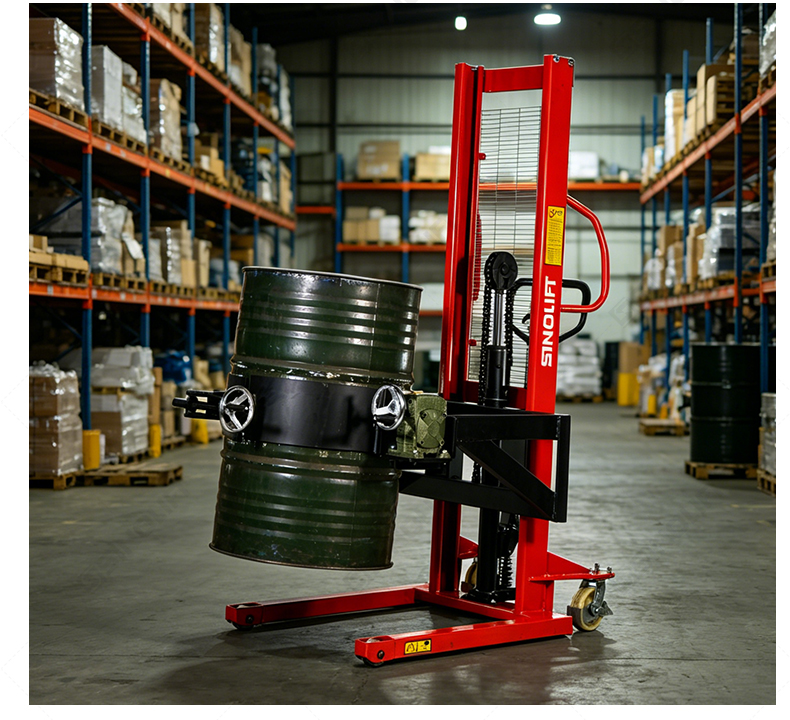

- Warehouse Material Handling

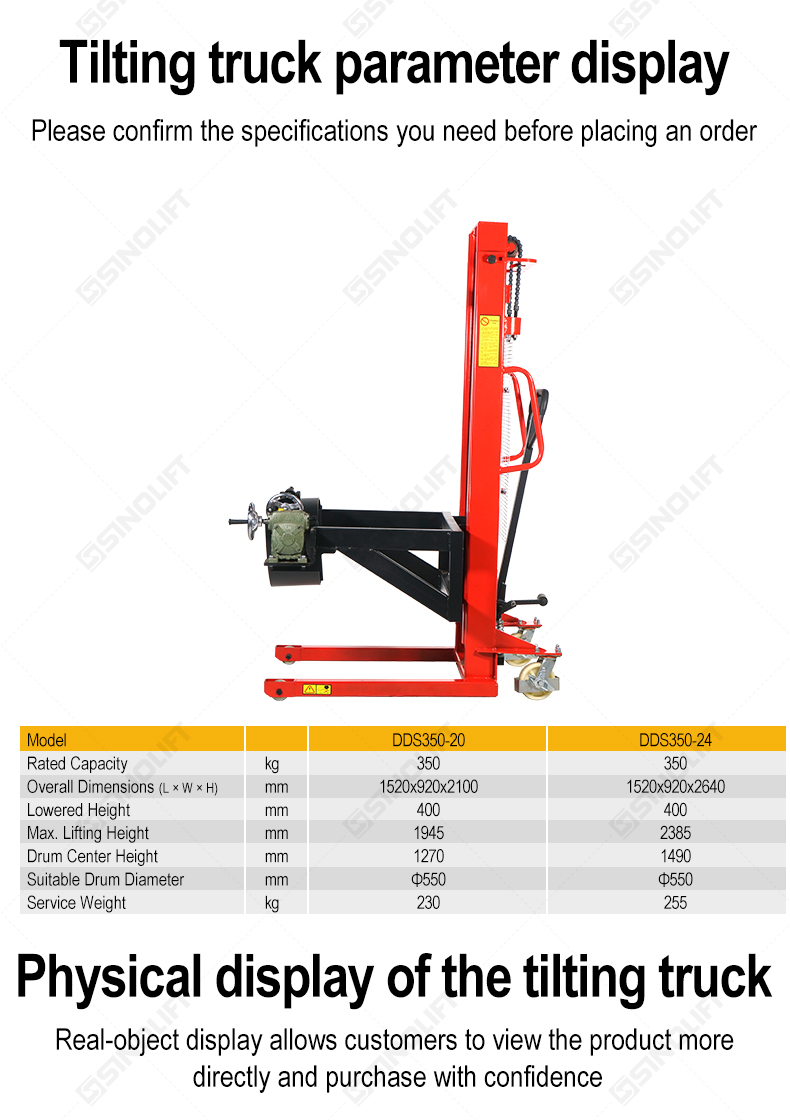

Specifications
Dimensions & Structure
| Parameter | Value |
|---|---|
| Rated Capacity | 350 kg |
| Lowered Height | 400 mm |
| Suitable Drum Diameter | Ø550 mm |
| Drum Type | 55 Gallon Steel / 210L Plastic |
Performance
| Parameter | DDS350-20 / DDS350-24 |
|---|---|
| Max. Lifting Height | 1945 / 2385 mm |
| Overall Dimensions | 1520×920×2100 / 2640 mm |
| Drum Center Height | 1270 / 1490 mm |
| Service Weight | 230 / 255 kg |
Specifications are subject to change without notice. Please contact SINOLIFT for latest technical data and customization requirements.
Frequently Asked Questions
Q: What is the rated capacity of DDS350?
A: DDS350 has a rated capacity of 350 kg.
Q: Can it rotate drums for pouring?
A: Yes. It supports 360-degree manual rotation.
Q: Does it require electricity?
A: No. It uses manual hydraulic lifting and hand-cranked rotation.

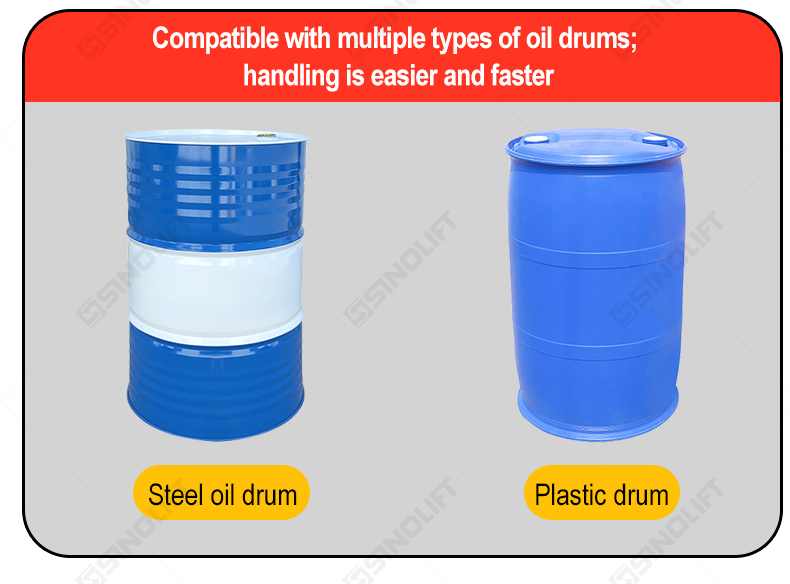

Q: What drums can it handle?
A: It is suitable for 55-gallon steel drums and 210 L closed plastic drums.
