SINOLIFT DS500 Manual Hydraulic Drum Dumper 500kg Heavy Duty Drum Tipper & Rotating Barrel Handling Equipment
Product Name
DS500 Manual Hydraulic Drum Dumper 500kg Heavy Duty Steel Drum Tipper & Barrel Handling Equipment
Product Overview

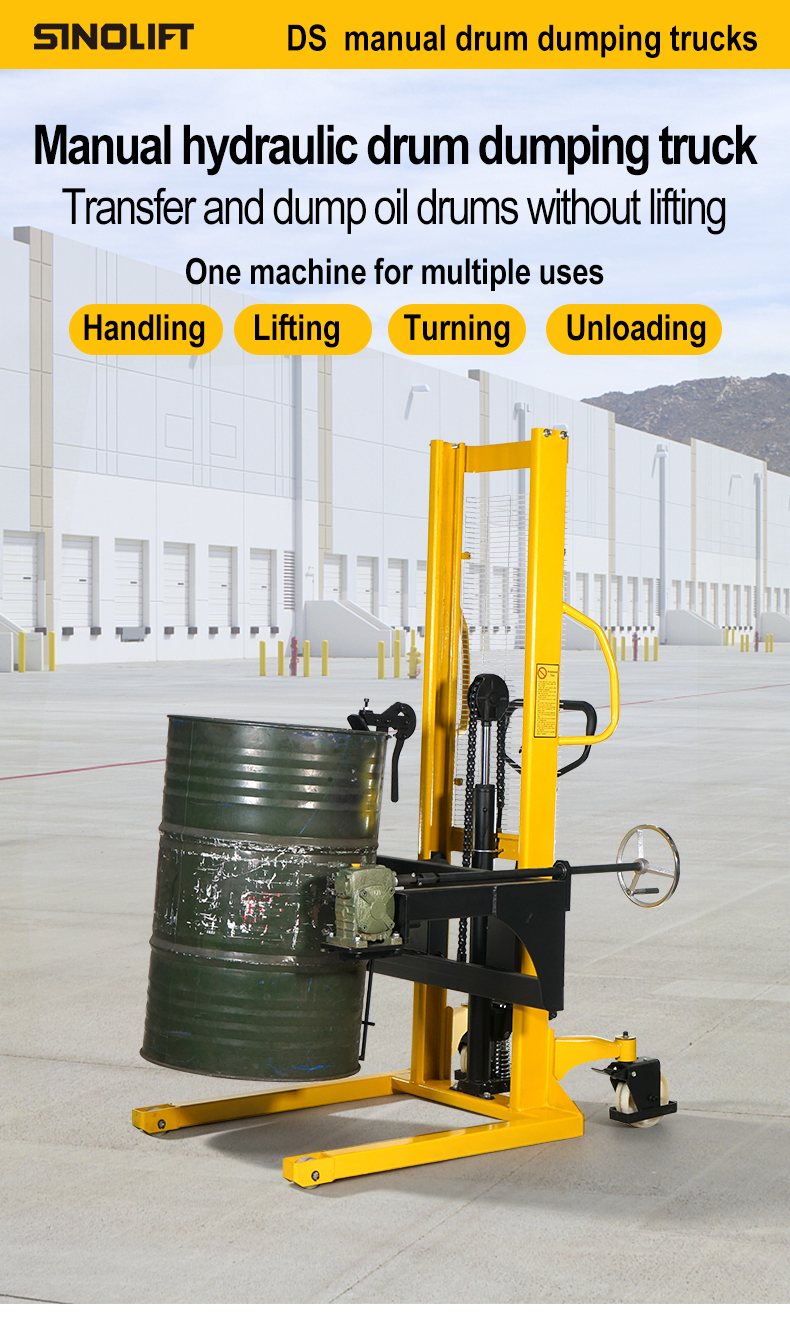

The SINOLIFT DS500 Manual Hydraulic Drum Dumper is a heavy-duty drum handling solution designed for lifting, transporting, rotating, and unloading steel drums with less manual effort. With a 500 kg rated capacity, manual hydraulic lifting, foot-pedal operation, and hand-cranked rotation, it helps operators move and pour heavy drums more safely and efficiently. The DS500 series features a thickened C-shaped steel mast, reinforced semi-clamp structure, upper-rim clamp jaw, bottom drum hook, composite double-chain lifting system, sealed hydraulic cylinder, and high-quality geared reducer. Its double-locking structure helps hold the drum securely during lifting and controlled 180-degree dumping. Available models include DS500-1600, DS500-2000, DS500-2500, and DS500-3000, with lifting ranges from 50–1,400 mm up to 50–2,800 mm.
Key Features
- 500kg Rated Capacity — Built for heavy-duty drum lifting, transfer, rotation, and dumping applications.

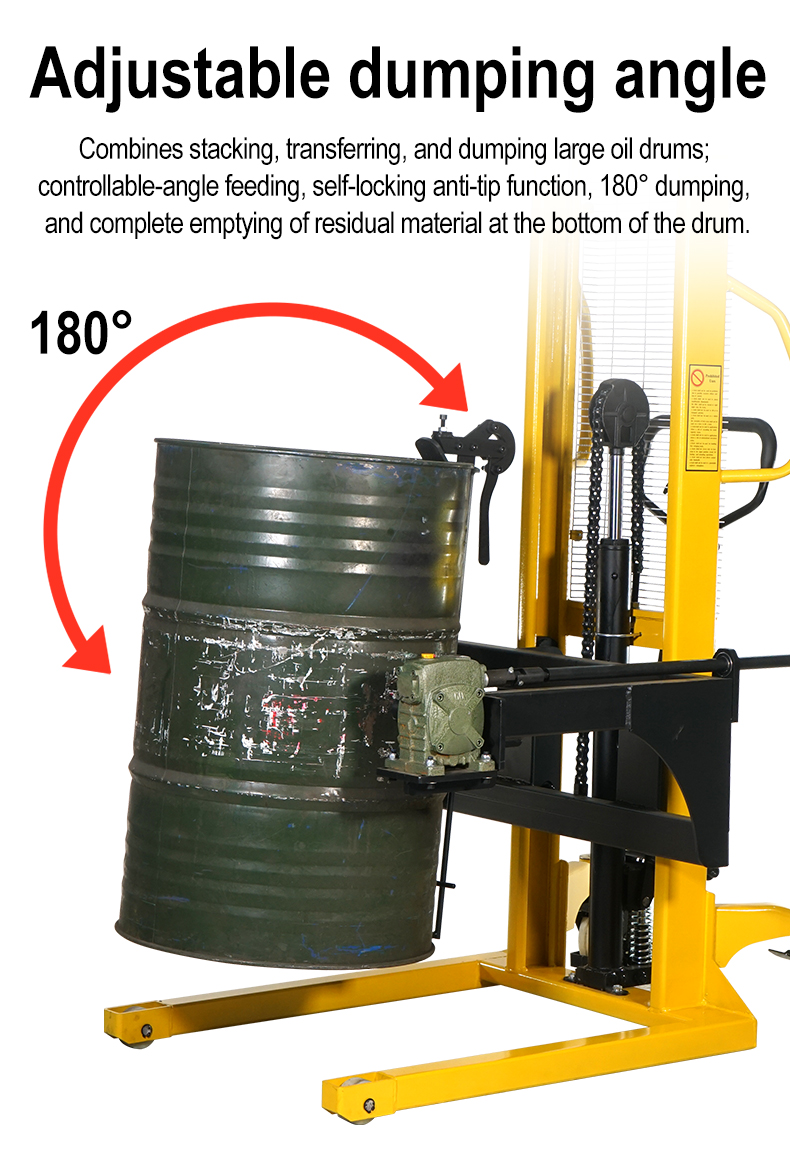

- 180° Controlled Drum Rotation — Hand-cranked rotation supports controlled pouring, unloading, feeding, and batching.

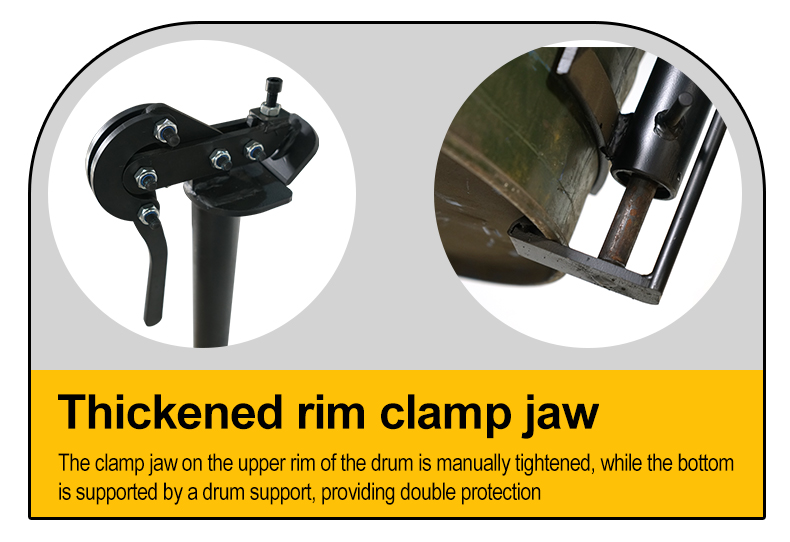

- Double-Locking Drum Support — A thickened upper-rim clamp jaw and bottom drum hook provide additional holding security.

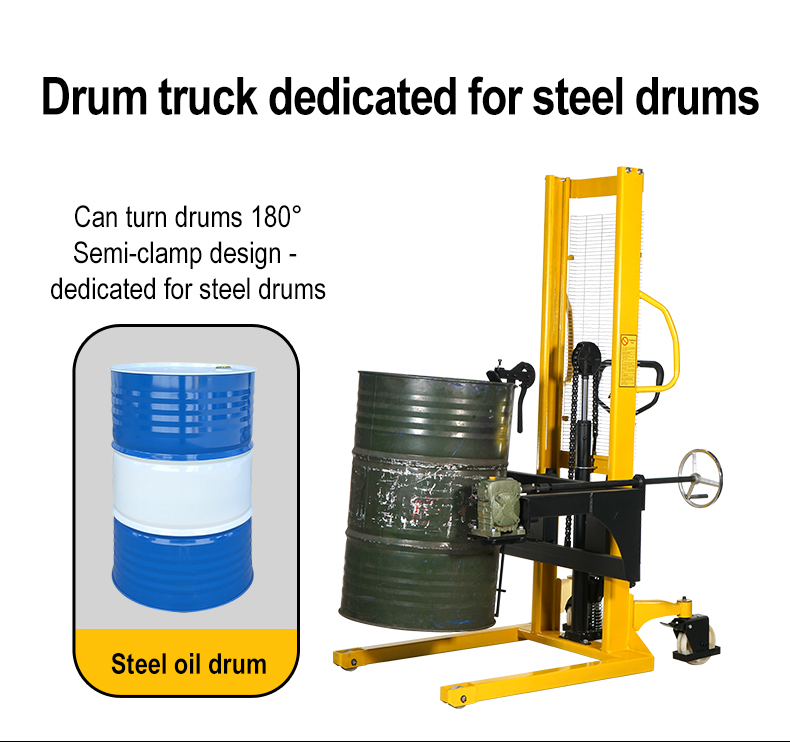

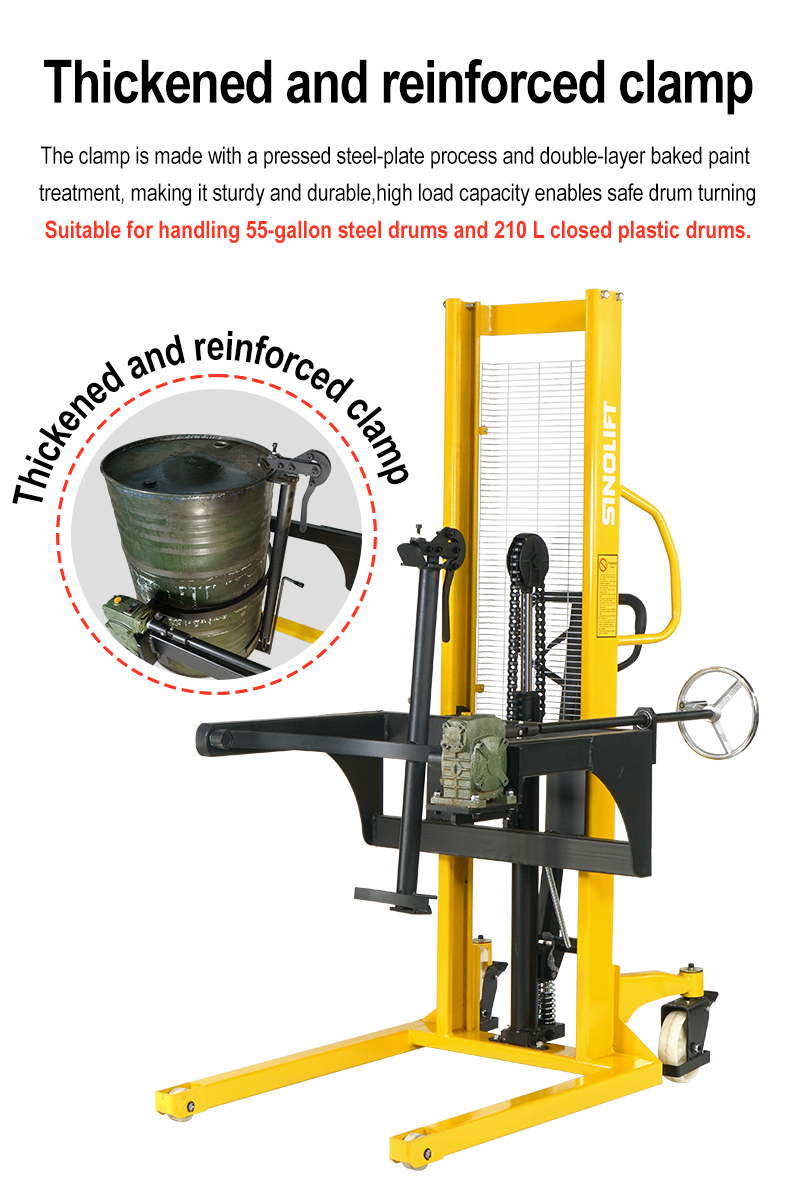

- Steel Drum Semi-Clamp Structure — Designed for compatible steel drums; drum size and rim compatibility should be confirmed before ordering.

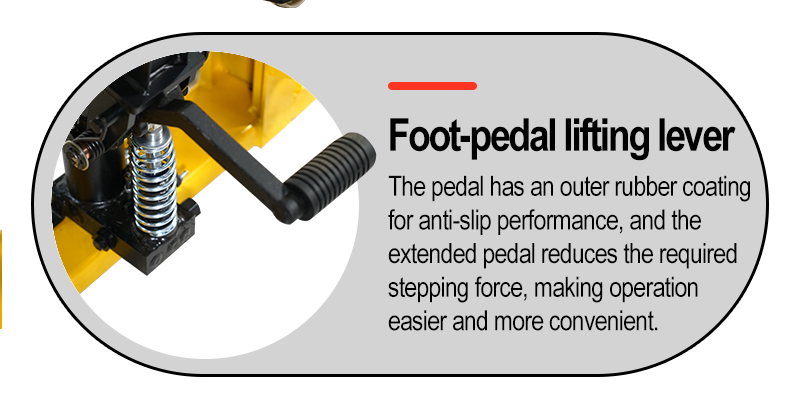

- Foot-Pedal Hydraulic Lifting — Reduces operator effort and improves efficiency during repeated handling tasks.

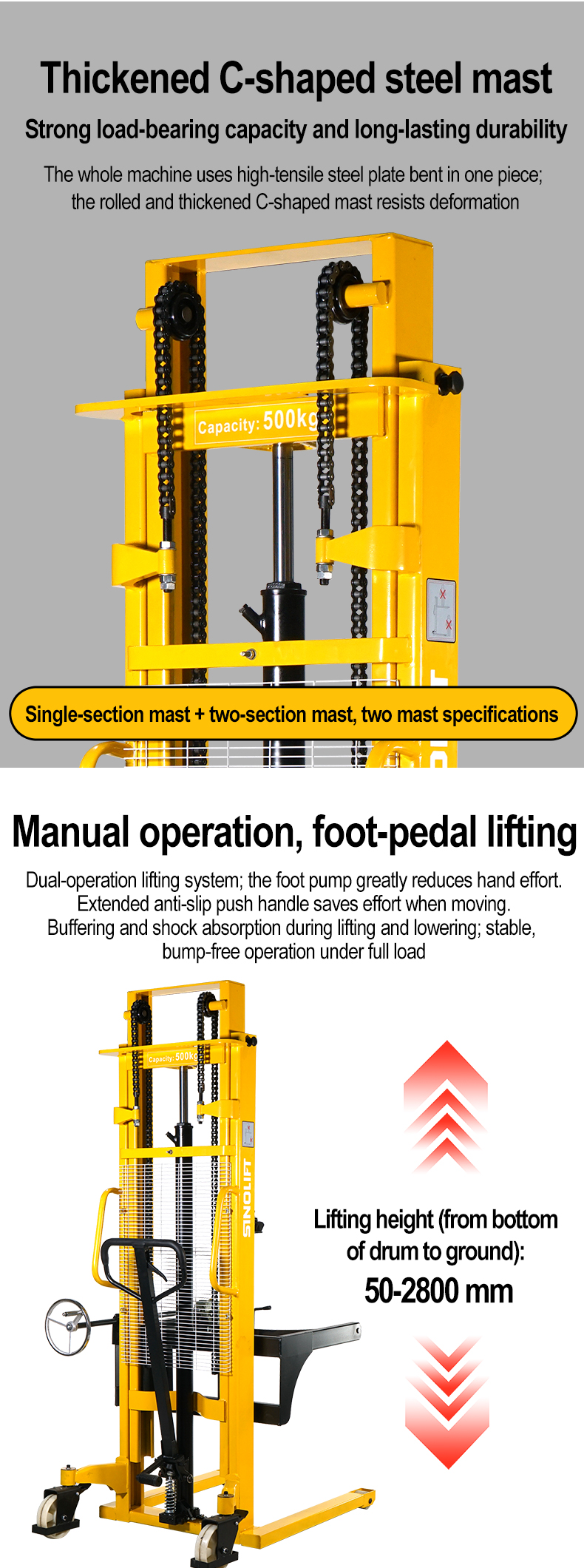

- Thickened C-Shaped Steel Mast — High-strength mast construction resists deformation and supports stable lifting.

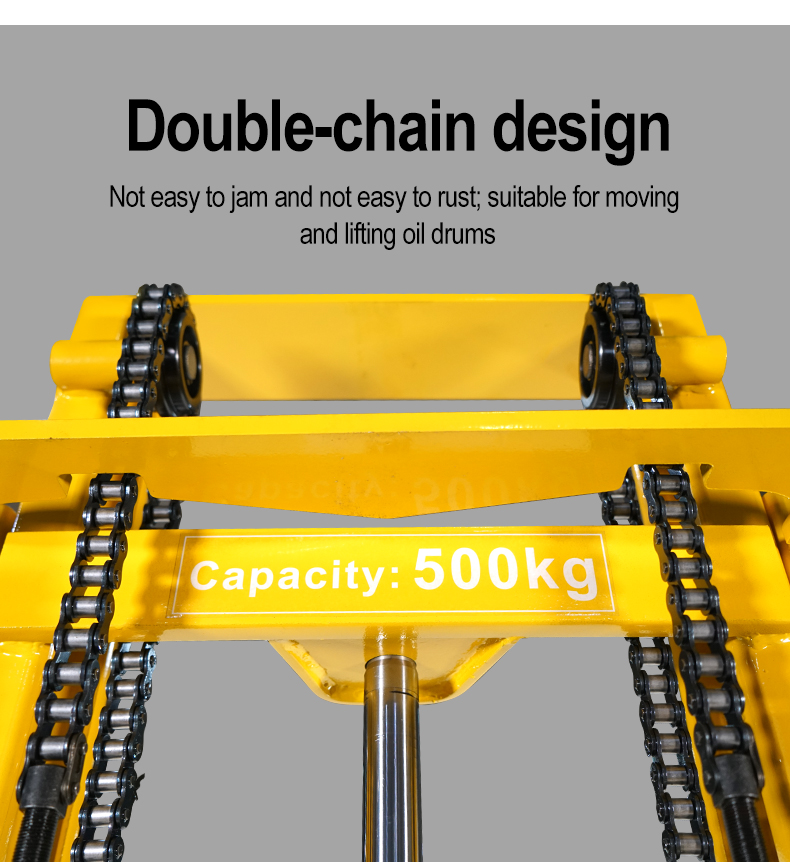

- Composite Double-Chain System — Durable lifting chains provide smooth operation and are less prone to jamming or rusting.

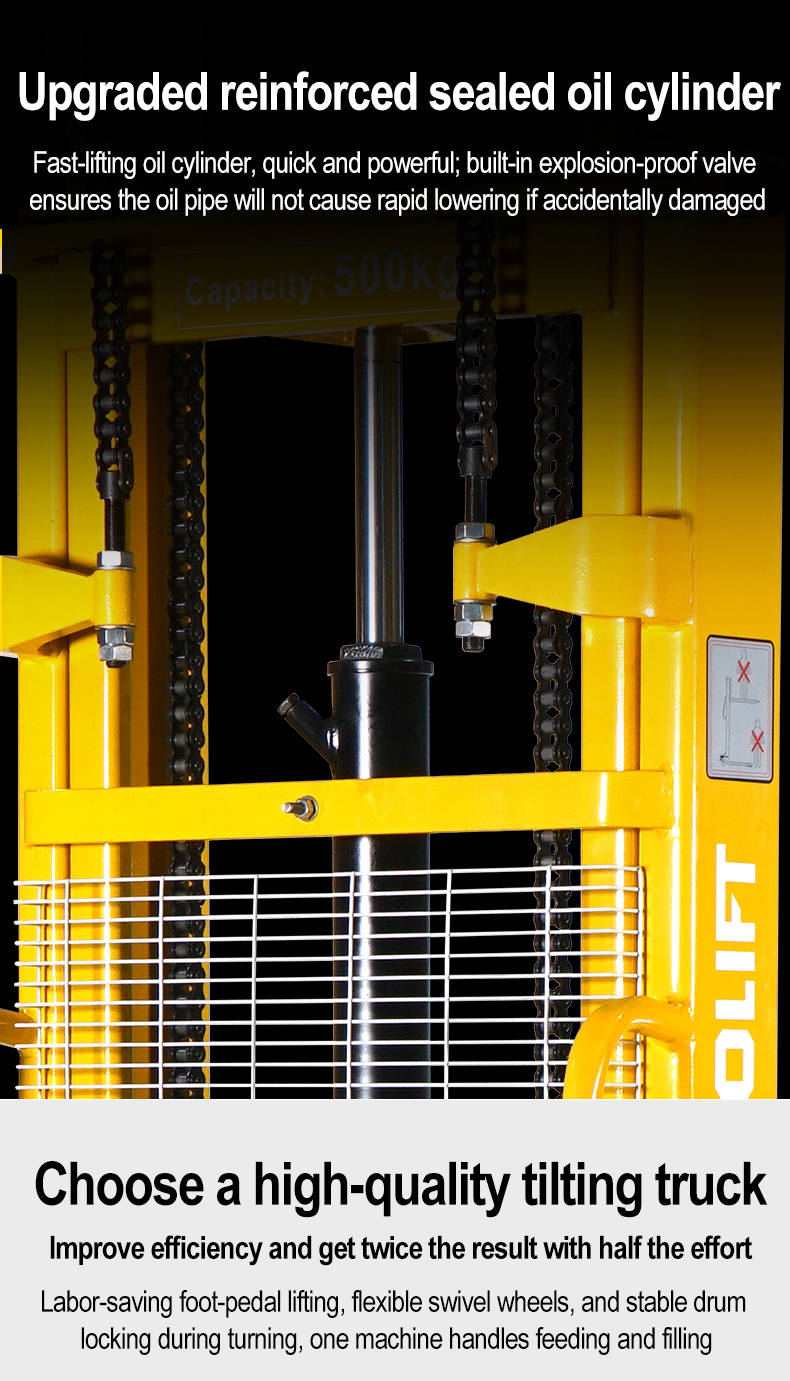

- Safety Hydraulic Cylinder — Upgraded sealed cylinder with a built-in safety valve helps prevent sudden lowering in abnormal conditions.

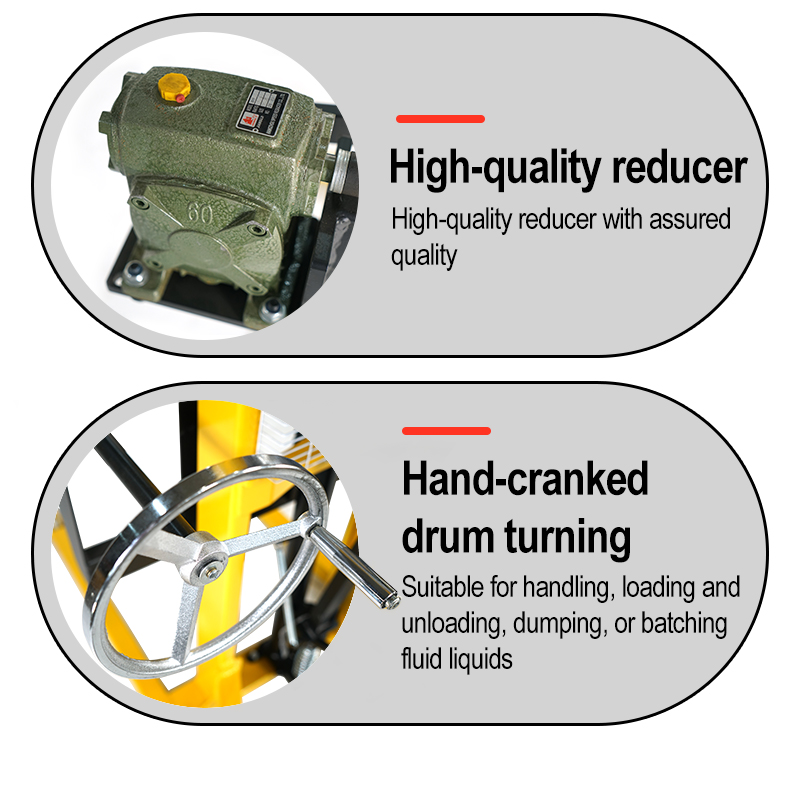

- High-Quality Geared Reducer — Supports steady hand-cranked drum turning with a 1:12 reduction ratio.
- Controlled Lifting & Lowering — Lifting speed of at least 20 mm per stroke and controllable lowering support smoother operation.

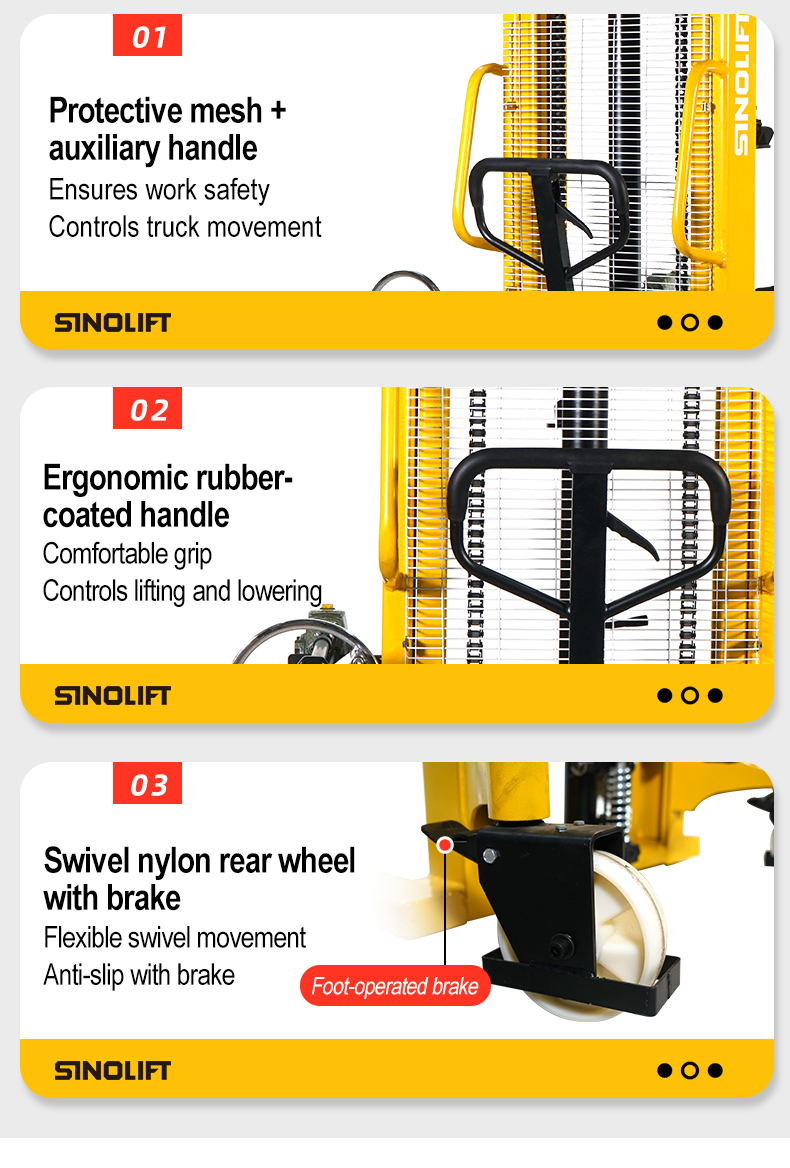

- Ergonomic & Safe Handling — Rubber-coated handles, protective mesh, swivel rear wheels with brake, and nylon wheels improve control and safety.
Applications
- Heavy-Duty Steel Oil Drum Handling
- Loading, Unloading & Controlled Pouring
- Chemical, Oil & Coating Production
- Warehouse, Factory & Workshop Operations
- Feeding, Dispensing & Batching Applications
- Power-Free Drum Handling Locations
Specifications
Handling & Performance
| Parameter | Value |
|---|---|
| Rated Capacity | 500 kg |
| Drum Rotation Angle | 180° |
| Drum Clamp Diameter | 600 mm |
| Min. Turning Radius | 1,200 mm |
| Lifting Speed | ≥20 mm/stroke |
| Lowering Speed | Controllable |
| Reduction Ratio | 1:12 |
Wheels & Operation
| Parameter | Value |
|---|---|
| Lift Type | Manual Hydraulic |
| Drum Rotation | Hand Crank |
| Power Source | None Required |
| Front Wheel Diameter | 78 mm |
| Rear Wheel Diameter | 180 mm |
| Rear Wheel Brake | Included |
| Recommended Drum Type | Compatible Steel Drums |

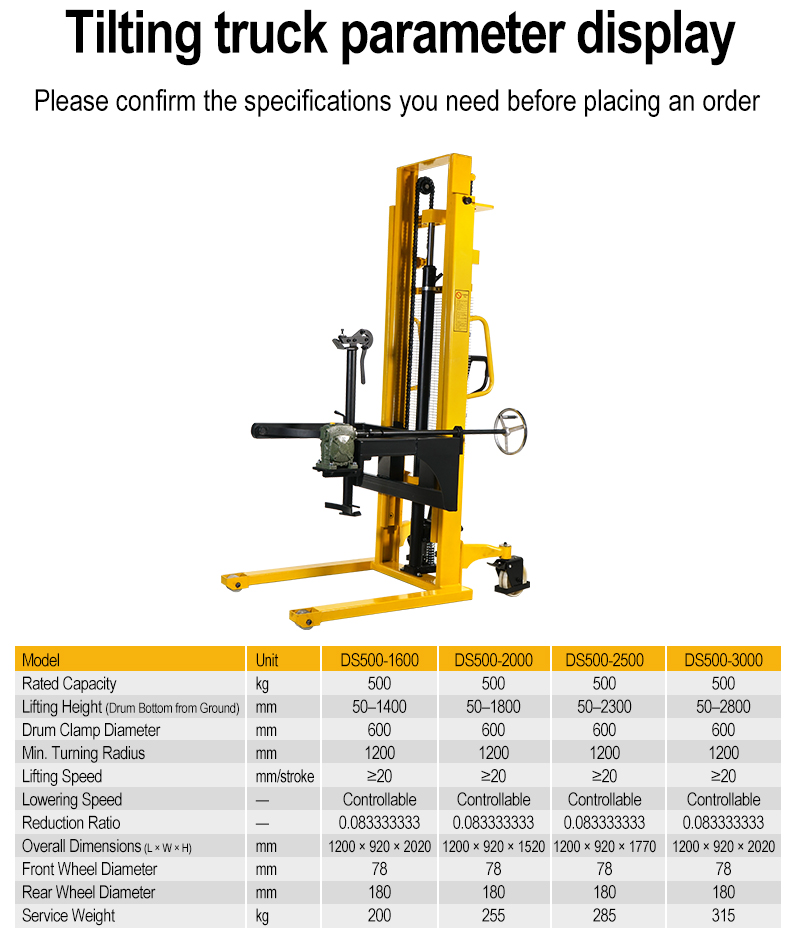

Model Comparison
| Parameter | DS500-1600 | DS500-2000 | DS500-2500 | DS500-3000 |
|---|---|---|---|---|
| Rated Capacity | 500 kg | 500 kg | 500 kg | 500 kg |
| Lifting Height (Drum Bottom from Ground) | 50–1,400 mm | 50–1,800 mm | 50–2,300 mm | 50–2,800 mm |
| Overall Dimensions (L × W × H) | 1,200 × 920 × 2,020 mm | 1,200 × 920 × 1,520 mm | 1,200 × 920 × 1,770 mm | 1,200 × 920 × 2,020 mm |
| Service Weight | 200 kg | 255 kg | 285 kg | 315 kg |
Specifications are subject to change without notice. The semi-clamp structure is intended for compatible steel drums. Please confirm drum diameter, rim design, and application requirements with SINOLIFT before ordering.
