EZ Counterweight Electric Mini Stacker

EZ

▲ Easier and faster lifting operation.
▲ High quality hydraulic motor made in Italy.
▲Maintenance-free battery and clear operating display.

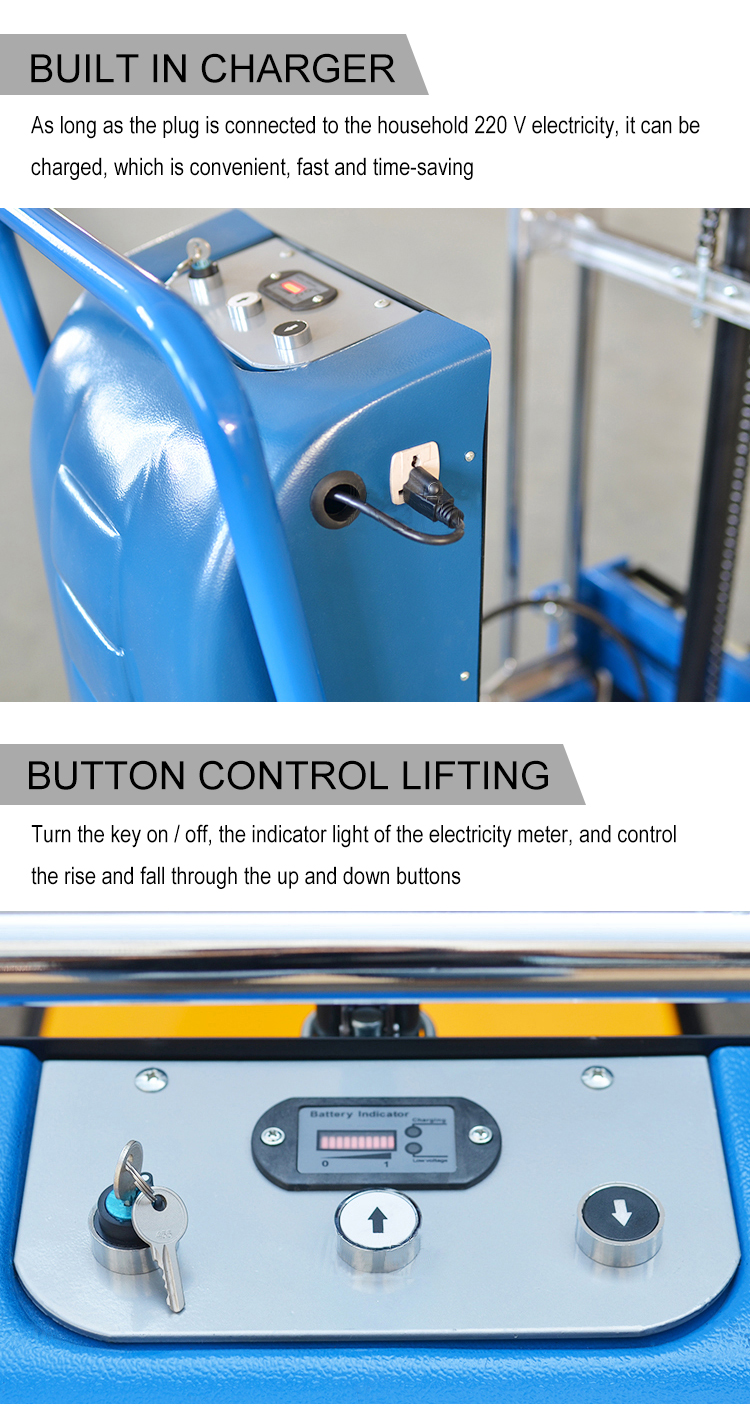

▲Built-in charge can be very convenient and safety
▲ Counter-weight structure ensure easily to enter into any load pallets.
▲ No-marking castor as standard.
▲ Conforms to EN1757:1 2001.

Quantity

Contact Now

add to cart

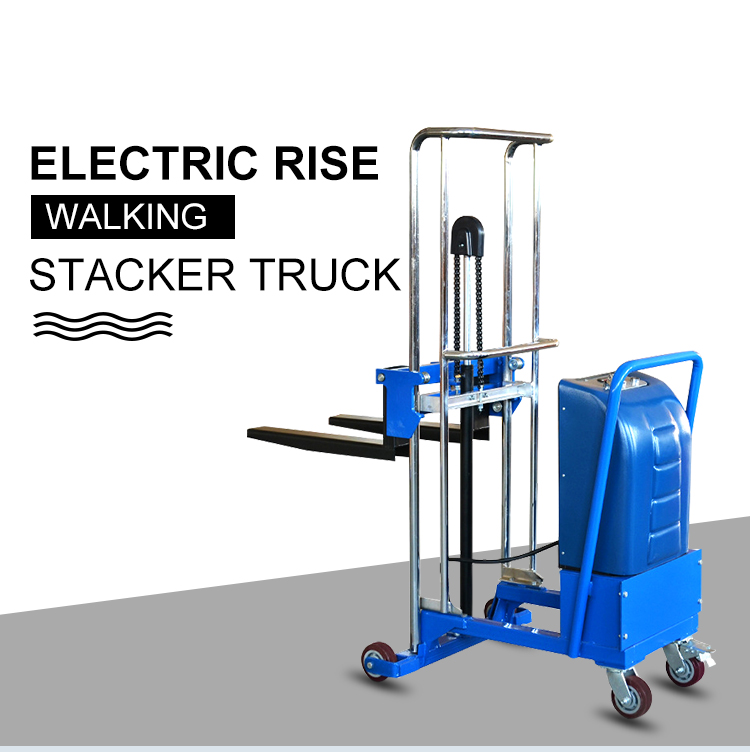

EZ Counterweight Electric Mini Stacker

▲ Electric Stacker is Easier and faster lifting operation.

▲ Electric Stacker is High quality hydraulic motor made in Italy.

▲Maintenance-free battery and clear operating display.

▲Built-in charge can be very convenient and safety

▲ Counter-weight structure ensure easily to enter into any load pallets.

▲ No-marking castor as standard.

▲ Conforms to EN1757:1 2001.

Model		Electric Stacker EZ2585	Electric Stacker EZ2512	Electric Stacker EZ2515
Capacity	(kg)	200~250	150~250	150~250
Max. Fork Height	H (mm)	750	1100	1400
Min. Platform Height	H1 (mm)	20(60)	20(60)	20(60)
Fork Size	L1 (mm)	550x70	550x70	550x70
Fork Size	W (mm)	600x100	600x100	600x100
Fork Adjustable Width	D (mm)	155~550 (superlow) 215~550 (standard)
Front Load Wheel	d (mm)	Ø125x50	Ø125x50	Ø125x50
Rear Steering Wheel	d (mm)	Ø125x50	Ø125x50	Ø125x50
Lifting Speed (Laden/Unladen)	mm/s	95/130	95/130	95/130
Lowering Speed (Laden/Unladen)	mm/s	115/65	115/65	115/65
Power Unit	V/kw	12/0.8	12/0.8	12/0.8
Battery	V/Ah	12/60	12/60	12/60
Net Weight(PS/EP)	(kg)	218	225	230
Noise-free Castor		O	O	O
Option Platform: LP
Note: Specification and materials are subject to change without notice.
