EPV Custom Semi-Electric Roll Handling Stacker for Paper & Film Rolls
Product Introduction

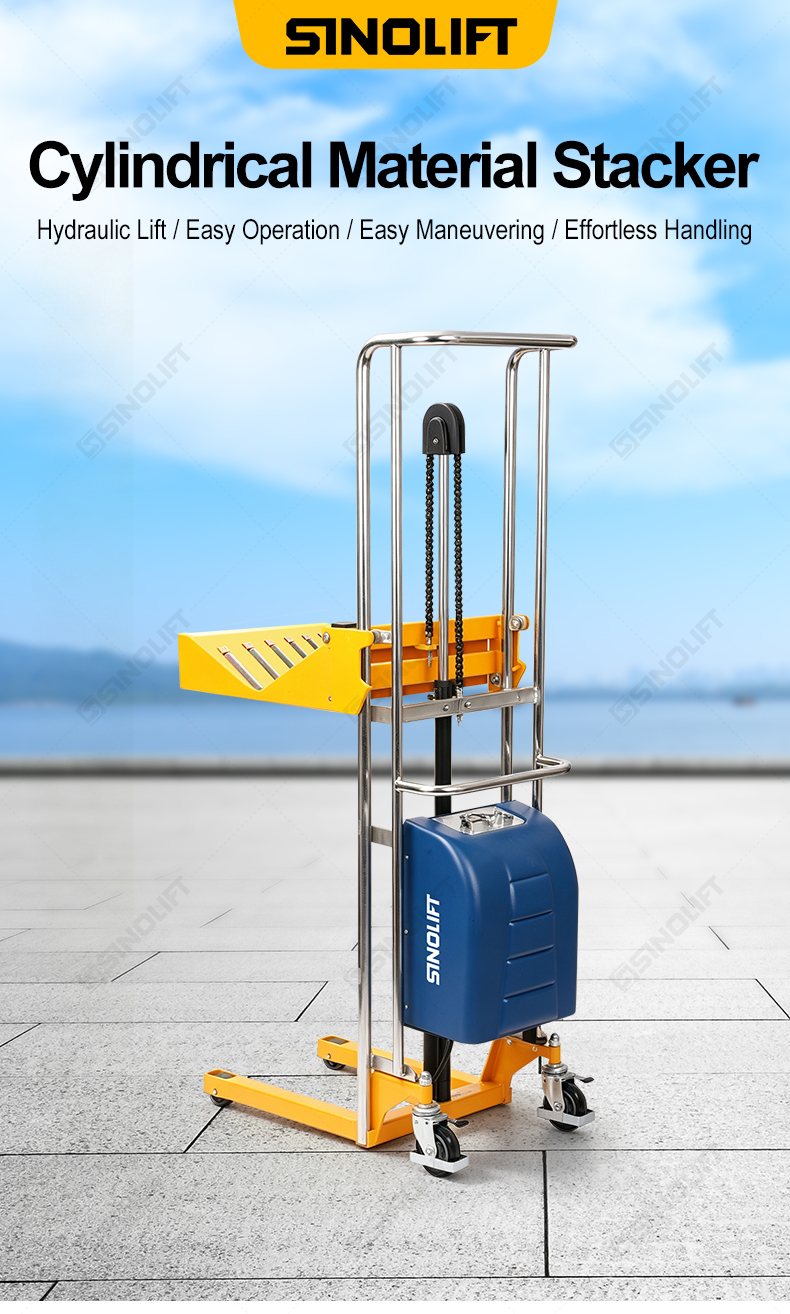

The EPV Semi-Electric Roll Handling Stacker is designed to reduce manual effort when lifting and positioning paper rolls, film rolls, drums and other cylindrical materials in warehouses, workshops, printing plants and packaging areas. It combines manual maneuvering with push-button electric lifting, giving operators a practical balance of flexibility, efficiency and control. A V-shaped roll platform and customizable dimensions help the truck adapt to different roll sizes, lifting heights and handling requirements.
Feature Overview
Feature | Description |
Semi-Electric Operation | Manual travel with powered lifting reduces physical effort while keeping the truck easy to position in compact work areas. |

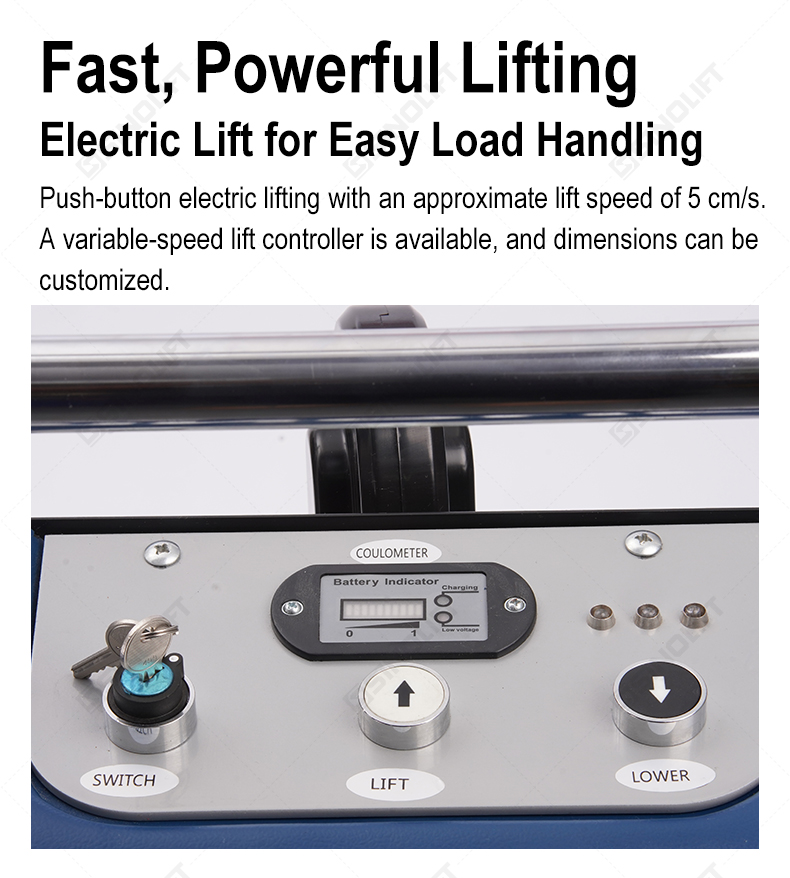

Push-Button Electric Lift | Electric lifting provides smooth and efficient vertical movement for frequent roll handling tasks. |

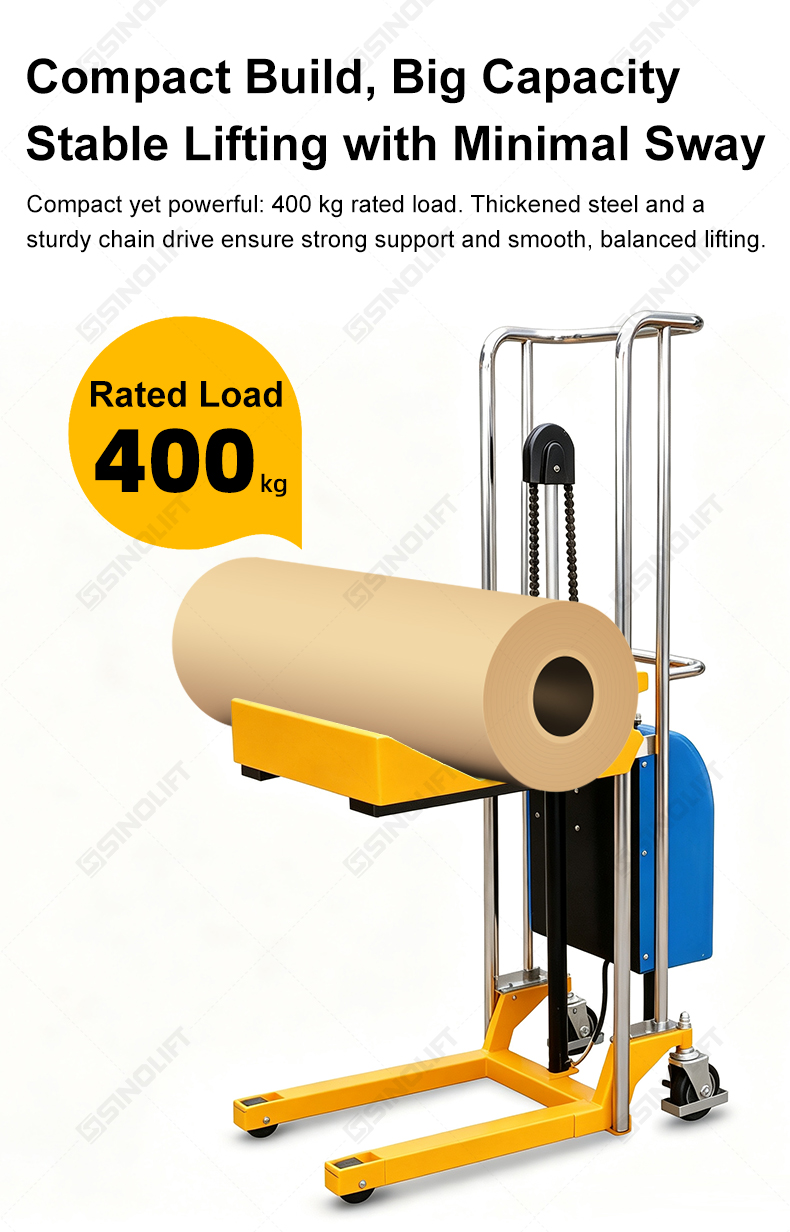

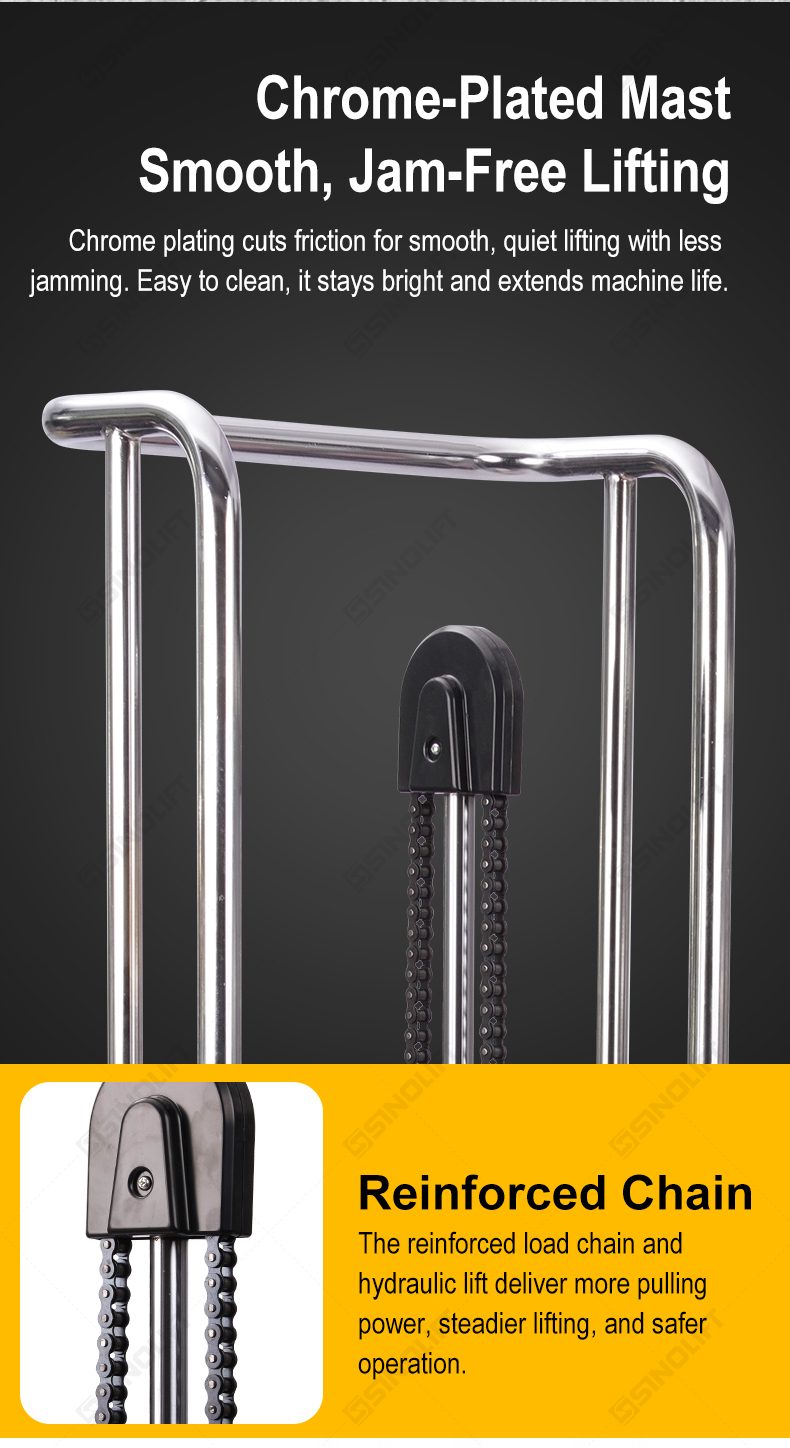

400 kg Rated Load | A reinforced steel structure and stable chain lifting system provide dependable support for roll-handling applications. |

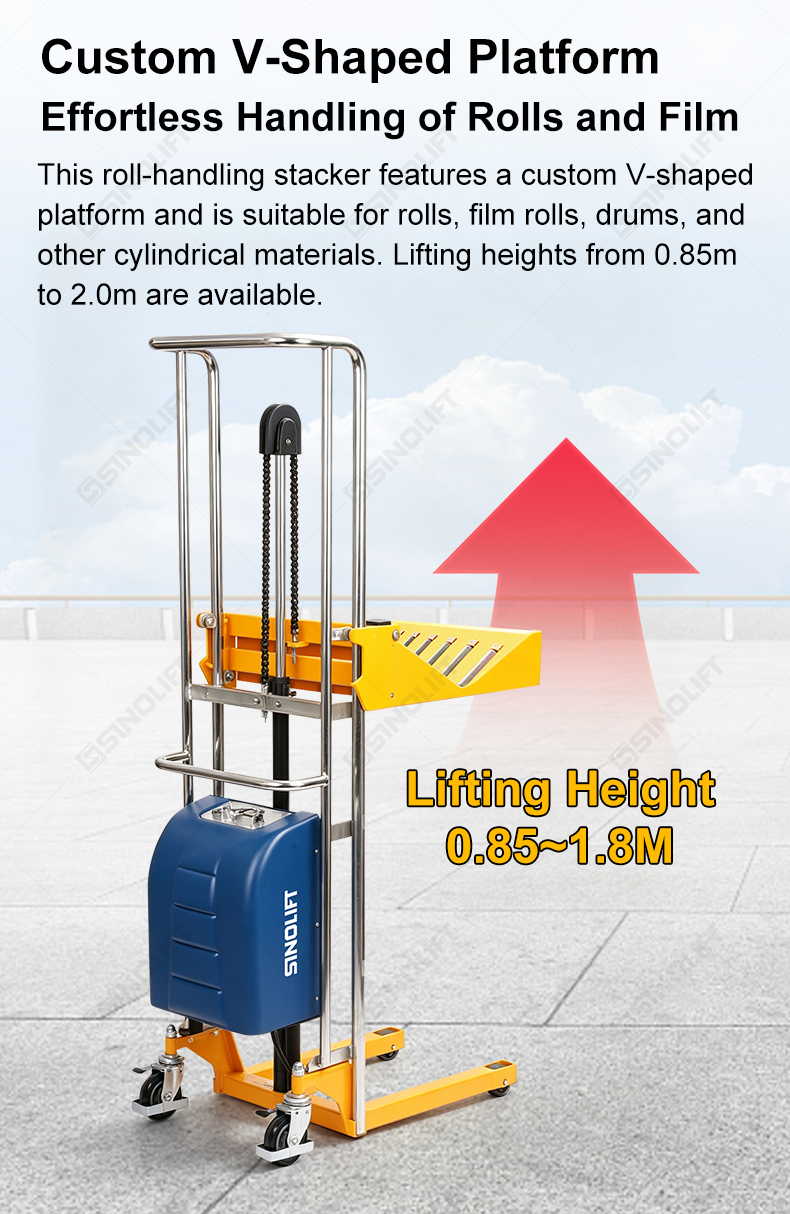

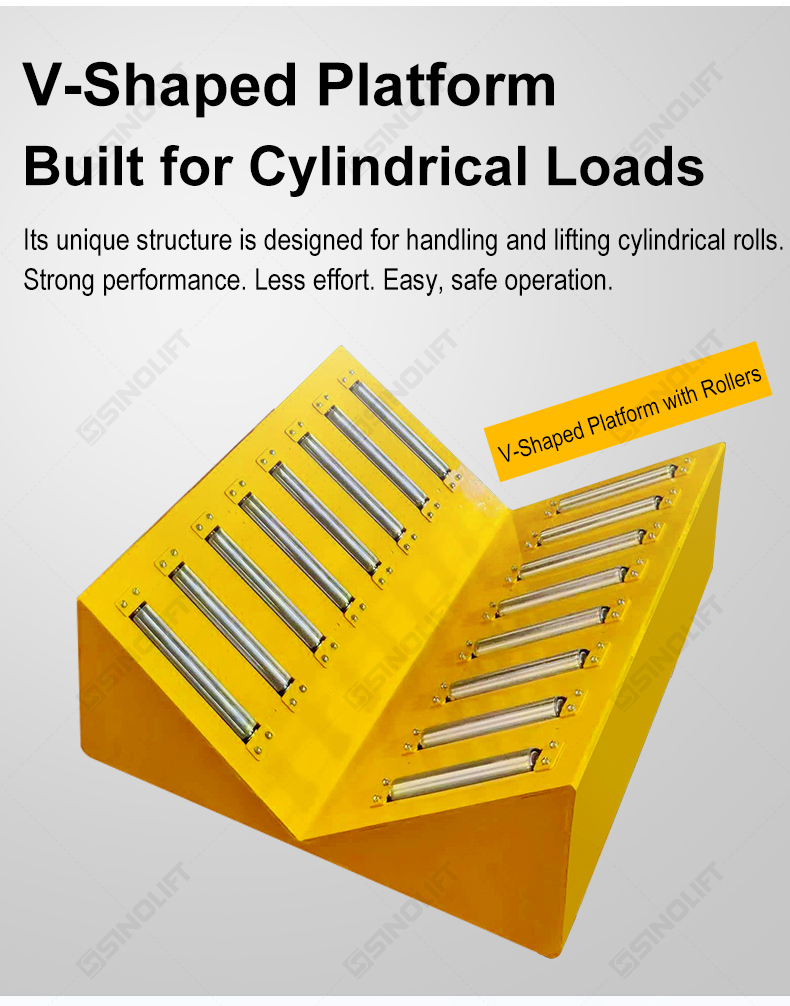

Custom V-Shaped Platform | The roll cradle can be adapted to different roll diameters, lengths and material types for a better fit. |
Custom Lift Height | Lift heights from approximately 0.85 m to 2.0 m can be configured according to the application. |

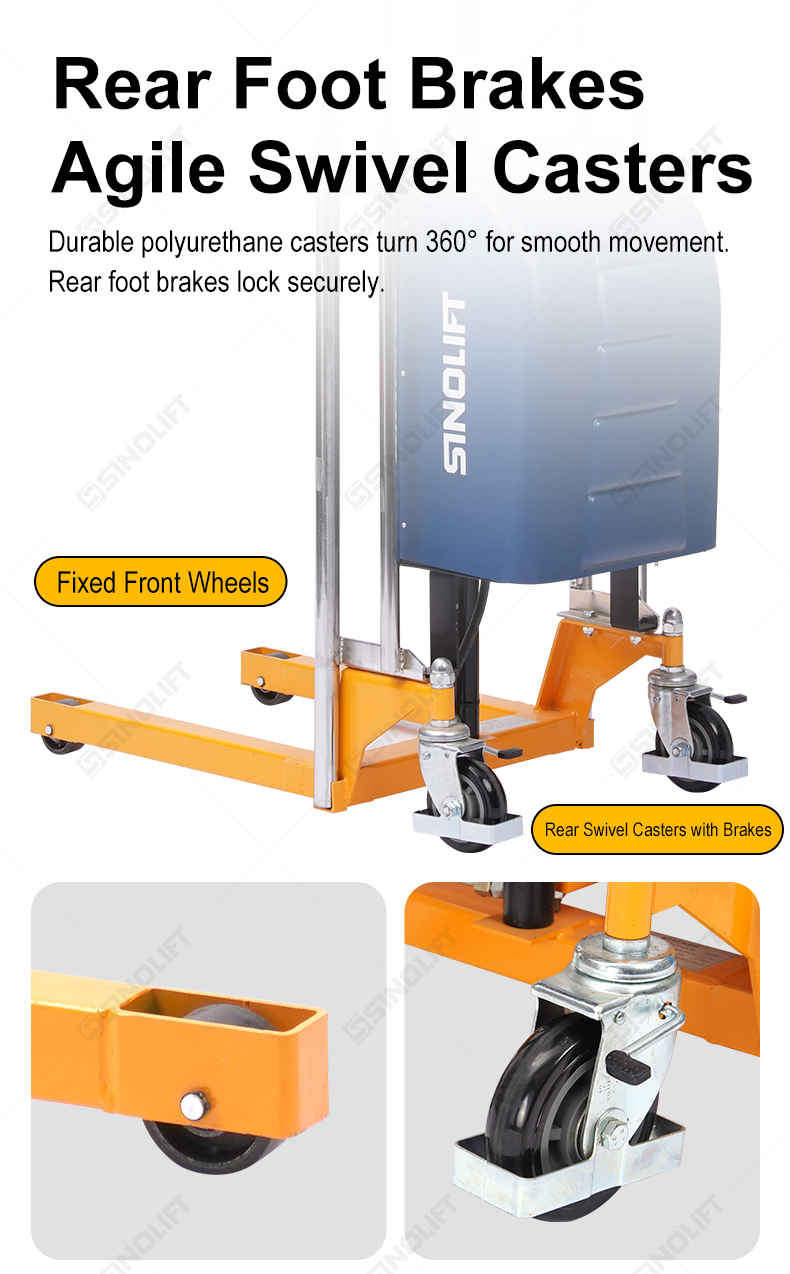

Flexible Manual Maneuvering | Polyurethane swivel casters and rear foot brakes support easy positioning and secure parking during loading and unloading. |

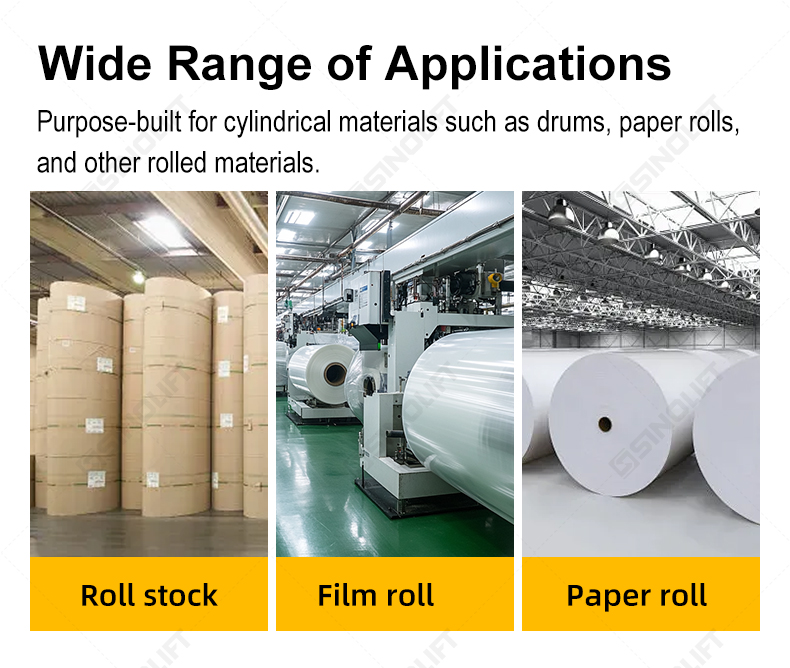

Applications
The EPV Semi-Electric Roll Handling Stacker is suitable for indoor handling tasks where cylindrical materials need to be moved, lifted and positioned with less manual effort. Typical applications include:
•Printing and paper-converting facilities handling paper rolls and roll stock.

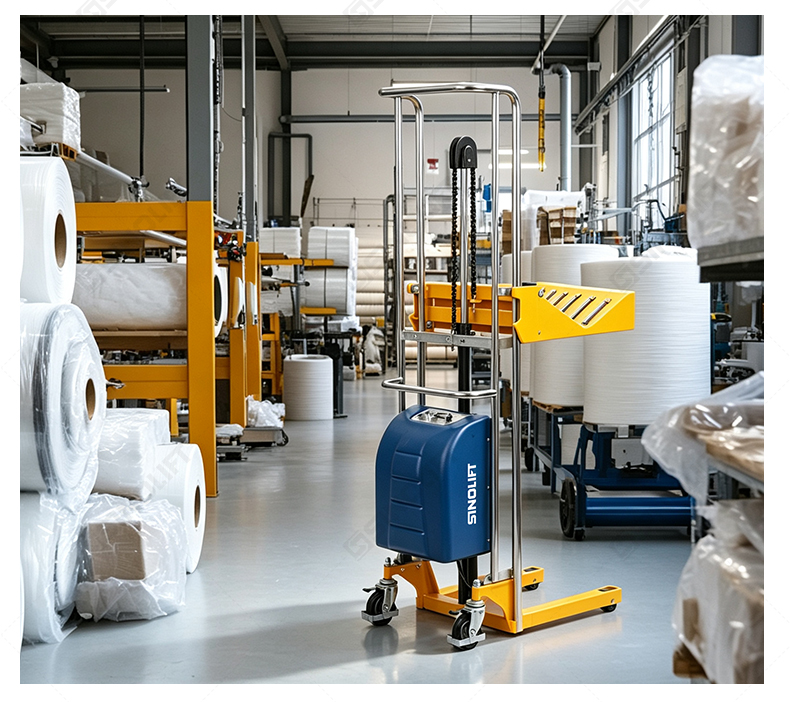

•Flexible packaging and film production areas handling plastic film rolls and similar materials.
•Warehouses and storage areas that require roll transfer between floor level, racks, worktables or processing equipment.
•Workshops and production lines handling drums or other cylindrical materials within the truck's configured size and load range.
•Sites requiring a customized roll platform, lift height or overall dimensions to match specific handling workflows.

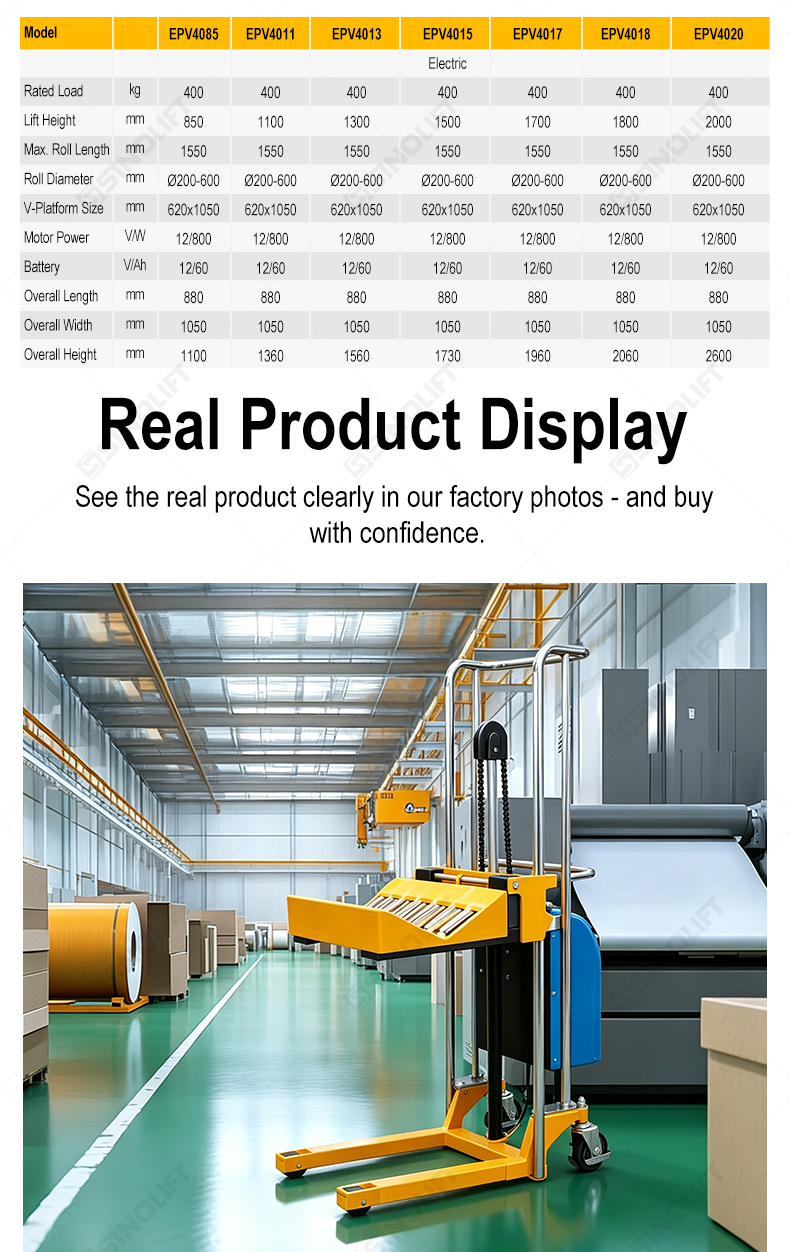

| Model No. | EPV4085 | EPV4011 | EPV4013 | EPV4015 | EPV4017 | EPV4018 | EPV4020 | |
| Operation | Electric | |||||||
| Load capacity | (kg) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Lifting Height | (mm) | 850 | 1100 | 1300 | 1500 | 1700 | 1800 | 2000 |
| Max.width of reel/roll | (mm) | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
| Min.- Max.diameter of reel/roll | (mm) | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 | Ø200-600 |
| Reel V-Tray Wdith x Length | (mm) | 620x1050 | 620x1050 | 620x1050 | 620x1050 | 620x1050 | 620x1050 | 620x1050 |

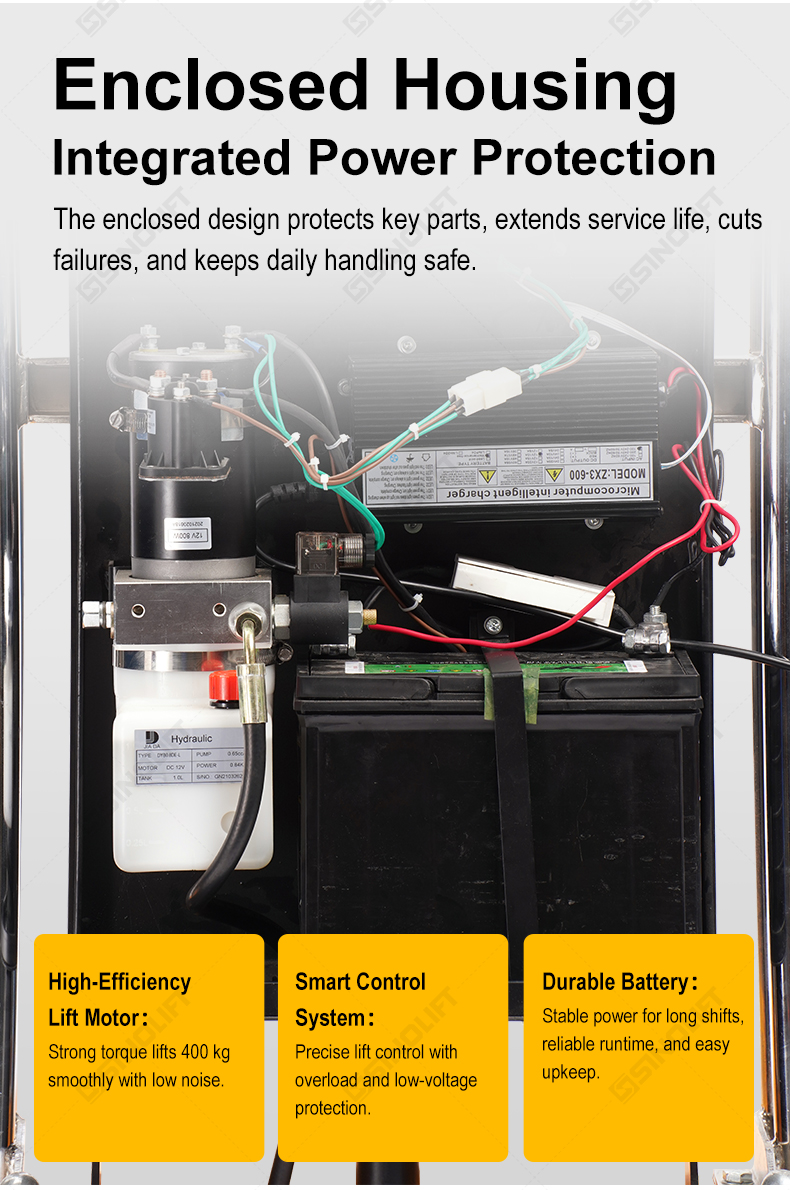

| Power Unit | V/W | 12/800 | 12/800 | 12/800 | 12/800 | 12/800 | 12/800 | 12/800 |
| Battery | V/Ah | 12/60 | 12/60 | 12/60 | 12/60 | 12/60 | 12/60 | 12/60 |
| Overall Length | (mm) | 880 | 880 | 880 | 880 | 880 | 880 | 880 |
| Overall Wdith | (mm) | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 | 1050 |
| Overall Height | (mm) | 1100 | 1360 | 1560 | 1730 | 1960 | 2060 | 2600 |
FAQ
1. Is the EPV Roll Handling Stacker fully electric?
No. The EPV is a semi-electric roll handling stacker: lifting and lowering are powered electrically, while travel and steering are manual. This configuration is well suited to indoor applications that need powered lifting but do not require powered travel.
2. What types of rolls and cylindrical materials can the EPV handle?
The EPV can be configured for paper rolls, film rolls, roll stock, drums and other cylindrical materials. Suitability depends on the actual load weight, diameter, length, surface condition and the way the load needs to be picked up or positioned, so these details should be confirmed before production.
3. Can the V-shaped platform and lifting height be customized?
Yes. This is a customized product, and the V-platform size, overall dimensions and lifting height can be adapted to the customer's roll specifications and working environment. Providing the roll diameter, roll length, maximum load weight, required lifting height and site restrictions helps ensure a more suitable configuration.
4. Why is a V-shaped platform used for roll handling?
A V-shaped platform supports a cylindrical load from both sides and helps limit rolling during lifting and transport. Compared with a flat platform, it provides a more natural contact geometry for round materials, but the platform dimensions still need to match the roll size for stable handling.
5. What information should I provide before ordering an EPV roll handling stacker?
Please provide the maximum roll weight, roll diameter, roll length, required lifting height and the height or position where the roll must be placed. It is also useful to provide aisle width, doorway dimensions, floor conditions, handling frequency and any special platform or site requirements so the truck can be configured correctly.
