SINOLIFT CPD500-R720 Electric Clamping Truck for Smoother Roll Handling

author: Janice
2026-09-28

SINOLIFT CPD500-R720 Electric Clamping Truck for Smoother Roll Handling

A roll can move through several stages before it reaches a production machine. It may arrive in storage upright, travel across the factory, and then need to be raised and turned for the next process. For printing, packaging and material-processing operations, each transition calls for careful control of a heavy cylindrical load. The SINOLIFT CPD500-R720 Stand-on Electric Clamping Truck brings electric travel, lifting, clamping and rotation together, helping operators manage these connected tasks with one machine.

SINOLIFT CPD500-R720 stand-on electric clamping truck with a film roll

The handling process begins with the way the truck approaches the material. Its counterbalance design leaves the front free of projecting support legs, offering greater flexibility when approaching rolls on pallets or at a workstation. This matters where a load is accessible from a particular side, or where pallet construction can interfere with the legs of a conventional stacker. The CPD500-R720 provides a practical starting point for these applications, with the final approach still determined by the load position and available clearance.

Once positioned, the circular clamp surrounds the roll to provide support during handling. Designed for cylindrical loads from 360 to 720 mm in diameter, it gives the truck a clear role in moving suitably sized paper, film and other rolled materials. Its rated load capacity is 500 kg, while the clamp design helps protect material surfaces. Matching the clamp to the actual roll remains important: weight and diameter establish the basic fit, and the material itself determines how it should be gripped.

Close-up of the circular clamp holding a film roll

Travel between storage and production can account for a substantial part of the handling cycle. The CPD500-R720 combines electric travel with a stand-on platform, allowing the operator to ride with the truck during transport. For facilities with repeated transfers or longer internal routes, this arrangement helps reduce the walking and manual pushing associated with moving rolls. The multifunction control handle keeps travel and key operating functions within reach, while the textured platform folds away when a more compact arrangement is needed for storage or manoeuvring.

At the destination, moving the roll into the right orientation becomes just as important as getting it there. With a specified lifting height of 2,000 mm and powered 360° clamp rotation, the truck can raise and turn a suitable load for the next handling step. A 90° lockable tilt function adds another positioning option. These functions are particularly relevant when the orientation used for storage differs from the one required for loading, unloading or production-line feeding.

Consider a packaging workflow in which a film roll must leave a storage area and be presented at a machine-side loading point. The useful sequence is straightforward: approach the roll, clamp it, lift it for transfer, travel to the workstation, and adjust its position for handover. By combining these movements in one truck, the CPD500-R720 can reduce the need to switch between separate transport and positioning equipment where the application allows. The benefit comes from continuity across the process, especially when the same transfer is repeated throughout the working day.

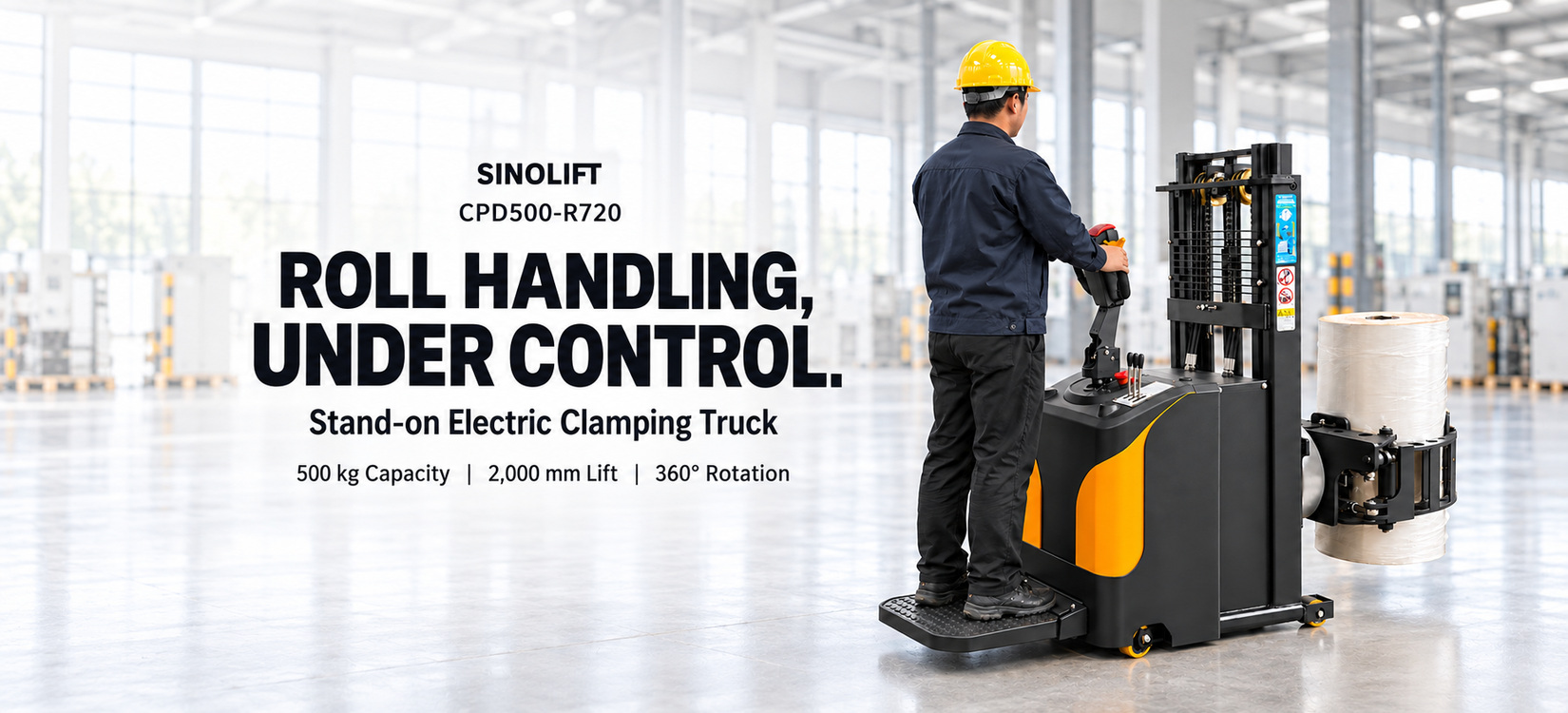

Operator using the SINOLIFT CPD500-R720 in a factory

That workflow also explains the model’s relevance to paper processing, textile production and general warehousing. Although the materials differ, the handling questions are similar: how is the roll stored, how far must it travel, and how should it arrive at the next station? The truck’s overall dimensions of 1,900 × 850 × 1,550 mm provide a starting point for planning the route. Aisle space, turning room, pallet layout and workstation access should then be considered alongside the roll dimensions and required lifting position.

The SINOLIFT CPD500-R720 is built around the relationship between transport and positioning. Its stand-on electric drive supports movement through the facility, while its lifting and rotating clamp prepares the roll for the next operation. For businesses reviewing how cylindrical materials move from storage to production, it offers a focused solution worth assessing against the real working process.

CONTACT SINOLIFT

To discuss your application with SINOLIFT, share the roll weight, diameter, material and required handling sequence, together with photos of the pickup and delivery points.

Visit www.sinoliftchina.com to learn more.
